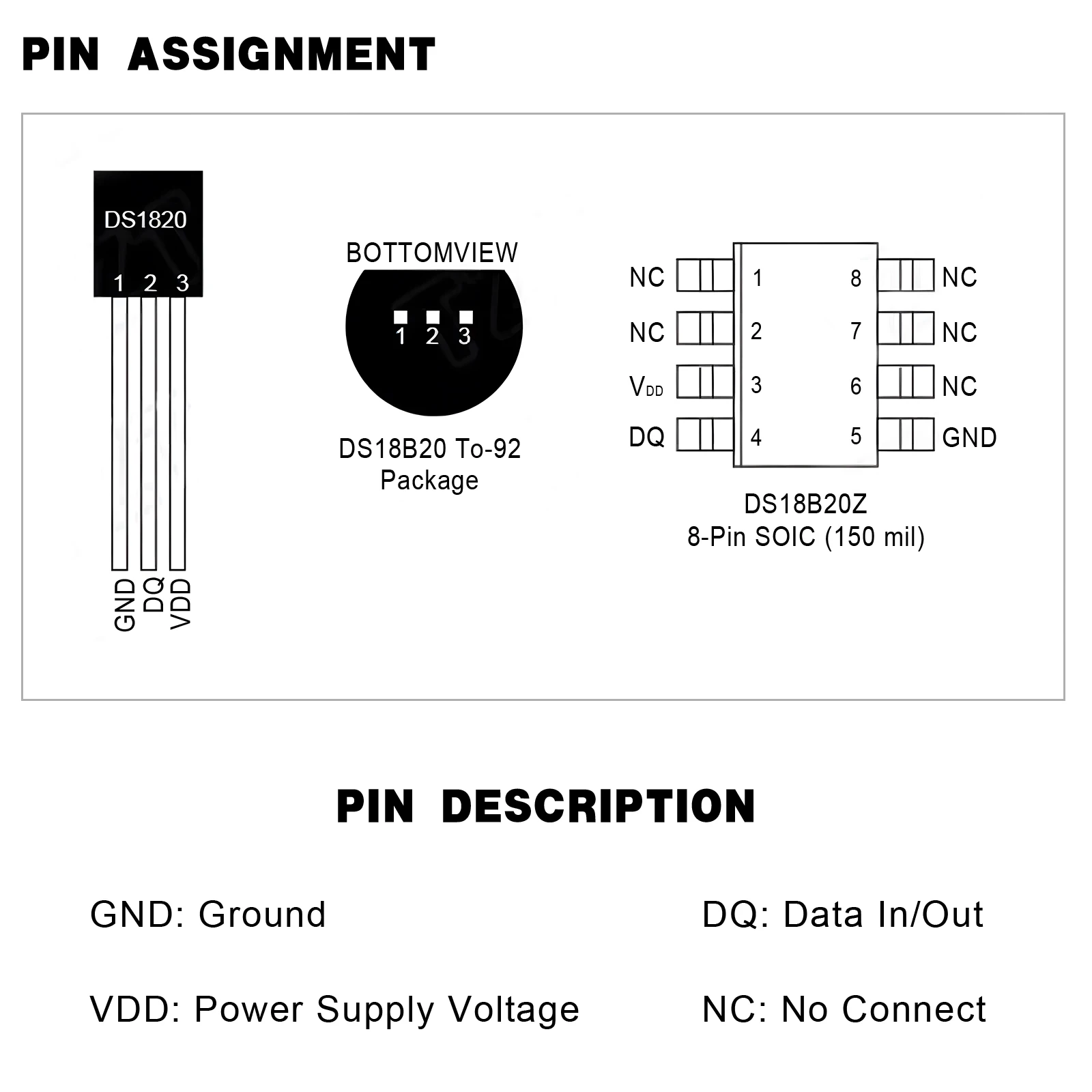

1. Unique 1-Wire interface requires only one port pin for communicationMultidrop capability simplifies distributed temperature sensing applications
2. Operating Voltage: 3V to 5.5V ; Temperature Range: -55°C to +125°C(-67°F to +257°F); Accuracy of+0.4 ° C within the temperature of -10 ℃ to 70 ℃.
3. With multi-point distributed temperature measurement function without the need for peripheral components.
4. Thermometer resolution is programmable from 9 to 12 bitsConverts 12-bit temperature to digital word in 750ms (max.)
5. Nonvolatile temperature alarm settings
6. Alarm search command identifies and identifies devices that exceed the set temperature.
7. Friction and collision resistance, small size, and easy to use.
8. Ultra strong electrostatic protection capability: HBM 8000V MM 800V
9. Widely Application: DS18B20 Temperature Sensor is widely used in temperature measurement and control in refrigerated warehouses, grain silos, storage tanks, telecommunications rooms, power rooms, cable trays, and other areas; Air conditioning, refrigerators, freezers, and medium and low temperature drying boxes; Heating/cooling pipeline heat metering, central air conditioning household heat metering, and industrial temperature measurement and control, any heat sensing system.
