The Pyroelectric infrared motion sensor can detect infrared signals from a moving person or moving animal, and output switching signals. It can be applied to a variety of occasions to detect the movement of human body. Conventional pyroelectric infrared sensors are much more bigger, with complex circuit and lower reliability.

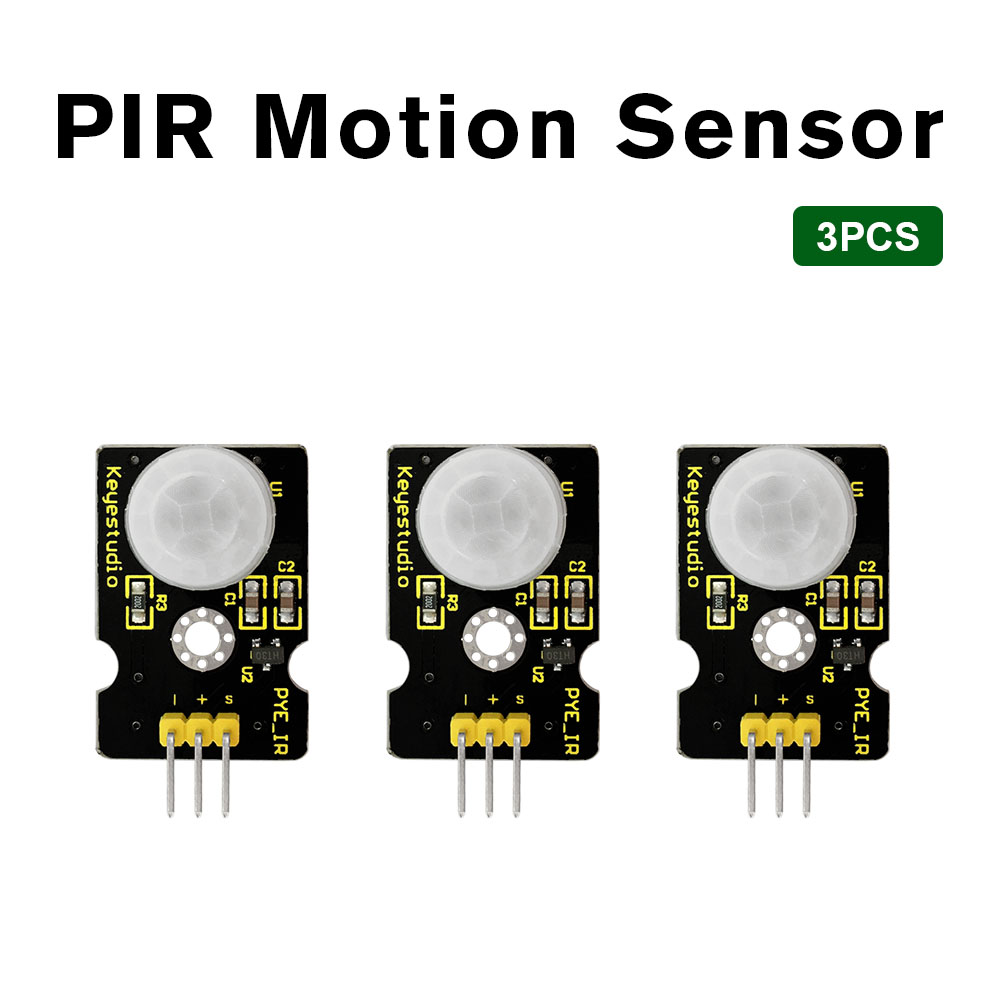

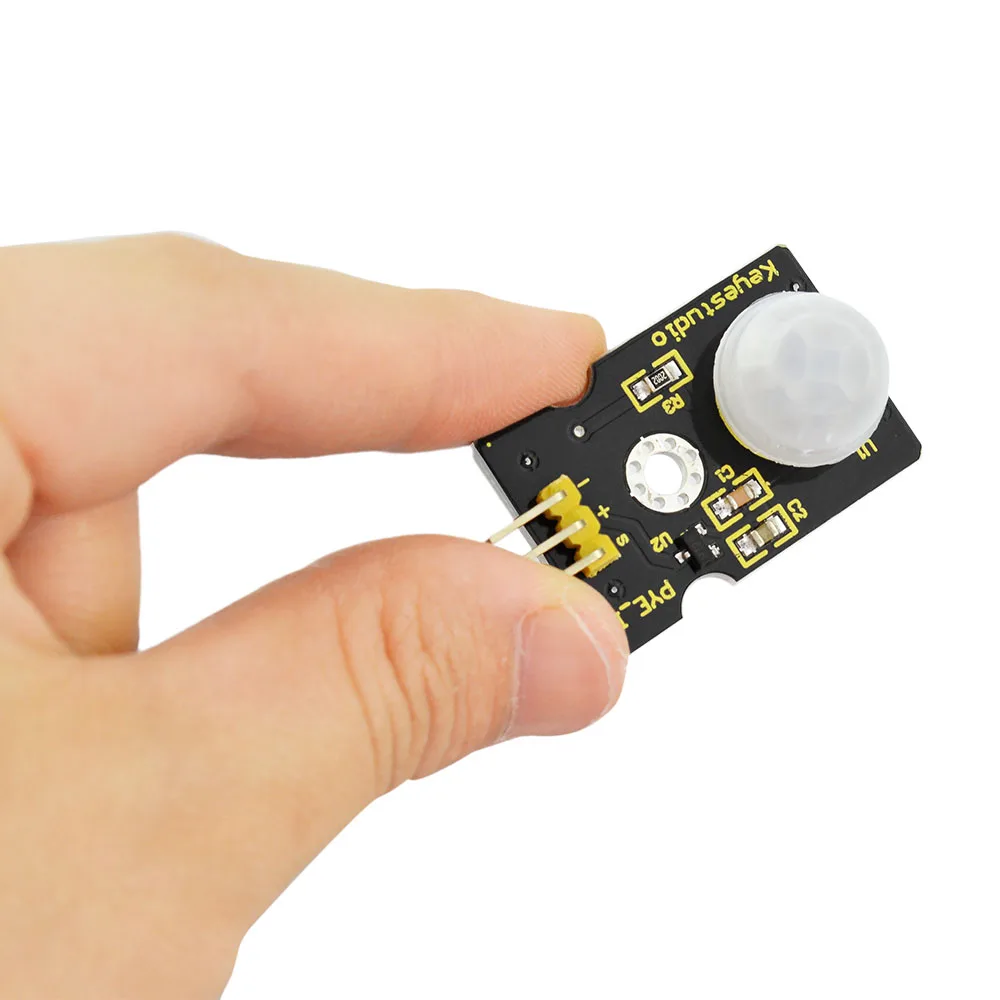

Now we launch this new pyroelectric infrared motion sensor, specially designed for Arduino. This sensor integrates an integrated digital pyroelectric infrared sensor, and the connection pins. It features higher reliability, lower power consumption and simpler peripheral circuit.
Features
-
smaller size and light weight
-
higher reliability
-
lower power consumption
-
simpler peripheral circuit
Parameters
-
Input Voltage: 3.3 ~ 5V, Maximum6V.
-
Working Current: 15uA
-
Working Temperature: -20 ~ 85 ℃
-
Output Voltage: High 3V, Low 0V
-
Output Delay Time (High Level): About 2.3 to 3 Seconds
-
Detection Angle: 100°
-
Detection Distance: 3-4 meters
-
Pin Limit Current: 100mA
