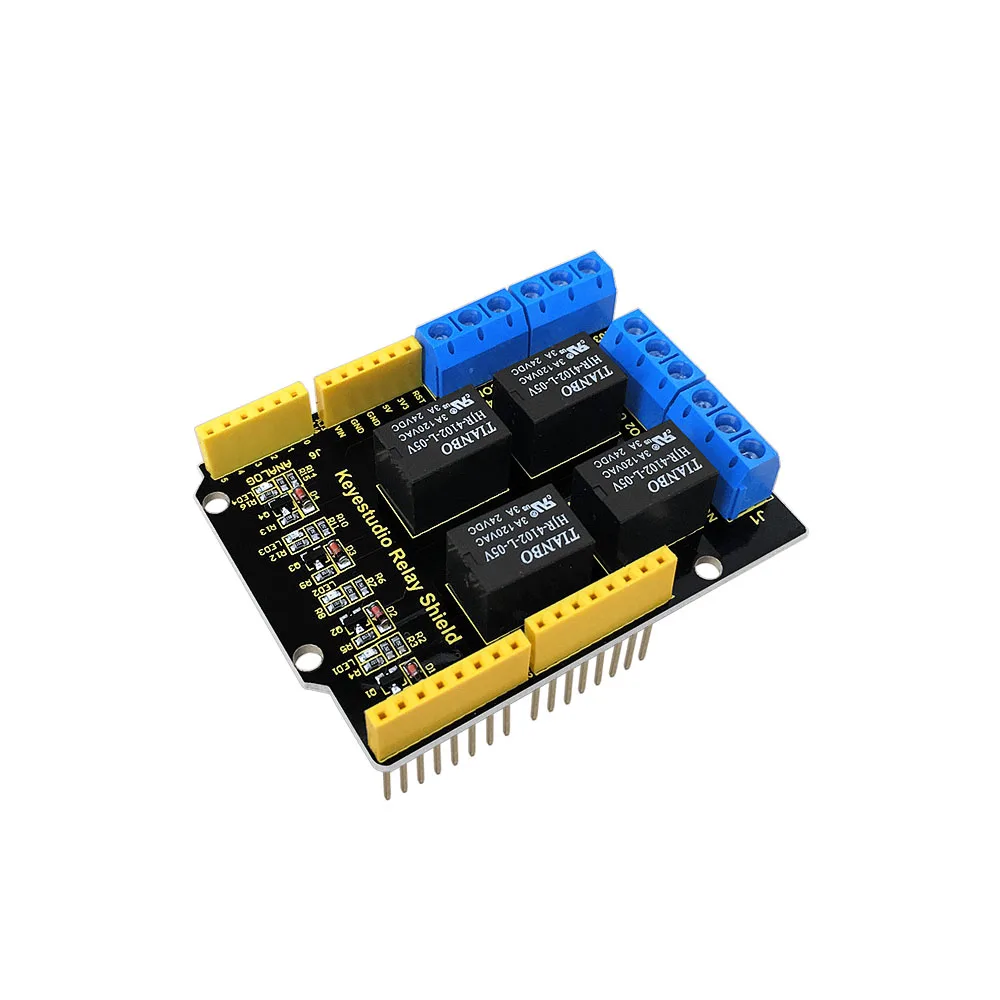

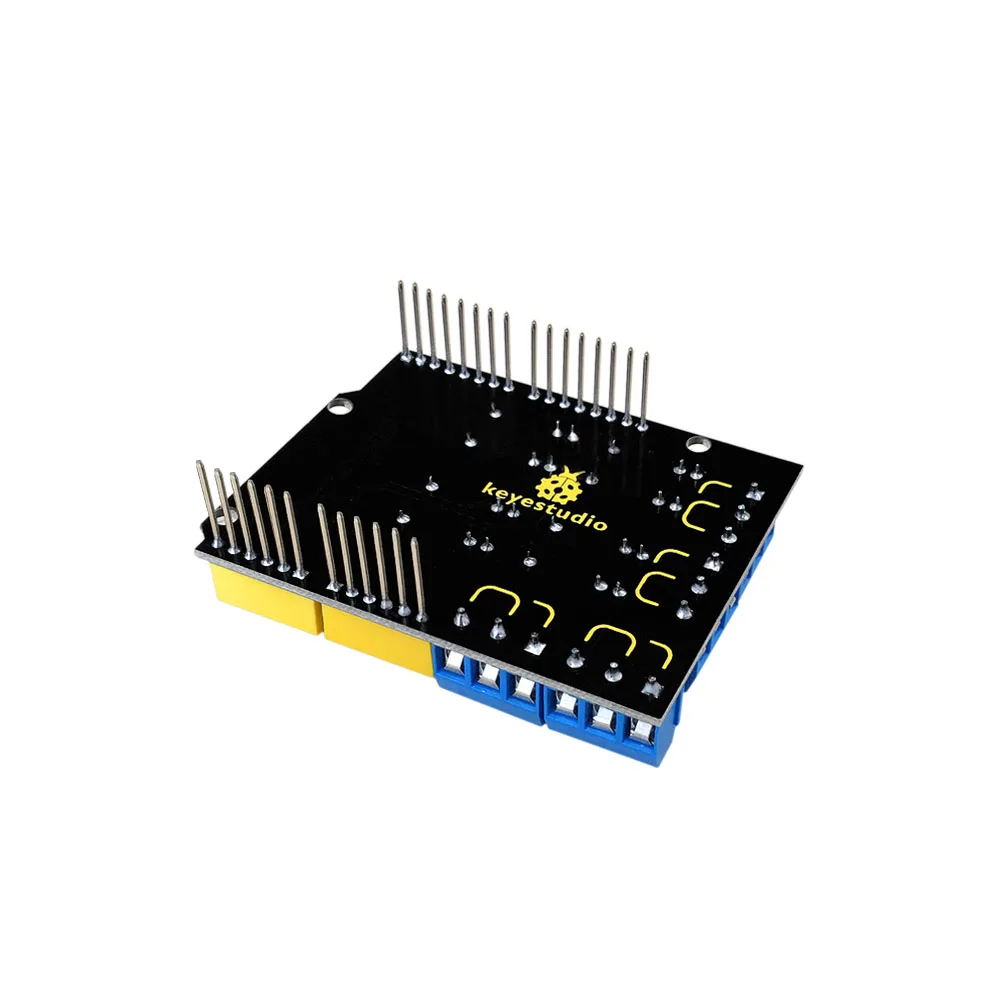

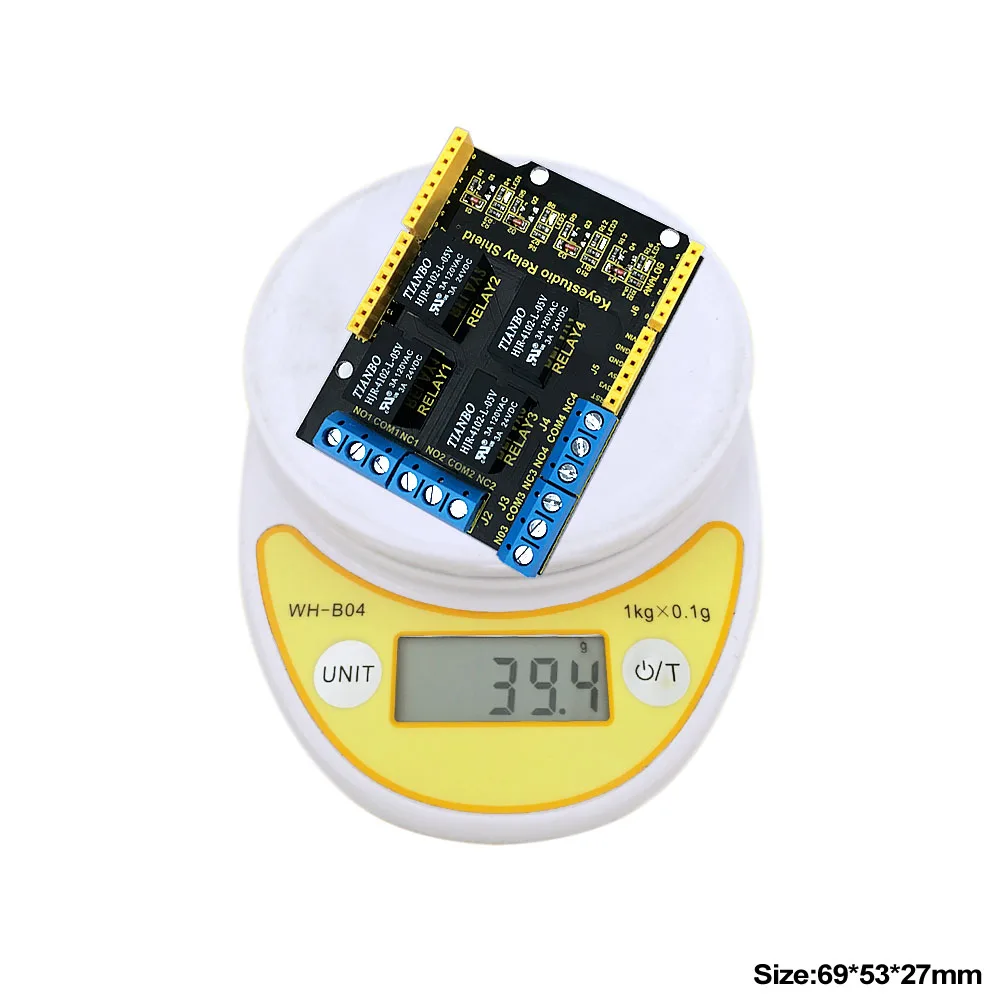

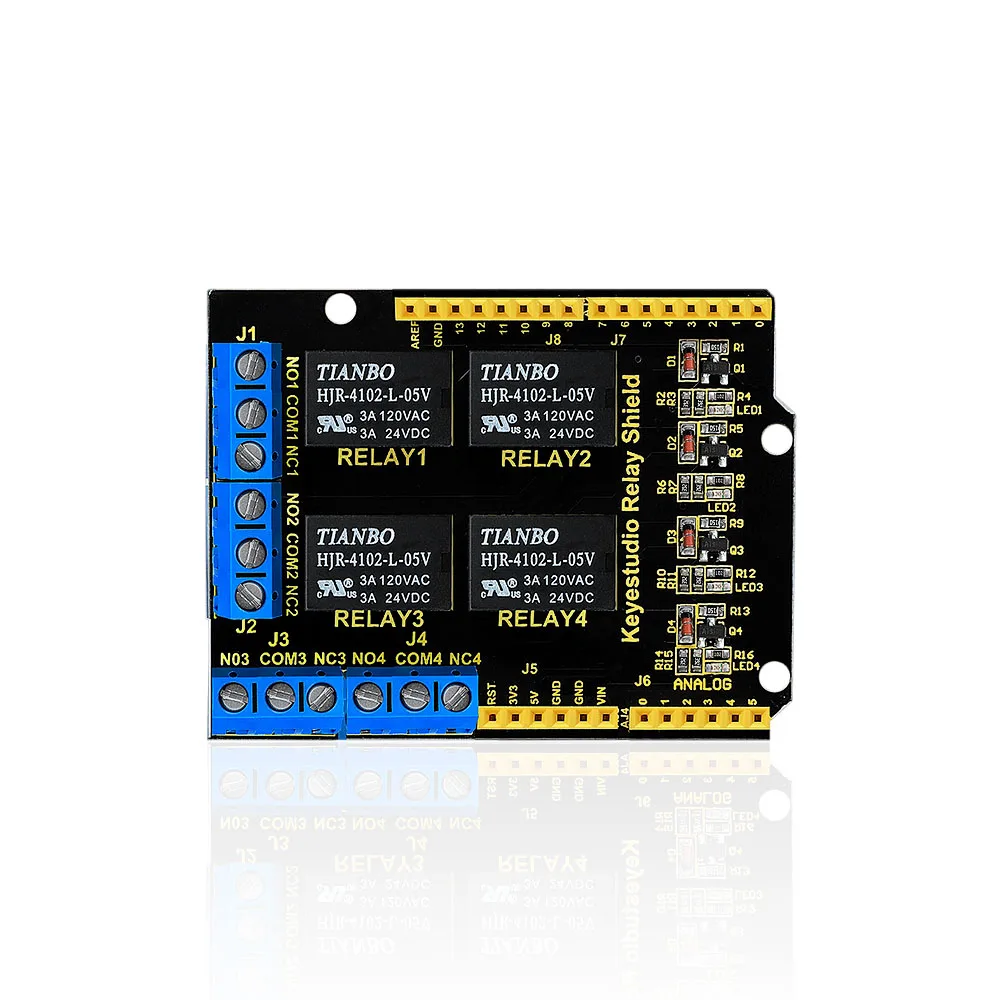

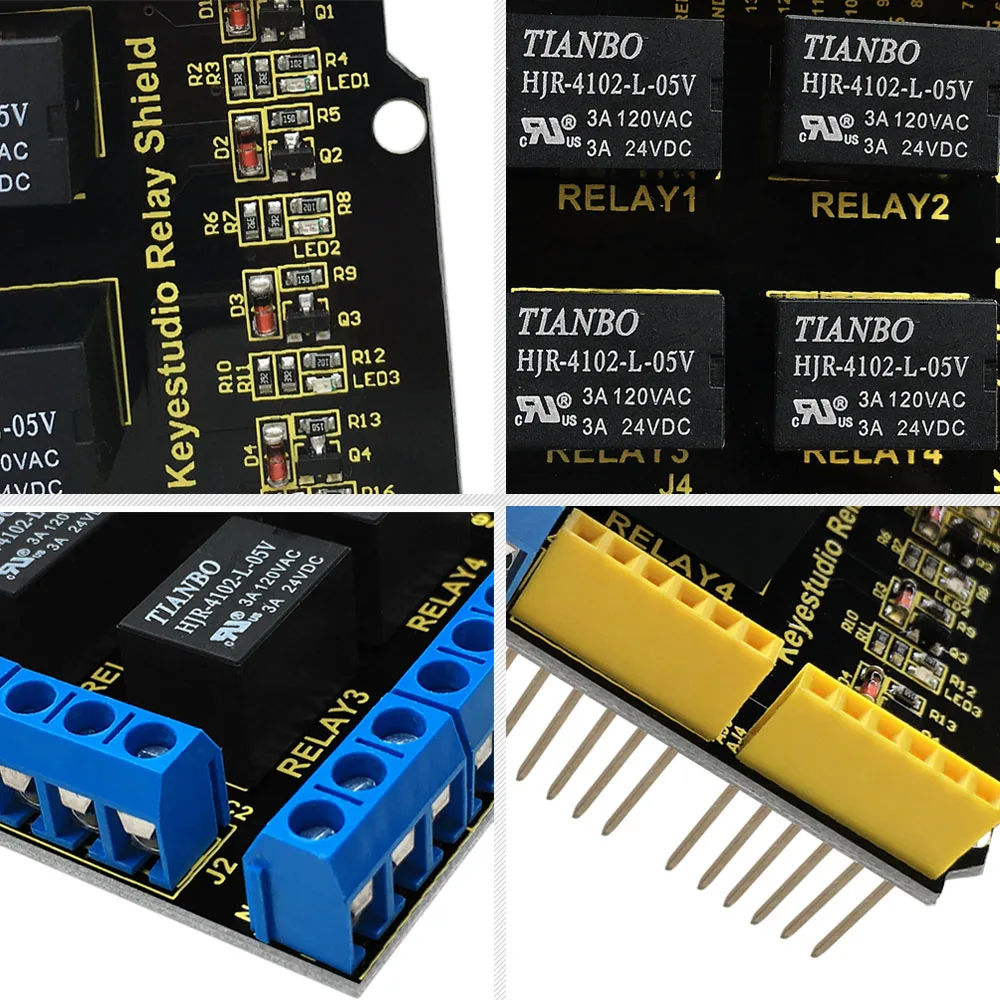

Introduction
CONTACT DATA
Contact Form: 1H/1Z
Contact Material: Silver Alloy
Load: Resistive load(COSΦ=1)
Contact Ratings: 3A 120VAC/24VDC ,1A 250VAC(TüV)
Minimum load : 1mA 5VDC
Max Switching Voltage: 240VAC/60VDC
Max Switching Current: 5A
Max Switching Power : 360VA/90W
Contact Resistance: 100mΩMax at 6VDC 1A
Electrical endurance: 100,000 Operations(at30Operations/minute)
Mechanical endurance: 10,000,000 Operations(at300Operations/minute)
For more details:
//wiki.keyestudio.com/index.php/Ks0251_keyestudio_4-channel_Relay_Shield#Resources
