Difficultly showing the corresponding the data by the LED dot matrix of micro：bit control board, we particularly produce keyestudio micro bit 4-digit Tube Shield to highly enhance the digital display.

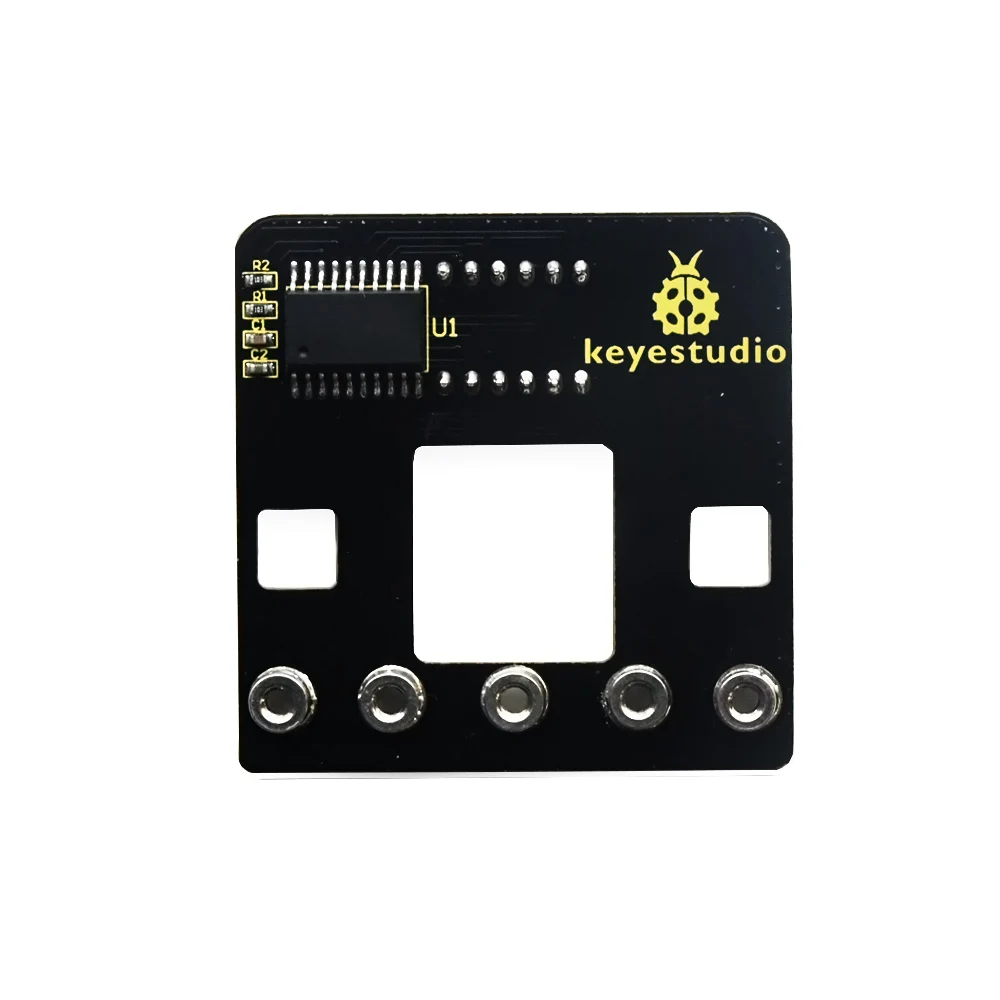

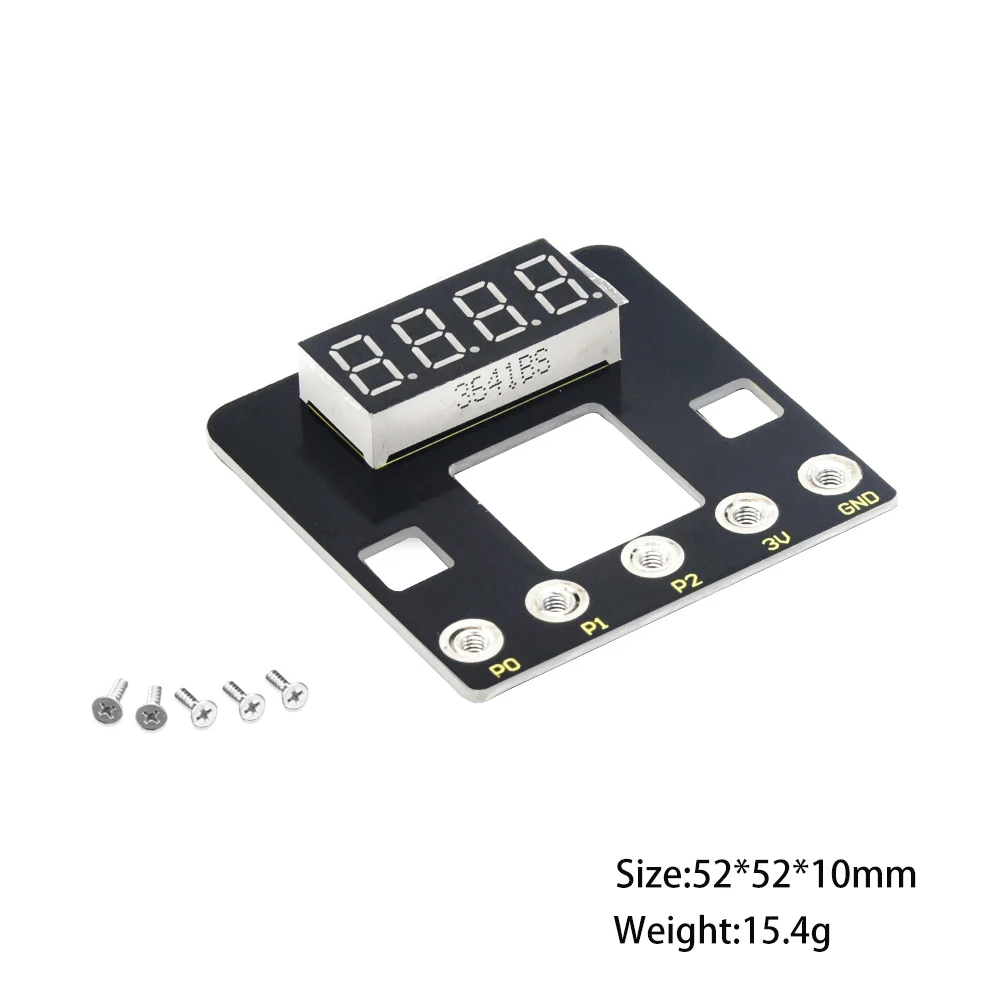

This shield mainly drives the TM1637 chip through the micro: bit board to control the 4-bit common anode digital tube. P0 is connected to CLK, and P1 goes to DIO. The micro bit control board is easily fixed on the shield with 5 M3*6MM flat screws if you use it.
Parameters
- Working voltage: DC 3.3V
- Working current: 50mA
- Maximum power: 200mA
- Working temperature: -20 ℃ –60 ℃

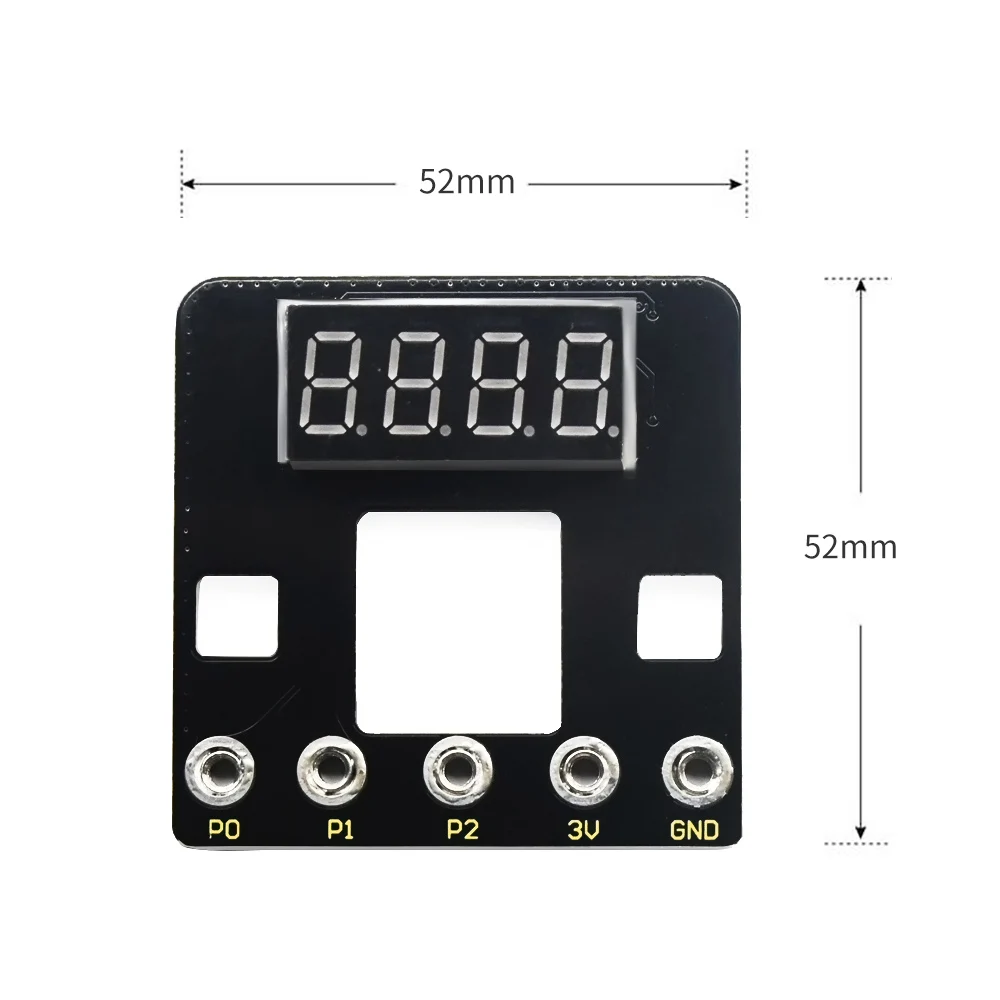

- Size: 52 * 52 * 10mm
- Weight: 15.4g
- Environmental attributes: ROHS
