40A DC 9-50V Motor Speed Controller 2000W Voltage Regulator Dimming Dimmers Motor Speed Control Thermostat Electronic Module 12V

Features:

Small size

Wide voltage

Large current

Low temperature rise

High reliability

Description:

XY-L-1240 DC speed regulator

This speed regulator is a 9-50V universal DC speed regulator. It uses imported field effect power tubes/imported special speed control driver IC/PCB and high current balanced PCB layout to make the output PWM waveform close to right angle and more efficient.

XY-L-1240 DC speed regulator is positioned as an entry-level industrial speed regulator with small size, wide voltage, large current, low temperature rise, high reliability, etc.

Specifications of 40A DC 9-50V Motor Speed Controller :

(1) Working voltage: DC9V-DC50V wide working voltage range.

(2) Control power: 0.01-2000W (maximum instantaneous starting current 40A, long-term working current should be controlled within 20A.)

Different working voltages correspond to different control powers as follows:

When the working voltage is 12V, 12V* 40A = 480W

When the working voltage is 24V, 24V*40A = 960W

When the working voltage is 36V, 36V*40A = 1440W

When the working voltage is 40V, 40V*40A = 1600W

When the working voltage is 50V, 50V* 40A = 2000W

(3) Static current: 0.025A (when the working voltage is DC10V to DC50V, the static current will not exceed 25ma)

(4) PWM duty cycle: 5%-100%

(5) PWM frequency: 12khz

(6) Working temperature: -20℃~40℃ (ambient temperature minus 20 degrees to plus 40 degrees) This speed regulator is of industrial quality and can work stably in an environment below zero degrees. General commercial-grade speed regulators cannot work stably below zero degrees.

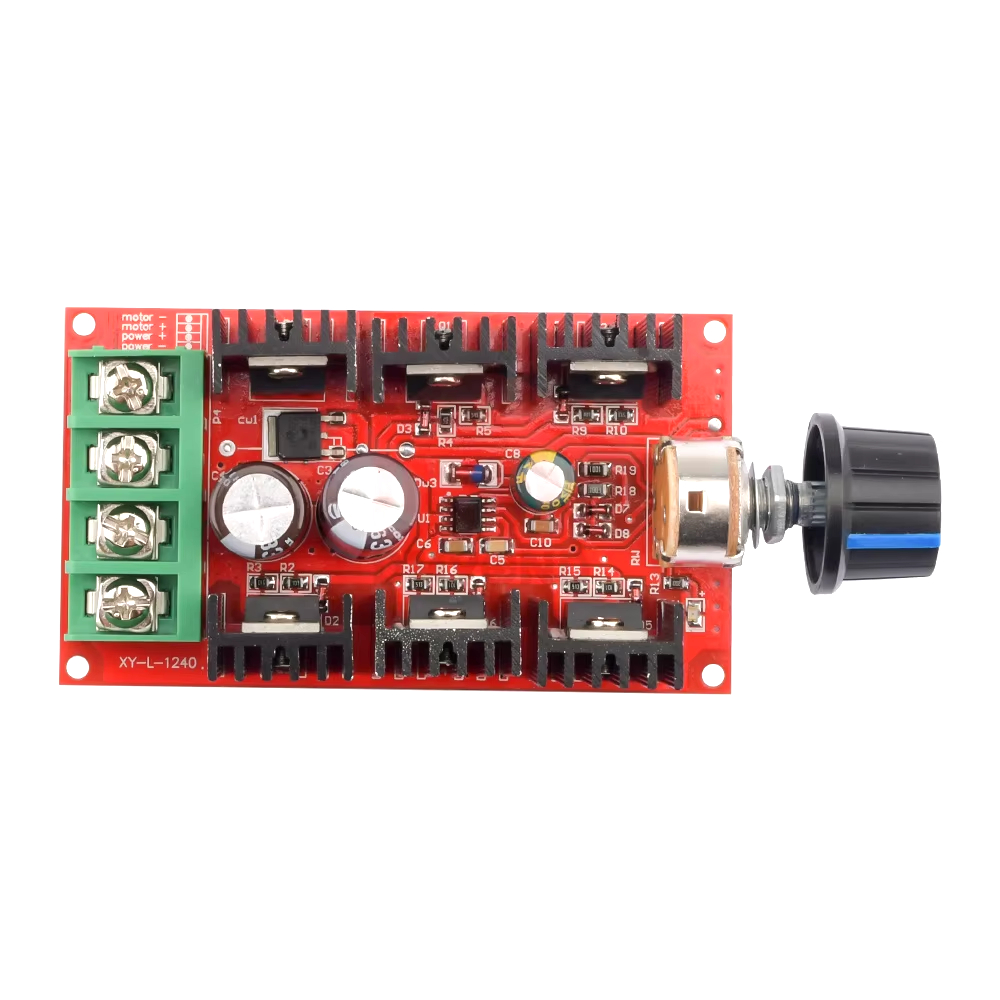

(7) Circuit board dimensions: 90 mm long, 51 mm wide, and about 30 mm high (excluding the adjustment part of the potentiometer)

Package Included:

1*Module
