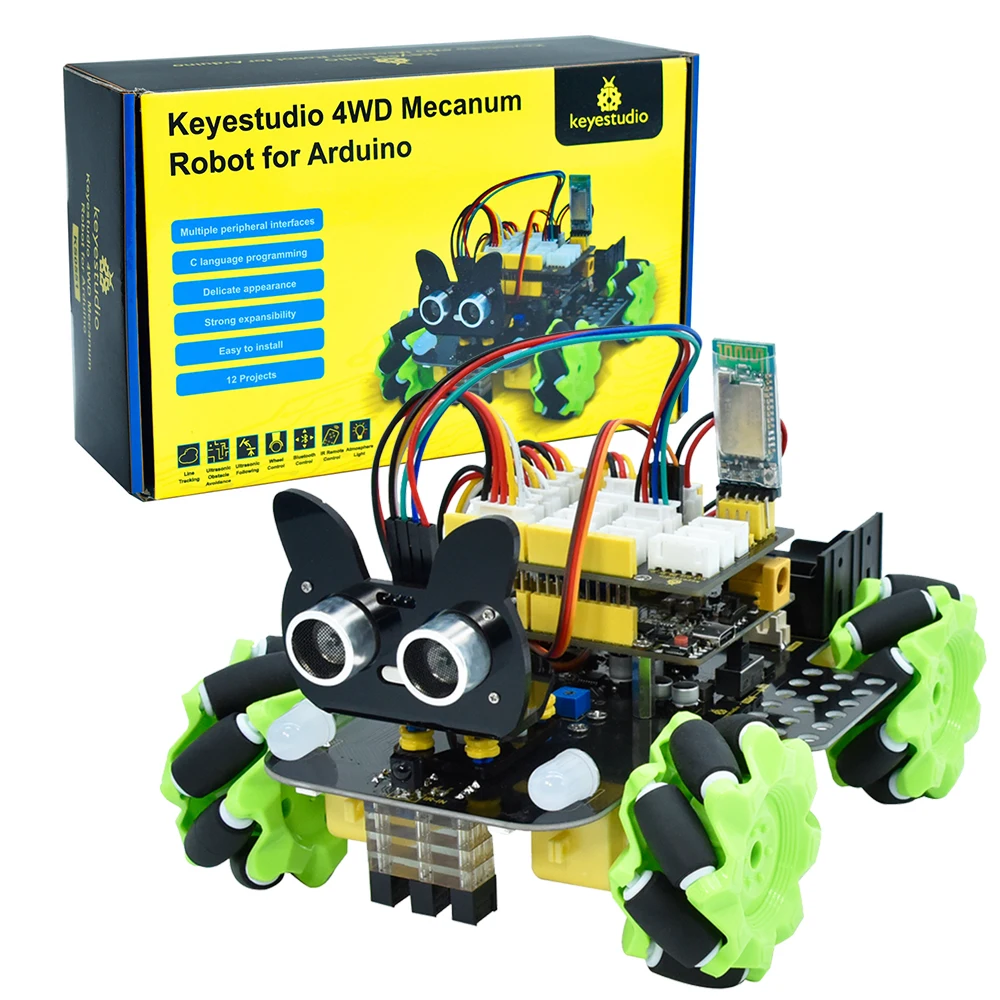

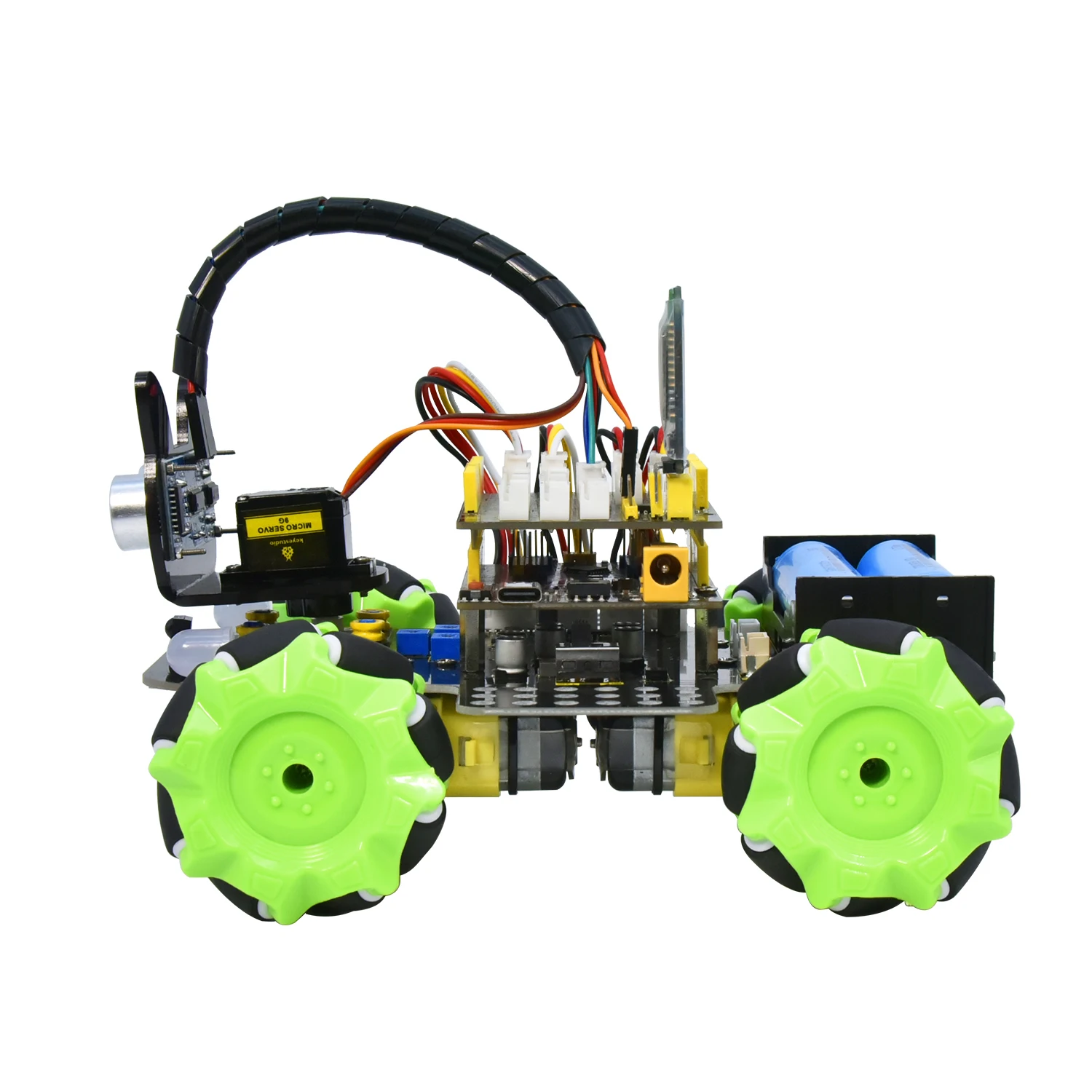

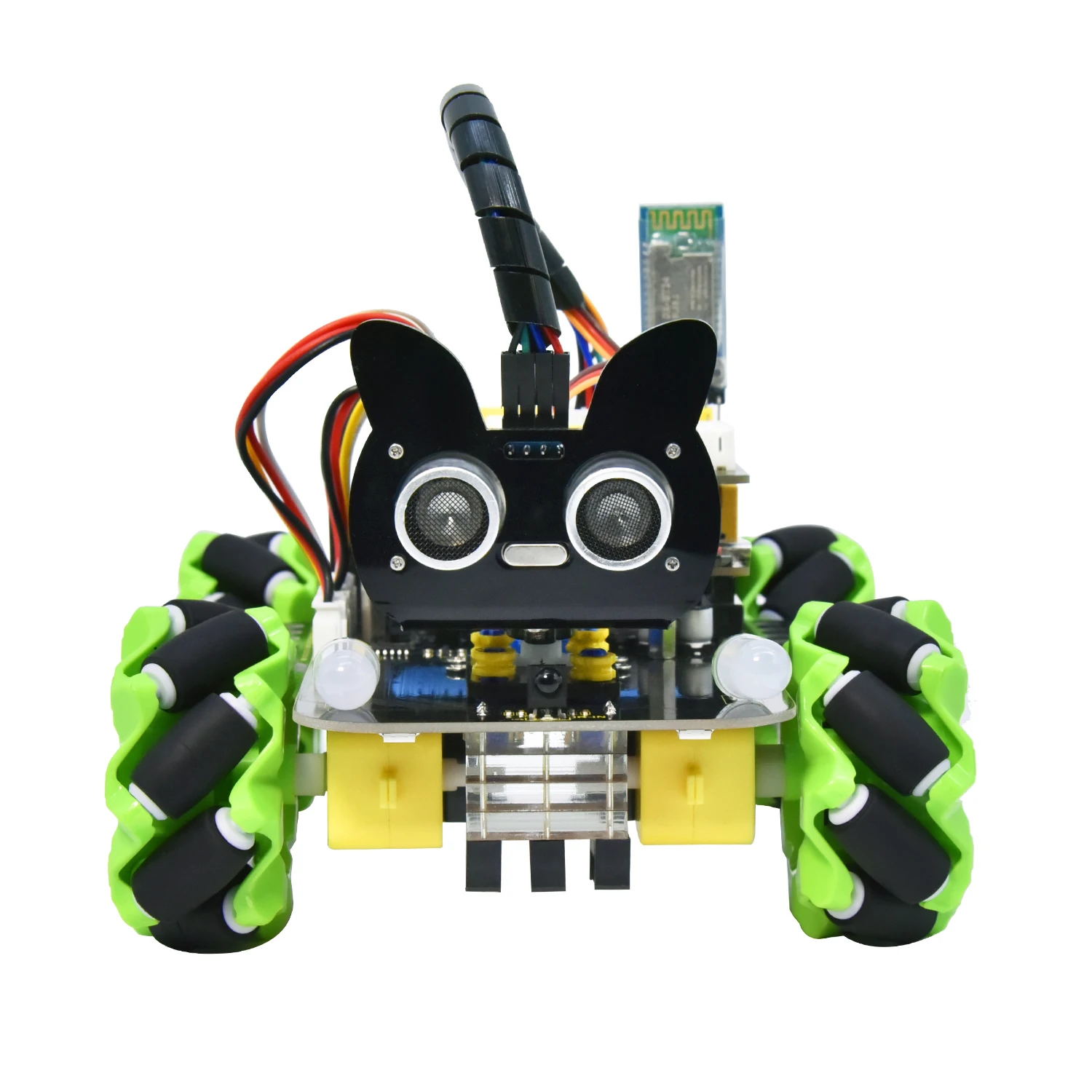

This is a low-cost, easy-to-operate and open source programming kit. In fact, it is also simple to install and connect from complex electronics integrated into a backplate and a 2.54 anti-plug terminal, which solely need a few simple assembly steps to build your own Mecanum Robot car.

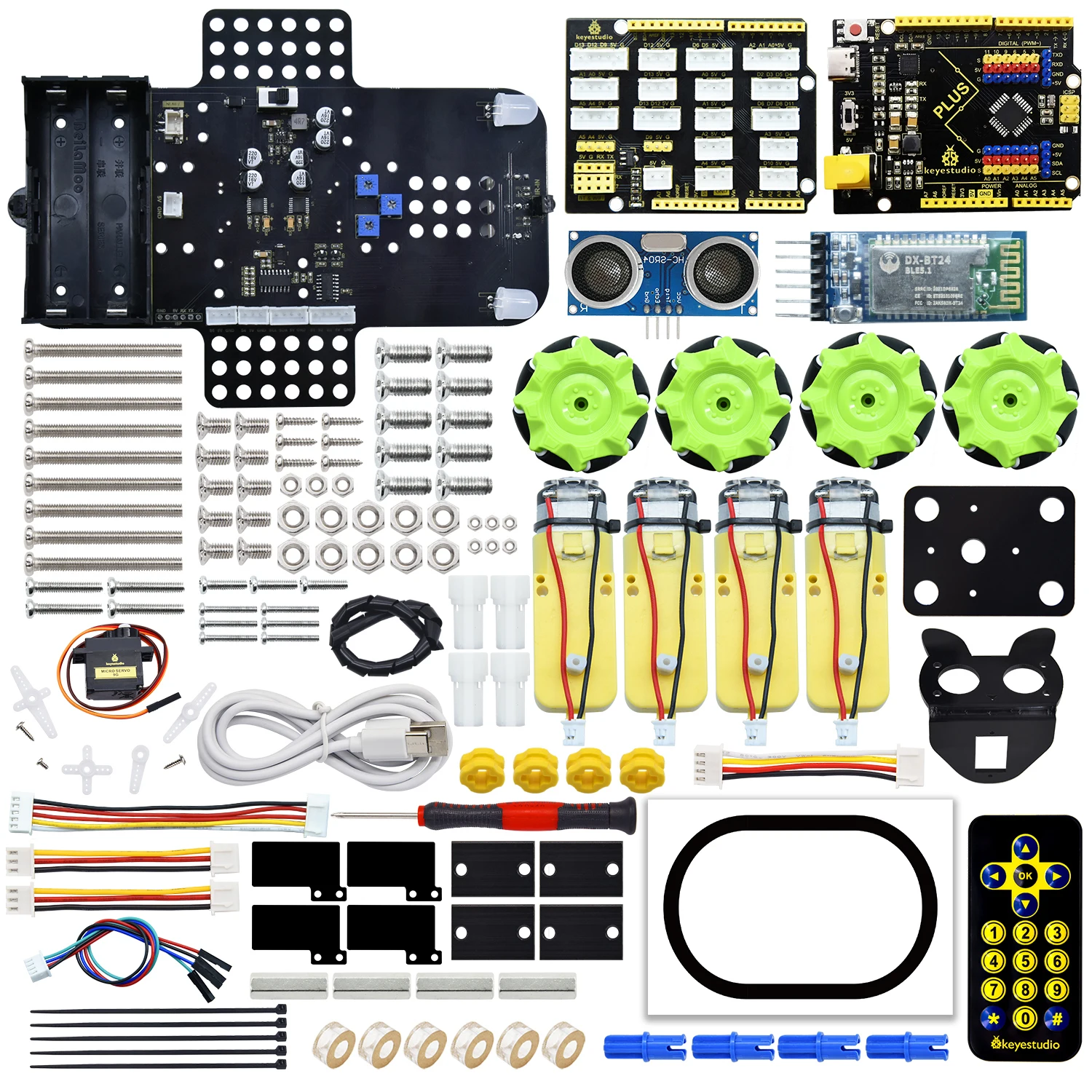

It contains an IR remote control, 7-color LEDs, RGB2812, a line tracking sensor, a servo, motors and Mecanum wheels, an ultrasonic module,etc. Furthermore, the detailed projects will guide you to learn the working principle of sensors and modules.

There are 12 programming courses in this kit, which rang from simple to complex. If this can not meet your demand, you can seek to alter code and add extra modules to enrich the functions. That sounds entertaining, right? Let’s get started!

Features

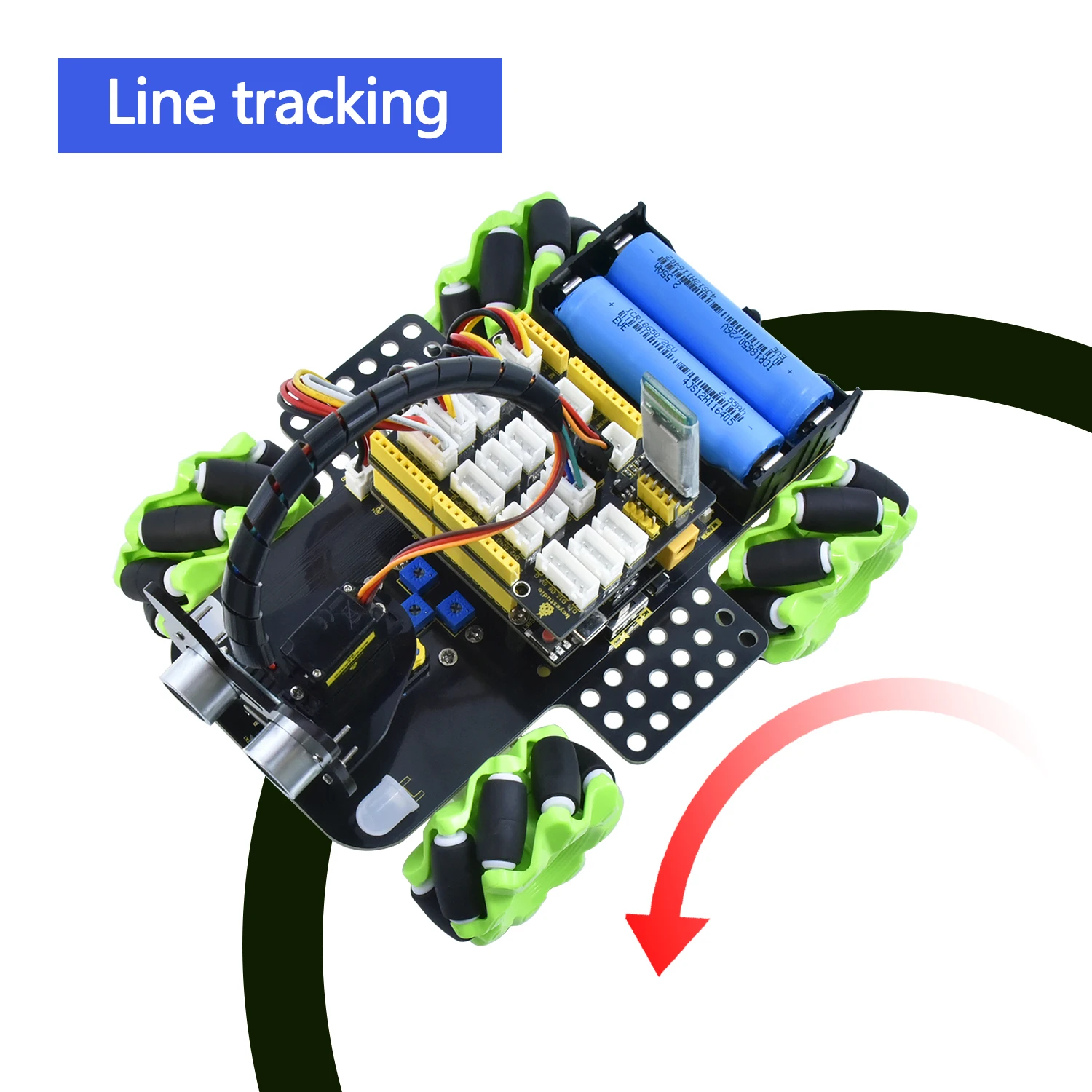

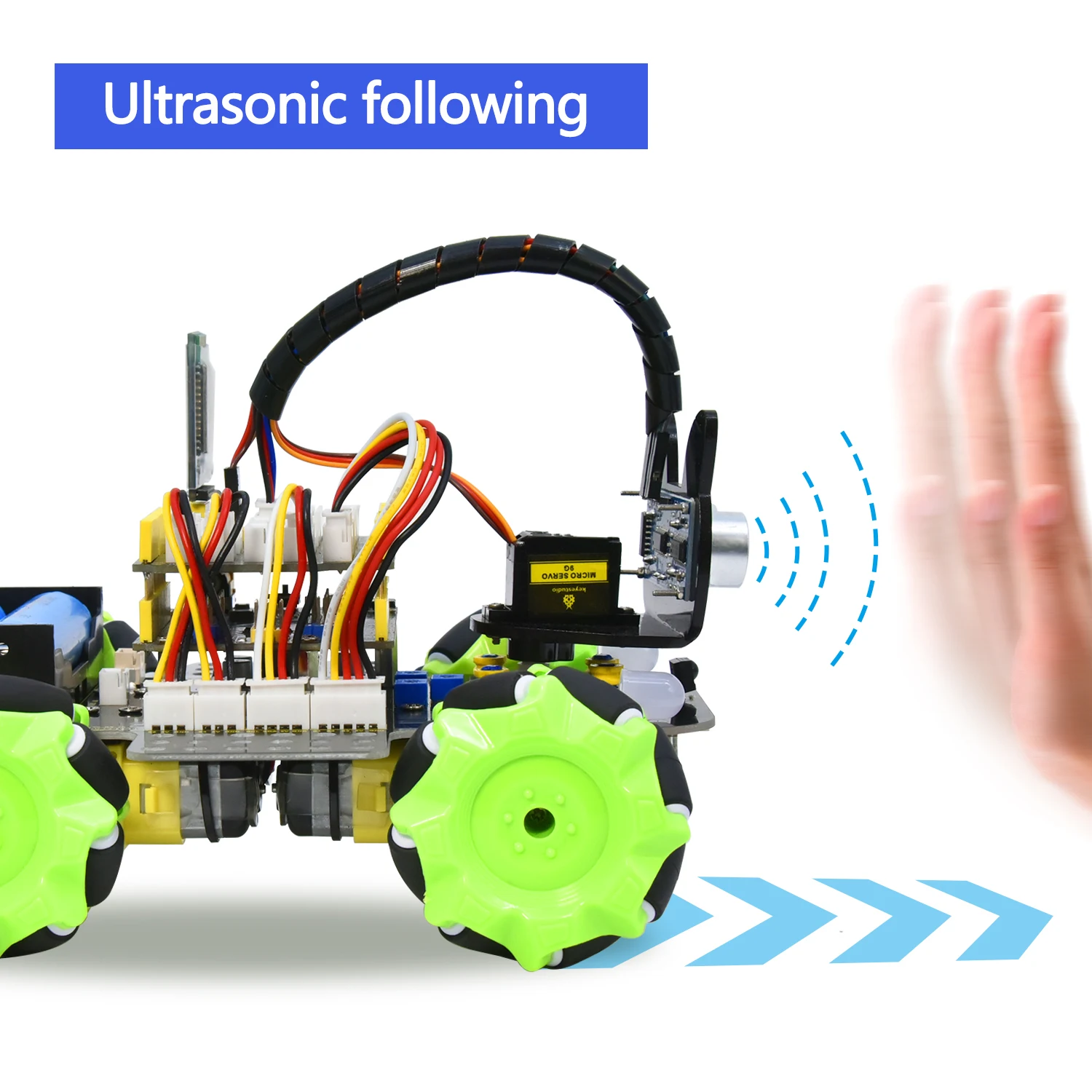

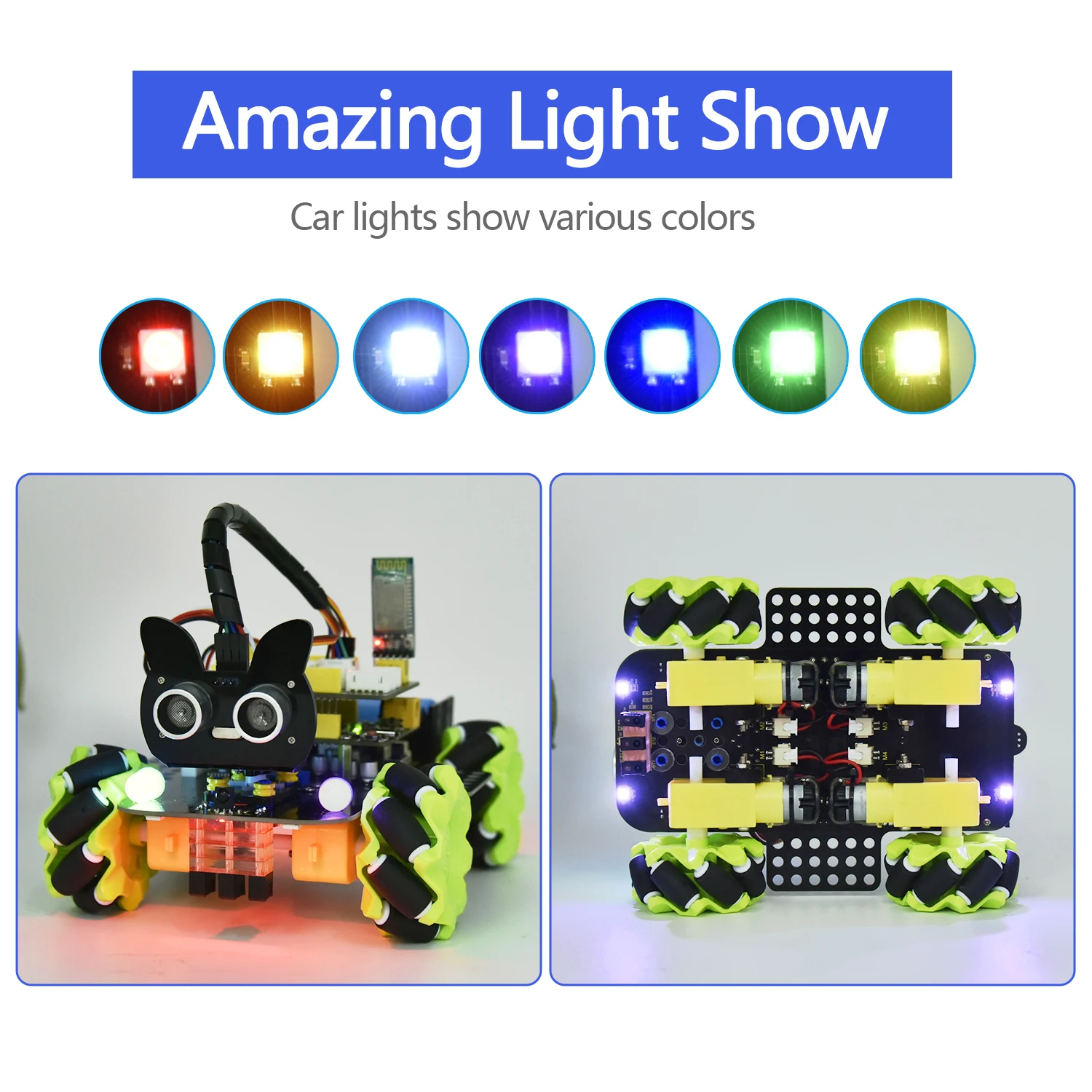

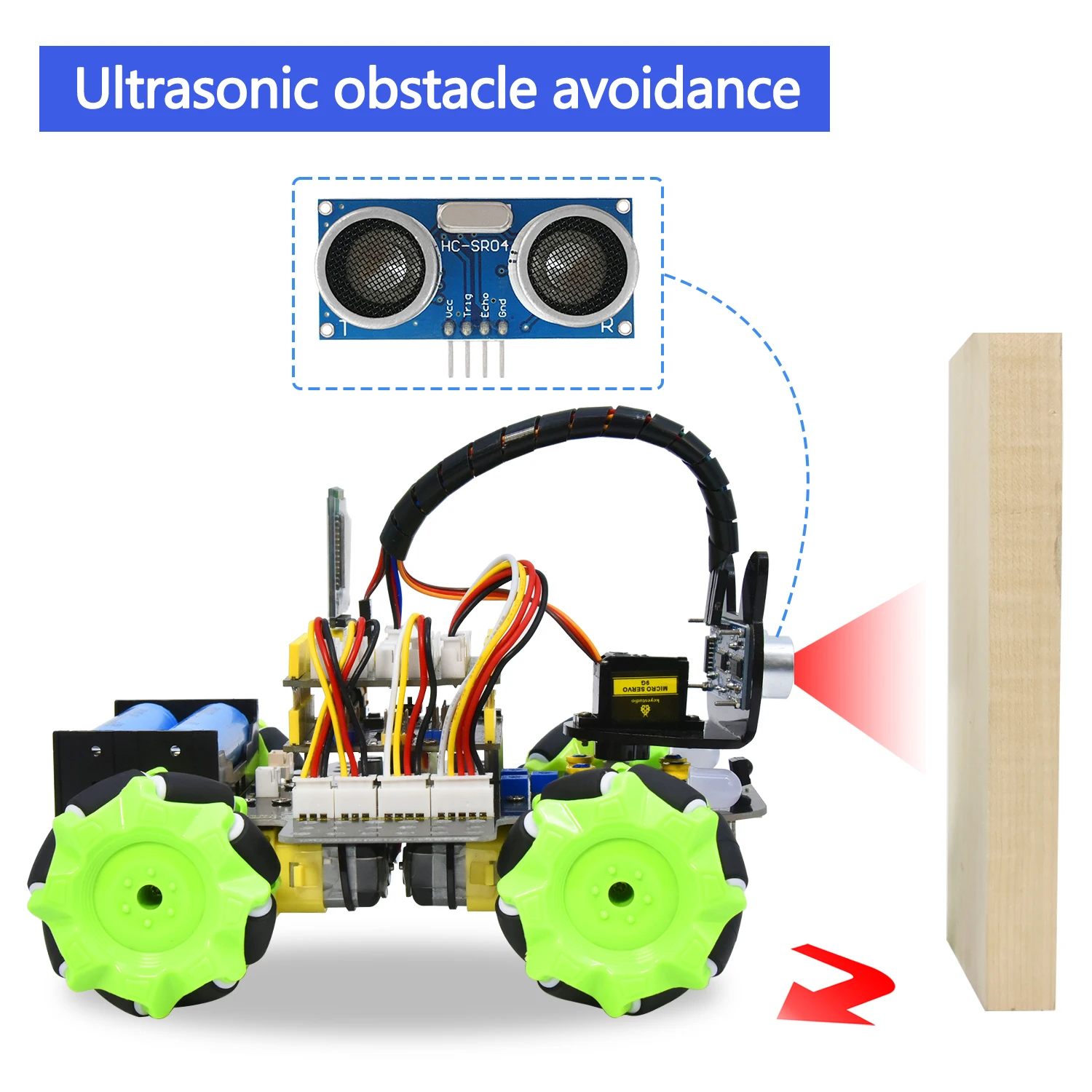

1.Multi-purpose function: Color light display, IR control, bluetooth control, universal wheels control, ultrasonic following, ultrasonic obstacle avoidance, 4WD drive, car tracking and UNO PLUS control board.

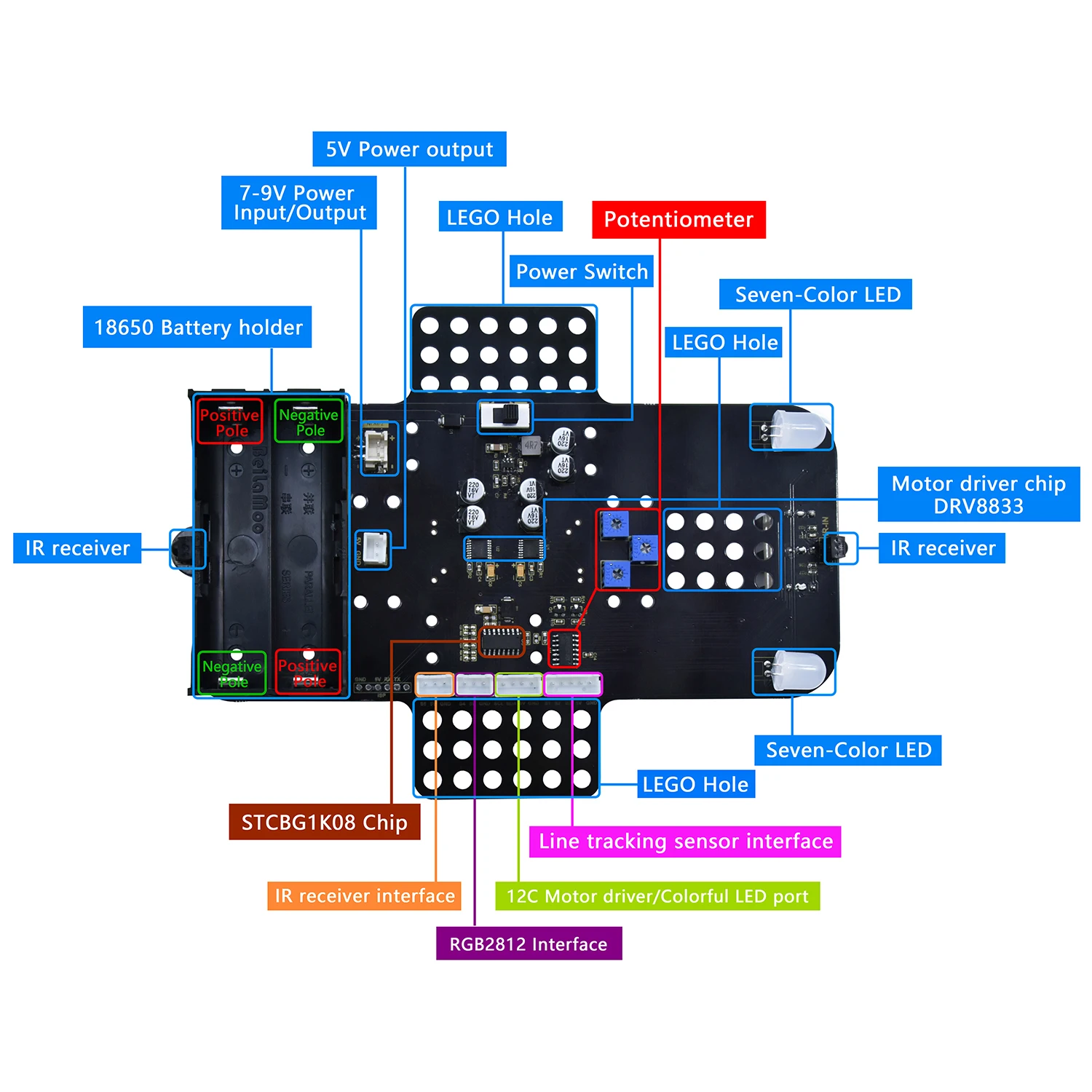

2.Easy to build: Motor drive , RGB2812 and seven-color LEDs have been integrated on the bottom plate and without welding circuit.

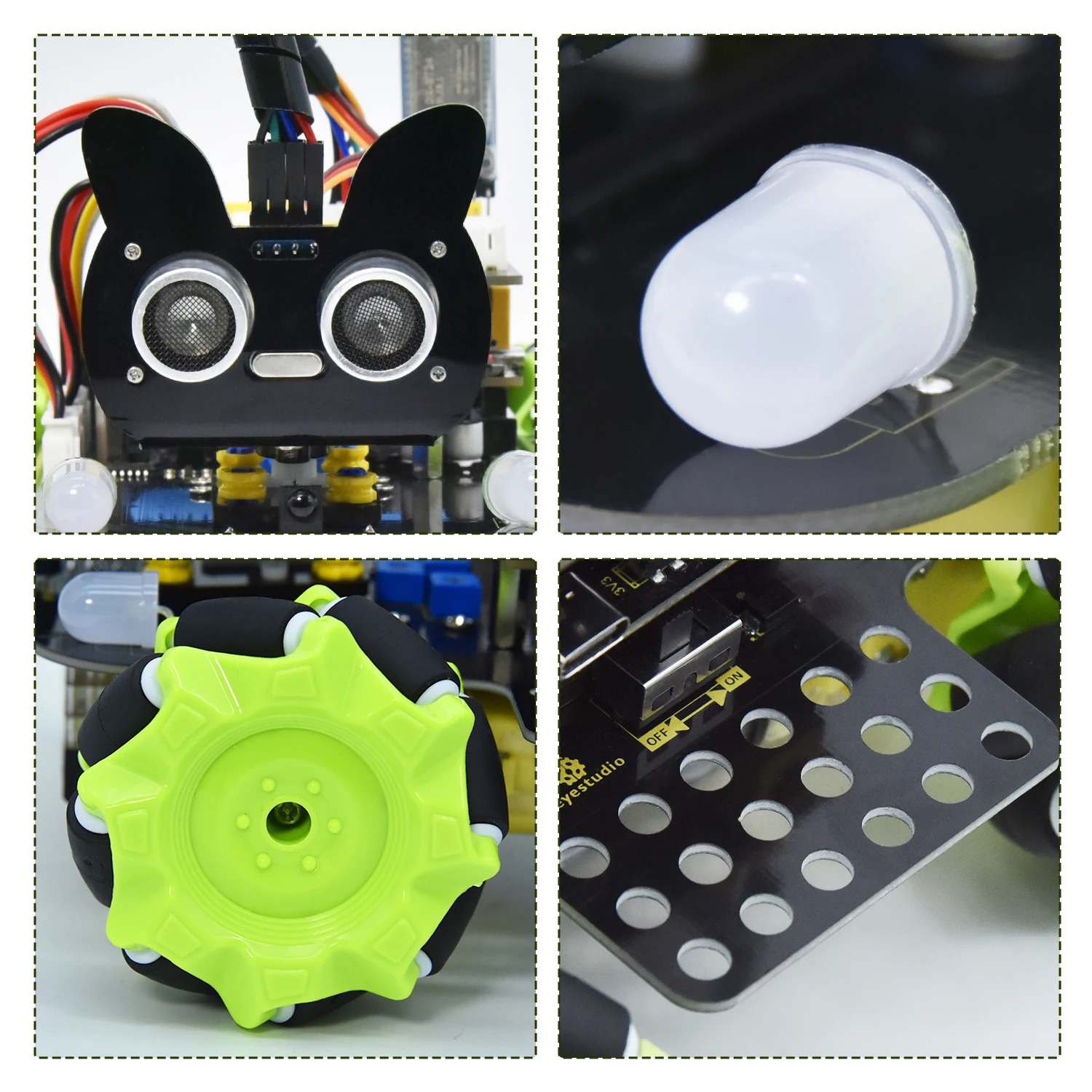

3.Novel style: We use the Mecanum wheels and the wirings between modules are simple.

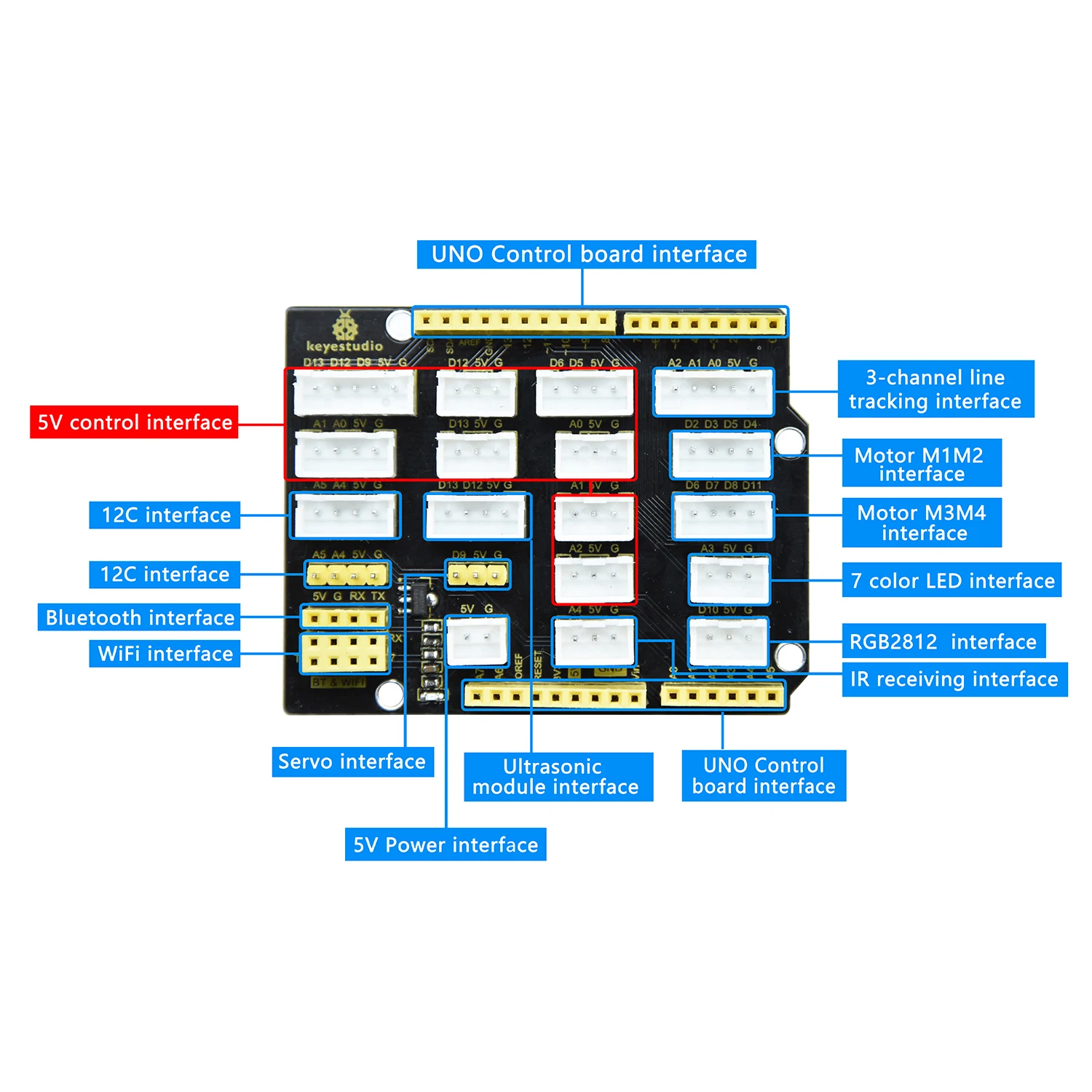

4. High extension: Preserve IIC, UART, SPI, ESP8266 WIFI and you can extend other sensors and modules. What’s more, the matrix keyboard has a strong controllability.

5. Basic programming learning：Using C language for Arduino IDE and Scratch graphical programming.

Parameters

• Input voltage：7-12V

• Working voltage：5V

• Maximum power consumption：15W

• Motor speed: 5V 200RPM

• Motor drive mode: DRV8833 Motor drive

• Ultrasonic induction angle: <15 degrees

• Ultrasonic detection distance: 2cm-400cm

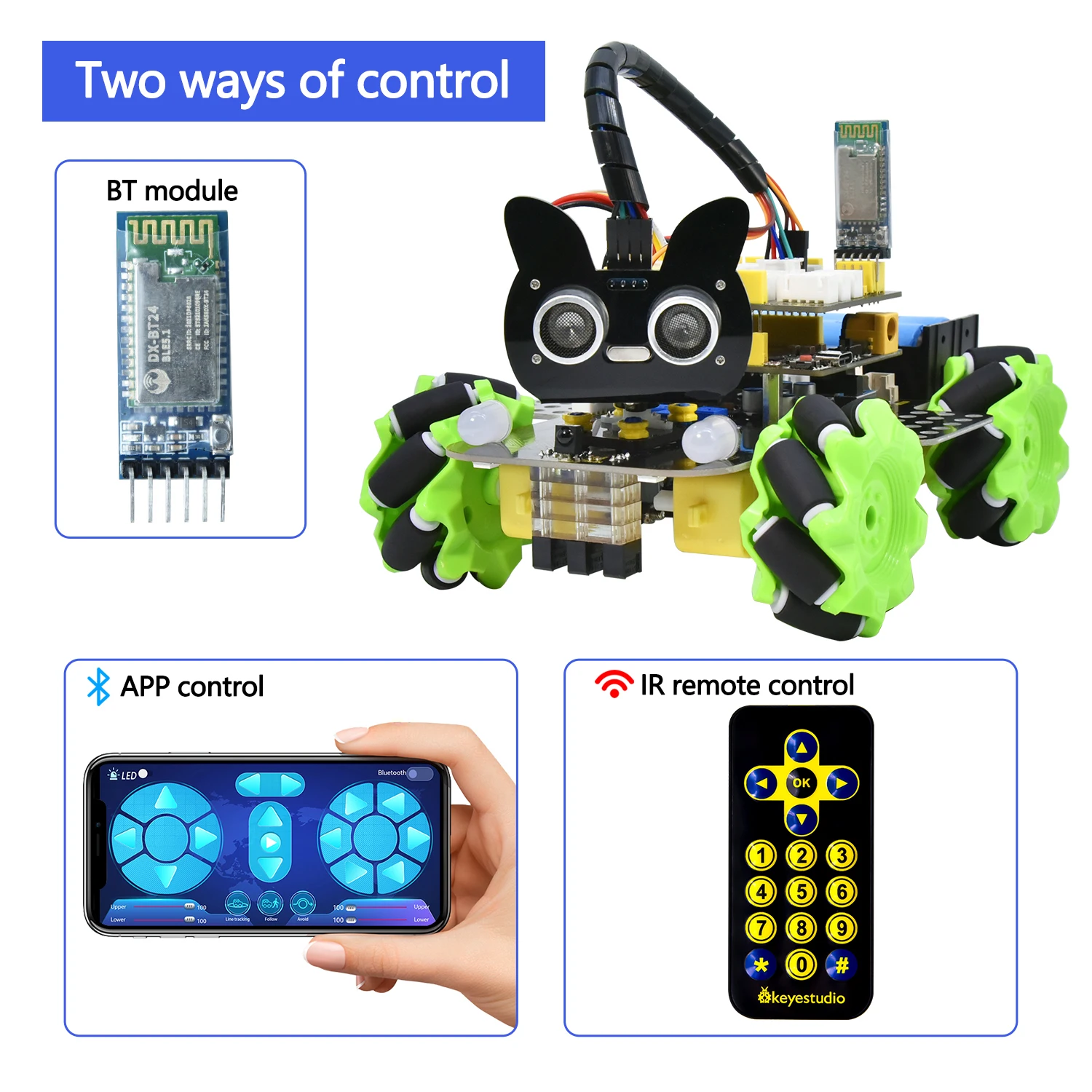

• Infrared remote control distance: 10M (measured)

• Bluetooth remote control distance: 50M(measured)

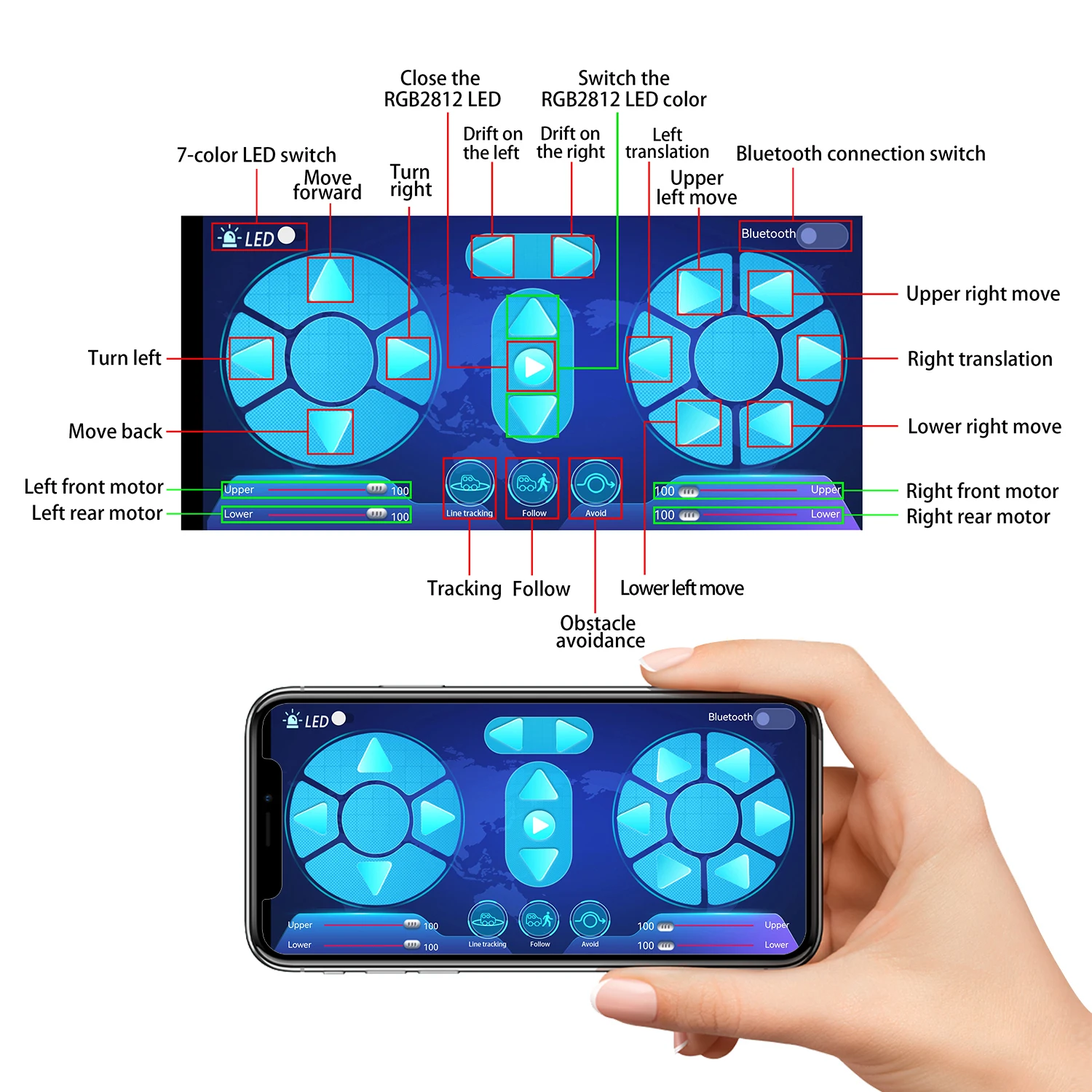

• Bluetooth control: Support Android and iOS system
