Feature:

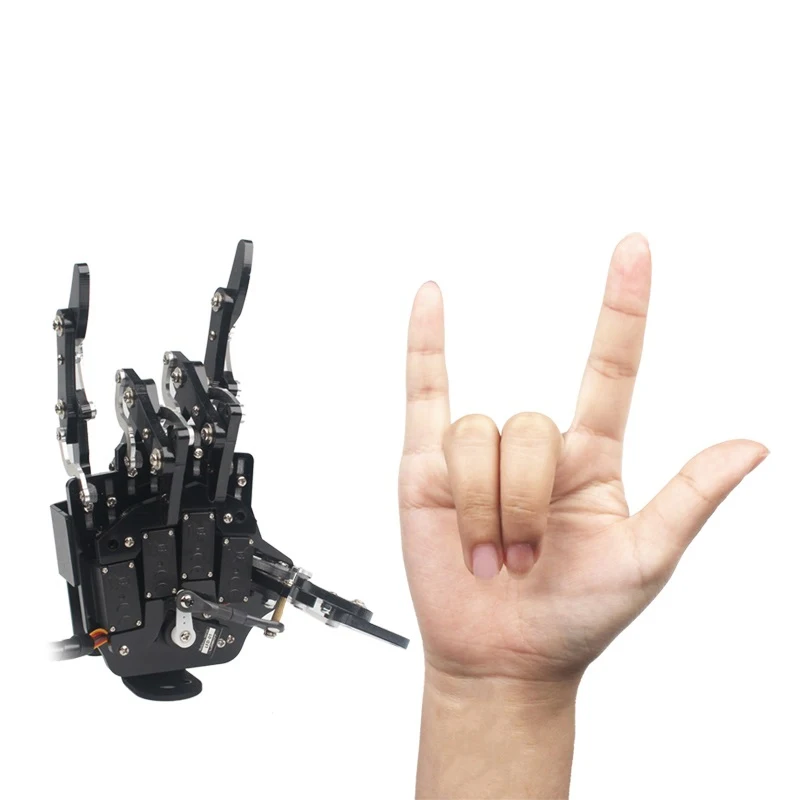

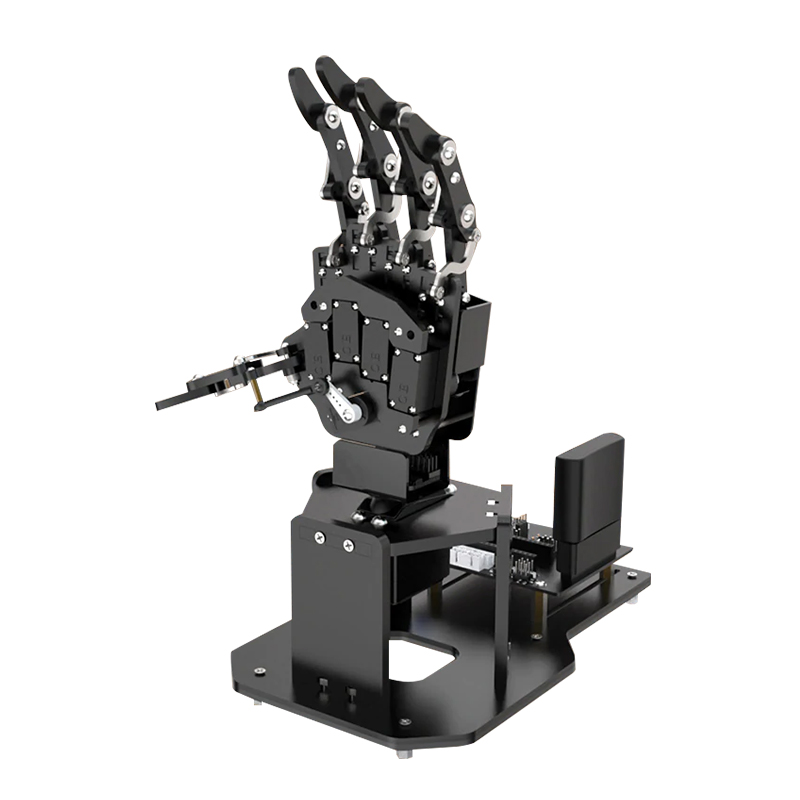

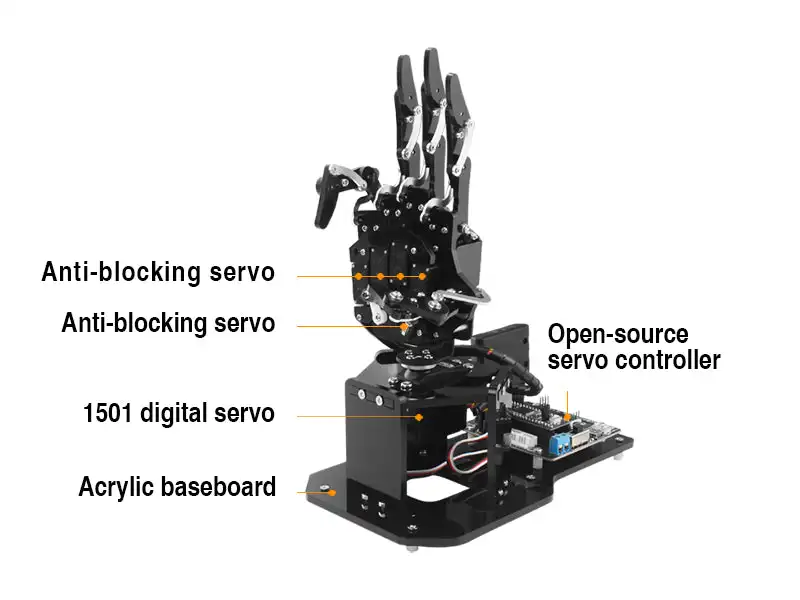

uhand2.0 simple version is an open-source mechanical palm compatible with Arduino programming and STM32 development. The five fingers are driven by five anti-blocking steering gear LFD-01, and the head is driven by 180-degree LD-1501 digital steering gear.

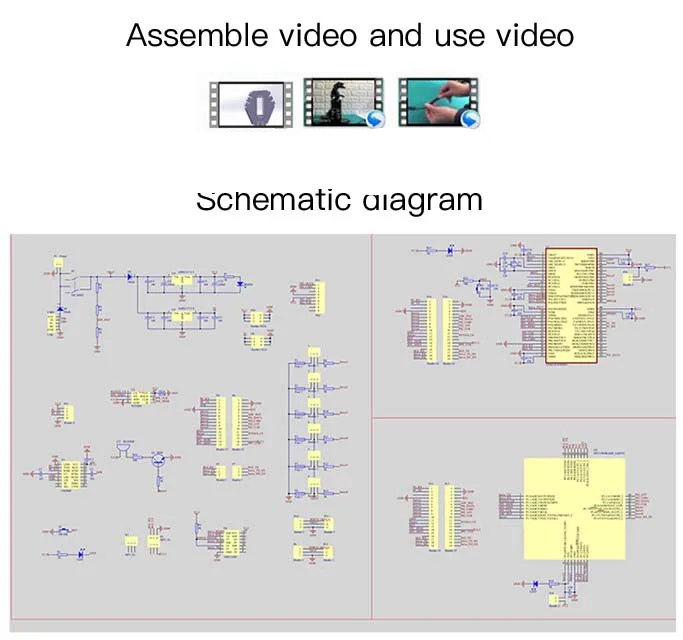

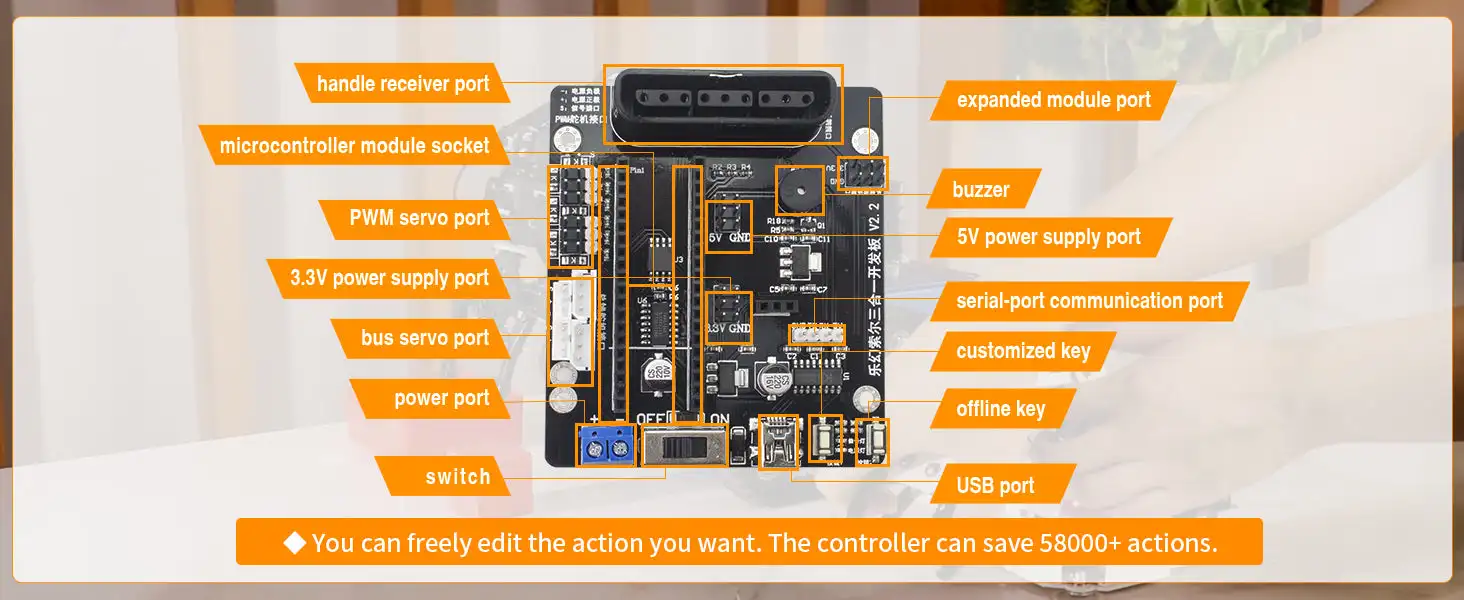

Support handle control, graphical upper computer, edit action group is simple and fast. Provide source code, control board schematic, development tools, etc.

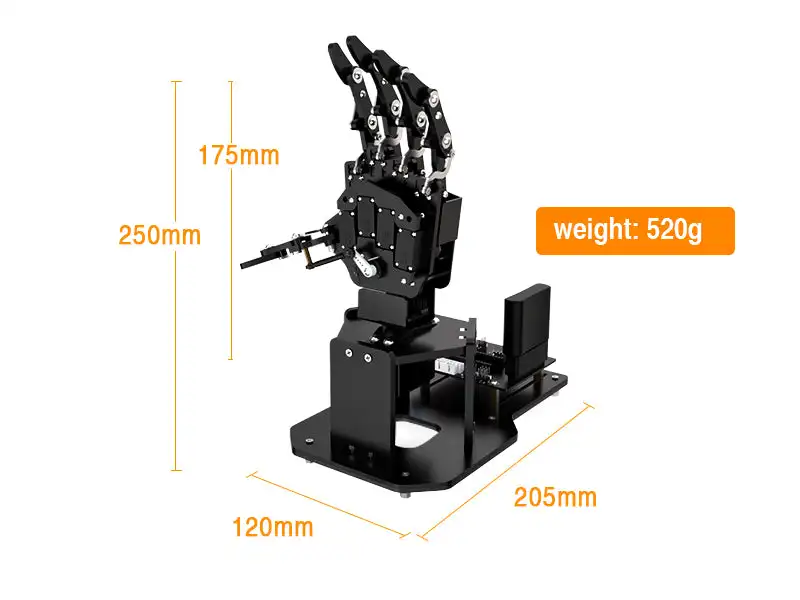

Product size:120mm*205mm*250mm
Product list
Arduino version Mechanical Palm list
Acrylic Support 1 Arduino controller

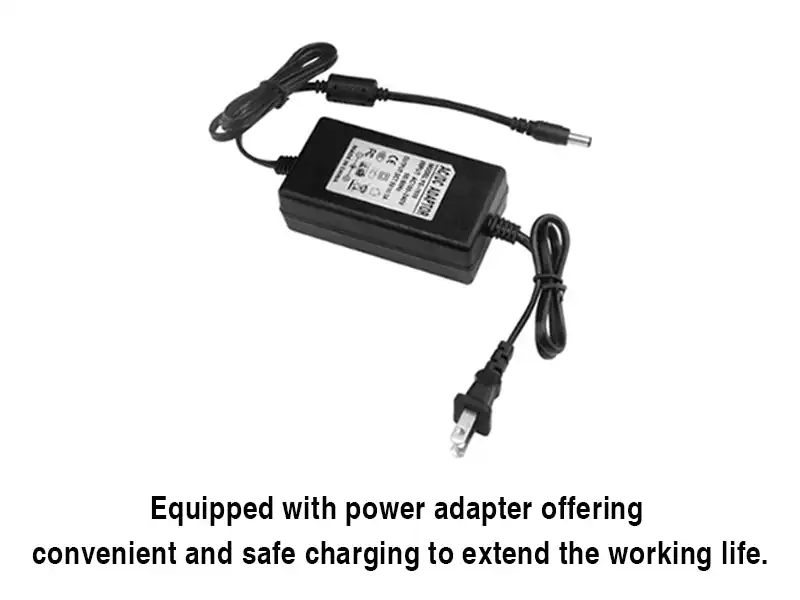

6V5A Power Adapter 1pc
PS2 Handle 1pc
LFD-01 Anti-blocking rotating steering gear 5
handle receiver 1
LD-1501MG steering gear (for base) 1
DC power pair cable 1
Palm lid sheet metal 1 piece
winding tube several
STM32 version mechanical palm list
Acrylic bracket 1 set
STM32 controller 1
6V5A Power Adapter 1pc
PS2 Handle 1pc
LFD-01 Anti-blocking rotating steering gear 5
Handle receiver 1
LD-1501MG steering gear (for base) 1
DC power pair cable 1
Palm lid sheet metal 1 piece
Winding tube several
STM32 version Mechanical Palm List(Include body sensing gloves ):
Acrylic bracket 1 set
STM32 controller 1
6V5A Power Adapter 1pc
PS2 Handle 1pc
LFD-01 Anti-blocking rotating steering gear 5
handle receiver 1
LD-1501MG steering gear (for base) 1
DC power pair cable 1
Palm lid sheet metal 1 piece
Winding tube several
Bluetooth module 1
Body sensing gloves 1 PCS
-
It can perform the edited action offline
-

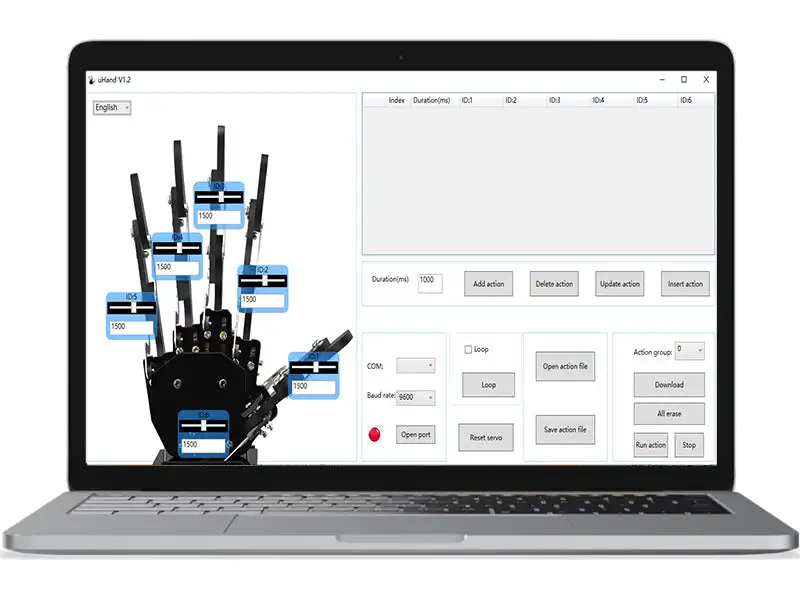

Support editing action on graphical PC software
-

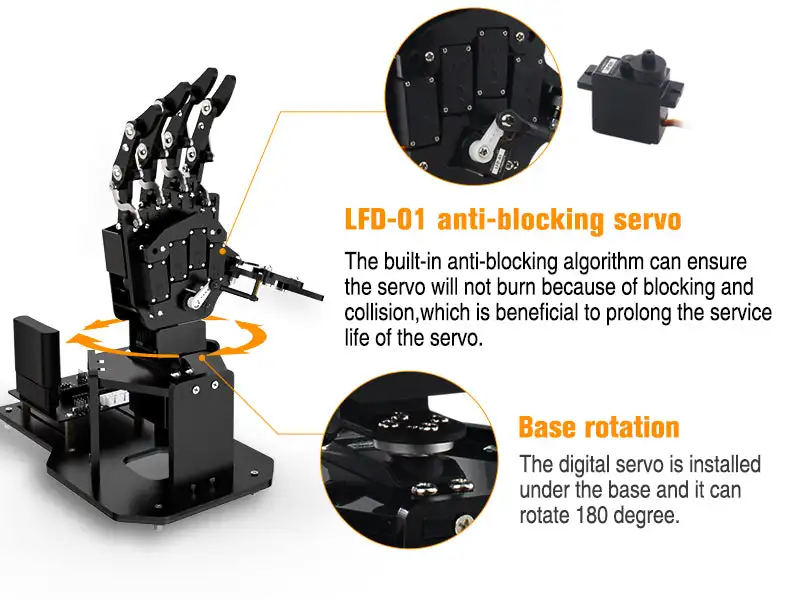

Anti-blocking servos LFD-01 are adopted for the movement of the fingers
-

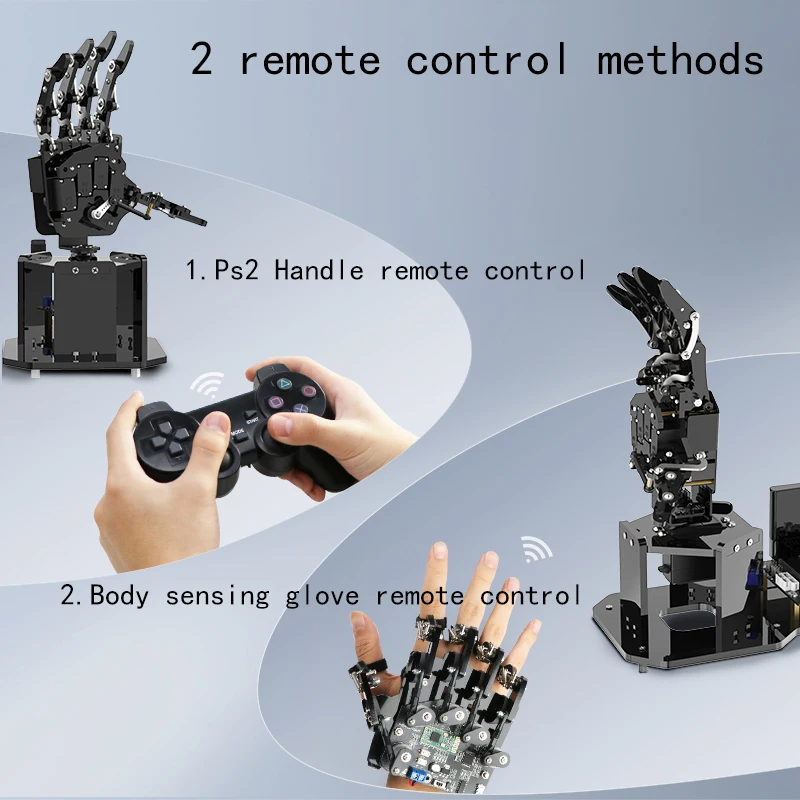

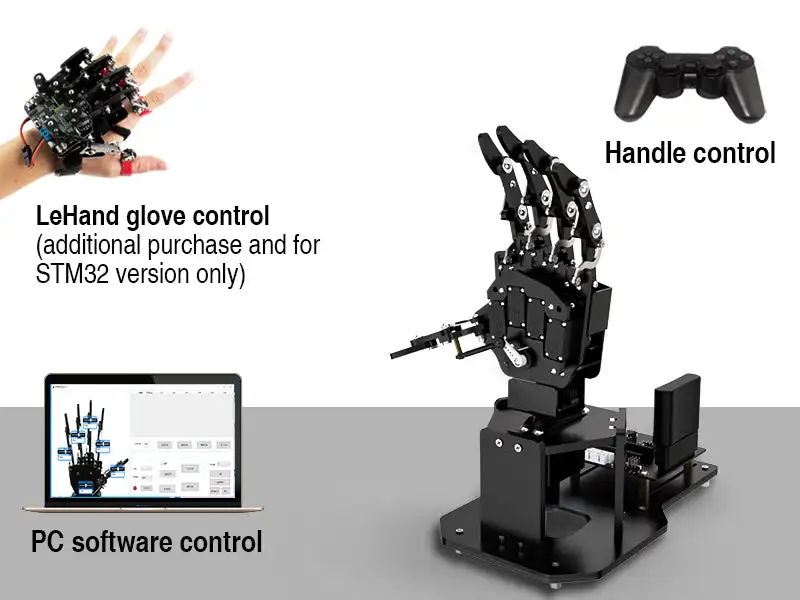

Support somatosensory glove, handle and PC software control
