5kg Load 4WD Robot Car 12V DC Motor Off Road Wheel Chassis for Arduino Robot DIY Kit Programmable Robot Car RC Tank Big Chassis
Title: 4WD Smart car chassis off-road type super large chassis DC deceleration motor intelligent vehicle off-road wheels
Product introduction:

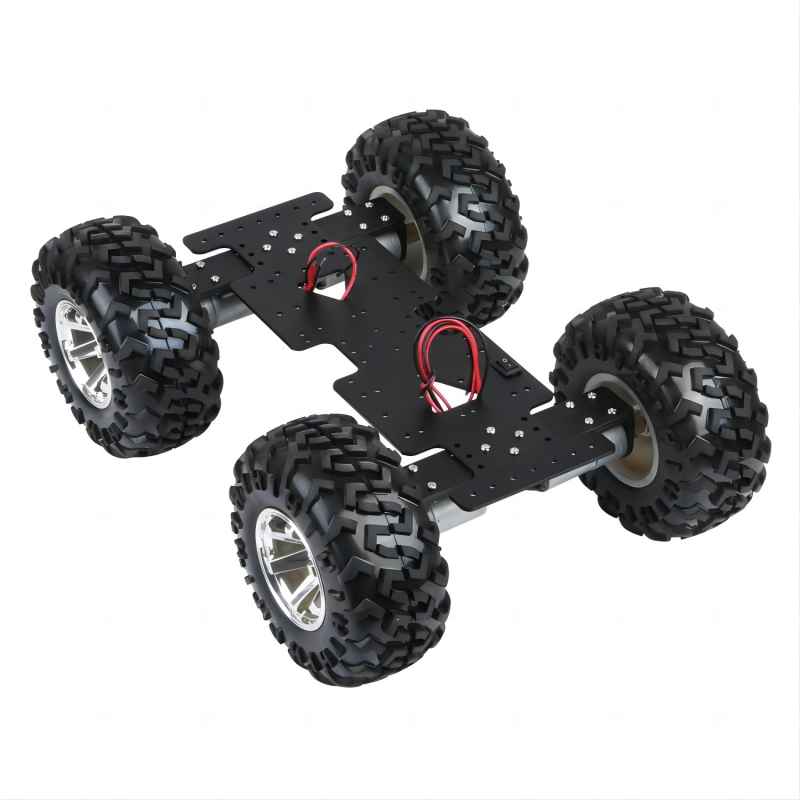

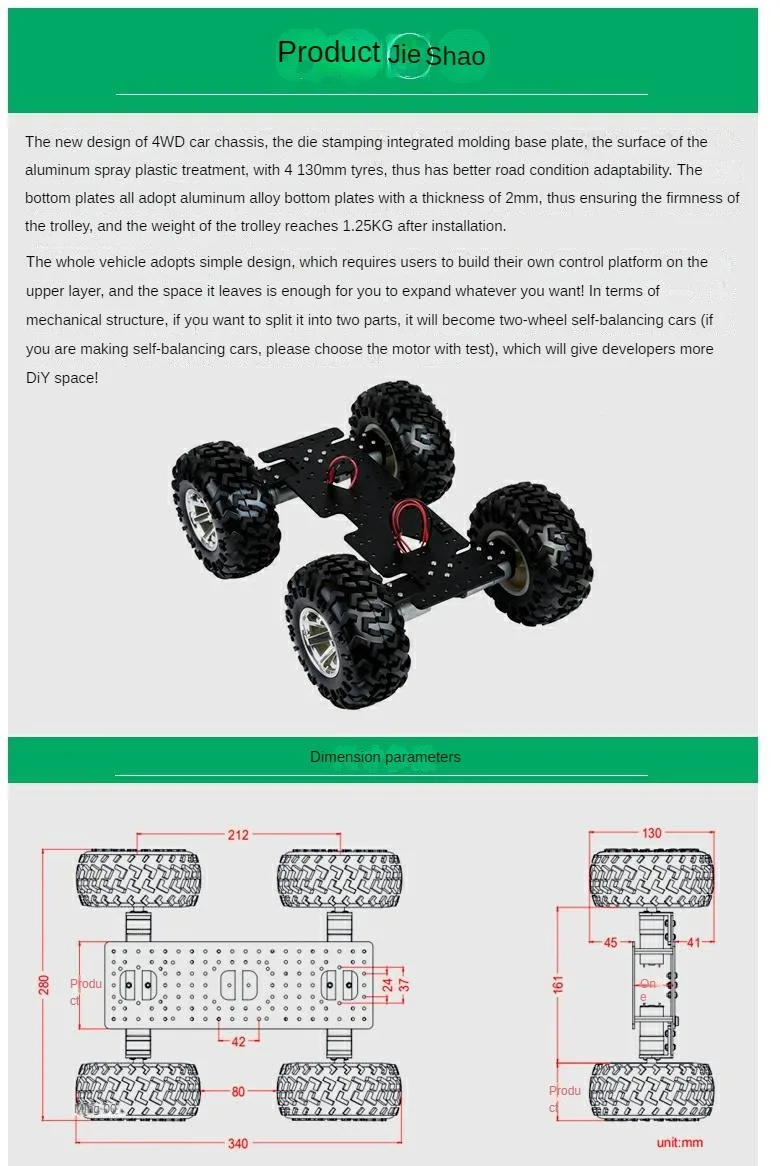

The new design of 4WD car chassis, mold stamping integrated molding bottom plate, the surface of the aluminum spray treatment, with 4 130MM Bigfoot tires, so as to have better road conditions adaptability. The bottom plate is made of aluminum alloy with 2mm thickness, which ensures the robustness of the car, and the weight of the car reaches 1.25KG after installation. The vehicle uses a simple design, which requires users to build their own control platform on the upper level, and it leaves room for you to expand anything you want! Mechanically, if you want to split it in two, it will become two two-wheeled self-balancing cars (if you do self-balancing cars, please choose a motor with a test), which will give developers more room for DiY!

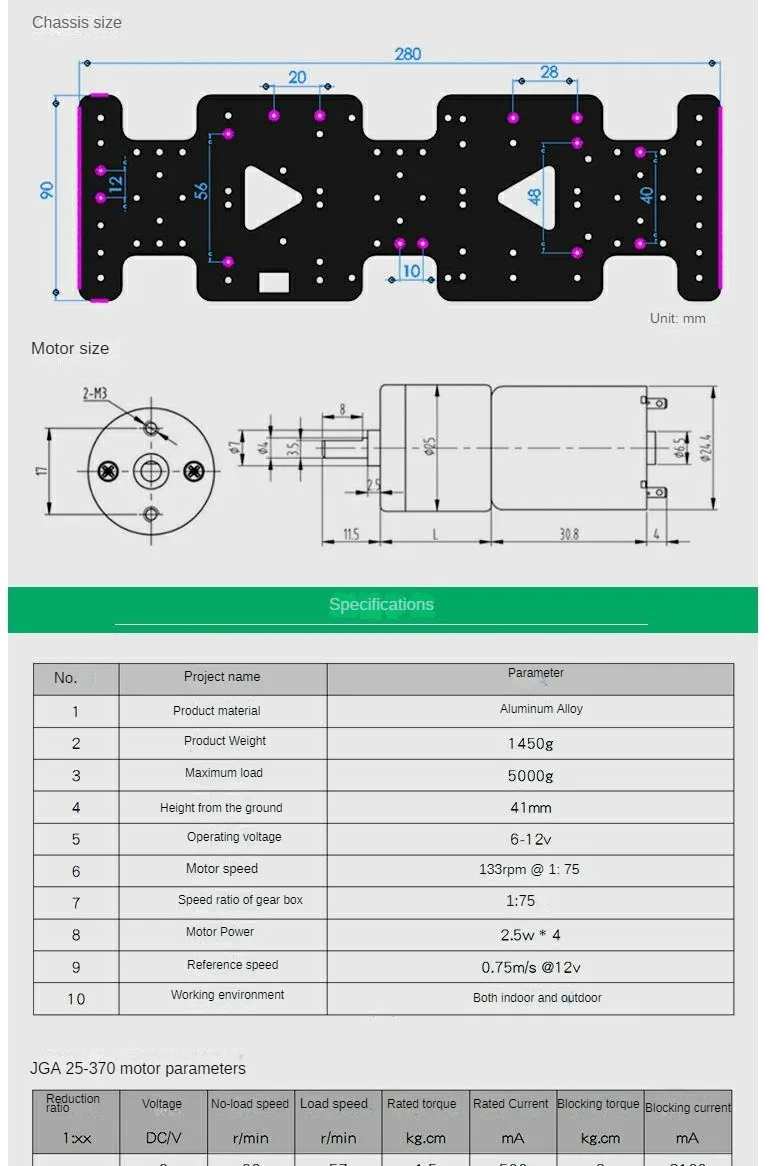

Product material:Aluminum alloy
Product weight:1450g
Maximum load:5000g
Ground height:41mm
Operating voltage:6-12V
Motor speed:133rpm @1:75
Gearbox speed ratio:1:75
Motor power:2.5w * 4
Reference Speed Operating environment:0.75m/ s@12v
Both indoor and outdoor
Note: This is unassembled, you need to assemble it, we provide installation tutorials for free，Please leave your email address
