ACEBOTT Ultrasonic Nebulizer Humidifier Module Compatible with ESP32 Arduino

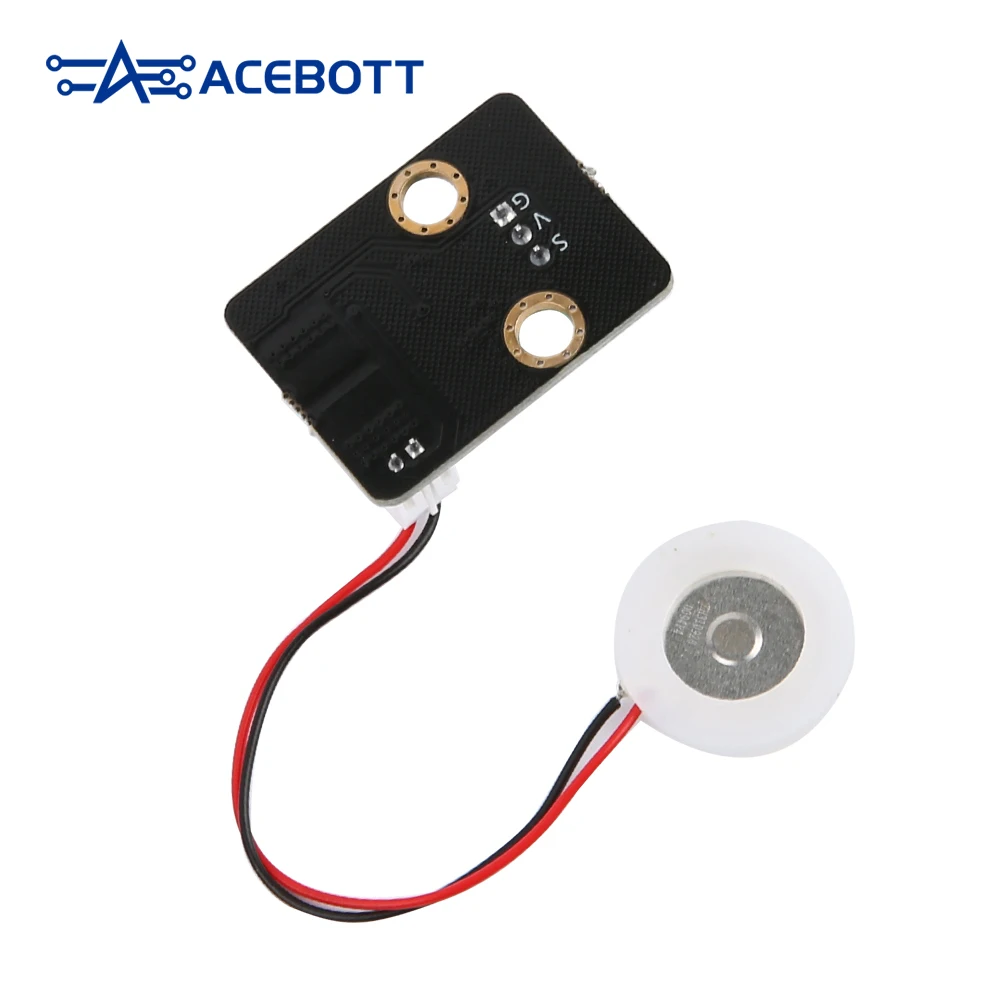

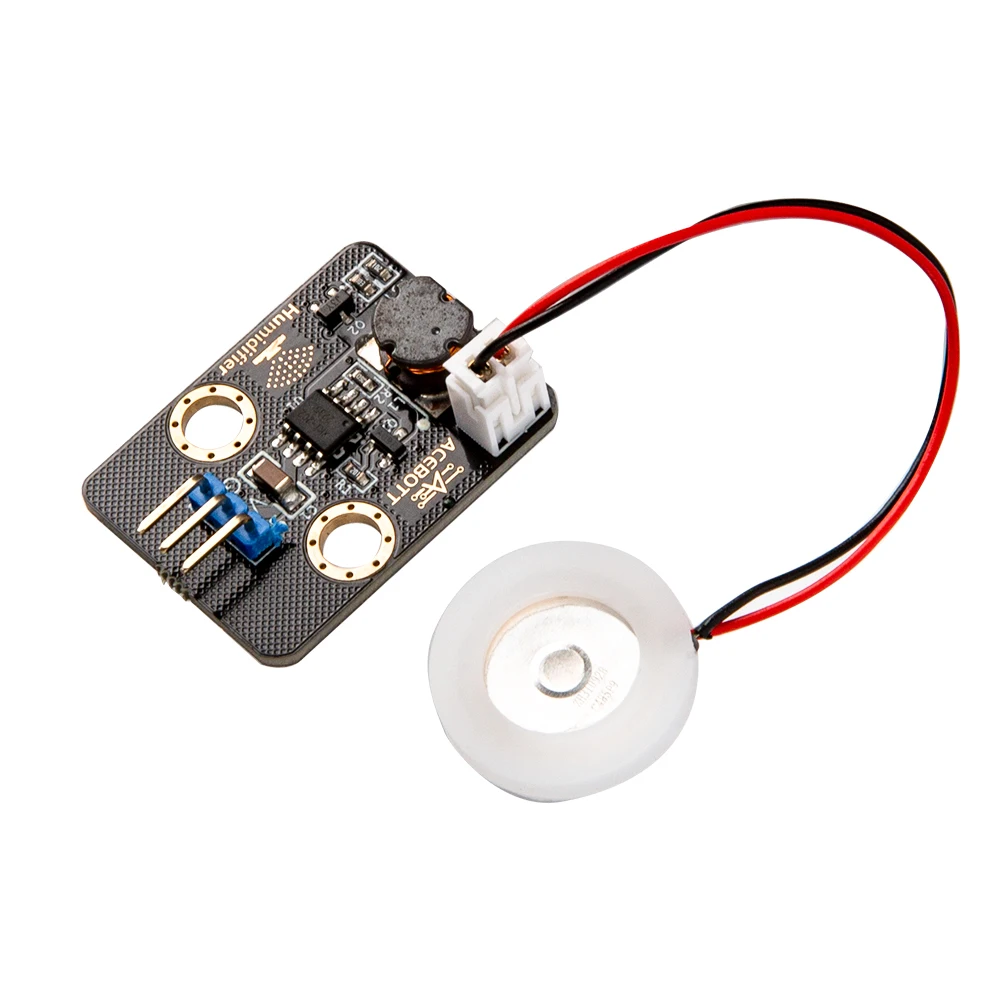

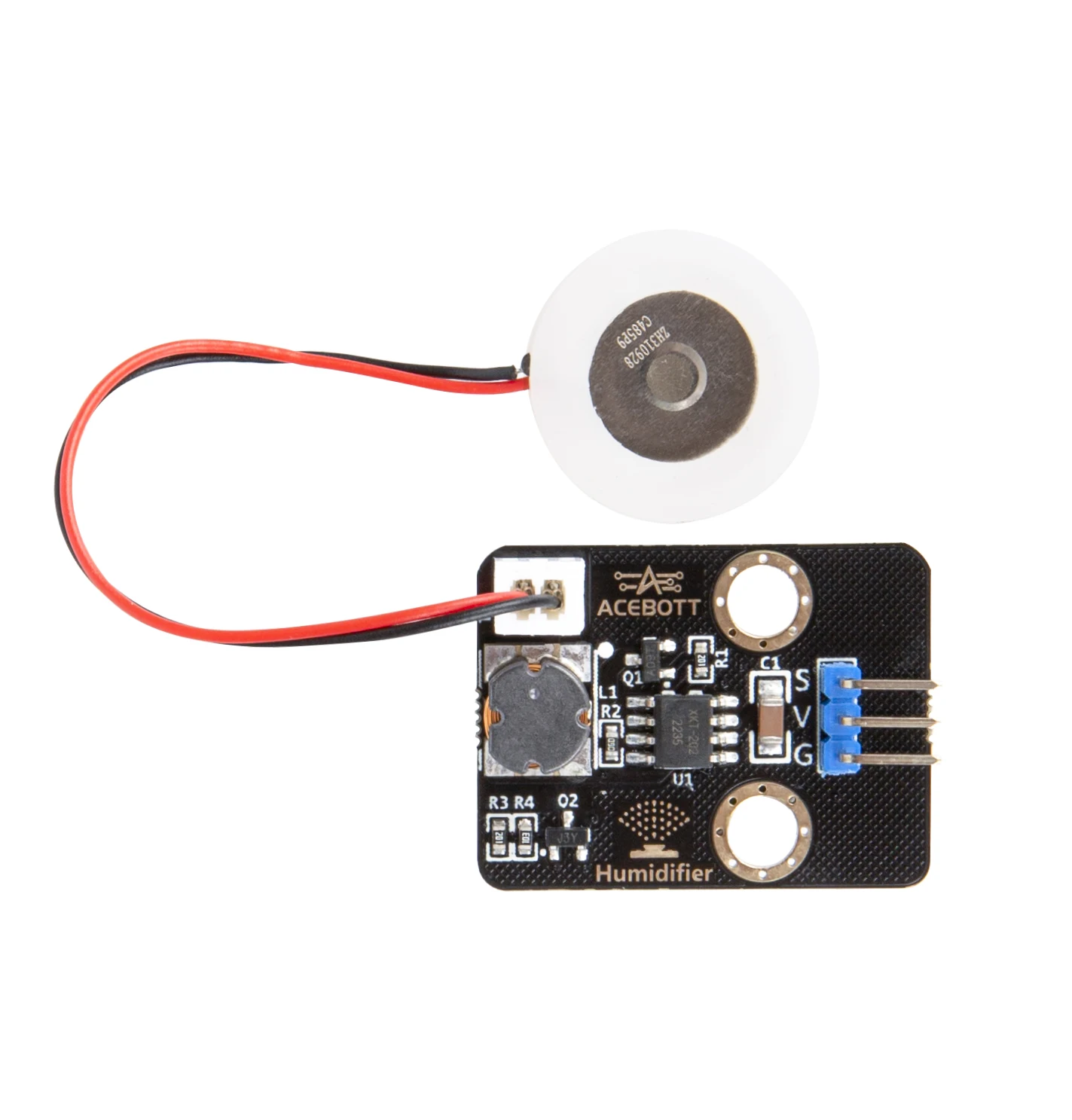

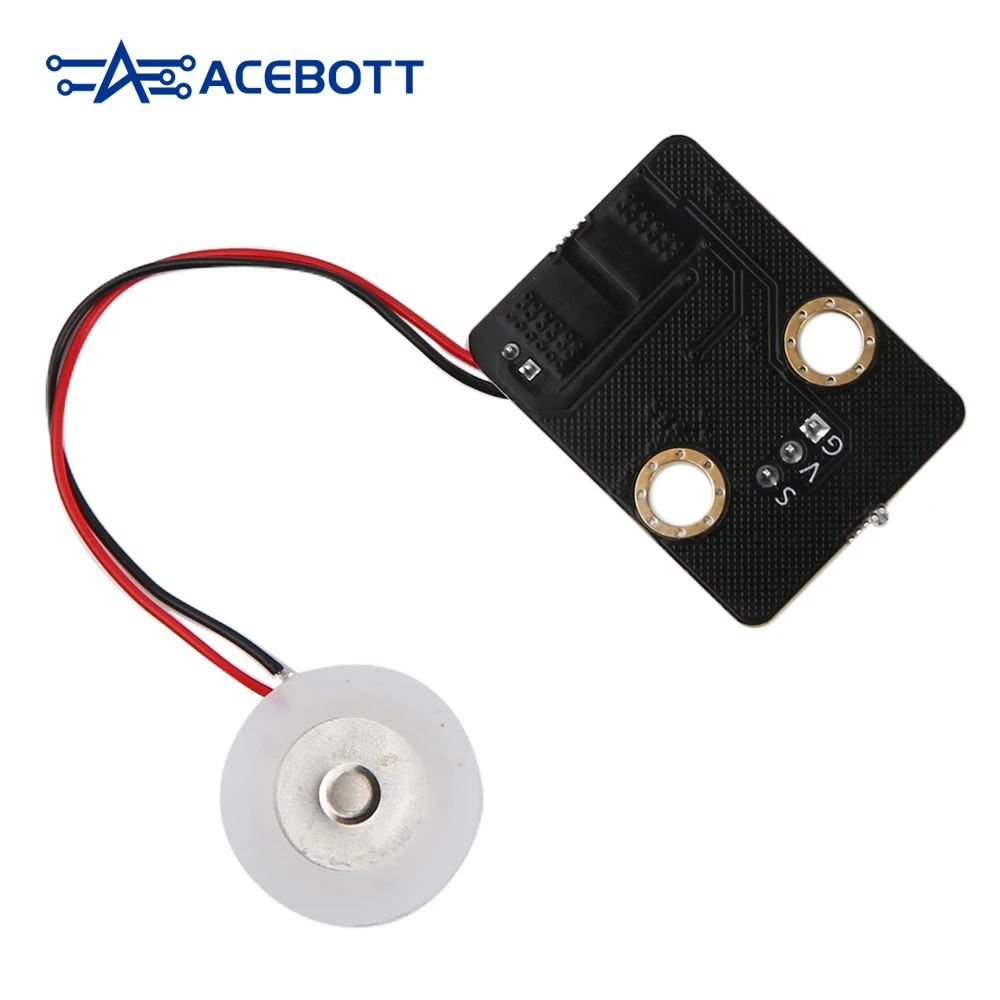

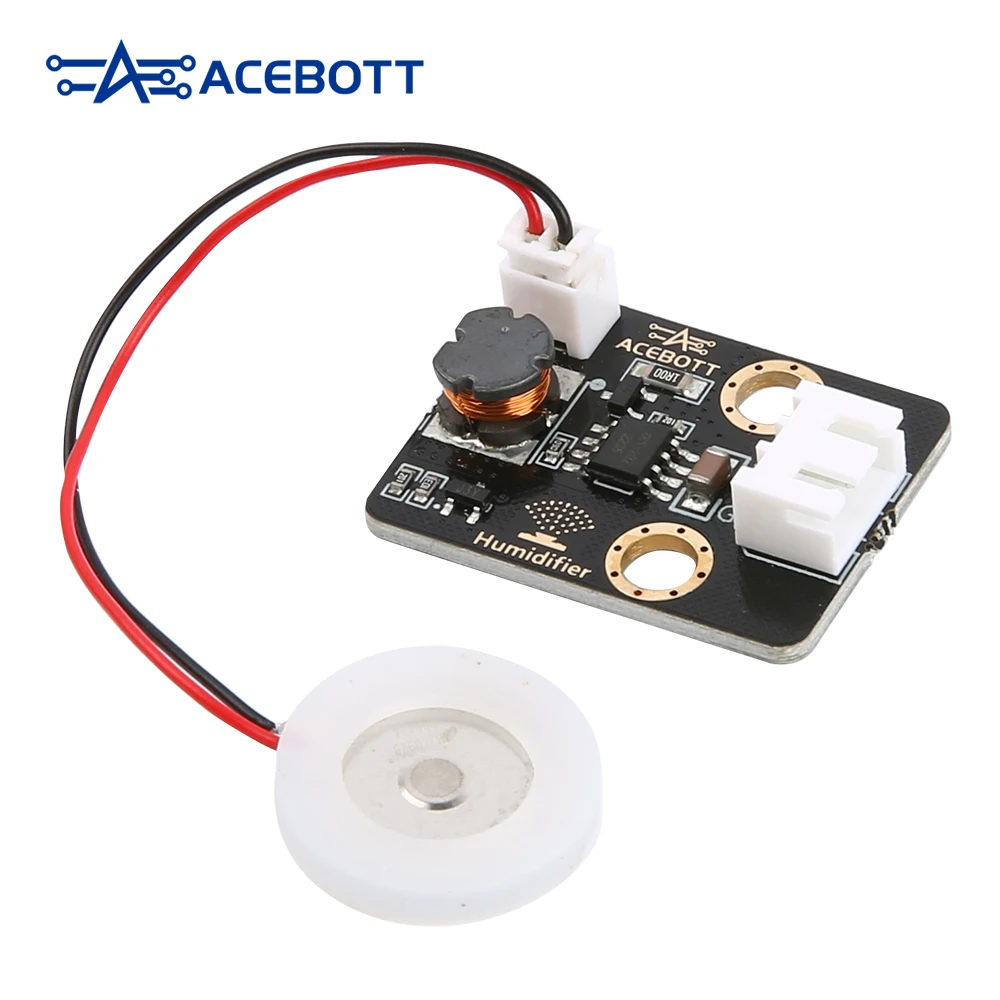

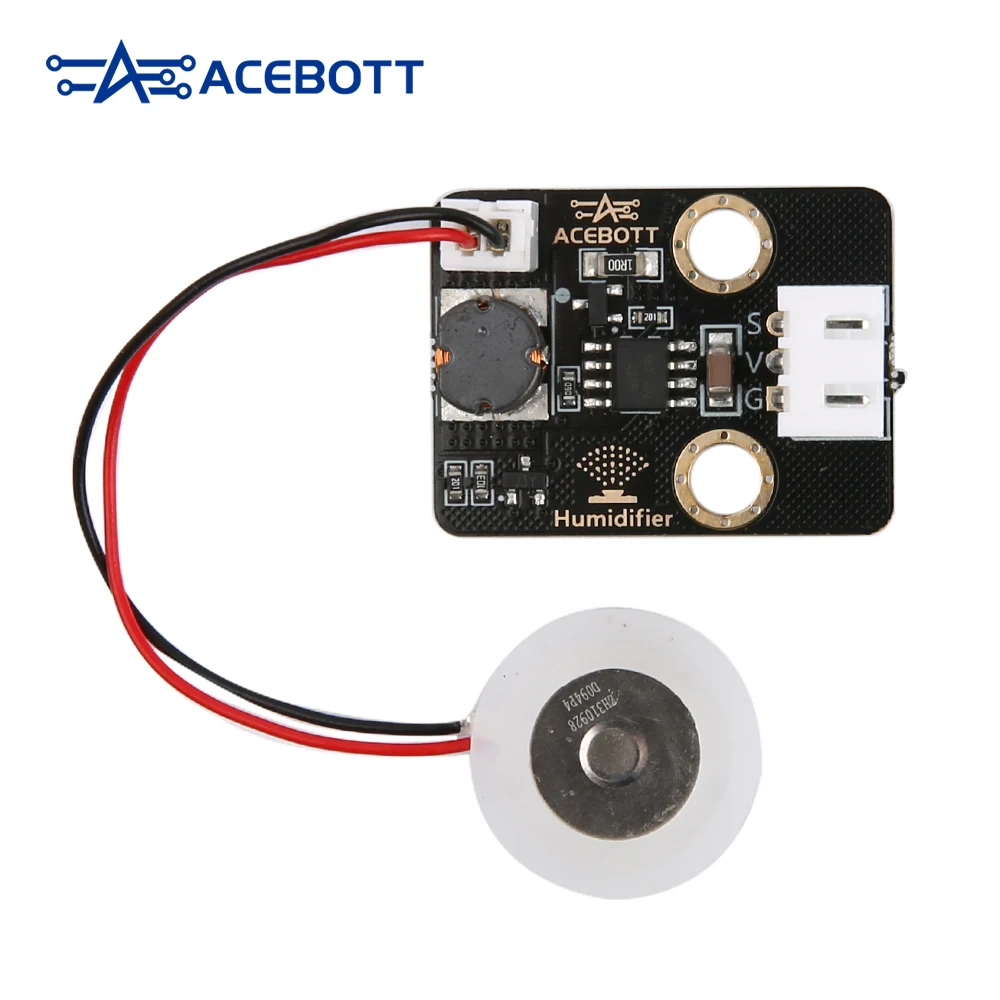

The humidifier module includes a driving plate and a microporous atomizing plate, which is composed of piezoelectric ceramic ring and metal steel sheet. Through the driving circuit board output PWM pulse width modulation, the piezoelectric ceramic produces hundreds of thousands of high-frequency resonances per second, driving the metal sheet vibration. Water is ejected from thousands of micropores in steel sheets to form 4-6 microns of water molecules, which scatter the structure of liquid water molecules and produce water mist.
-
Parameter: Value/Representation; Operating voltage: 5V; Operating temperature: -20°C~+70°C; Control signal: Falling edge trigger; Size: 3.16cm*2.38cm
-
Features: Large atomization volume, fine atomization particles, high spray atomization degree
-
Spray Principle: Piezoelectric ceramics drive the metal plate to oscillate at high frequency, and ultrasonic liquid atomization. Micron-sized water molecules atomize water through micropores and disperse into the air.
-
The atomizer needs to be used with a circuit board of the same frequency to achieve the ideal spray volume.
-
Application: DIY, plant moisturizing, garden misting, etc.
