1. Introduction
The AD8232 is an integrated front end for signal conditioning of cardiac bioelectrical signals to monitor heart rate. This is a low-power, single-lead and heart rate monitor front end for all types of vital signs.
2. Specification
Power voltage:DC 3.3V
Output:analog output
Interface(connect RA, LA, RL):3PIN, 2.54PIN or earphone jack
Size: 36mm * 31mm * 18mm
Working Temperature:-40 ℃ to +85 ℃

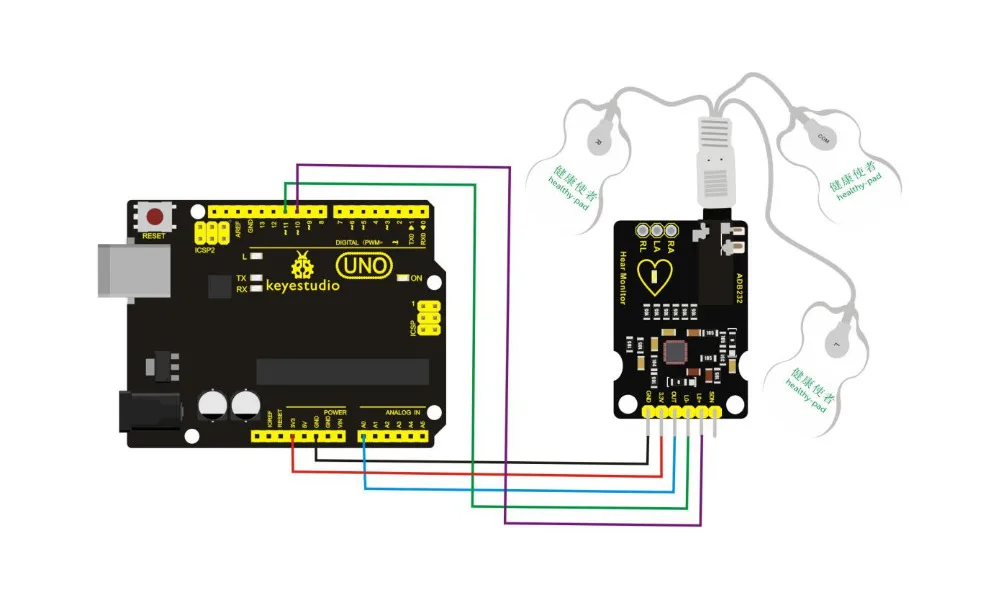

3. Connection Diagram
4.Related Data Link
Get Codes of All Project
//www.keyestudio.com/files/index/download/id/1505111581/
Get Processing Software
