Overview
Raspberry Pi Camera Module 3 series is the latest camera series released by Raspberry Pi Official in 2023. Arducam has designed a Fixed-Focus camera variant based on the Official Wide-Angle Camera Module 3. The camera adopts the Sony 11.9MP IMX708 Image Sensor which can be used to take full HD video as well as still photographs and features an HDR mode of up to 3 megapixels.
It is equipped with a 102 Degree Wide-Angle Fixed Focus Lens and integrated IR-cut filter which is more stable and fast when focusing compared with the Autofocus Lens, especially for the wide range projects. It is fully supported by the libcamera and Picamera2 library.
Arducam is committed to creating diverse and convenient camera solutions. Also, we designed various accessories for the Raspberry Pi Camera Module 3. Among them, include the Camera Extension solution, Quad-Vision stereo camera kit, UVC USB camera solution, and upcoming FPD-Link solution, etc. For details, please refer to our official website www.arducam.com
Applications
-
Wildlife Photograph
-
Machine Learning
-
High-Quality Monitor
-
AI applications
-
Wide-Range Project
Features
-
Complementary to RPI V3: A fixed focus supplement to the Raspberry Pi IMX708 autofocus camera module 3, catering to lots of use cases where auto-focus lenses are improper or unsafe.
-
Arducam Camera Module 3: Based on back-illuminated stacked CMOS 12-megapixel high-resolution Image Sensor (Sony IMX708) with HDR mode for up to the 3-megapixel output. Same basic functions as Raspberry Pi Official Camera Module 3.
-
Wide Range Quality Images: Armed with a 102° Wide Angle Fixed Focus Lens. Wide-Angle Lens allows a wider field of view for landscape photography. The max resolution reaches 4608 × 2592. Along with built-in 2D DPC and QBC Re-mosaic function, offering a high signal-to-noise ratio (SNR). The high resolution and performance of the sensor enable the camera to capture ultra-high-quality images.
-
Native to Raspberry Pi: Natively supported by Raspberry Pi. No additional driver is needed when using the camera on Raspberry Pi. You only need to make some modifications in the config file. Supports Raspberry Pi Bullseye OS and libcamera command.
-

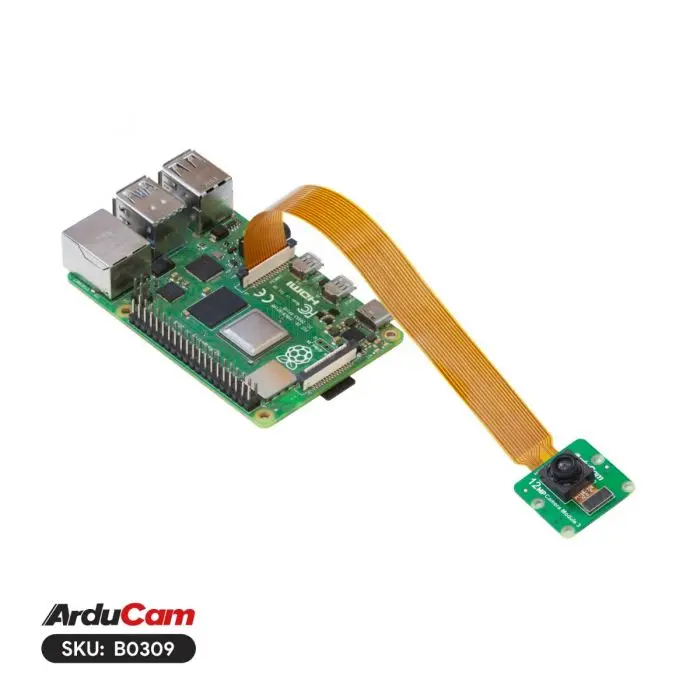

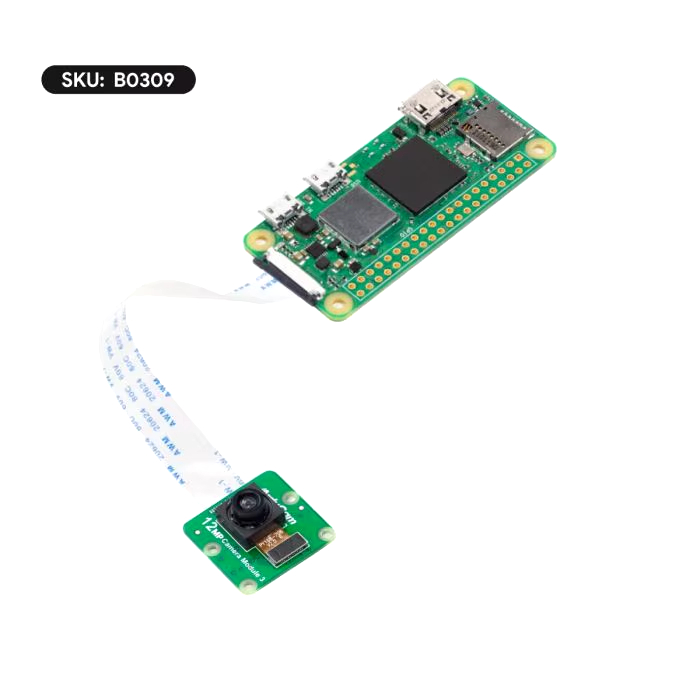

Platform Compatibility: Supports Raspberry Pi 3, 4 A/B, equipped with 15-22pin FPC flexible cable. Supports application on Raspberry Pi Zero (22-pin FFC flexible cable not included in the package).
Specifications
IMAGE SENSOR |
IMX708 |
Resolution |
11.9MP |
Optical Size |
1/2.43(7.4mm sensor diagonal) |
Number of effective pixels |
4608(H) × 2592(V) |
Pixel Size |
1.4μm × 1.4μm |
Interface |
MIPI CSI-2 Interface |
Shutter Type |
Rolling Shutter |
Color Filter |
Color |
Common Video Mode |
1080p50, 720p100, 480p120 |
Output Format |
RAW10 |
F.NO |
F2.2 |
Focus Type |
Fixed Focus |
Focal Length |
2.75mm |
Field of View(FOV) |
120°(D)x102°(H)x67°(V) |
IR Sensitivity |
Integral IR-cut Filter, visible light only |
Camera Board Size |
25 × 24 × 11.5mm |
Package Including
-

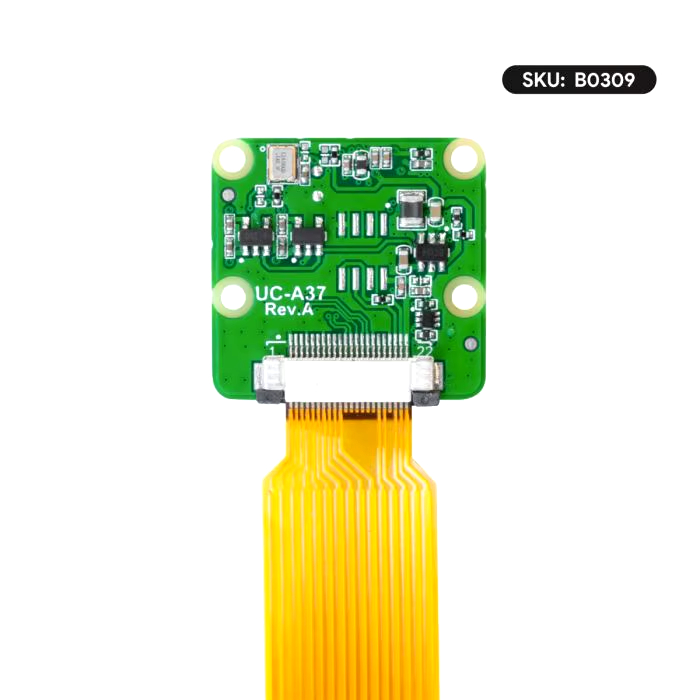

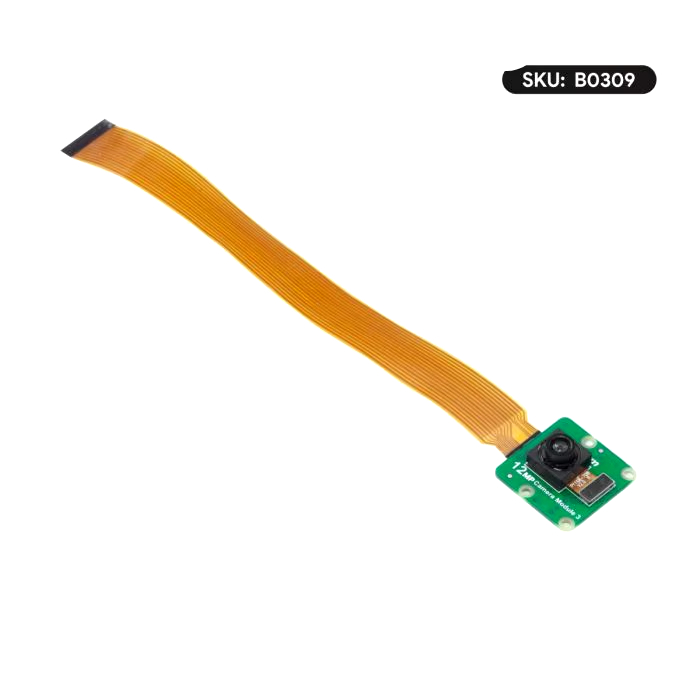

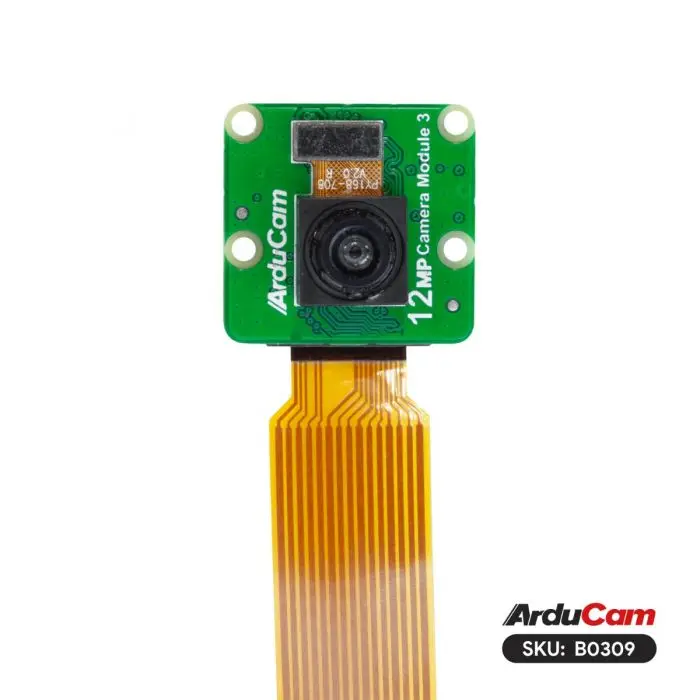

1 x Arducam 12MP IMX708 Wide-Angle Fixed Focus camera module
-
1 x 150mm 15pin-22pin FPC Cable
