Introduction:

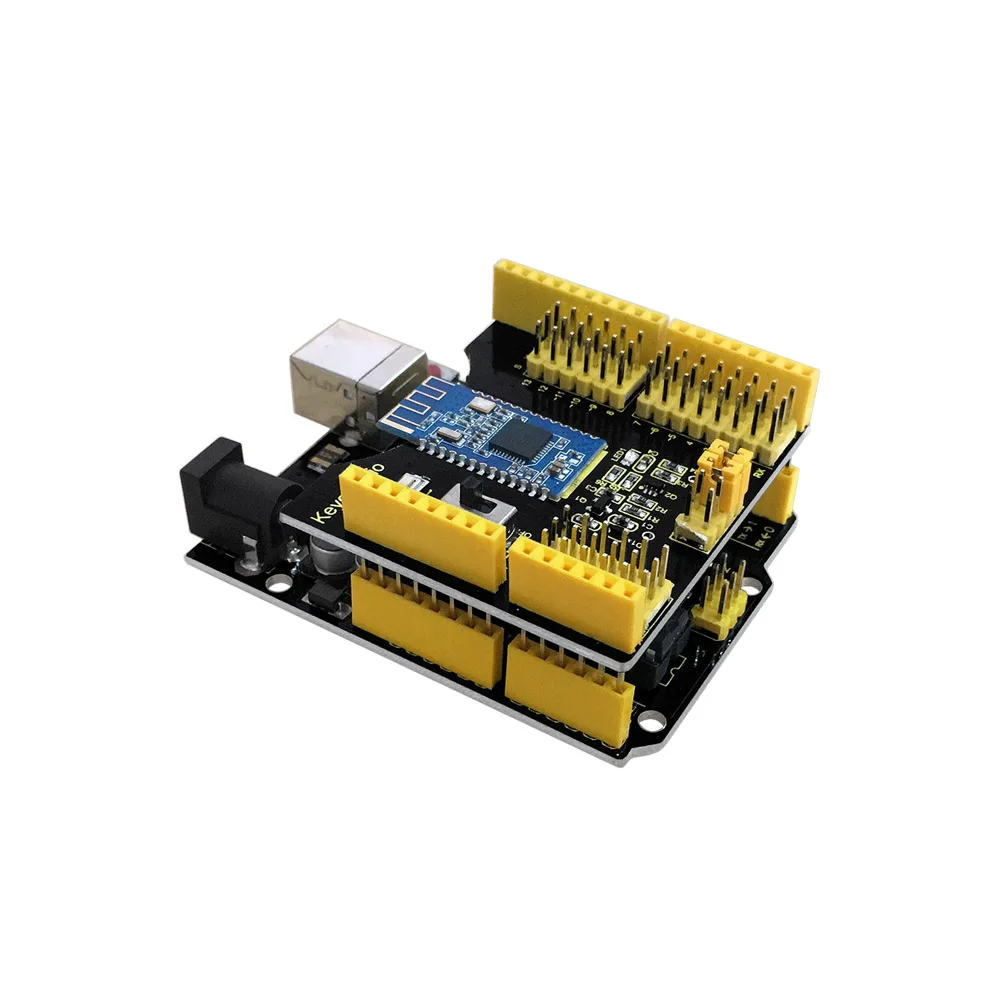

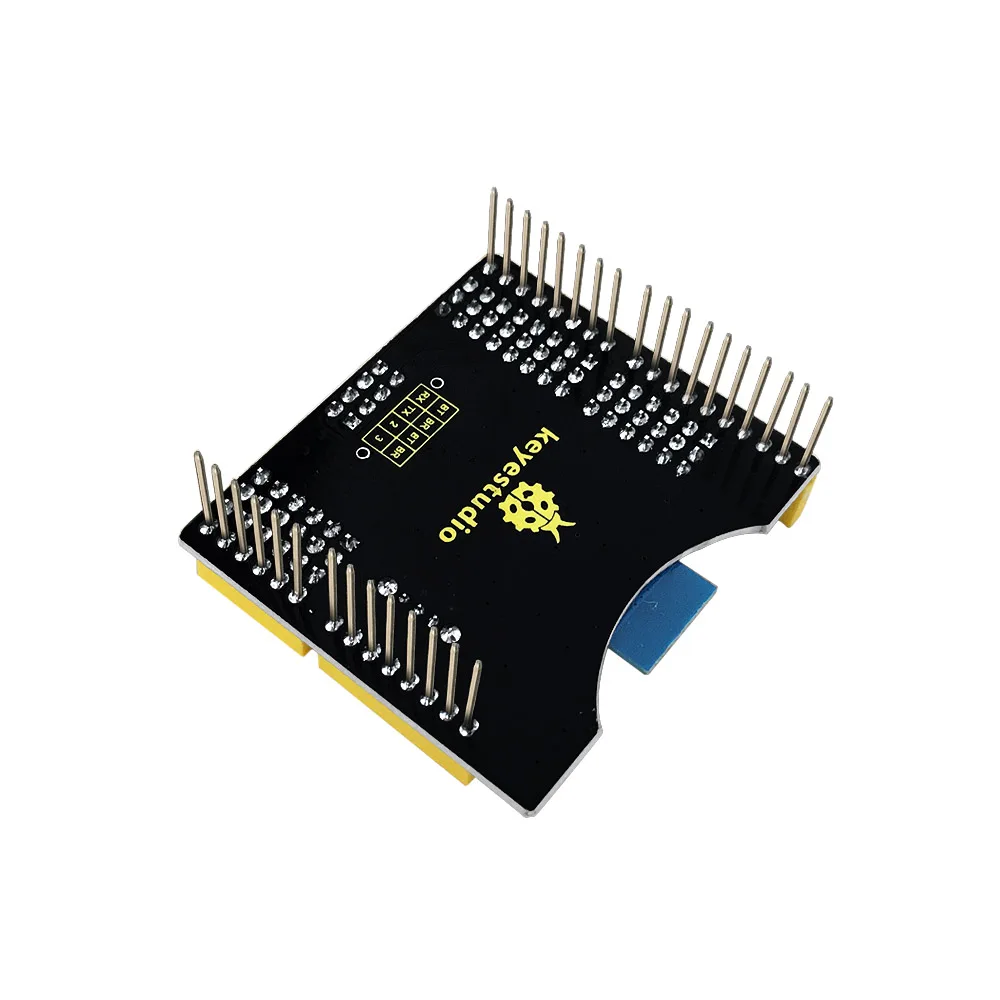

The Blueteeth 4.0 shield is an integration of sensor shield and HM-10 Bluetooth-4.0, fully compatible with UNO R3. So it is very easy to stack it onto the UNO R3 board.

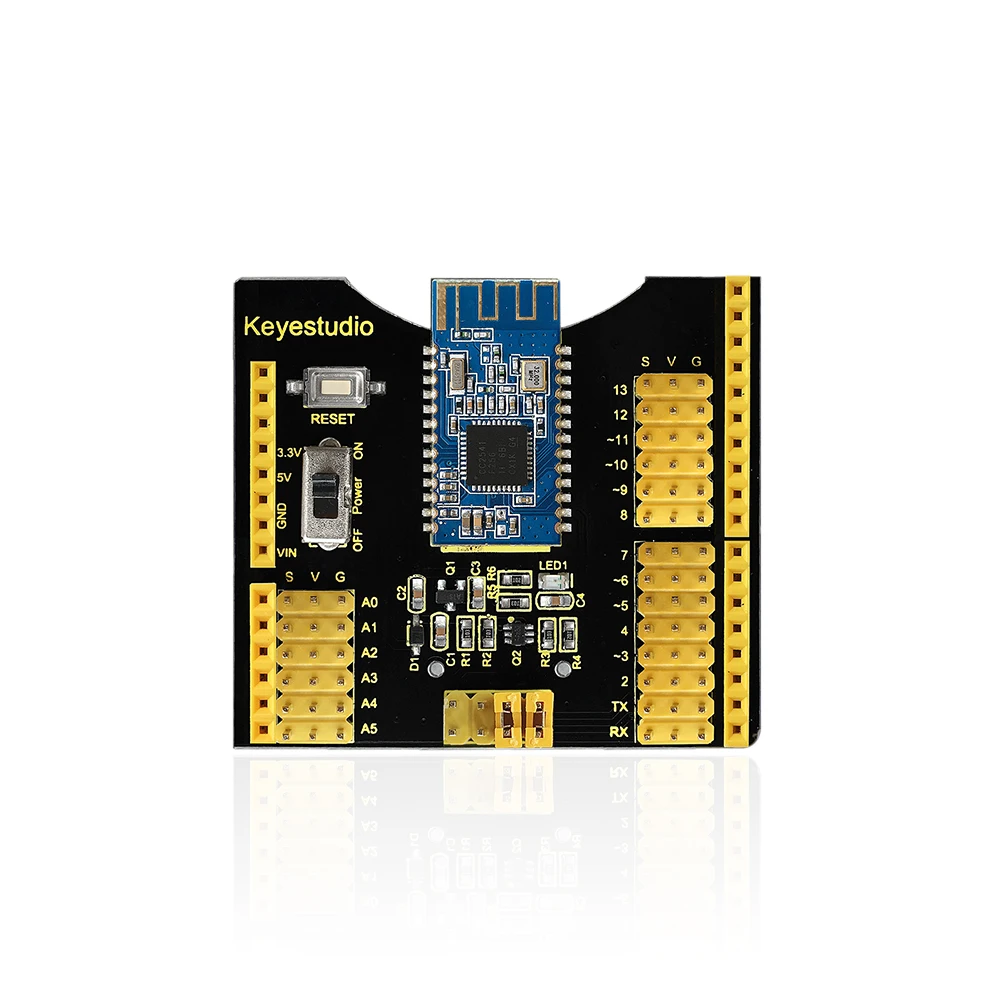

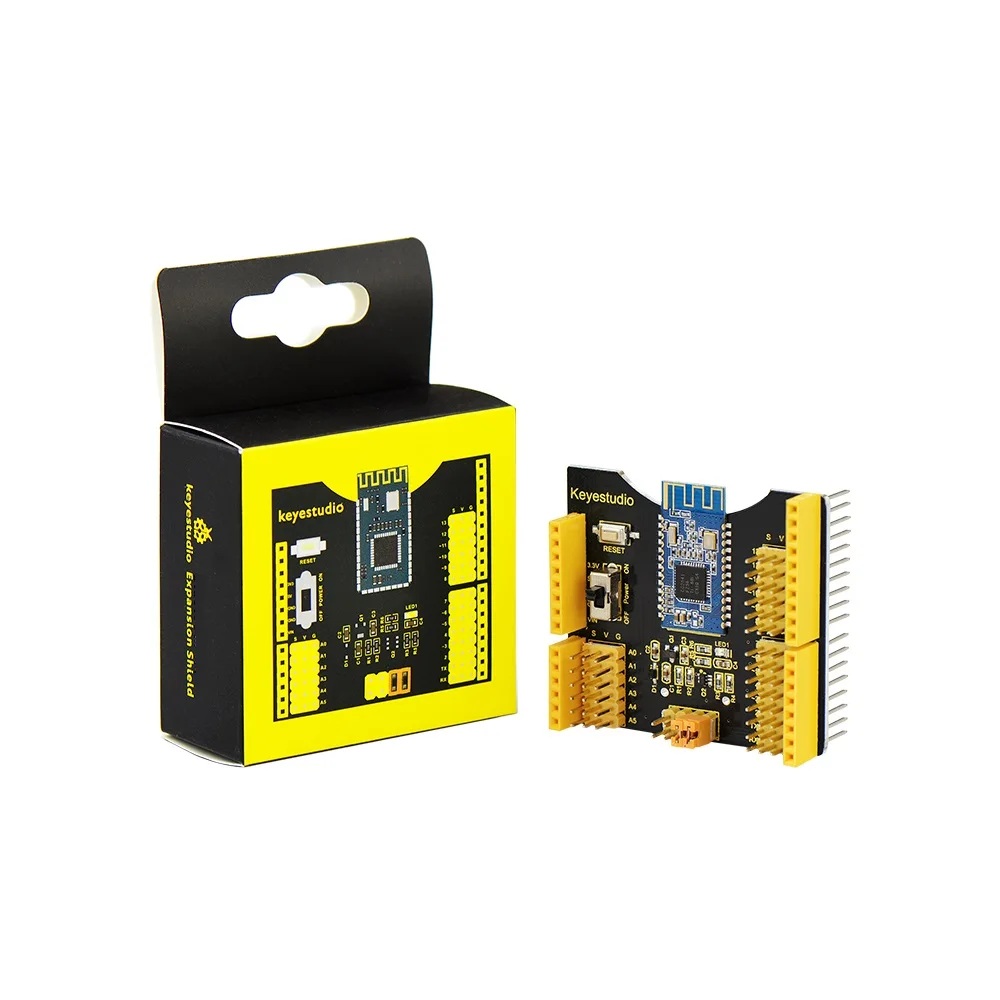

The shield has extended all the digital and analog pins out into 3PIN, simple to connect the sensor using 3PIN wire.
It also come with a HM-10 Blueteeth-4.0 used for Blueteeth communication. The slide switch is used to control the power supply for Blueteeth.
Onboard is set with jumper cap, default by communicating the Blueteeth module to UNOR3 serial port. If connect two jumpers, need to set the virtual serial port for UNO R3 board, that is D2 to TX, D3 to RX.
Features:
-
Extends 14 digital pins into 3PIN
-
Extends 6 analog pins into 3PIN
-

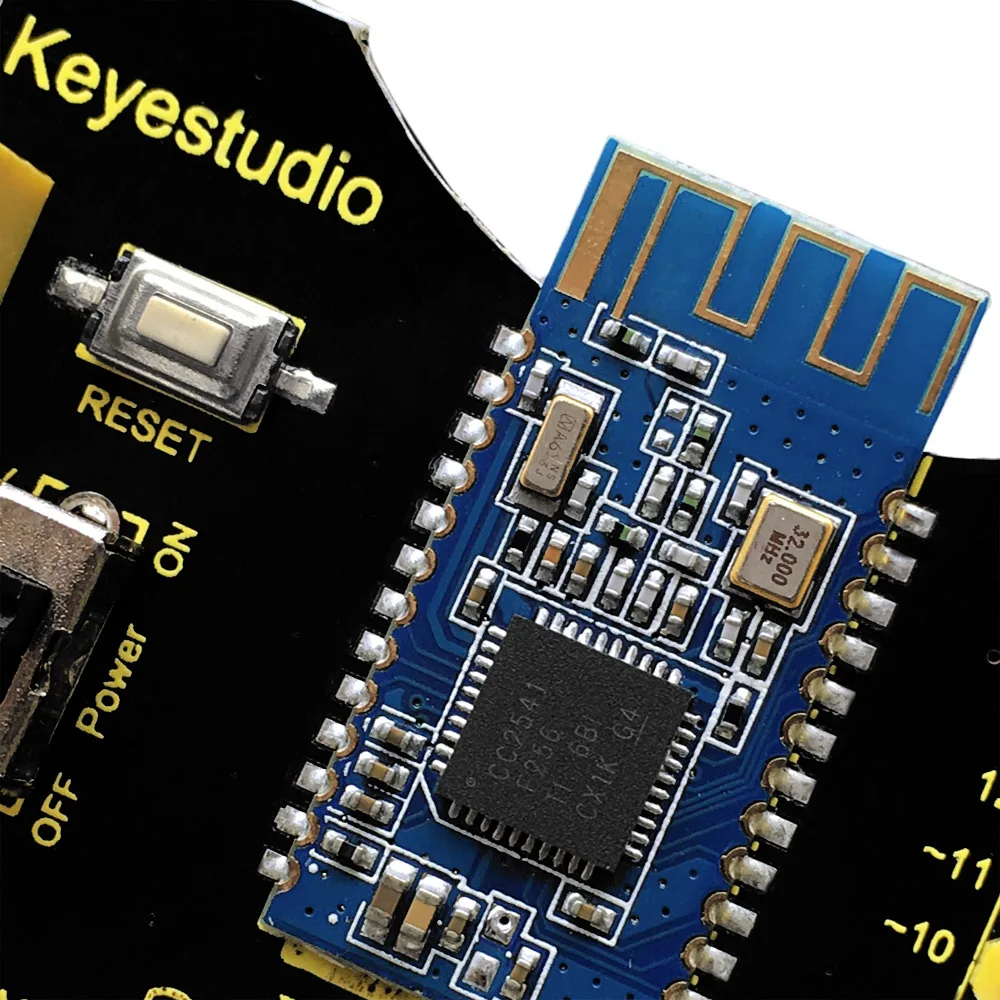

Comes with a reset button
-
Comes with a slide switch to control the Blueteeth communication
-

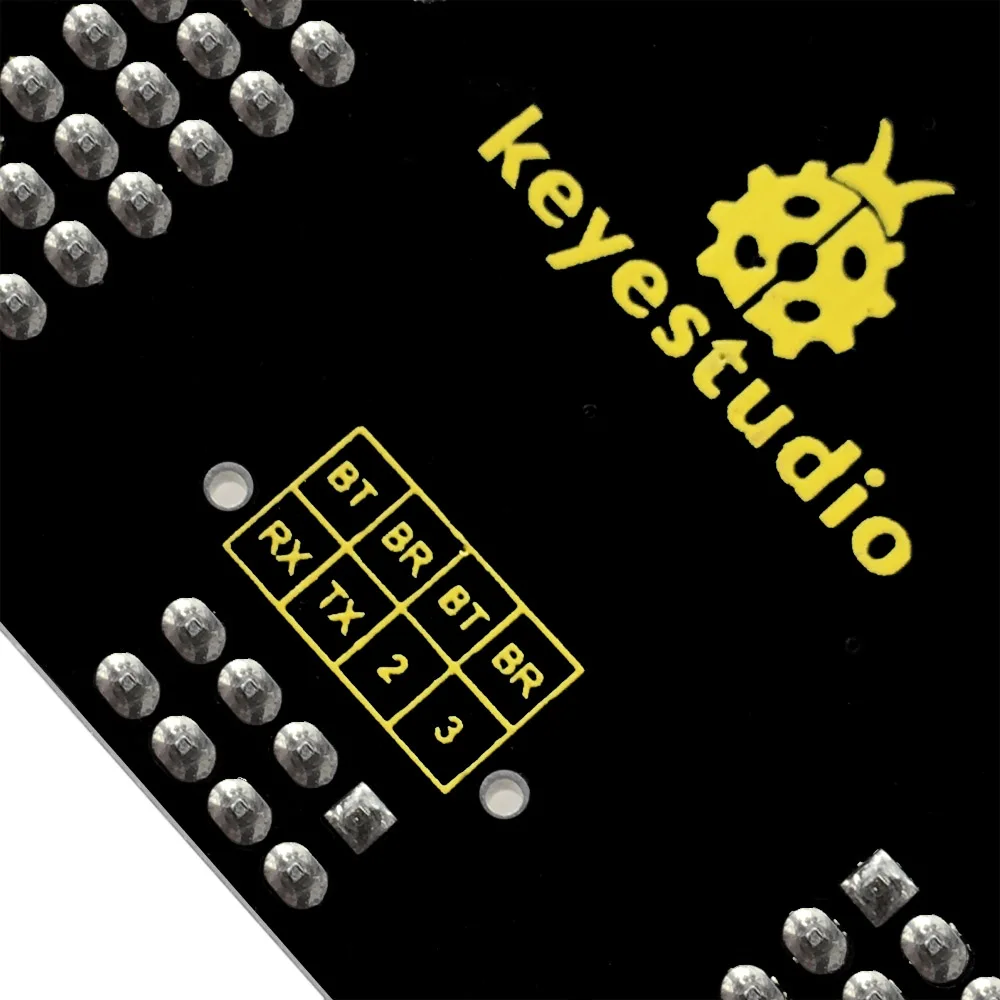

Comes with jumper interface to control the serial communication pin (default built-in serial port, can select the analog serial port, TX to D2, RX to D3.)
-
Comes with a Blueteeth 4.0 module
Bluetooth 4.0 Parameters:
-
Terminal block spacing: 3.5mm
-
Blueteeth protocol: Blueteeth Specification V4.0 BLE
-
No byte limit in serial port Transceiving
-
Realize 100m ultra-distance communication with iphone4s in open field.
-
USB protocol: USB V2.0
-
Working frequency: 2.4GHz ISM band
-
Modulation method: GFSK(Gaussian Frequency Shift Keying)
-
Transmission power: -23dbm, -6dbm, 0dbm, 6dbm, can be modified by AT command.
-
Sensitivity: ≤-84dBm at 0.1% BER
-
Transmission rate: Asynchronous: 6K bytes ; Synchronous: 6k Bytes
-
Security feature: Authentication and encryption
-
Supporting service: Central & Peripheral UUID FFE0, FFE1
-
Power consumption: Auto sleep mode, stand by current 400uA~800uA, 8.5mA during the transmission.
-
Power supply: 5V DC
-
Working temperature: -5 to +65 Centigrade
Technical Details:
-

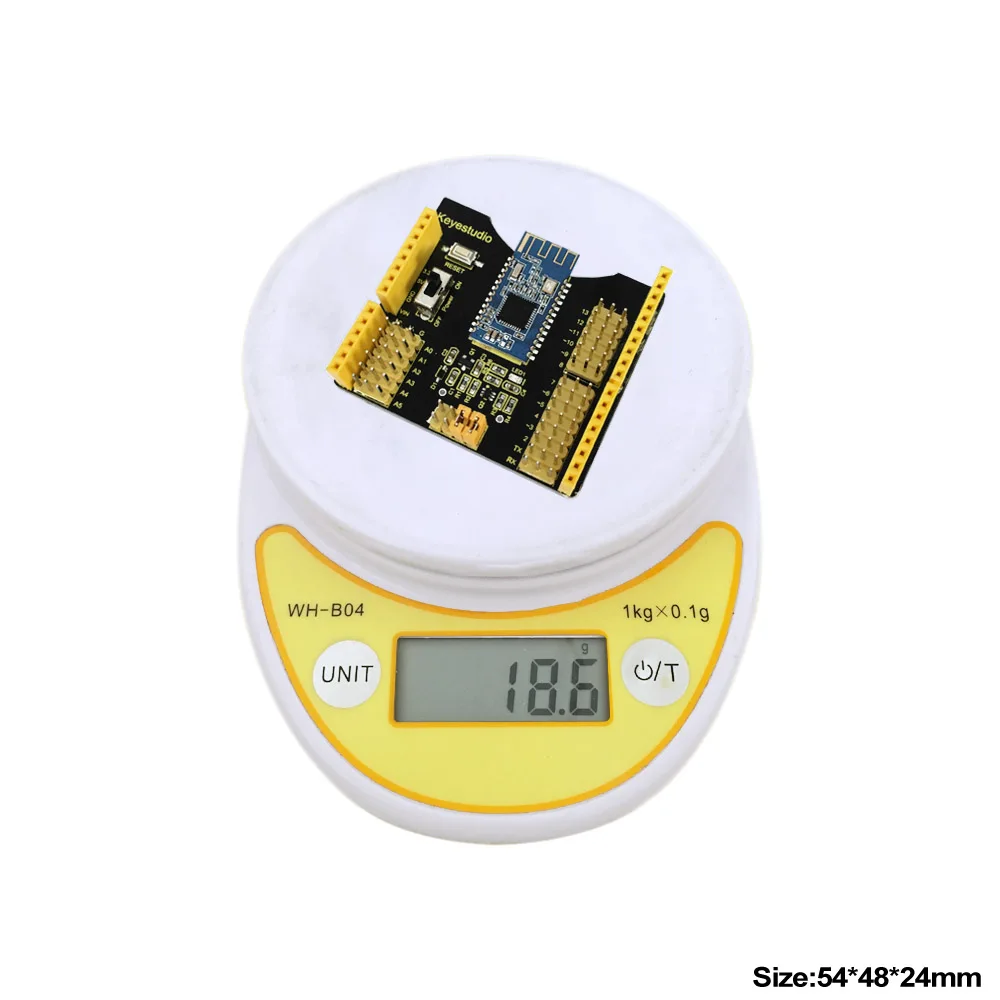

Dimensions: 54mm x 48mm x 23mm
-
Weight: 19g
Sample Code
int val;
int ledpin=13;
void setup()
{
Serial.begin(9600);
pinMode(ledpin,OUTPUT);
} void loop()
{ val=Serial.read();
if(val==’a’)
{
digitalWrite(ledpin,HIGH);
delay(250);
digitalWrite(ledpin,LOW);
delay(250);
Serial.println(“keyestudio”);
}
}
Result
The keyestudio Blueteteh 4.0 expansion board is stacked on the keyestudio UNO R3 control board. After the power is turned on, burn the procedure and dial the toggle switch to power on HM-10 Blueteeth – 4.0.
Open APP HC-COM, click search device, select the device, device is connected; the LED on the Blueteeth module is on. Enter “a” in HC-COM, click send, Blueteeth APP will display keyestudio. Every time HC-COM sends an “a”, the Pin13 LED on the main board blinks once.
