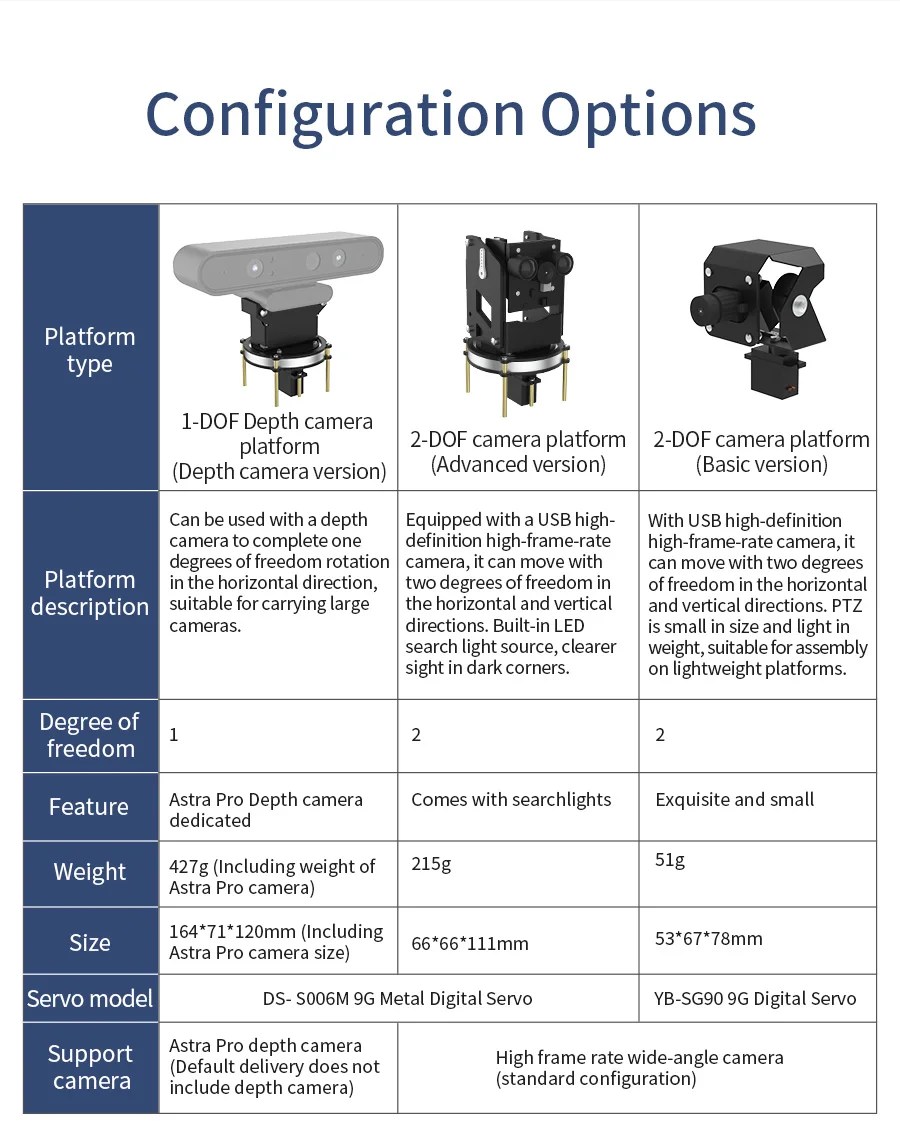

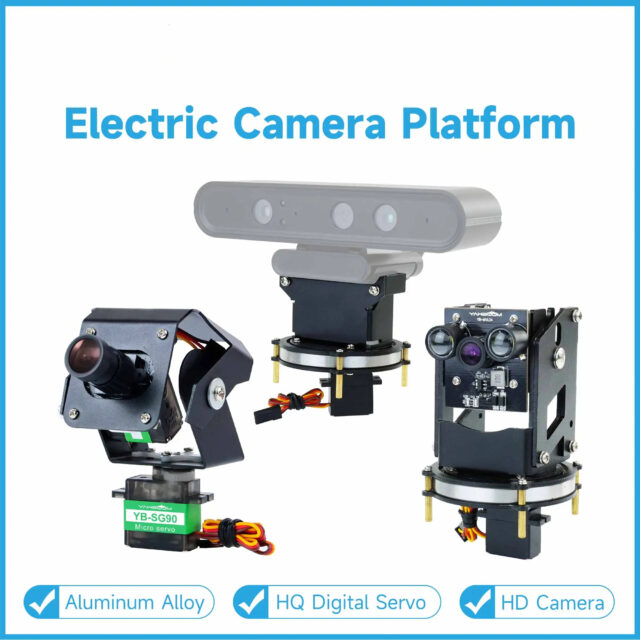

Camera Platform with HD Camera RGB Light 2DOF PTZ Tilt 9G SG90 Servo for Smart Car AstraPro Depth Camera Metal Bracket

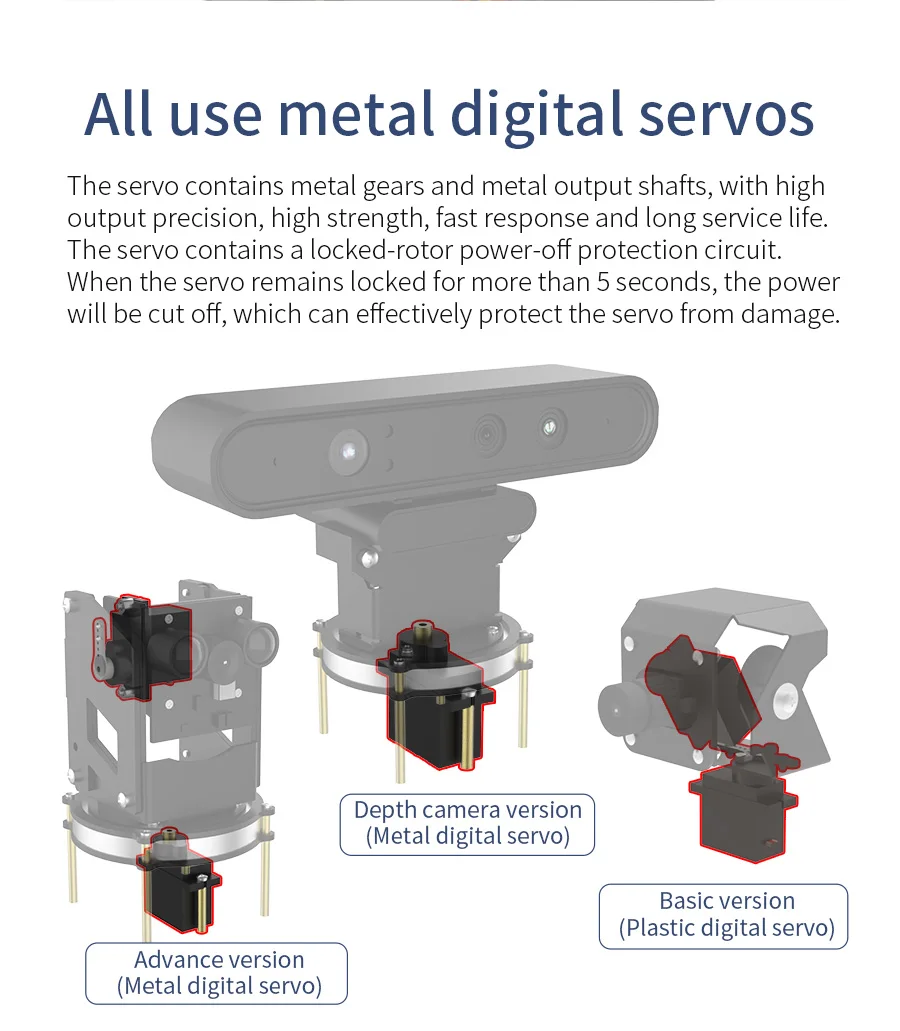

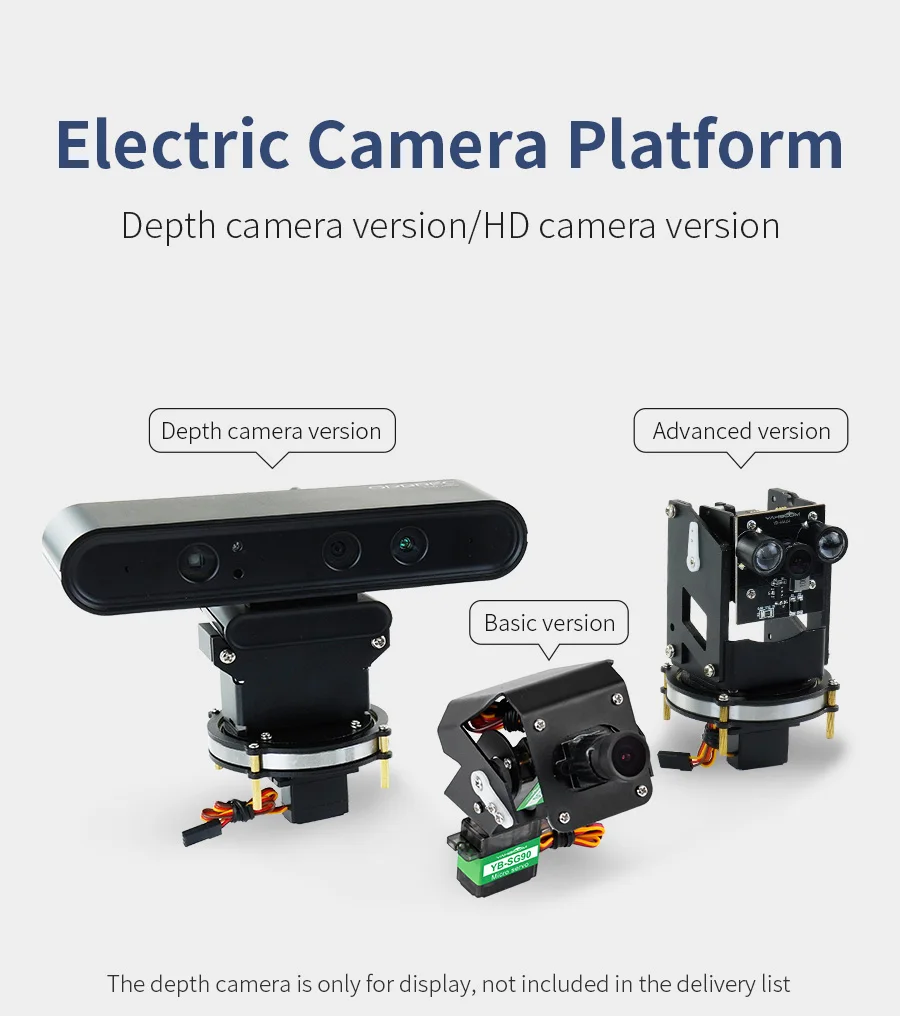

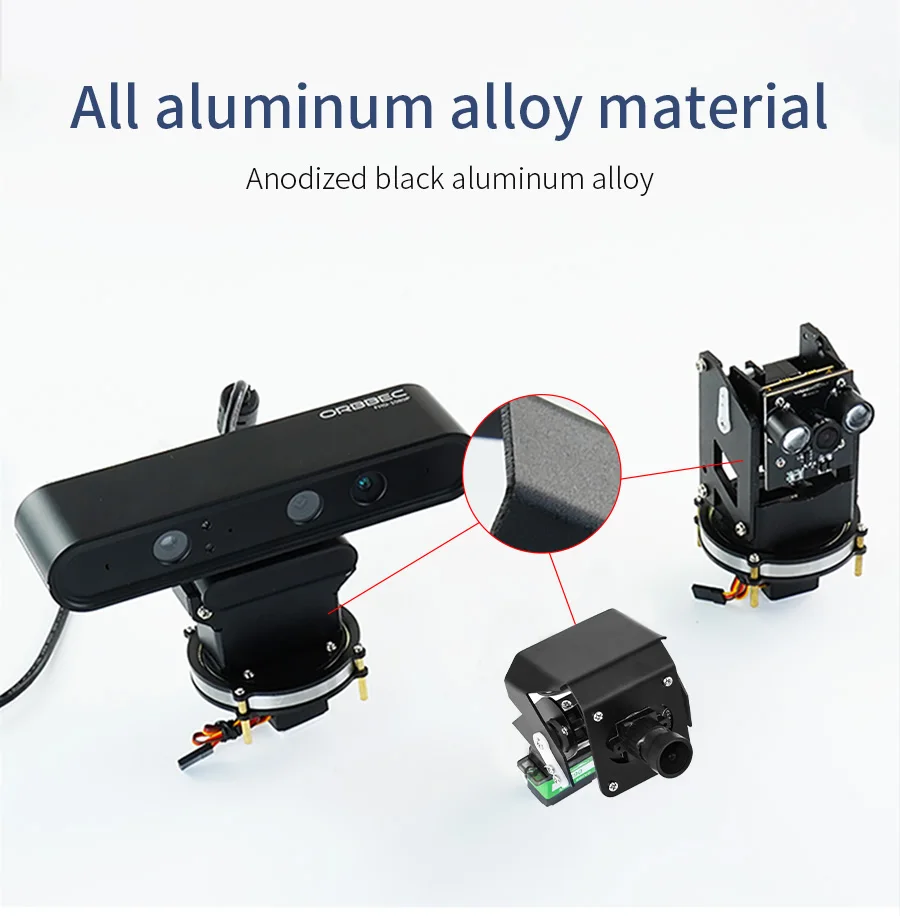

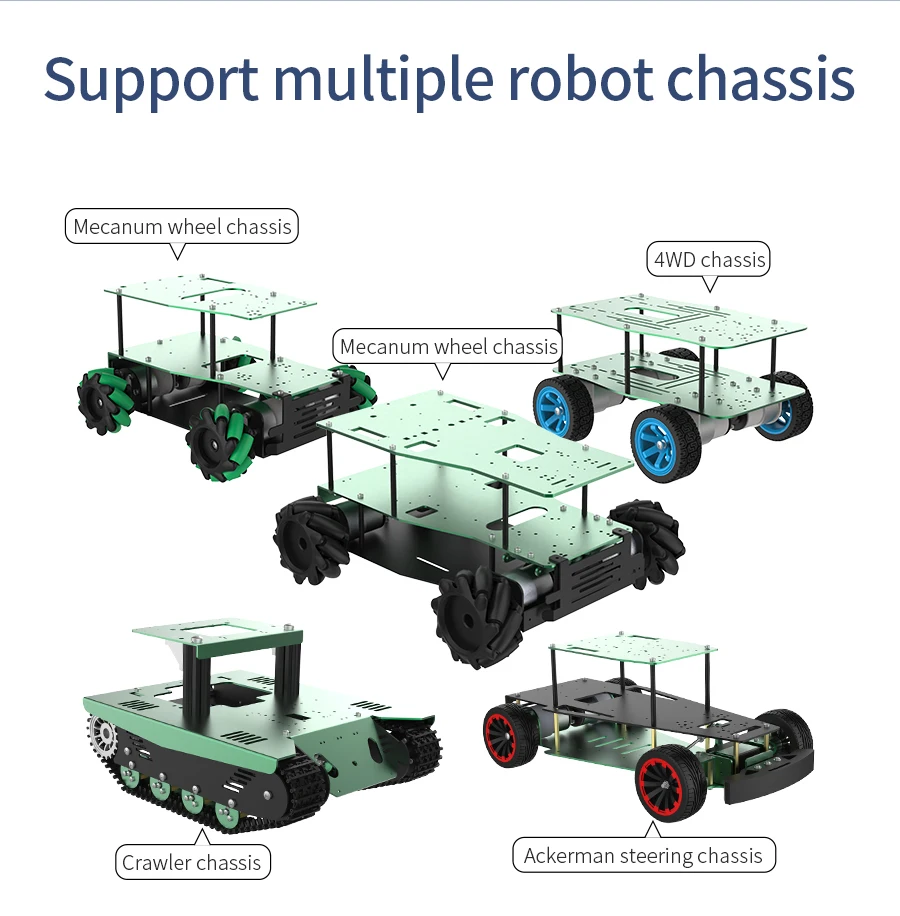

This collection includes three kinds of camera platform, all of which are made of aluminum alloy and 9G metal digital steering gear. Suitable holes are reserved to support the installation of screws and copper columns, which can be used on the smart car for automatic driving and visual recognition.

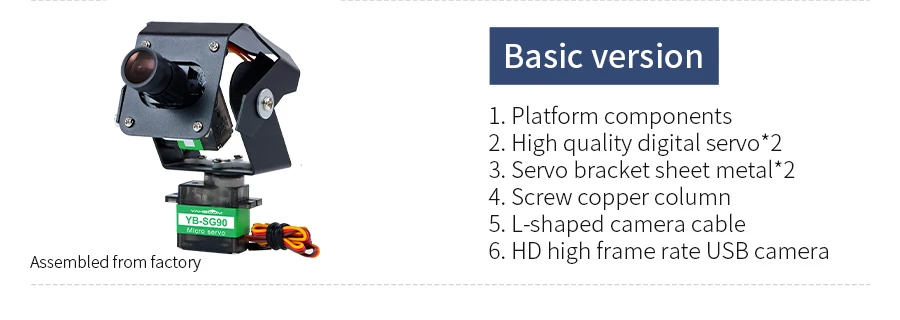

Basic version platform

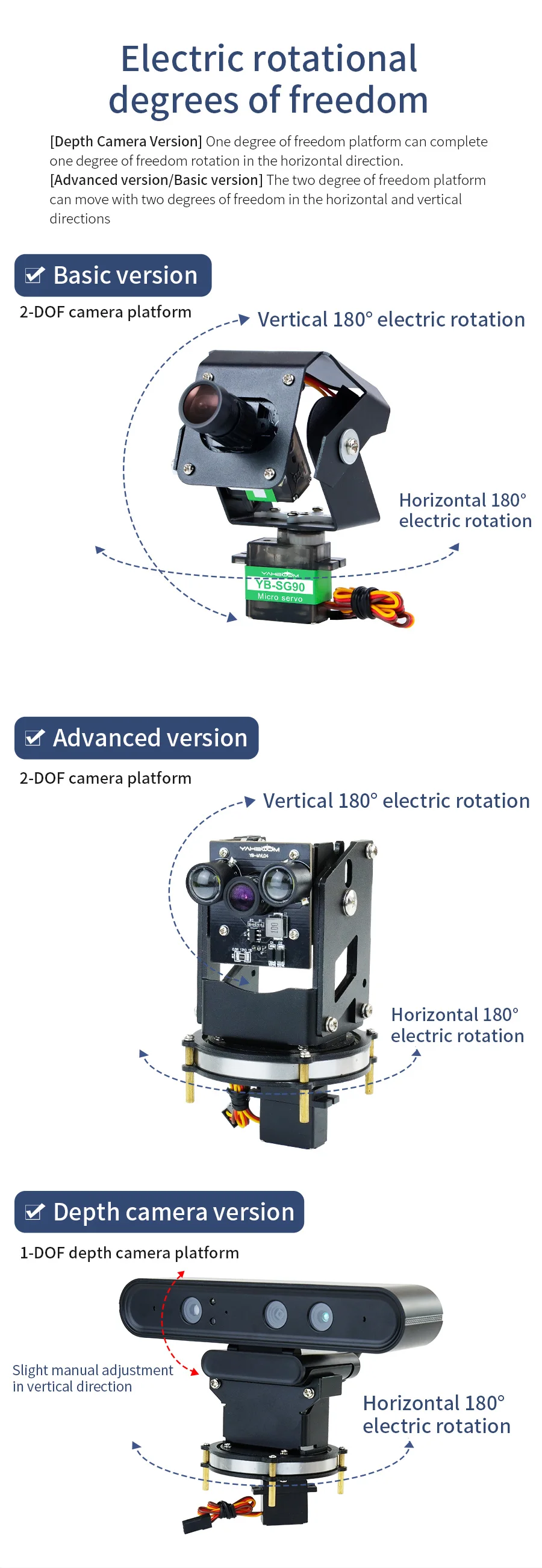

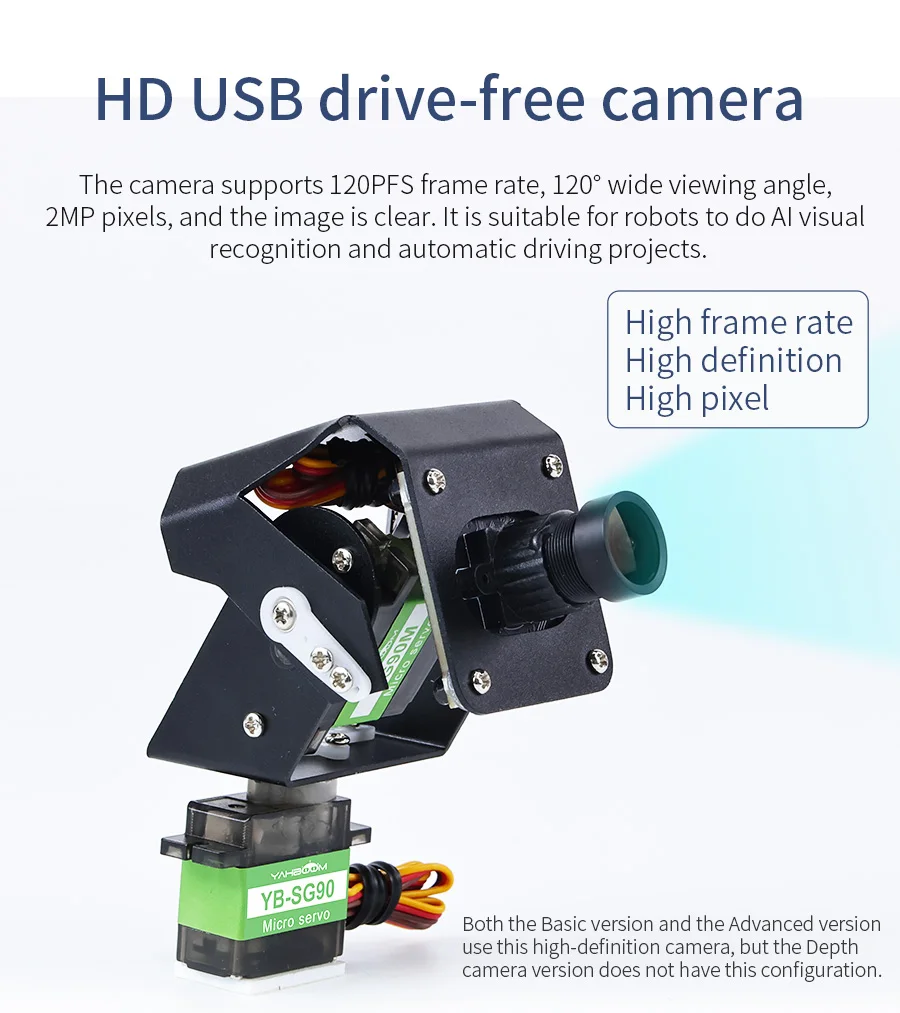

It has two degrees of freedom and can rotate 0-180° horizontally and vertically. It is equipped with a USB high-definition drive-free camera, with a 120° angle of view, 120PFS pixels and 2MP pixels. Small size can effectively save installation space.
Packing List
Advanced version platform

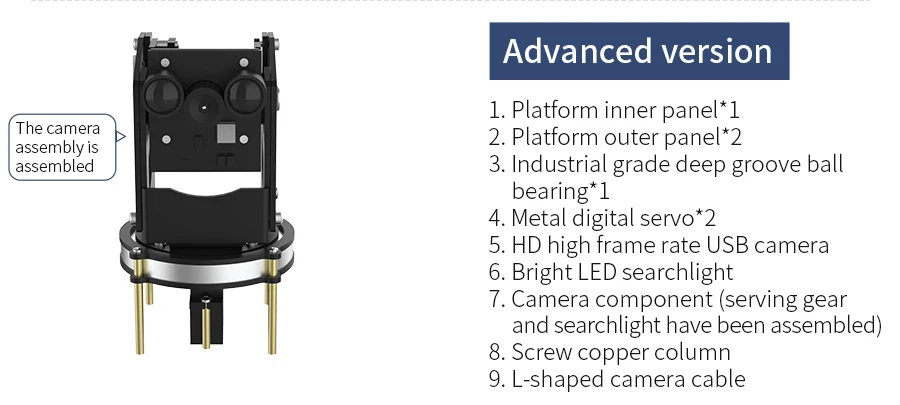

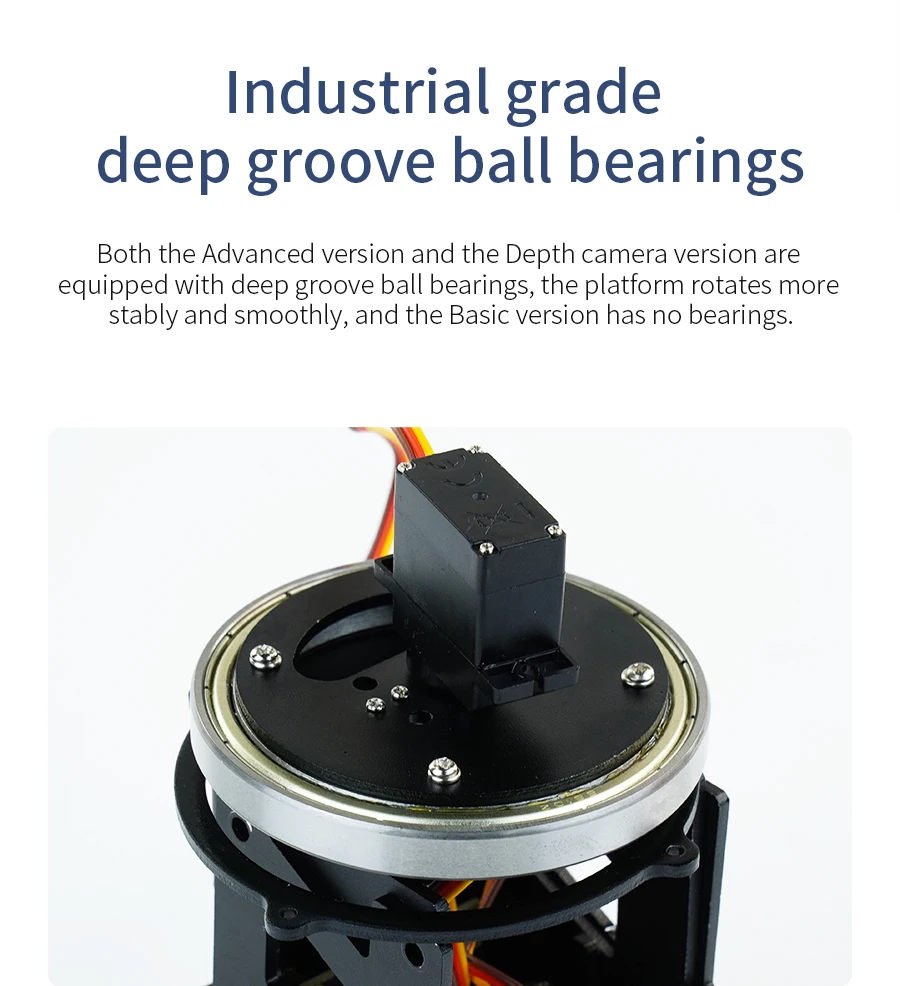

It has two degrees of freedom and industrial grade deep groove ball bearing. It can rotate 0-180° horizontally and vertically, with USB high-definition drive-free camera, 120° angle of view, 120PFS pixels, 2MP pixels. With high brightness searchlight, it is suitable for dark environment.
Packing List

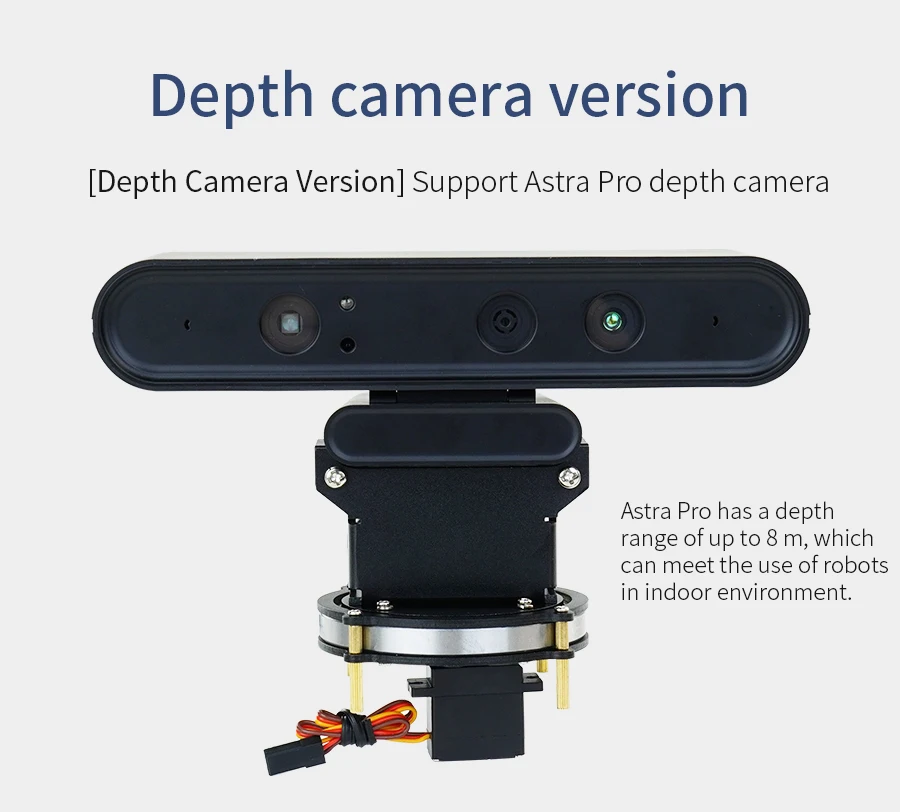

Depth camera version platform

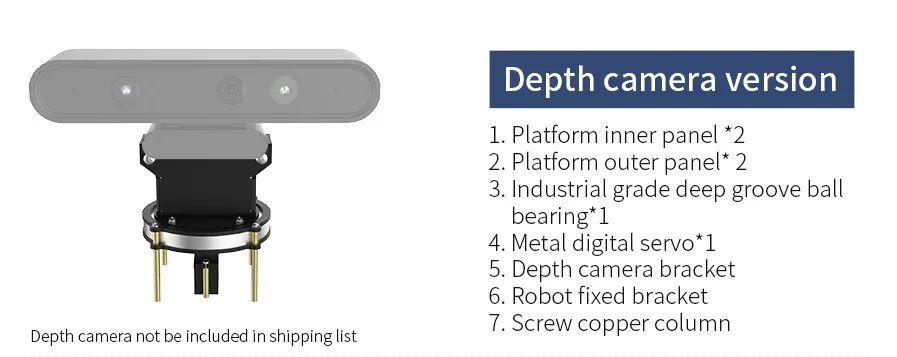

One degrees of freedom, the horizontal direction can be turned 0-180°, and the vertical direction can only be slightly adjusted manually. Specially designed for Astra Pro depth camera.
Packing List

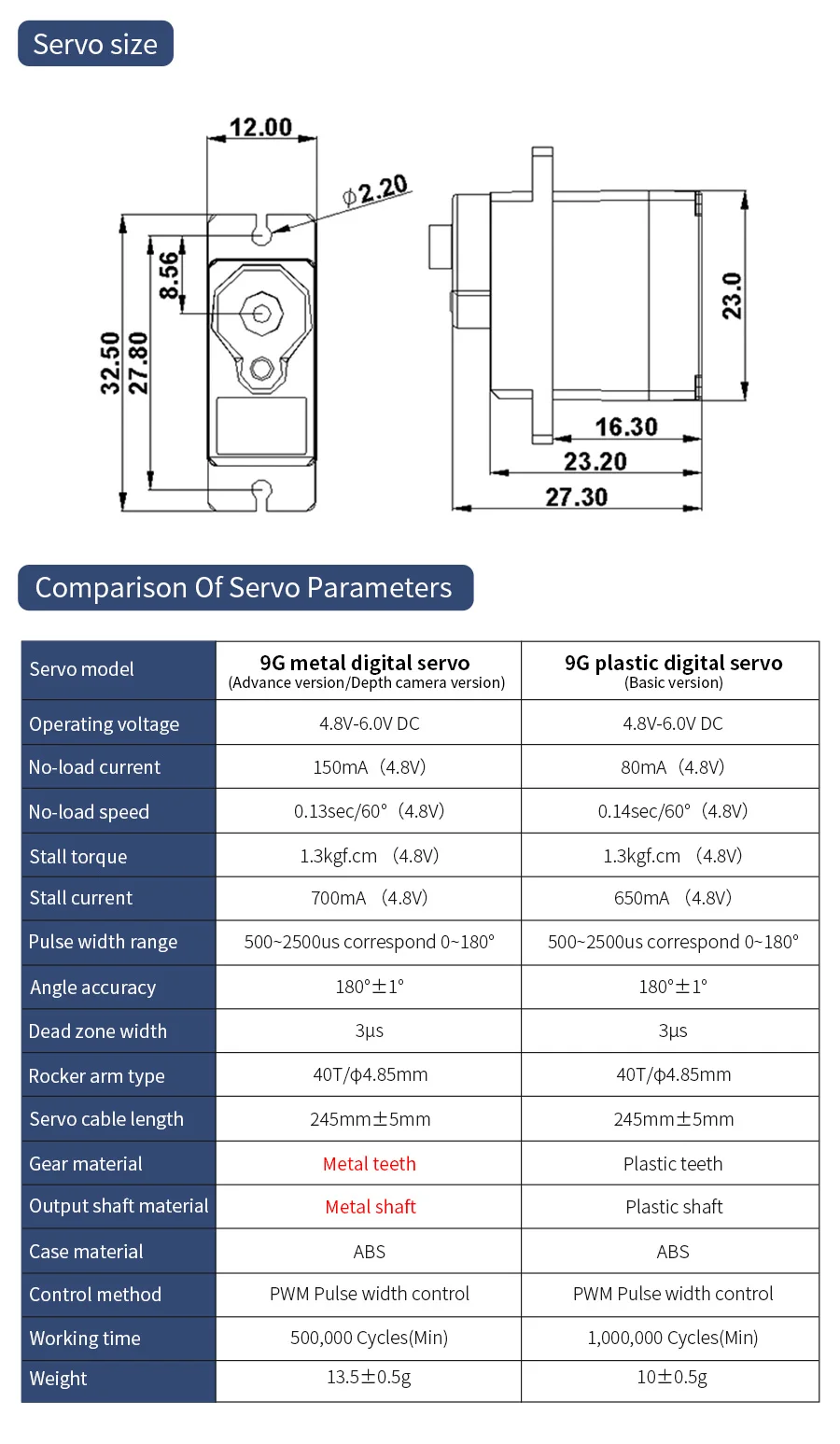

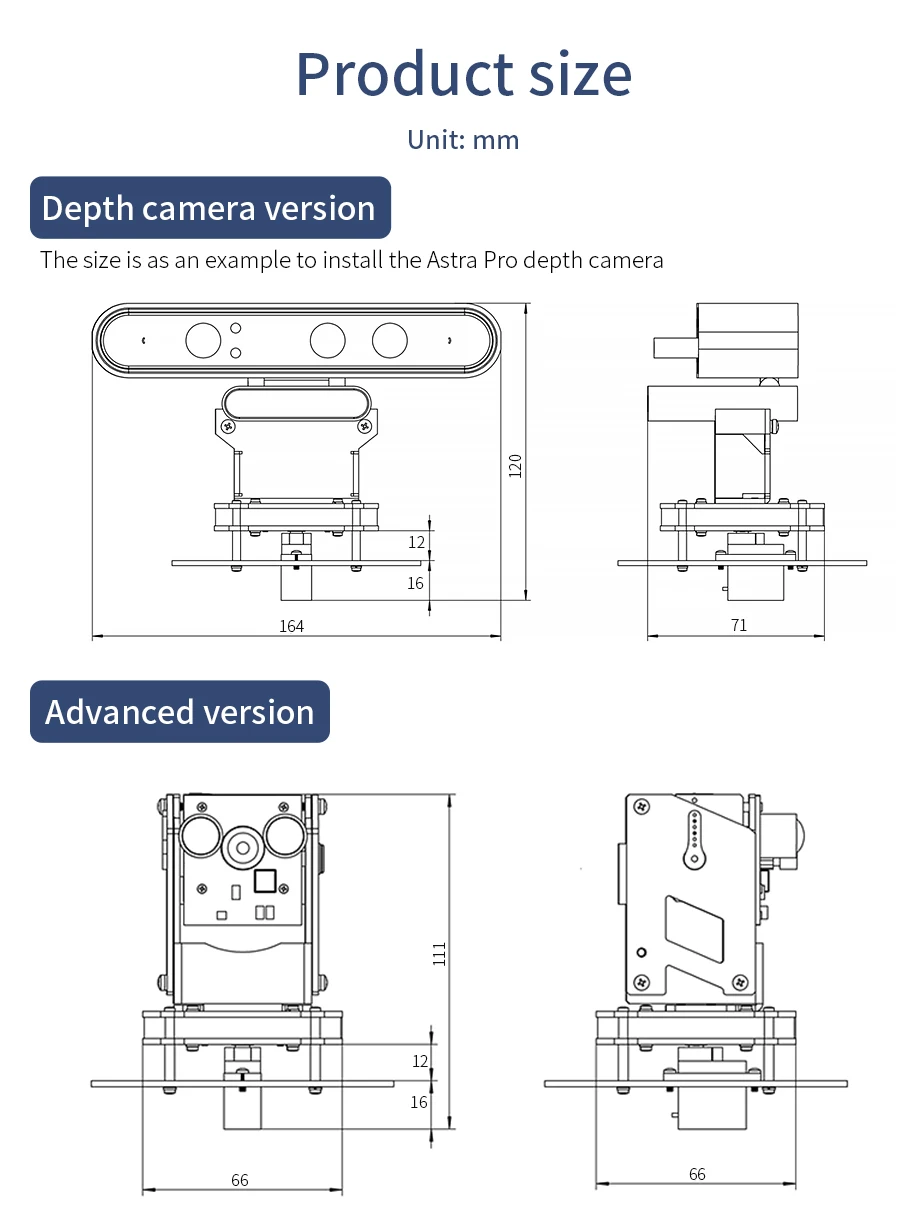

Parameter
Details
