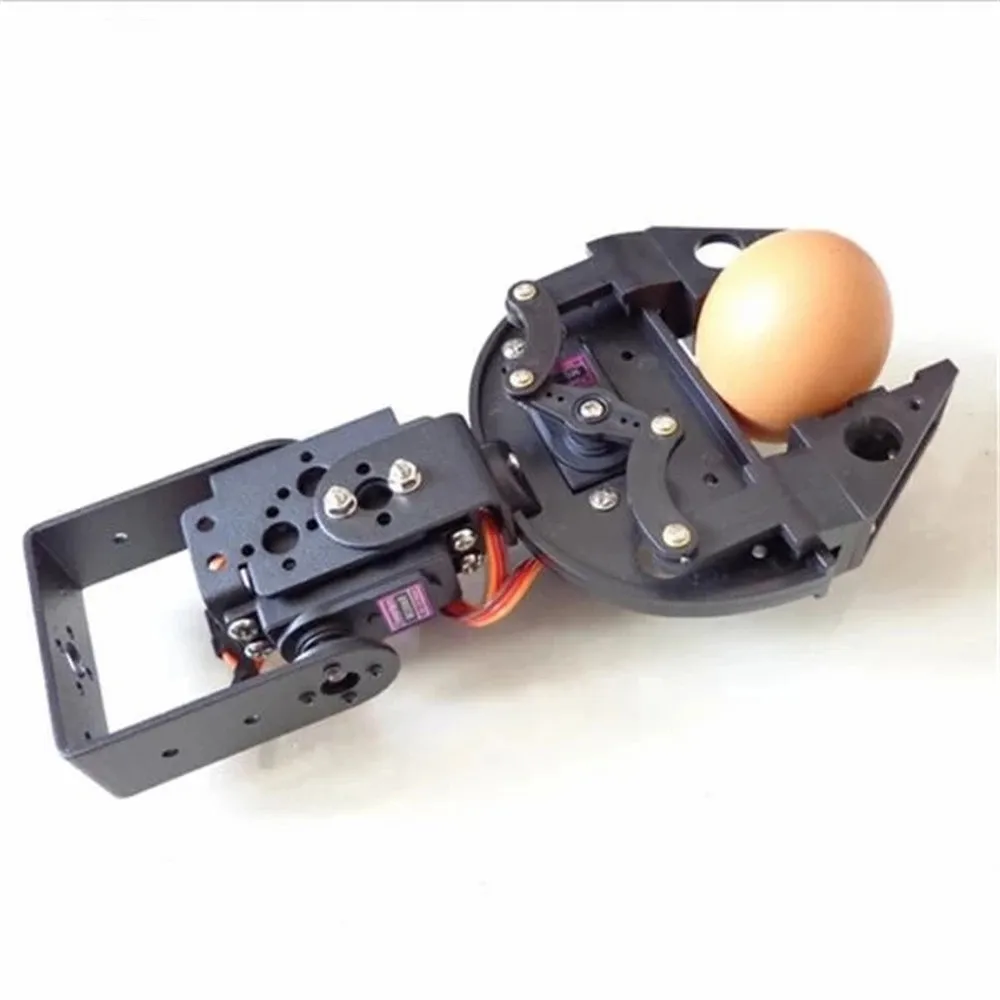

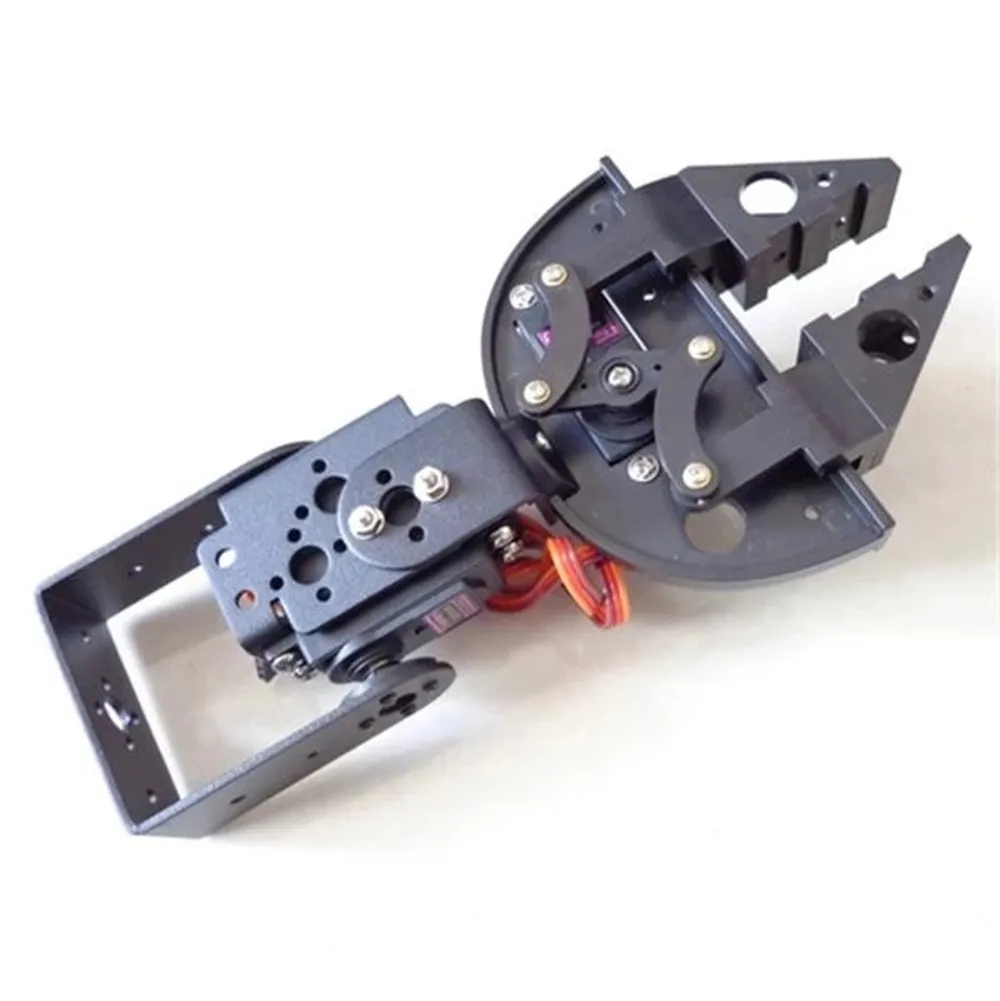

New Robot Clamp Gripper Servo Bracket Mount Mechanical Claw Arm Kit For Diy Toy For Arduino Compatible With Mg996,Mg995, DS3218

Features

• The Kit comes with hardware, unassembly

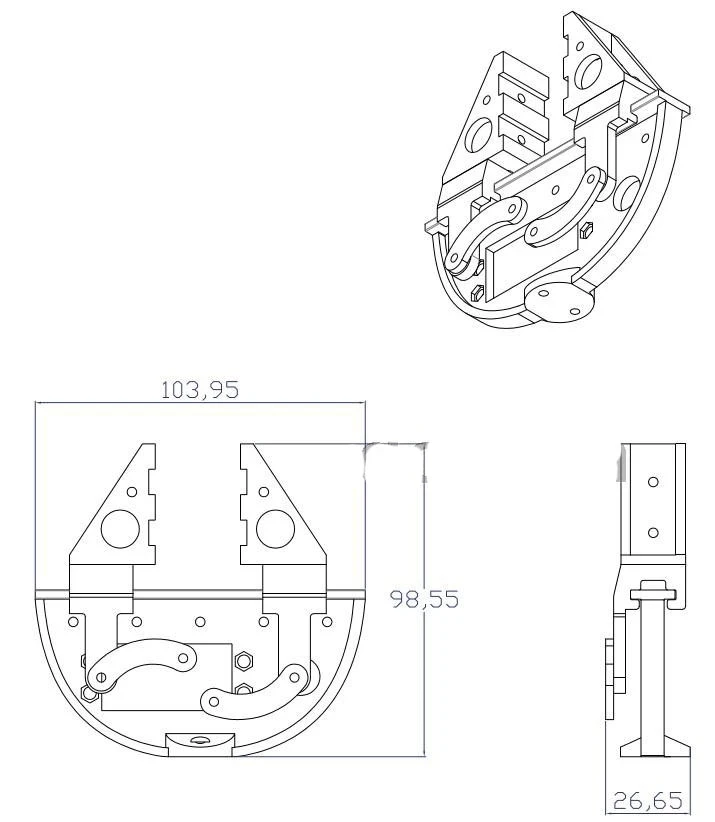

• Clamp Max open is 55mm

• Clamp total length:108mm

• Clamp total width:98mm ( when the Clamp open the maximum overall width)

• Working voltage: 4.8-6V (when the Clamp open)

• The plank kit is very light

• Compatible with KS-3518,DS-3218,HS322,HS422,MG996,SG5010 servo

Shipping List

• MG996R Servo: 2pcs (optional)

• DS3218 servo: 2pcs (optional)

• Multi-Purpose Servo Bracket: 1pcs

• Long U-type servo bracket: 1pcs

• L-type servo bracket: 1pcs

• Servo disc: 2pcs

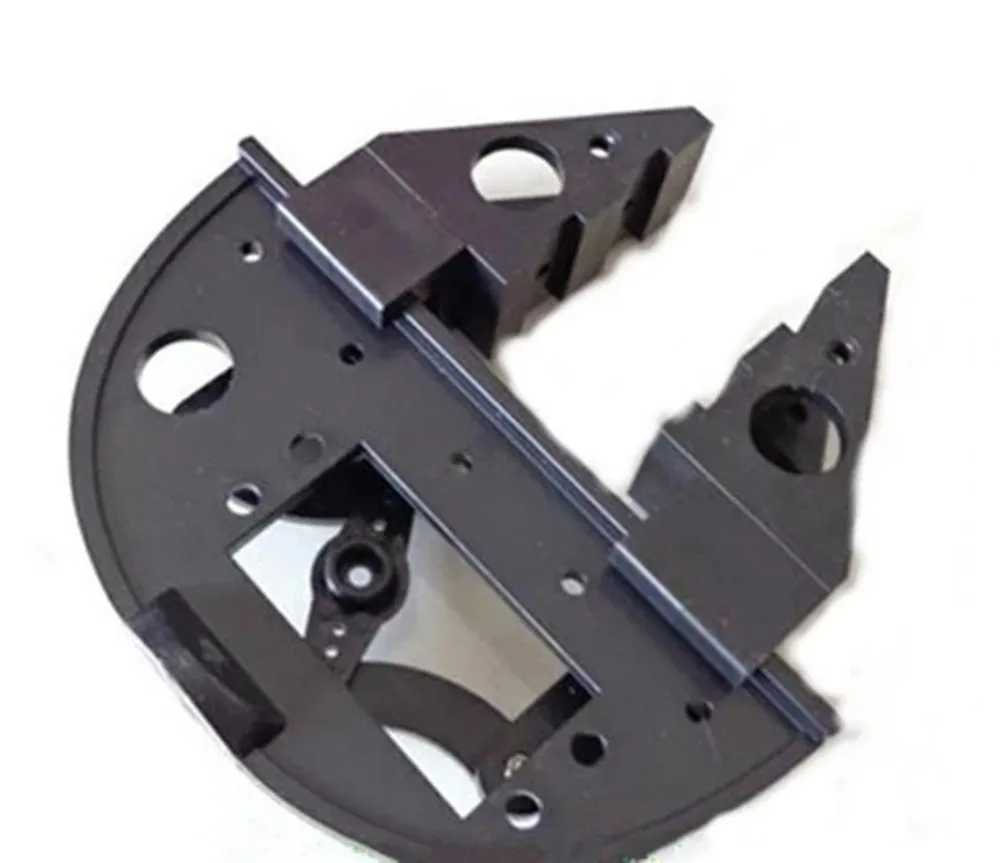

• Clamp Claw: 1pcs

• Ball bearing: 1pcs

• Screw set: 1set

Servo parameters:

MG996R servo:

Name: MG996R

Net weight: 55 g

Size: 40.7*19.7*42.9 mm

Pulling force: 9.4 kg/cm (4.8 V), 11 kg/cm (6 V)

Reaction rate: 0.17 sec / 60 degree (4.8 V ), 0.14 sec / 60 degree (6 V)

Working voltage: 4.8-7.2 V

Working temperature: 0°C-55°C

Gear form: metal gear , not please gear

Working dead zone: 5 us (microseconds)

Note:

In order to facilitate transportation, the product is not assembled.
