Description:

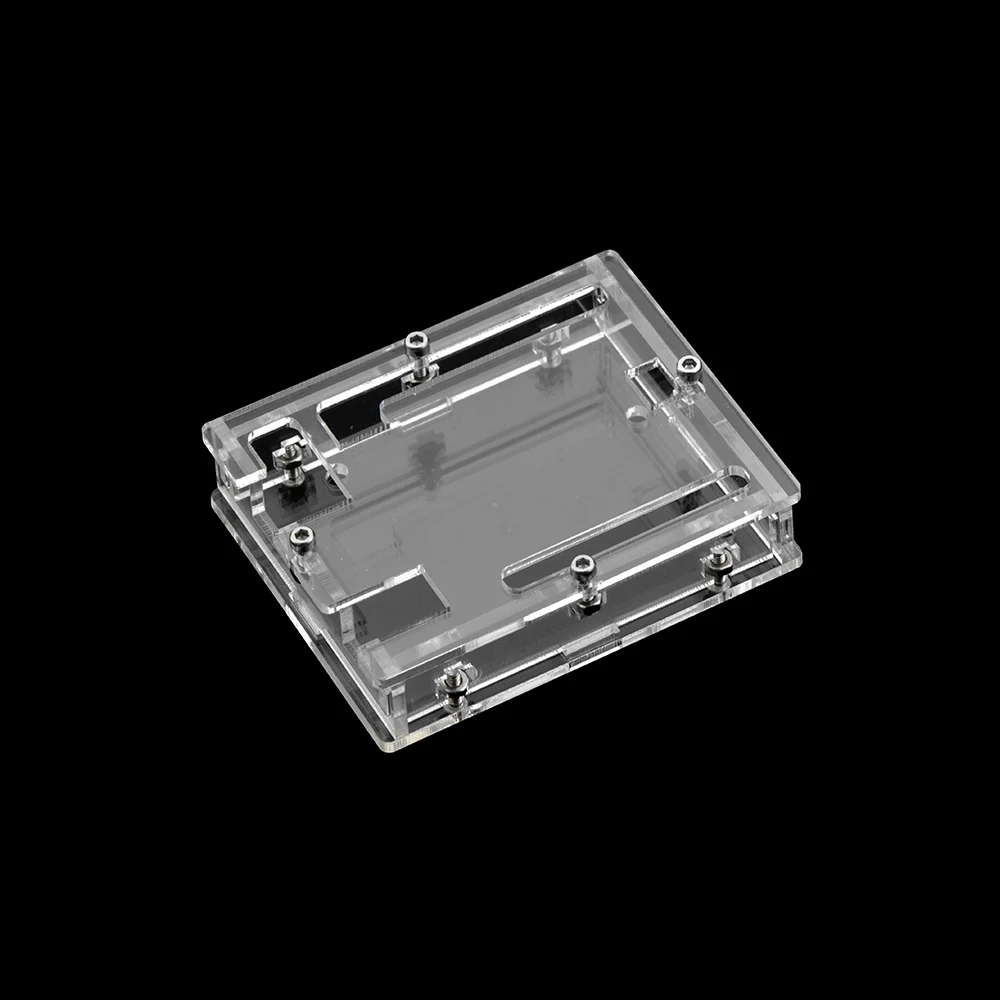

This is a protective case designed for UNO R3 development board.
It is acrylic material, and consists of 6 pieces of acrylic panel and set of hex screws, single-pass copper pillars and nuts. The whole case has light weight and adopts detachable package for safe transport.
Note: UNO R3 board is not included.
Features:
-
Material: Acrylic
-

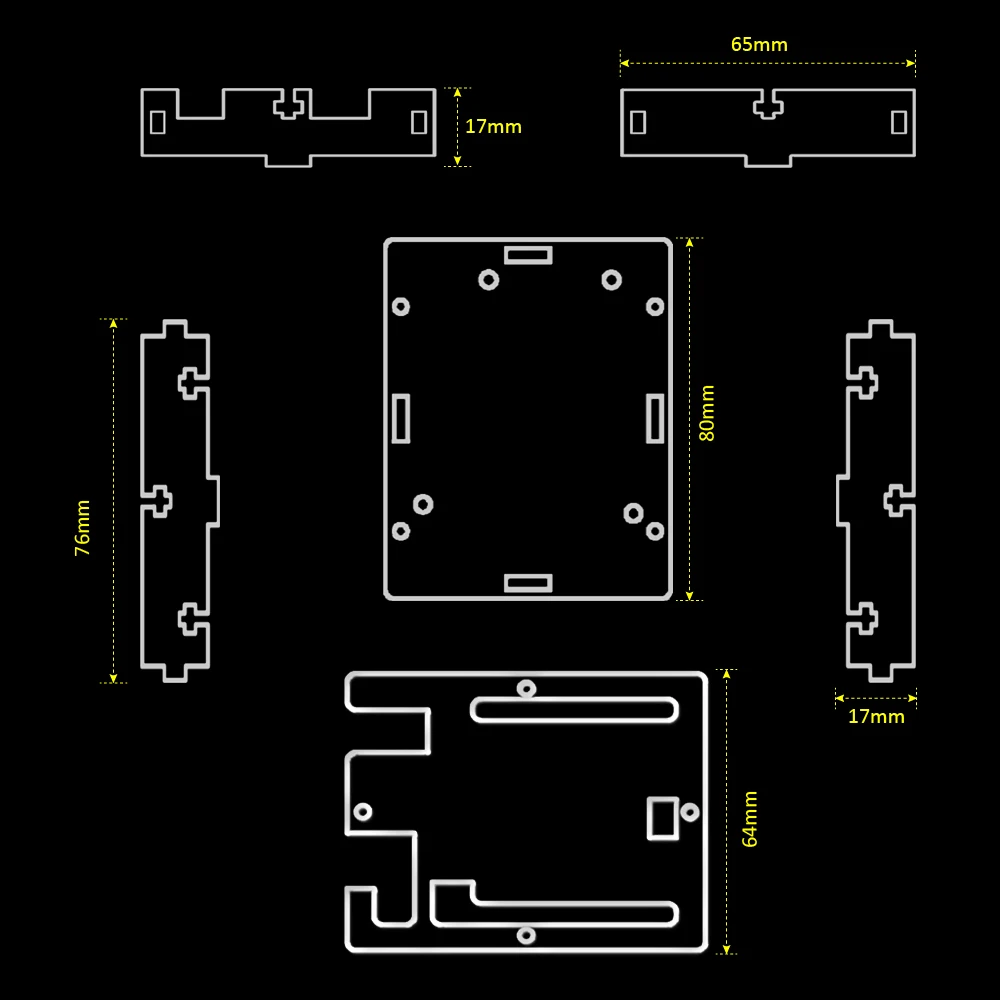

Dimensions: 80*65*23mm
-
For UNO R3 Development Board only
-

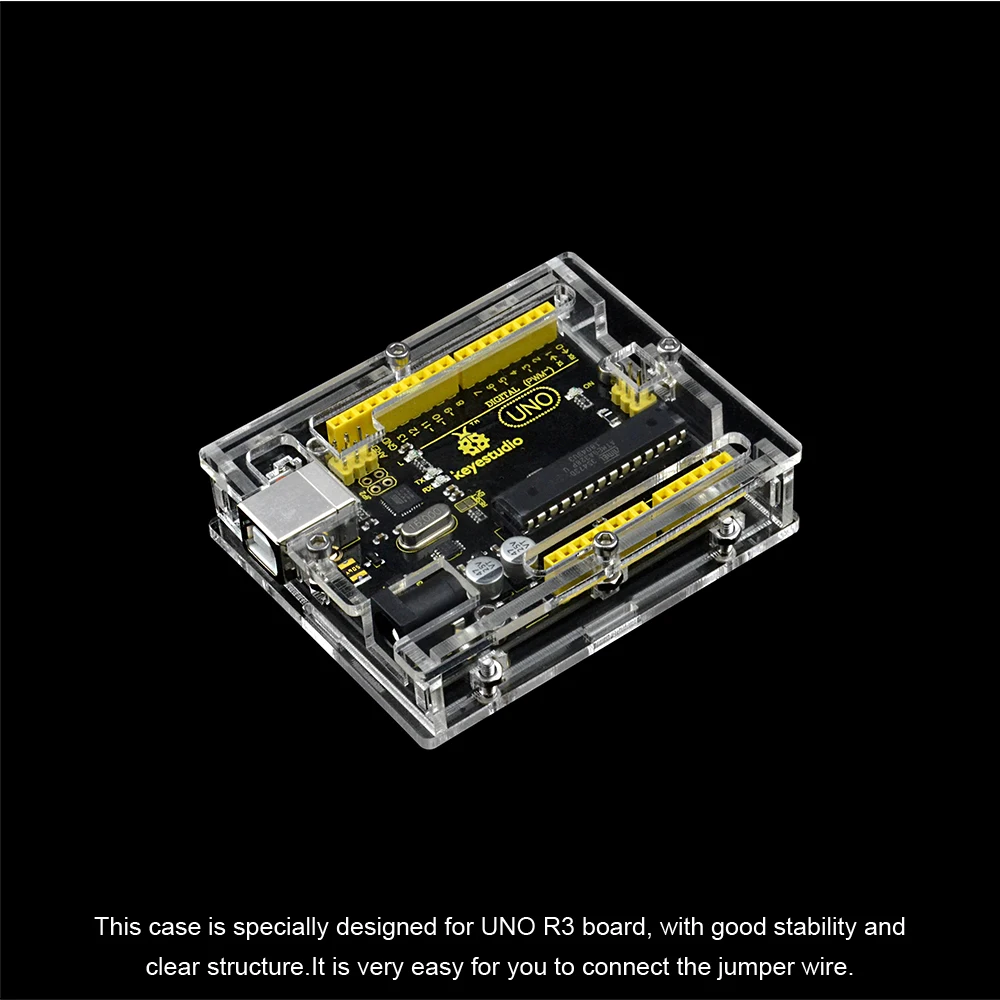

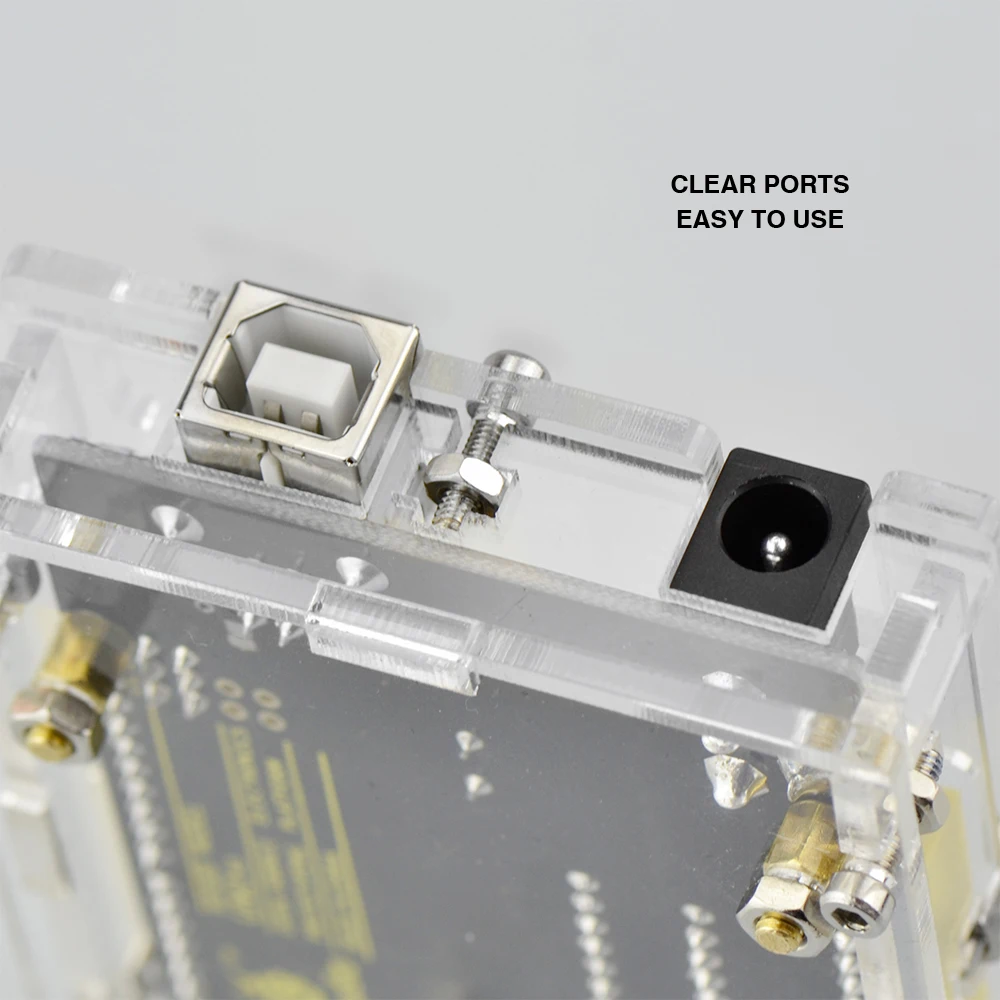

This clear case provides easy access to all ports
-
It requires no tools for easy assembly and disassembly
-

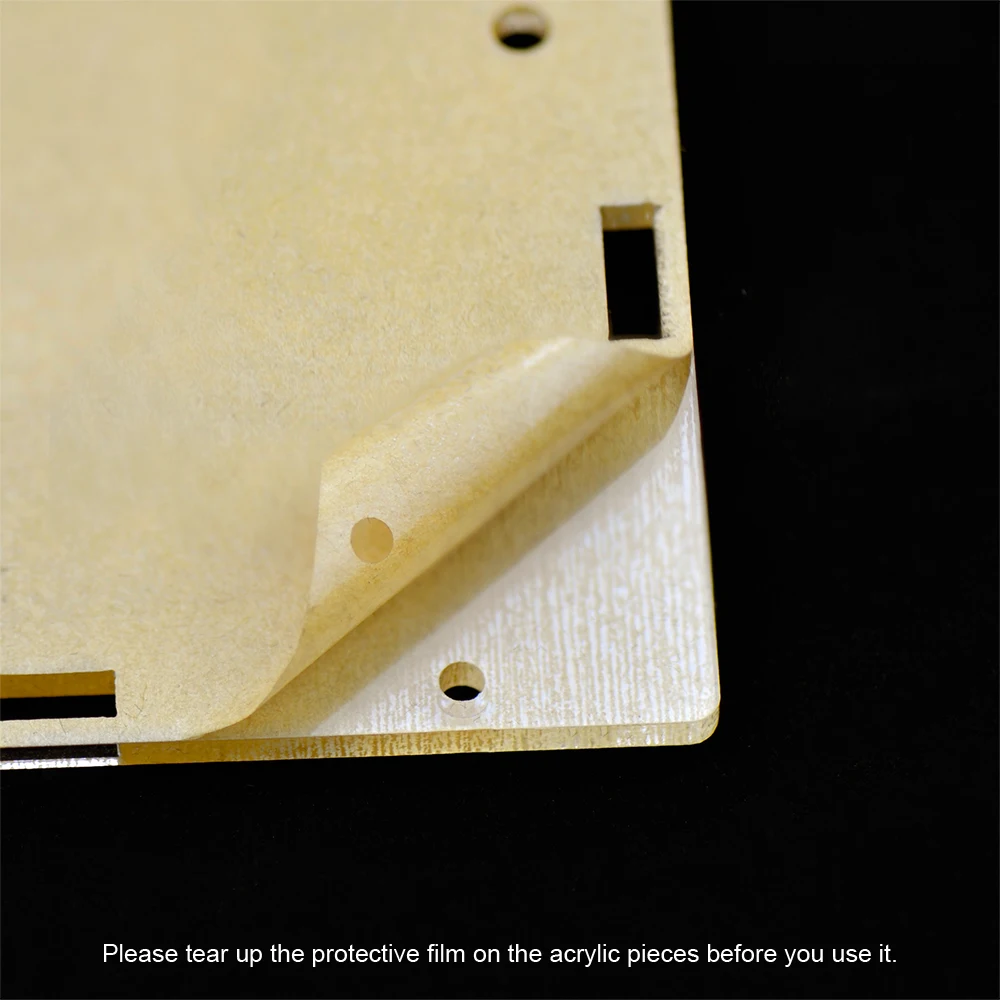

Note: Mounting panels has a sticker outside, which can prevent your beautiful case from scratch.You just gently tear up the protective sticker before use it.

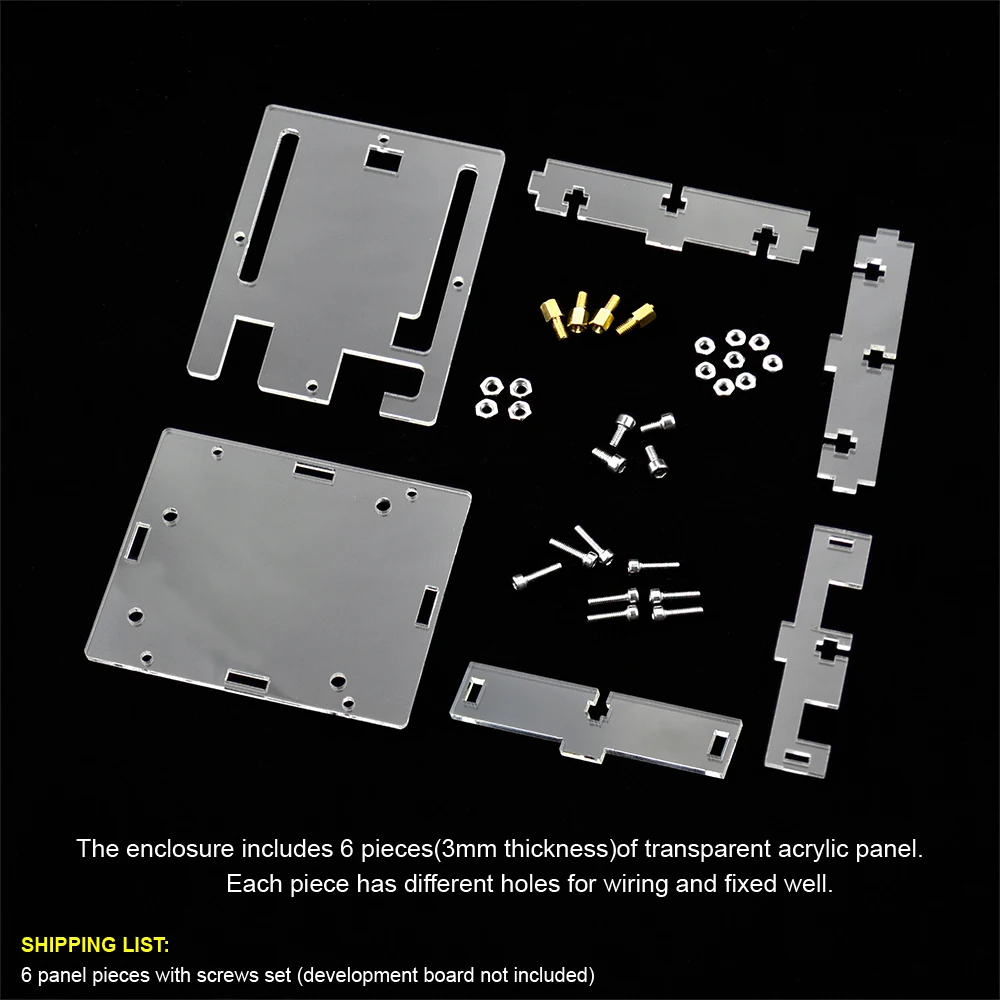

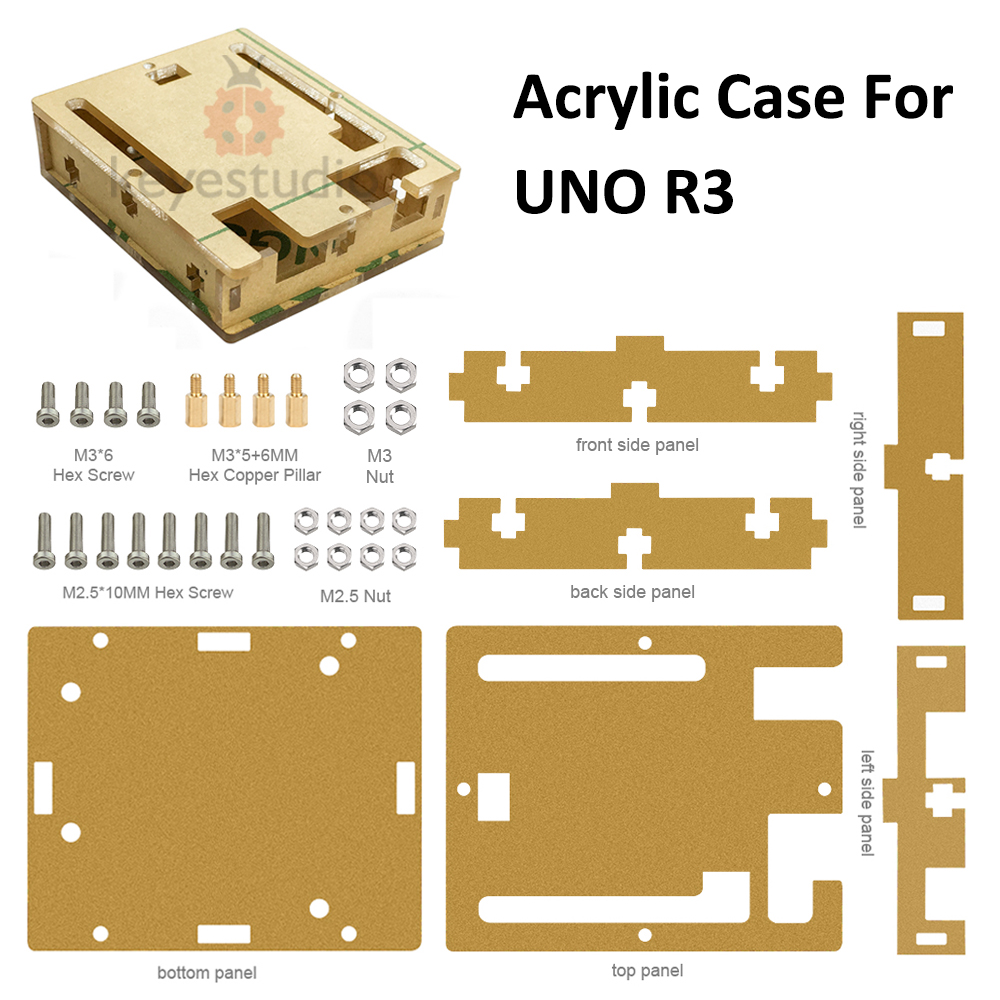

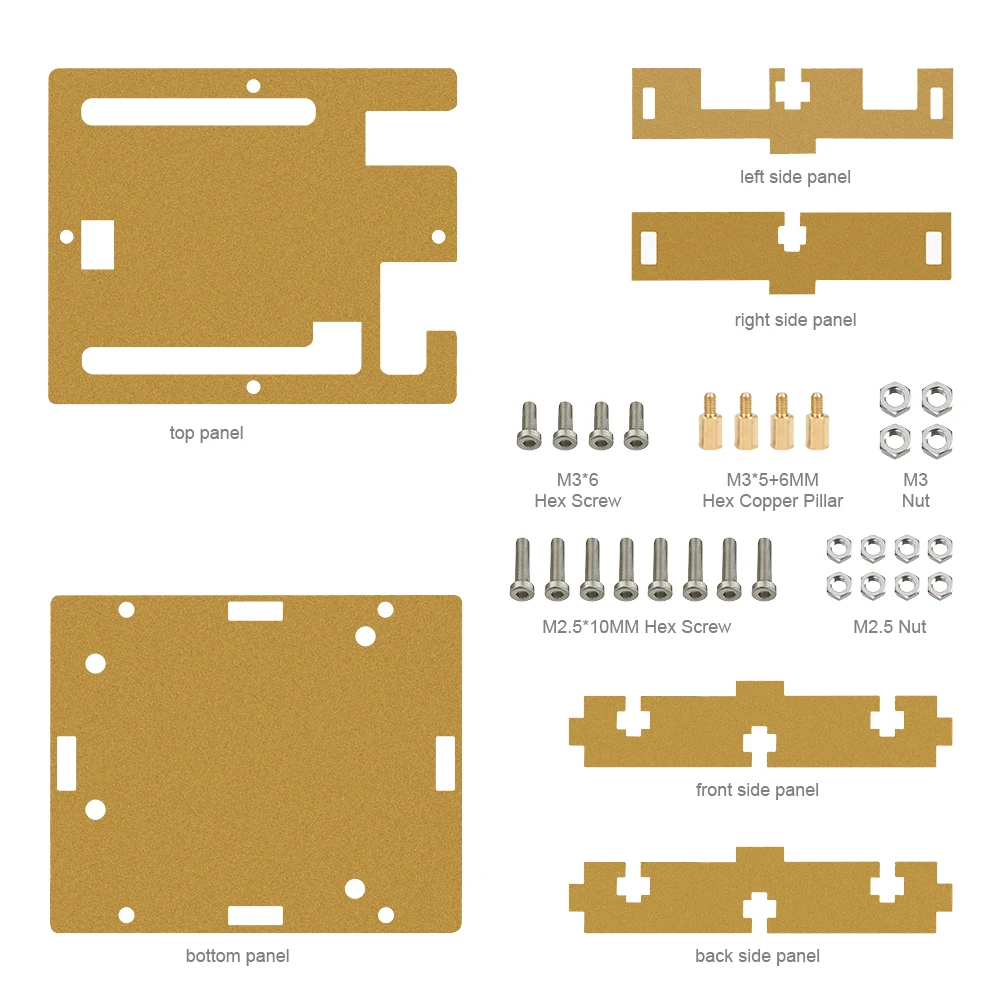

Package Included:
Acrylic panel * 6 pcs
M2.5*10MM hex screw * 8 pcs
M3*6MM hex screw * 4 pcs
Copper pillar * 4 pcs
M2.5 nuts * 8 pcs
M3 nuts * 4 pcs
Case Assembly:
-

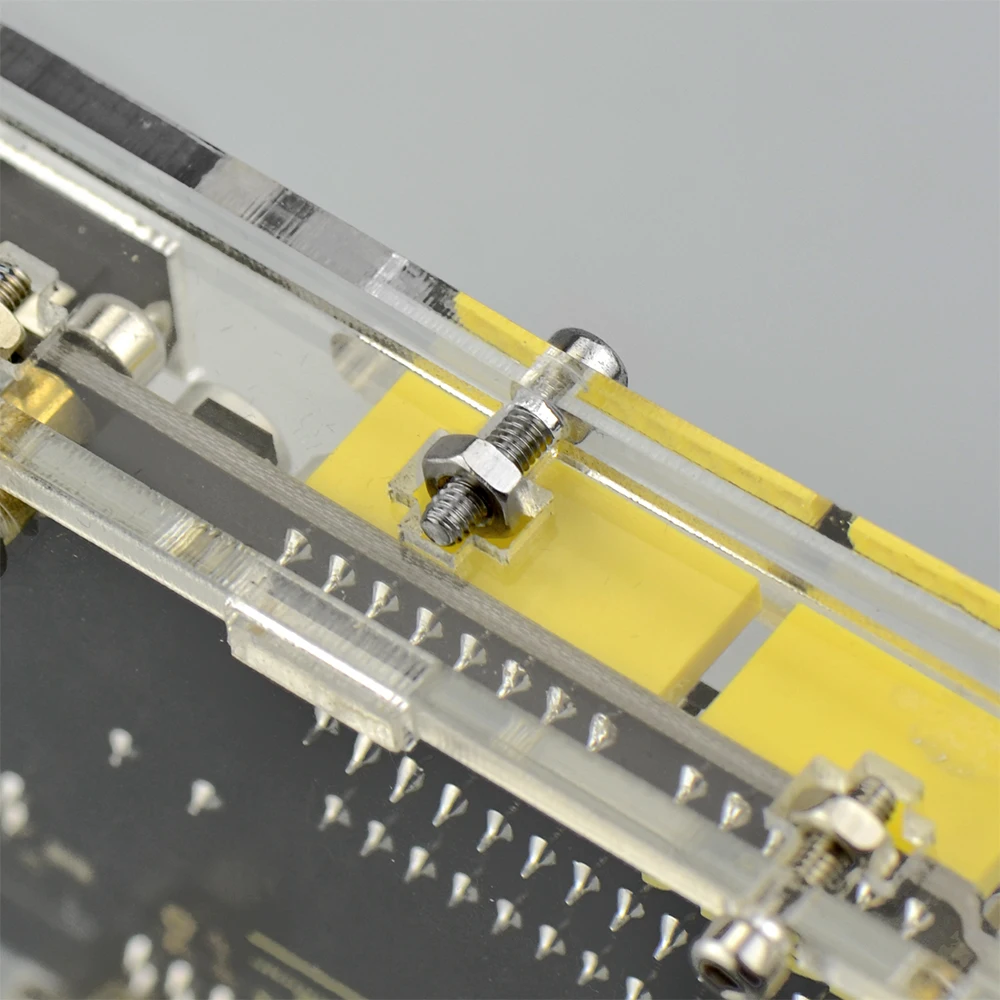

Mount your UNO R3 board onto the acrylic bottom cover using pillar and screw nut sets.
-
Plug well the side panels into the acrylic bottom mounting hole, then snap together all the side panels.
-
Mount well the acrylic top cover using four nut and screw sets.
