Product Details

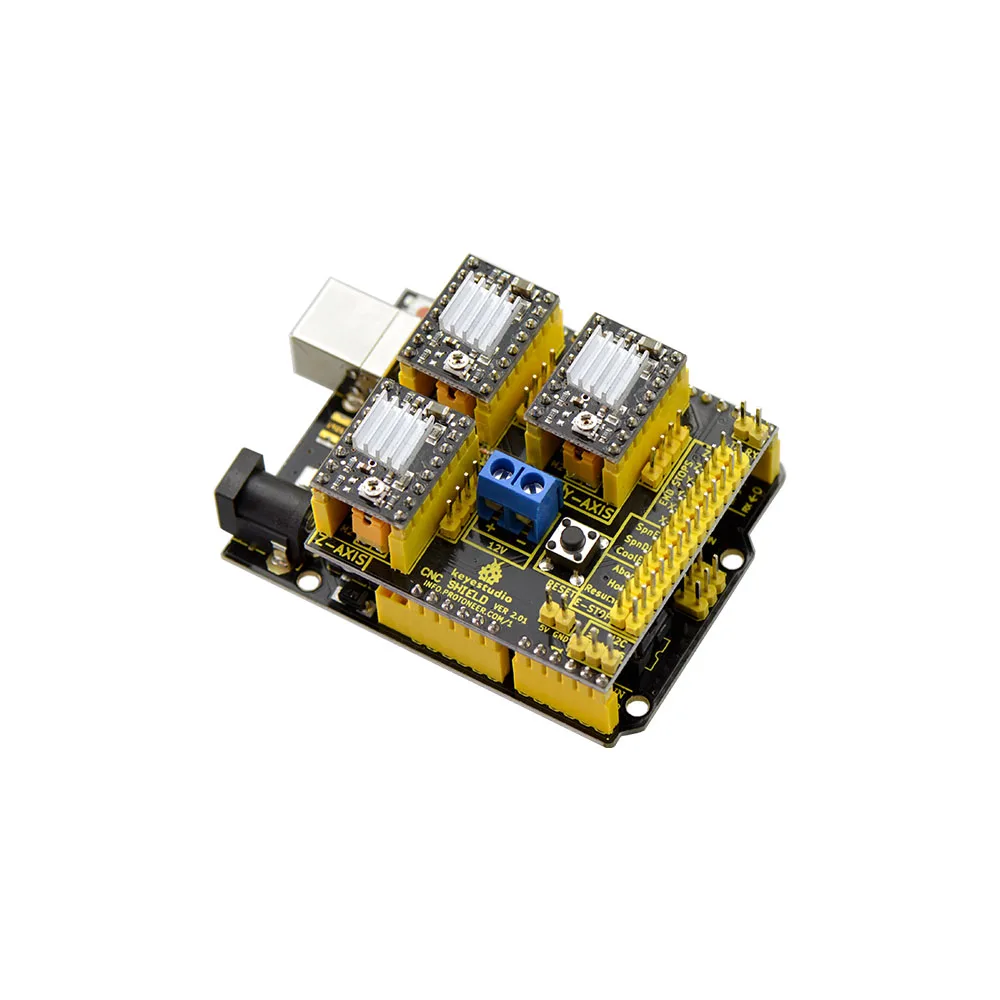

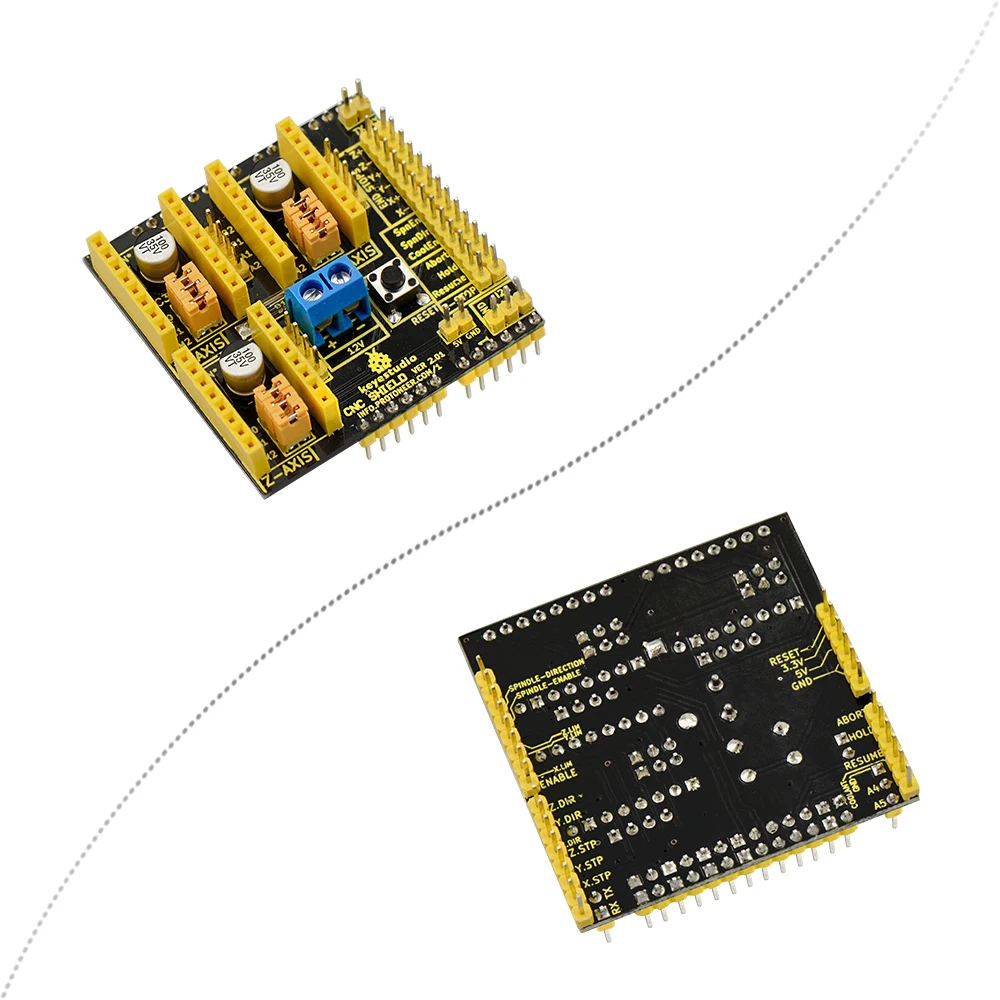

Keyestudio CNC Shield V2.0 can be used as driver expansion board for engraving machines . It has in total 3 channel slots for A4988 stepper motor driver modules (not included) for driving 3 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors. This shield can make quick work for managing stepper motors in your project.

Specification

1. Keyestudio CNC Shield Version 2.0

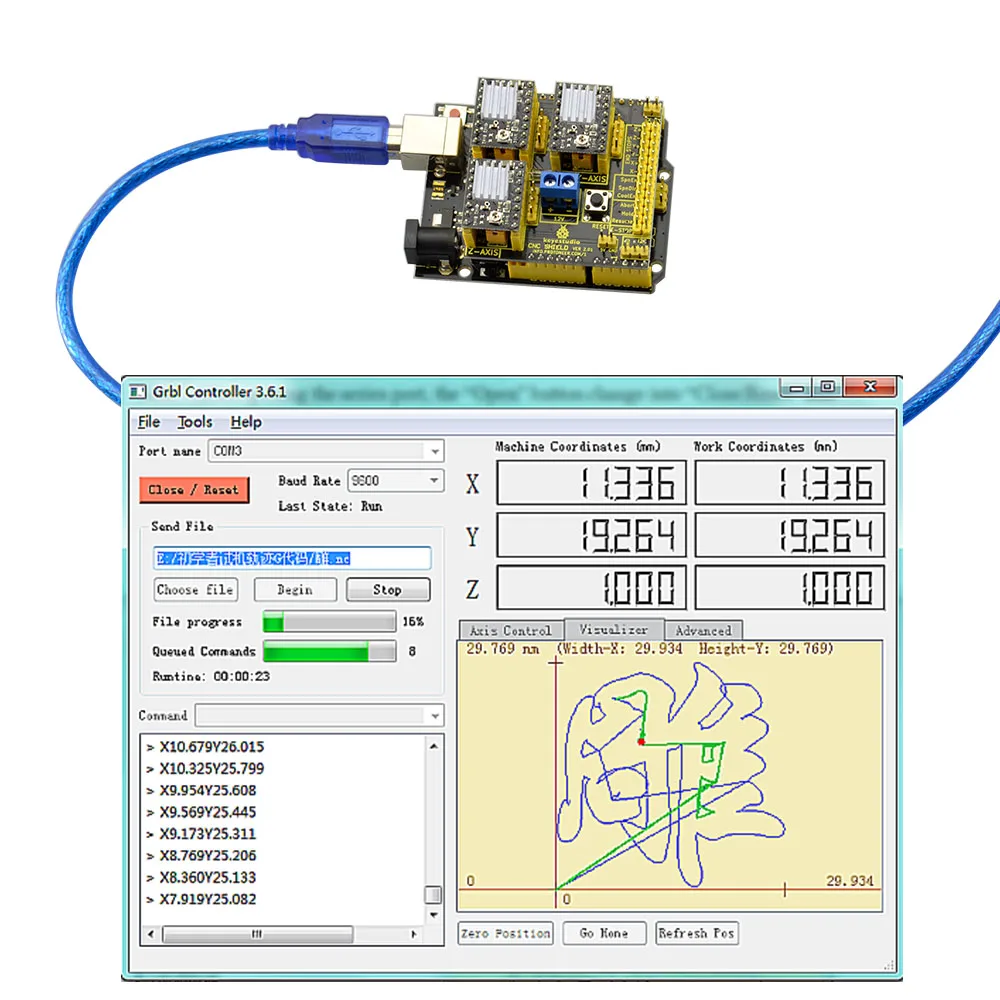

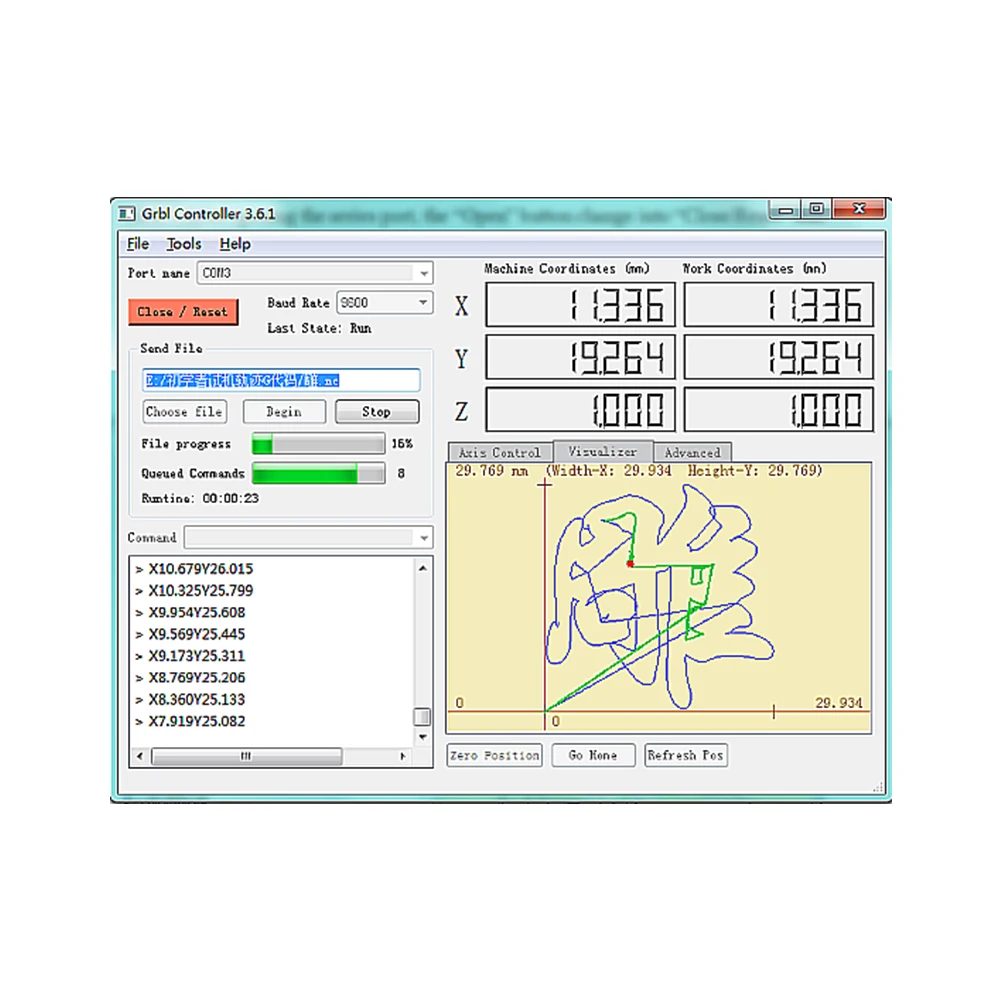

2. GRBL 0.8c compatible. (Open source firmware that runs on an Arduino V4.0 board that turns G-code commands into stepper signals)

3. 3-Axis support (X, Y, Z , )

4. 2 x End stops for each axis (6 in total)

5. Spindle enable and direction

6. Coolant enable

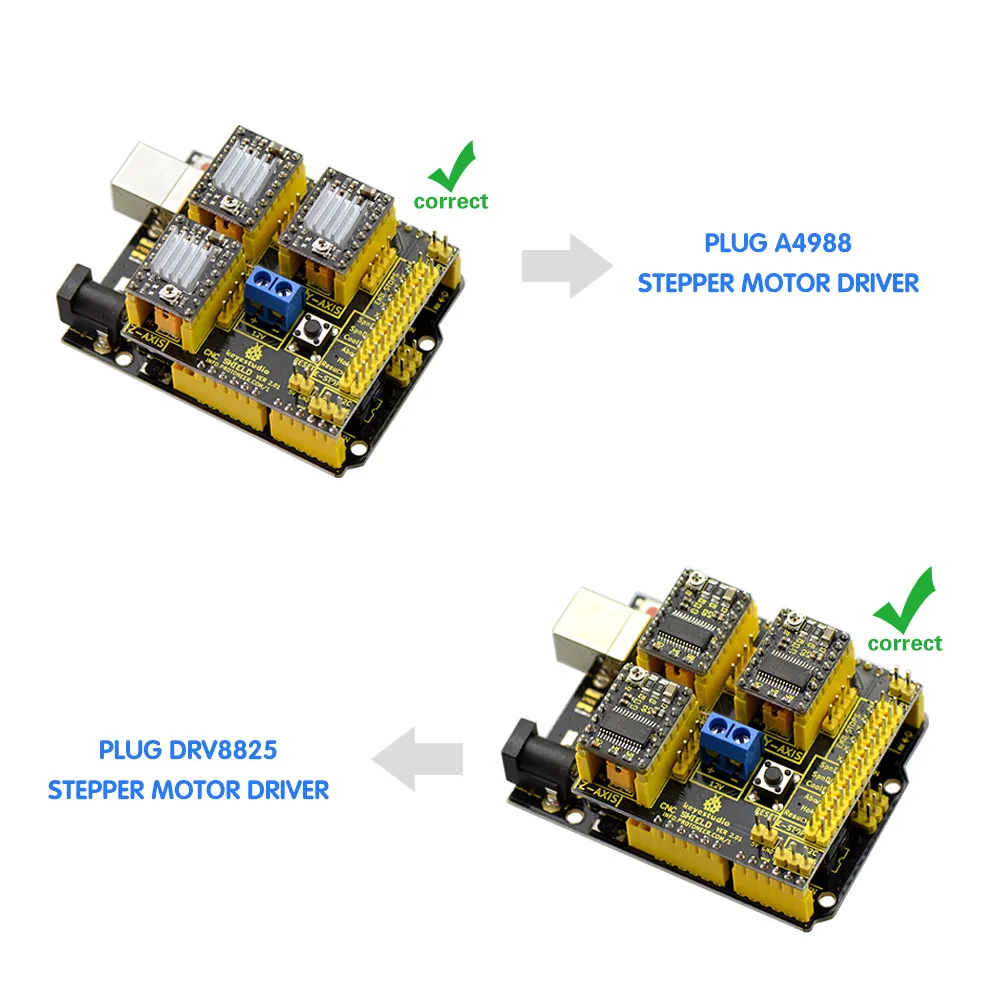

7. Uses removable A4988 compatible stepper drivers. (A4988, DRV8825 and others)

8. Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )

9. Compact design.

10. Stepper Motors can be connected with 4 pin molex connectors or soldered in place.

11. Runs on 12V DC.
