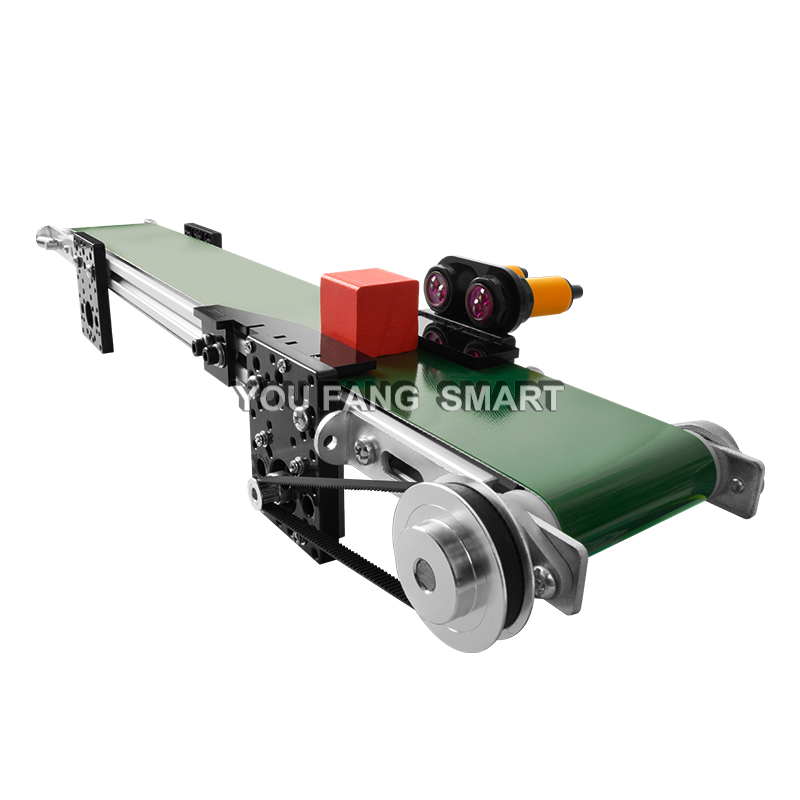

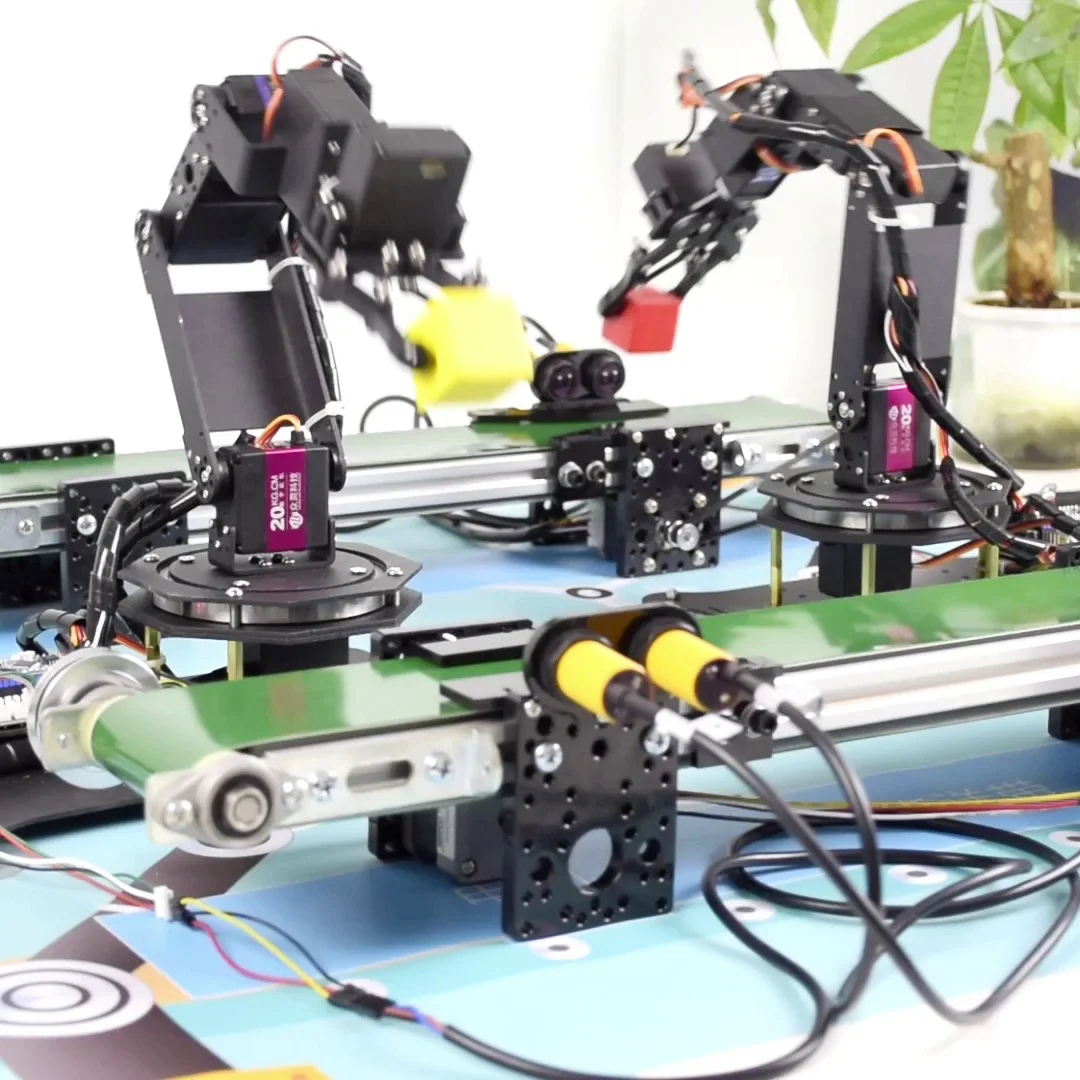

Conveyor Belt Assembly Line for Robotic Arm Control Stepper Motor Simulation Infrared Sensor Robotics kit Educational DIY Kit
By the way, if you like our store, Please add our store to your Favorite Stores, You can getour New arrival and Discount information in time
Title:Analog stepper motor controlled by pipeline conveyor belt for a small conveyer arm
Features:

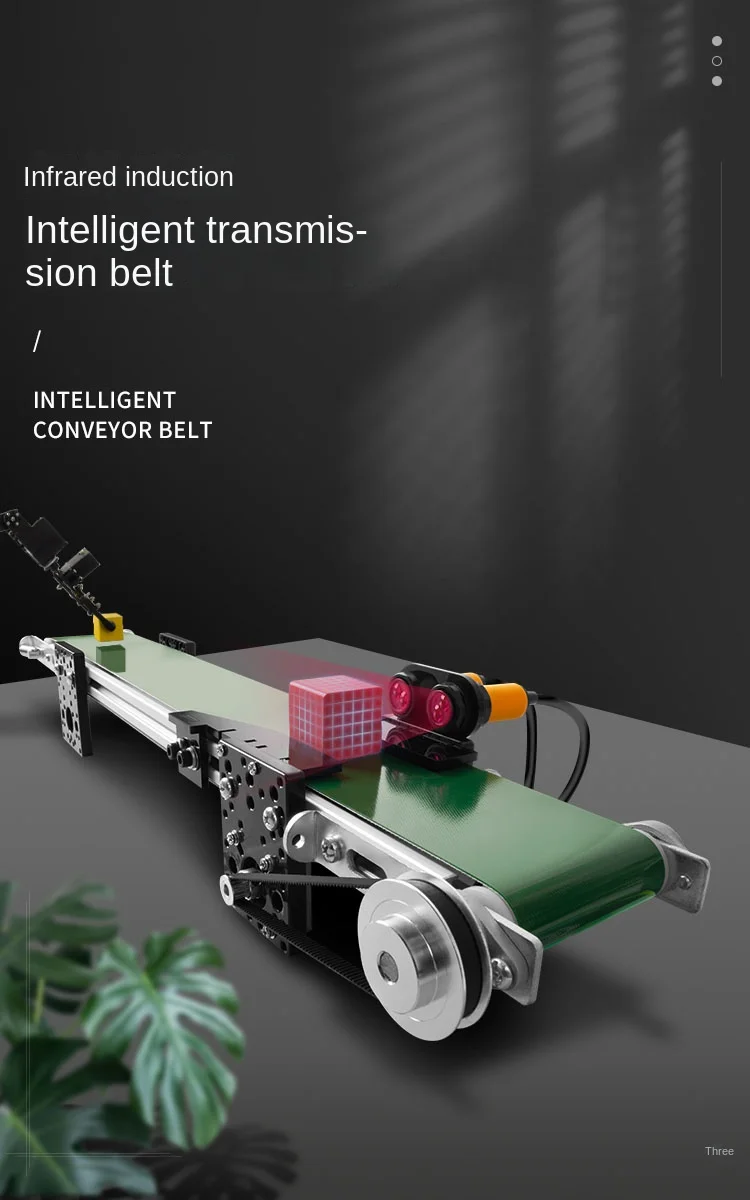

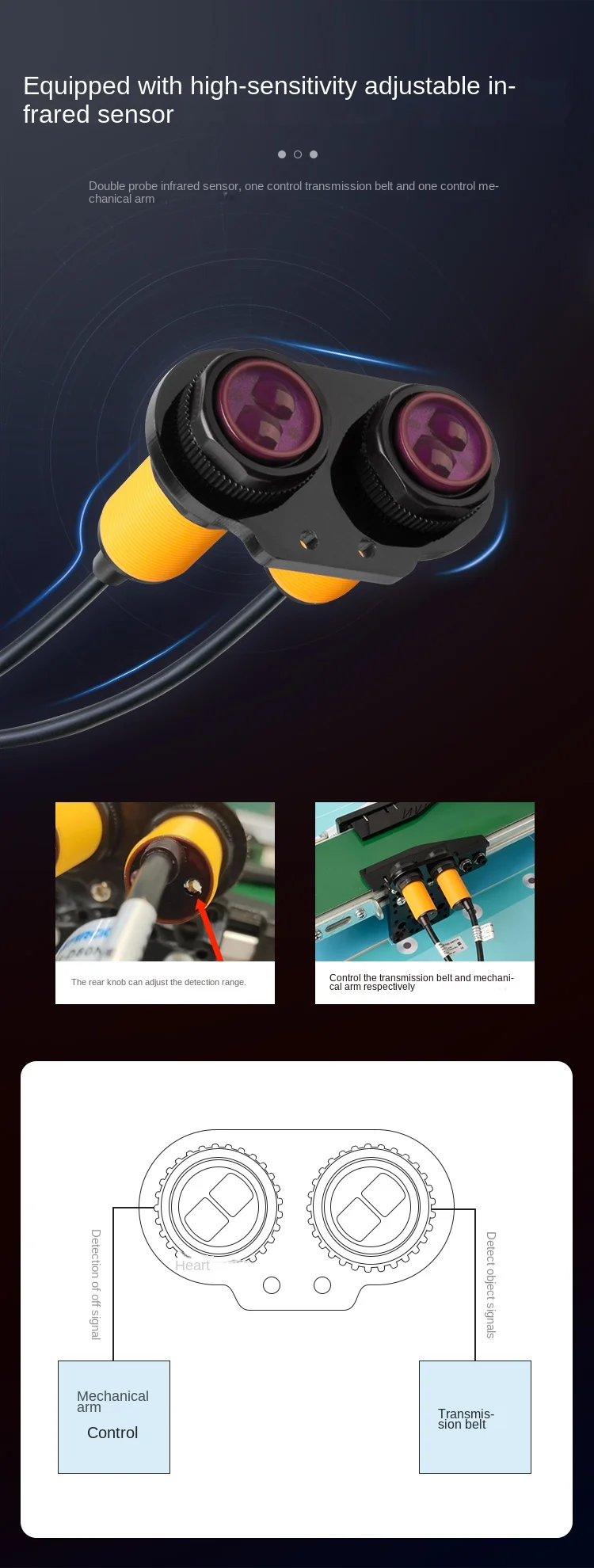

Infrared induction
Transport
Variable speed regulation

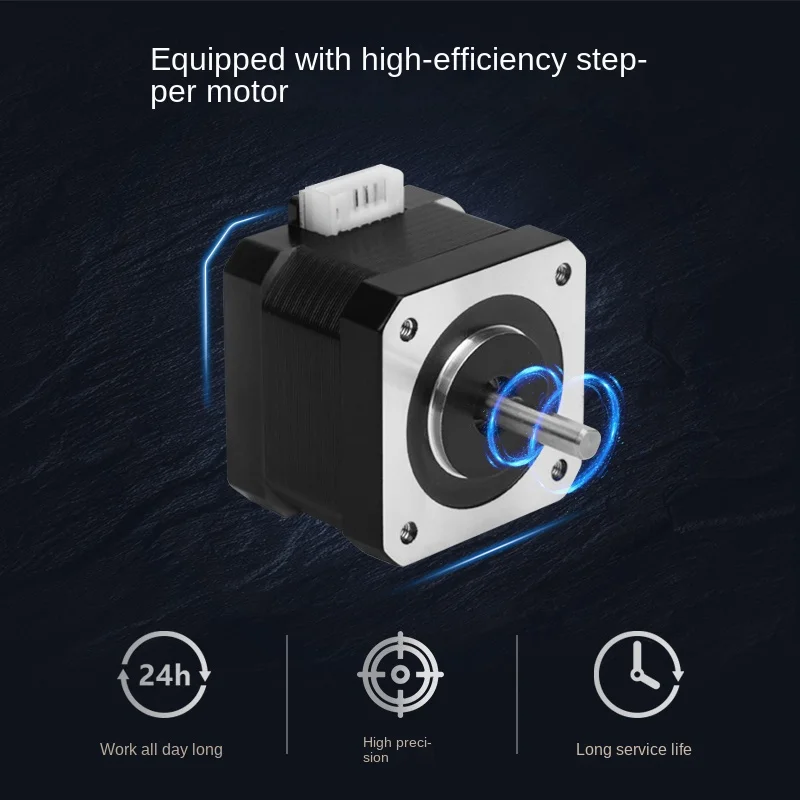

Stepper motor
Video tutorial
24H operation

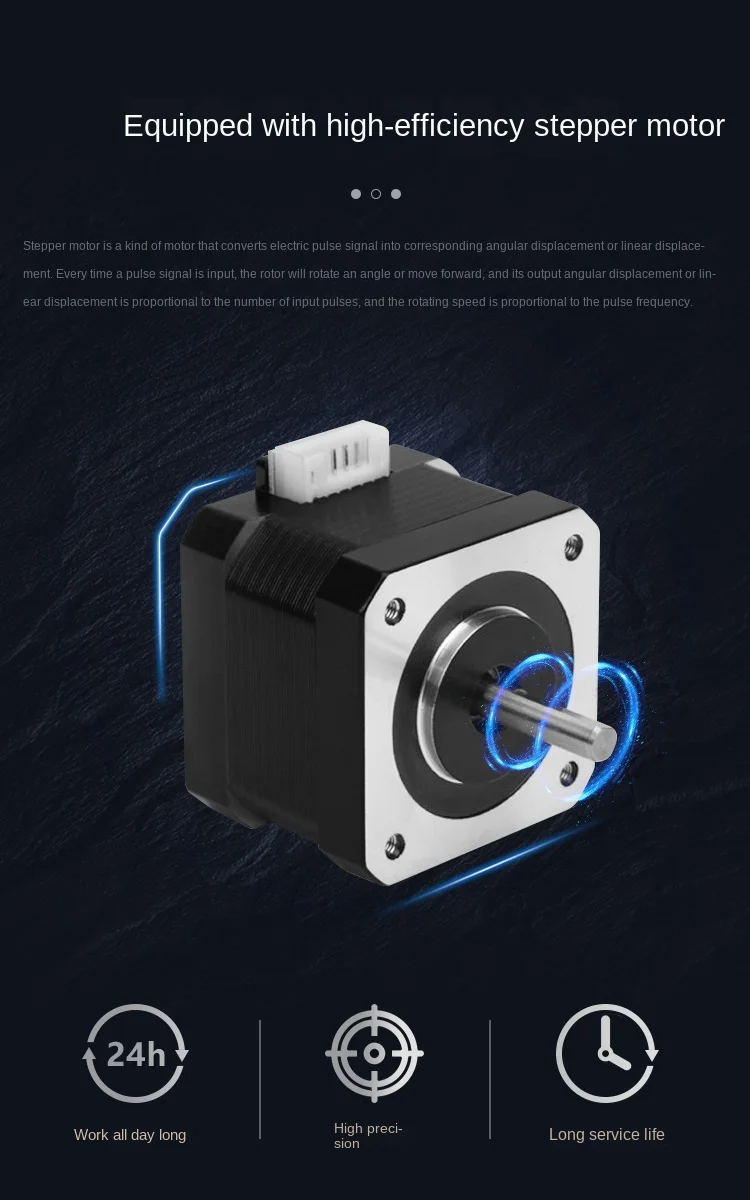

Stepper motor is a kind of motor which converts electrical pulse signal into corresponding angular displacement or linear displacement. With each input pulse signal, the rotor rotates at an Angle or further forward, and the angular or linear displacement of its output is proportional to the number of input pulses, and the rotational speed is proportional to the pulse frequency.

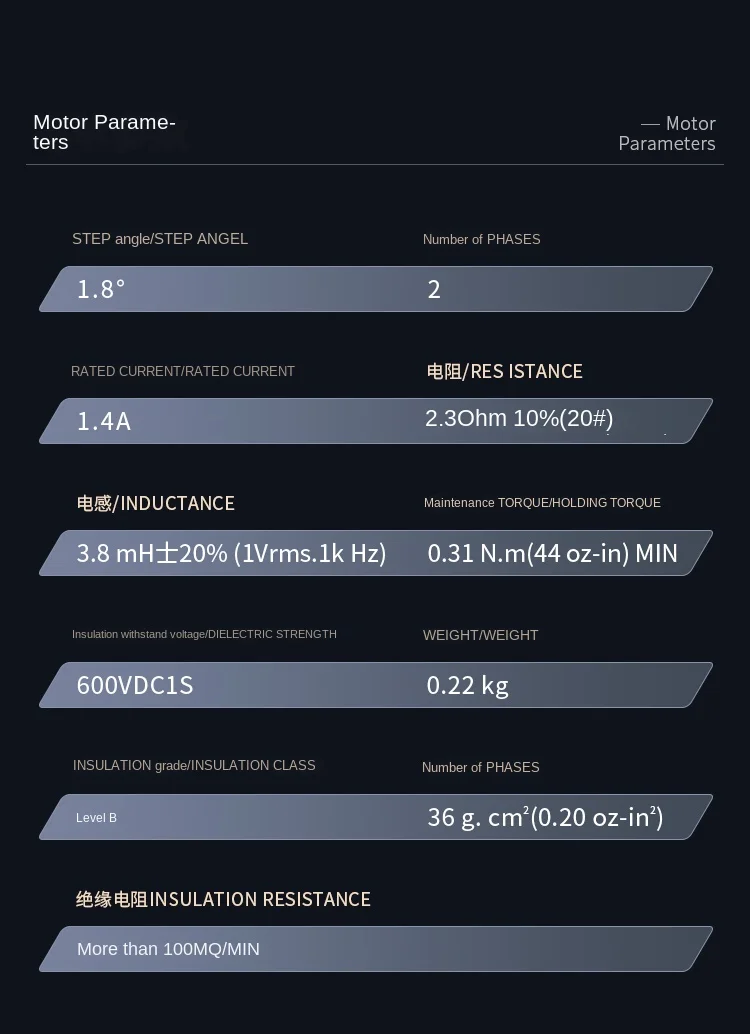

Specifications:
Step Angle: 1.8°
Rated current: 1.4A
Inductance: 3.8mH±20%
Insulation withstand voltage: 600VDC 1S
Insulation class B
Resistance: 2.3ohm ±10% (20°C)
Holding torque: 0.31 N.m(44 oz-in) MIN
Weight: 0.22kg
Phase number; 36 g. cm2(0.20 oz-in²)
