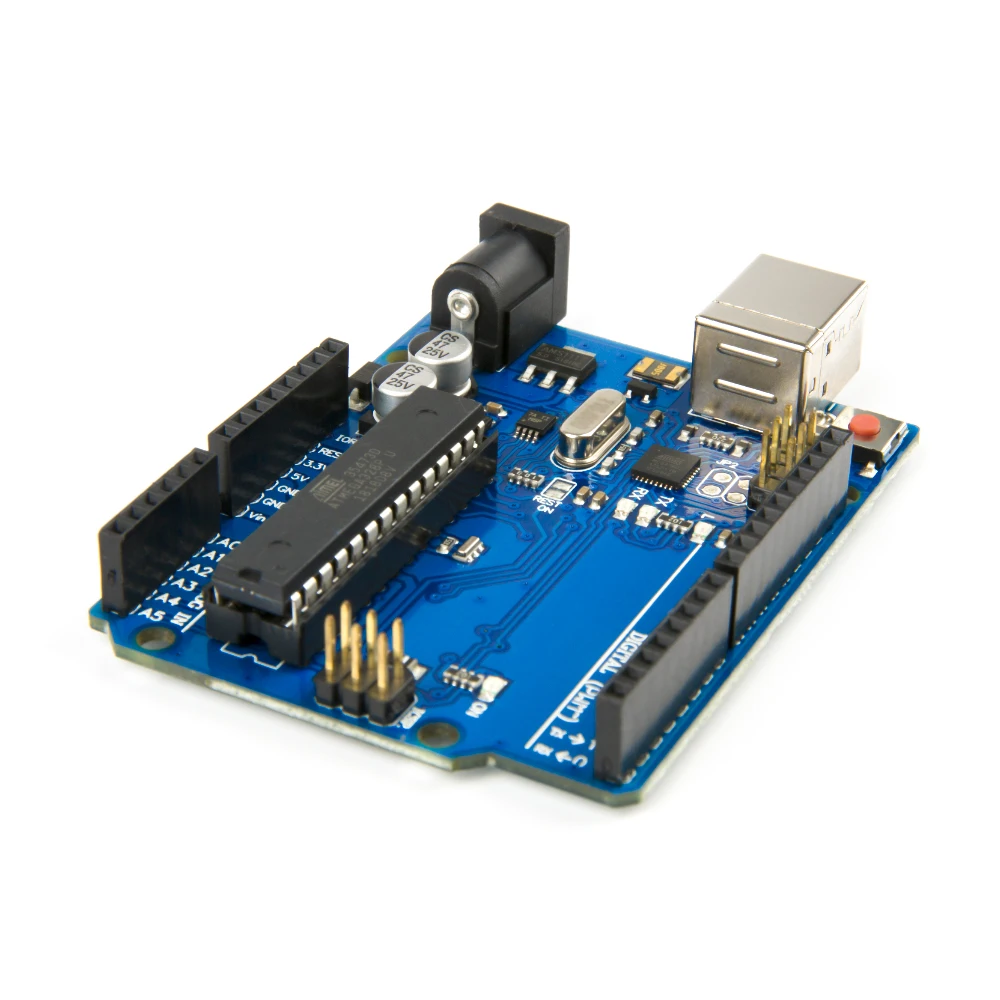

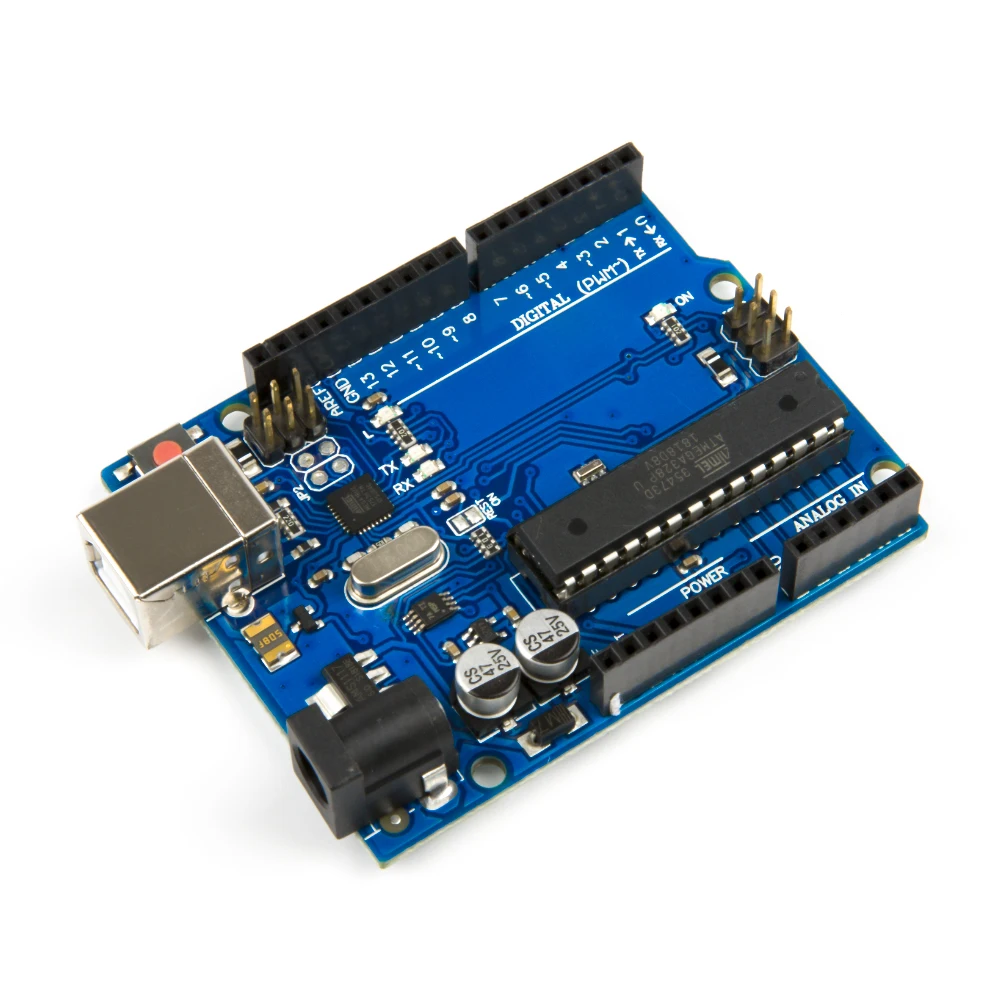

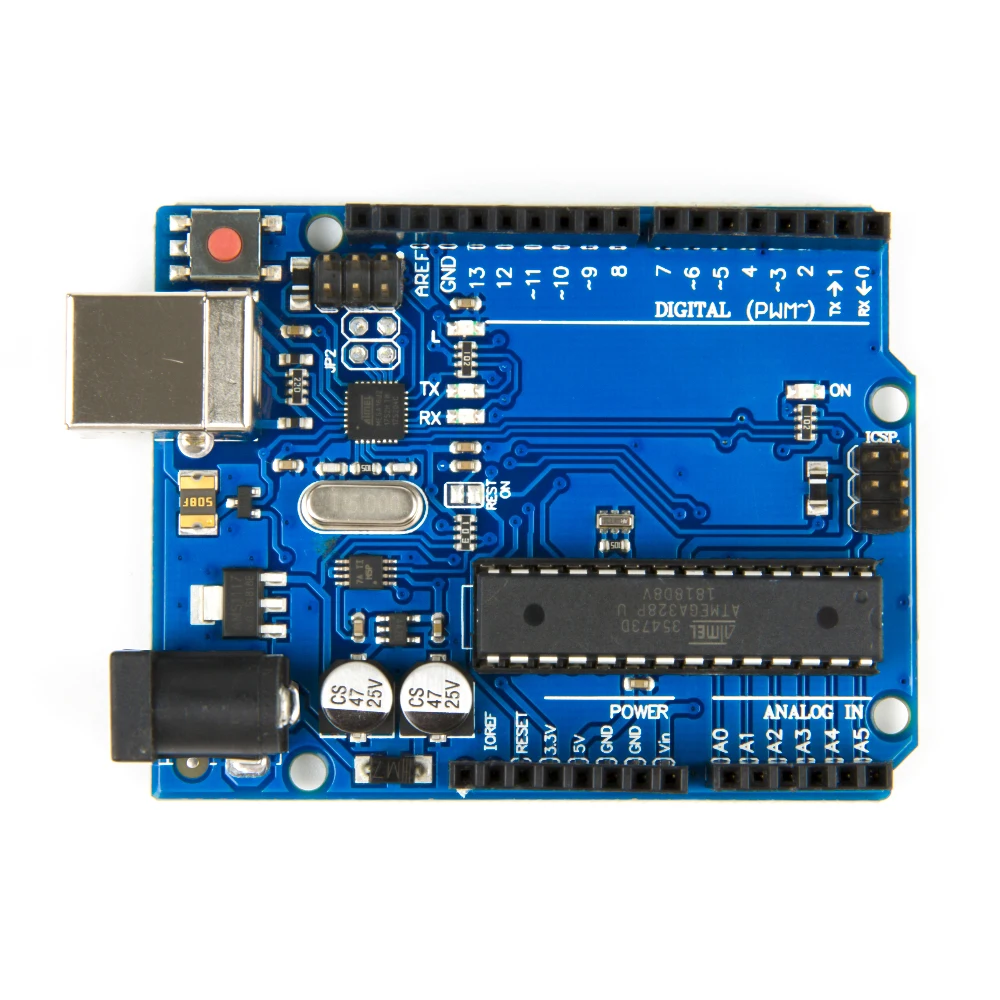

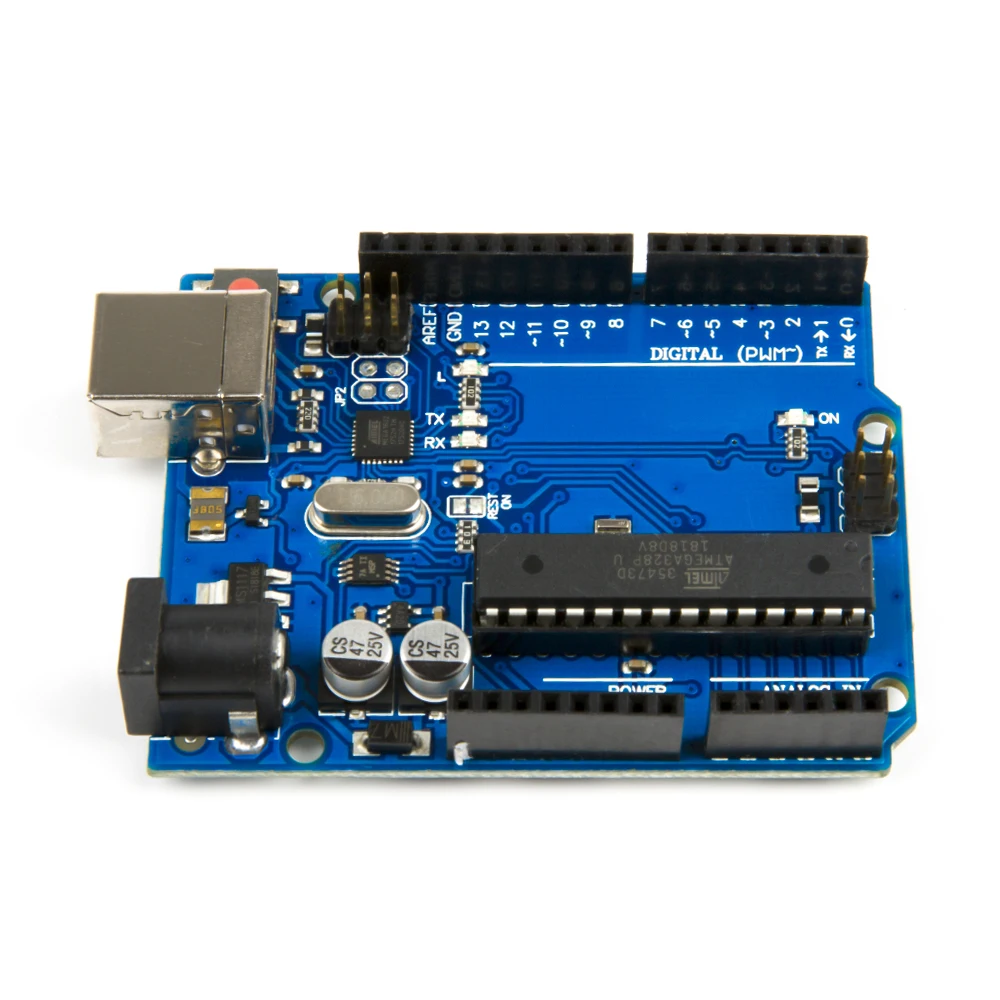

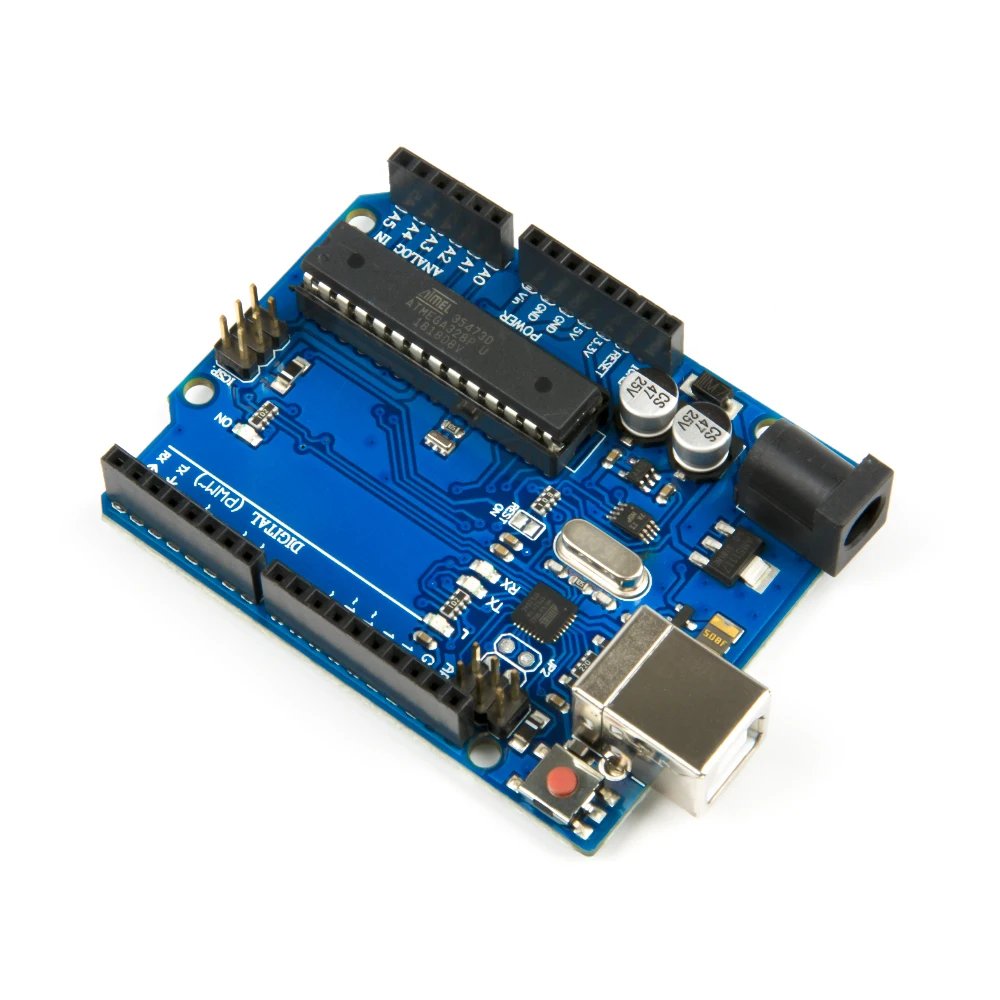

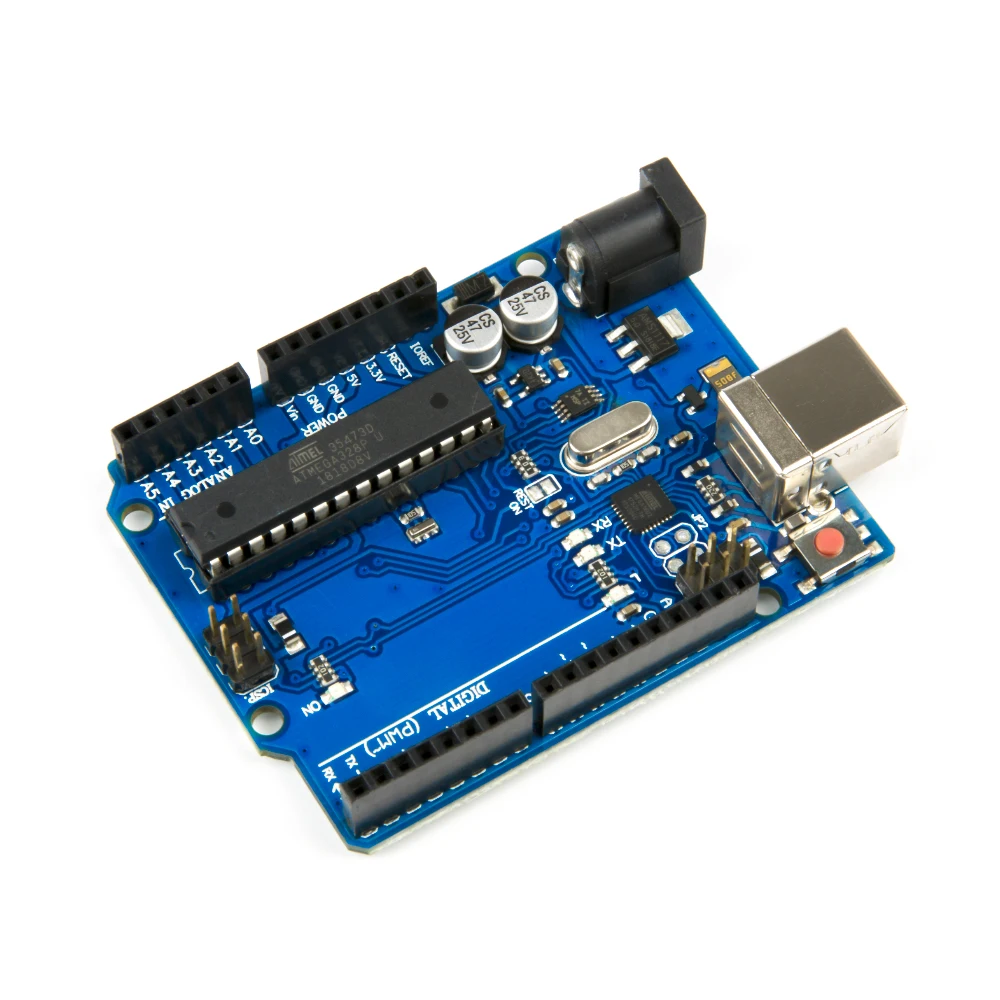

KUONGSHUN Development Board for UNO R3 Board ATmega328P ATMEGA16U2 with USB Cable for Arduino
Established in 1981, Robotlinking is a thriving technology company dedicated to open-source hardware research & development, production and marketing.Our own Quality Management Team will secure the premium quality of our products and we would like to receive your valuable suggestions for our products and make your idea come true.
* 100% compatible with the Arduino IDE.
* The Robotlinking controller board now uses a ATmega328P chip , with a faster transfer rate and more memory
* Clearly printed pin names on the female header connector, are more precise and much easier to use the wires
* Robotlinking controller board can be powered via a USB connection and an external power supply
* A good choice for getting started with electronics and coding, and ideal for your 3D printer, robotic and electronic projects
—-The RX and TX LEDs on the board will flash when data is being transmitted via the USB-to-serial chip and USB connection to the computer.—-The Robotlinking Controller Board puts SDA and SCL pins beside the AREF. Besides, there are two new pins placed near the RESET pin. One is the IOREF that allows the shields to adapt to the voltage provided from the board and the other one is reserved for future purposes.
The Robotlinking Controller Board works with all existing shields and can adapt to new shields which use these additional pins.
Features
* ATmega328P microcontroller
* Input voltage – 7-12V
* 5V Electric current: 500MA
* 3.3V Electric current: 50MA
* 14 Digital I/O Pins (6 PWM outputs)
* 8 Analog Inputs
* 32k Flash Memory
* 16Mhz Clock Speed
