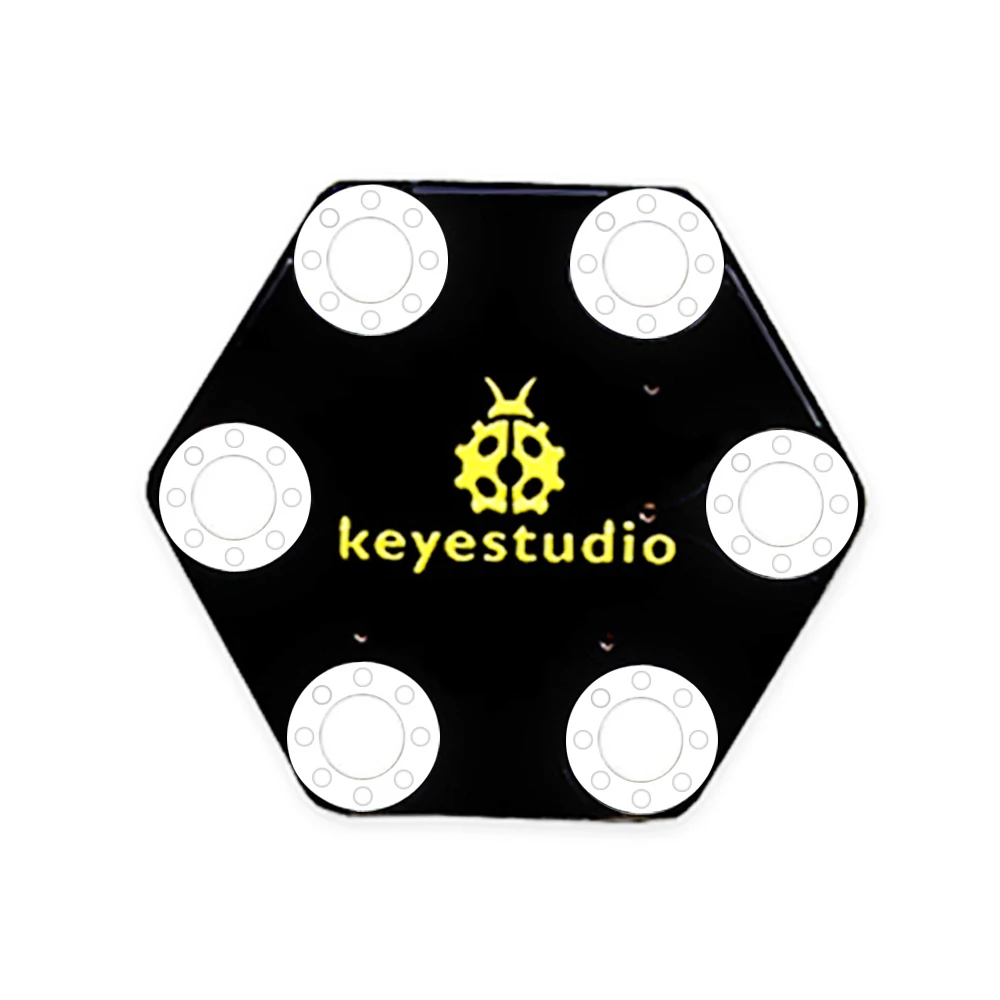

micro bit honeycomb digital LED module is fully compatible with micro bit control board.

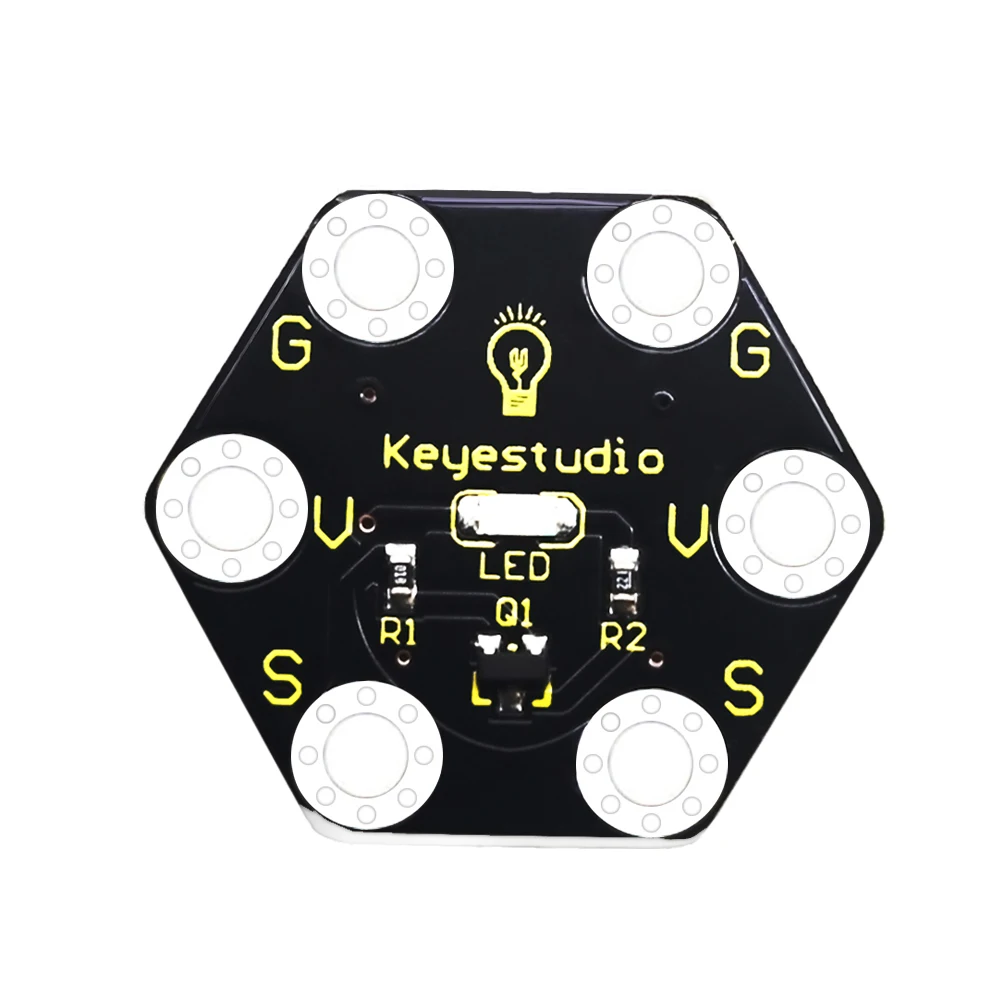

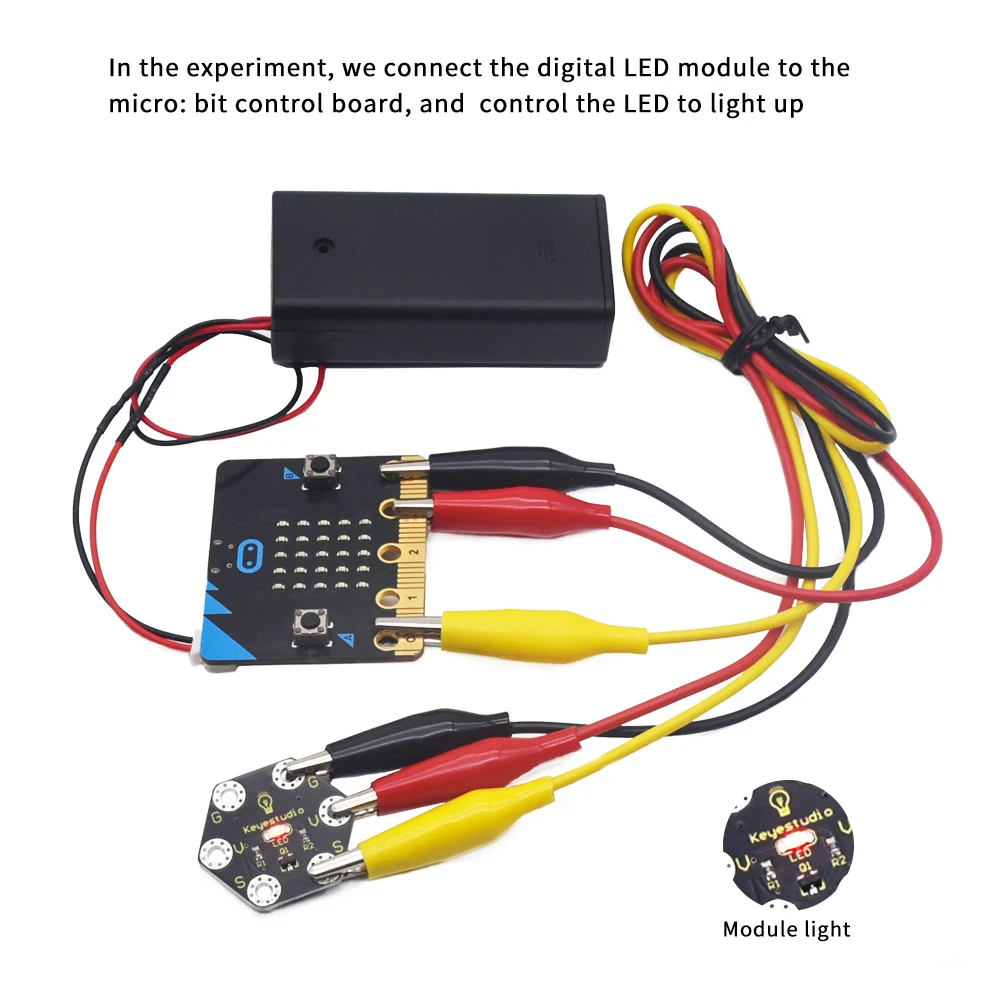

In the experiment, we connect it with the micro: bit by a crocodile clip. This module contains 6 ports: 2 G, 2 V and 2 S. They are connected. G is GND, VV is VCC, and S is the signal end of the module. Moreover, the red LED of the module displays different colors via the level of S end.

Parameters

• Working voltage: DC 3.0-5V

• Working current: 60mA

• Maximum power: 300mW

• Working temperature: -25 ℃ –65 ℃

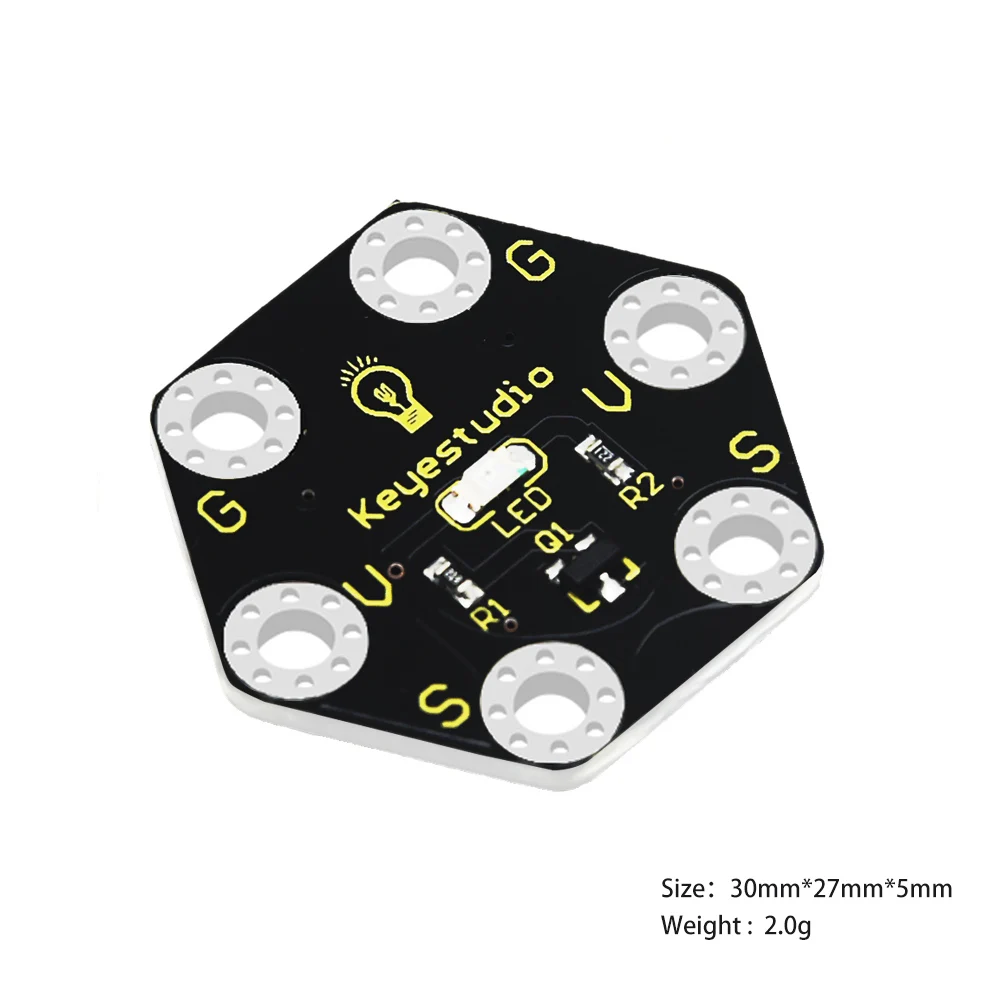

• Size: 30mm * 27mm * 5mm

• Weight: 2.0g

• LED color: red

• Environmental attributes: ROHS
