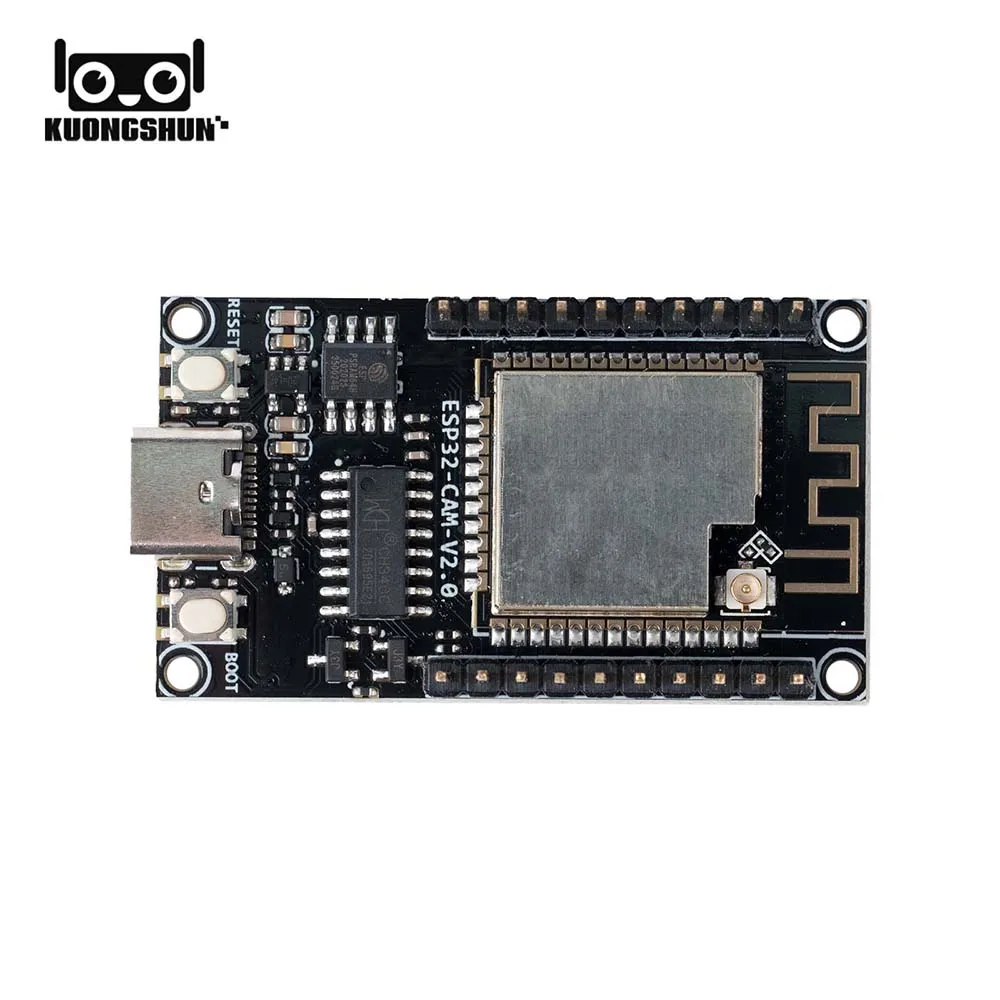

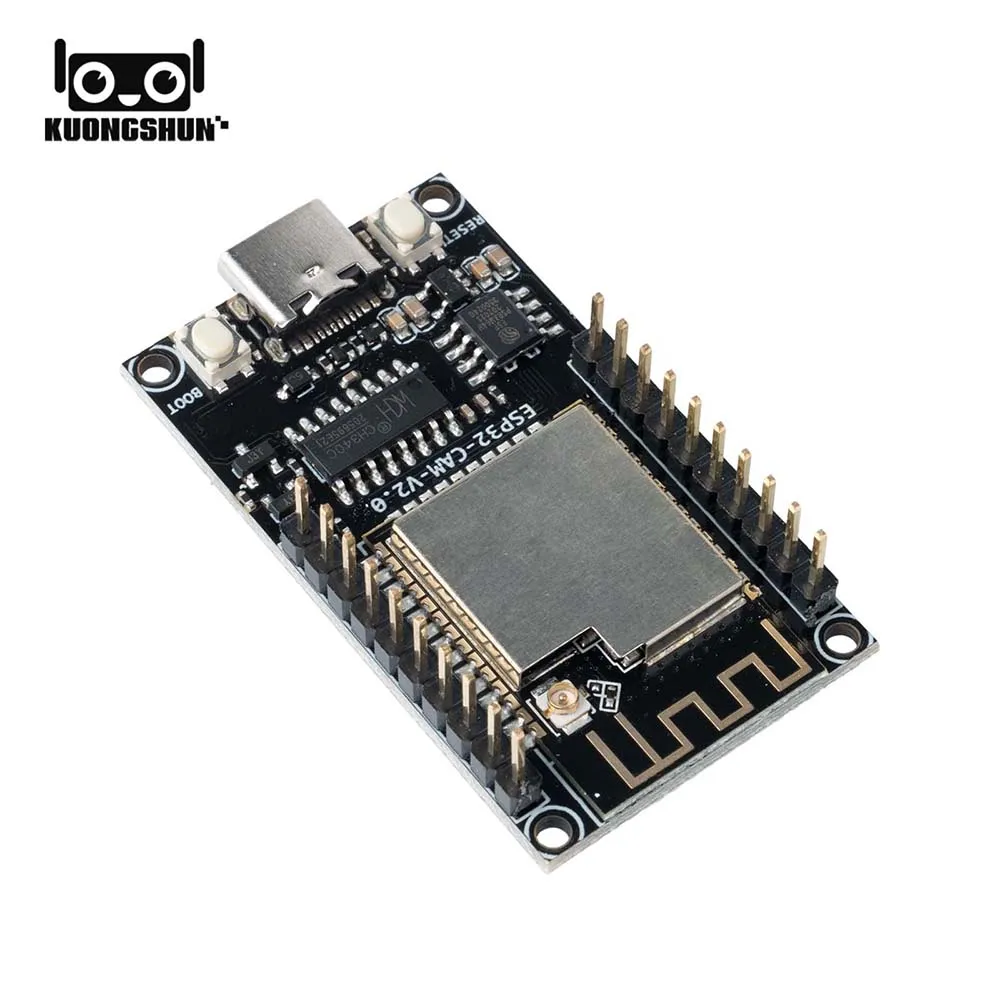

KUONGSHUN ESP32-CAM WiFi Module Camera Module Development Board ESP32 with Camera Module OV2640 2MP For Arduino
About this item The ESP32 CAM equips the ESP32 with everything necessary to program, run and develop on the wonderchip.
Additionally, the board reserved the MPU6050,BME280 and an analog MIC.
ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP32 CAM supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC, ultra-low power consumption, deep sleep current is as low as 6mA.
It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module. The esp32 kit module can work independently as the smallest system.
Camera:
CMOS: OV5640, providing a single chip JXGA (1632×1232) camera and images The complete functionality of the processor is achieved
through the serial camera control bus (SCCB) interface, Provides multiple formats for full frame sampling, scaling, or windowing
of 8-bit/10-bit images. The optimal image distance is 20-250CM.
Wireless communication:
WIFI supports the 2.4G 802.11 b/g/n wireless standard, 802.11 n (2.4 GHz) speeds up to 150 Mbps. Supports v4.2 Complete
standard, including traditional Bluetooth (BR/EDR) and low-power (BLE).
MCU micro control unit:
Xtensa ® The 32-bit LX6 dual core processor has a computing power of up to 600 MIPS, The clock frequency is adjustable, ranging from 80 MHz to 240 MHz. The chip integrates 448KB ROM, 520KB SRAM, and 16KB RTC SRAM internally.
Usage:
After the USB cable is powered on, the red LED status light lights up and the phone is turned on Or search for ESP32 through computer WIFI_ Cam double-click on the connection and Display successful connection, input in the browser of the computer or mobile application IP address 192.168.4.1 enables real-time access to the camera module Video images.
