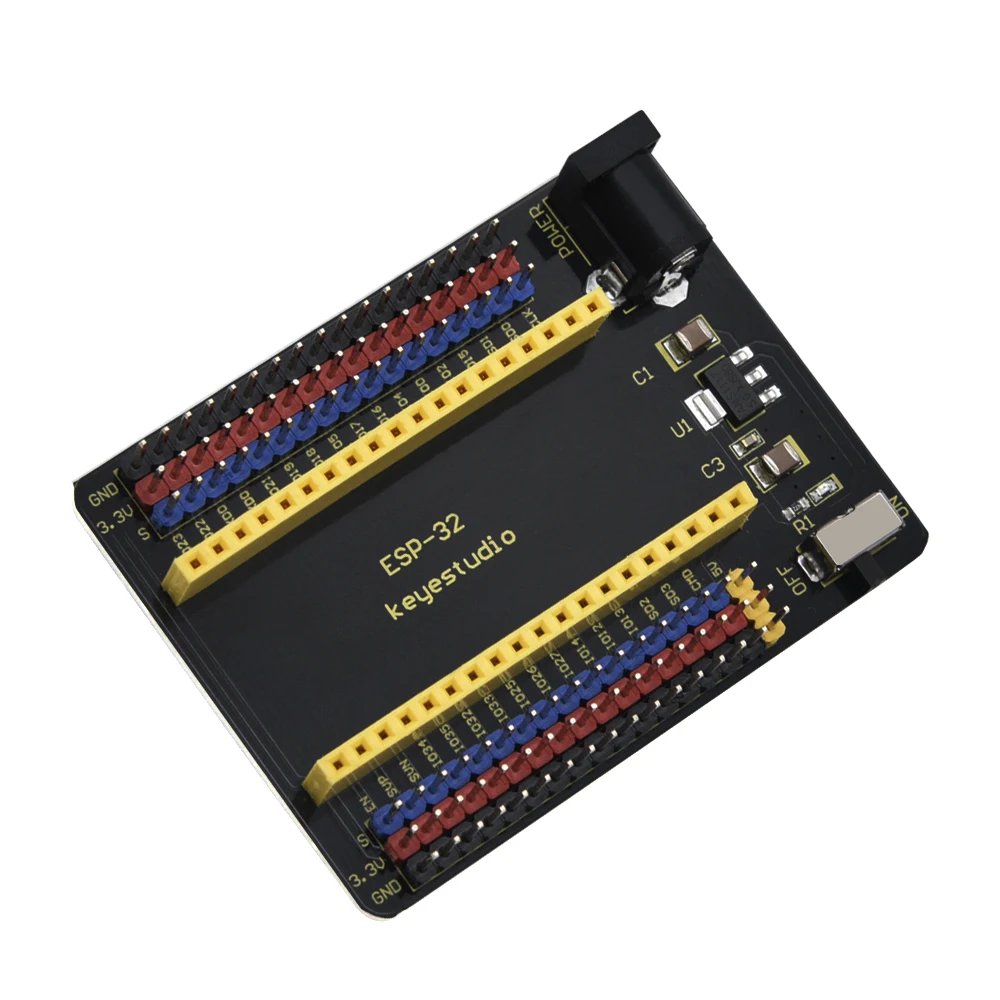

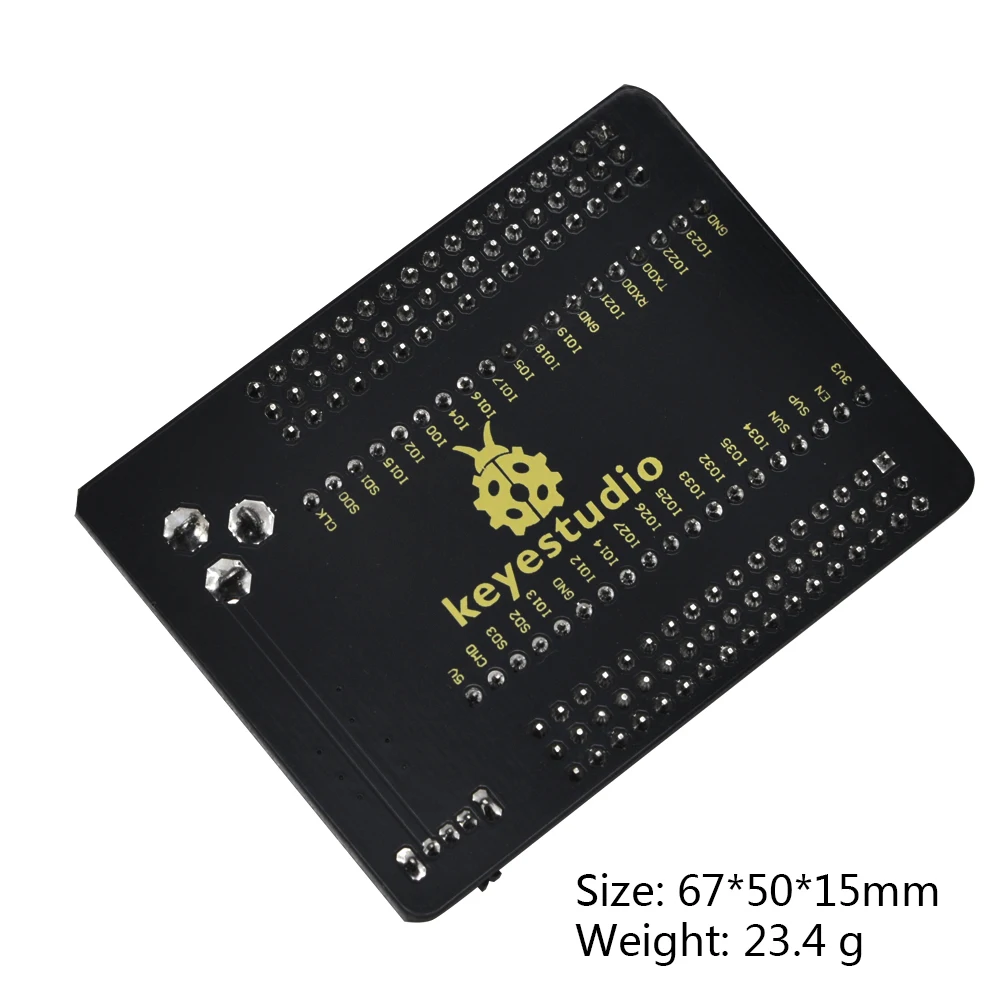

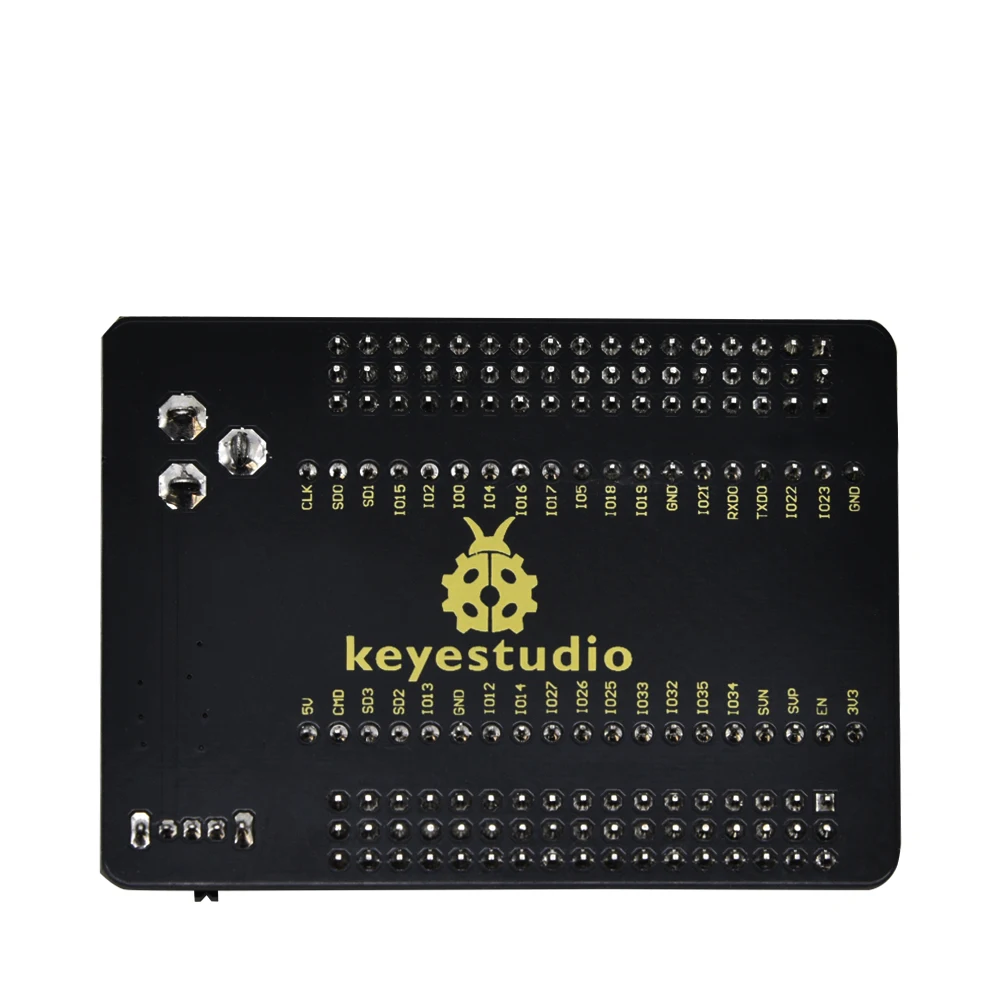

The ESP32-IO shield is designed to be compatible with the keyestudio ESP32 Core board. The ESP32-IO shield has brought out all the pins of keyestudio ESP32 Core board in the form of 2.54mm pin header.

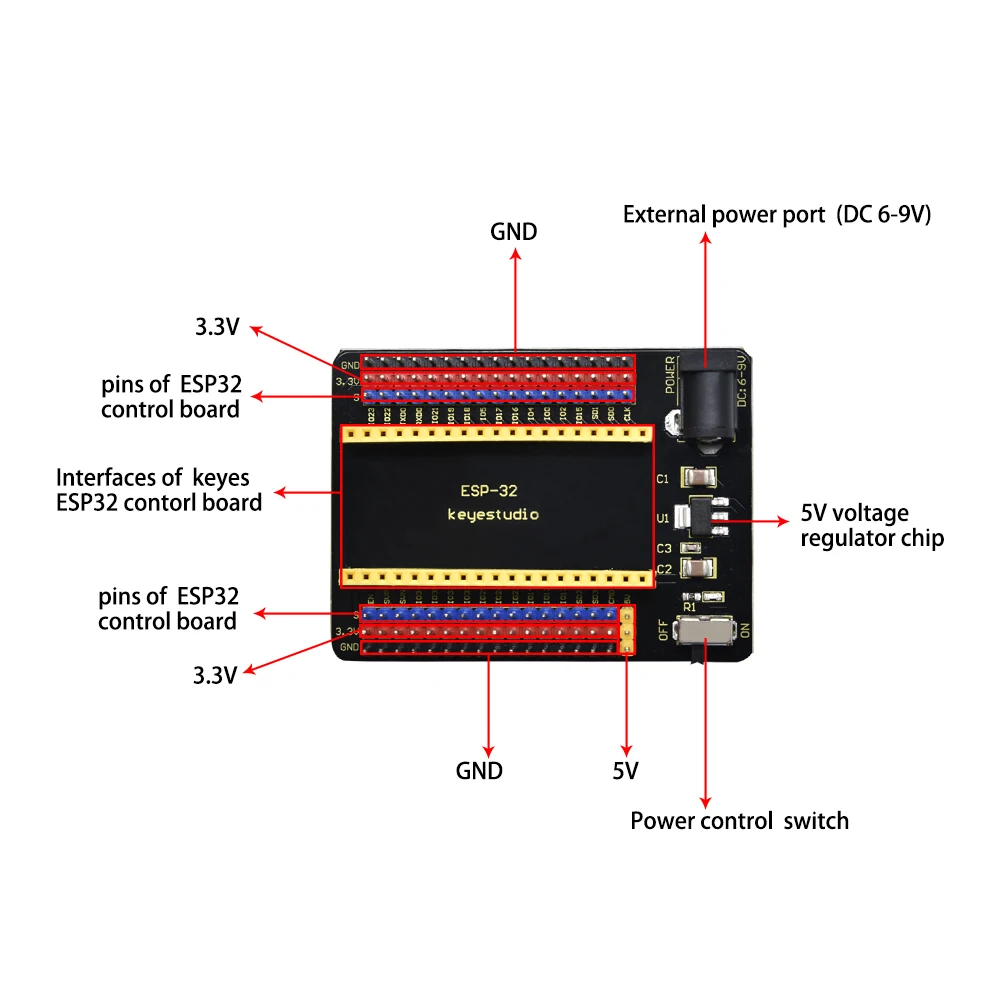

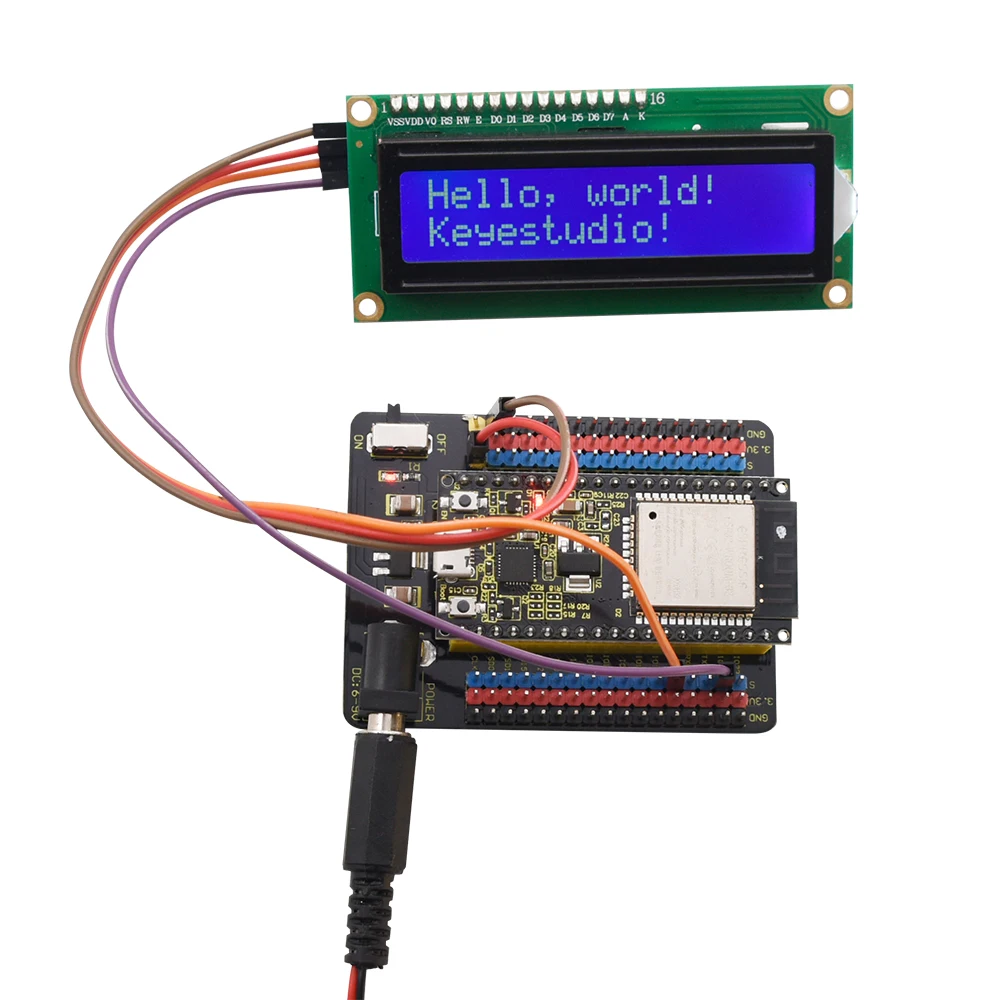

In order to connect other sensors easily, the ESP32-IO shield also has 2 rows of 2.54mm pin headers, powering external sensors/modules with DC 3.3V voltage.

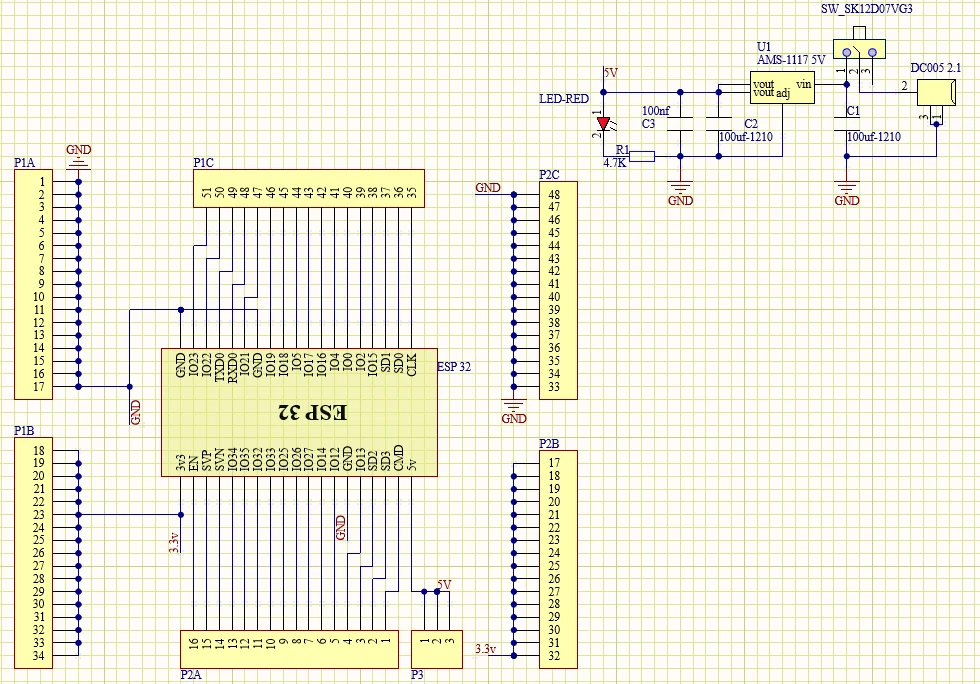

At the same time, in order to supply the power to keyestudio ESP32 Core board, the ESP32-IO shield has also designed with the power supply circuit.
When using, you only need to input DC6-9V voltage on the black DC jack to power the keyestudio ESP32 Core board.
And the ESP32-IO shield also comes with a DIP switch, for controlling the power.
Performance Parameters
Supply voltage: DC 6–9V
Working current: 60mA
Maximum power: 0.3W
Operating temperature: -25℃ to +65℃
Dimensions: 30mm*20mm
Environmental attributes: ROHS

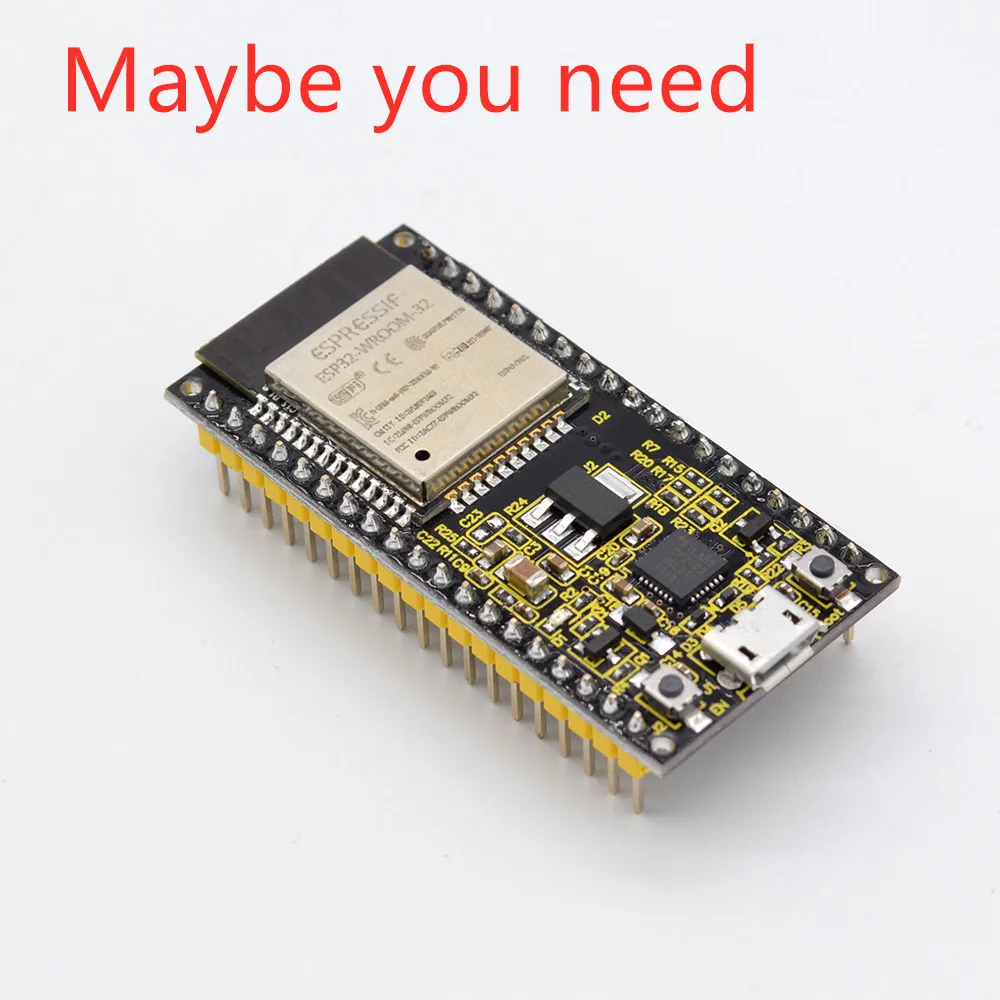

Note:ThisESP32-IO Shieldis only compatible with 8266 modules with a pin
spacing of 22.86mm. shown below:
