ESP32 Core board is a Mini development board based on the ESP-WROOM-32 module. The board has brought out most I/O ports to pin headers of 2.54mm pitch. These provide an easy way of connecting peripherals according to your own needs.
When it comes to developing and debugging with the development board, the both side standard pin headers can make your operation more simple and handy.
The ESP-WROOM-32 module is the industry’s leading integrated WiFi + Bluetooth solution with less than 10 external components. It integrates antenna switches, RF balun, power amplifiers, low noise amplifiers, filters as well as power management modules. At the same time, it also integrates TSMC’s low-power 40nm technology, power performance and rf performance, making it safe, reliable and easy to expand to a variety of applications.
Specifications
Microcontroller: ESP-WROOM-32Module
USB to Serial Port Chip: CP2102-GMR
Working Voltage: DC 5V
Working Current：80mA（Average）
Current Supply：500mA（Minimum）
Working Temperature Range : -40°C ~ +85°C
WiFi Mode：Station/SoftAP/SoftAP+Station/P2P
WiFi Protocol ：802.11 b/g/n/e/i（802.11n，speed up to 150 Mbps
WiFi Frequency Range：2.4 GHz ~ 2.5 GHz
Bluetooth Protocol ：conform to Bluetooth v4.2 BR/EDR and BLE standard
Dimensions：55*26*13mm
Weight：9.3g

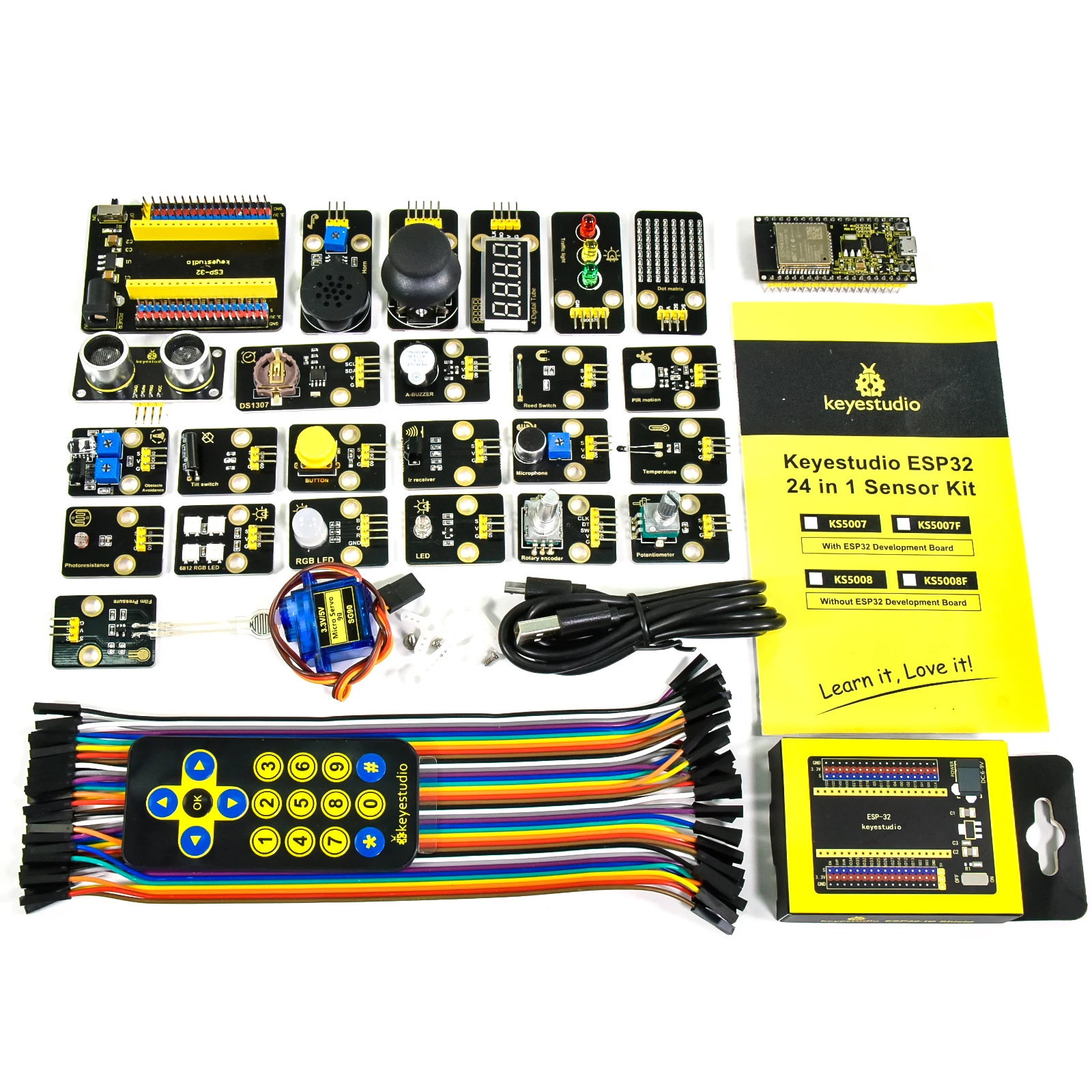

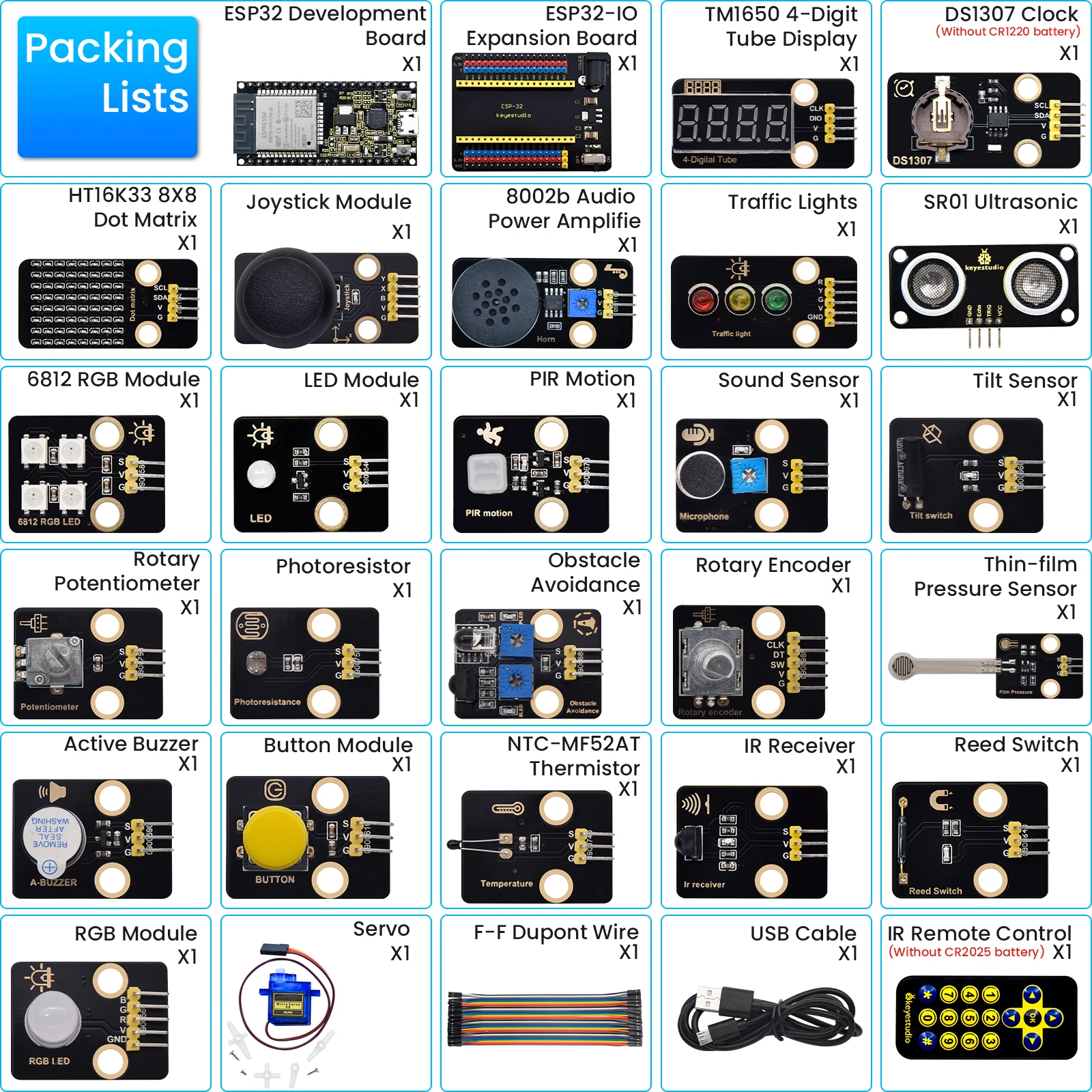

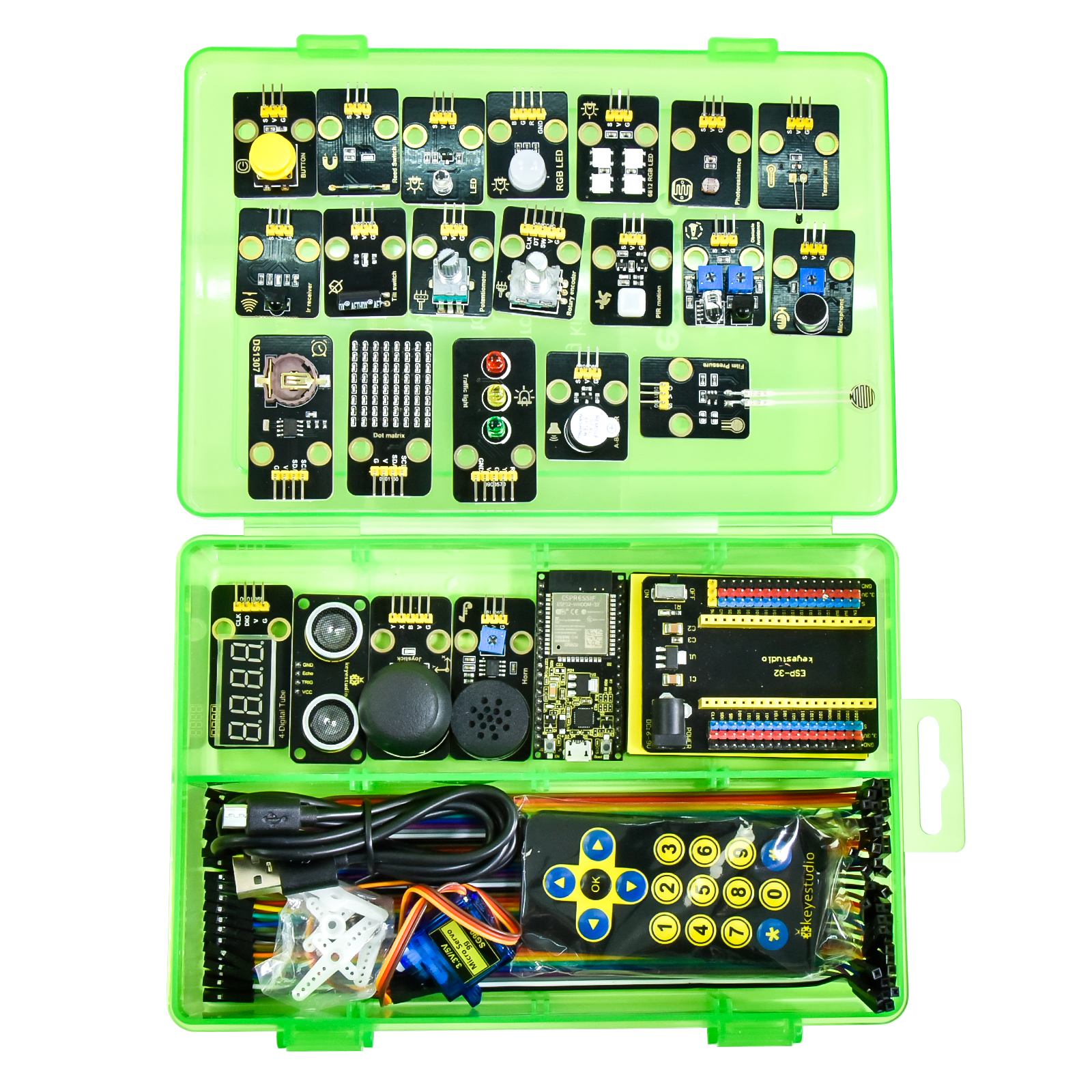

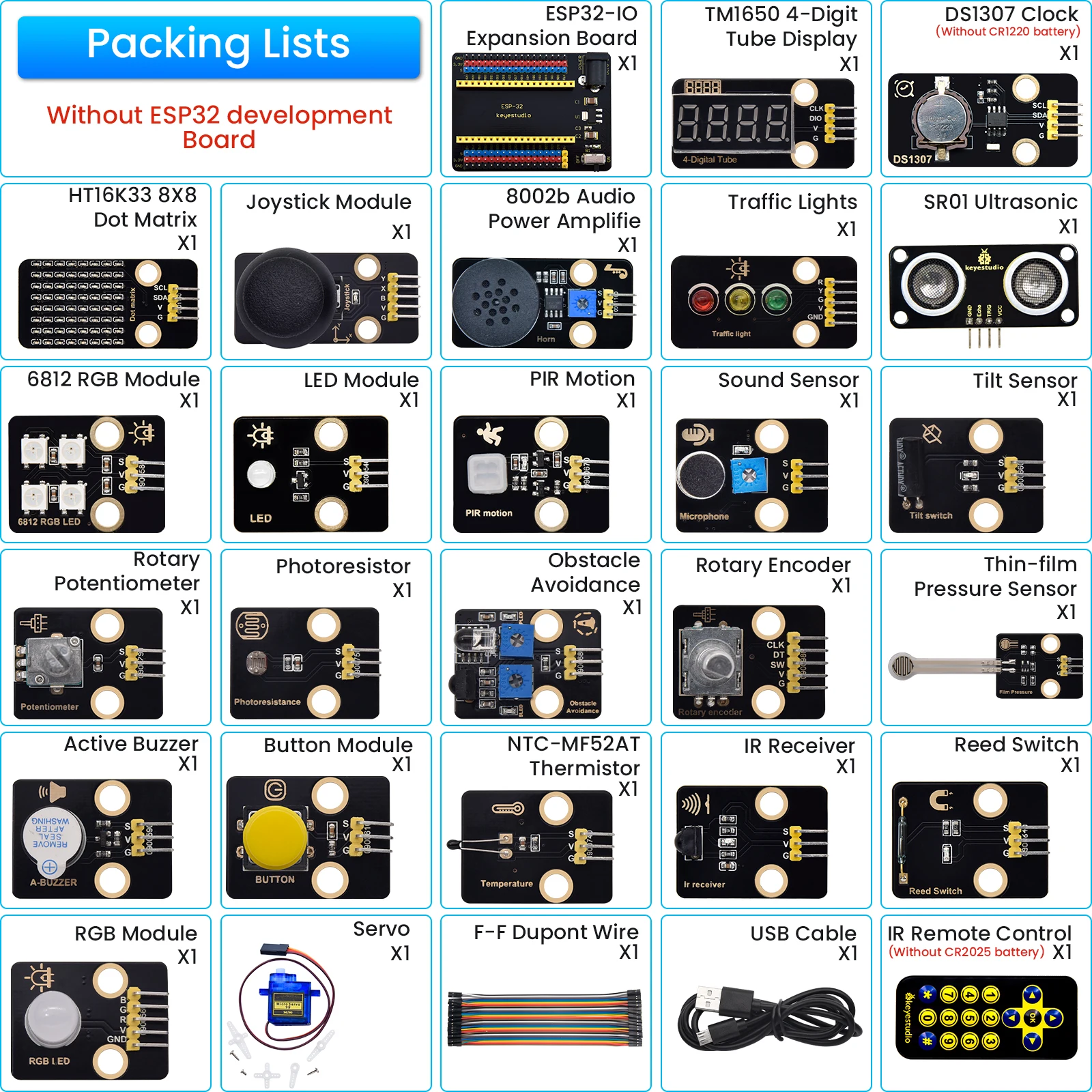

NOTICE:There two choice for you to choose (with ESP32 board) or (not with ESP32 board).Please choose what you want.The below two packag list are mention that too.
