The pin is compatible with the main control board such as Arduino Uno and Mega2560. Meanwhile, it uses the voltage conversion chip when connecting the Arduino MCU, which compatibles with 3.3V and 5V.
The serial port of the shield is controlled by a dual-dial switch, so that it can be used alone as an Arduino MCU expansion board or as an ESP8266 shield.
It configures WiFi and serial parameters based on Web Server.
It can not only be used as an independent ESP8266 development board, downloading official AT command firmware, NodeMCU open source firmware and so on, but also can be used as a stand-alone Arduino UNO shield, with all leadout pins.
Technical Details
-
Support wireless 802.11 b/g/n standards.
-
Support STA/AP working modes
-
Built-in TCP/IP protocol stack, able to configure a socket.
-
Support standard TCP/UDP Server and Client.
-
The serial port baud rate supporting 1200/2400/4800/9600/19200/38400/57600/74800/115200 bps.
-
Serial port data: 5/6/7/8 bits
-
Serial Parity check: None
-
Serial port stop bit: 1/2 bit
-

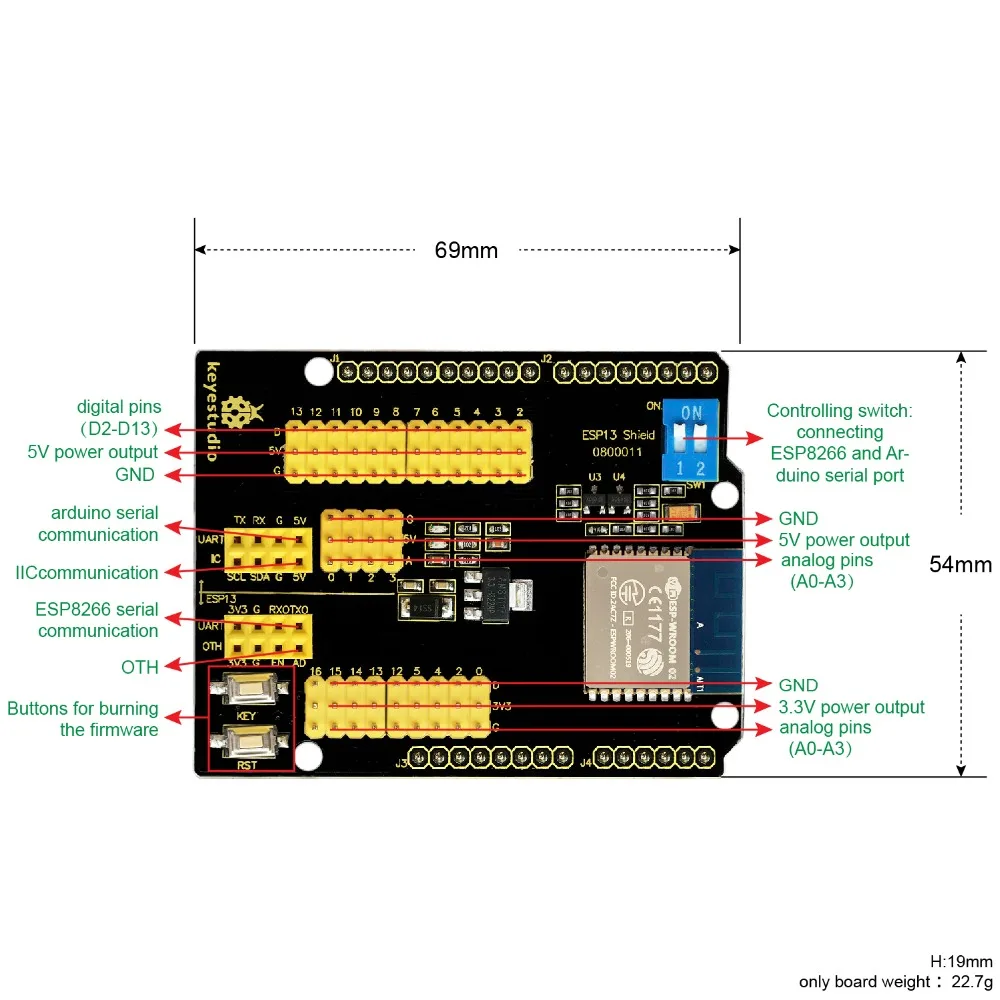

Standard Arduino Uno/Mega pin pitch
-
Breaks out Arduino Pin 2/3/4/5/6/7/8/9/10/11/12/13
-
ESP8266 GPIO 0/2/4/5/9/10/12/13/14/15/16/ADC/EN/UART/ TX/UART RX/UART
-
RESET button
-
KEY button for multiplexing configuration function
-

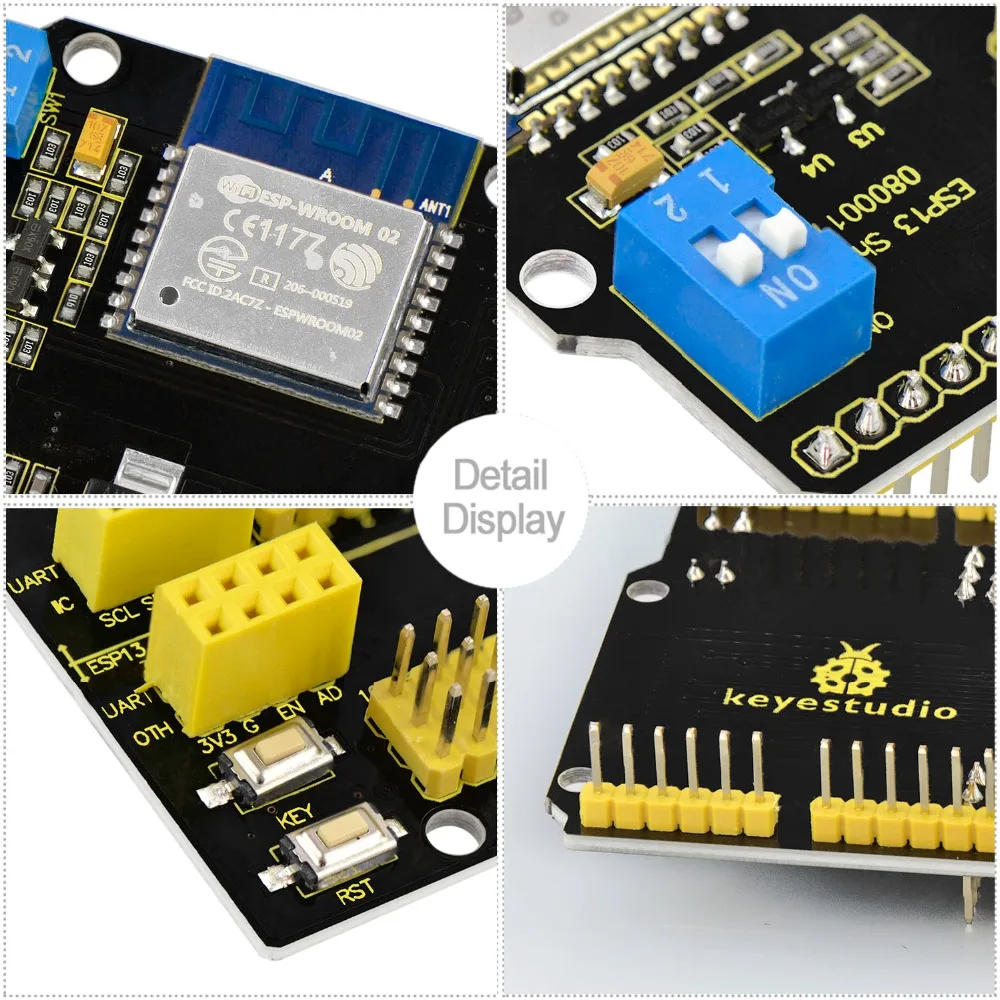

Two DIP switches enable extended switching between the Arduino and ESP8266 serial ports.
-
WiFi operating current: continuous transmission≈700mA(200mA MAX), standby <200uA.
-
Wireless transmission rate: 110-460800bps
-
Working temperature: -40℃ ~ +125℃
-
Dimensions: 69mm*54mm*19mm
-
Weight: 22.7g
1.Description:
Nowadays, WiFi is seen everywhere in our daily life and Arduino microcontrollers are getting more and more popular.

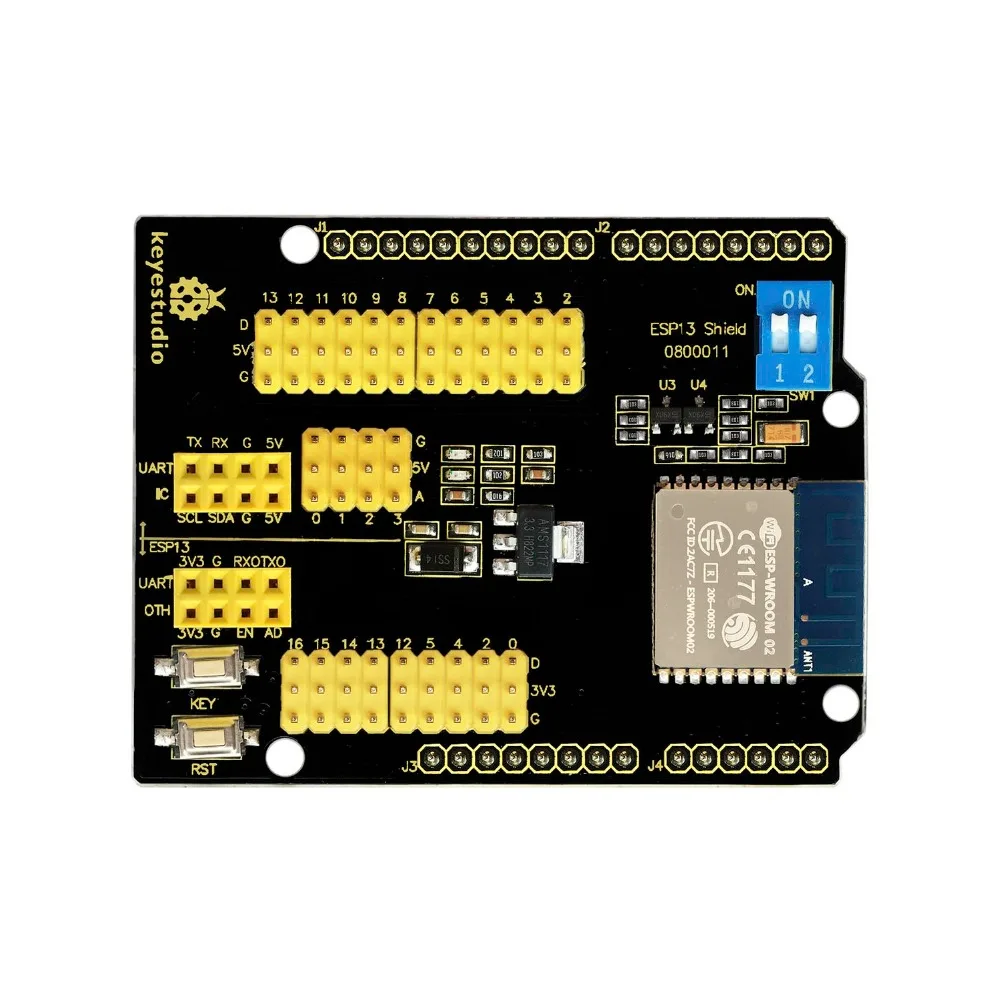

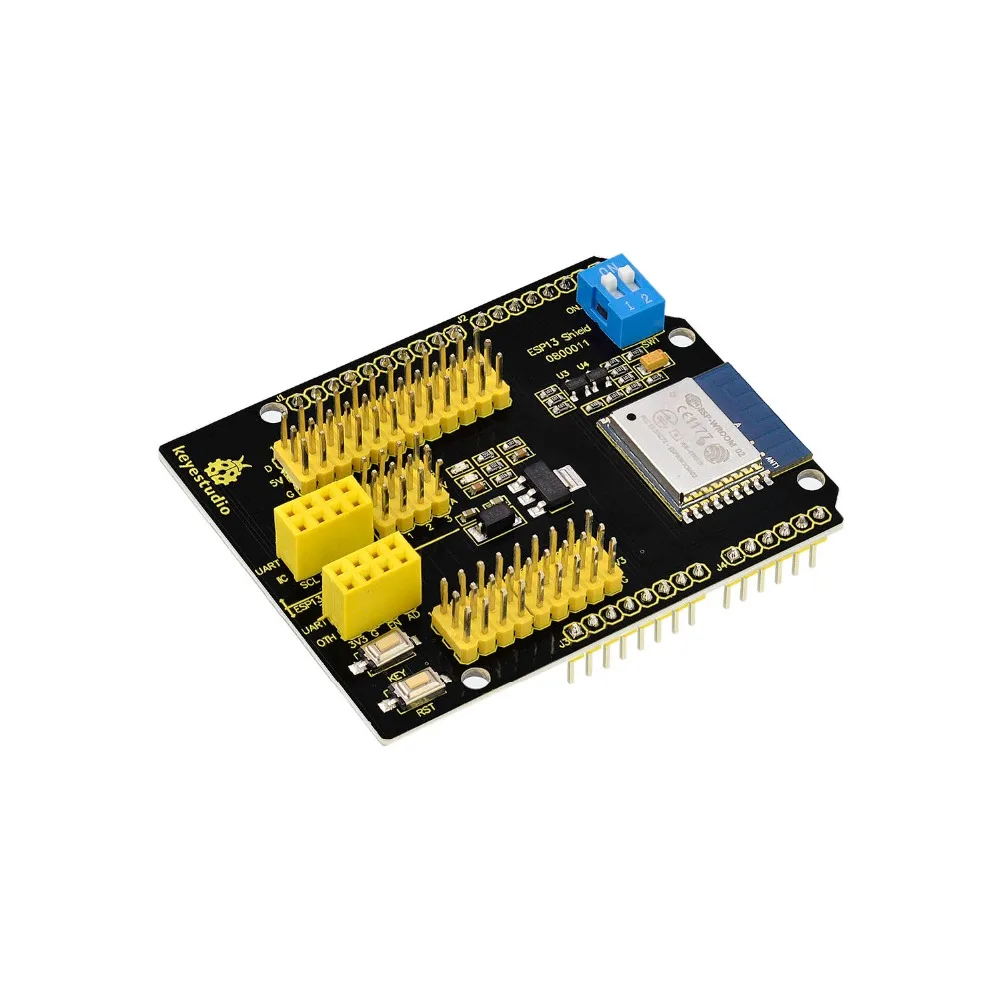

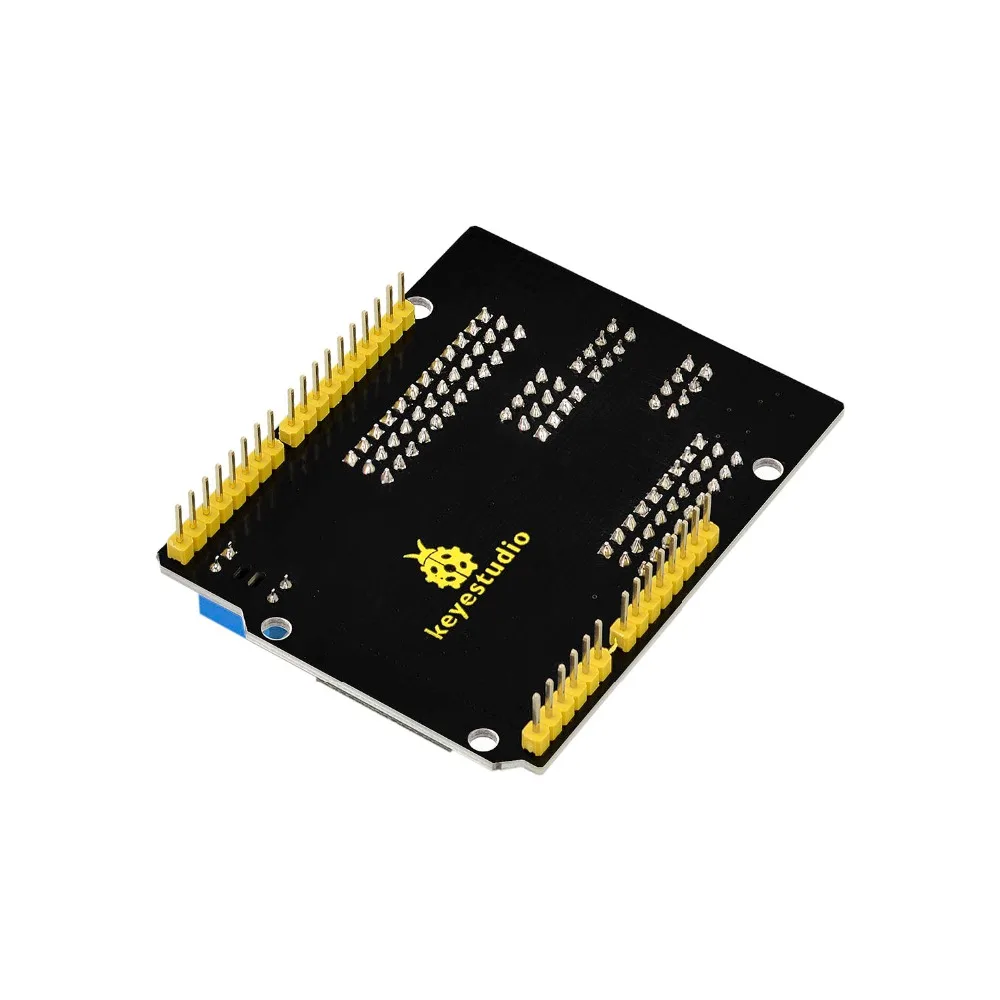

The keyestudio ESP13 shield is particularly designed for Arduino microcontrollers to connect the WiFi.
It adopts industrial grade chip ESP8266. It is ESP-13 with metal shield, with strong anti-interference ability.
The pin is compatible with the main control board such as Arduino Uno and Mega2560. Meanwhile, it uses the voltage conversion chip when connecting the Arduino MCU, which compatibles with 3.3V and 5V.
The serial port of the shield is controlled by a dual-dial switch, so that it can be used alone as an Arduino MCU expansion board or as an ESP8266 shield.
It configures WiFi and serial parameters based on Web Server.
2.Technical Details:
-
Support wireless 802.11 b/g/n standards.
-
Support STA/AP working modes
-
Built-in TCP/IP protocol stack, able to configure a socket.
-
Support standard TCP/UDP Server and Client.
-
The serial port baud rate supporting 1200/2400/4800/9600/19200/38400/57600/74800/115200 bps.
-
Serial port data: 5/6/7/8 bits
-
Serial Parity check: None
-
Serial port stop bit: 1/2 bit
-
Standard Arduino Uno/Mega pin pitch
-
Breaks out Arduino Pin 2/3/4/5/6/7/8/9/10/11/12/13
-
ESP8266 GPIO 0/2/4/5/9/10/12/13/14/15/16/ADC/EN/UART/ TX/UART RX/UART
-
RESET button
-
KEY button for multiplexing configuration function
-
Two DIP switches enable extended switching between the Arduino and ESP8266 serial ports.
-
WiFi operating current: continuous transmission≈700mA(200mA MAX), standby <200uA.
-
Wireless transmission rate: 110-460800bps
-
Working temperature: -40℃ ~ +125℃
-
Dimensions: 69mm*54mm*19mm
-
Weight: 22.7g
