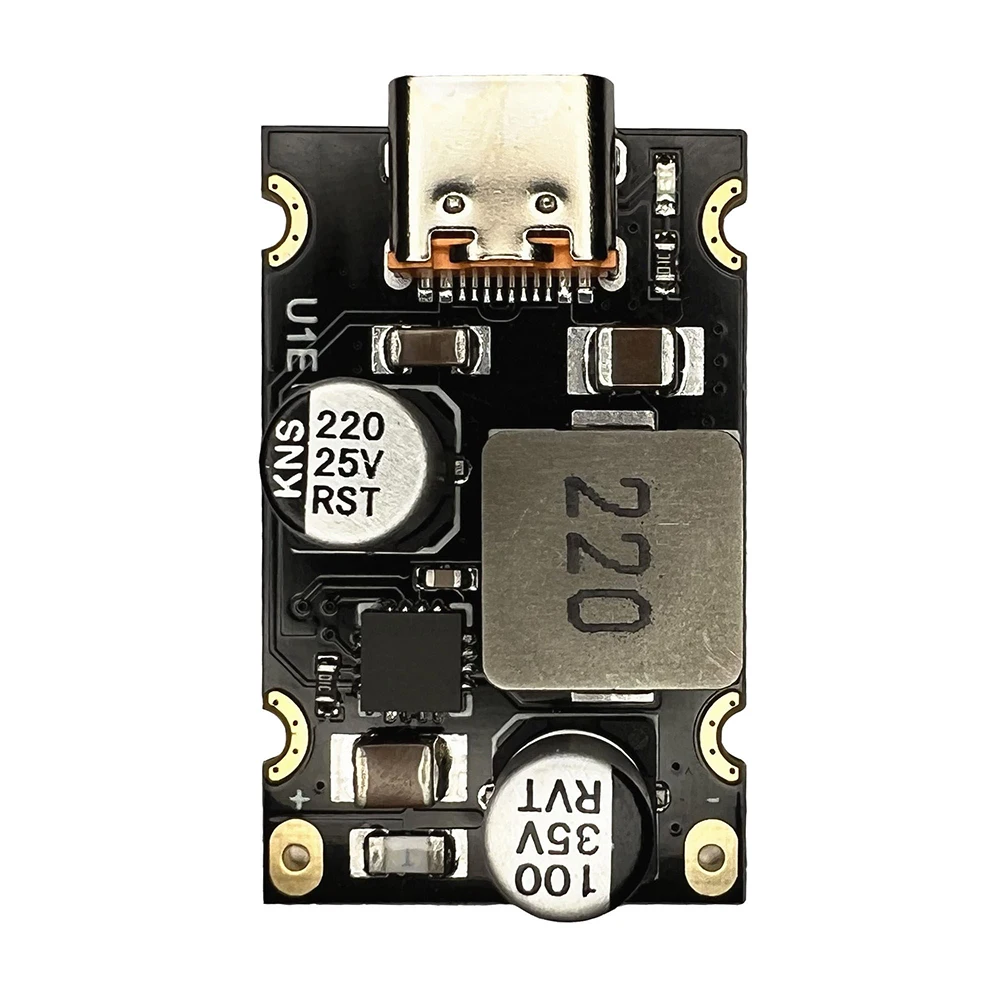

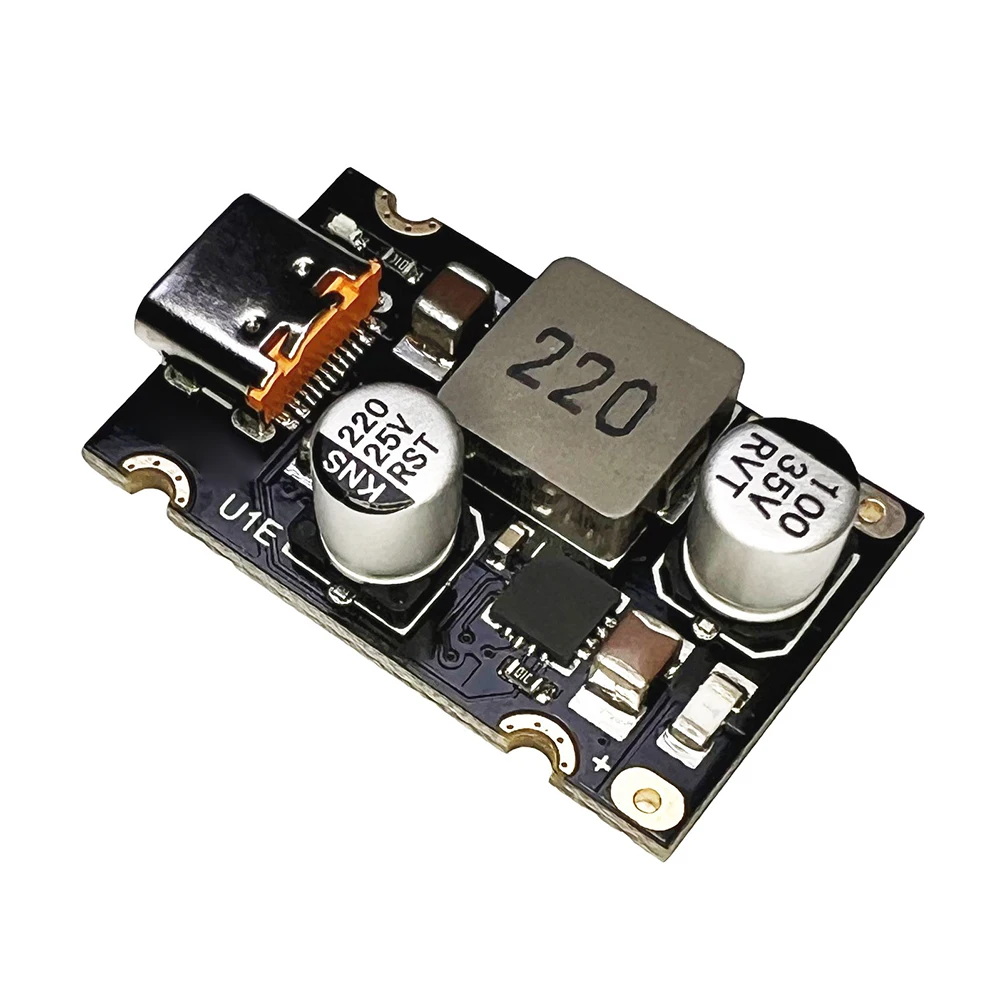

PD 65W Fast Charging Module Type-C Interface Supports PD3.1 QC3.0 SCP PPS Fast Charging For Arduino DC 8-30V

Features:

Support PD3.1 (PPS), QC3.0, SCP

With protection function, input overvoltage and undervoltage protection, input overcurrent protection, output overcurrent and short circuit protection, whole machine overtemperature protection

Maximum output 20V 3.25A

Input 8~30V (can only step down)

DC models are divided into 5521 and 5525, 5521: outer diameter 5.5mm, inner diameter 2.1mm; 5525: outer diameter 5.5mm, inner diameter 2.5mm

Specifications PD 65W Fast Charging Module :

Input voltage: DC 8~30V

Output voltage for https fast charging module : automatically adjusted between 3.3V~21V when connected to a TYPE-C compatible power receiving device (the input voltage must be higher than the output voltage. If you want to trigger 20V fast charging, the input voltage must be higher than 20v)

Output power: maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)

Maximum output: 20V 3.25A

Conversion efficiency: 92%~97%

Output voltage ripple: <200mV

No-load current: <3mA

Input overvoltage and undervoltage protection

Input overcurrent protection

Output overcurrent short-circuit protection

Overtemperature protection of the whole machine

Supported charging protocol: PD3.1 (PPS), QC3.0, SCP

Product size:

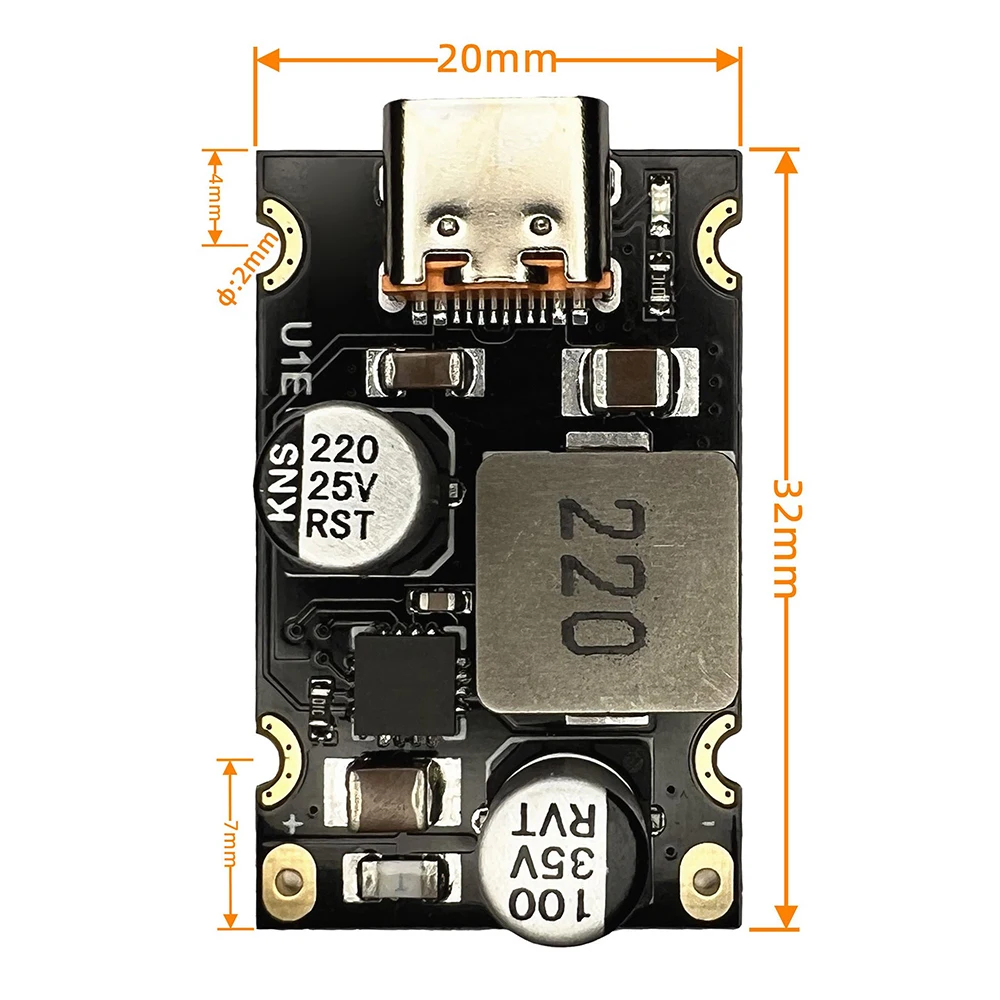

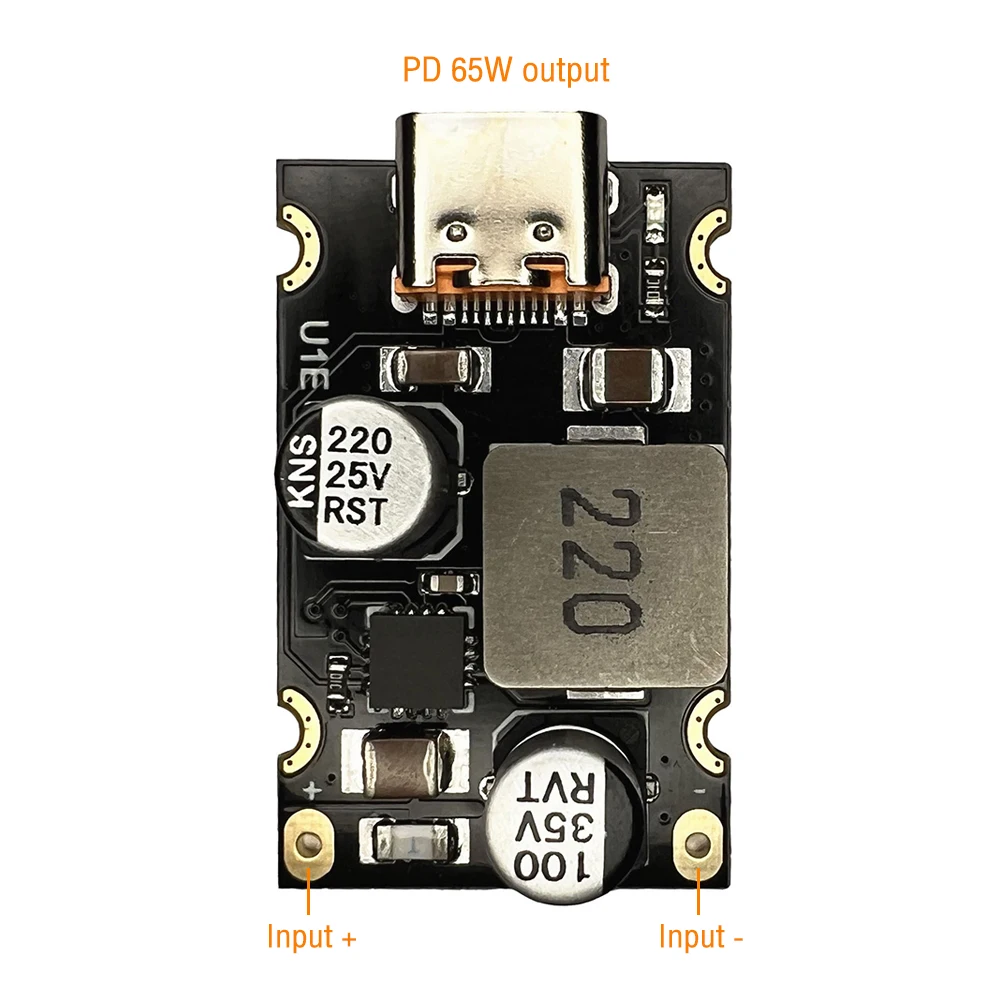

Standard version: 32×20×10mm (excluding the 1mm protrusion of the C-port female socket)

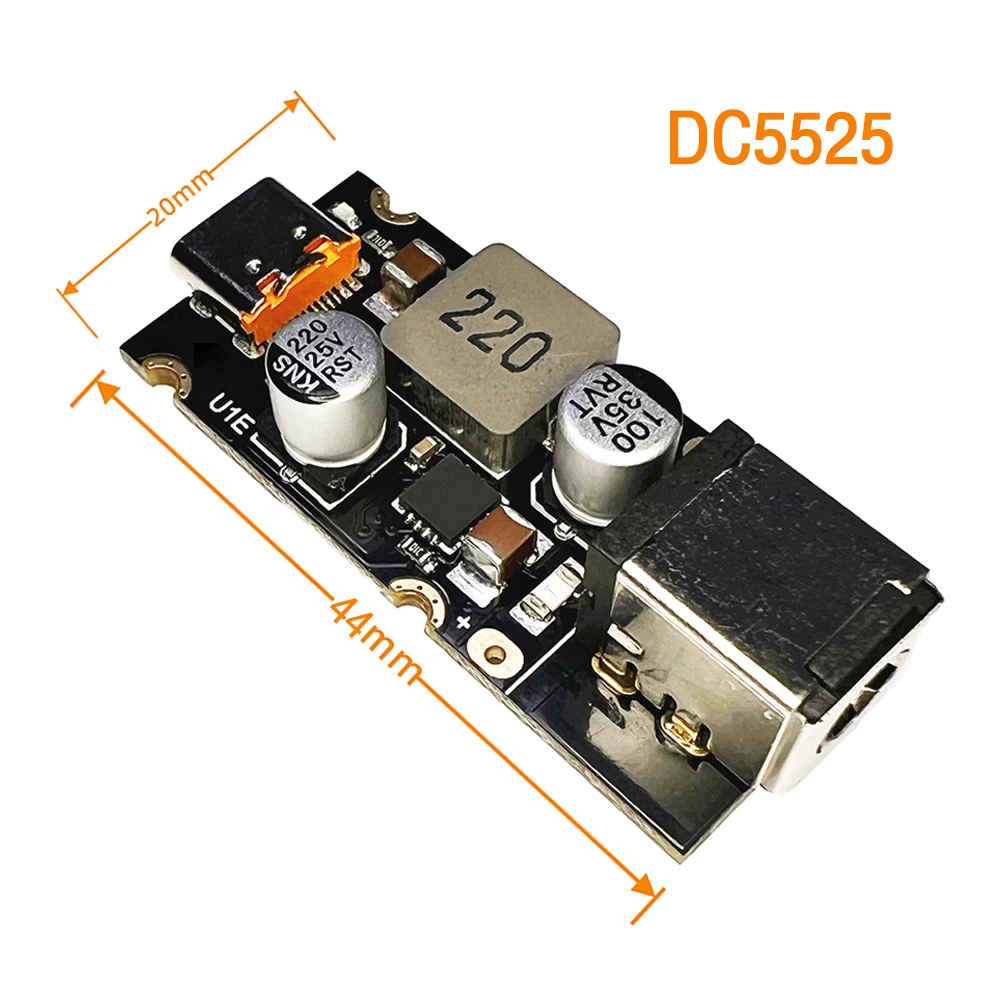

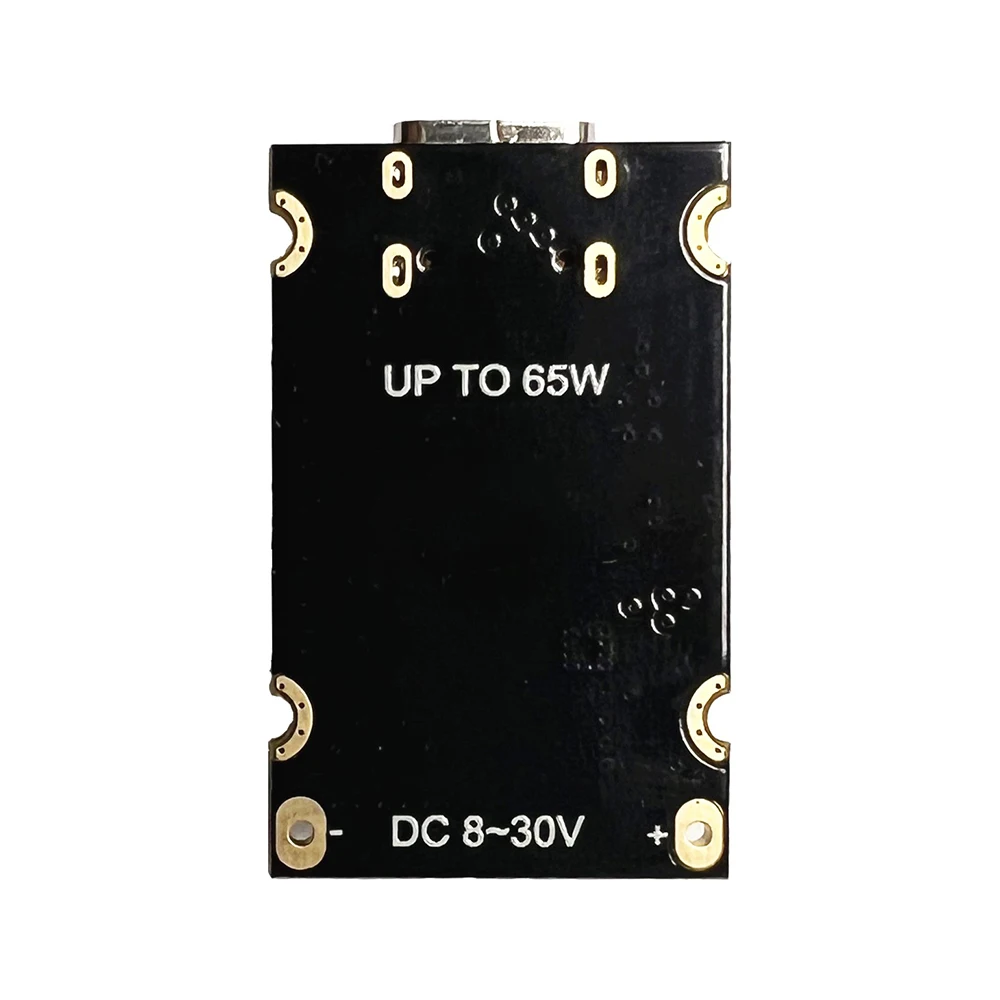

With DC socket: 44×20×10mm (excluding the 1mm protrusion of the C-port female socket)

Supported charging protocols:

BC1.2, Apple protocol

Qualcomm QC2.0 and QC3.0

Huawei fast charging protocol FCP and SCP

Samsung fast charging protocol AFC

MTK PE+1.1 and MTK PE+2.0

PD2.0/PD3.1 (PPS) output protocol

Product application: various power supply transformation fast charging output

Instructions for use:

When using a 20~24V power adapter as input, it is recommended to power on the power supply before connecting this module, otherwise the module may match the power error due to slow power-on, and cannot output 65W.

The DC version is divided into 5521 and 5525.

5521: outer diameter 5.5mm, inner diameter 2.1mm; 5525: outer diameter 5.5mm, inner diameter 2.5mm.

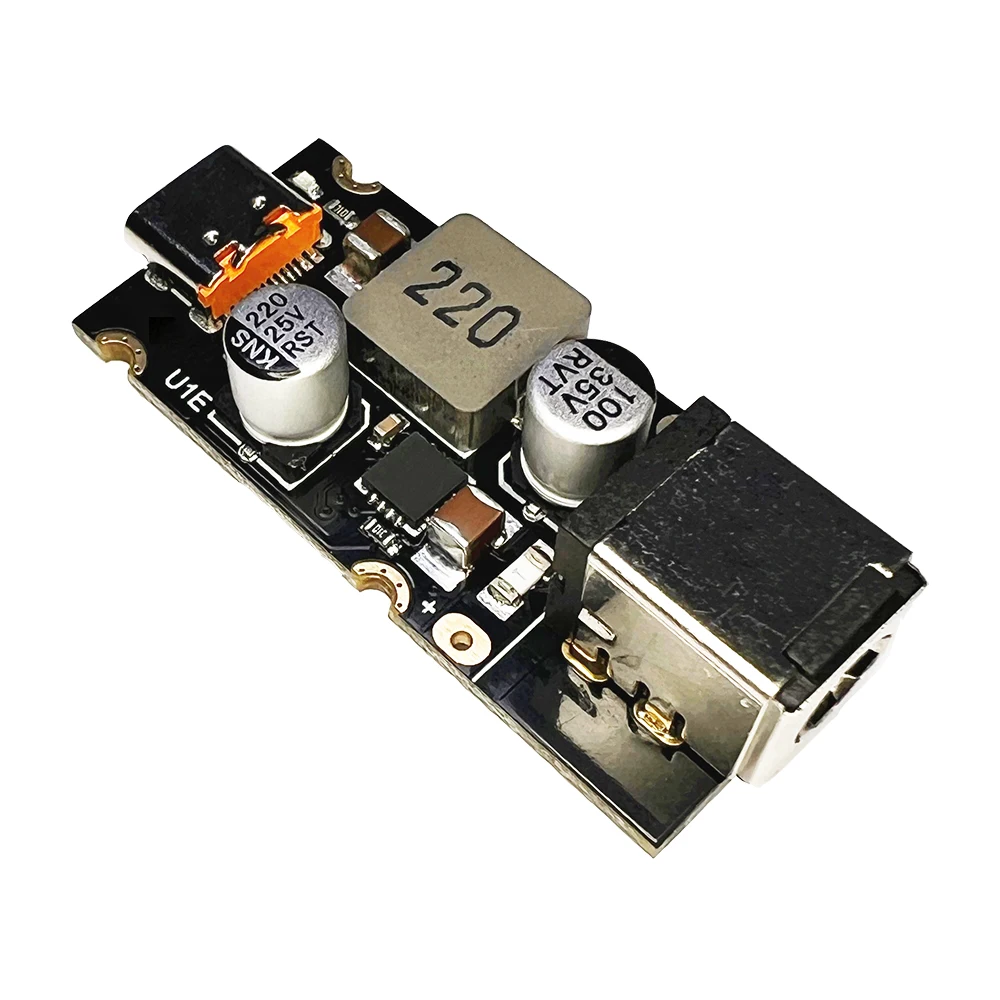

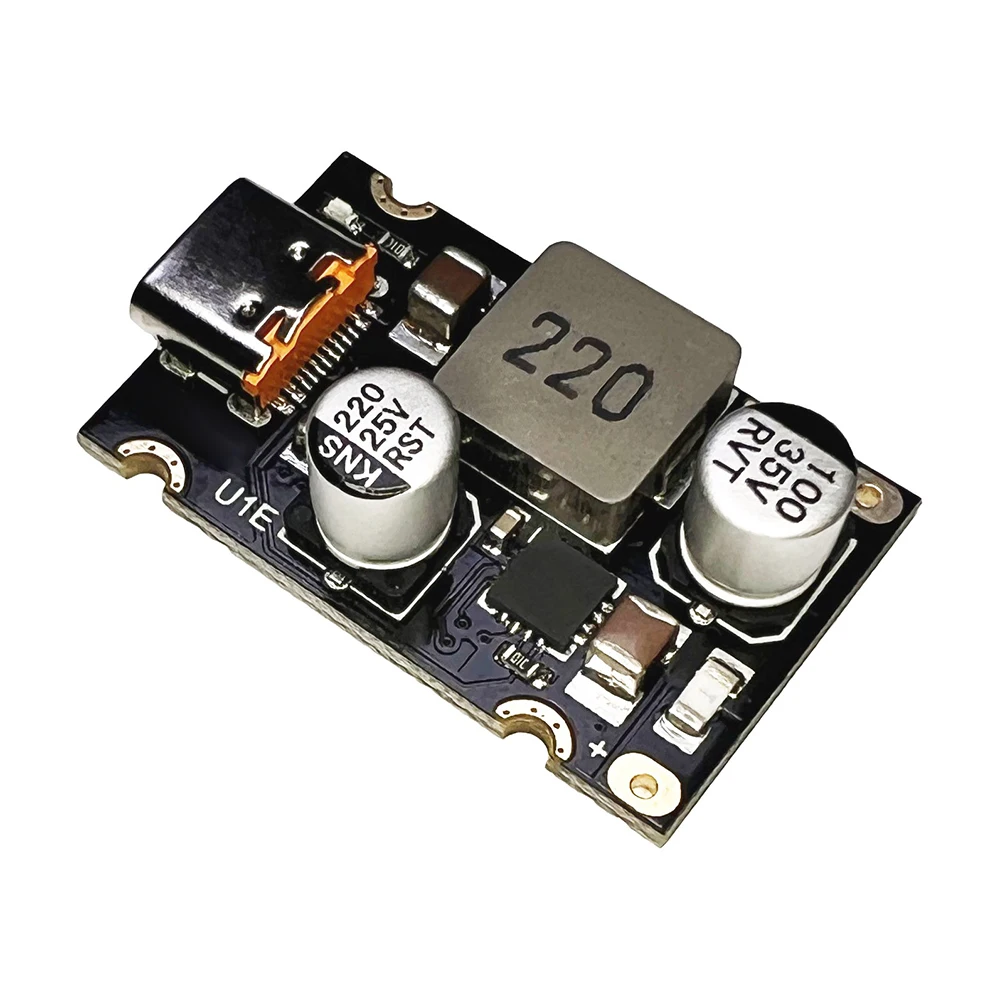

The length of the DC model is 12mm longer than the standard model, which is 44mm. Both the Type-c female socket and the DC socket protrude about 1mm from the edge of the board. The 5521 model is also compatible with the 5525 plug with tuning fork shrapnel

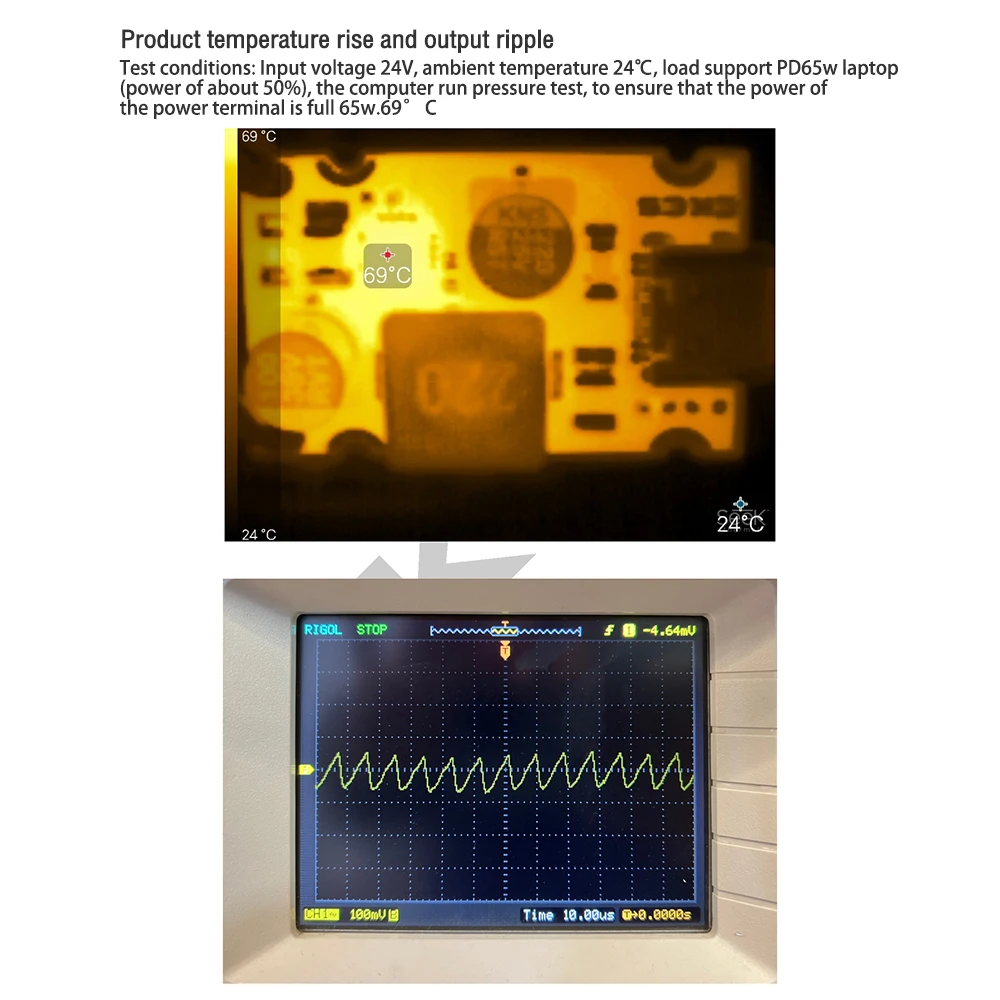

Product temperature rise and output ripple:

Test conditions: input voltage 24V, ambient temperature 24℃, load is a laptop computer that supports PD65W (power is about 50%), the computer runs a stress test to ensure that the power supply end is full of 65w.

Package Included:

1X module
