Introduction

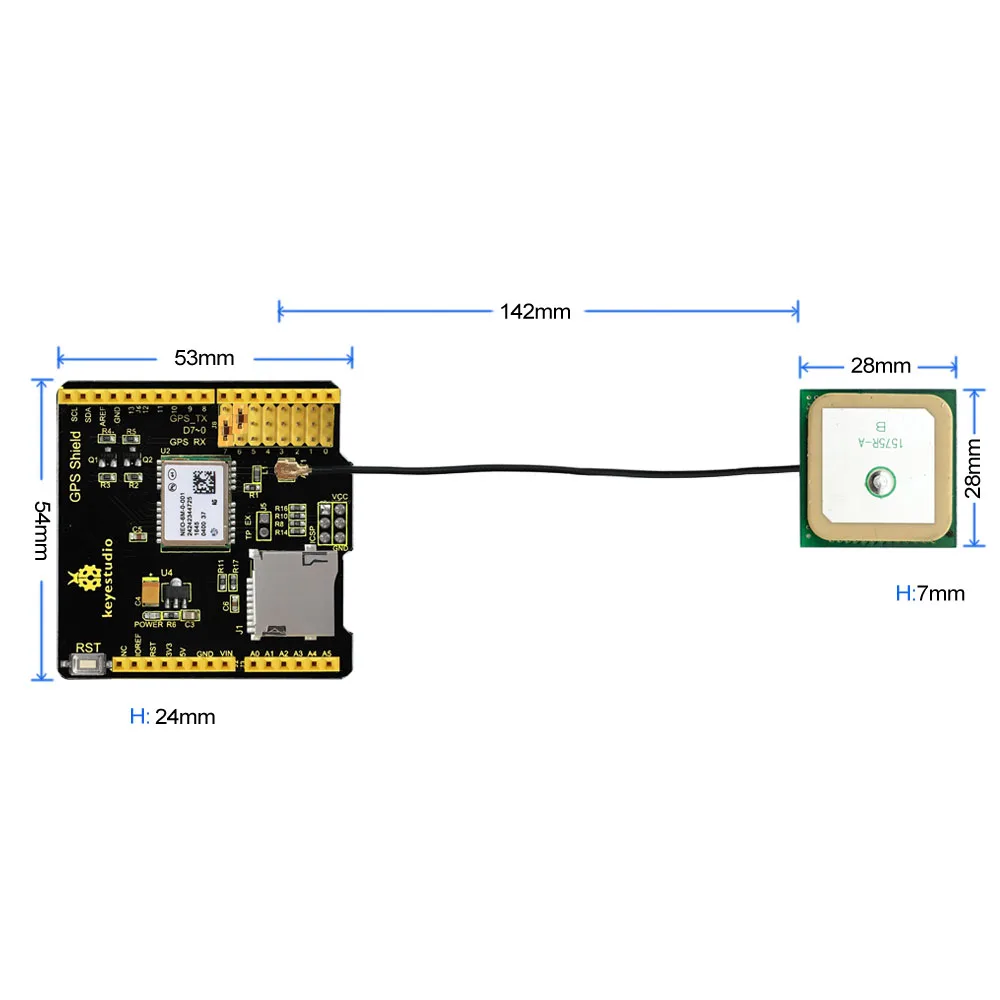

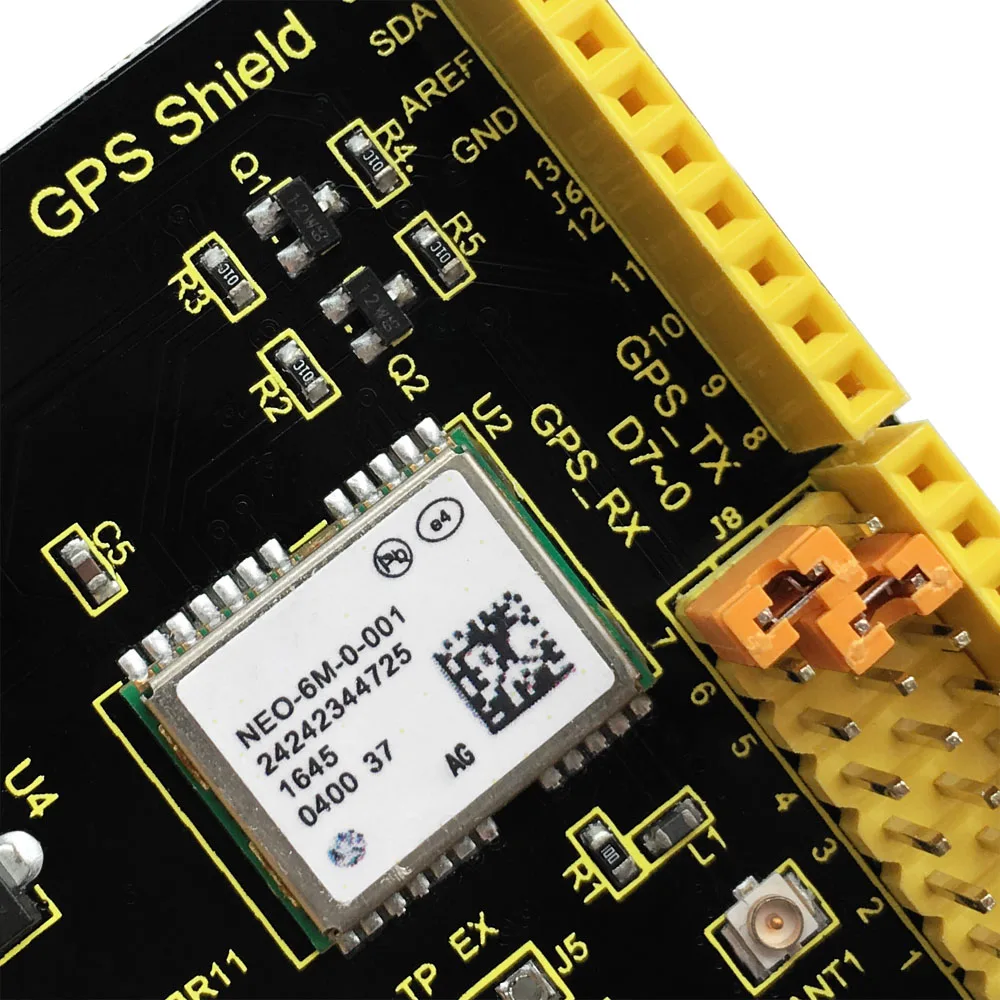

It is based on the NEO – 6 GPS module, and its pins are compatible with Arduino/MEGA board. Regular GPS pins (RX, TX) can be connected to Arduino D0-D7.
Several GPS receivers are easily installed on the expansion board and you can find your exact position within a few meters. At the same time, GPS also provides a very accurate time for you!
It is applied to automobile navigation, personal positioning, team management, navigation and so on.
Performance Parameters
1.Using a source GPS antenna;
2. connecting TxD and RxD to Ardino pins (D0-D8 optional) by jumping wire, and the default position for the jumper caps is as below:
D2 RX, D3 TX.

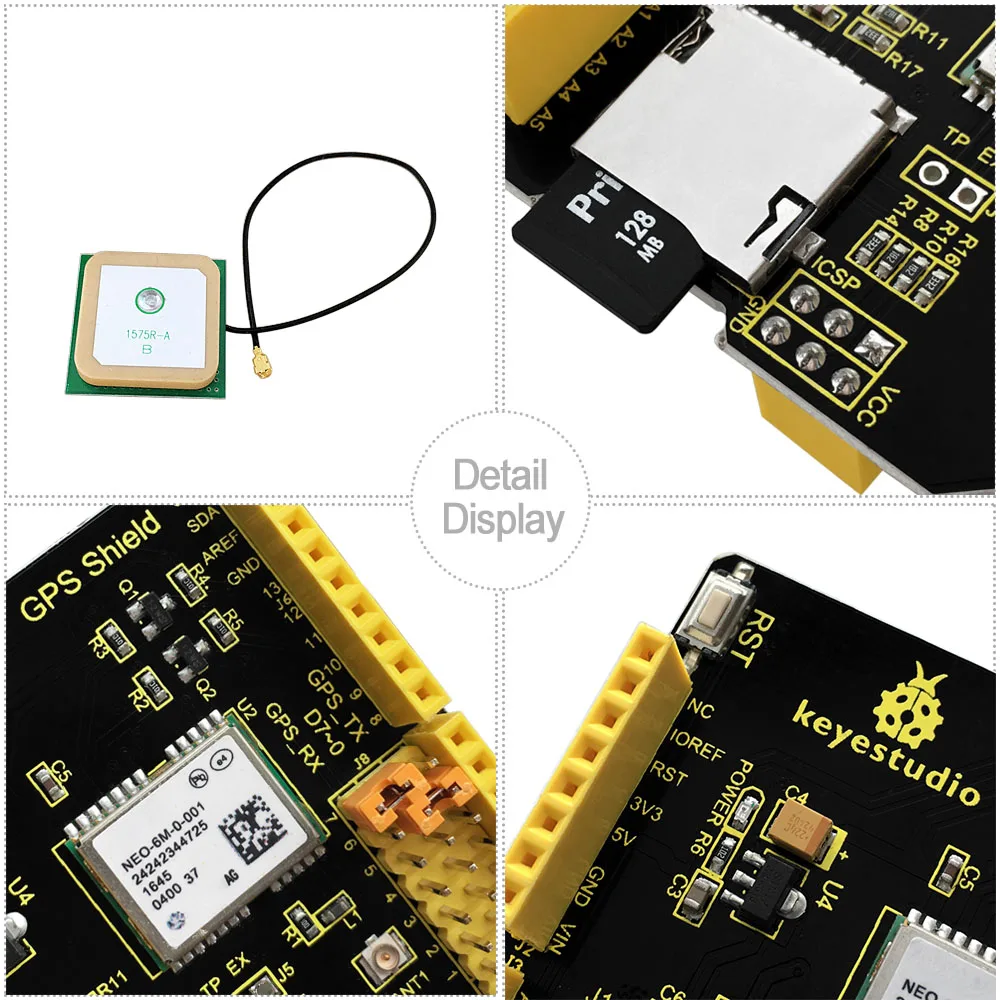

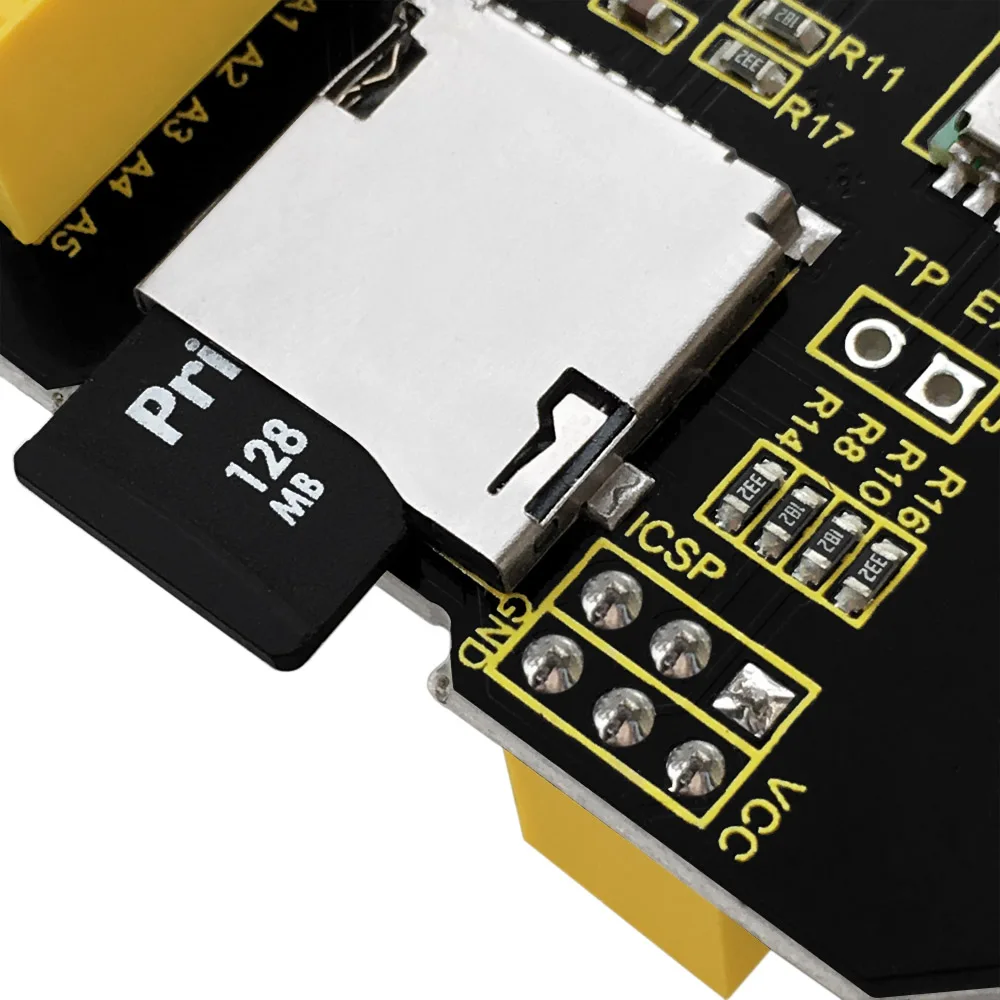

3. TF cassette, SPI interface, supporting Arduino library;
4. With reset button, supporting directly reset the Arduino baseplate.
