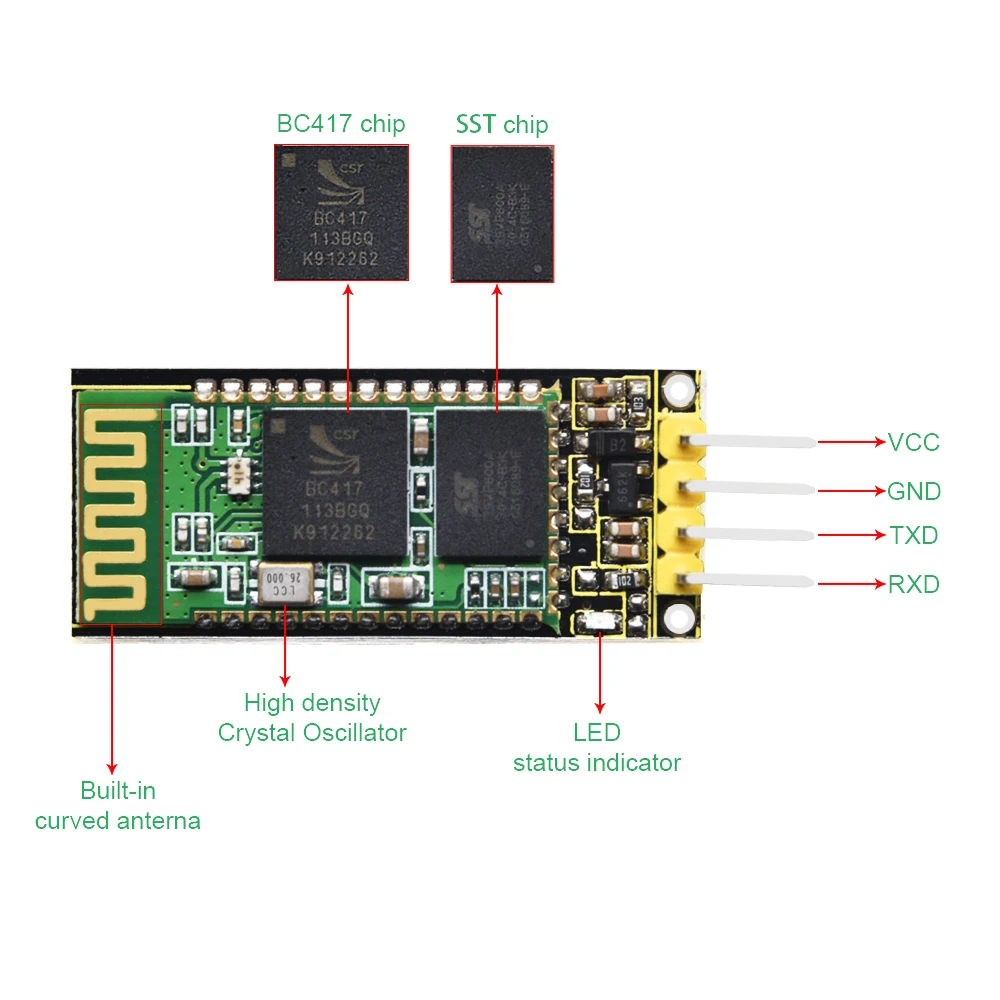

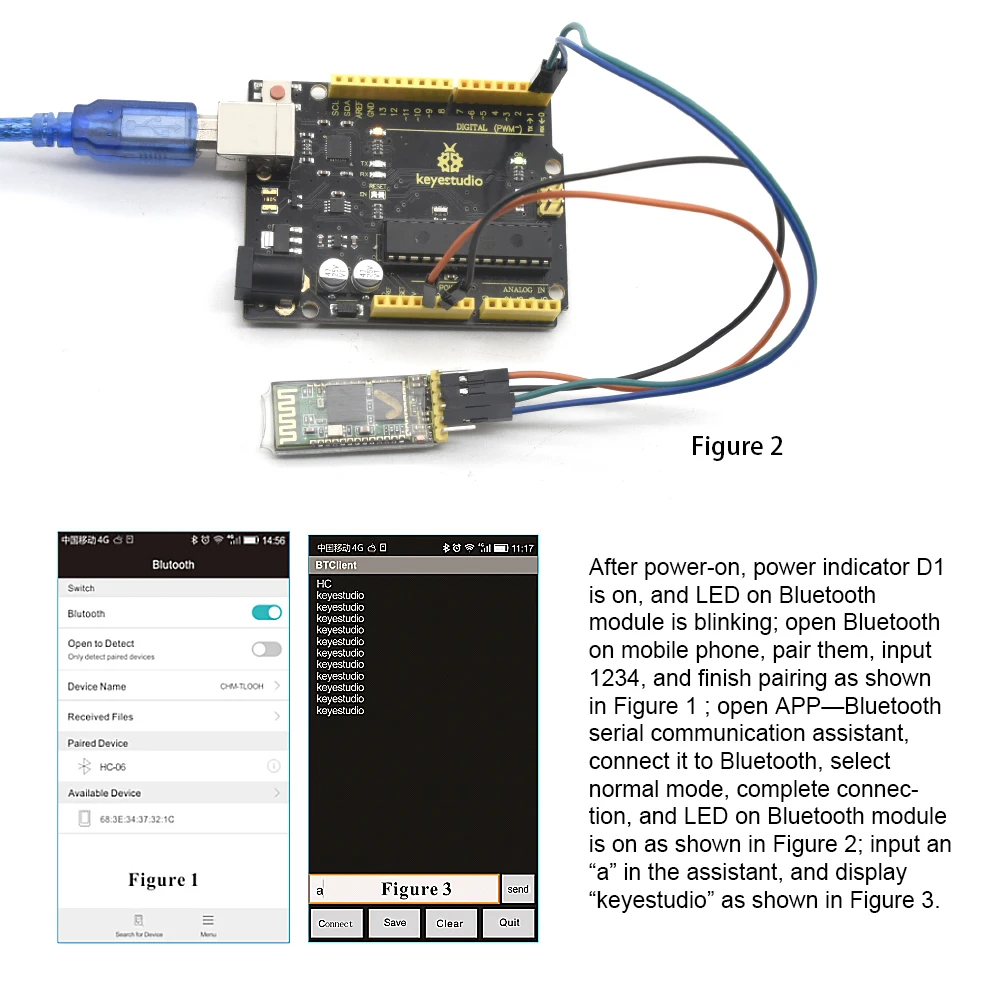

HC-06 :
-
Bluetooth protocol: Bluetooth 2.1+ EDR standard
-
USB protocol: USB v1.1/2.0
-
Operating frequency: 2.4GHz ISM frequency band
-
Modulation mode: Gauss frequency Shift Keying
-
Transmit power: ≤ 4dBm, second stage
-
Sensitivity: ≤-84dBm at 0.1% Bit Error Rate
-
Transmission speed: 2.1Mbps(Max)/160 kbps (Asynchronous)； 1Mbps/1Mbps (Synchronous)
-
Safety feature: Authentication and encryption
-
Supported configuration: Bluetooth serial port (major and minor)
-
Supply Voltage: 5 V DC 50mA
-
Operating temperature: -20 to 55℃

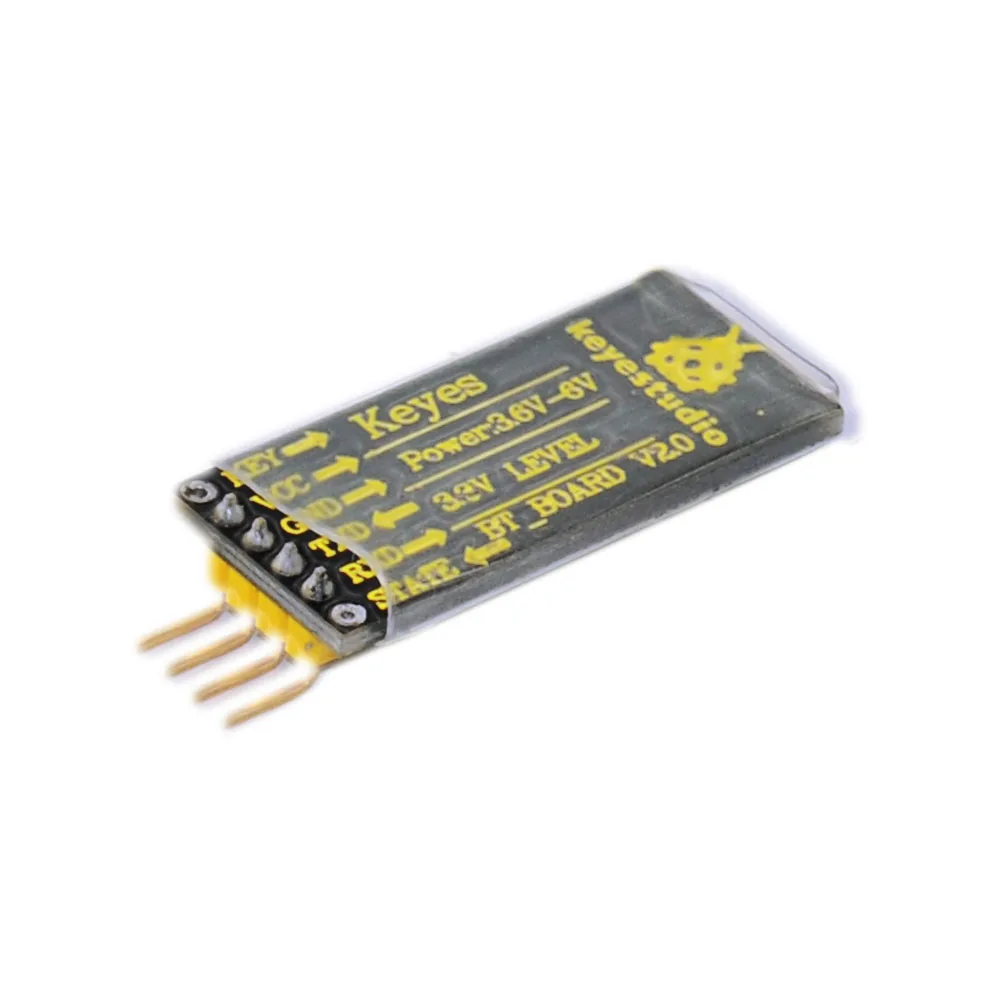

HC-05 :
-

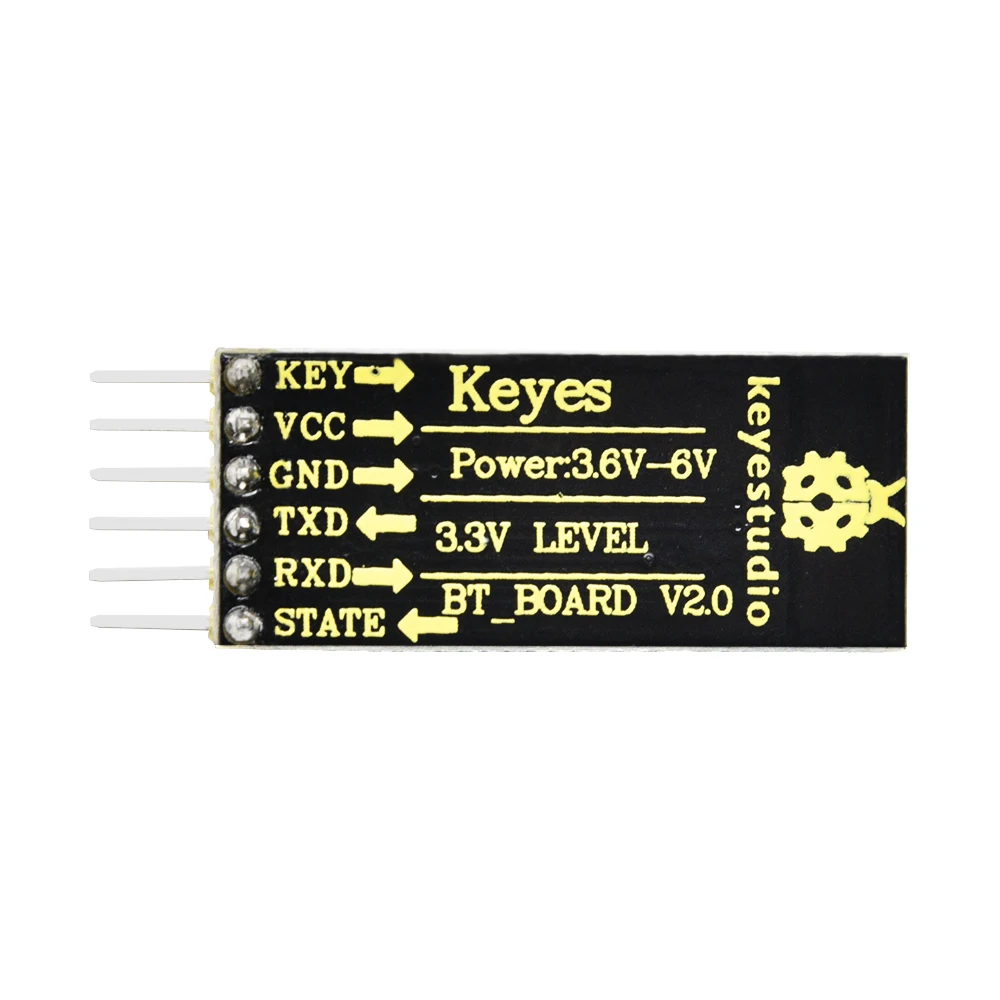

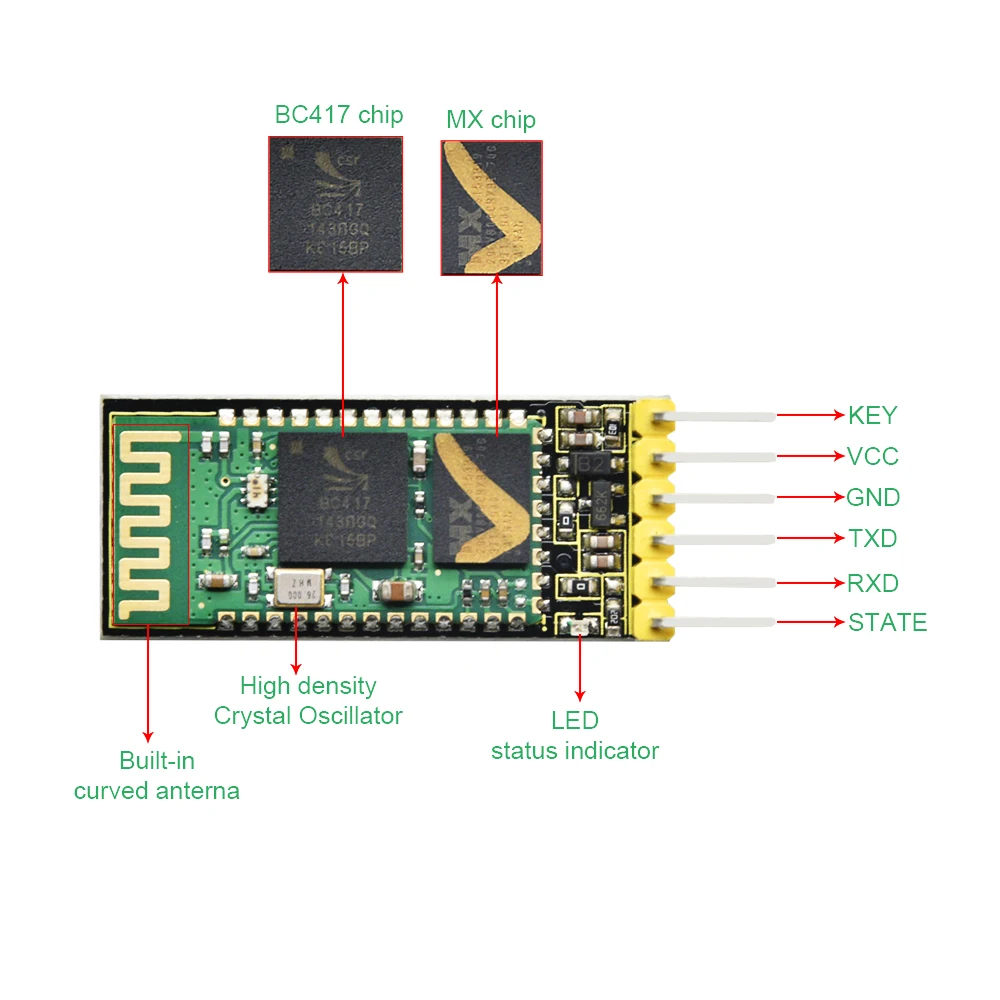

1. core module uses HC-05 slave module, pins include VCC, GND, TXD, RXD, KEY, Bluetooth state pin (STATE), output low if not connected, high if connected
-
2. LED indicates the connection status of Bluetooth, quick flash means no connectivity, slow flash means entering AT mode, double flash means Bluetooth is connected and the port is open.
-
3. BOttom plate has anti-reverse diode,with 3.3V LDO. input volt is 3.6~6V; current about 30mA with no pairing, current about 10mA after pairing. Input volt should be within 7V!
-
4. Pin level is 3.3V. It can be directly connected with various MCUs (51, AVR, PIC, ARM, MSP43 etc.) , also 5V MCUs, no need for MAX232 and cannot be connected with MAX232!
-
5. In open area, effective range is 10m (power level is CLASS 2). It’s possible to be more than 10m. But the connecting quality cannot be guaranteed.
-
6. After paring , it can be used as full duplex serial port. No need for knowing any Bluetooth protocol. It supports 8-bit data bits, 1 stop bit; can set odd-even check communication format, which is the most common communication format; do not support other formats.
-
7. Can access AT command to set parameters, and query information by pulling high pin 34.
-

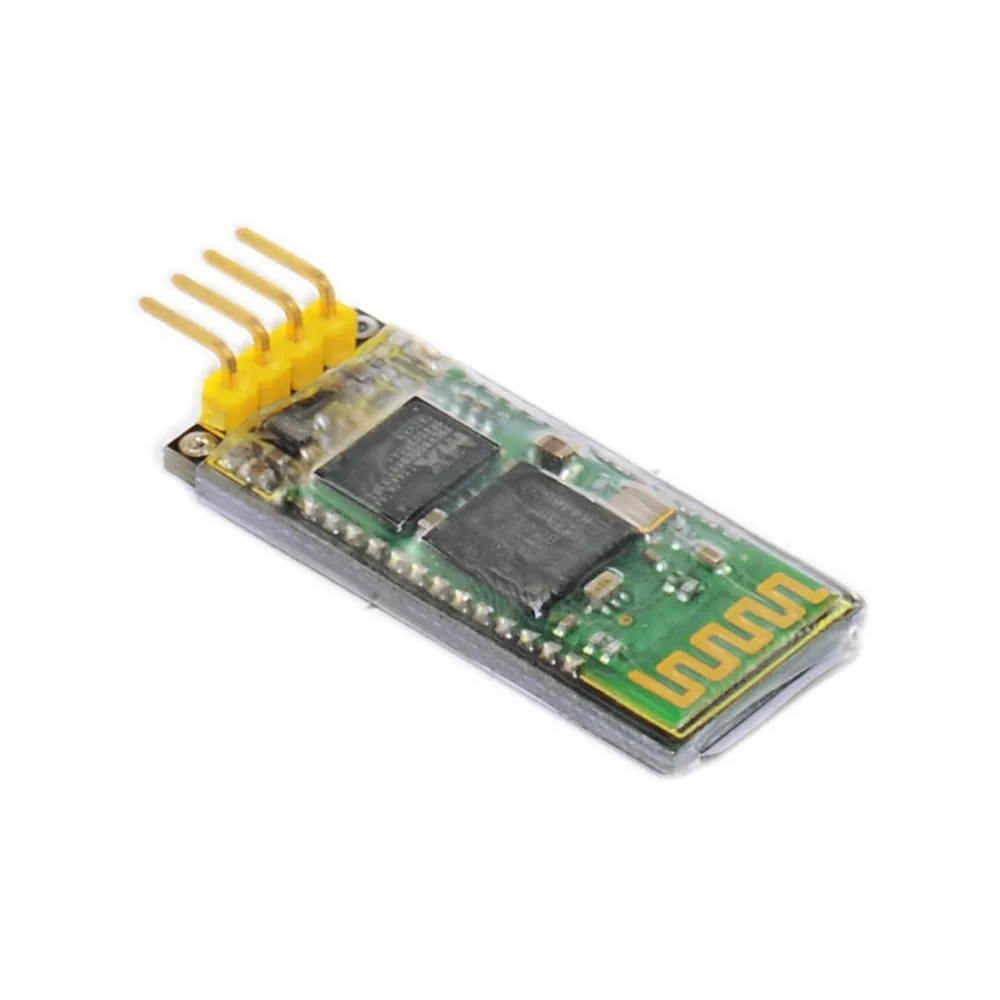

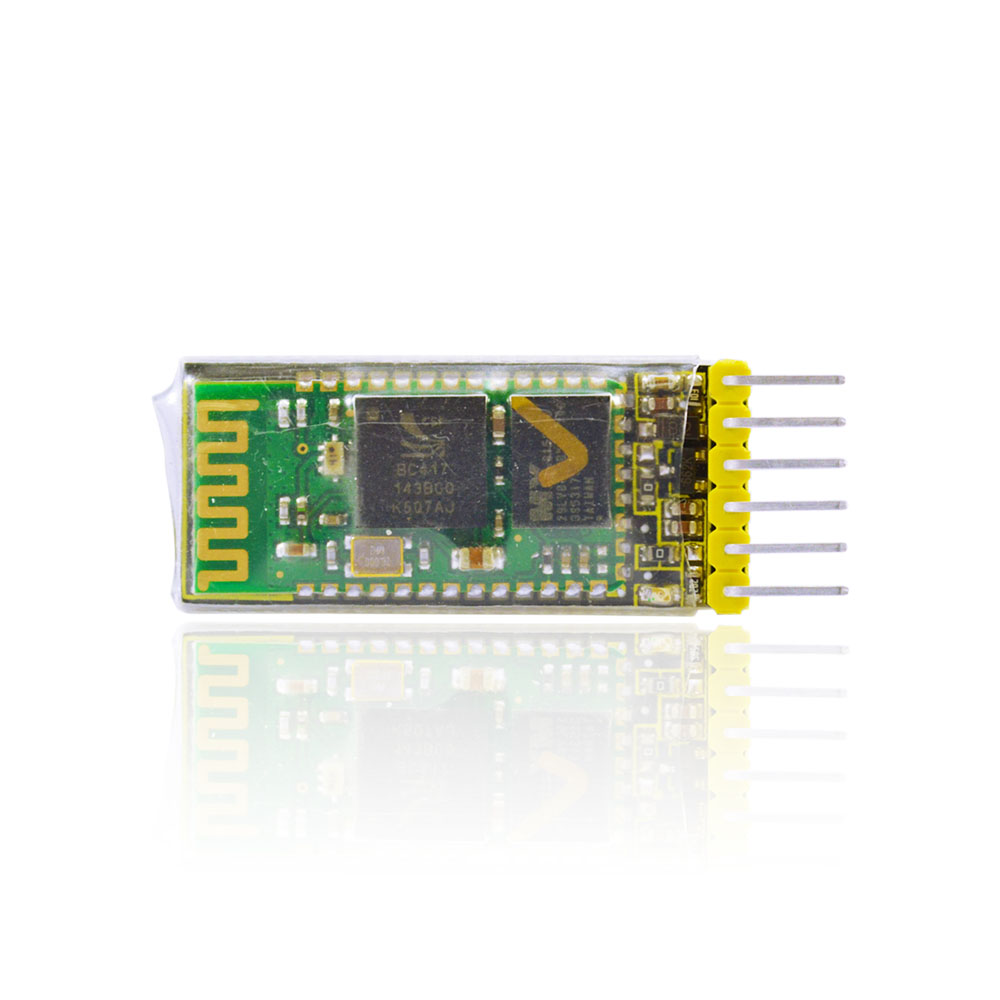

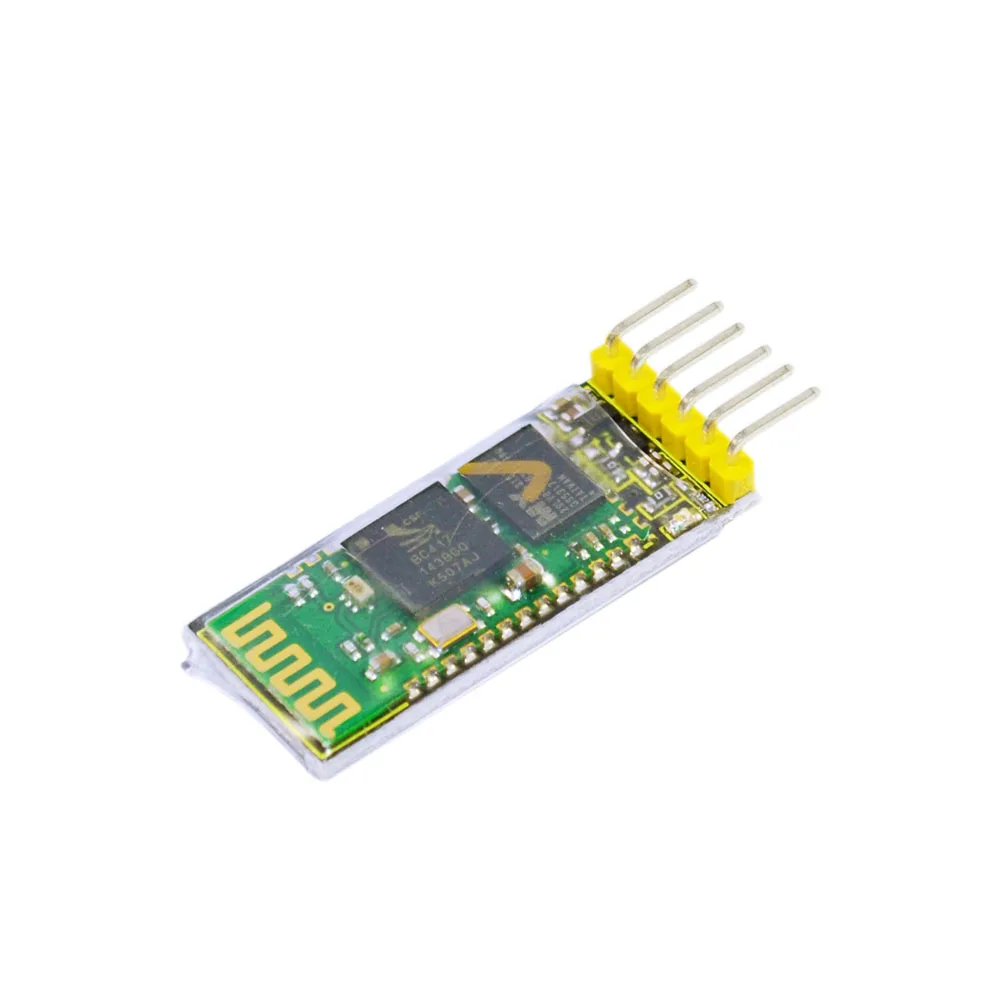

8. Small size (3.57cm*1.52cm), SMD production, ensure quality; with transparent heat shrinkable film for dustproof and anti-static function.
-
9. Use AT-command to switch from master or slave mode, and to connect to specific devices.
-
10. Support standard baud rate of 4800bps~1382400bps.
