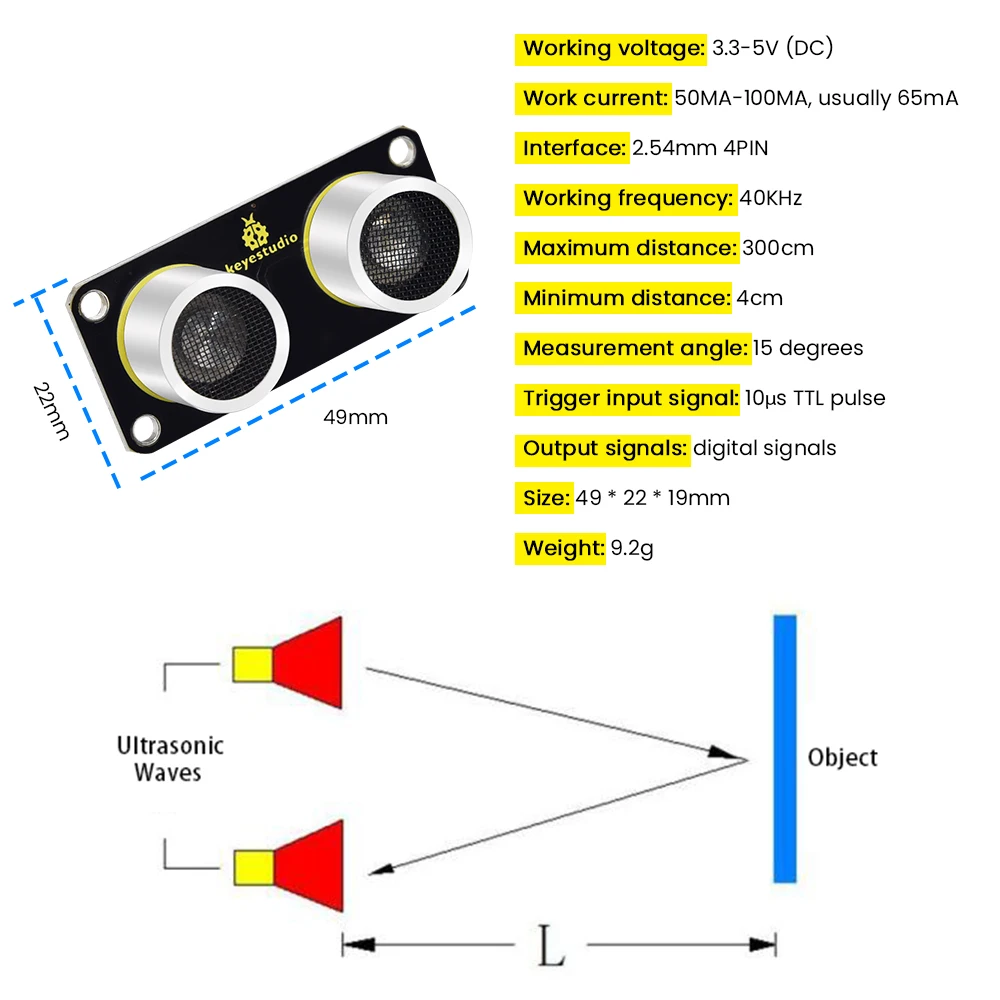

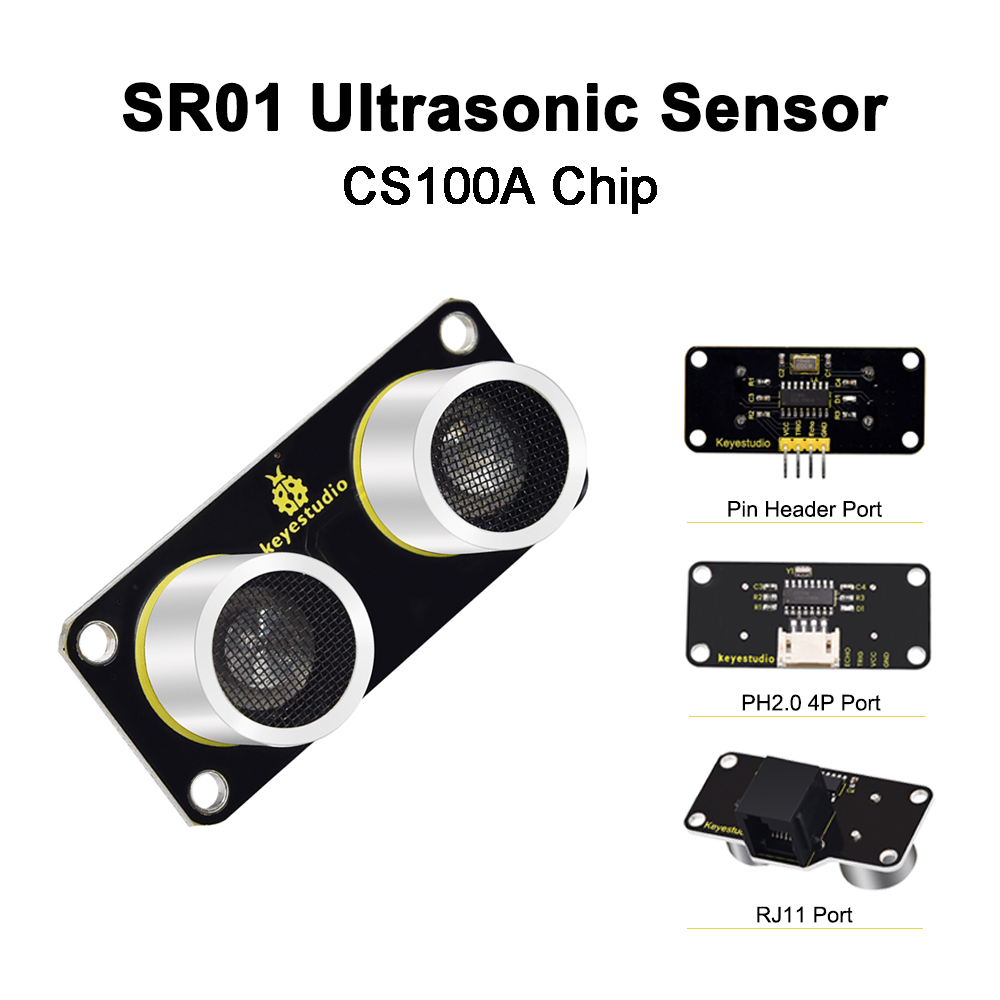

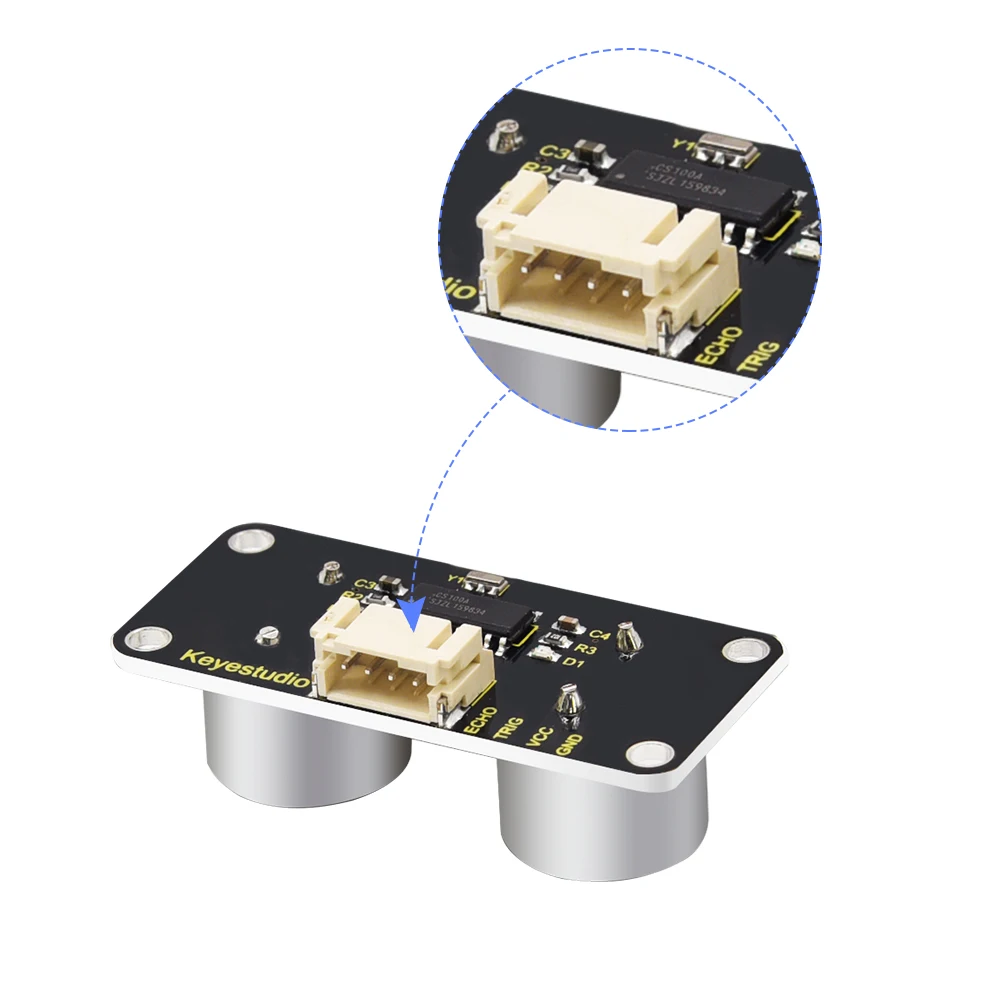

PH2.0 4P Port:

• Working voltage: 3.3-5V (DC)

• Work current: 50MA－100MA，usually 65mA

• Interface: 2.54mm 4PIN

• Working frequency: 40KHz

• Maximum distance: 300cm

• Minimum distance: 4cm

• Measurement angle: 15 degrees

• Trigger input signal: 10μs TTL pulse

• Output signals: digital signals

• Size: 49 * 22 * 19mm

• Weight: 9.2g

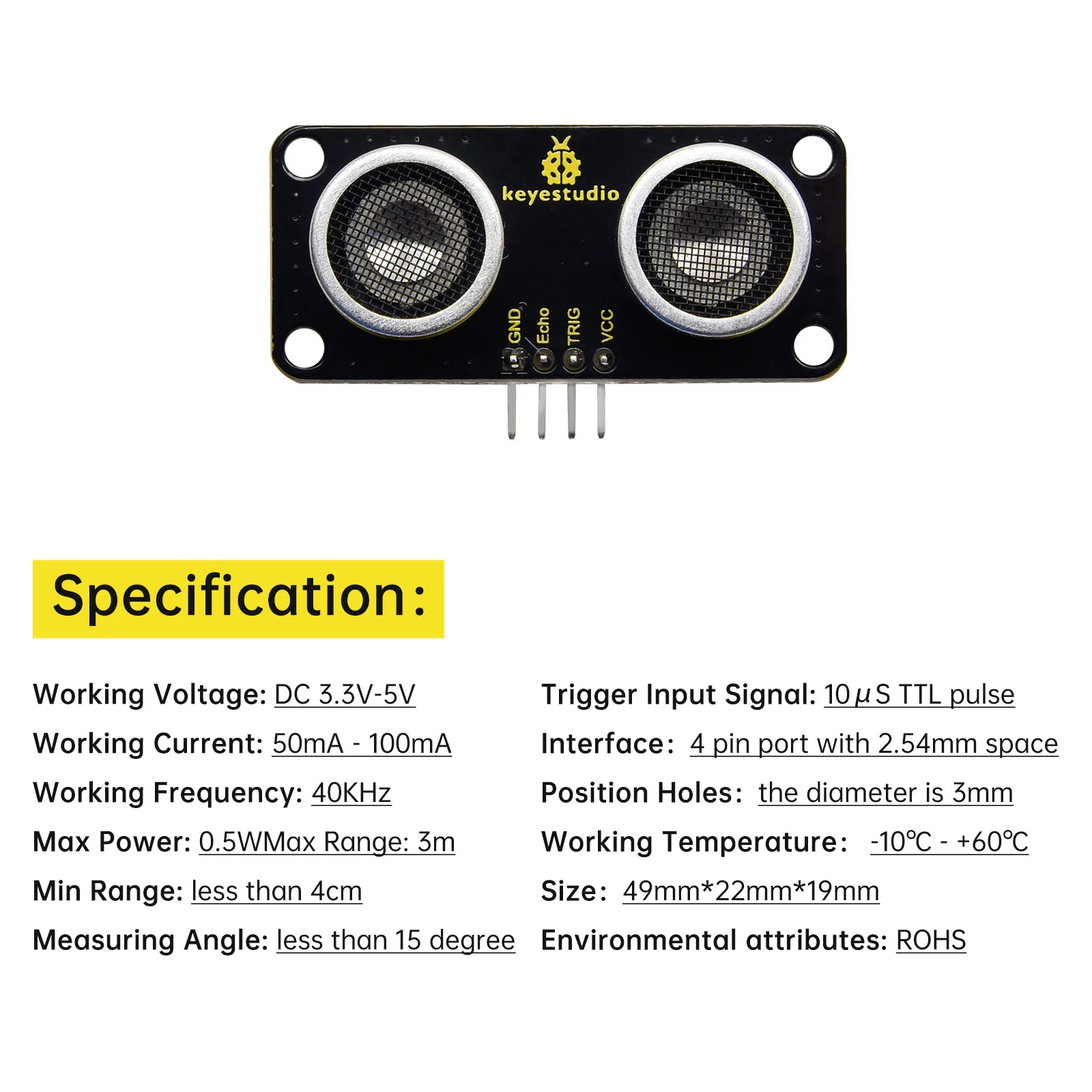

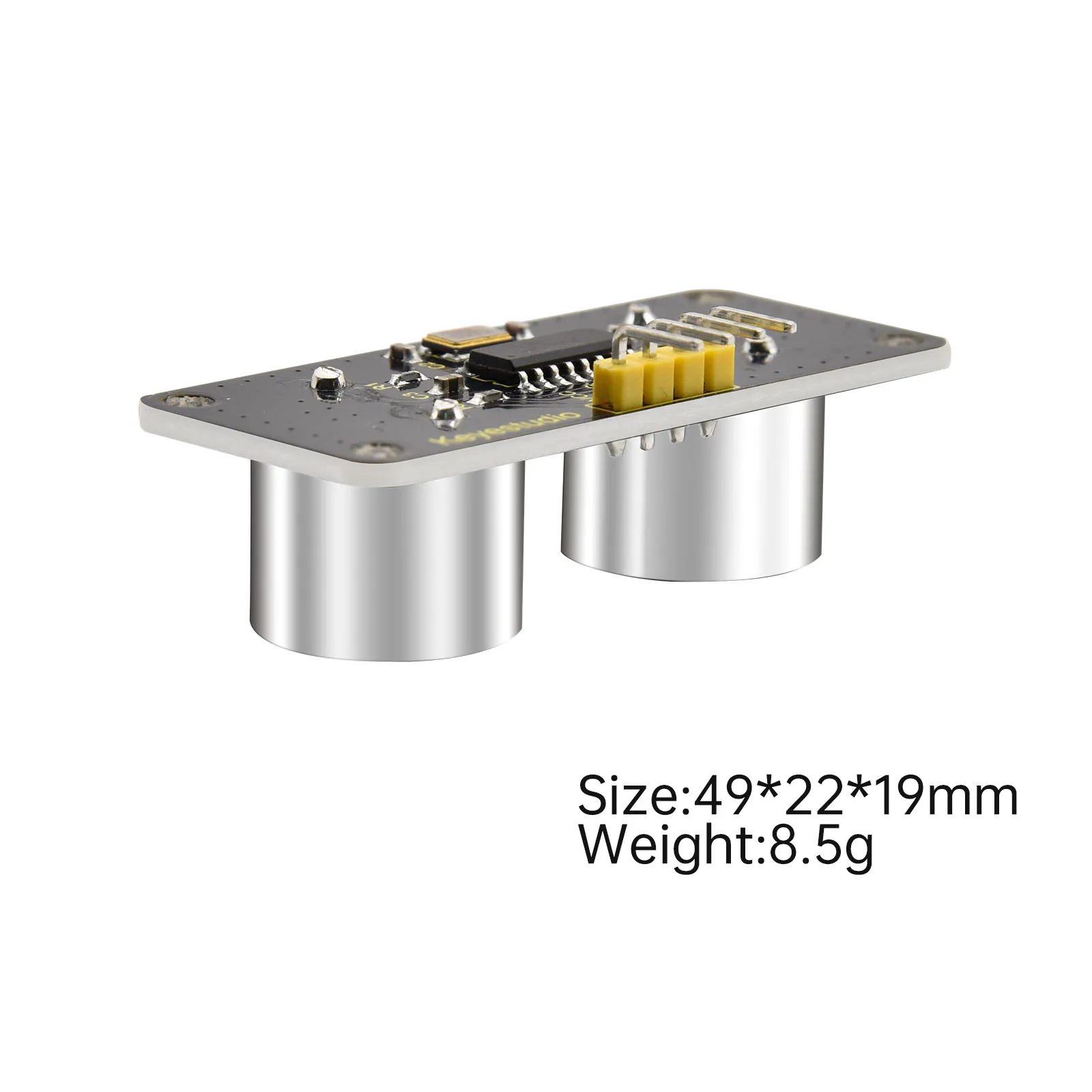

Pin Header Port:

• Working Voltage: DC 3.3V-5V

• Working Current: 50mA－100mA

• Working Frequency: 40KHz

• Max Power: 0.5W

• Max Range: 3m

• Min Range: less than 4cm

• Measuring Angle: less than 15 degree

• Trigger Input Signal: 10µS TTL pulse

• Interface：4 pin port with 2.54mm space

• Position Holes：the diameter is 3mm

• Working Temperature： -10℃ – +60℃

• Size：49mm*22mm*19mm

• Environmental attributes: ROHS

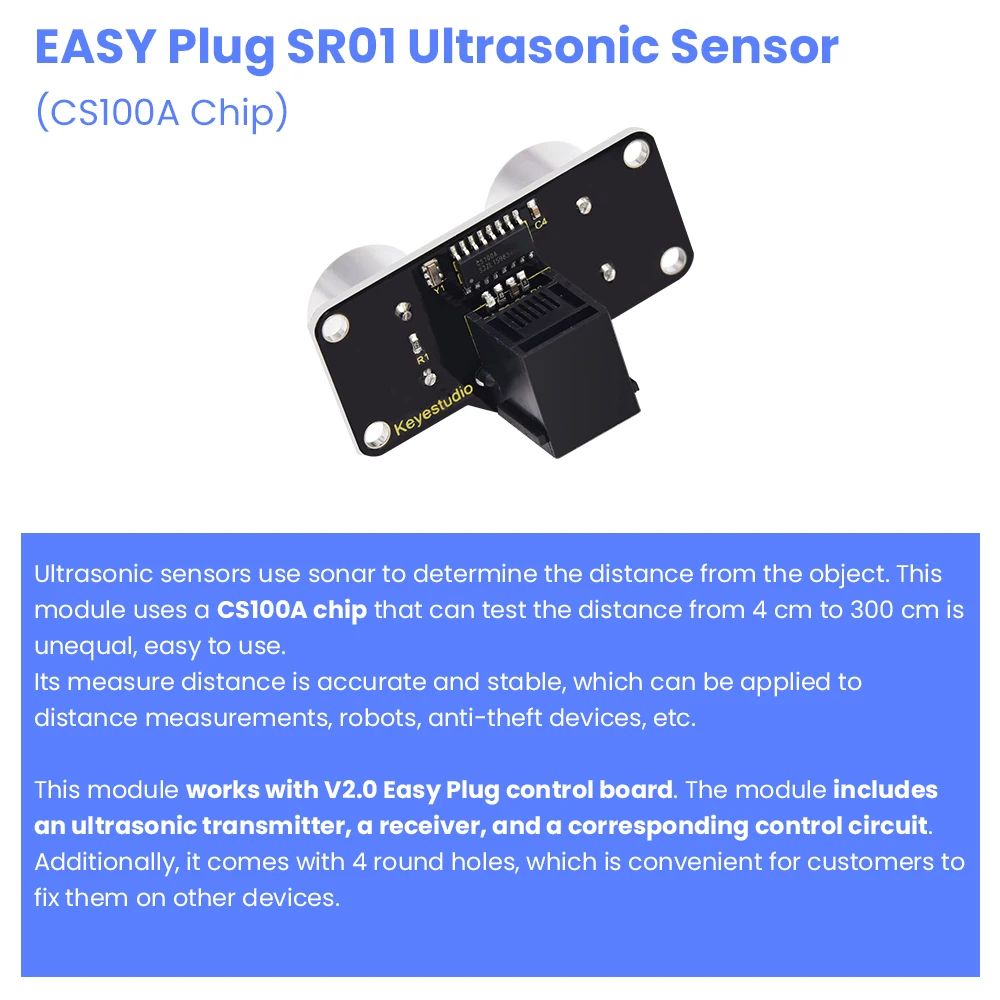

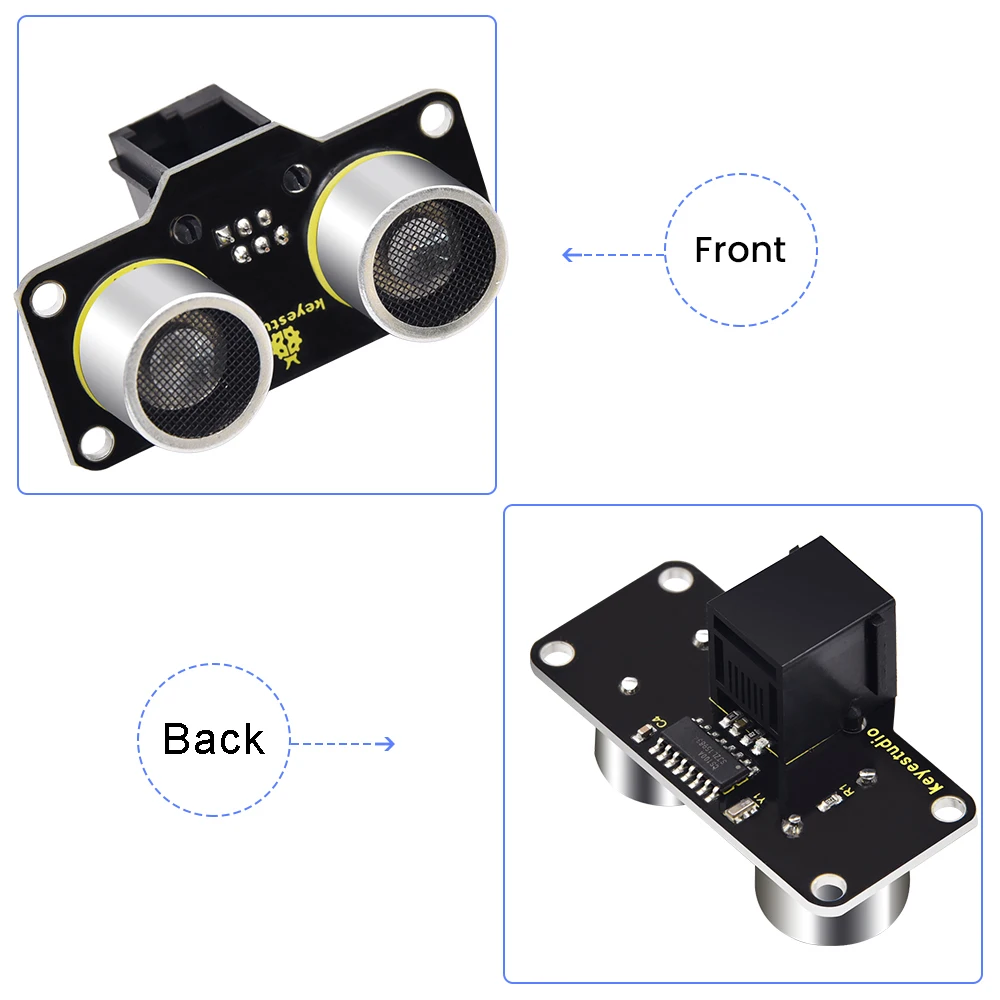

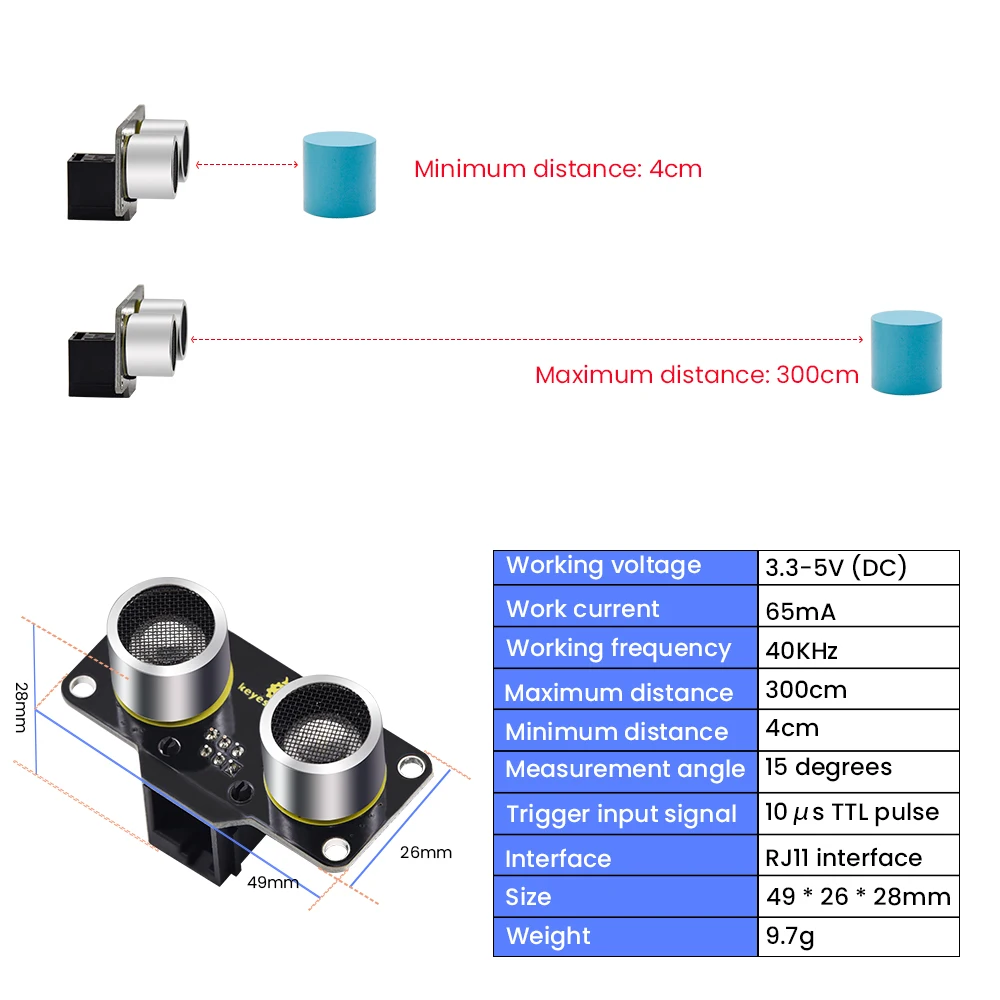

RJ11 Port:

• Working voltage: 3.3-5V (DC)

• Work current: 65mA

• Working frequency: 40KHz

• Maximum distance: 300cm

• Minimum distance: 4cm

• Measurement angle: 15 degrees

• Trigger input signal: 10μs TTL pulse

• Interface: RJ11 interface

• Size: 49 * 22 * 19mm

• Weight: 9.2g
