Please know

This board comes with 2 cables.

Product Brief

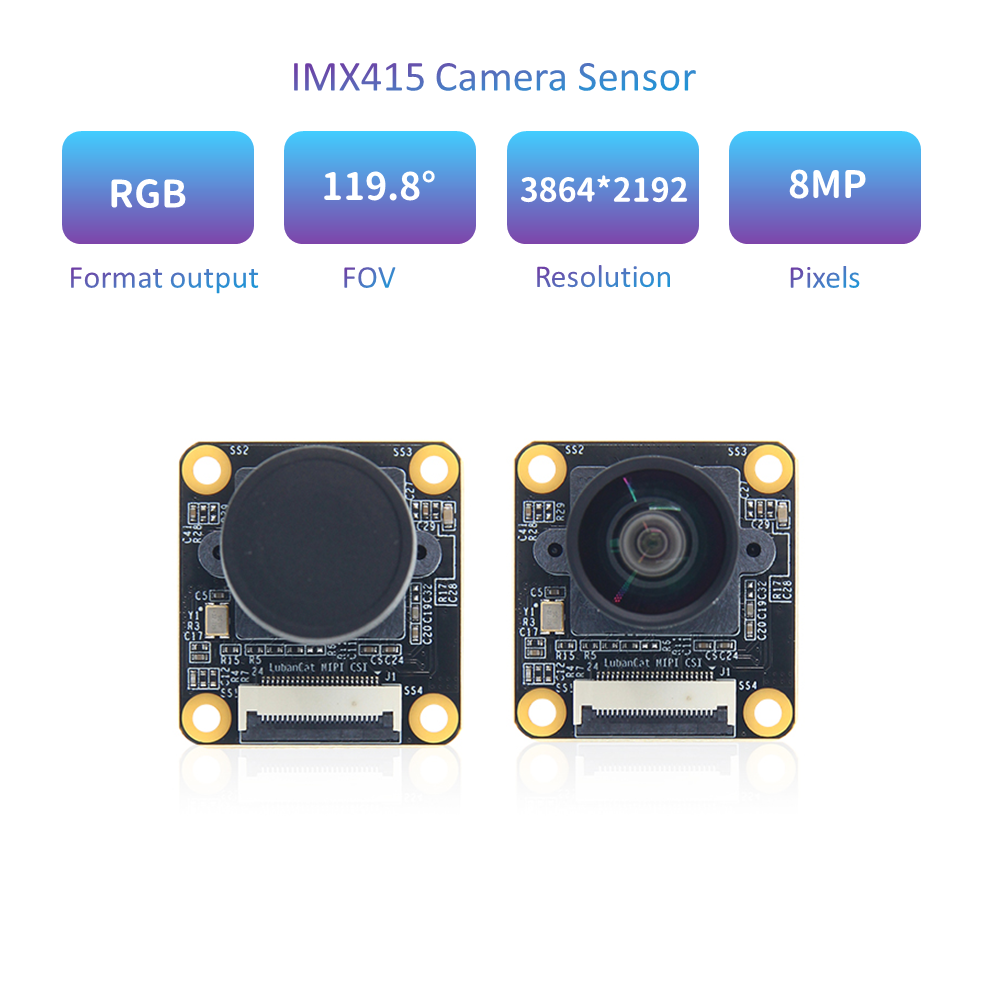

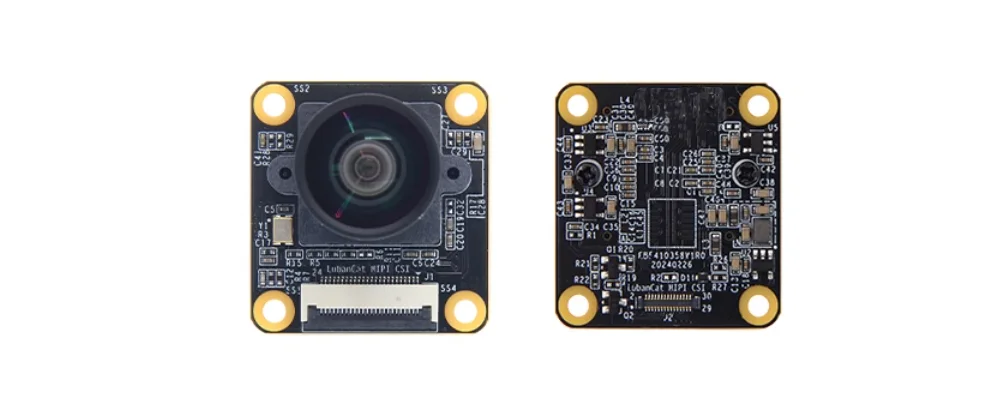

This IMX415 camera module uses the IMX415-AAOR-CCMOS active pixel solid-state image sensor.
The camera module is 31*29mm in size, small in size, and has a low operating voltage.
It uses R, G, and B primary color mosaic filters to achieve high sensitivity, low dark current, and no coating. The 119.8° lens viewing angle is matched with a 1/2.8-inch Sony 4K sensor, and the wide field of view can see wider and more detailed, and can be applied to surveillance cameras, FA cameras, industrial cameras and other fields

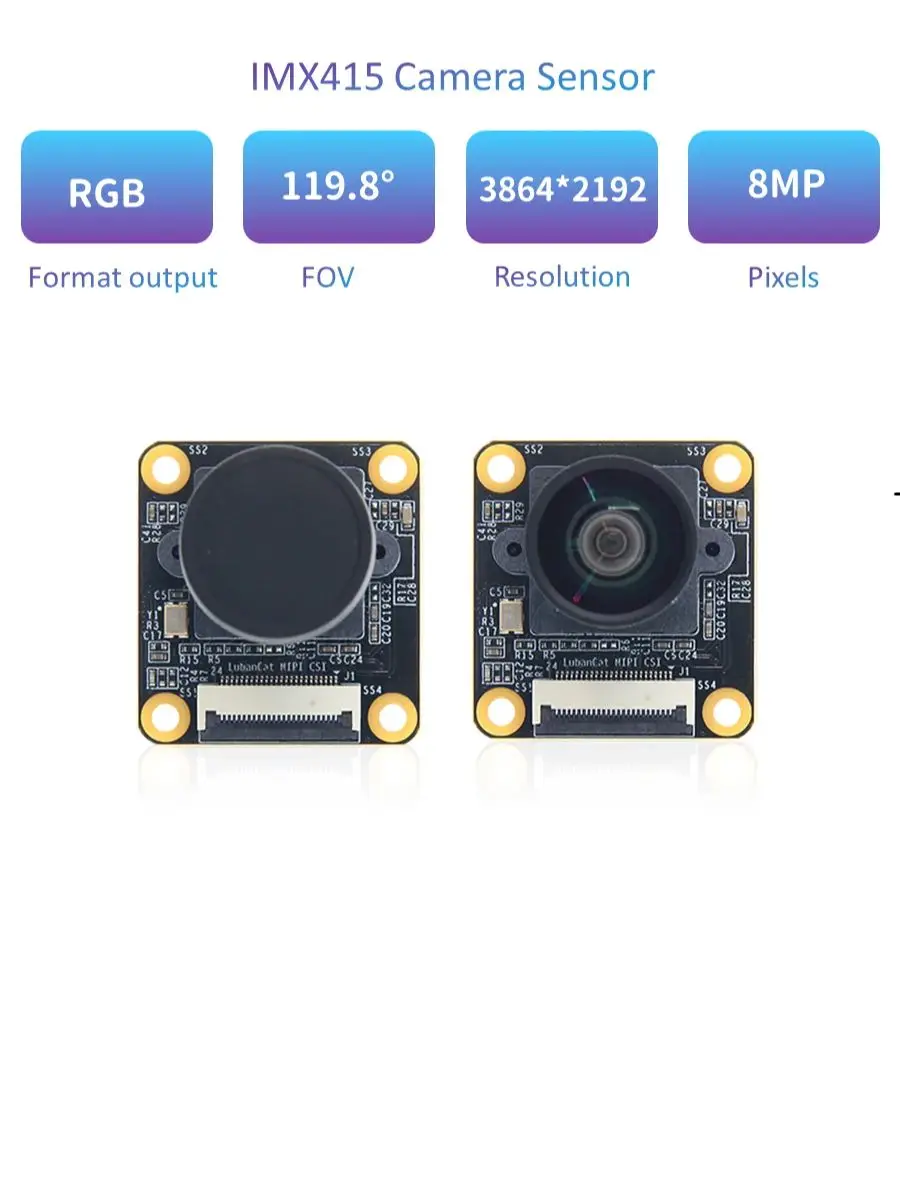

IMX415 8MP Camera Module Parameters

 IMX415800W pixel camera module
 Sensor :IMX415800W pixel, color

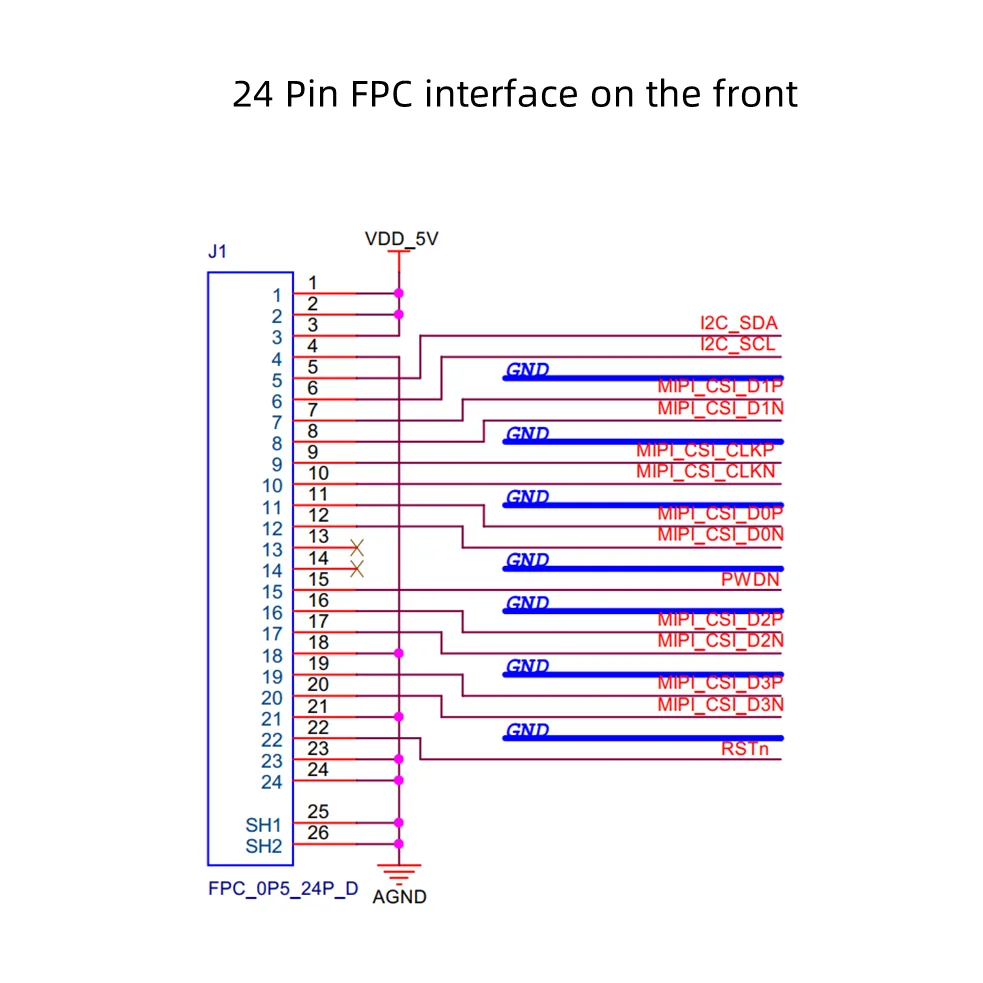

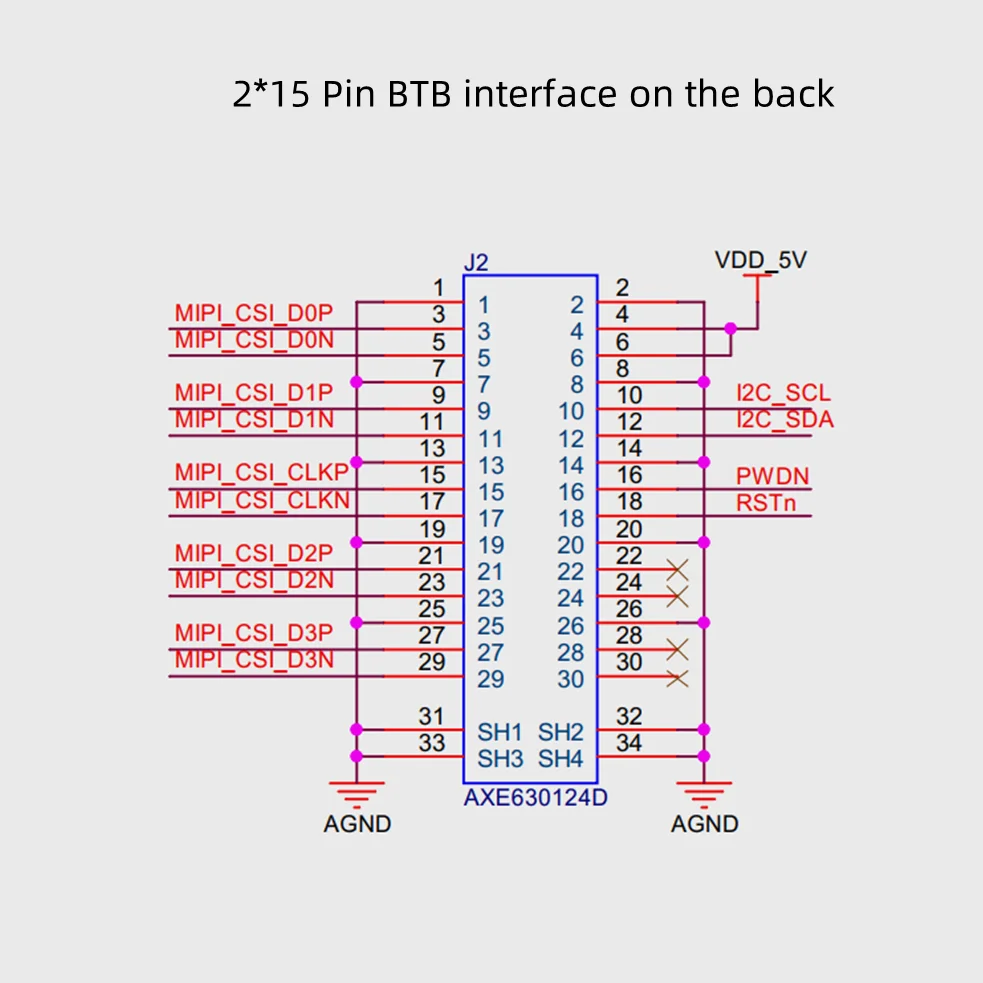

 Circuit design :5V power supply, on-board 37.125M active crystal interface :MIPICSI*4Lanes
 Footage:
 Lens: 1/2.8
 Spacing: 2.02mm;
 Aperture: 2.5;
 Field of view :119.8°
 Distortion: <7.1%
 Output format :10-bit/12-bit RGBRAW
 Max frame rate :3864*2192:30fps
 Auto focus: Not supported
 Operating temperature -30-85° C
 Module size: 31mm high * 29mm wide

Product Details

Please know:

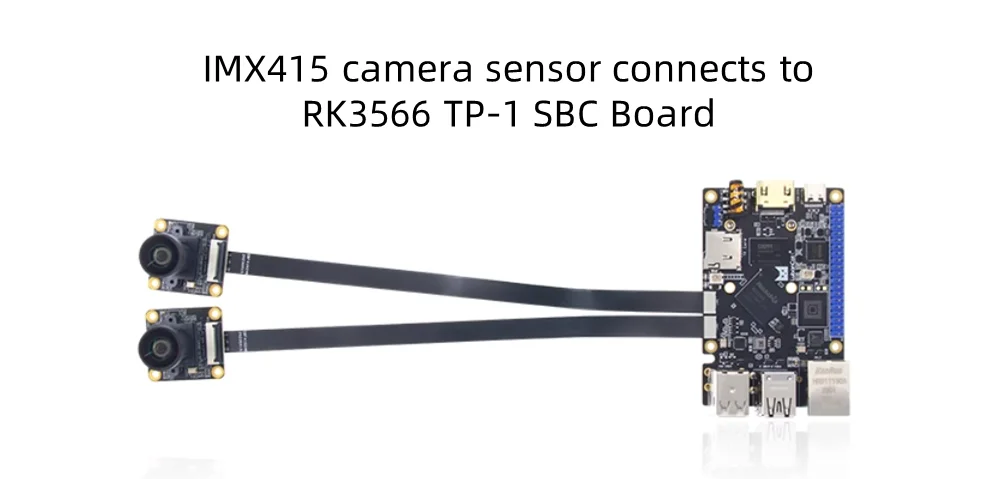

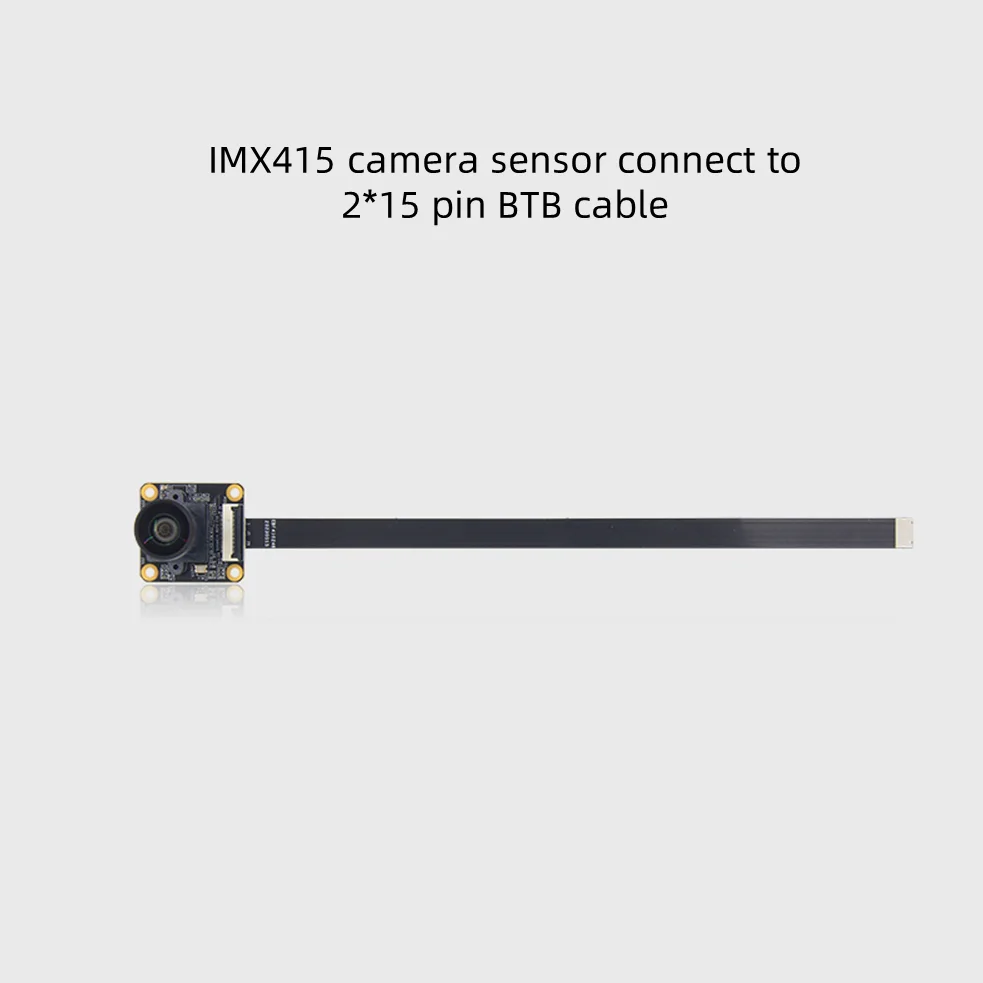

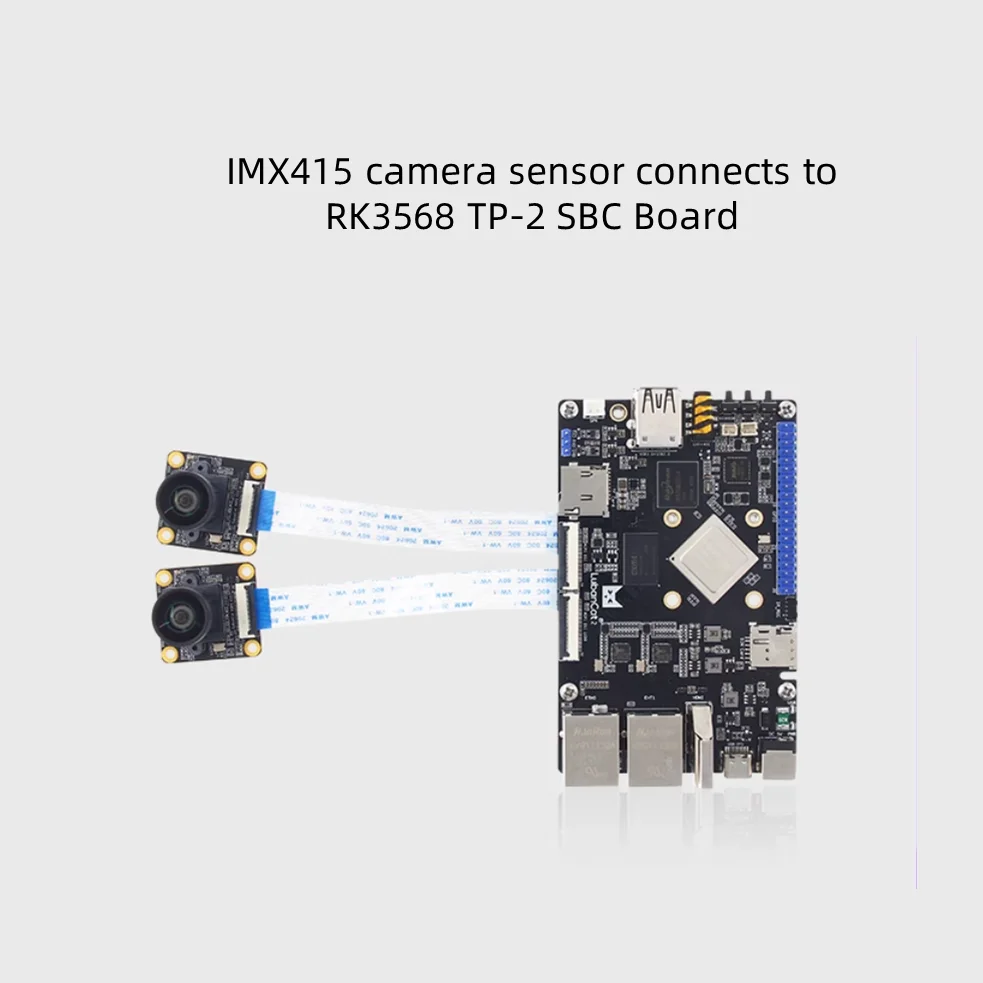

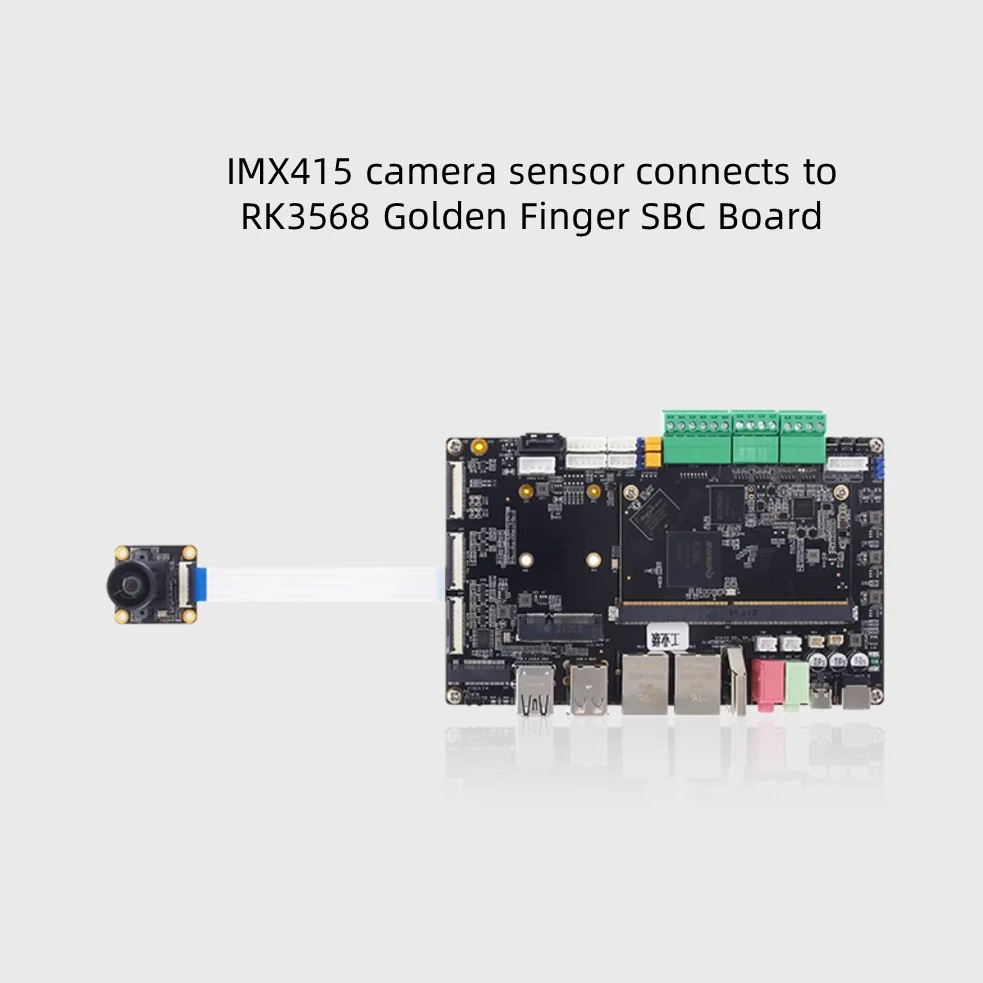

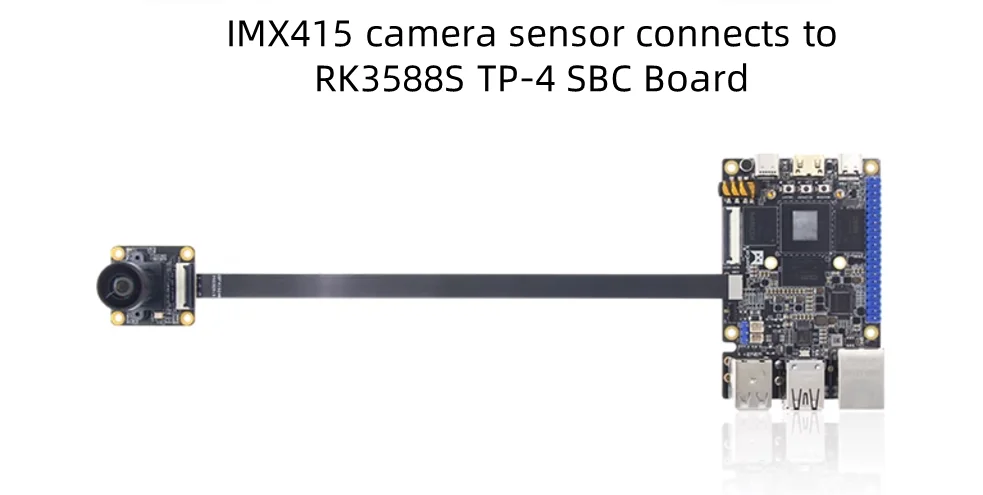

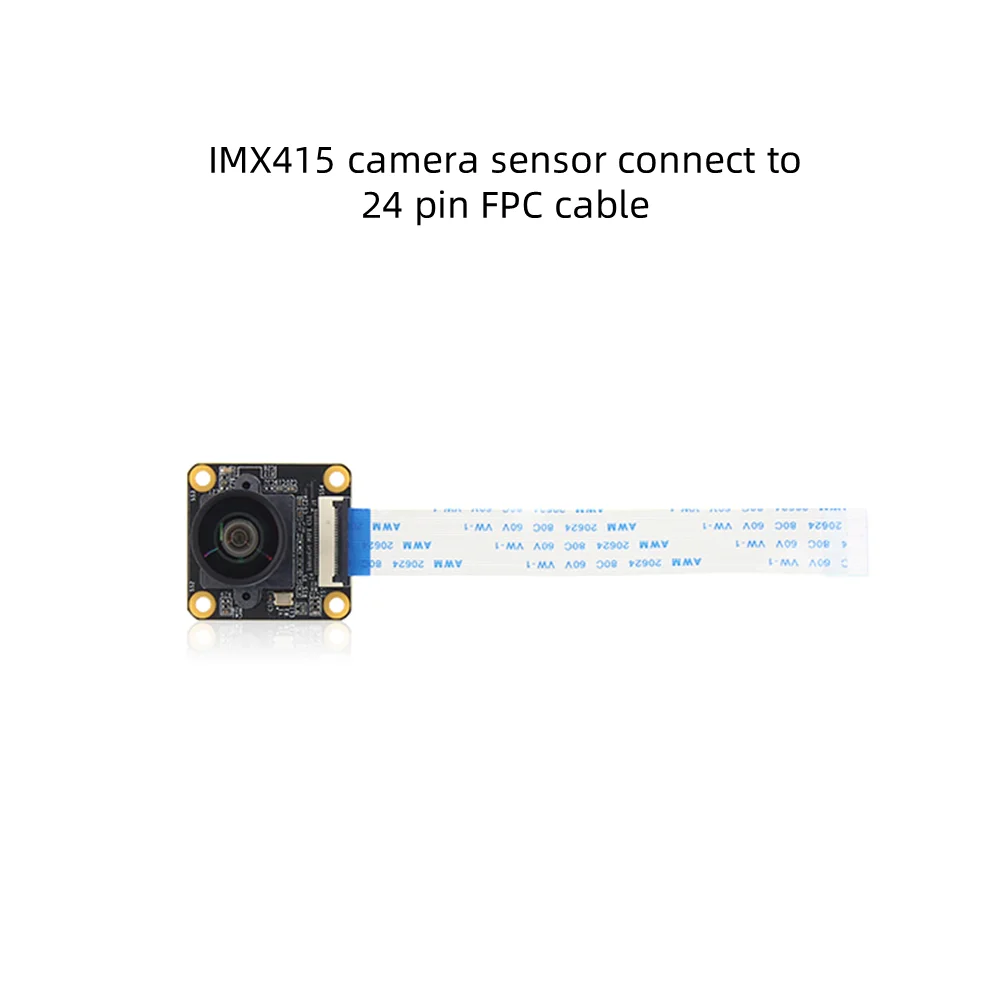

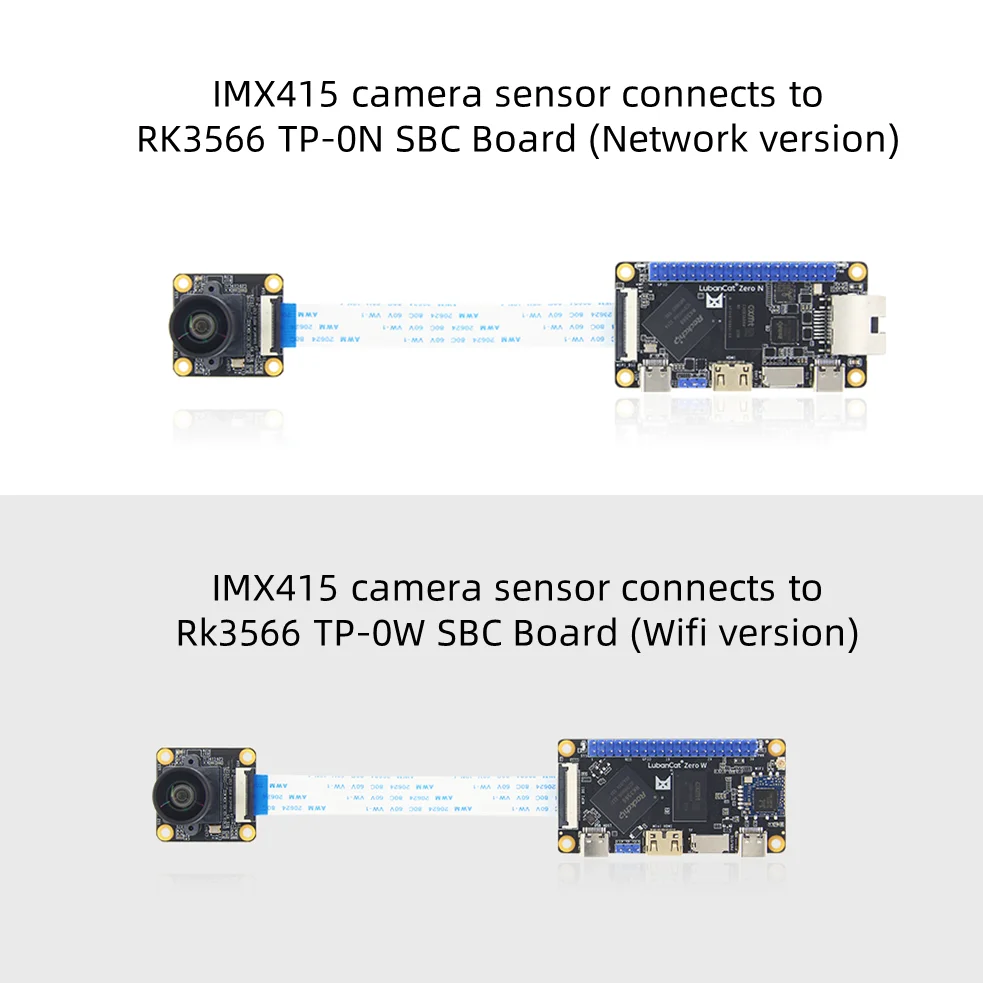

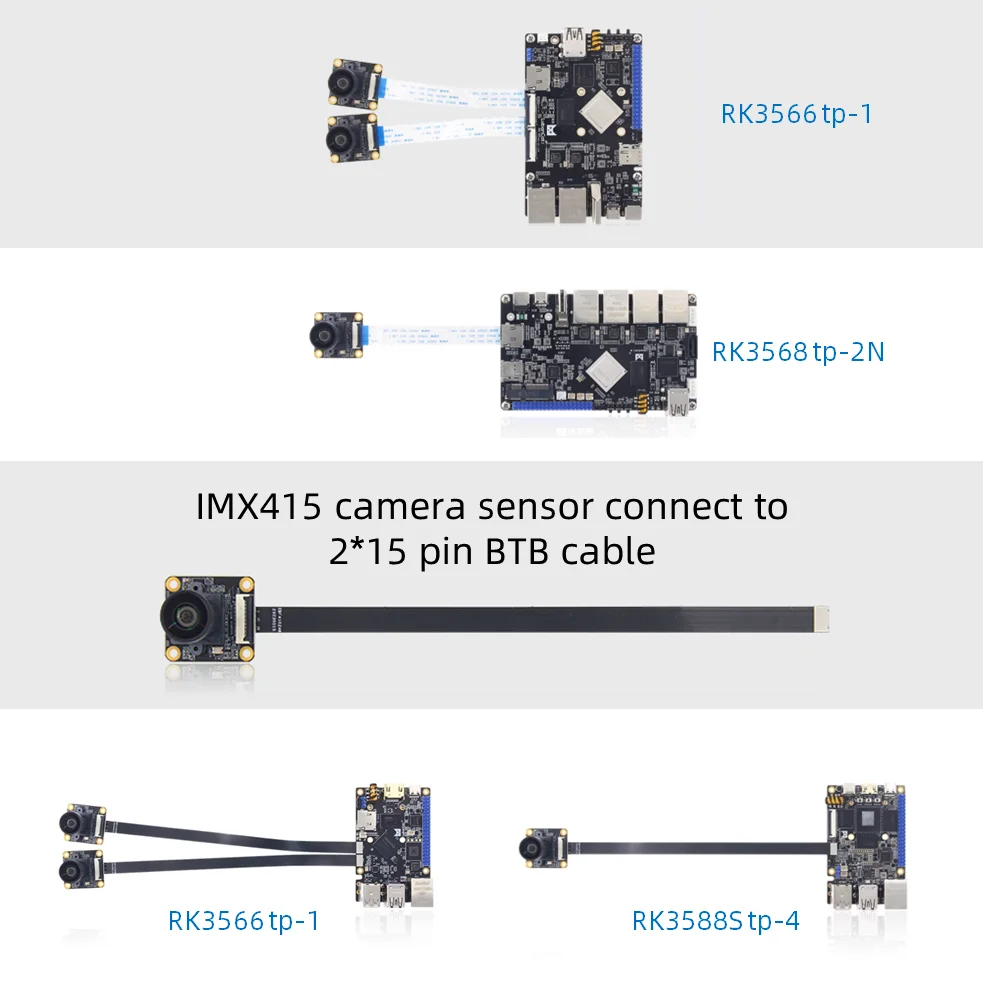

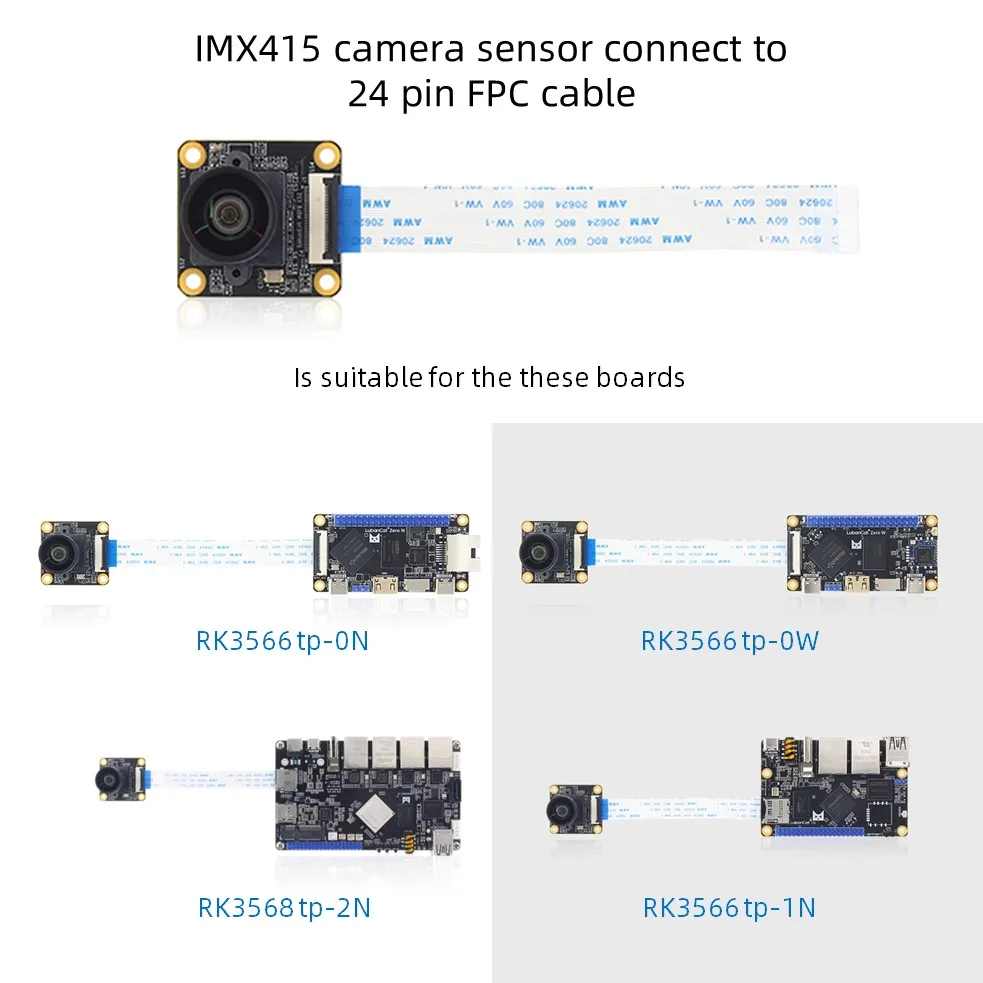

This camera module comes with 2 different cables that are compatible with different boards.

You can click the images to buy the matching board

What we provide?
