FULL HD Camera Parameter

1/2.8in SONY Chips

4K video Recording(3840*2160)

48 Million PX Photo Output(8000*6000)

TYPE-C 1080@30 Video Output

TYPE-C 1080 Picture Output

Measured By Computer

Input Voltage : 12v/1A

C-Mount Lens

One Click Freeze/Defrost

Zoom In/Out

TF Storage/PC Storage

Language English

Supports 16 Datum lines with
adjustable color,thickness and position.

Manual/automatic exposure/one-click exposure,
exposure compensation.

Manual/automatic white balance/one-button
white balance.RGB adjustable

Cross center line open/close.

Working Distance : 20 mm—700mm

Magnification : 10X-150X (32in displayer)

X-axis Visual Field : 4.2mm-130mm

_________________________________________________________________________________________________________________________________________________________________

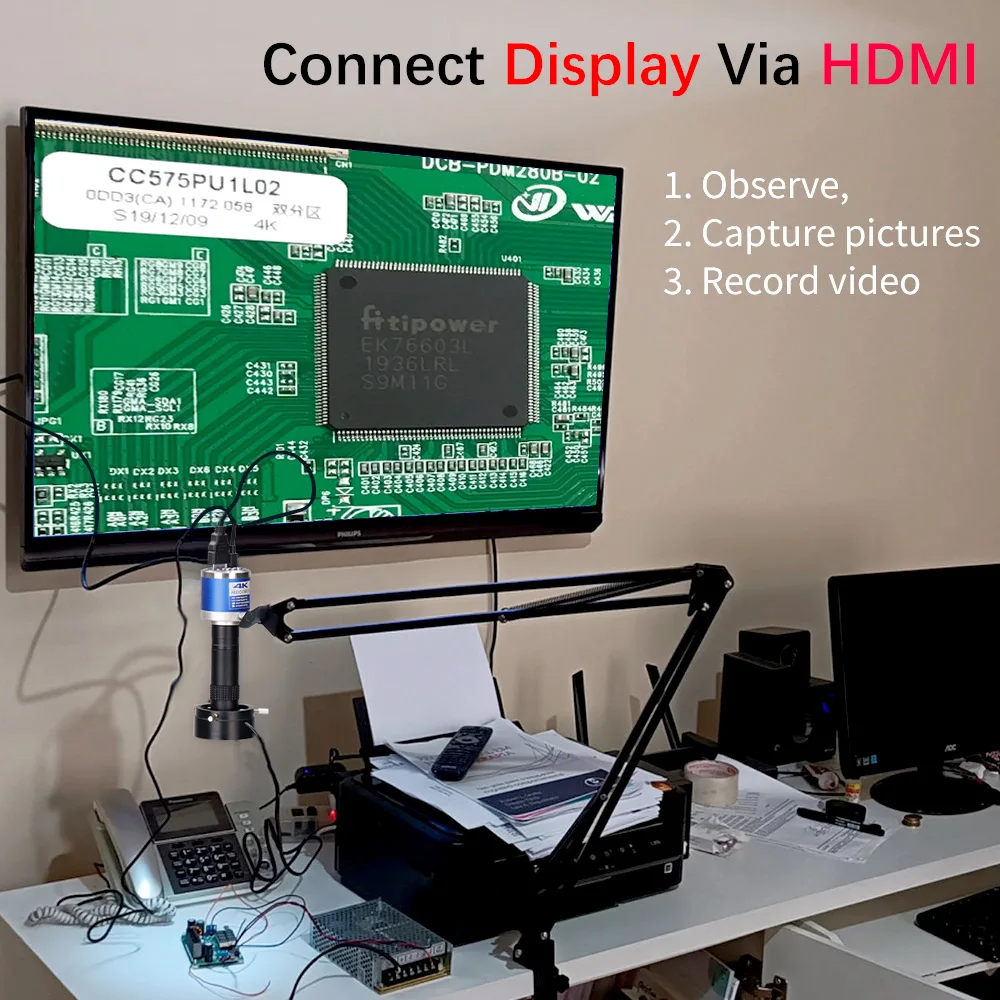

Connect Display Via HDMI

1. It Can capture pictures and videos and save them on TF cards

2. It can capture up to 8M 8000X6000 HD images

3. 4K (30fps) /1080P(60pfs) MOV video is available

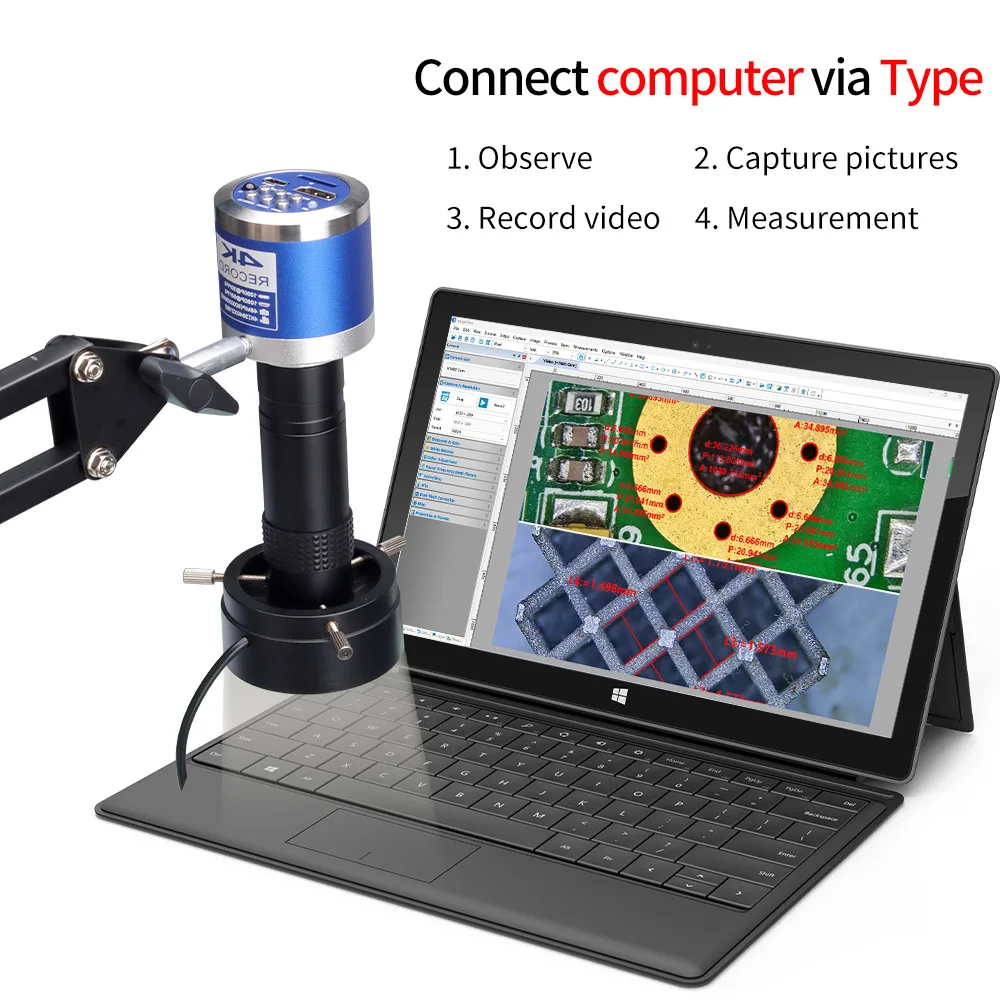

Connect computer via Type

1. Install the ImageView on your computer

2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

Monolithic construction design

1. Screw joint structure,more fit the lens.

2. Integrated design, lighter, more stable.

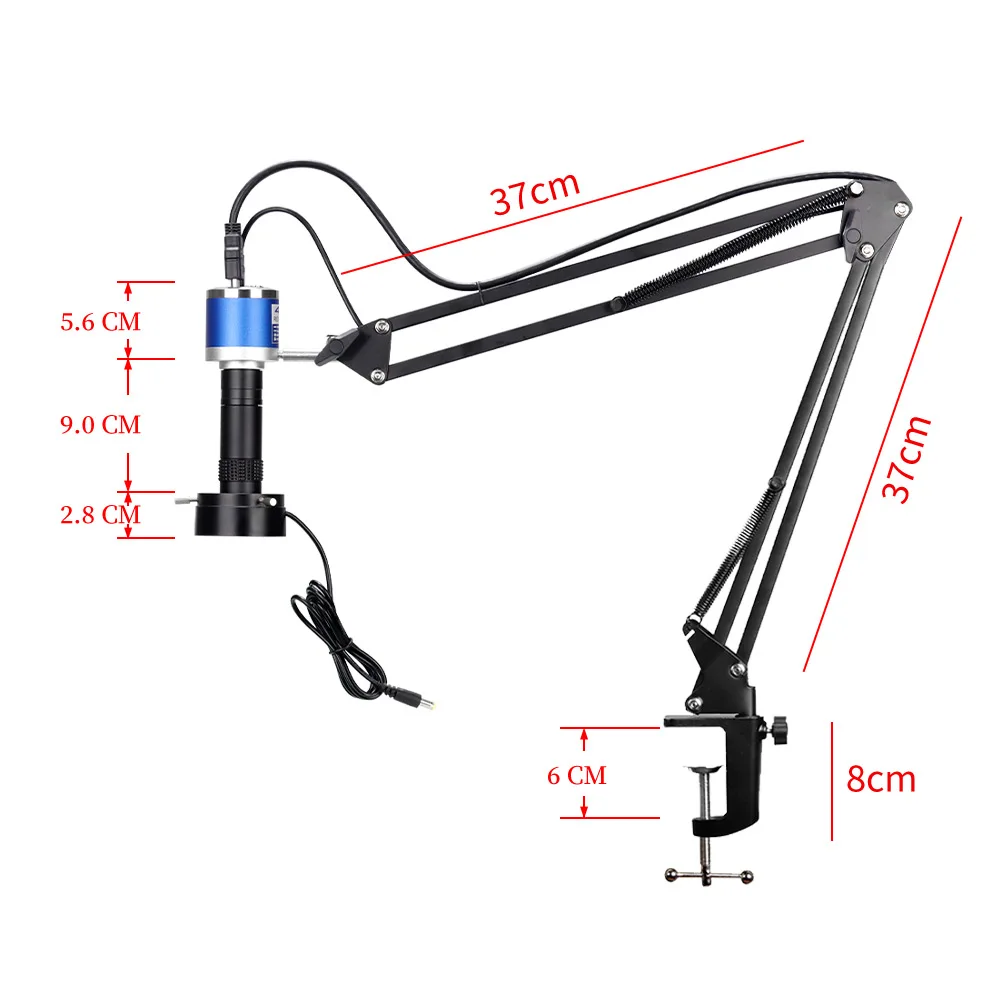

Product dimensions and details

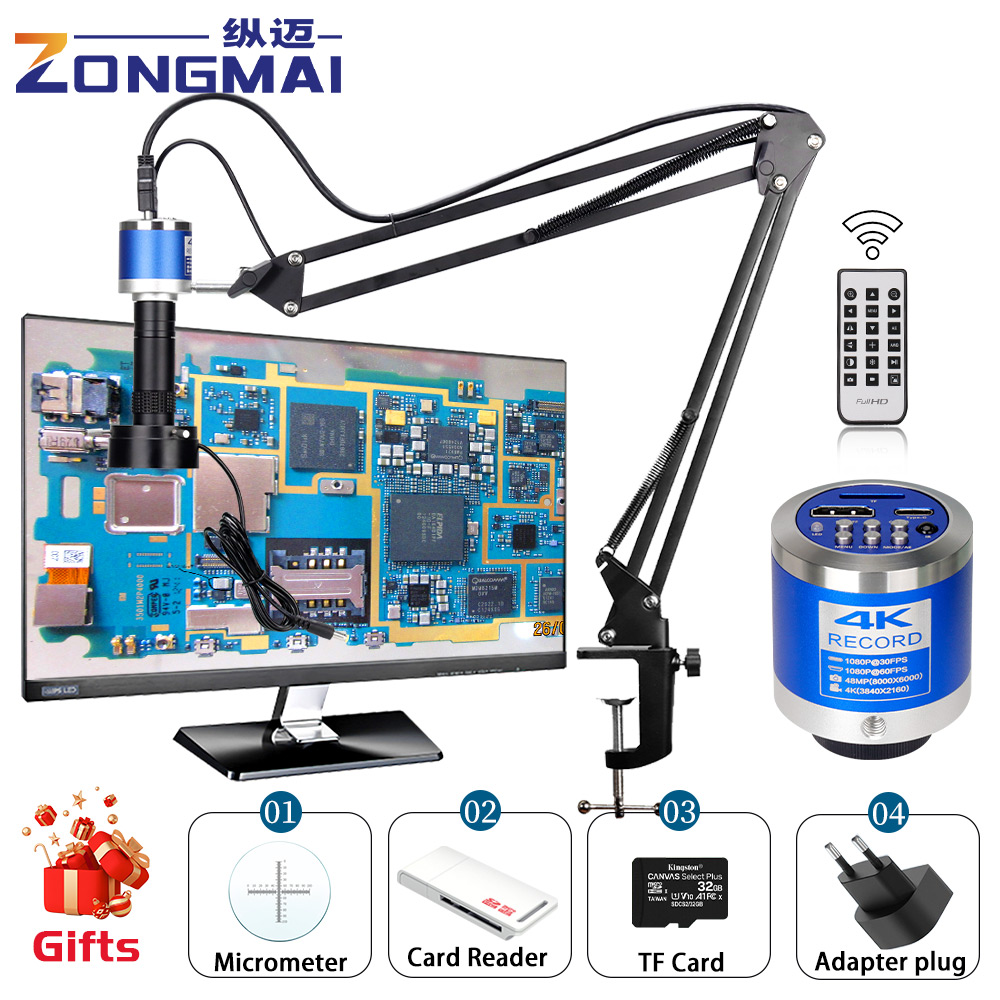

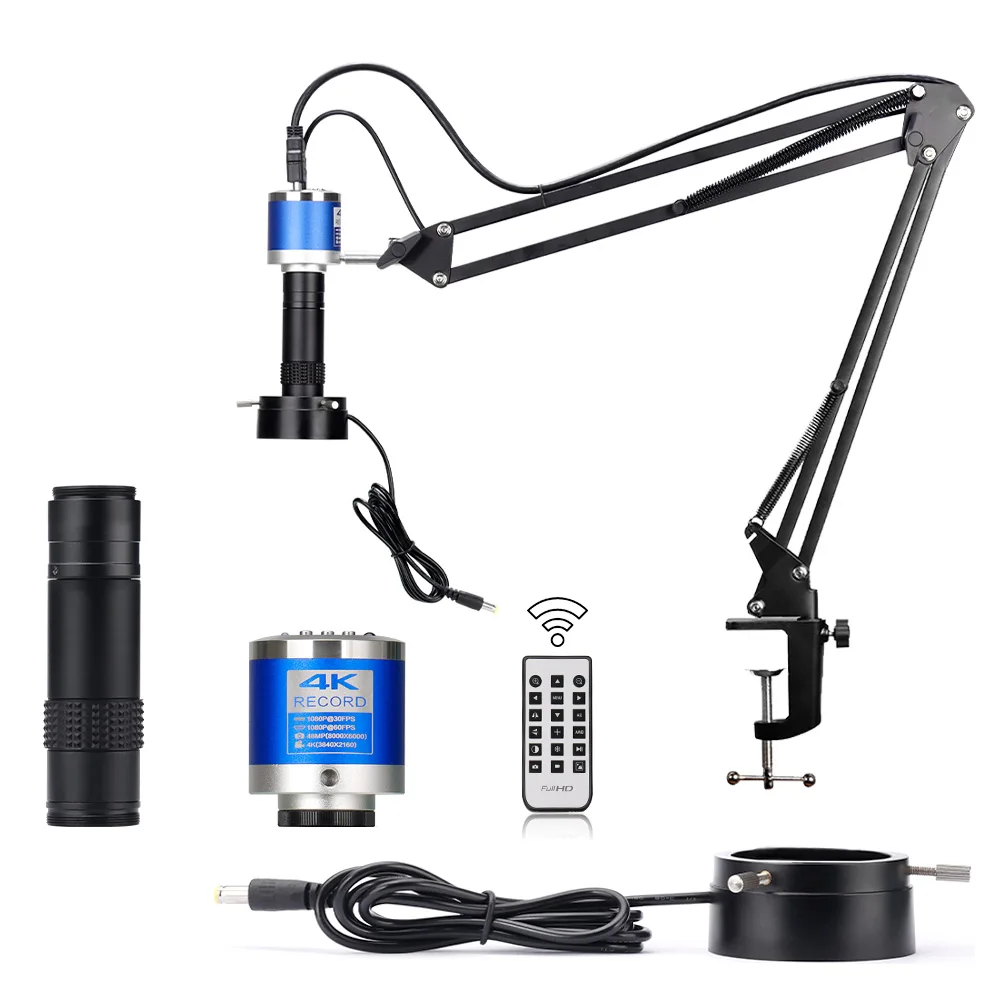

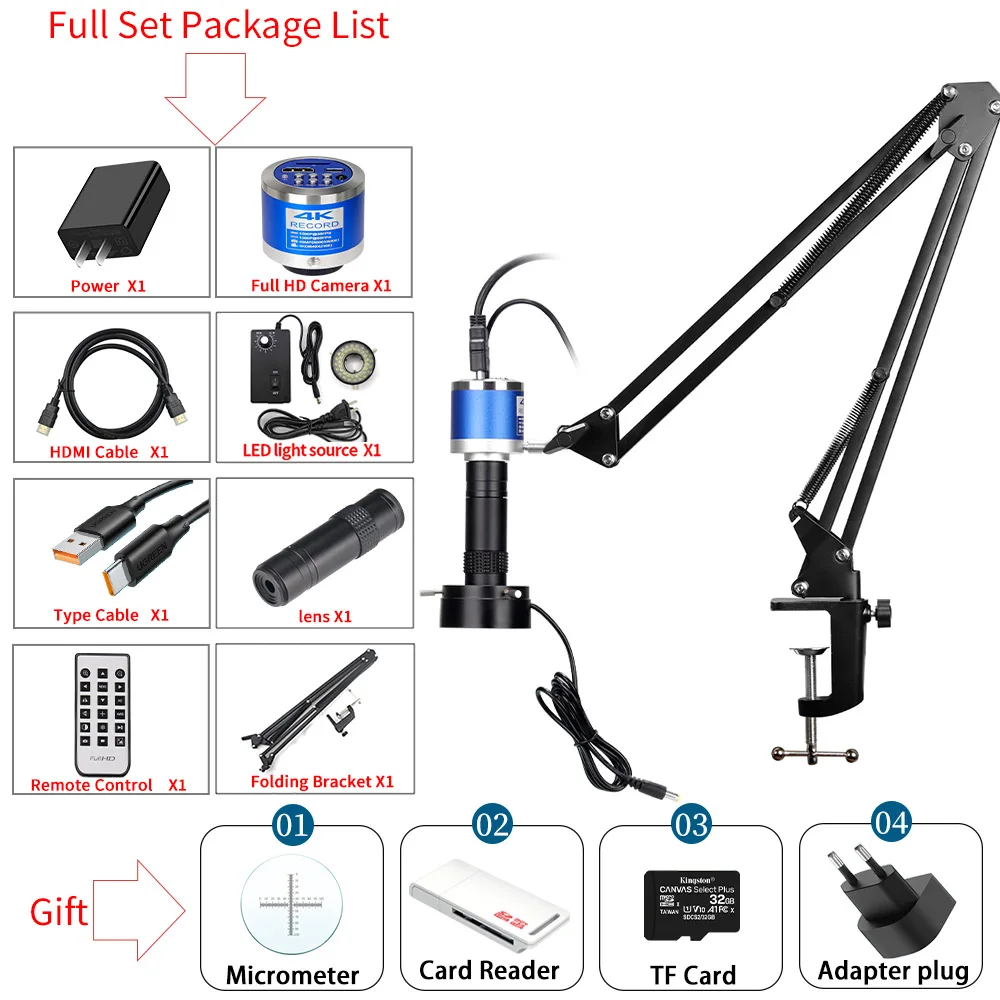

Full Set package List :

1 x FULL HD Camera
1 x Power Adapter
1 x HDMI Cable
1 x Type Cable
1 x Remote Control
1 x 37CM Folding Bracket
1 x Lens
1 x LED Light

Gift

1 x Micrometer
1 x TF Card
1 x Card Reader
1 x Adapter Plug
