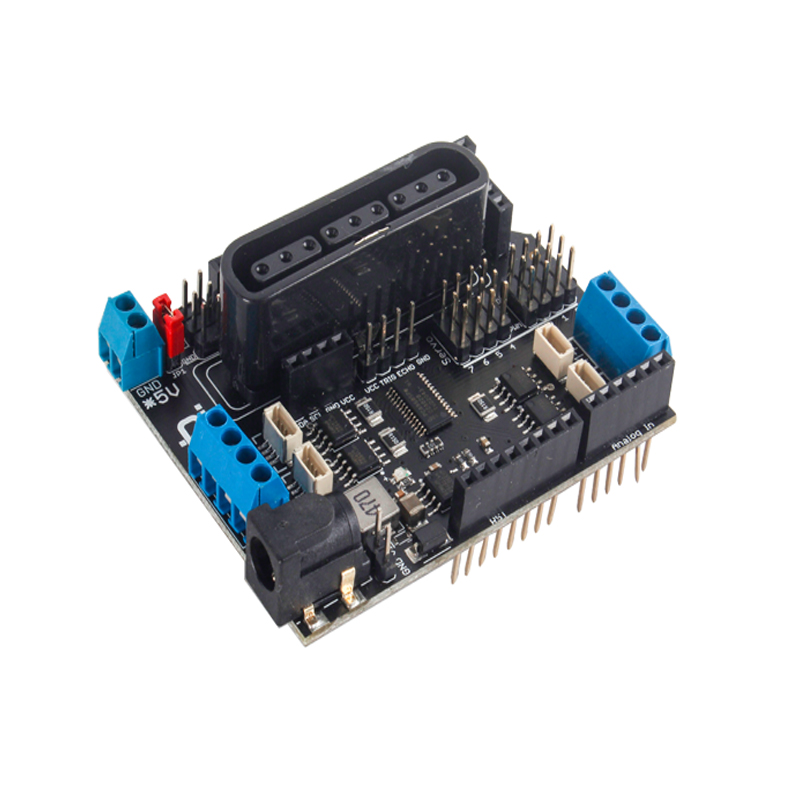

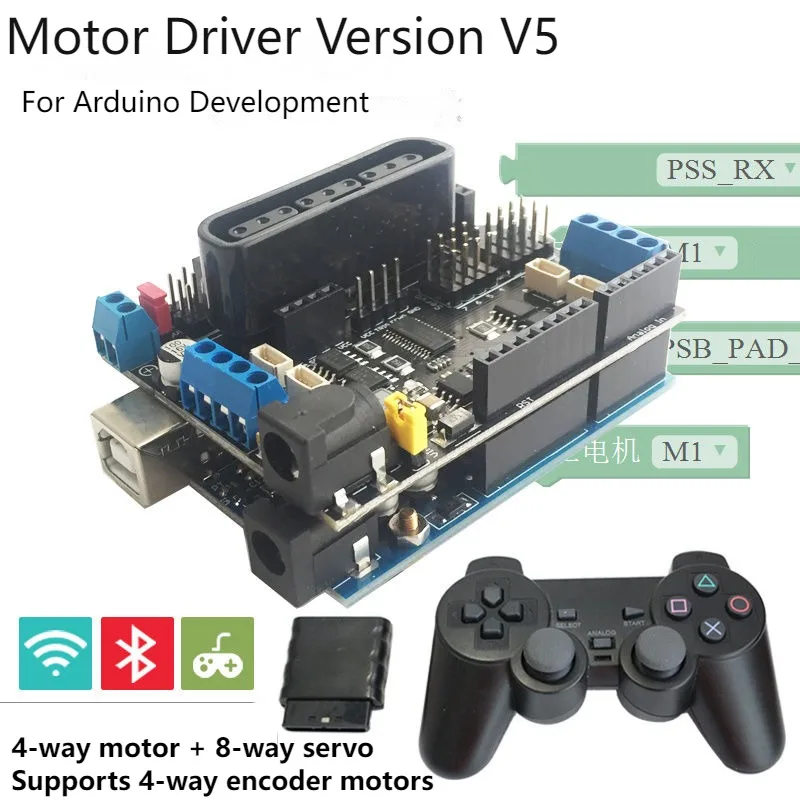

PS2 Joystick Shield Board 5-12V with 4 Channels Motors and 8 Channels Servos For ESP32 Robot For Arduino Robot Car or Robot Arm

Product details:

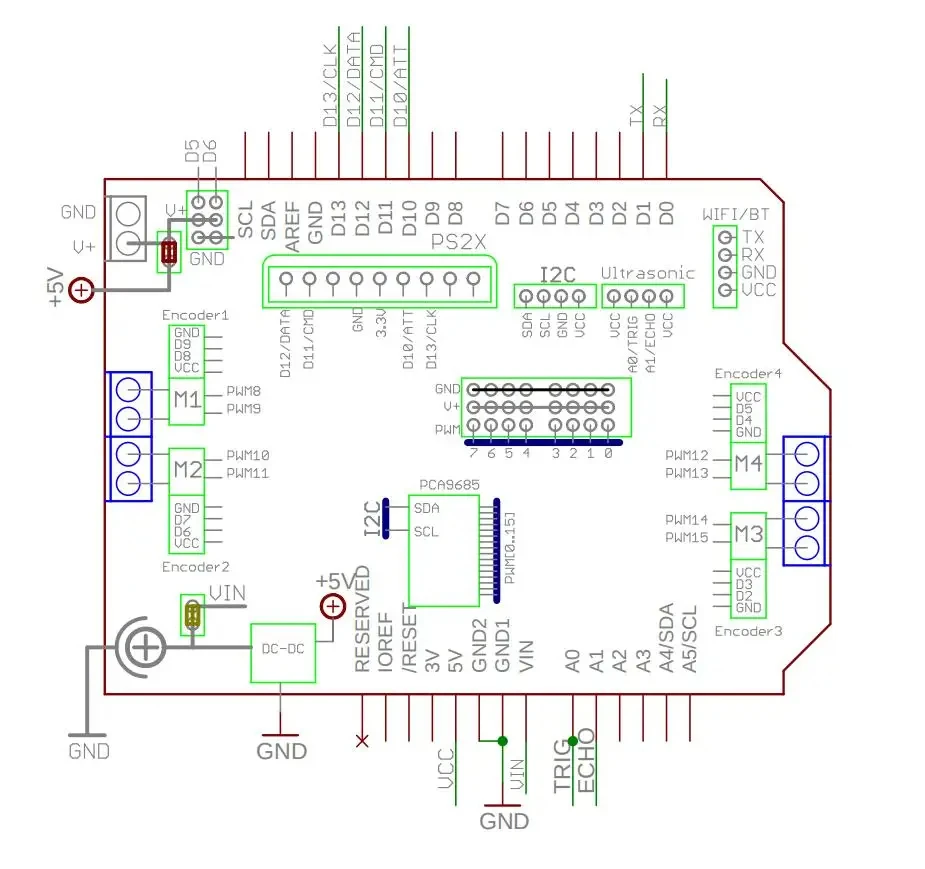

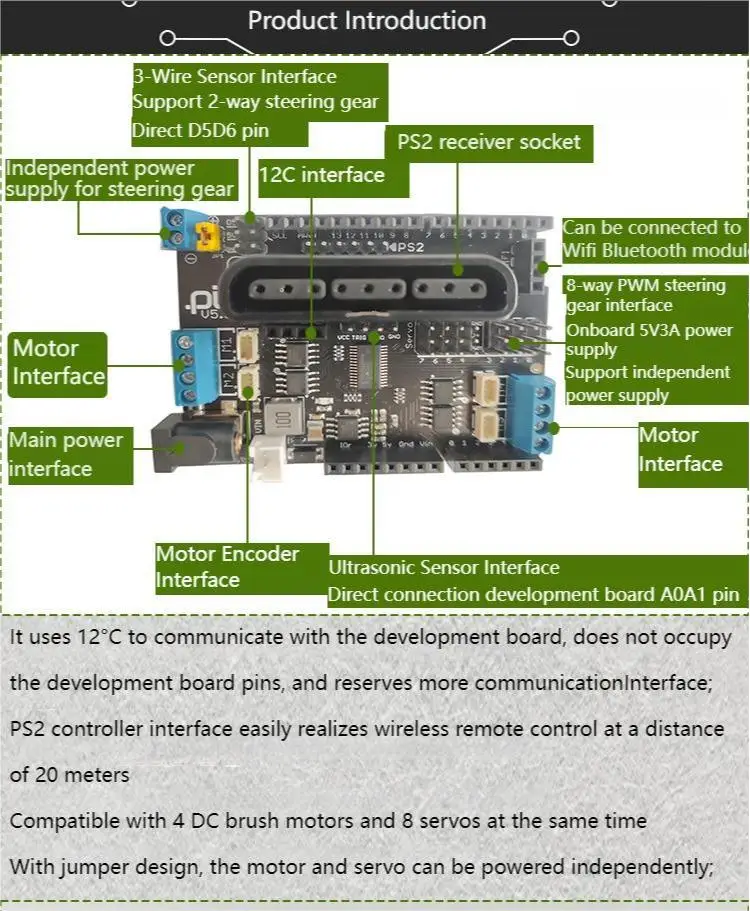

– Arduino shield communicates with the motor driver by I2C, never occupy the data pins but leave more interfaces.

– Equipped with slot for PS2 joystick, easy to remote control wirelessly.

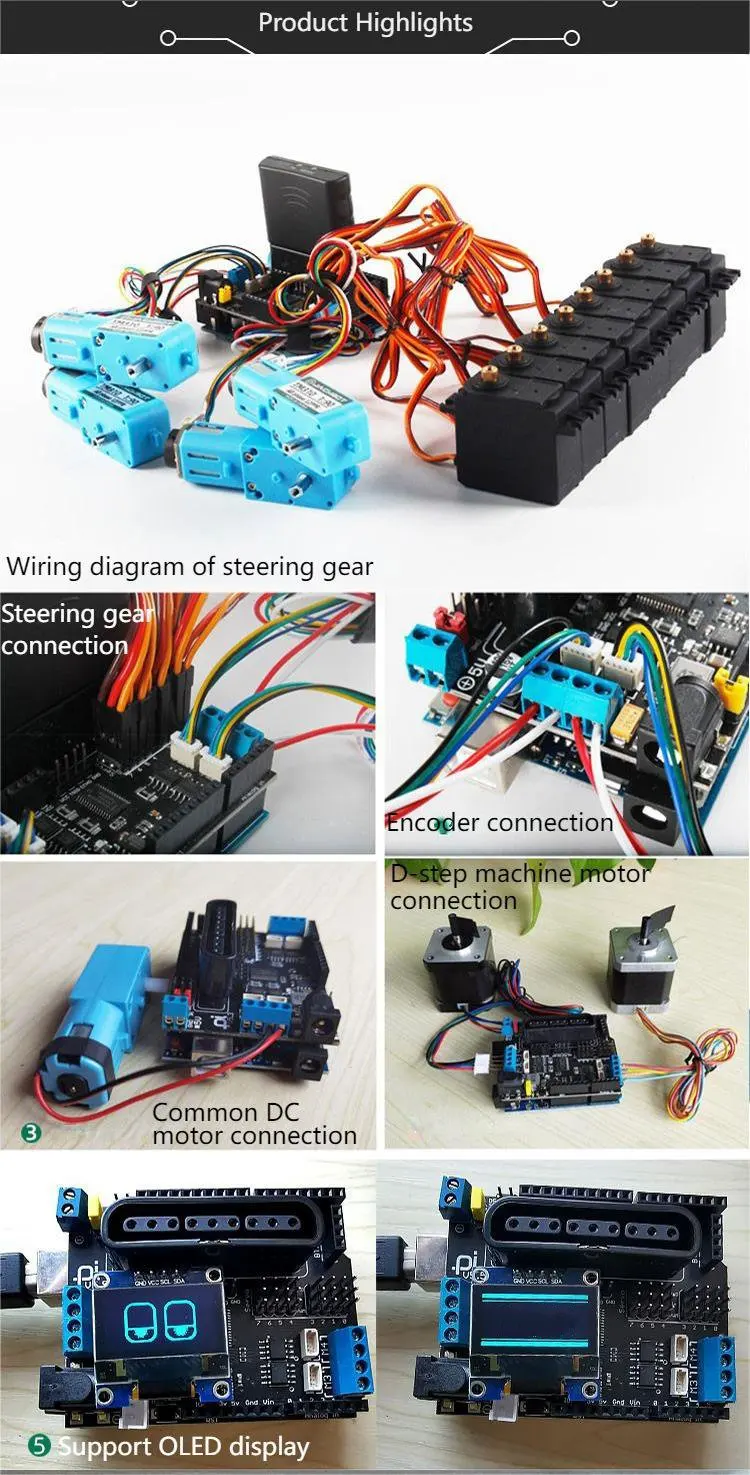

– Support externally connection with 4 DC brush motors and 4 servos.

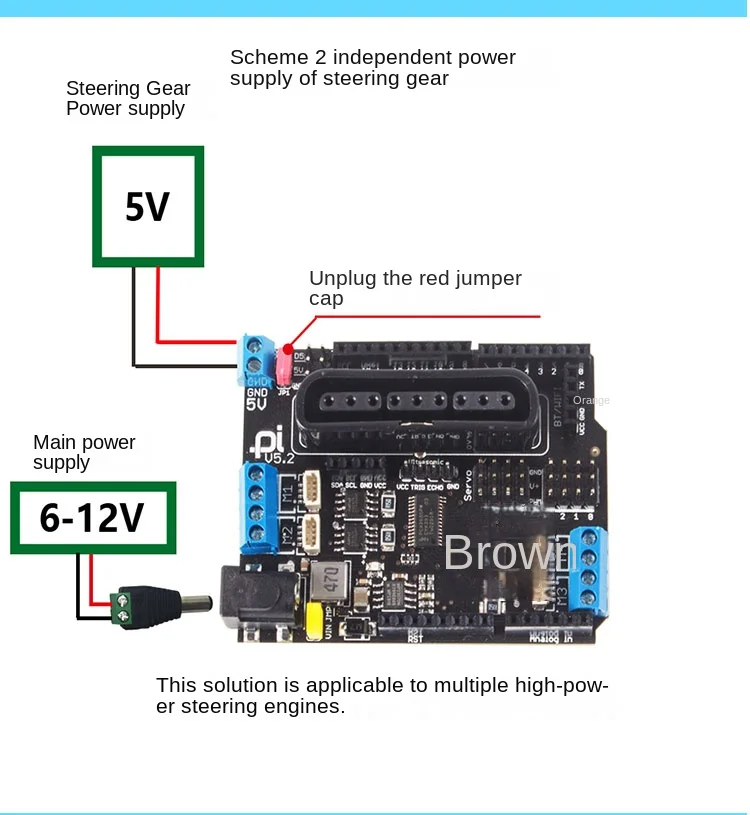

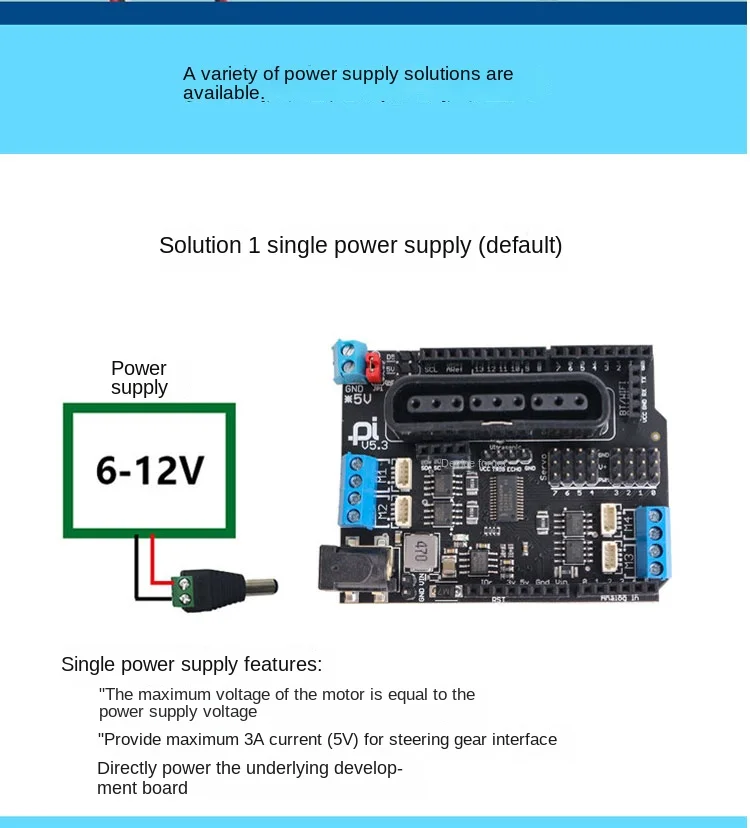

– Already set switching wire jumper function, motor and servo can be powered independently

– 1.2A drive capability, can be up to 3.2A instantly.

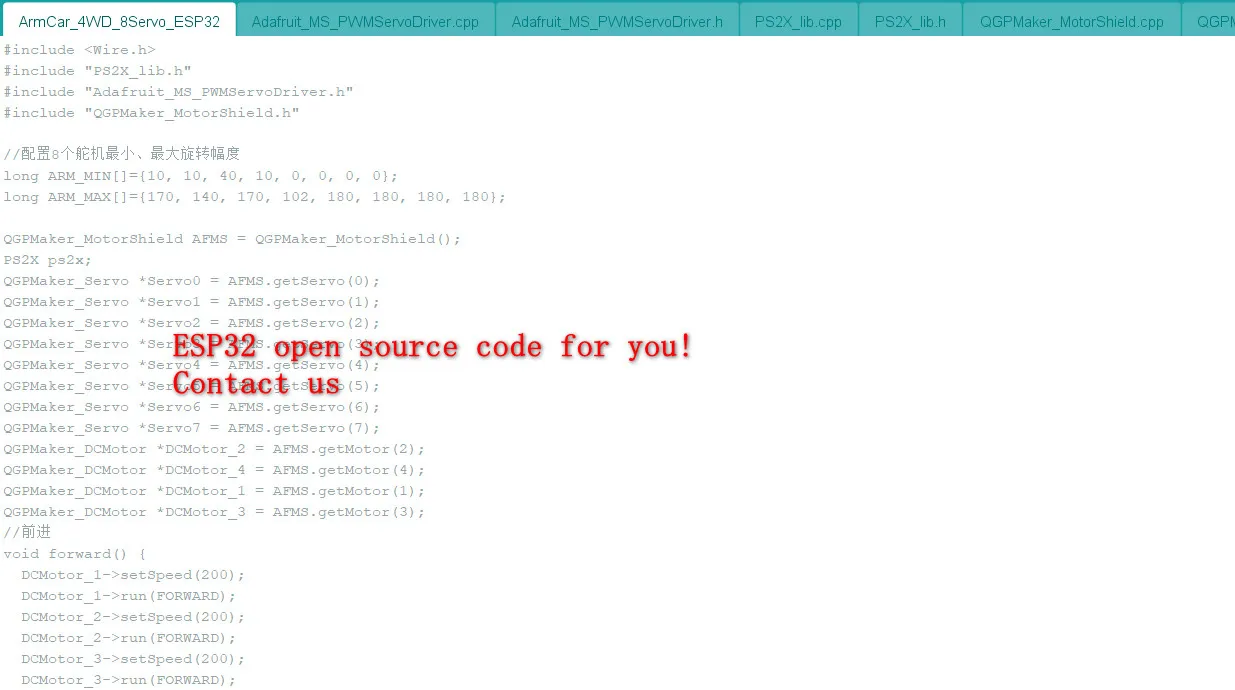

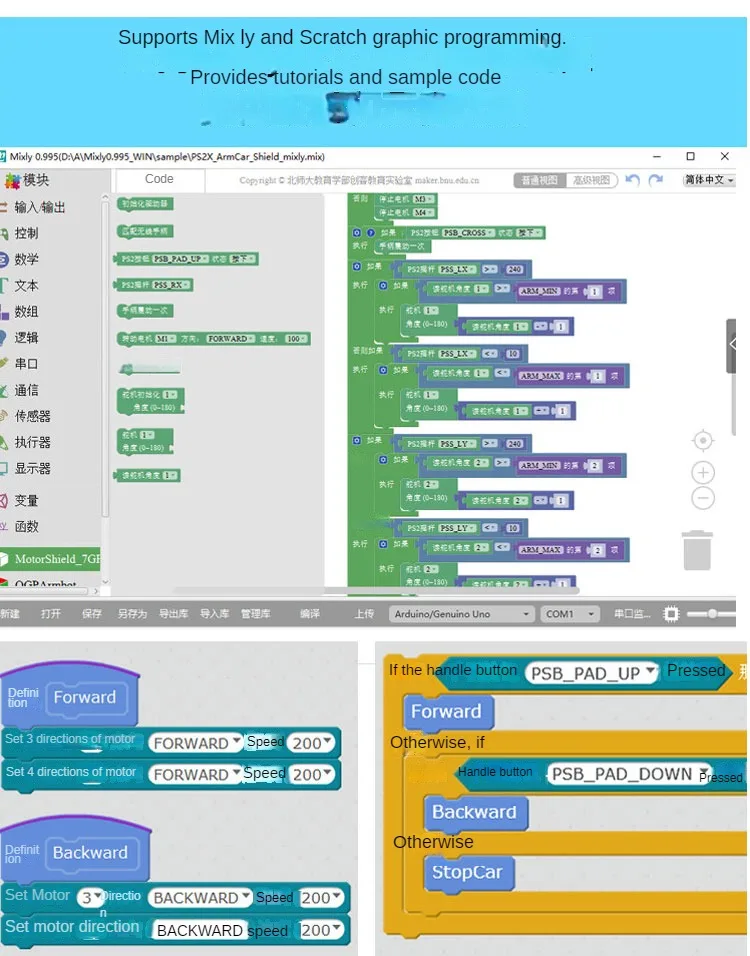

– Includes completed sample tutorials and codes, support graphical programming

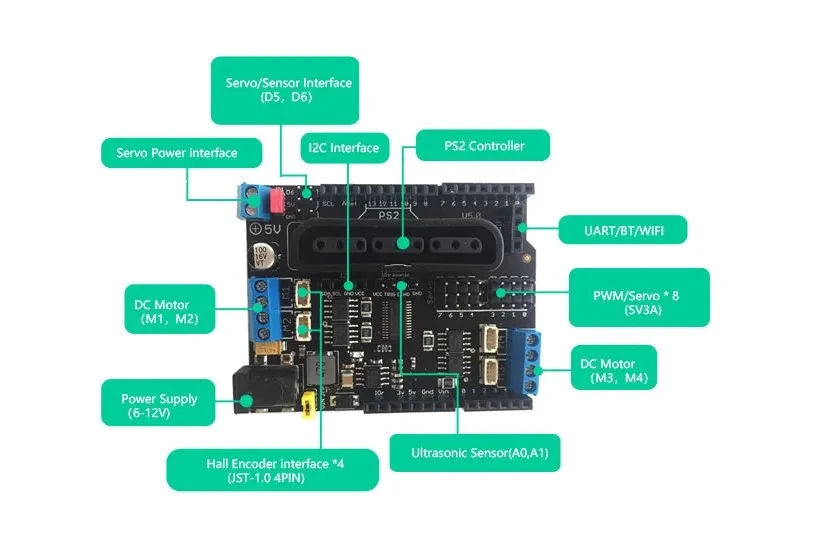

– Built-in ultrasonic sensor and Bluetooth (WIFI) module interface

– Sensor interface is saved, it is convenient.

Specifications:

– Item name: Arduino Shield

– Material: PCB

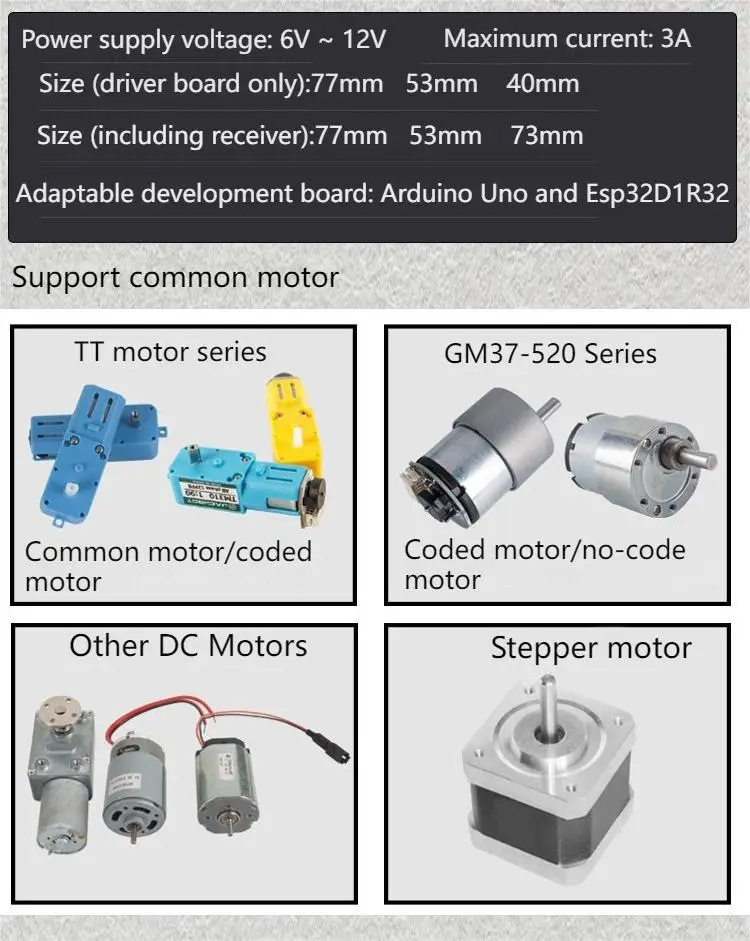

– Voltage: 6-12V

– DC motor: 4 channels,

– Working current: 1.2A

– Starting current: 3A max

– Servo: 4 channels, 1A output current max

– Gross Weight: 0.1kg

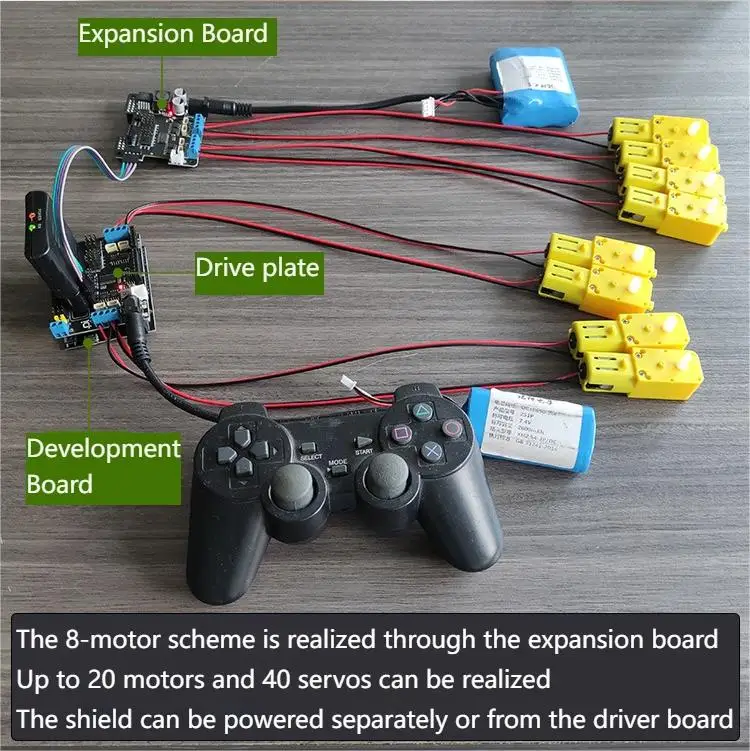

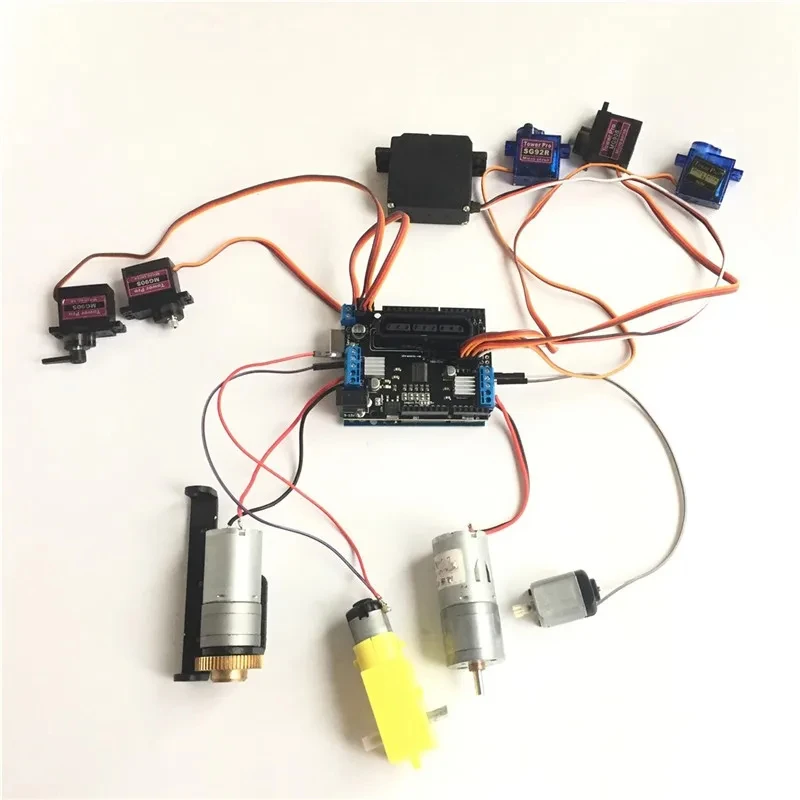

Can Drive 4 DC motors and 8 servos at the same time
Could use 12V power supply, needn’t use voltage converter

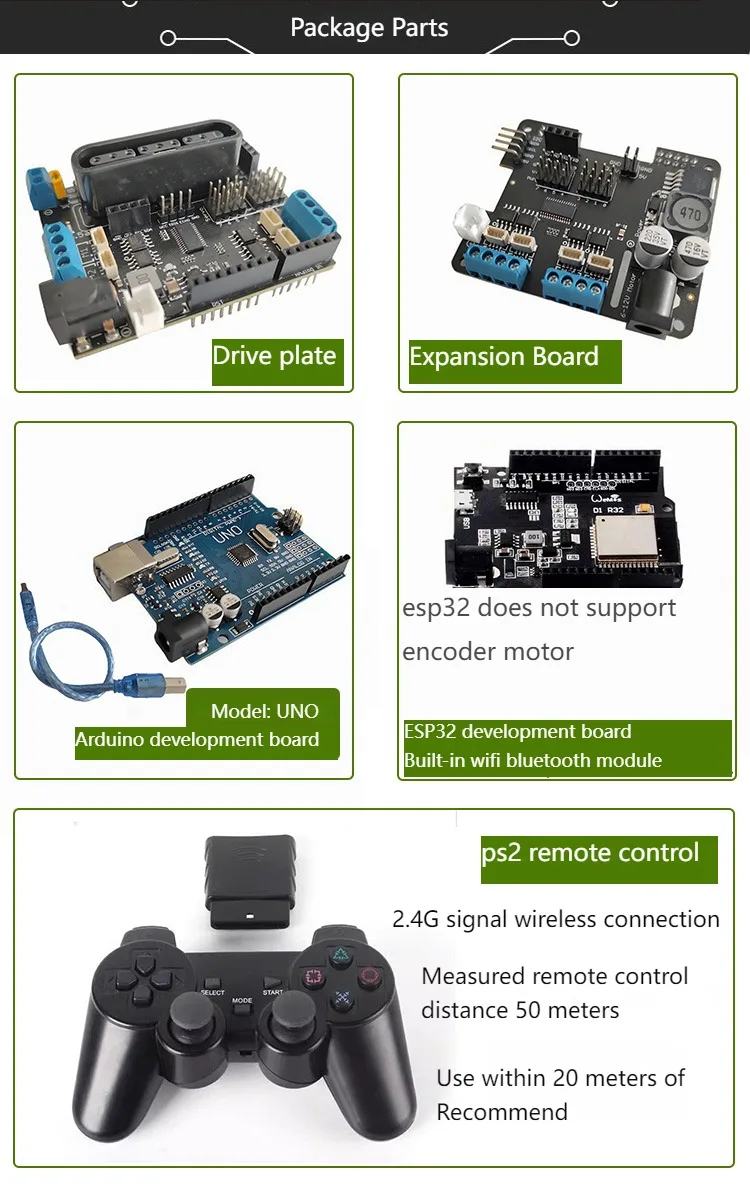

Package included:

– 1 x for Arduino shield/ESP32 board

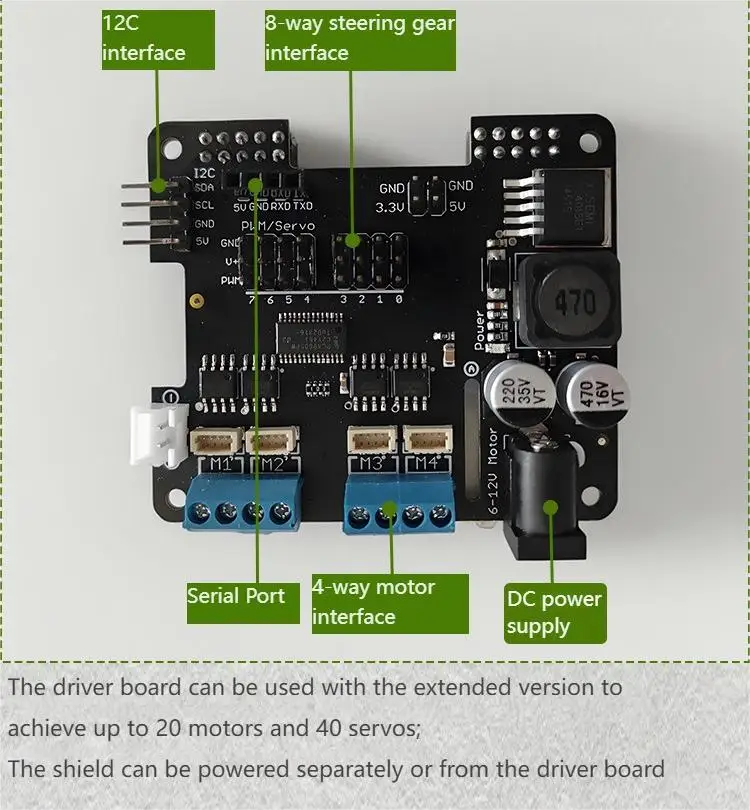

– 1 x for Arduino motor driver

– 1 x Wireless receiver

– 1 x PS2 Joystick

– 1 x Cable

Notice:

Servo is not included.
