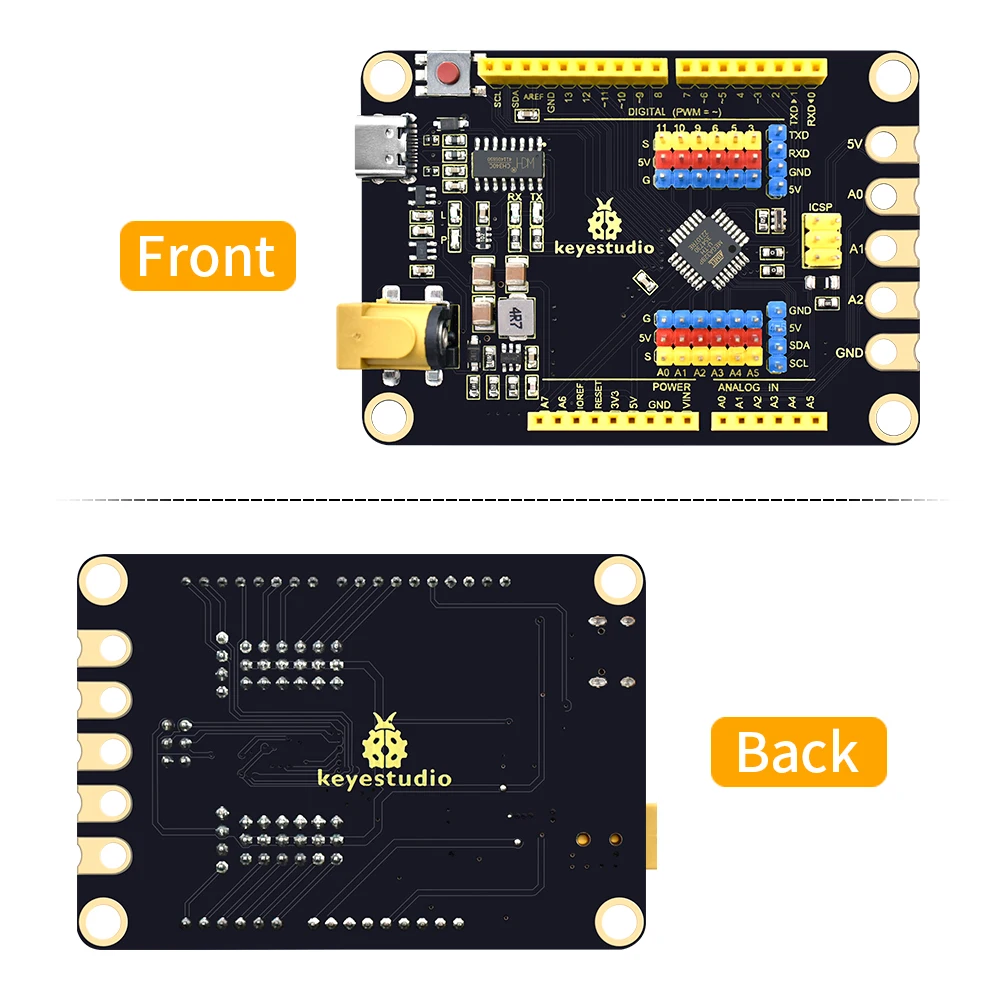

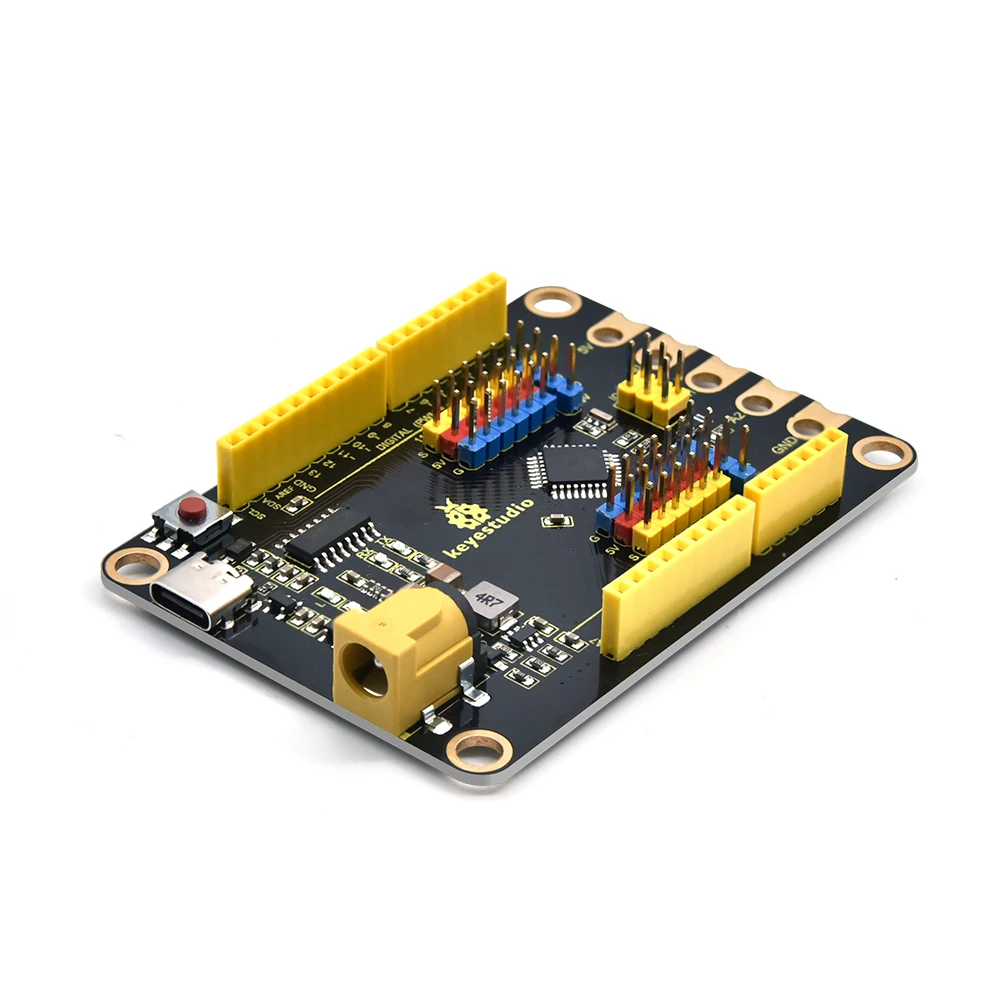

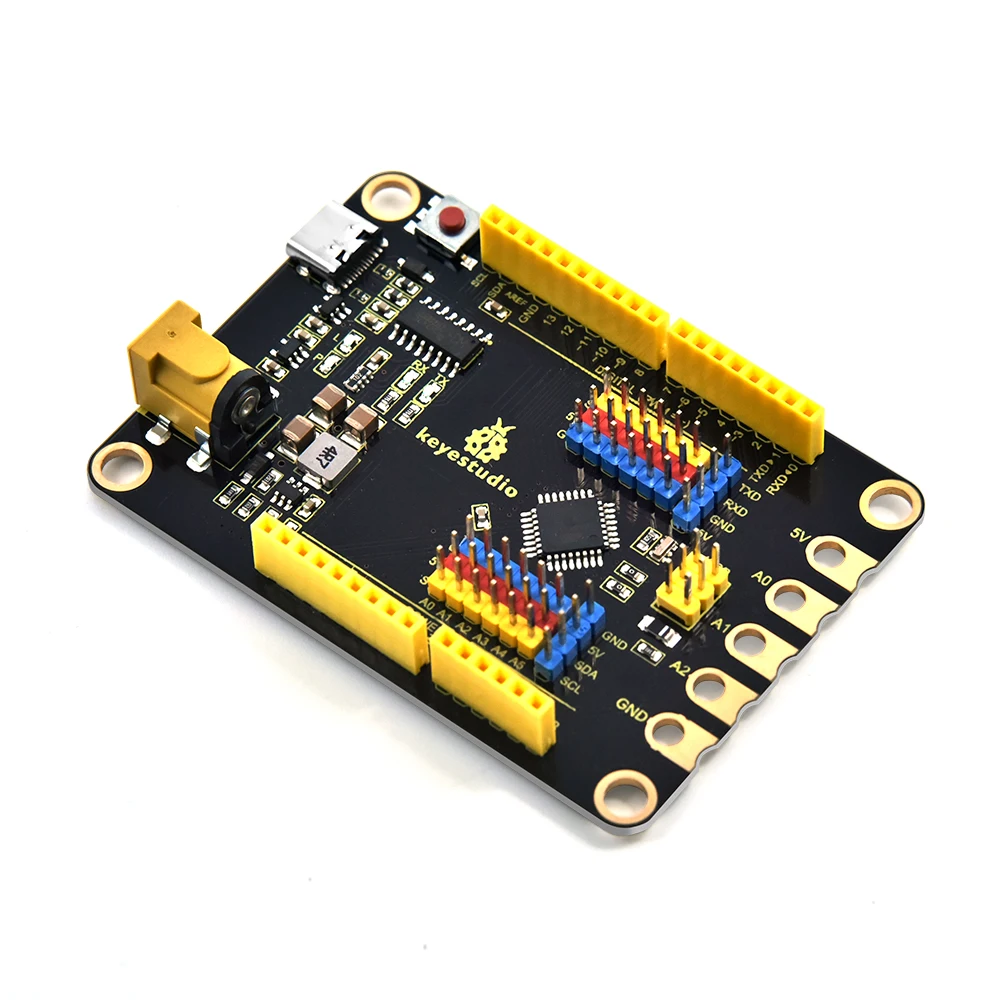

We will program on the Arduino board with Arduino series MCUs when doing experiments. The keyestudio maker programming development board is a control board fully compatible with the Arduino IDE development environment.

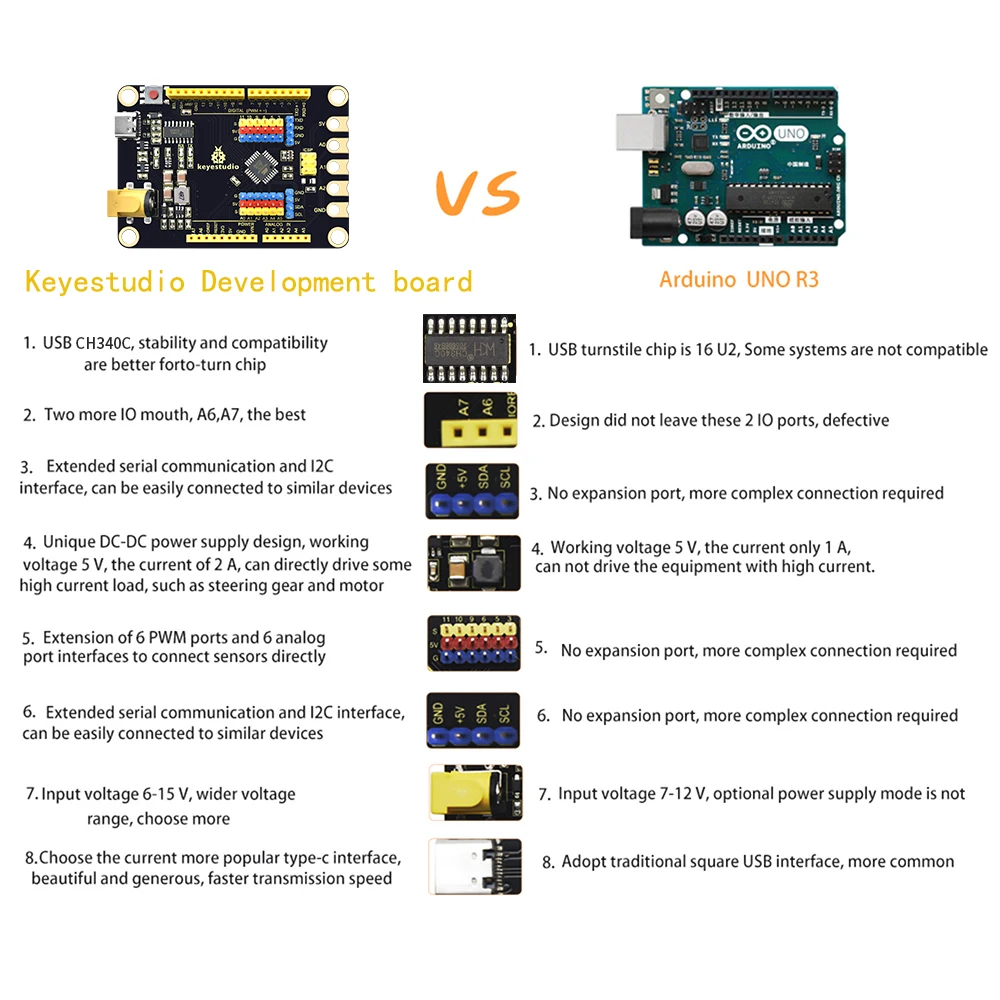

It includes all the functions of the UNO R3 board of the official website.
Also, we have made some improvements to make it more powerful.

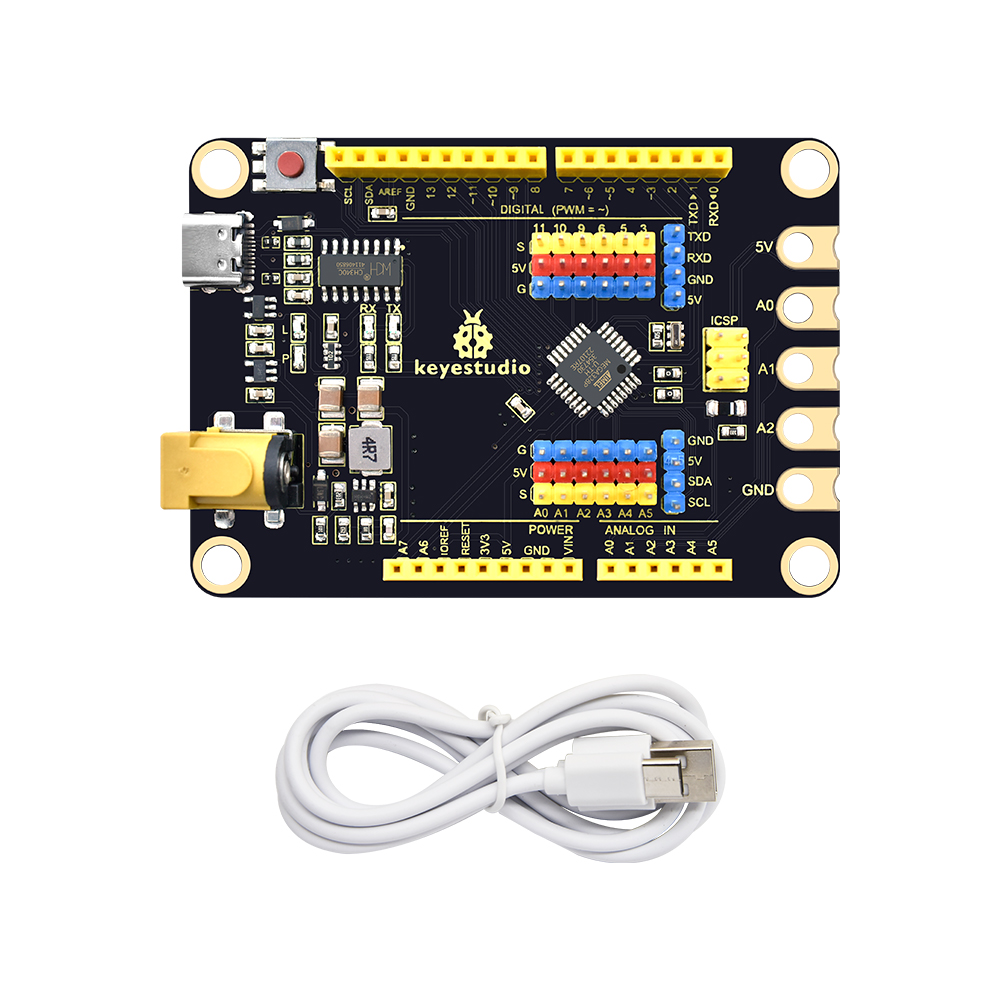

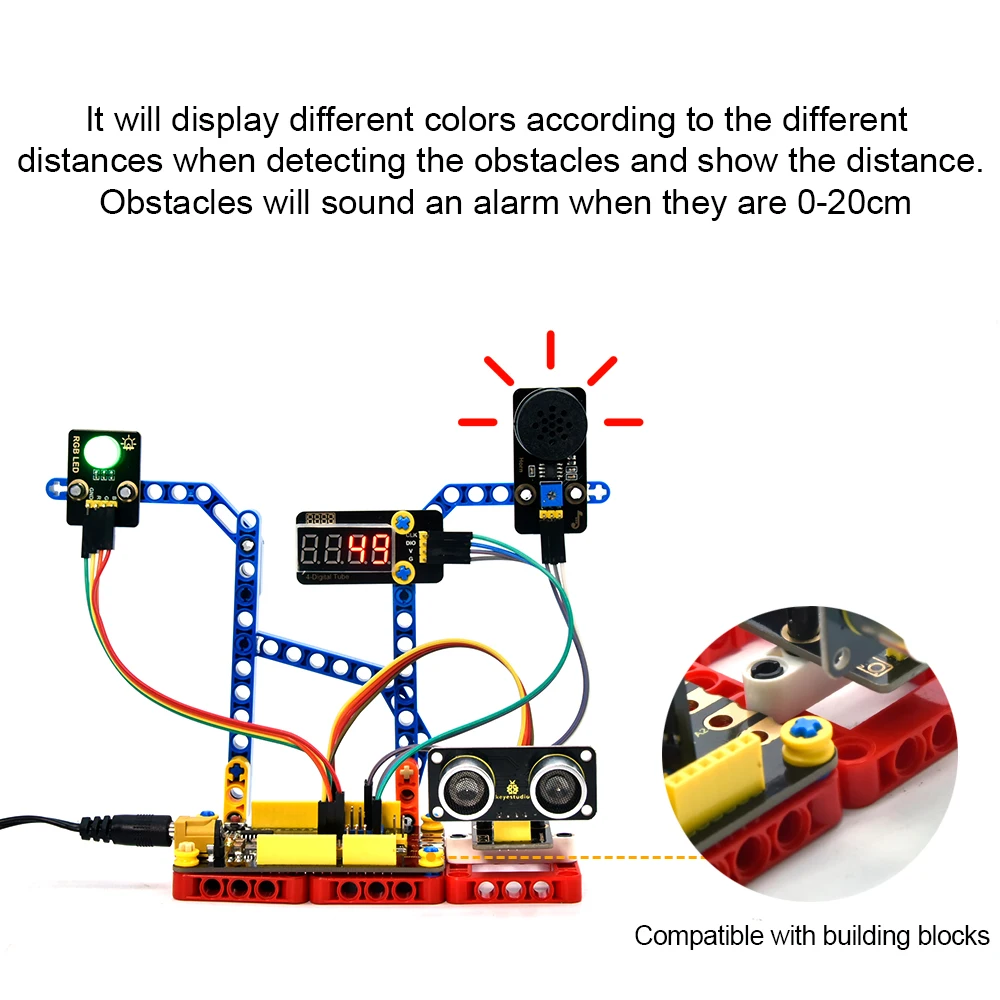

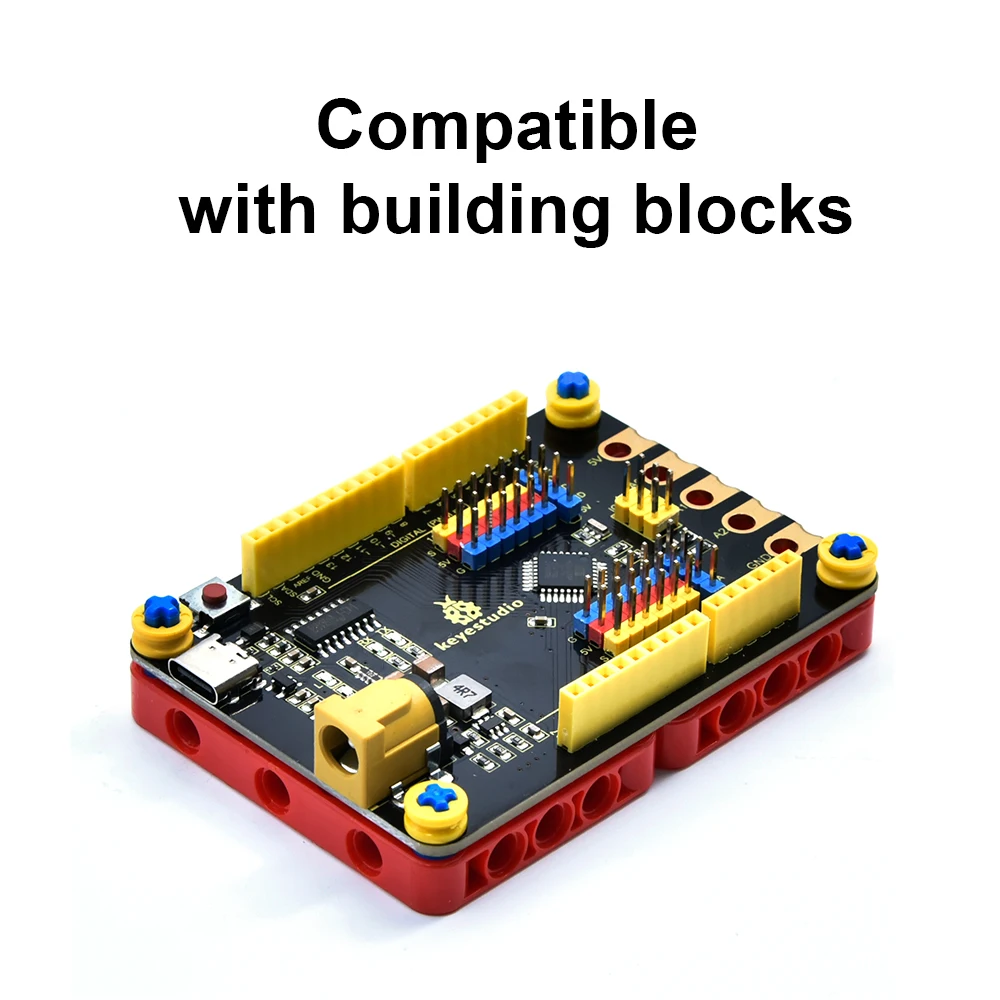

More importantly, the development board is compatible with LEGO building blocks and used to build up LEGO DIY experiments. We also provide a USB cable with type-c interface for you.
Parameters

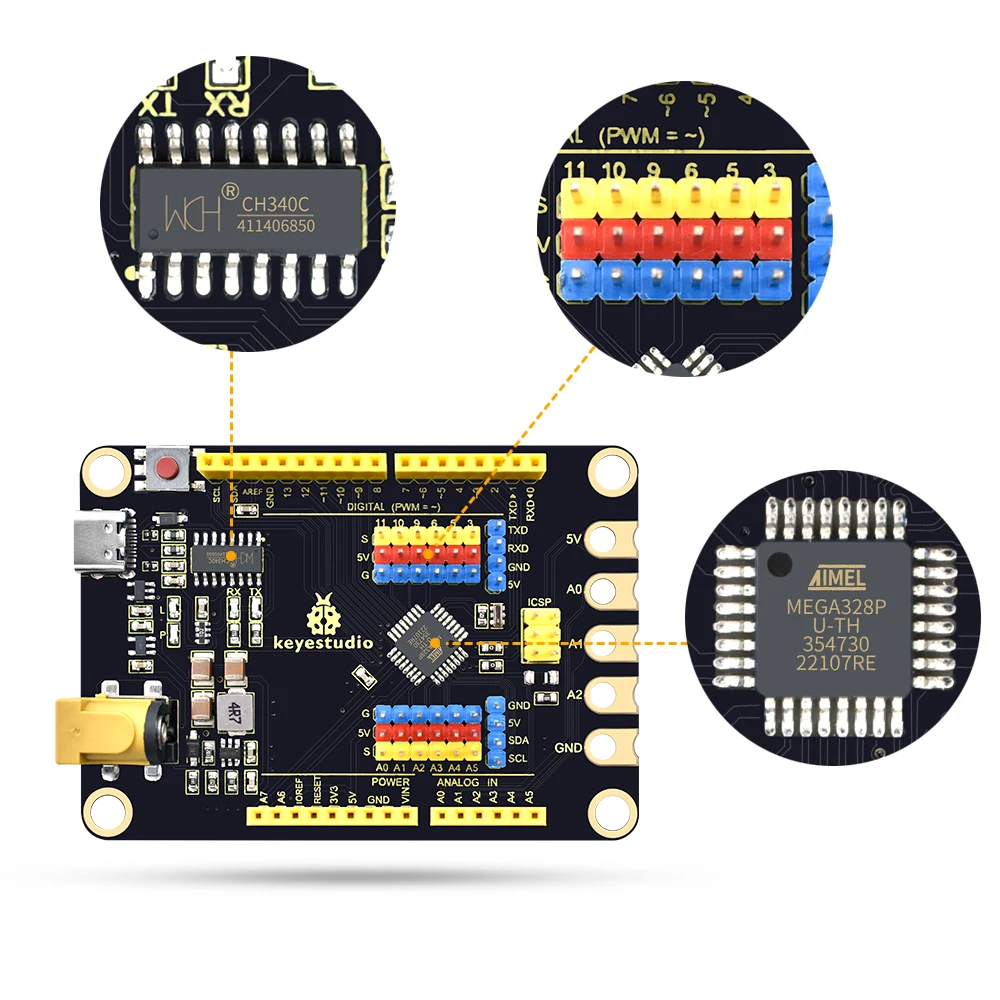

Microcontroller: ATMEGA328P-AU USB to serial port chip: CH340C
Working voltage: 5V
External power supply: DC 6-15V (9V recommended)

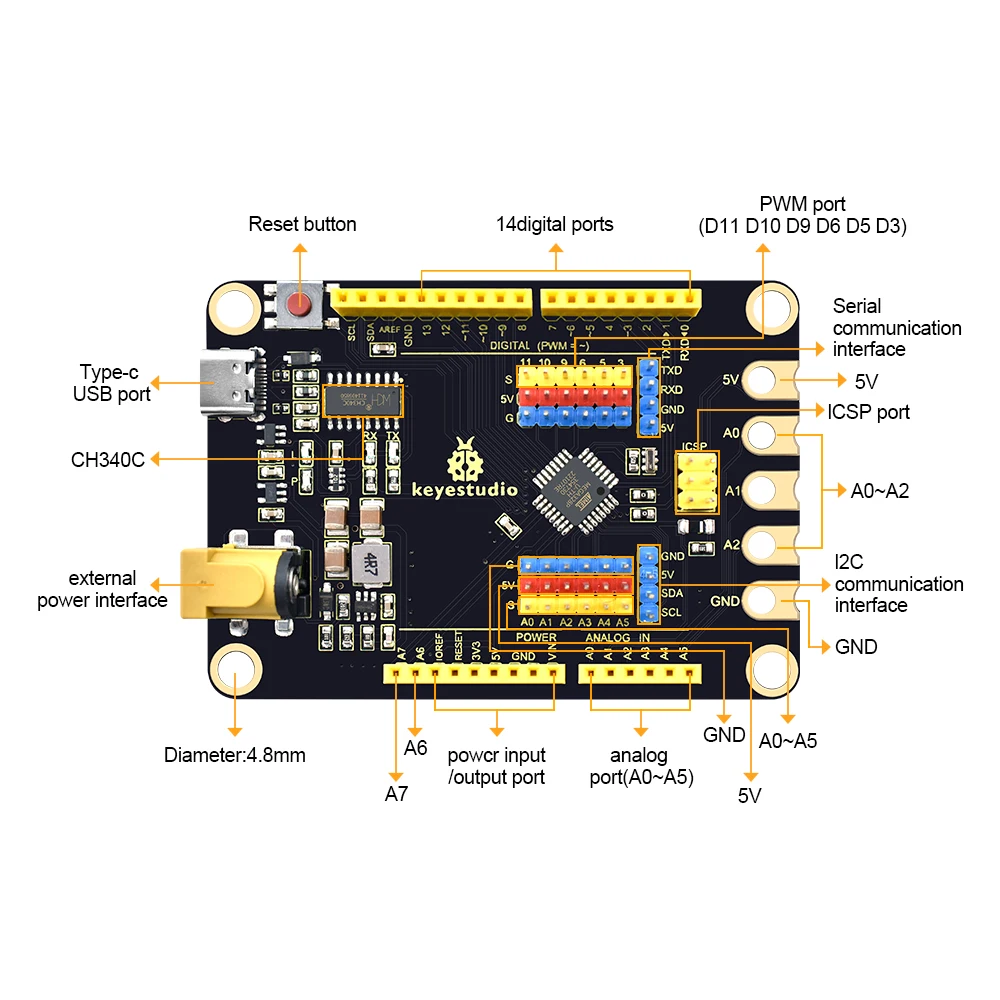

Digital I/O pins: 14 (D0-D13)
PWM channels: 6 (D3 D5 D6 D9 D10 D11)
Analog Input Channels (ADC): 8(A0-A7) DC output capability per I/O: 10 mA 3.3V port output capability: 150 mA max
Flash Memory: 32KB
SRAM: 2KB (ATMEGA328P-AU)
EEPROM: 1 KB (ATMEGA328P-AU)
Clock Speed: 16MHz
Onboard LED pin: D13
