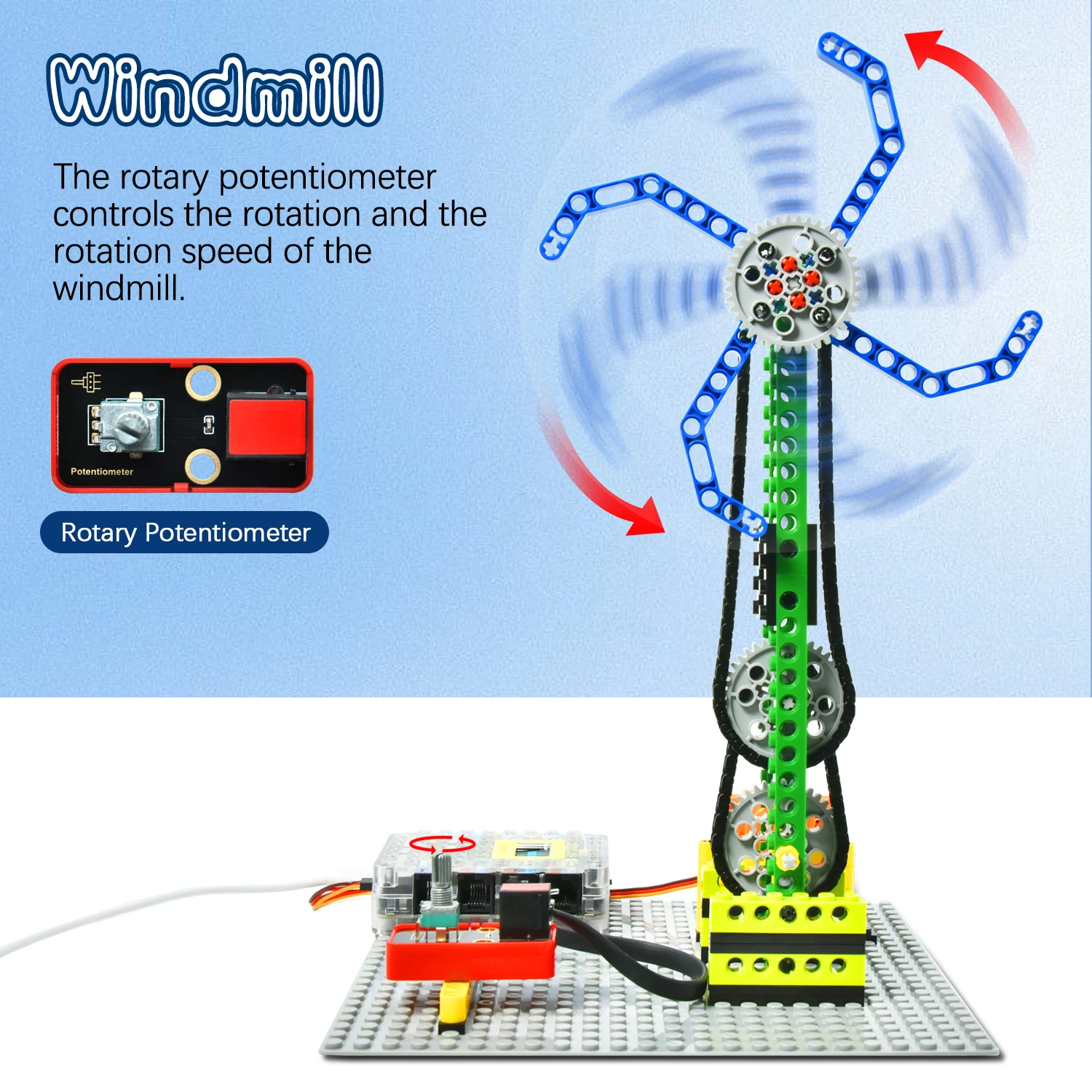

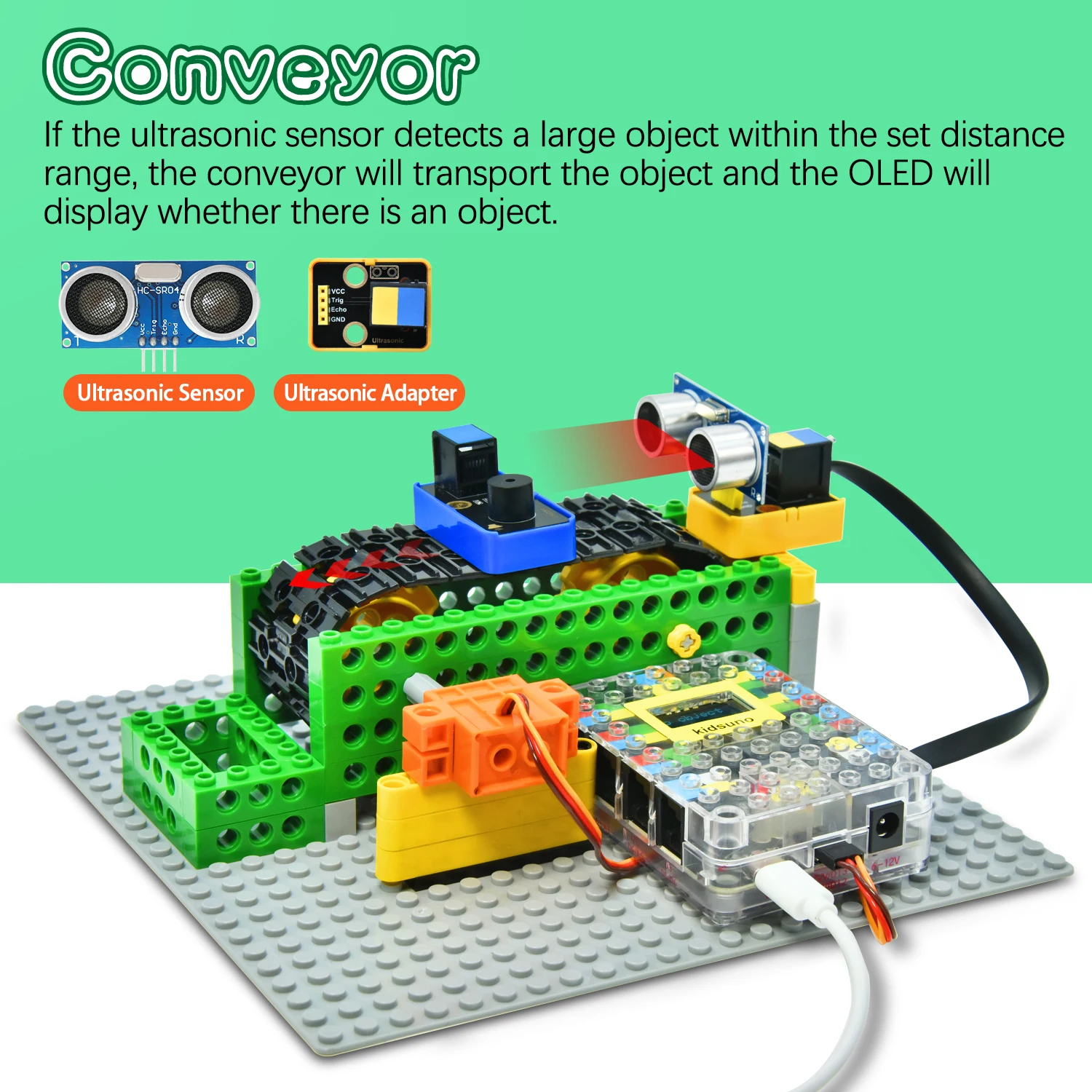

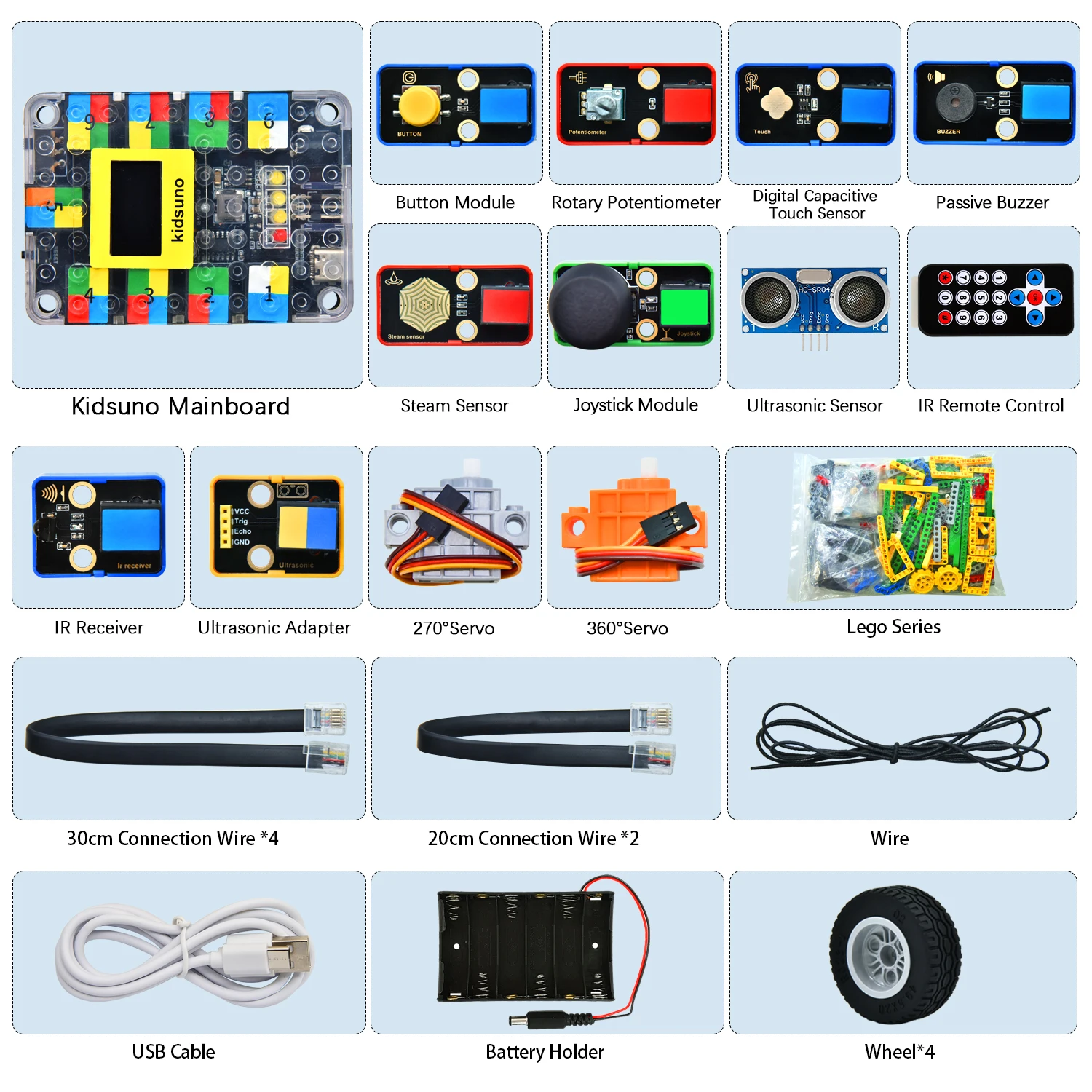

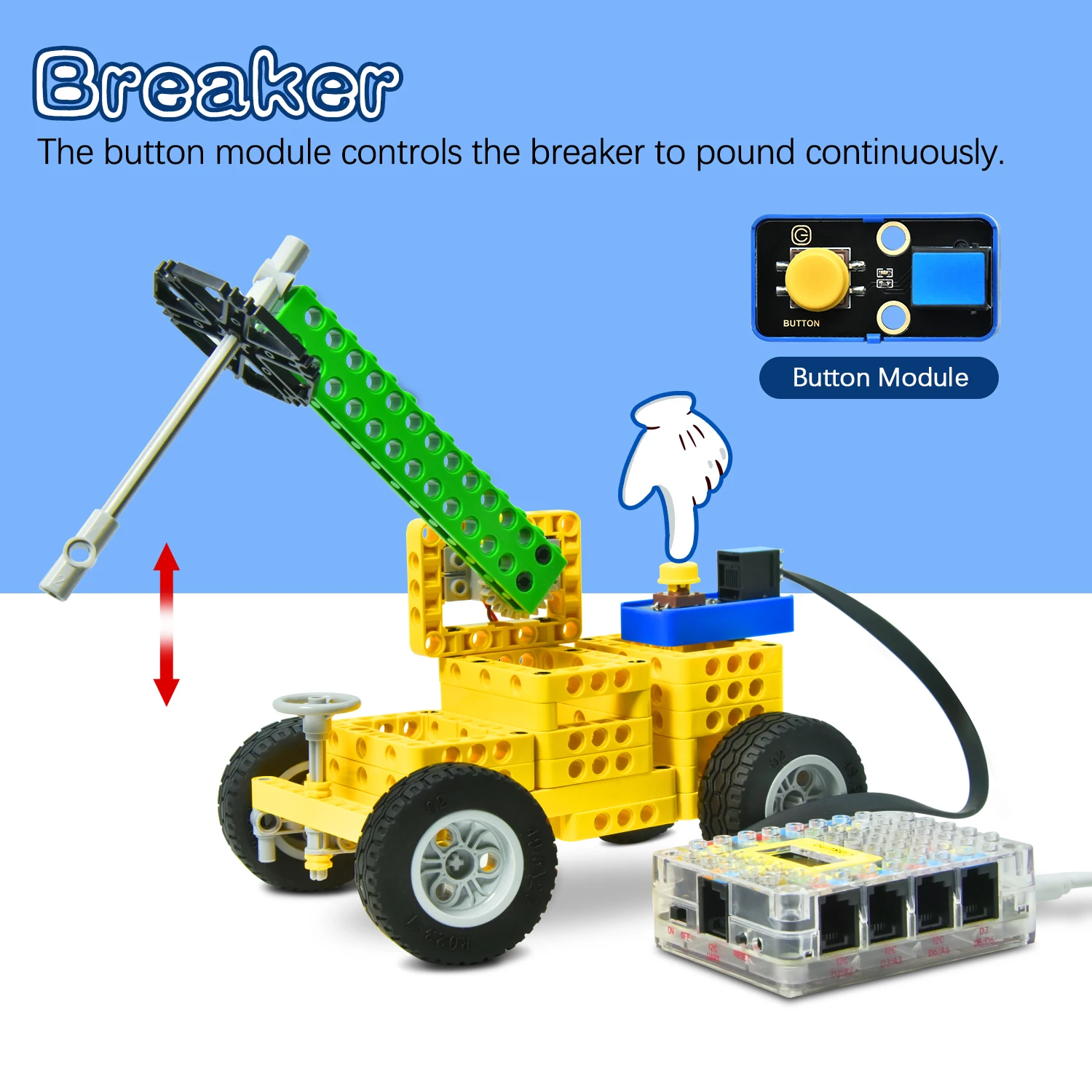

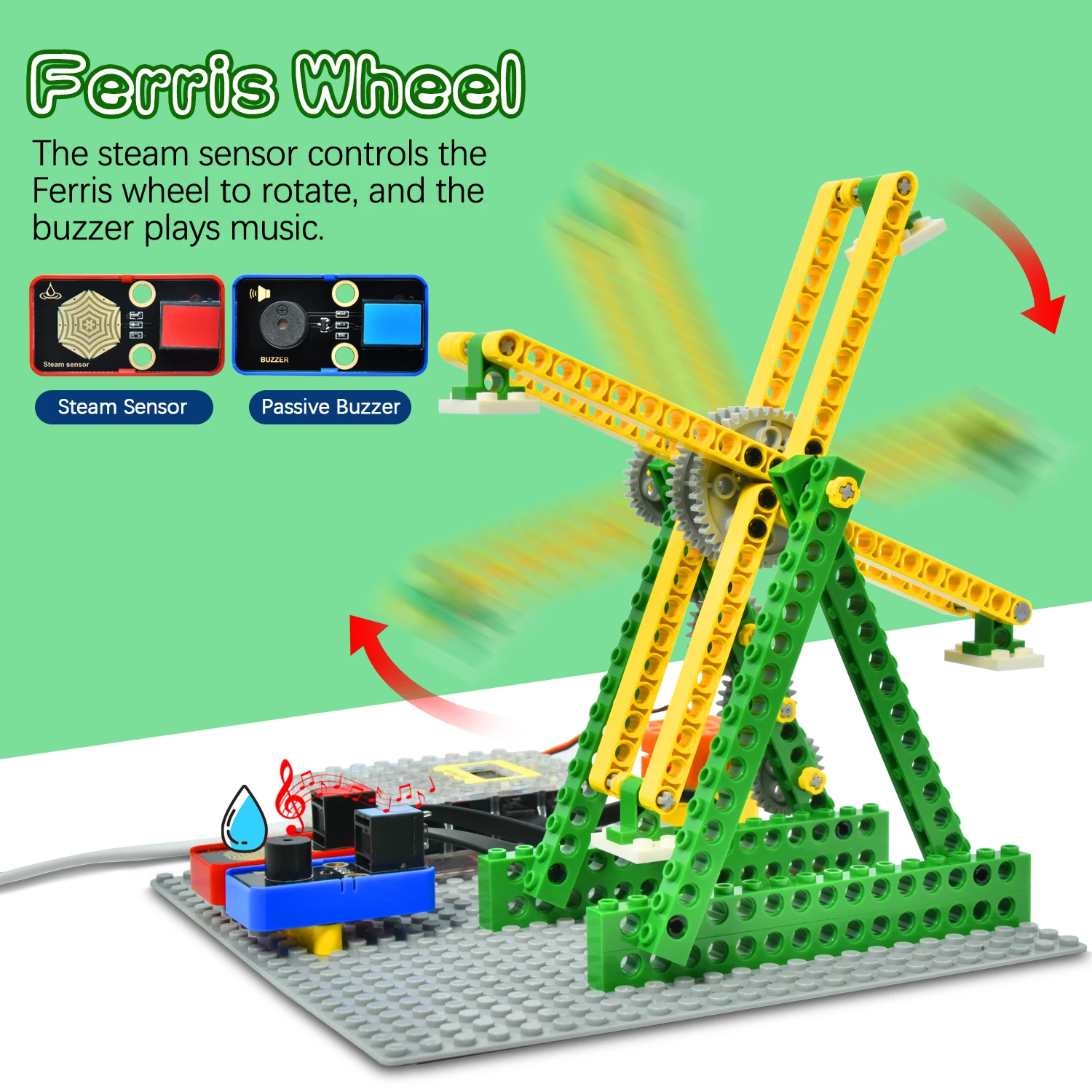

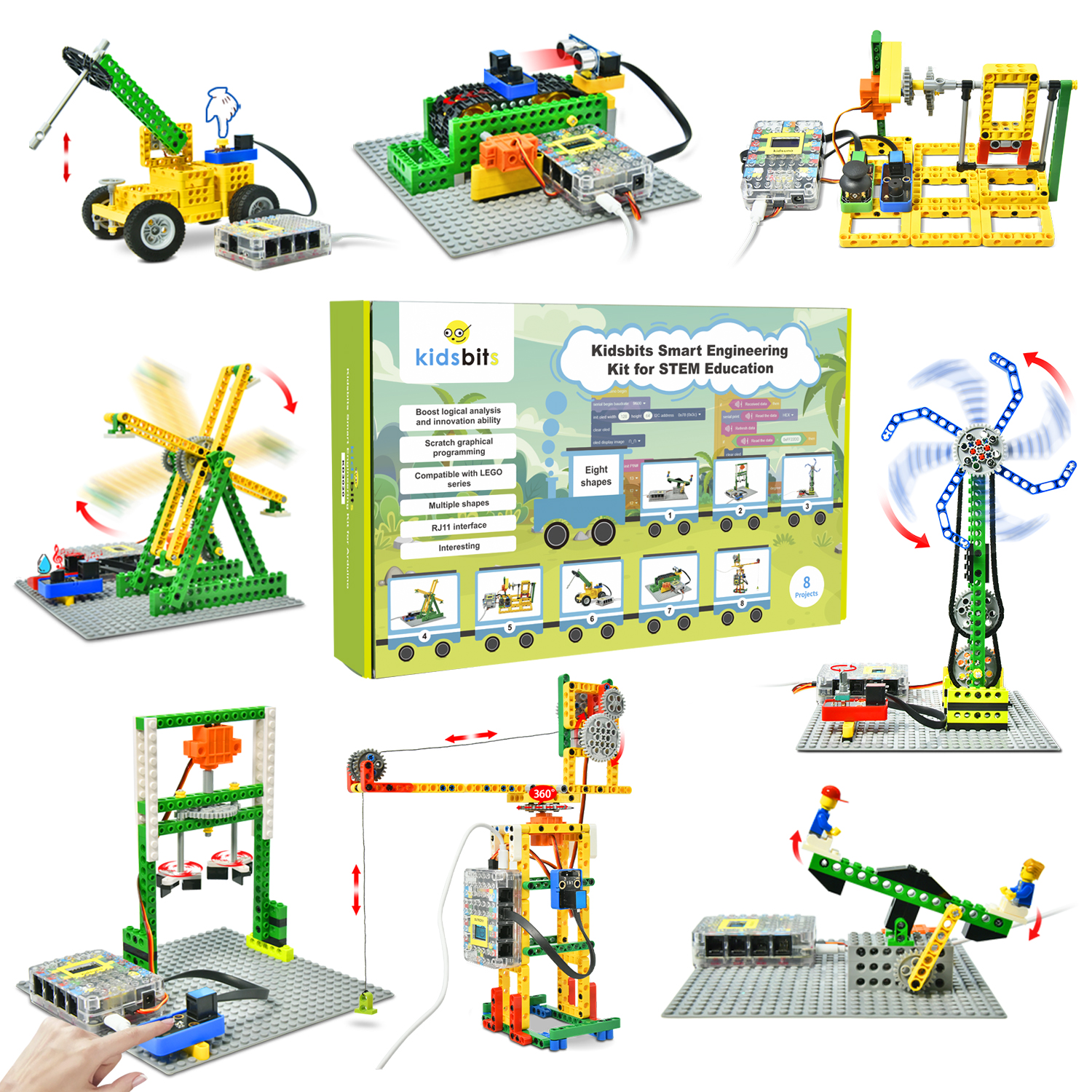

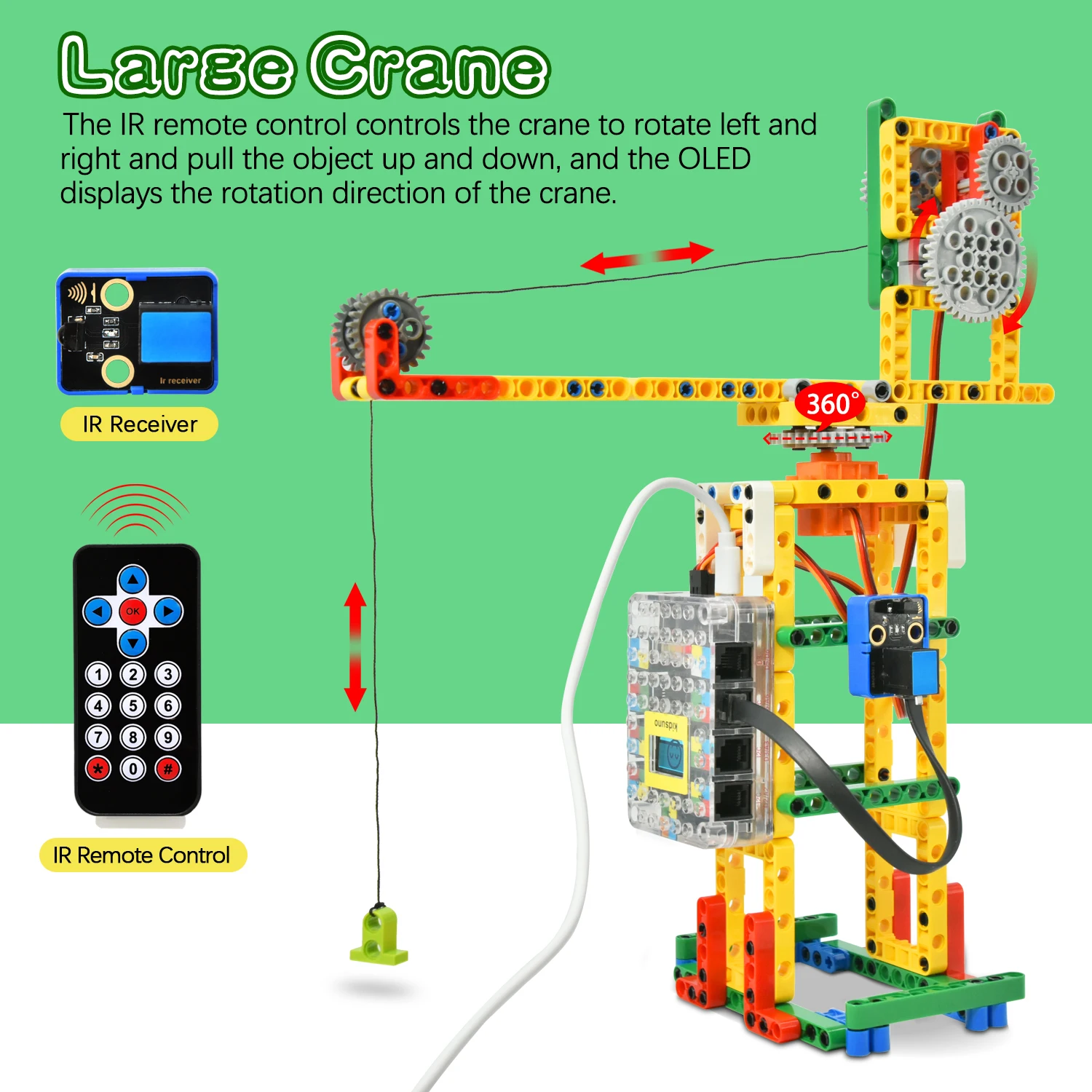

Based on Arduino and compatible with Lego series, smart engineering is a kidsbits STEM project committed to programming education for children aged 9-12. It integrates multiple sensors and modules such as a steam sensor, a rotary potentiometer as well as an ultrasonic adapter. On this very note, it is easy for you to DIY some intriguing projects including a mixer, a rope skipping machine, a breaker, a conveyor and a large crane.

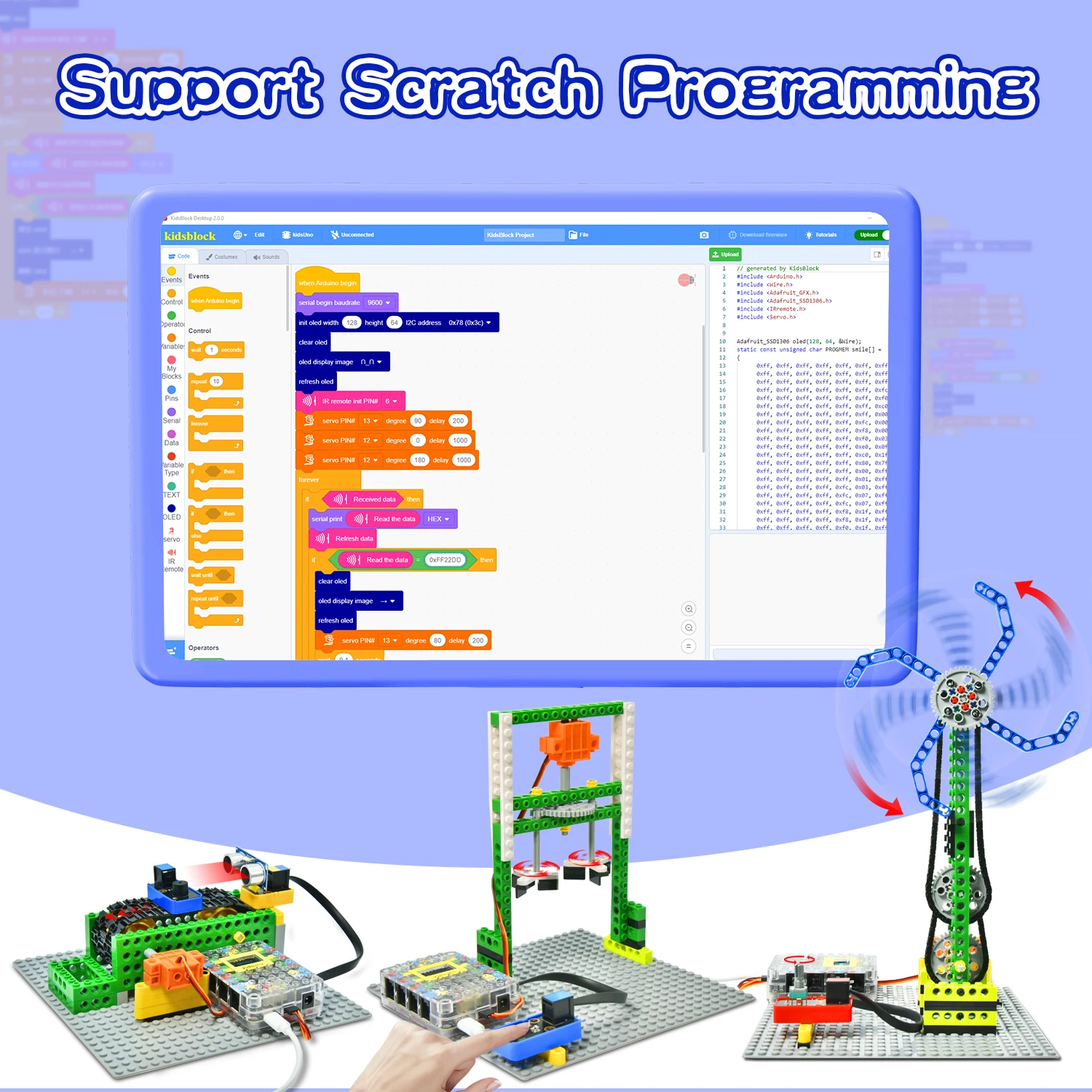

Notably, Scratch graphical programming software allows children to learn from the simplest codes and master systematic programming knowledge. What’s more, the Lego series can be used to build various shapes and inject some basic physics and mechanical knowledge to children, thus greatly enhancing their logical analysis ability, creative ability, hands-on ability and problem-solving ability.
Tutorial://kd3020-kidsbits-smart-engineering-kit-for-stem-education.readthedocs.io/en/latest/

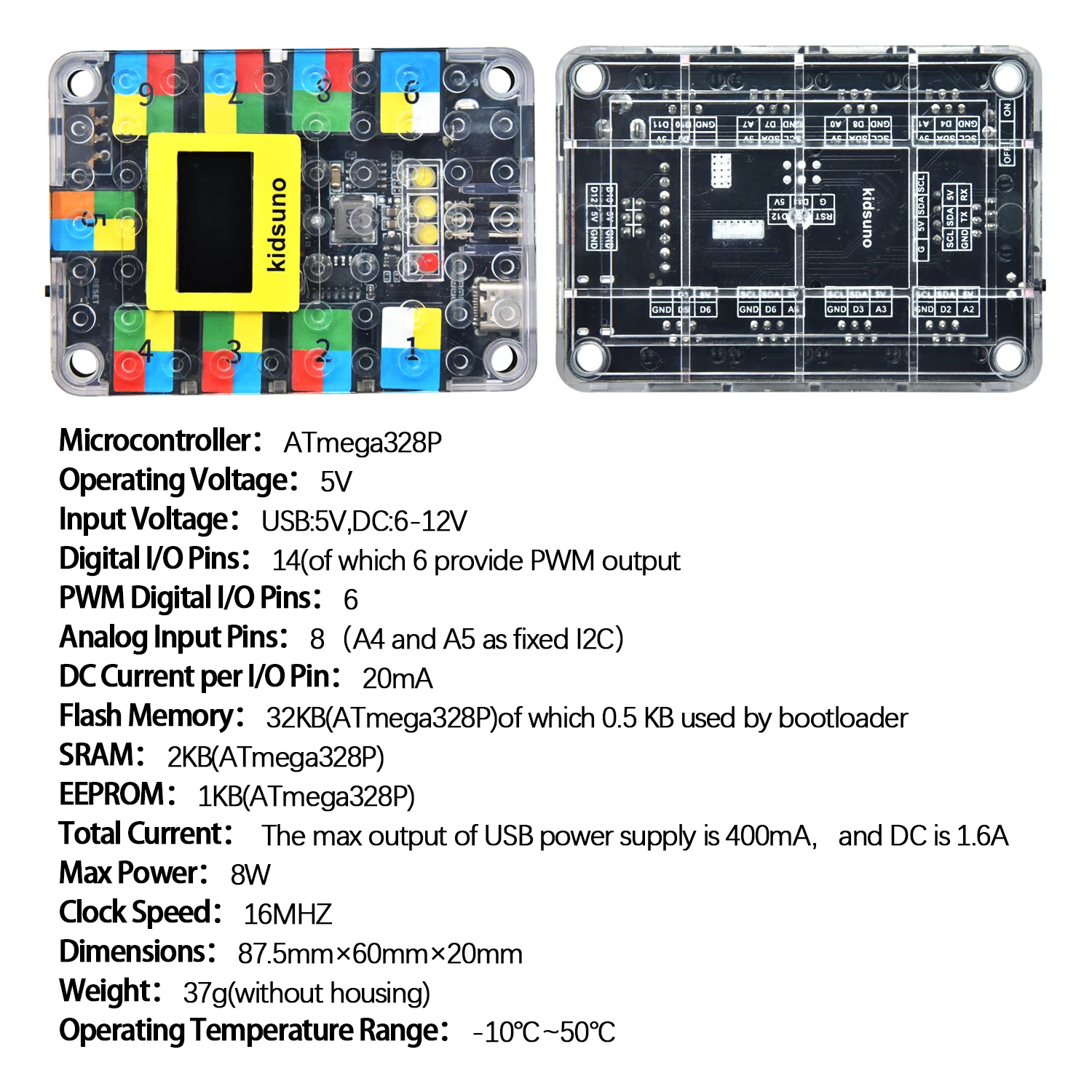

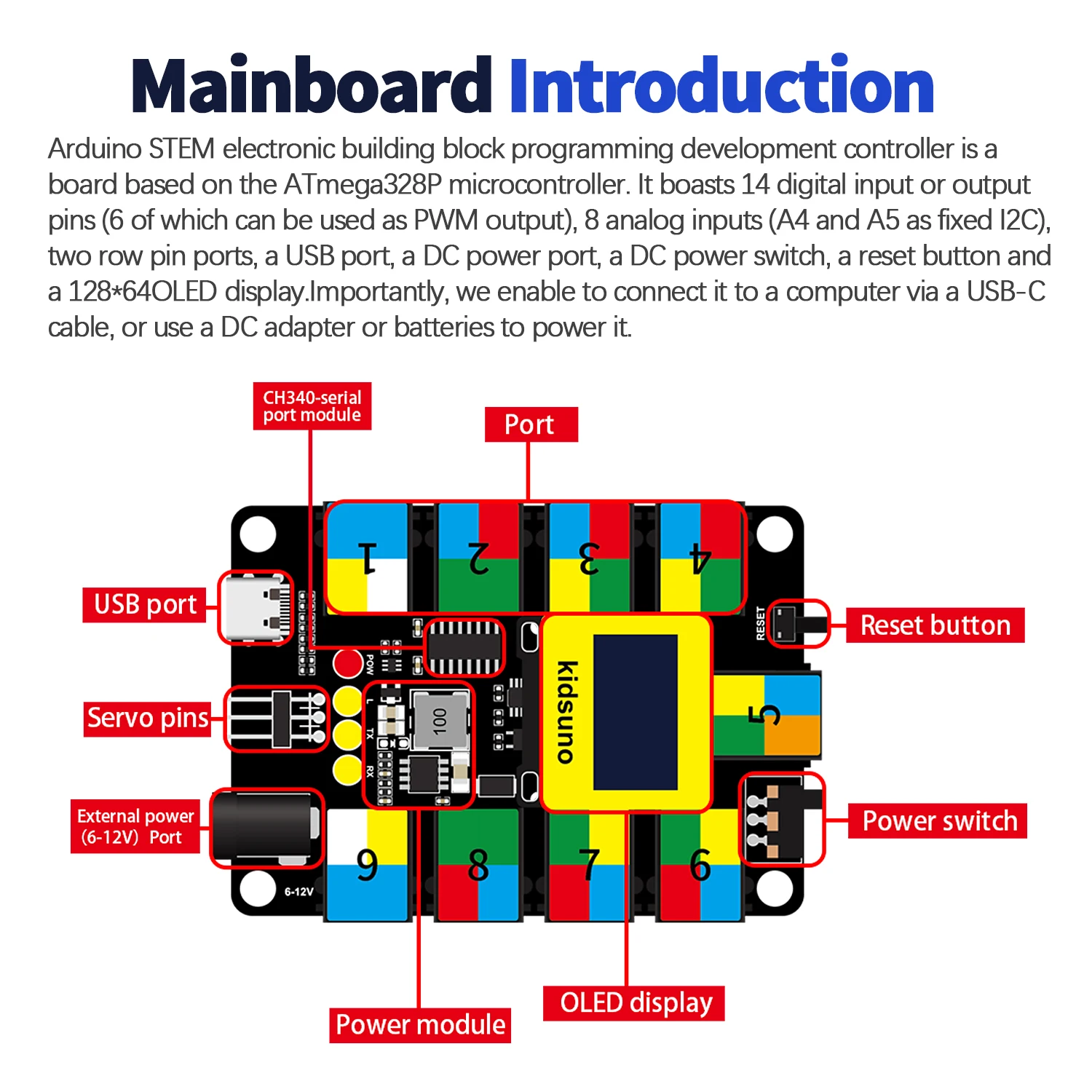

Feature
Microcontroller: ATmega328p
Operating voltage: 5V
Input Voltage: USB: 5V, DC: 6-12V
Digital I/O Pins: 14(of which 6 provide PWM output)
PWM Digital /O Pins:6
Analog Input Pins: 8(A4 and A5 as fixed I2C)
DC Current per I/O Pin: 20mA
Flash Memory: 32KB(ATmega328p)of which 0.5 KB used by bootloader
SRAM: 2KB(ATmega328P)
EEPROM: 1KB(ATmega328P)
Total Current: The max output of USB power supply is 400mA, and DC is 1.6A
Max Power: 8W
Clock Speed: 16MHZ
Dimensions:87.5mm×60mm×20mm
Weight :37g(without housing)
Operating Temperature Range:-10°C-50°C
