Introduction

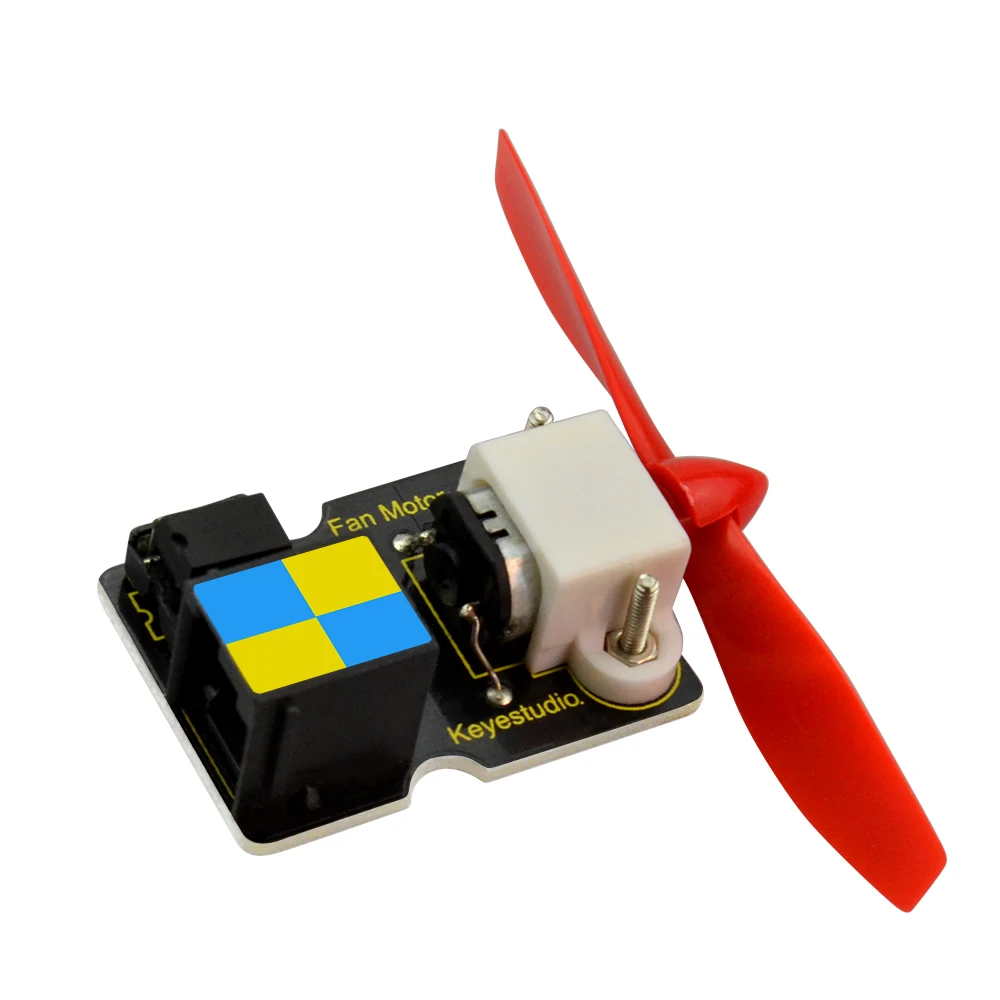

Make an air aerial propeller vessel, a cooling system, or spinning machine with this small fan module. Add flavor to your own interesting projects with this module.

The fan motor module uses the L9110 driver to control the forward and reverse rotation of propeller. It should be connected to the double digital port with only one line, pretty convenient.

It can easily blow out the fire of a lighter 20cm away. This module is commonly used for STEM class.

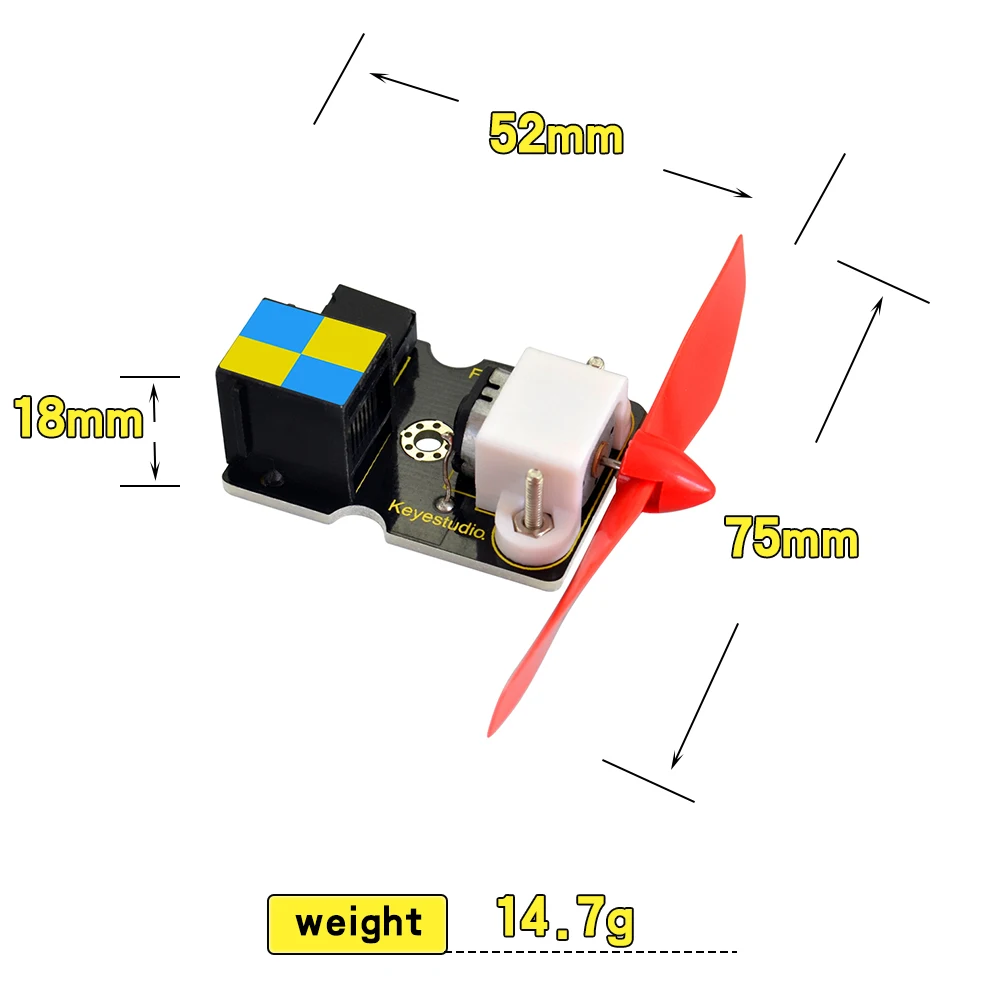

Specification

Fan diameter: 75mm

Interface：double digital interface

Working voltage: 5V

Weight：14.0g

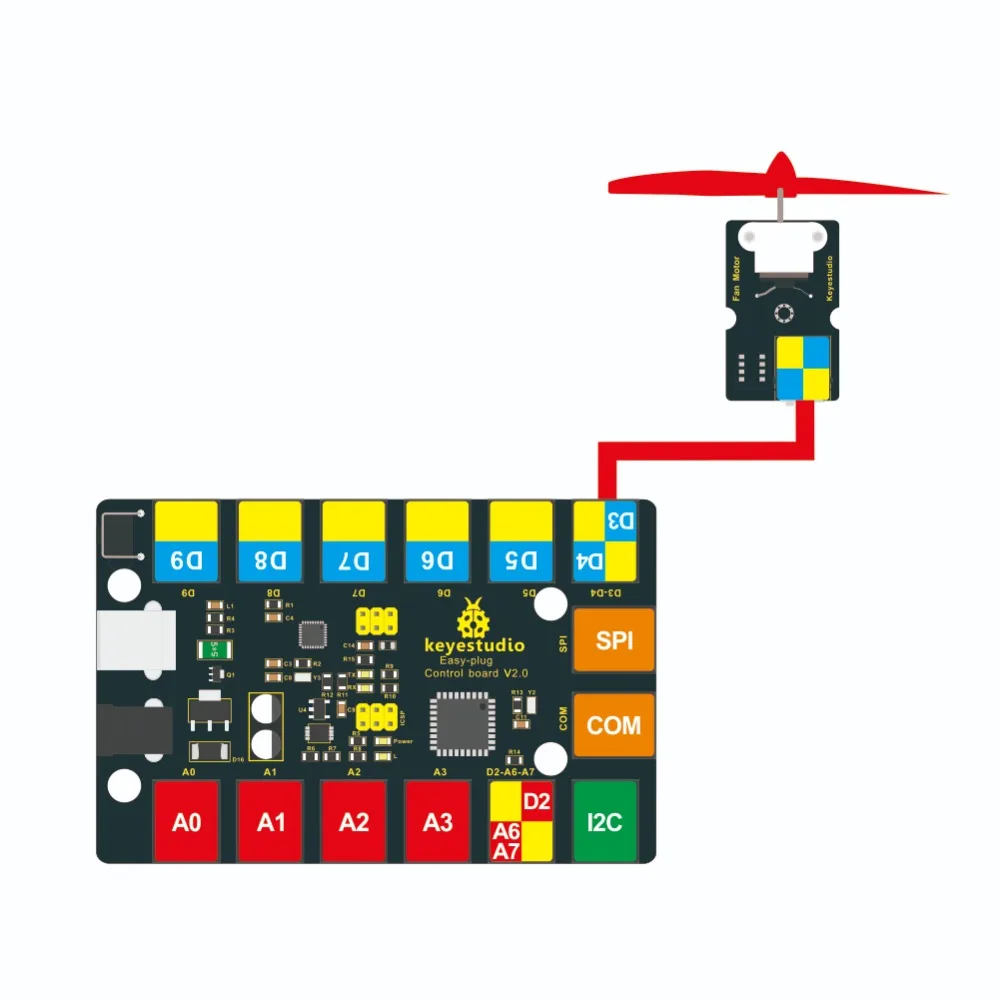

Circuit connection
