Introduction

An LCD, or liquid crystal display, is a simple screen that can display commands, bits of information, or readings from your sensor – all depending on how you program your board.

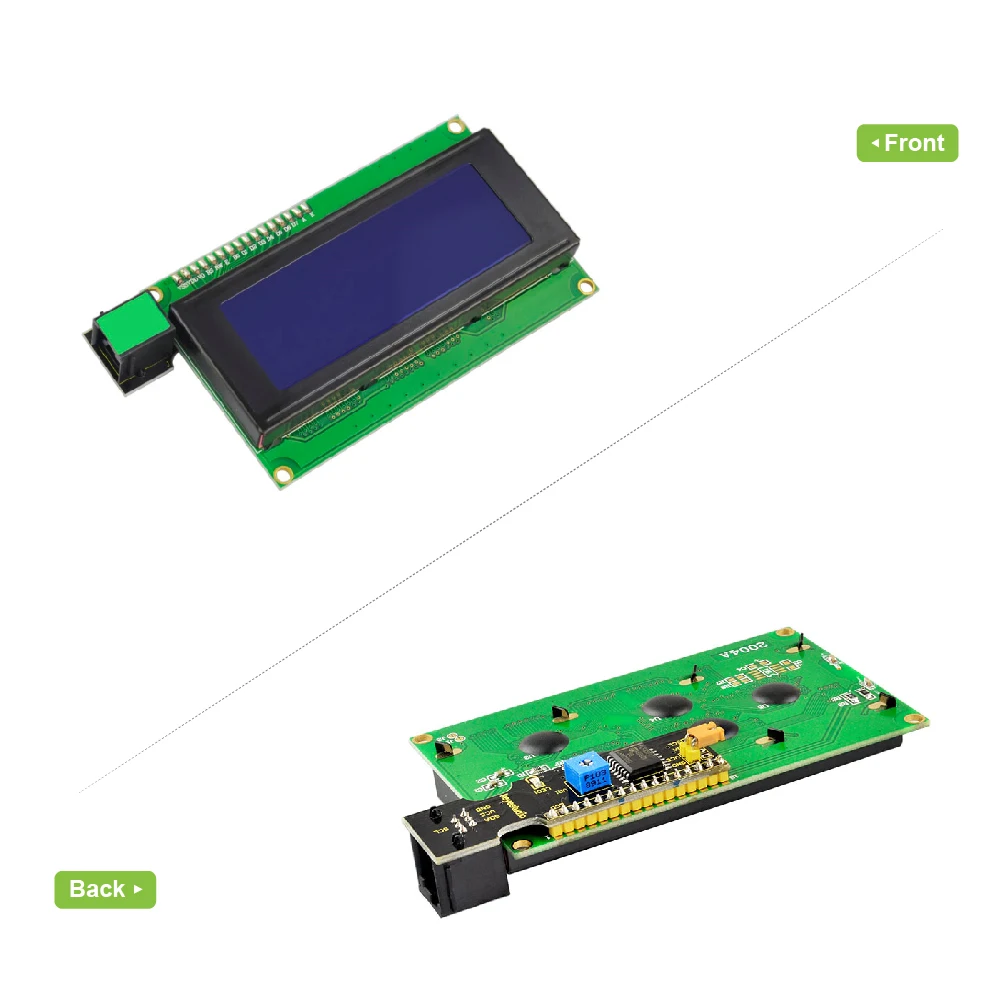

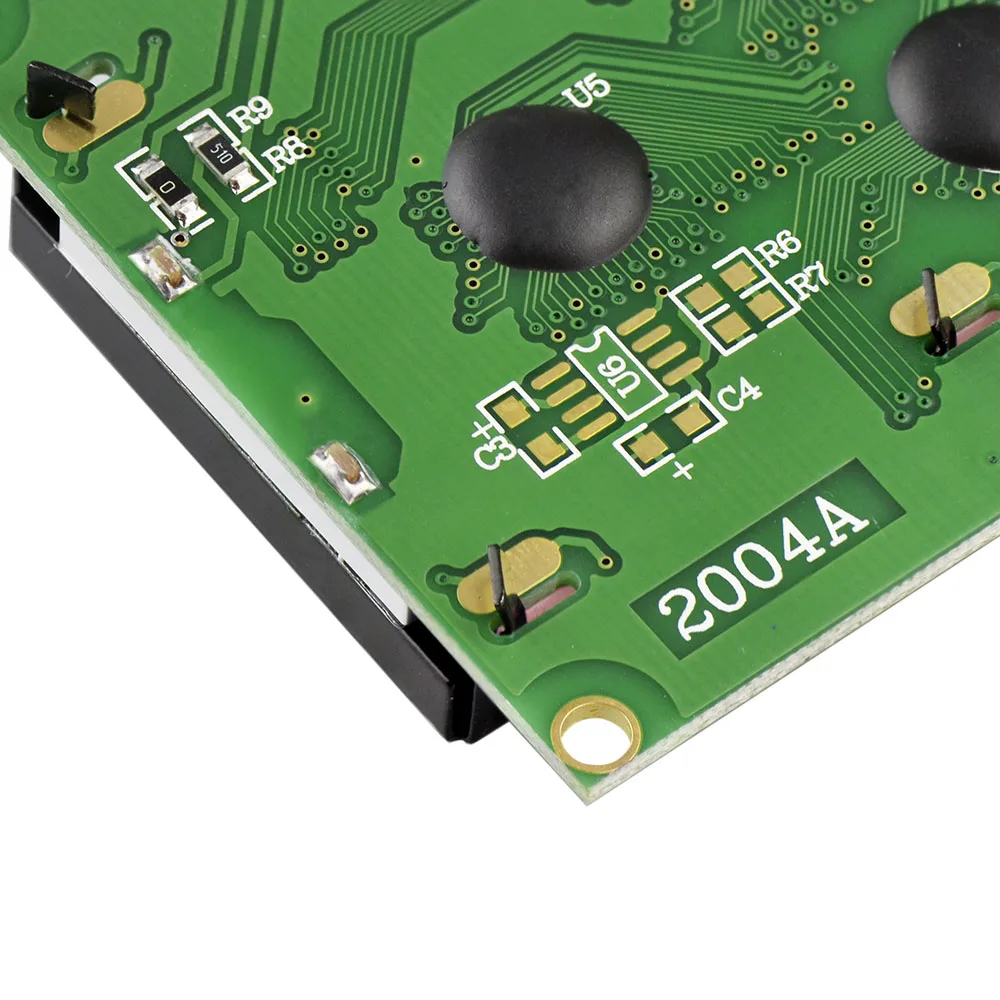

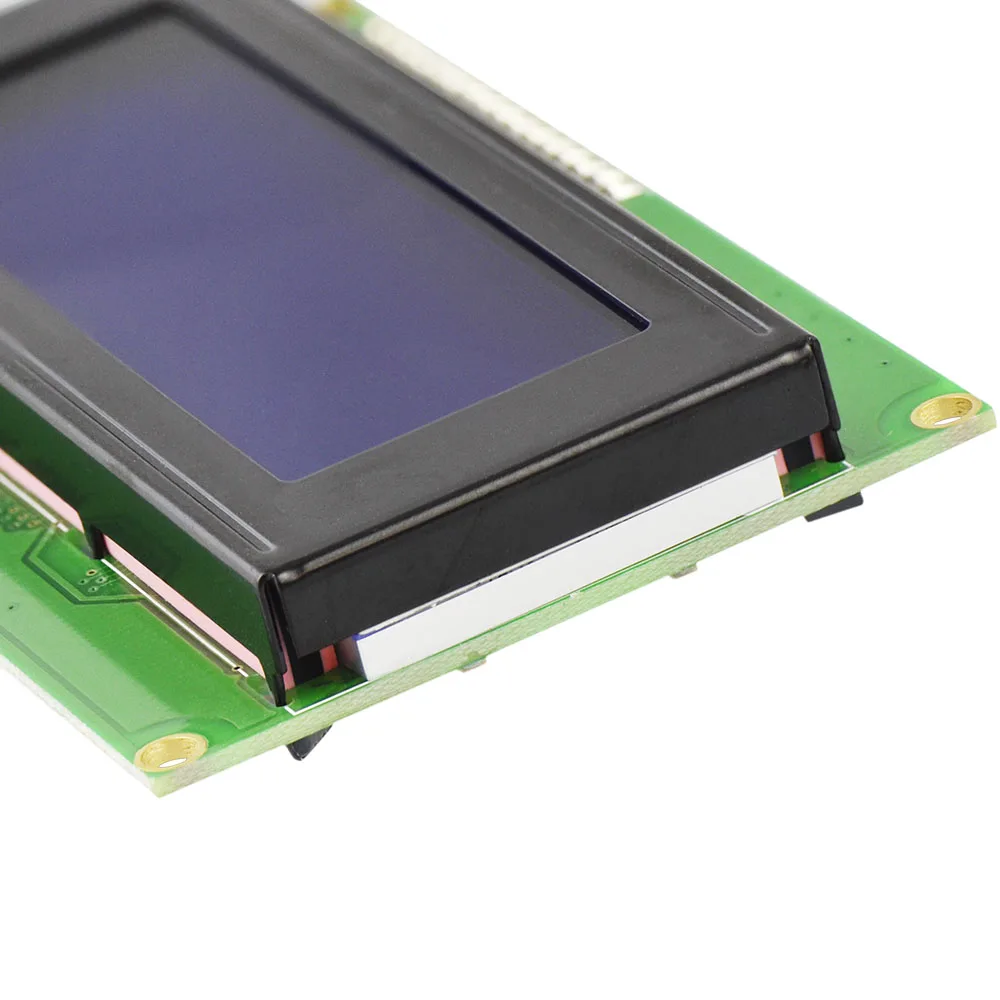

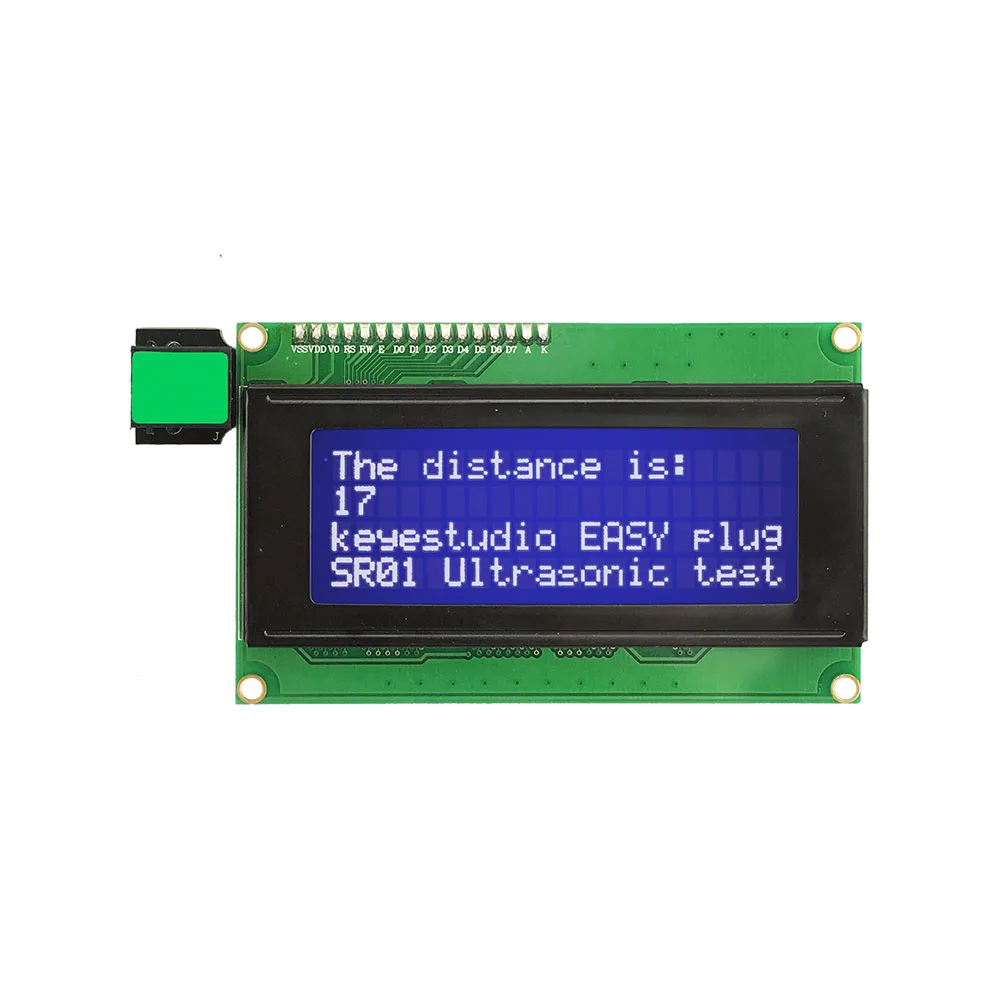

This module is a 20 character by 4 line LCD display with Blue background and White backlight.

The original 2004 LCD needs 7 IO ports to be up and running, ours is built with Arduino IIC/I2C interface, saving you 5 IO ports.

This LCD is ready-to-use because it is compatible with the Arduino Liquid Crystal Library. It comes with EASY Plug connector, you can use one line for simple connection.

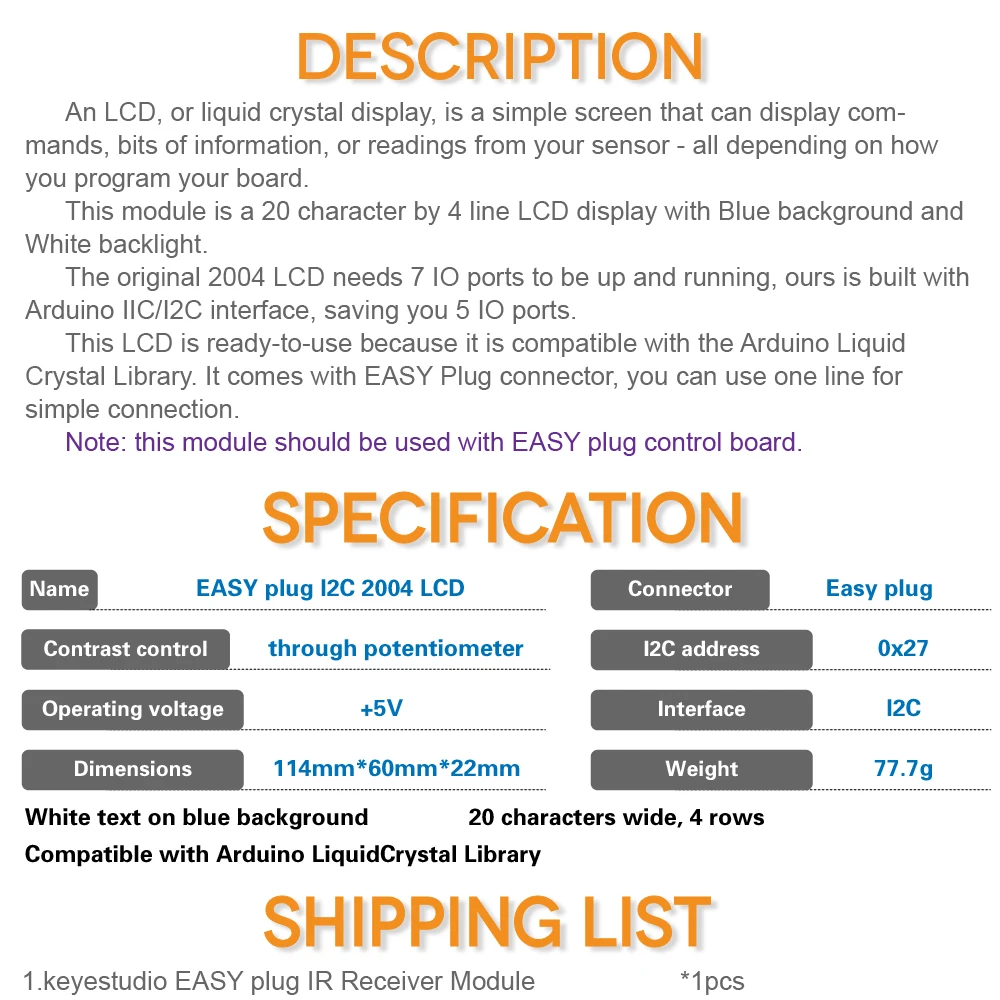

Parameters

• Interface: I2C

• I2C address: 0x27

• White text on blue background

• 20 characters wide, 4 rows

• Operating voltage: +5V

• Contrast control: through potentiometer

• Compatible with Aduino LiquidCrystal Librar

Technical Details

• Dimensions: 114mm*60mm*22mm

• Weight: 77.7g

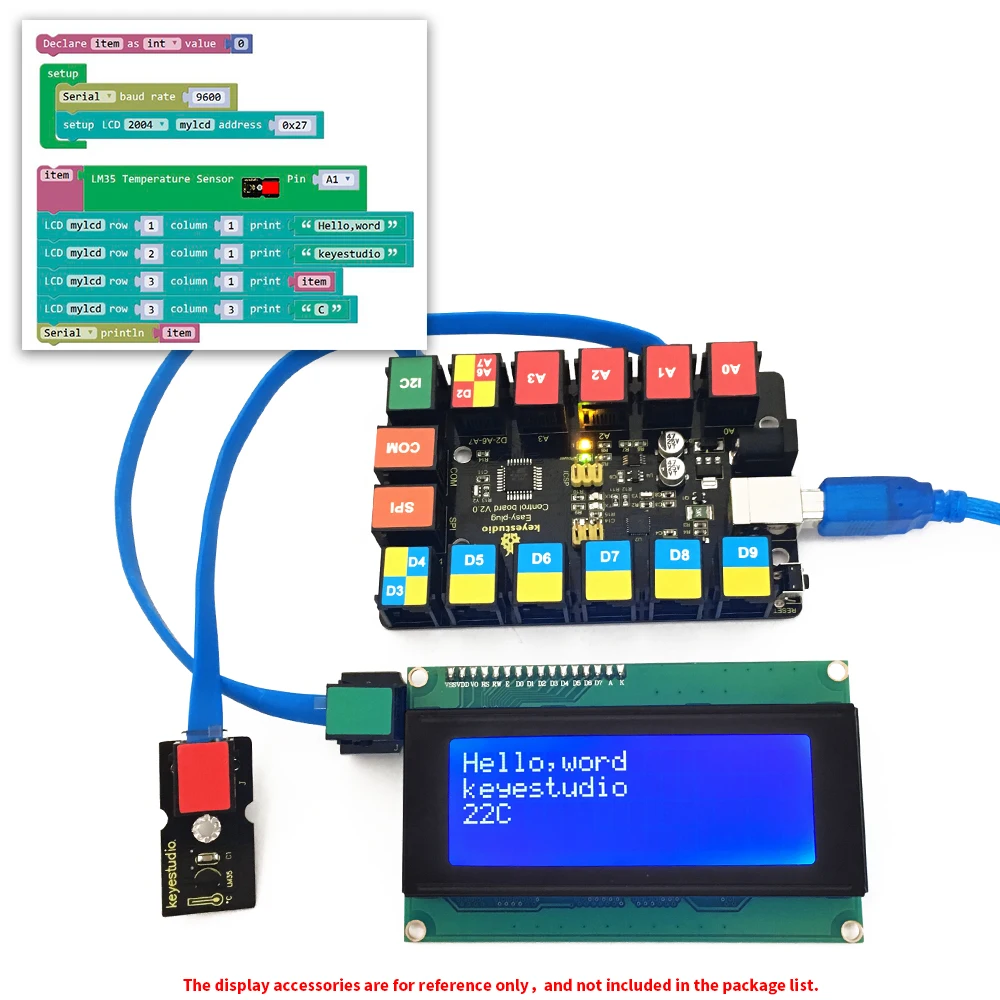

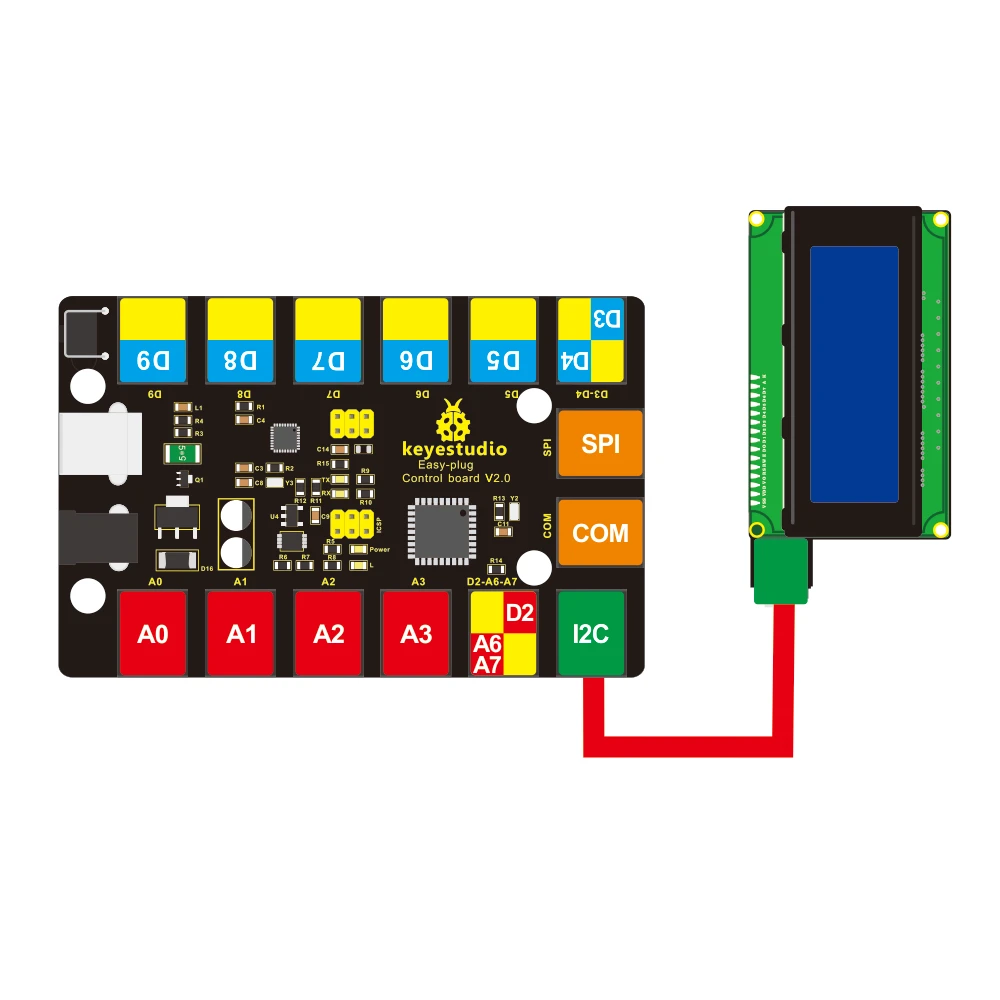

Connection Diagram

Note: To ensure that this module will work properly, these two head files, namely Wire and LiquidCrystal_I2C, must be added into our library before code test.
