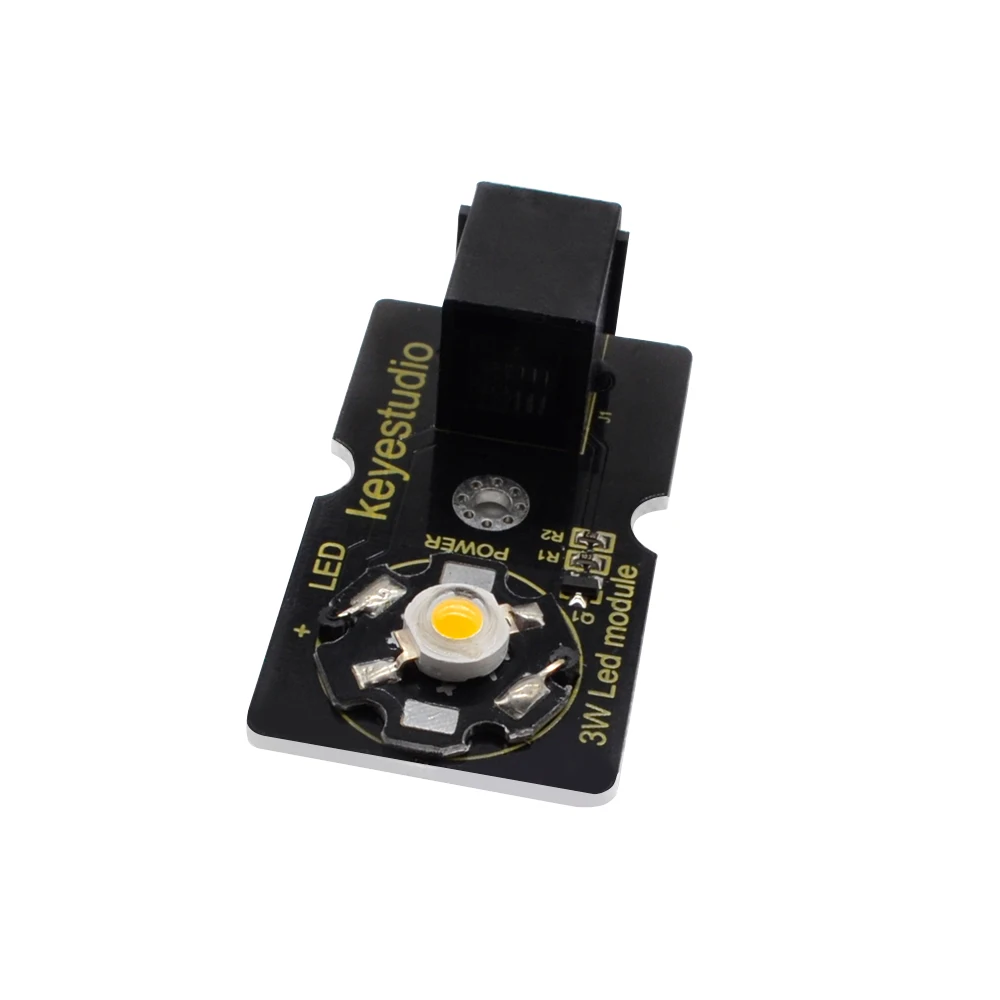

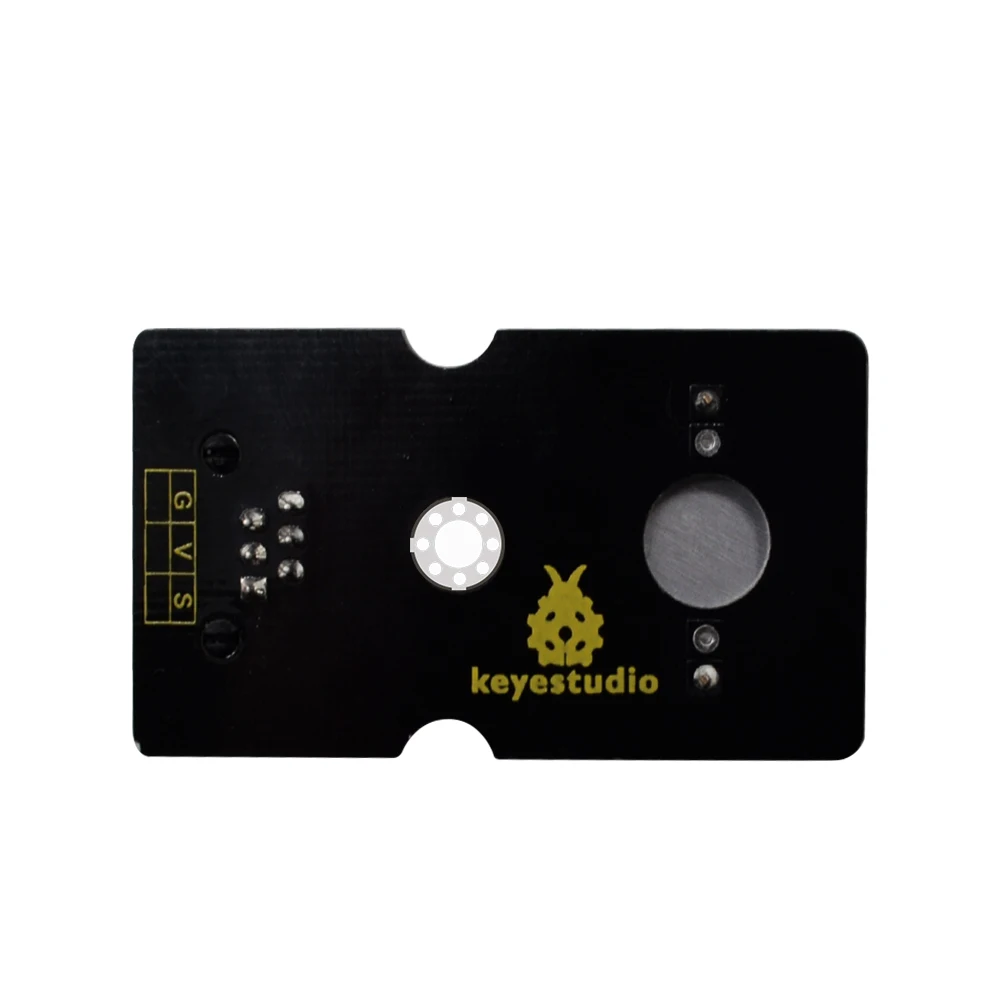

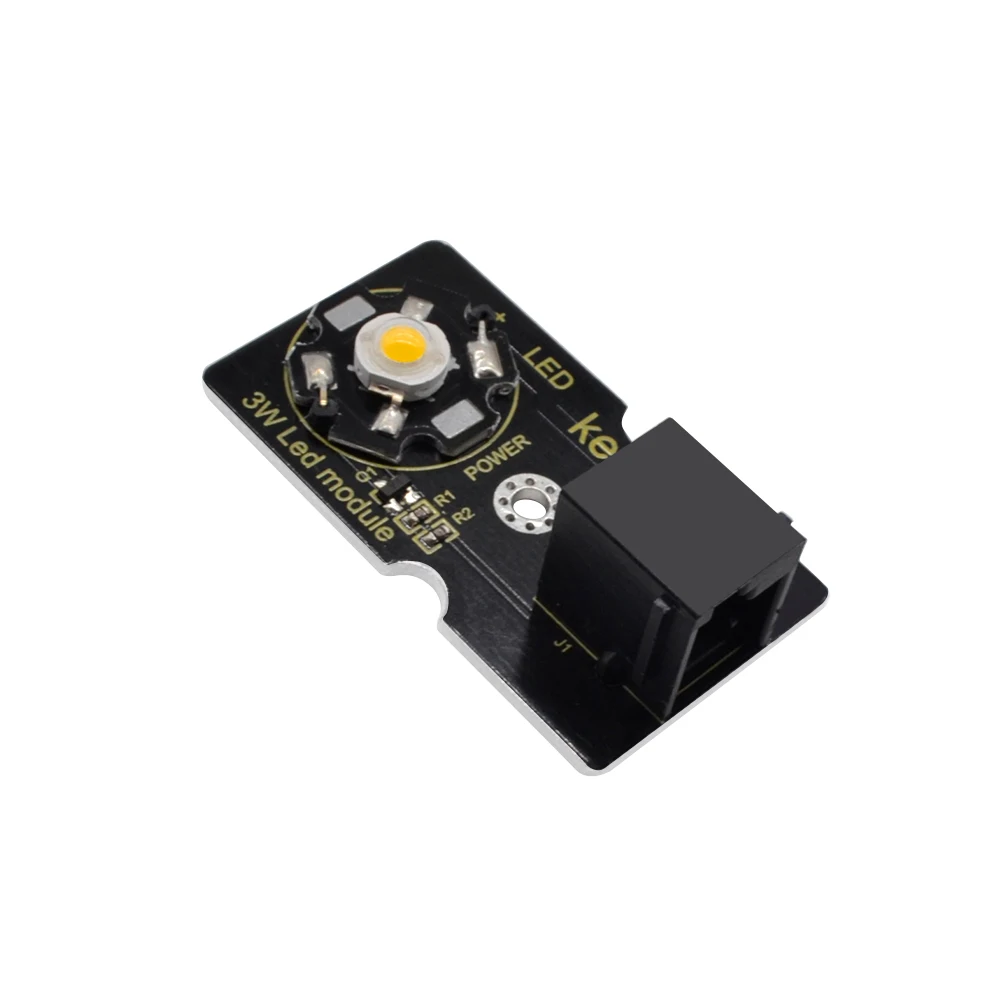

This is a high power LED module. The main function is to turn on or off a plugin LED. It has features of supper bright and high power, and is compatible with EASY plug Control board V2.0.
For easy wiring, the module’s 3 pins are integrated into a crystal socket, so you are able to connect the 3W LED module to the control board using only a RJ11 cable for communication.
Special Note:
The sensor/module is equipped with the RJ11 6P6C interface, compatible with keyestudio EASY plug Control Board with RJ11 6P6C interface.
If you have other control boards that also equip with the RJ11 6P6C interface but has different internal line sequence, CANNOT use compatibly with keyestudio EASY plug sensor/module.
Technical Details
Operating voltage: DC 3.3-5V
Interface: EASY plug (RJ11 6P6C)
Emitting color: yellow
Recommended use current: 600－700ma
Luminance: 200－220LM
Input signal: digital signal

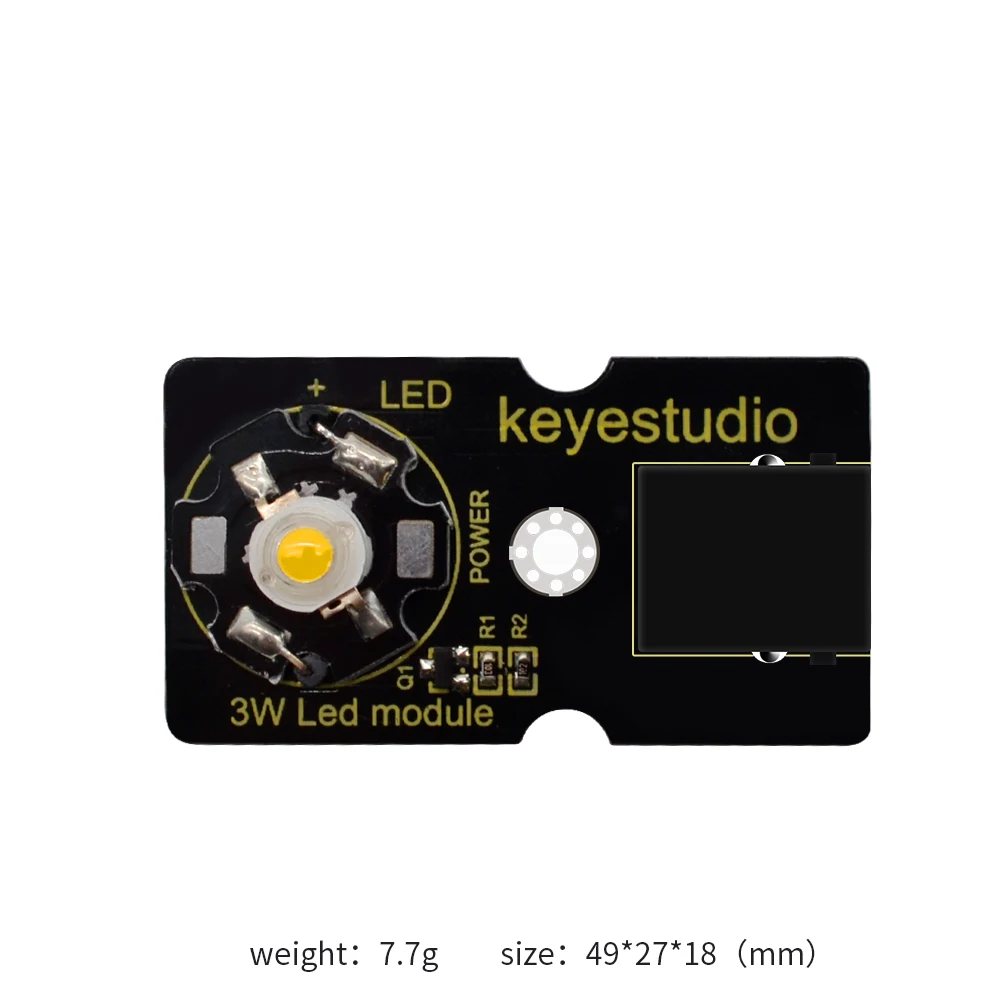

Dimensions: 49mm*27mm*18mm
Weight: 7.7g
