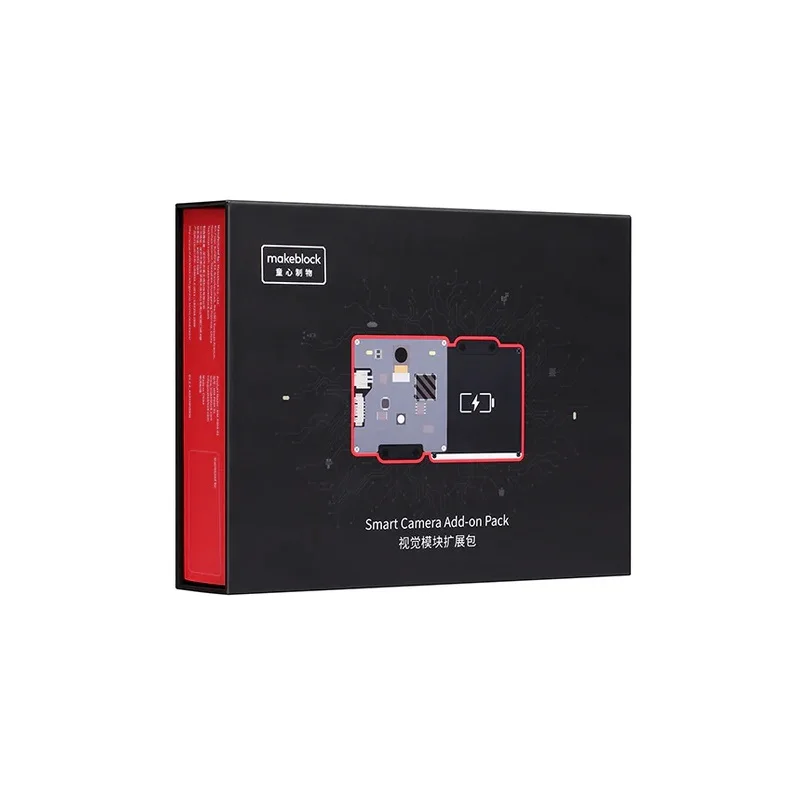

Smart Camera Add-on Pack
The smart camera can learn and recognise brightly coloured objects as well as detecting bar codes and lines, which allows it to be used in various applications, such as garbage sorting, intelligent transportation, object tracking, and intelligent line following. Supported devices: mBot, mBot Ranger, CyberPi, Halocode.

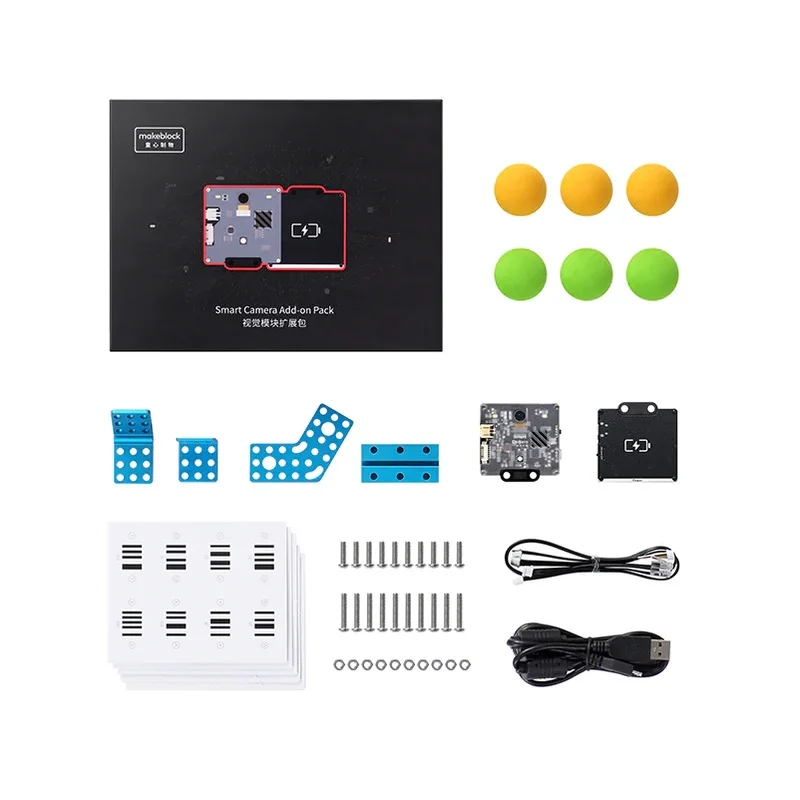

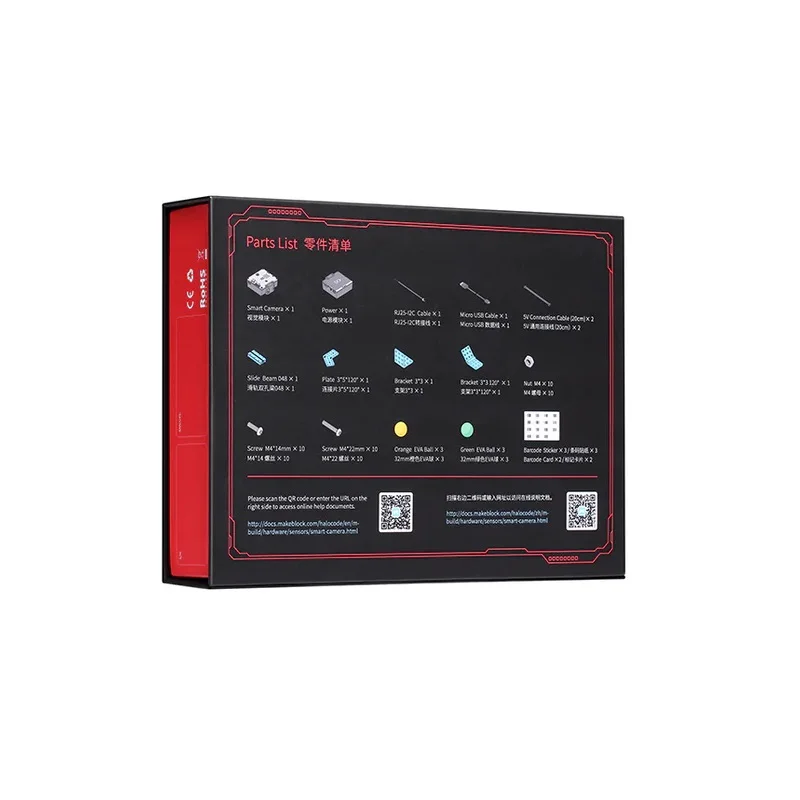

Parts List:
2 x Brackets
1 x Slide Beam (blue)
1 x Plate
10 x Nuts
20 x Screws
1 x mBuild Smart Camera
1 x mBuild Power
1 x Connection Cable
2 x 5V General Cable-20cm
1 x USB Cable
3 x Orange Balls (32mm)
3 x Green Balls (32mm)

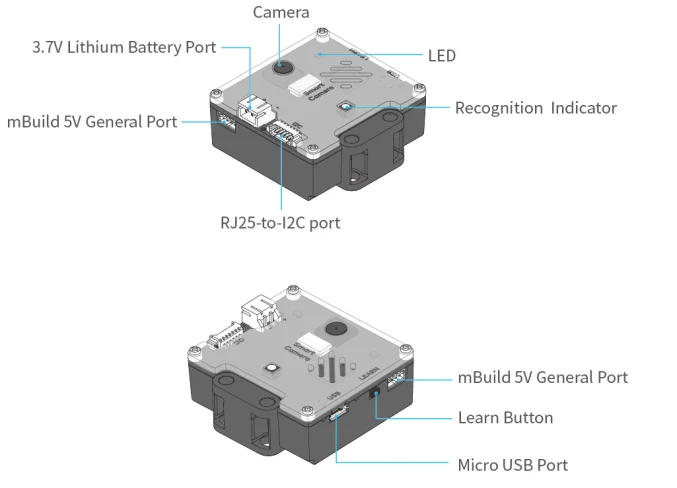

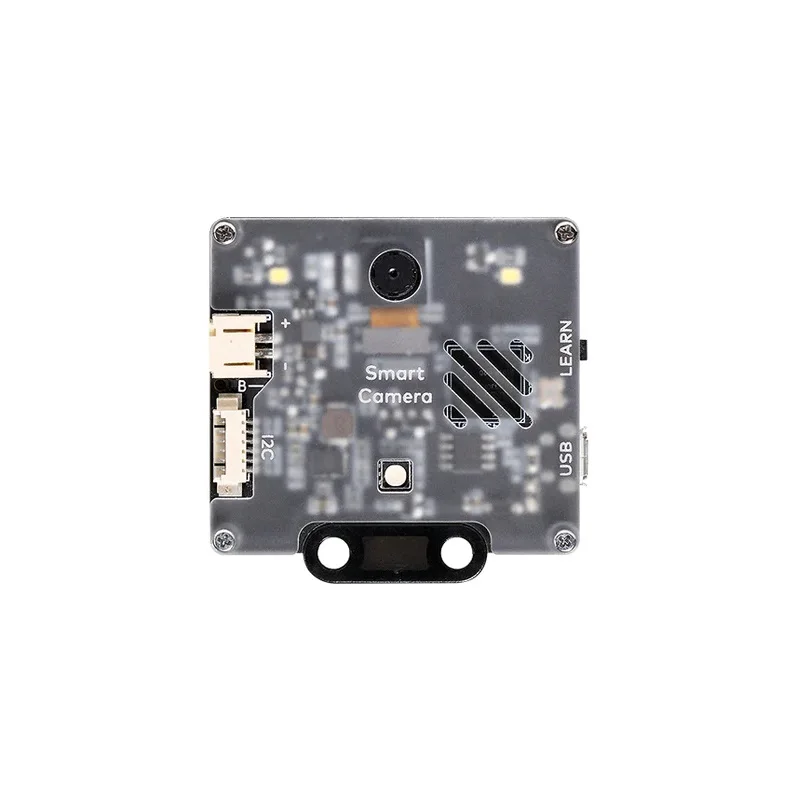

mBuild Smart Camera
The smart camera can learn and recognize brightly colored objects as well as detecting bar codes and lines, which allows it to be used in various application scenarios, such as garbage sorting, intelligent transportation, object tracking, and intelligent line following.
Parameters
● Dimensions: 48 × 48 (mm)
● Resolution: 640 x 480
● Field of view: 65.0 degrees
● Effective focal length: 4.65±5% mm
● Recognition speed: 60fps
● Recognition distance: 0.25–1.2 (m)
● Fall resistance: 1m
● Power supply: 3.7V lithium battery or 5V mBuild power module
● Power consumption range: 0.9–1.3W
● Operating temperature: -10℃–55℃
Click to learn more information about smart camera.

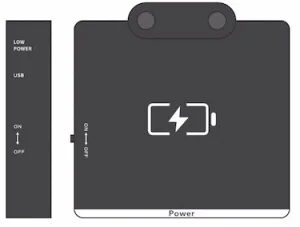

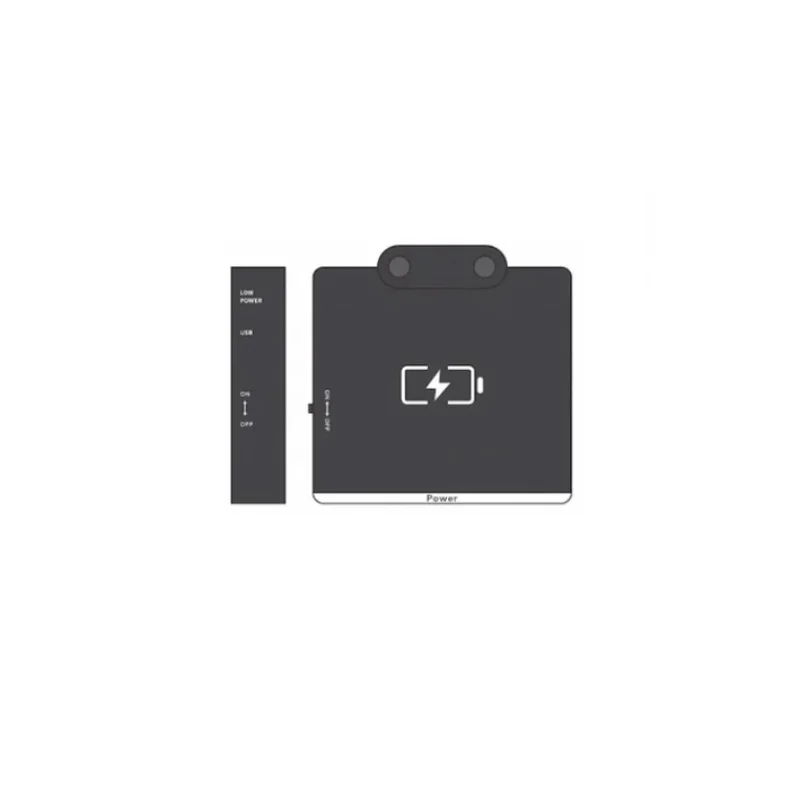

mBuild Power
The power module powers other mBuild modules.
Indicators
Specifications
● Dimension: 48×48mm
● Battery capacity: 950mAh
● Battery voltage: 3.7V
● Discharge rate: 3CC
● Battery life: 3 hours ( reference only)
● Charging time: 1.25 hours
● Output voltage: DC 5V
● Discharge current: 5V 1.5A, with the maximum instantaneous value of 5V 2A
● Protection current: 5V 3A（You need to connect the Power module to a charger to restart it after the protection is triggered.）
● Input voltage: DC 5V
● Input current: ＜2A
● Working temperature ：0℃–45℃
● Service life：≥ 300 battery cycles
Precautions
● Read the instructions carefully before using it
● Keep it Away from heat sources, high-voltage places and do not knock or hit it while using it
● Dispose of it properly and safely, and do not throw them into fire or water
● During use or storage, if the power module is hot, leaking, smelling unusual, deformed, or in any other abnormal state, stop using it immediately
