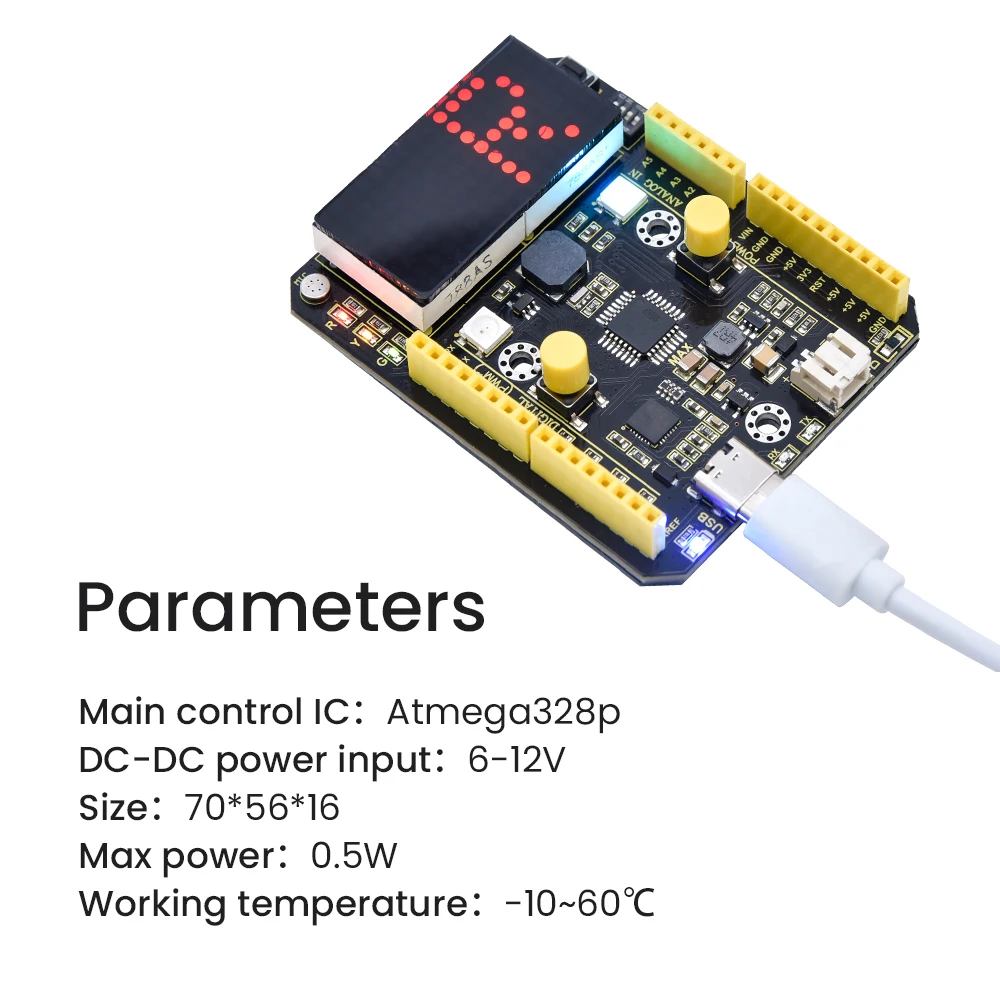

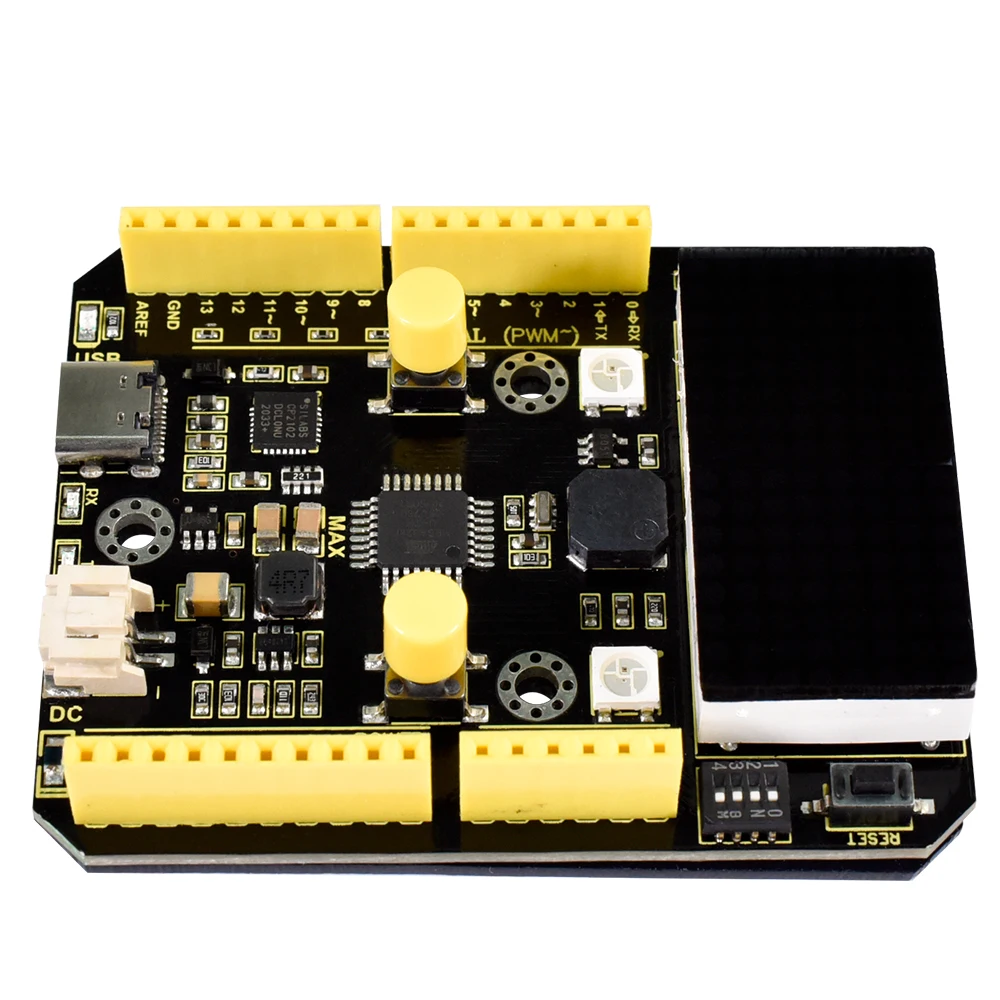

Parameters

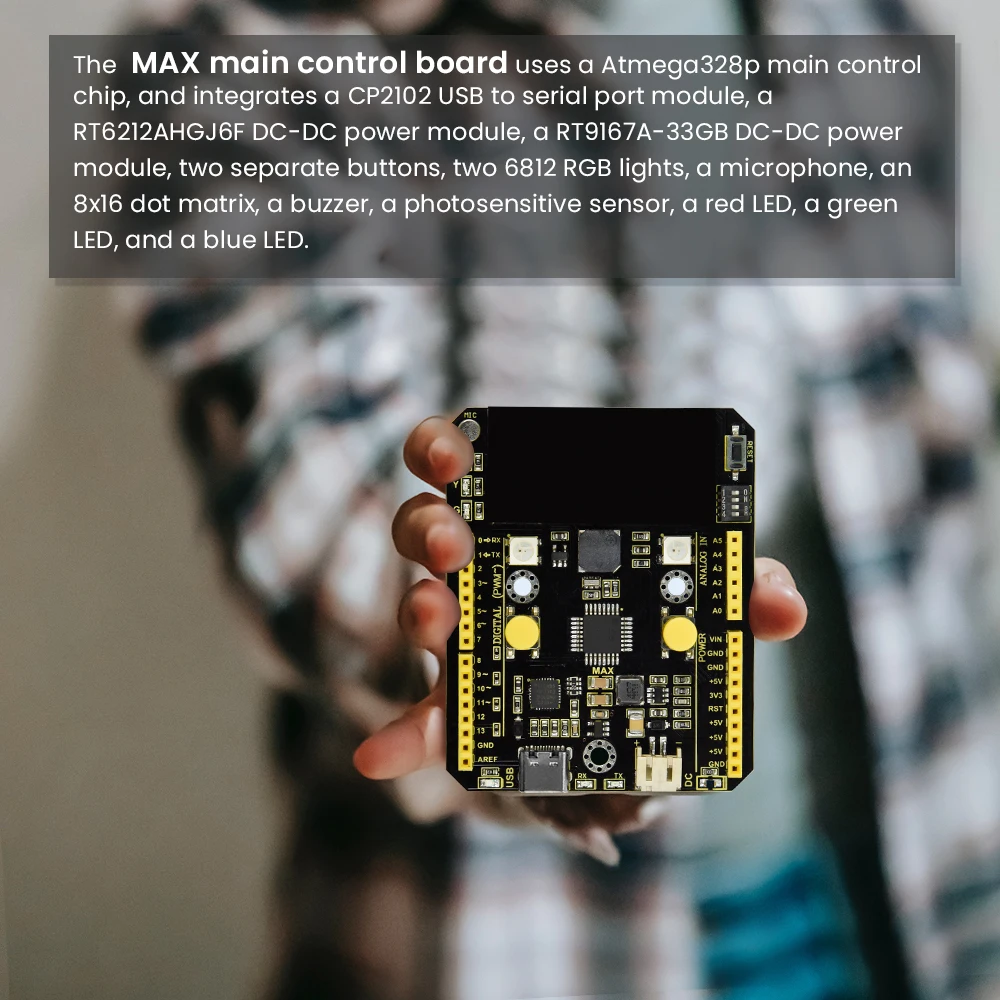

Main control IC:Atmega328p

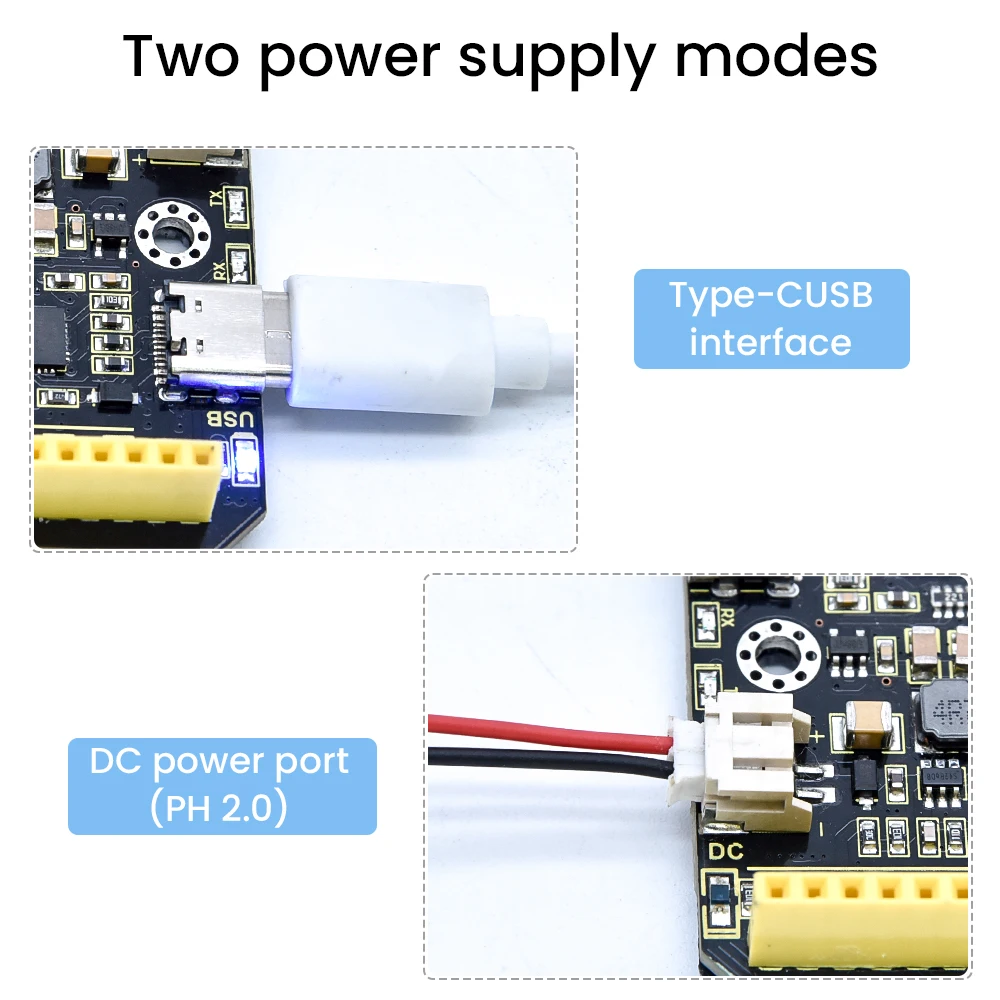

DC-DC power input:6-12V

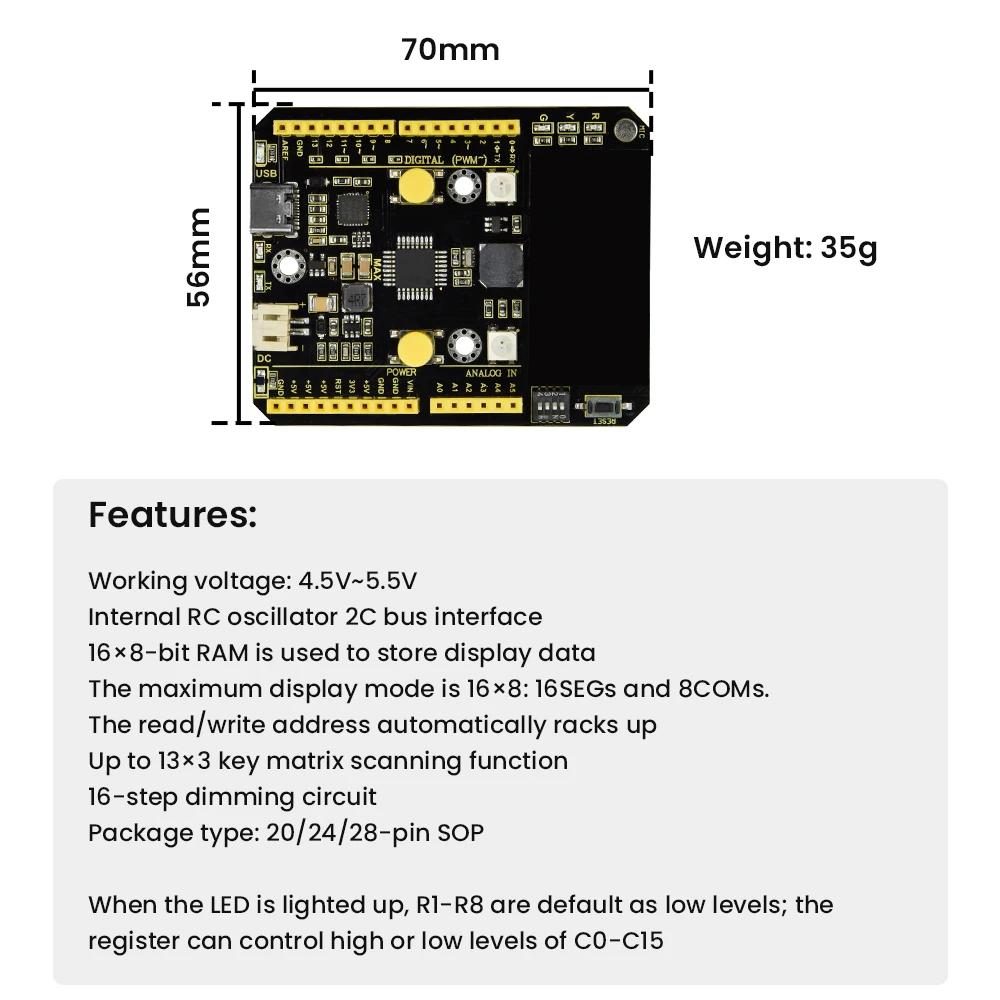

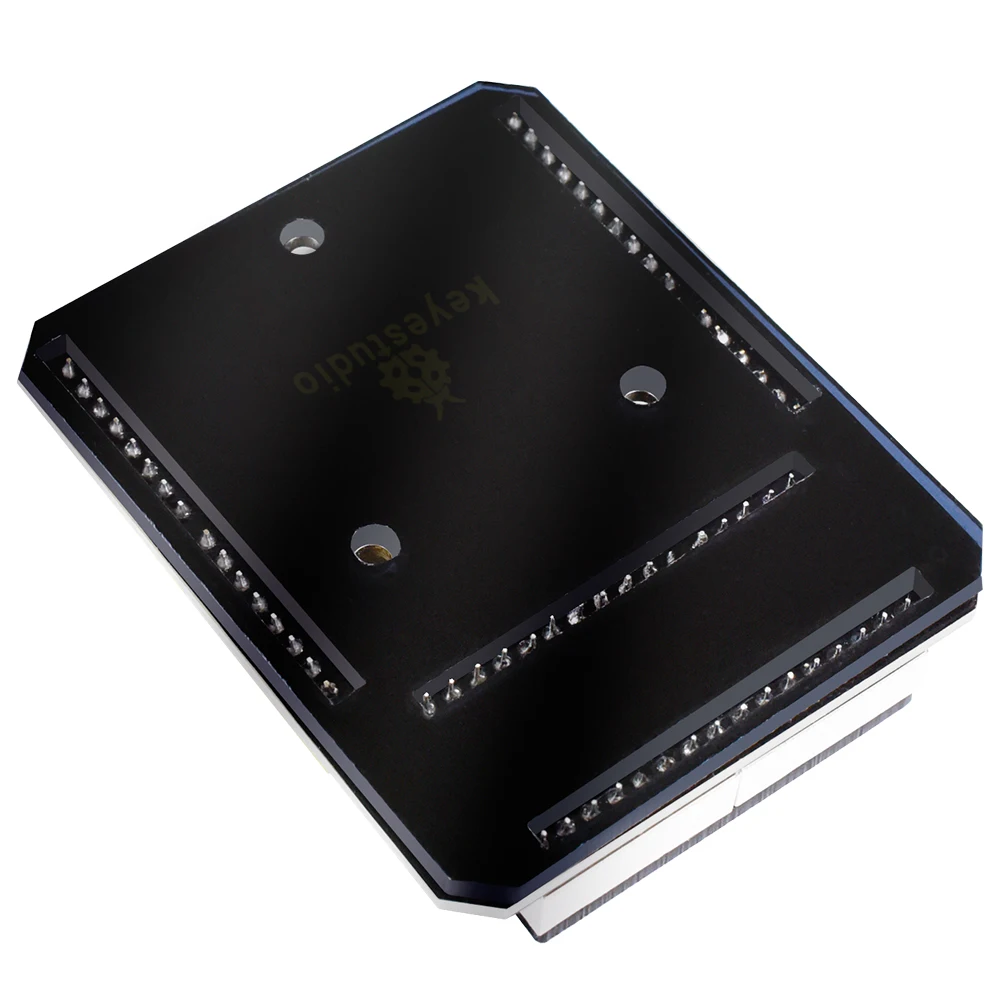

Size:70*56*16
Max power:0.5W
Working temperature:-10-60℃

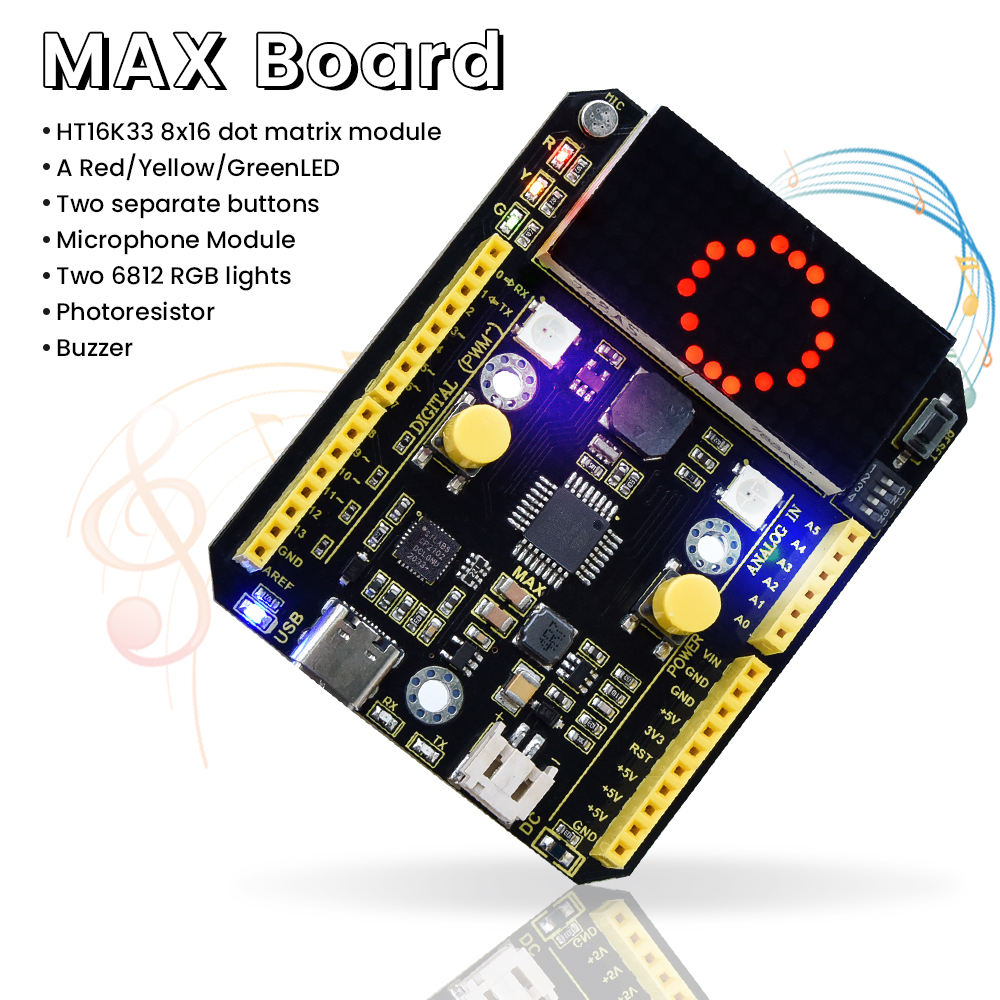

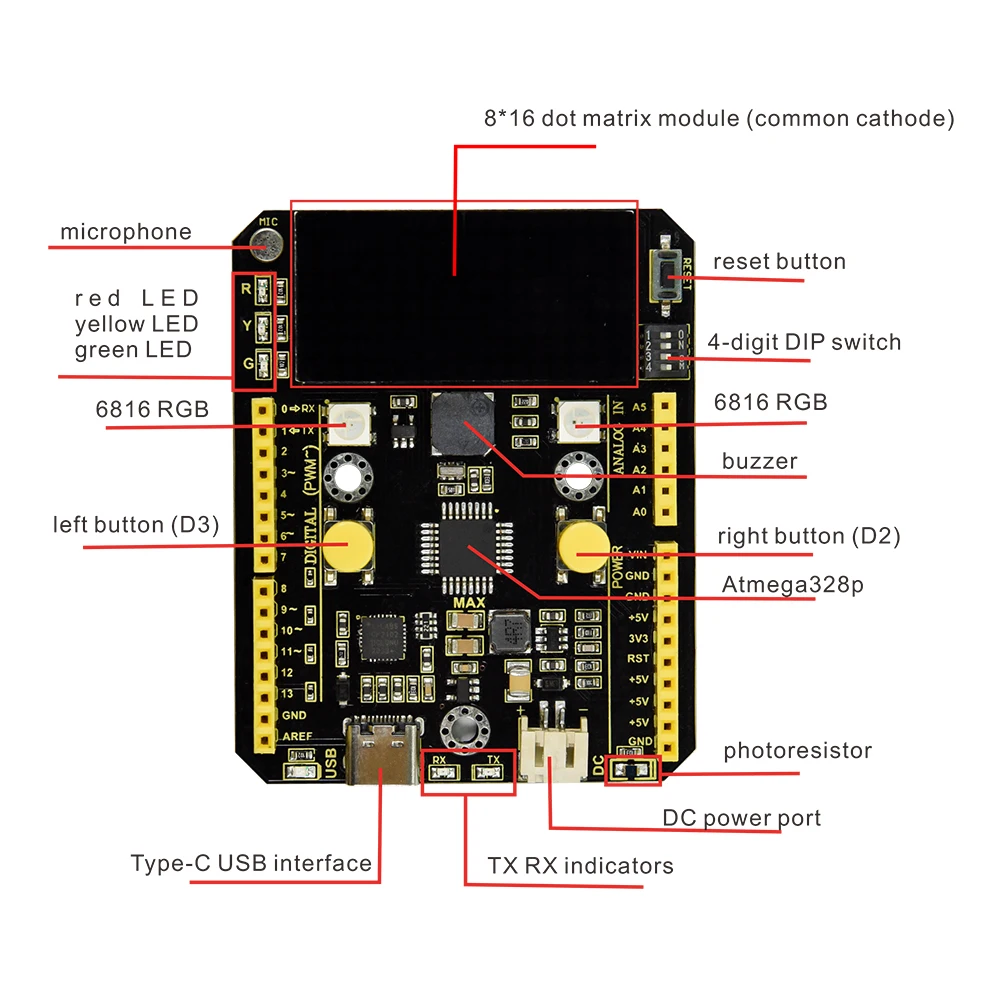

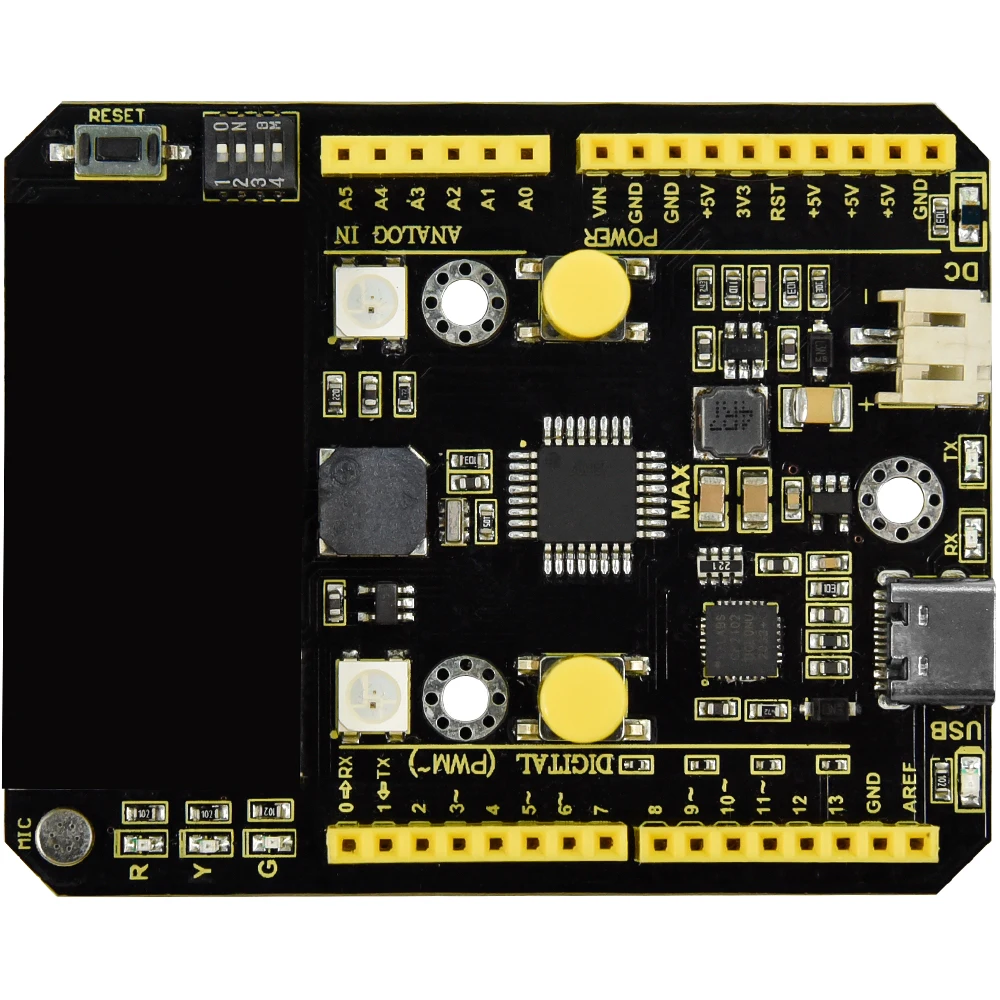

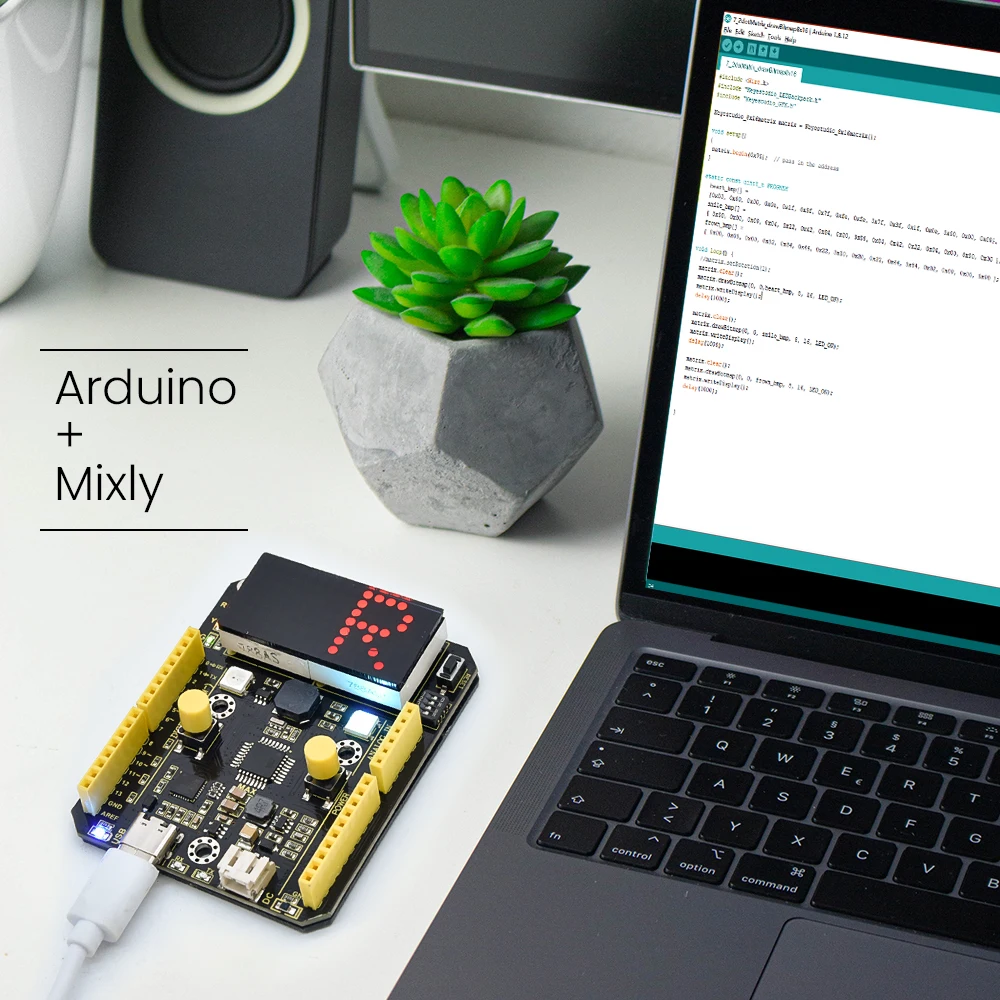

1.Two separate buttons
The left button is controlled by D3 and the right one is controlled by D2
2.Two 6812 RGB lights
The main control IC drive pin is D4.
3.Microphone Module
A7 Main control IC controls A7

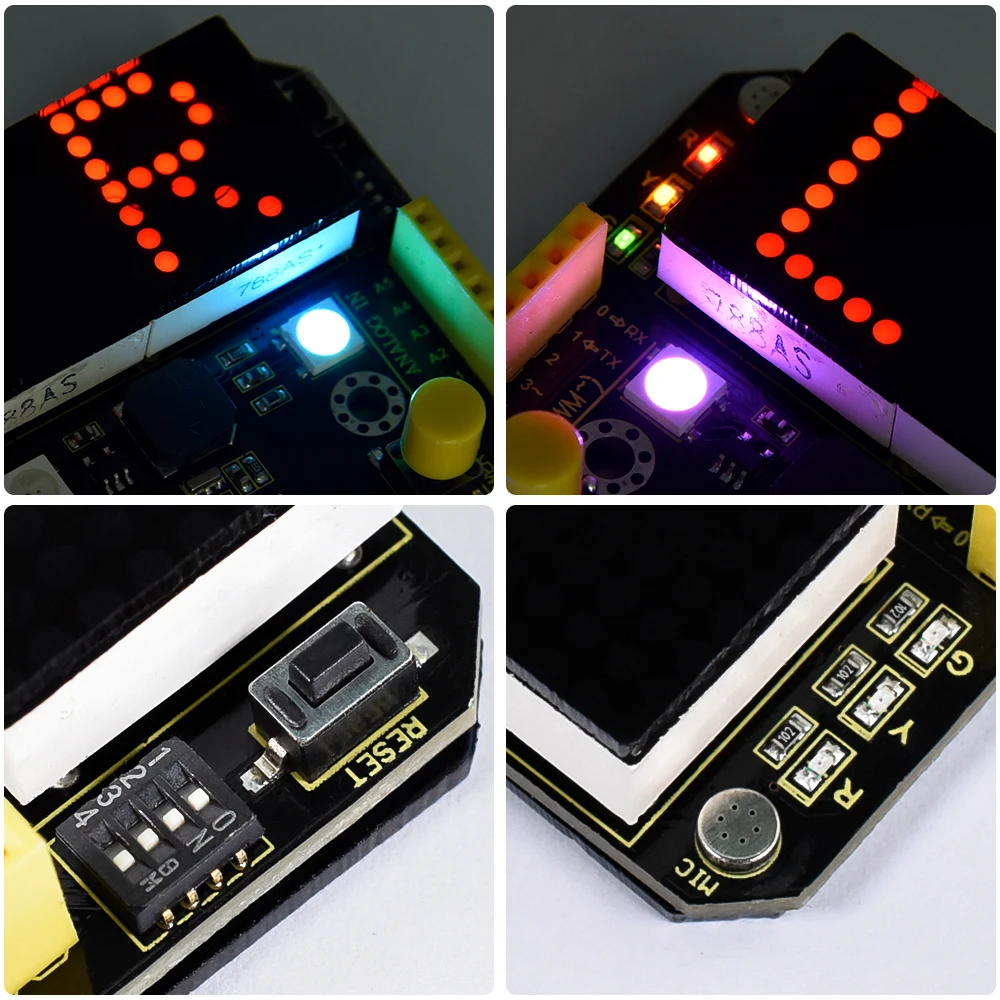

4.HT16K33 8×16 dot matrix module(common cathode)
The 8×16 dot matrix is driven by the HT16K33 chip, and its chip communicates via IIC (IIC address: 0xE0, the address is shifted one bit to the left in the library, so the address is 0x70), Writing register instructions and data to control the on and off of each LED so as to simulate the dot matrix
5.Features:
Working voltage: 4.5V~5.5V
Internal RC oscillator 2C bus interface
16×8-bit RAM is used to store display data
The maximum display mode is 16×8: 16SEGs and 8COMs.
The read/write address automatically racks up
Up to 13×3 key matrix scanning function
16-step dimming circuit
Package type: 20/24/28-pin SOP
When the LED is lighted up, R1-R8 are default as low levels; the register can control high or low levels of C0-C15
6.Buzzer
Run the IC driver throught the LM324, and the driving pin of the main chip is D9.
7.Photoresistor
Control by the pin A6
8.A red LED, a yellow LED,a green LED
Drive by the LM324 chip
Red light D8 pins control
Yellow light D10 pins control
Green light D13 pins control
