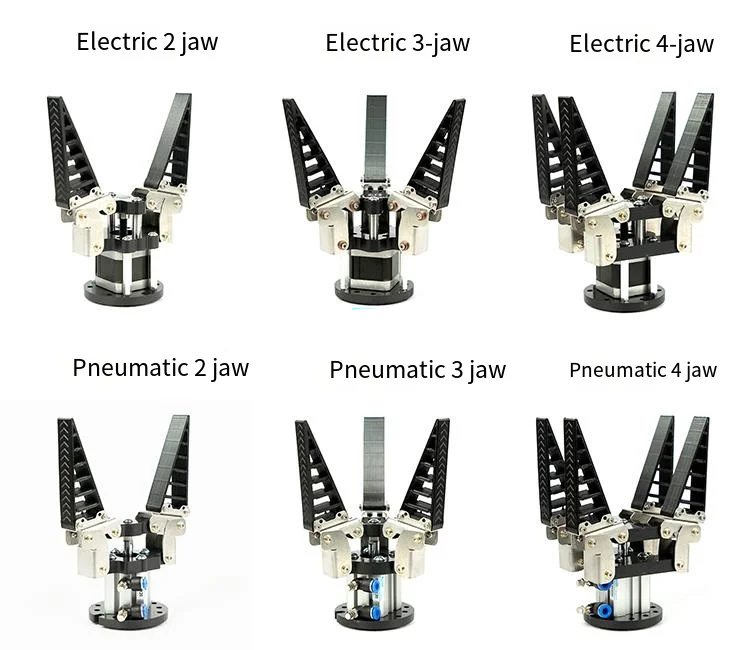

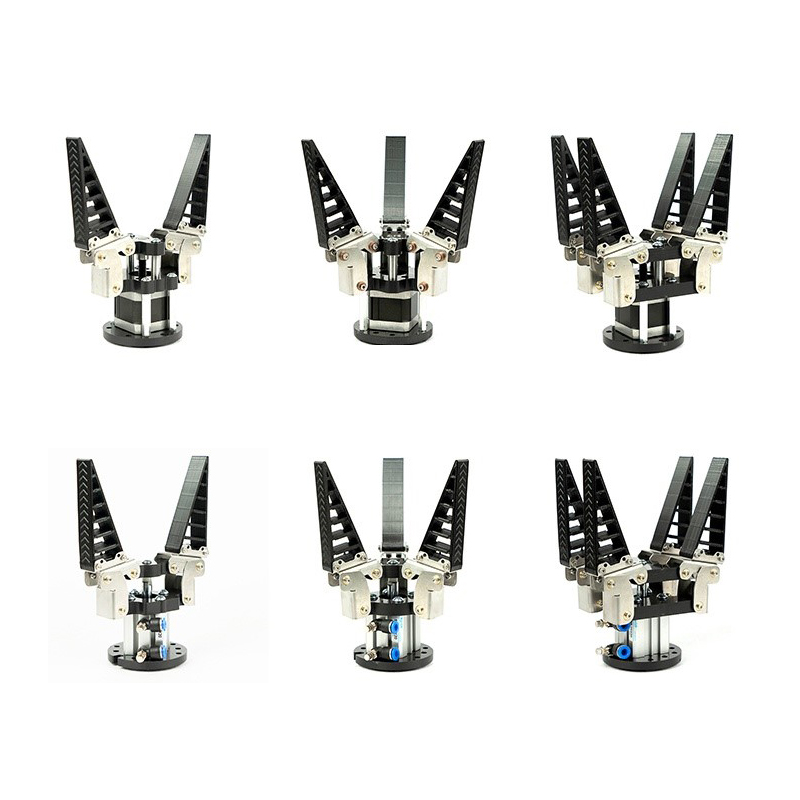

The speed of the electric version is slower, the fastest opening and closing per minute is less than 30 times, and the fastest opening and closing of the pneumatic version is 100 times +. Upgrade and update! It is constantly updated and will be issued according to the original version. Receipt of goods will be slightly different. 1. Full bearing of moving parts to achieve smooth and long durability. 2. The installation position of the flexible claw head is adjustable and divided into 5 gears. Can be compatible with larger sizes of the required clamping products. 3. Stepper motor version, equipped with a dedicated stepper motor driver shipped together. Easier to link with PLC.
Electric version, using stepper motor drive. With our special stepper motor driver for flexible claws. Large starting torque can effectively prevent clamp jamming. It can easily connect PLC, MCU and other equipment. Pneumatic clamp, the need for air supply is generally an air compressor. Other pneumatic accessories need to go to the pneumatic components store, according to their own system needs to purchase, air pipe, two-position five-way cylinder reversing air valve electric valve, and other accessories. If you do not want to buy accessories can contact customer service consultation.
specification:
The pneumatic clamp is driven by the “air compressor” to produce compressed air, which is transmitted to the “two-position five-vent valve” through the “gas pipe”. The valve is generally 24V, and the valve coil can be connected to the PLC. The gas valve is controlled by PLC program to supply gas to clamp cylinder. The type of gas pipe quick connector at the clamp cylinder block is PC6-M5. Pneumatic accessories need to go to the pneumatic shop, according to their own use of the purchase.

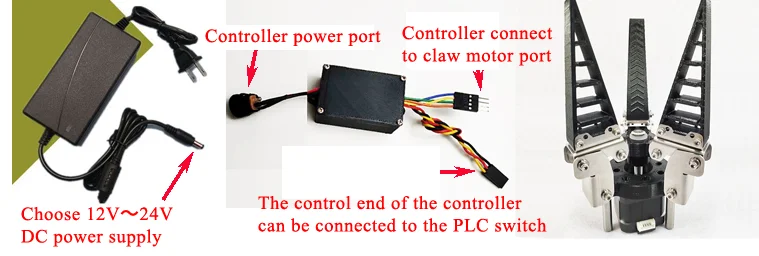

The electric version of the clip is used, with a minimum of 12V to a maximum of 24V DC power supply. The power port of the controller is DC5.5*2.5(2.1 General). The driver is a special driver for Cybermechanical claw. 3P control end is connected in black and red, the motor is turning forward, disconnect the motor to stop. Yellow and black connection motor reverse, disconnect stop.
List:
Orange speical pneumatic two claws
Shipping list:Installed 2 claws + screws
Clip body weight about 256g
Grab range within 110 mm
Grab weight : 1.2 KG
Orange speical pneumatic three claws
Shipping list:Installed three claws + screws
Clamp body weight about 312g
Grab range 10-110 mm
Grab weight : 2KG
Orange speical electric two claws
Shipping list:
1. Installed 2 PAWS
2. Clip driver
3. Clip power supply
4. Mounting screw
Clamp body weight about 382g
Grab range within 110 mm
Grab weight:1.2 KG
Pressure/voltage 12-24V
Grab frequency: Forty times
Air pressure: 3-0.6 mpa
Grab frequency : 100 times
Air pressure:0.3-0.6 mpa
Grab frequency : 100 times
Grab range cylinder
Orange speical electric three-claw
Shipping list
1. Installed 3-claw
2. Clip driver
3. Clip power
4. Mounting screw
Clamp body weight about 439g
Grab range:10-110 mm
Grab weight: 2KG
Pressure/voltage:12-24V
Grab frequency: Forty times
Blue/Black Pneumatic two claws
Shipping list Installed 2 claws + screws
Clamp body about:368g
Grab weight : 1. 5KG
Air pressure/voltage:0.3-0.6 mpa
Grab frequency: 100 times
Grab the Fan Ming cylinder
Blue/Black Pneumatic three claws
Shipping list Installed three claws + screws
Clamp body about 448g
Grab weight: 3KG
Air pressure:0.3-0.6 mpa
Grab frequency:100 times
Blue/Black electric two claws
Shipping list
1. Installed 2 PAWS
2. Clip driver
3. Clip power supply
4. Mounting screw
Clamp body about 546g
Grab weight：1. 5KG
Pressure/voltage：12-24V
Grab frequency：Forty times
Blue/Black electric three claws
Shipping list
1. Installed 3 jaws
2. Clamp driver
3. Clamp power supply
4. Mounting screw
Clamp body about 548g
Grab weight :3KG
Pressure/voltage:12-24V
Grab frequency:Forty times
Blue/Black Pneumatic four claws
Shipping list Installed 4 claws + screws
Clamp body about 816g
Grab weight:3.6 KG
Air pressure/voltage:0.3-0.6MPA
Grab frequency:100 times
Blue/Black electric 4 claws
Shipping list
1. Installed 4 claw
2. Clip driver
3. Clip power
4. Mounting screw
Clamp body about 1156g
Grab weight :3.6 KG
Pressure/voltage:12-24V
Grab frequency:Forty times
