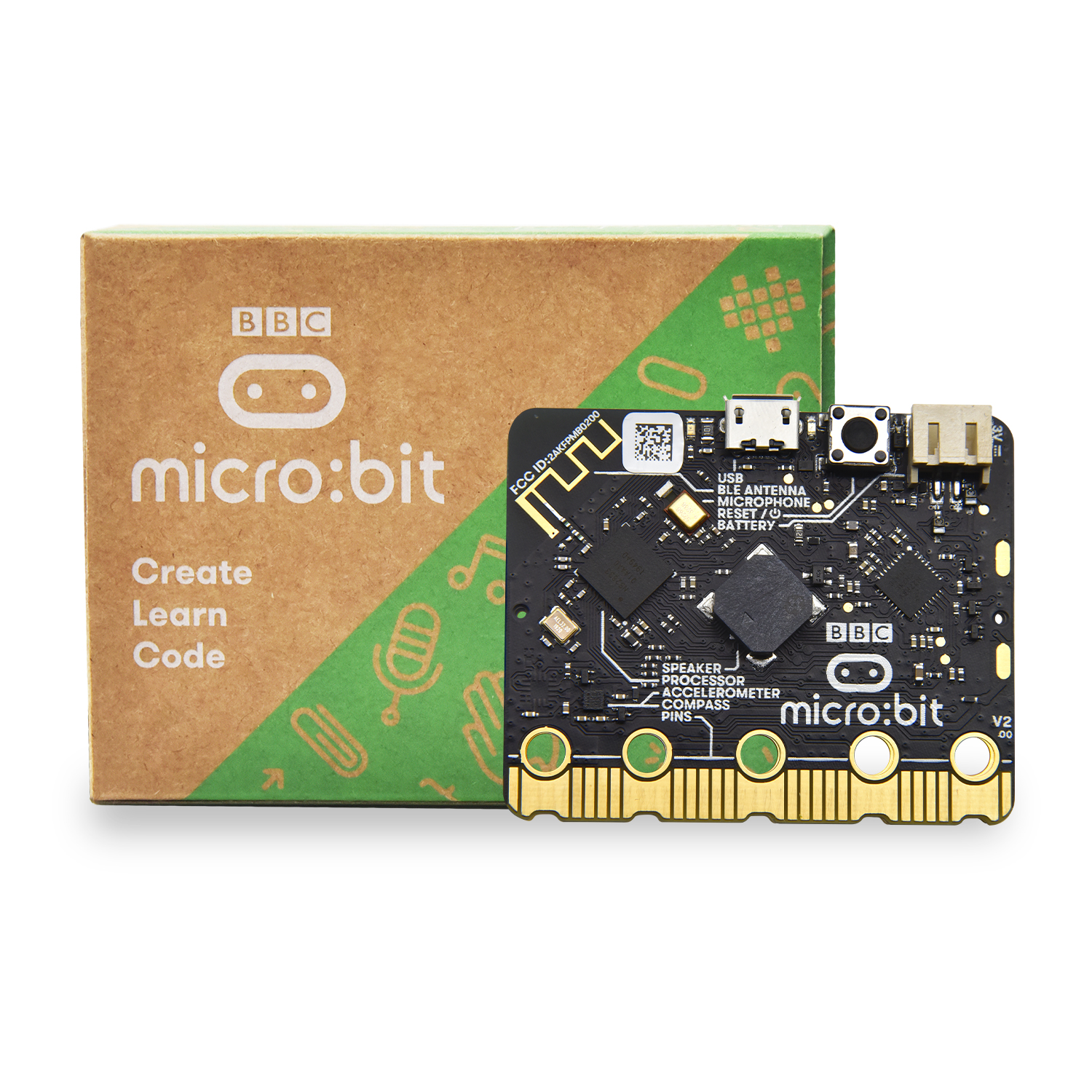

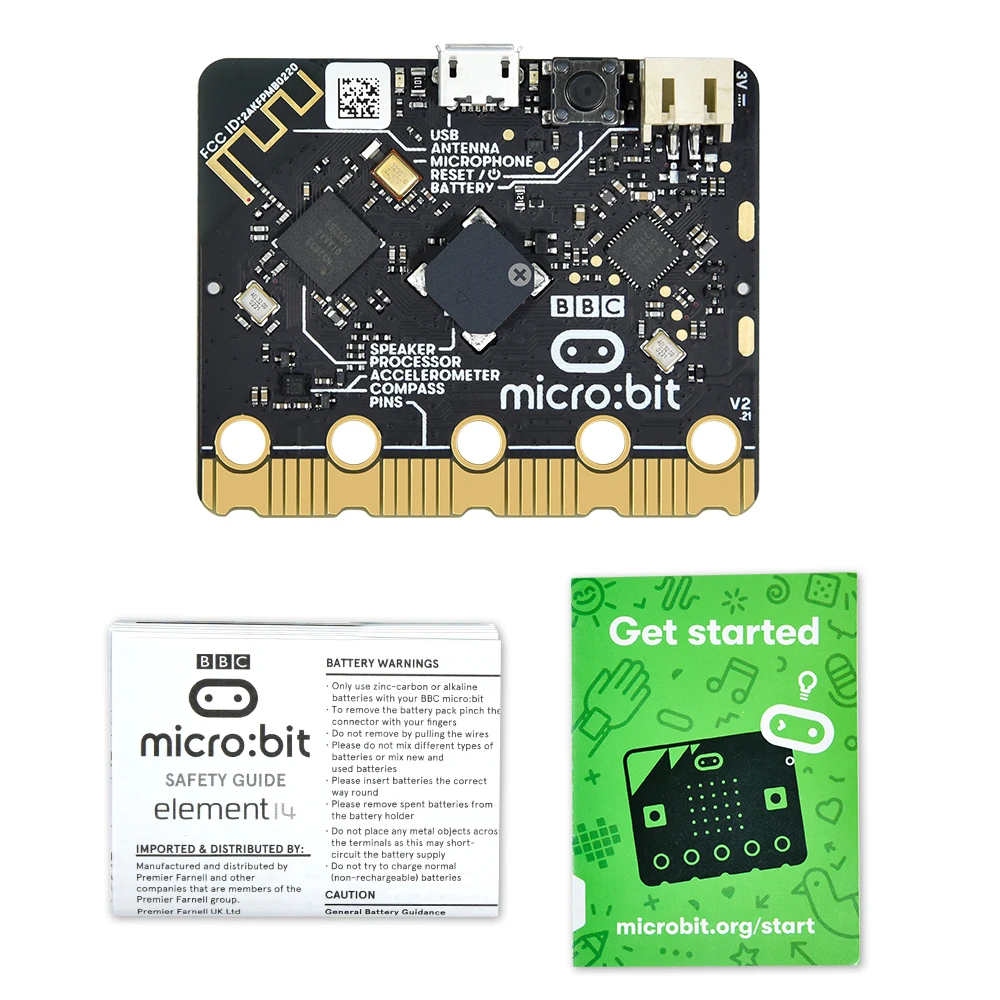

Micro: bit is an ARM-based microcontroller designed by BBC. Consisting of onboard Bluetooth, accelerometer, electronic compass, three buttons, 5 x 5 LED dot matrix, it is only half the size of credit card and mainly used for programming education for teenagers.
Specification
-
Working voltage: 3.3V
-
Power supply voltage: 3-3.3V
-
Micro USB program burning/power supply port: 5V
-
PH2.0 power interface: 3-3.3V
-
Alligator clip interface: 3-3.3V
-
Detection range: 0-3.3V
-
Processor: Arm Cortex-M4 32 bit processor with FPU
-
Working temperature: 0-85℃
-

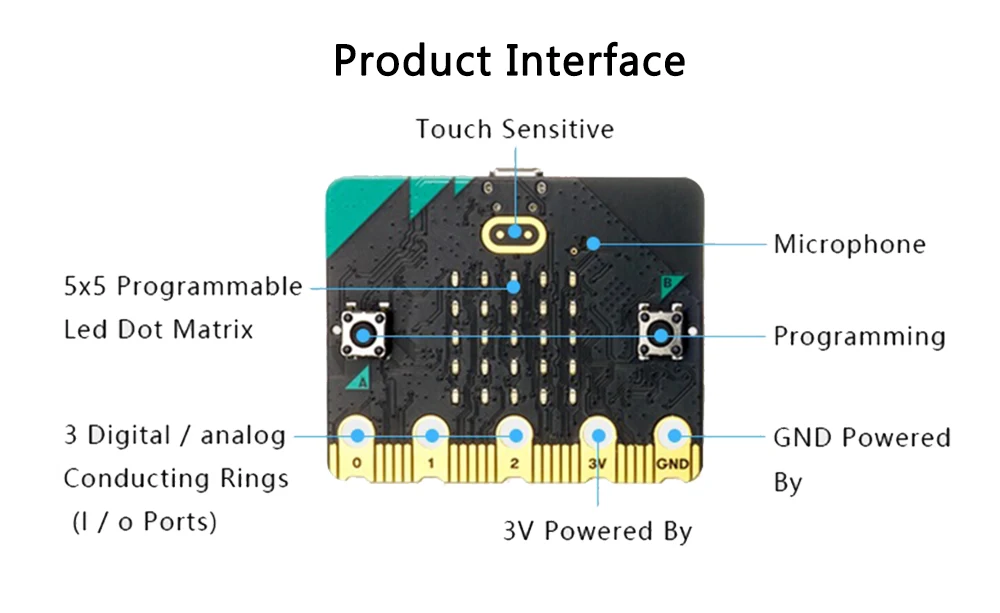

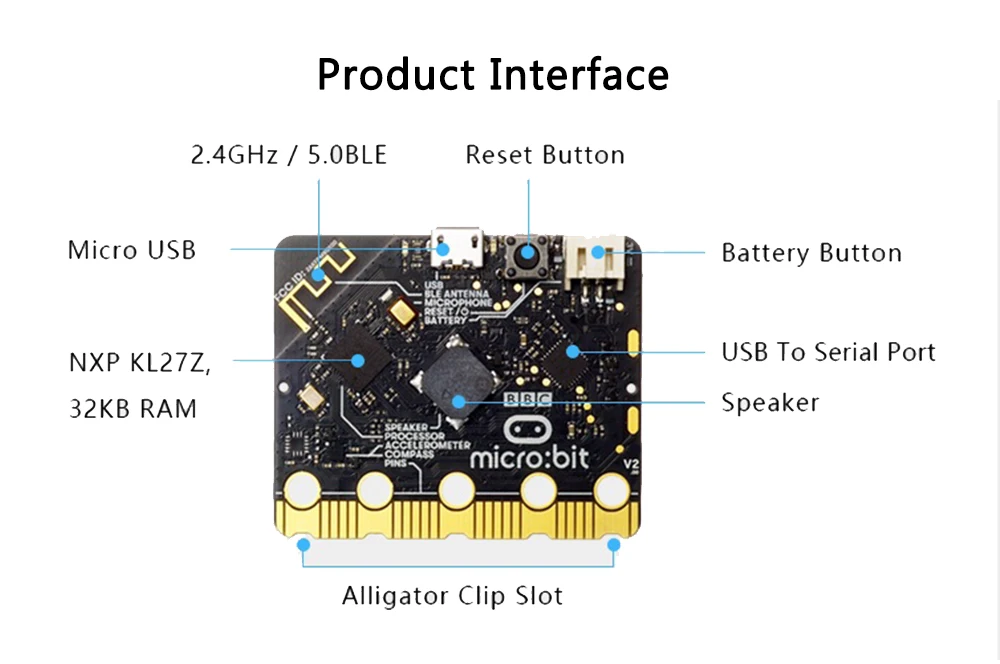

Micro USB program burning/power supply port
-
PH2.0 3V power supply port
-
4mm alligator clip interface*5
-
Gold finger interface*20
-
Product size: 43*52mm
-
Weight: 9.6g
Features
-

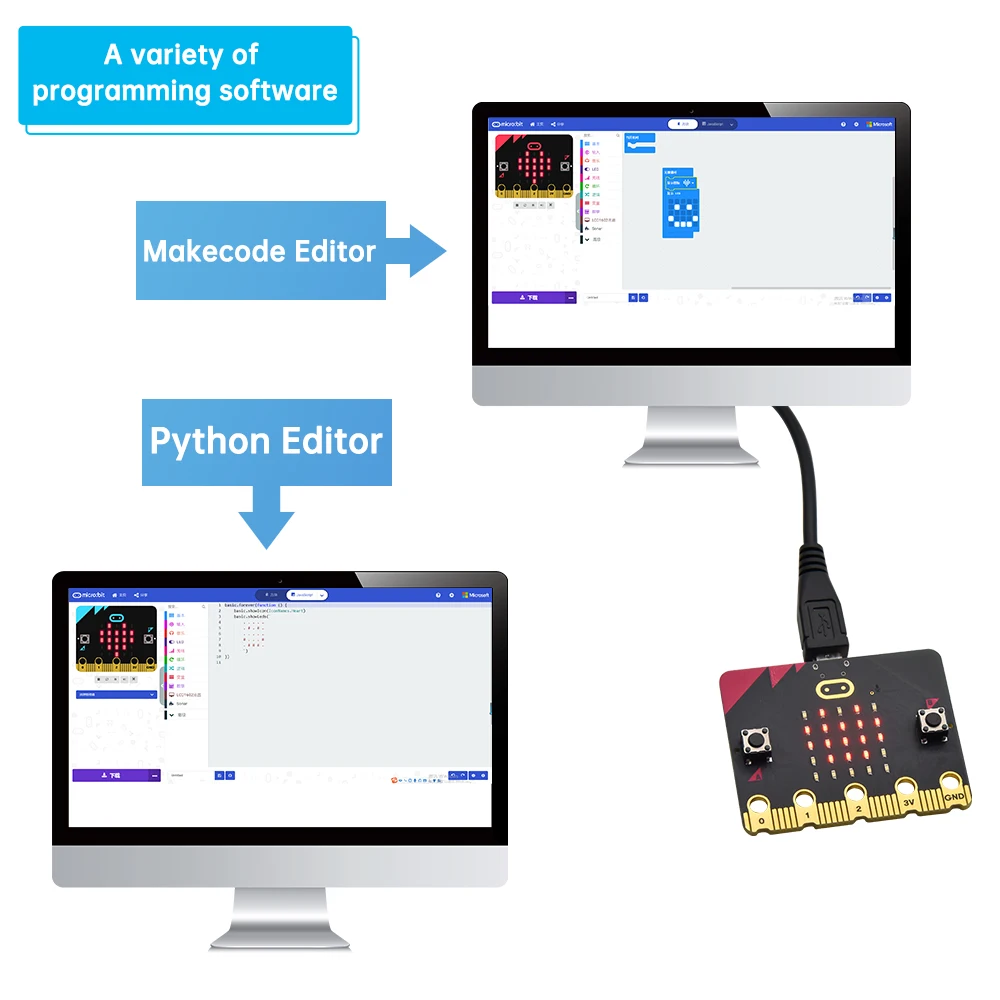

Support PXT graphical programming interface developed by Microsoft
-
Support Windows, macos, iOS and Android system
-
The programming environment is based on WEB services, no need to download additional compilers
-
Burn and simulate program via USB on PC terminal
-
Burn and simulate program via Bluetooth
-
Support multiple communication programming languages including javasript, python, mbed c.
