Introduction

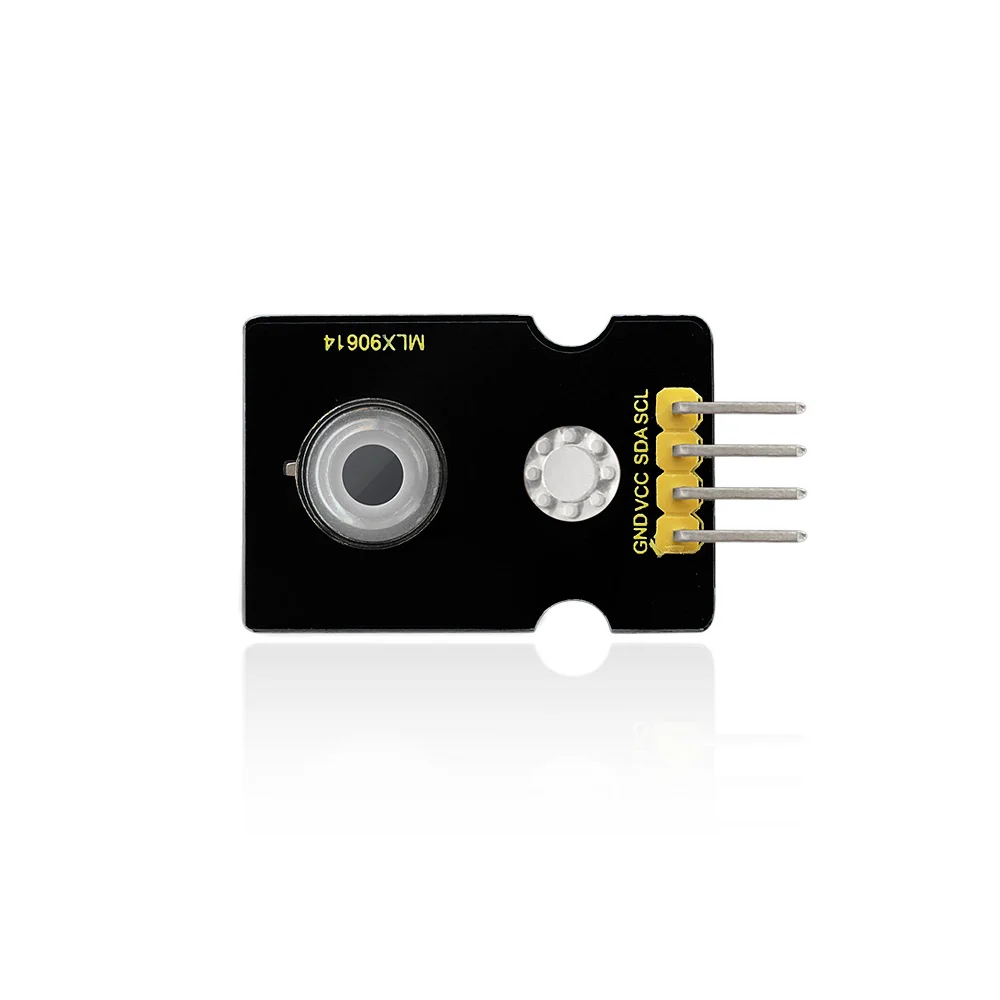

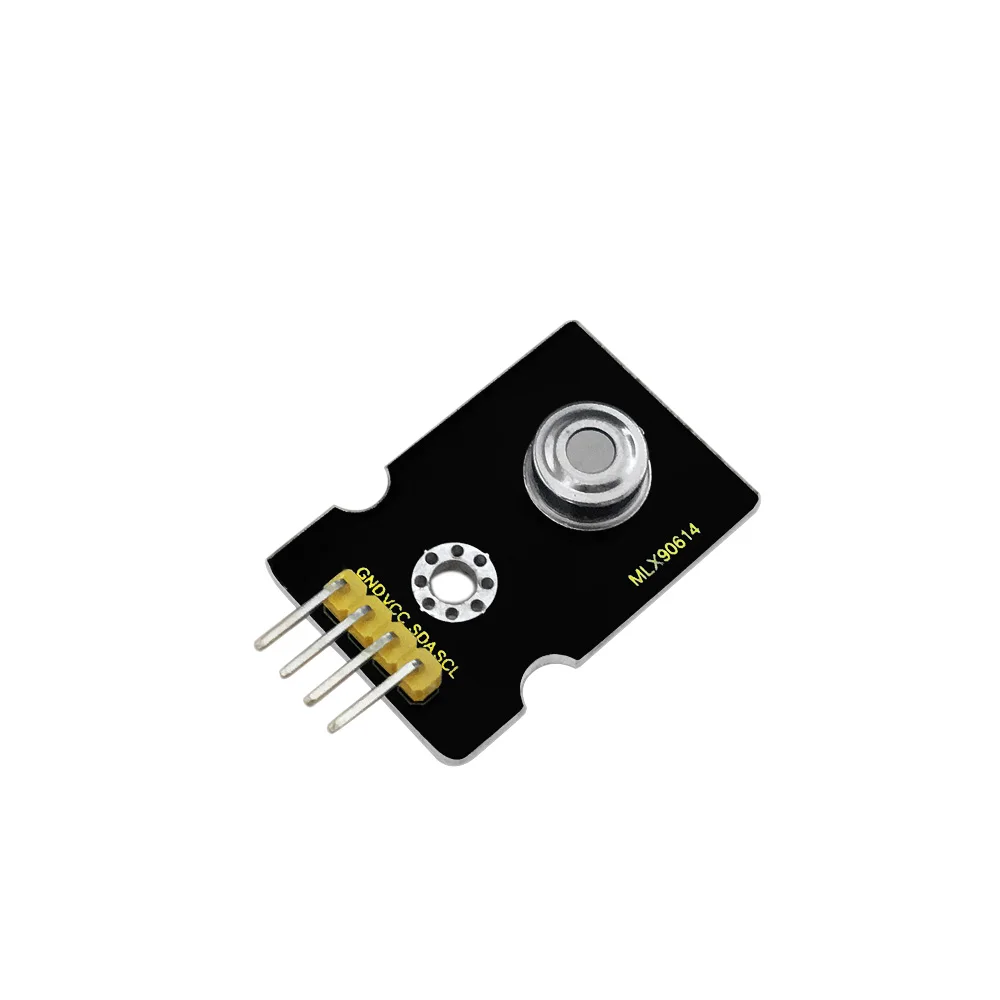

Keyestudio MLX90614 non-contact infrared temperature sensor is mainly composed of sensor MLX90614. MLX90614 is an infrared non-contact thermometer, and the TO-39 package integrates infrared induction thermoelectric pile detector chip (MLX81101) and signal processing dedicated integrated chip MLX90302. Due to the integration of low noise amplifier, 17-bit analog digital converter and DSP processing unit, the sensor achieves high precision and high resolution measurement.
Specification
Working voltage:3.3-5V
Communication way:IIC communication
Working temperature rang:from -40 to +125 ℃
Measurement accuracy:±0.5℃(0 to 50℃)

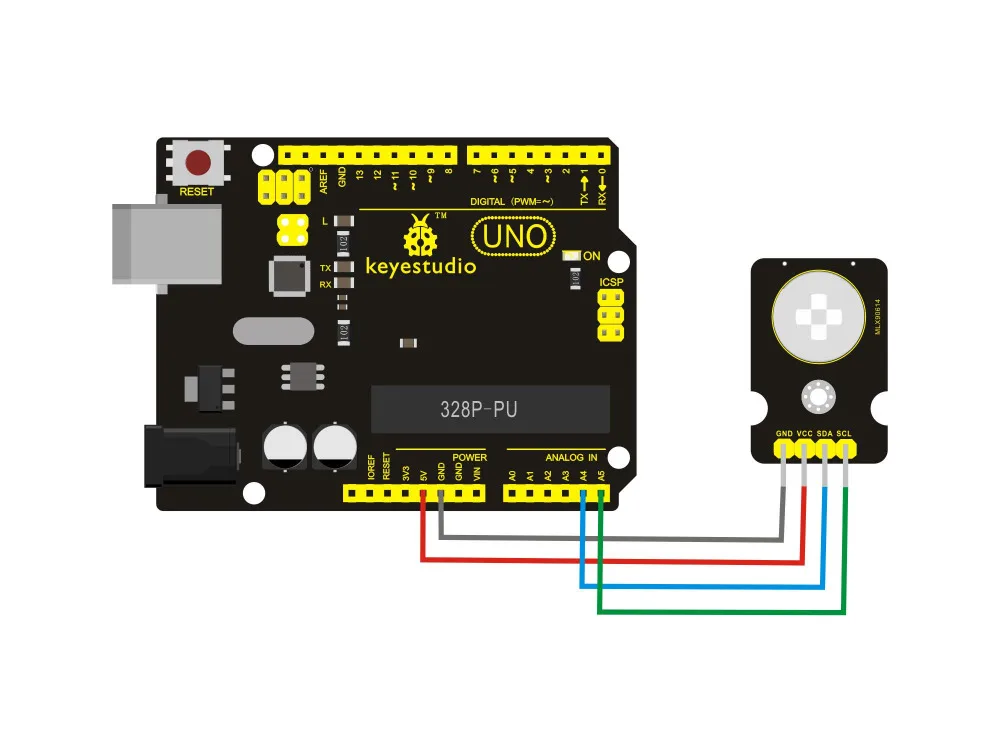

Connection Diagram
