Description:

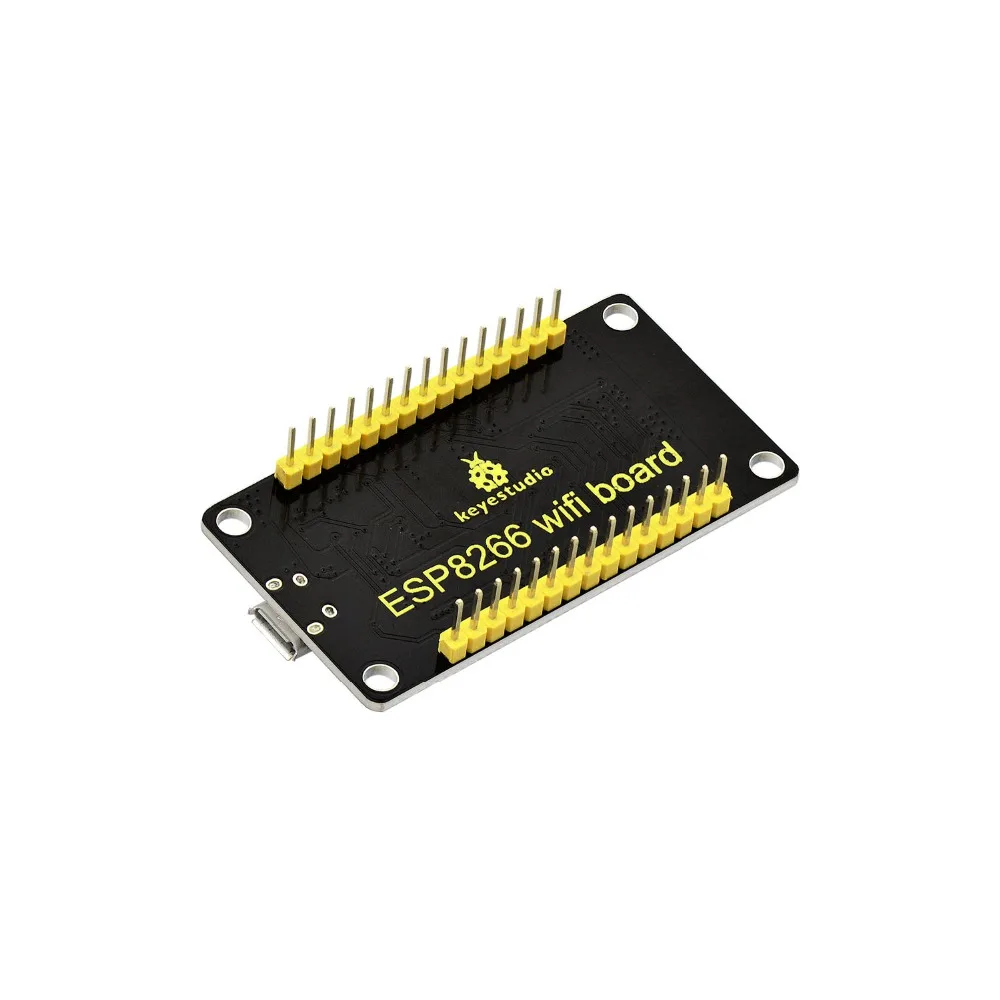

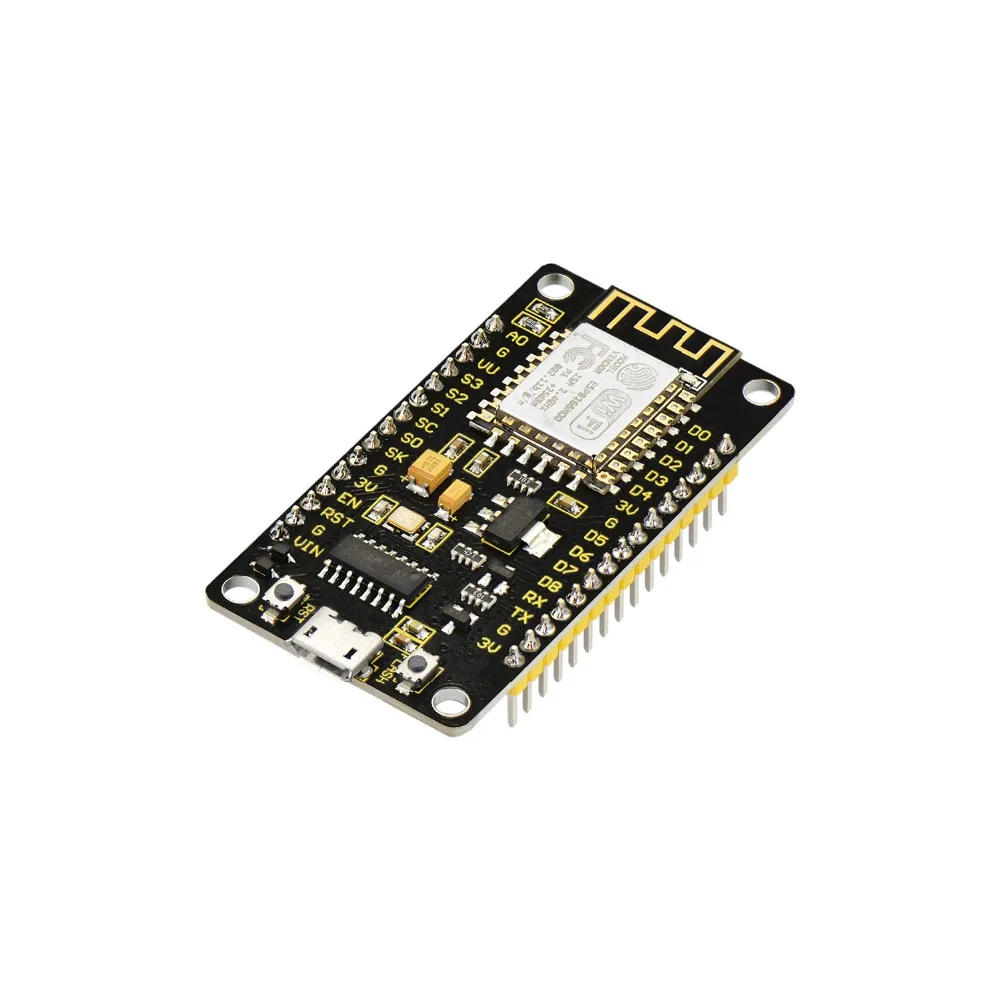

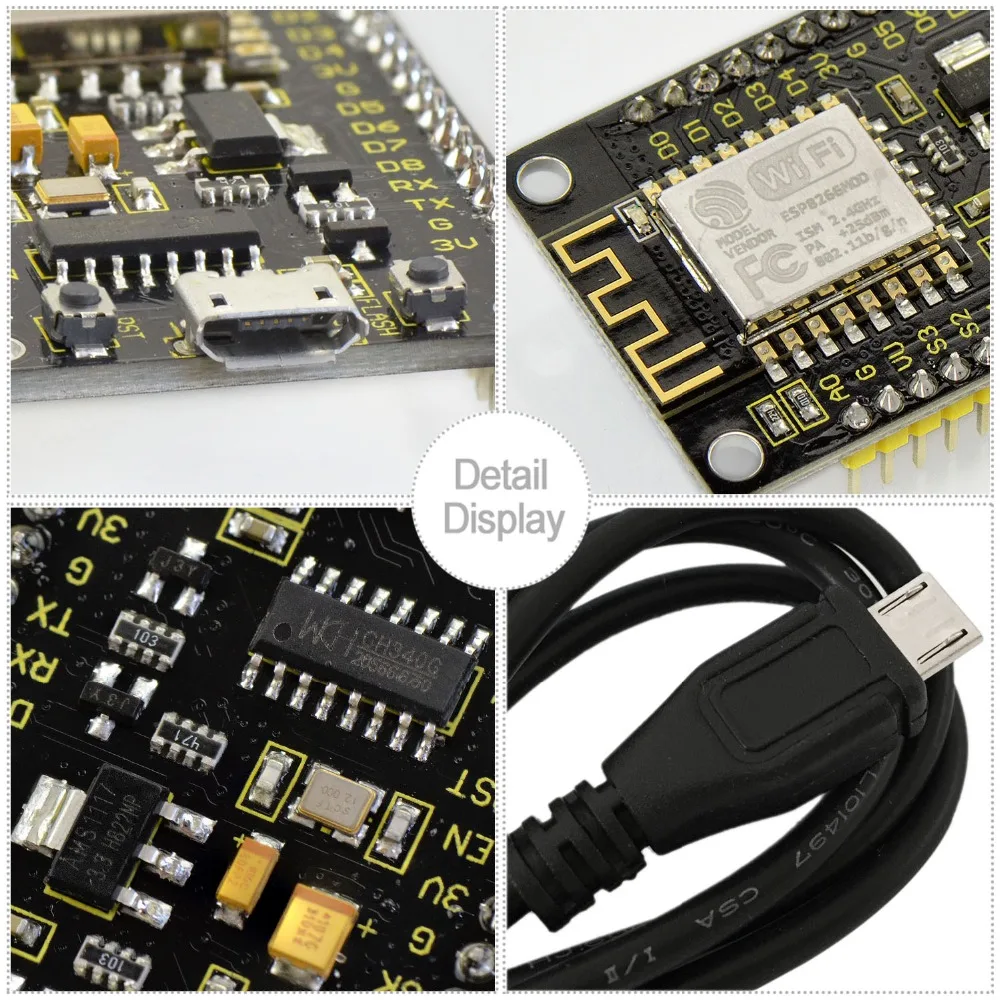

This keyestudio ESP8266 WI-FI development board is based on the ESP8266-12FWIFI module developed by Ai-Thinker.

The processor ESP8266 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a smaller package, with 16-bit Lite mode. The main frequency supports 80MHz and 160 MHz.

It supports RTOS, integrated with Wi-Fi MAC/BB/RF/PA/LNA. Onboard comes with curved antenna.

This development board is a standalone network controller, which can add networking function to those existing devices.

When using, power the board and upload the program via a Micro USB port, and the current supply should be 2A.

Technical SPEC:

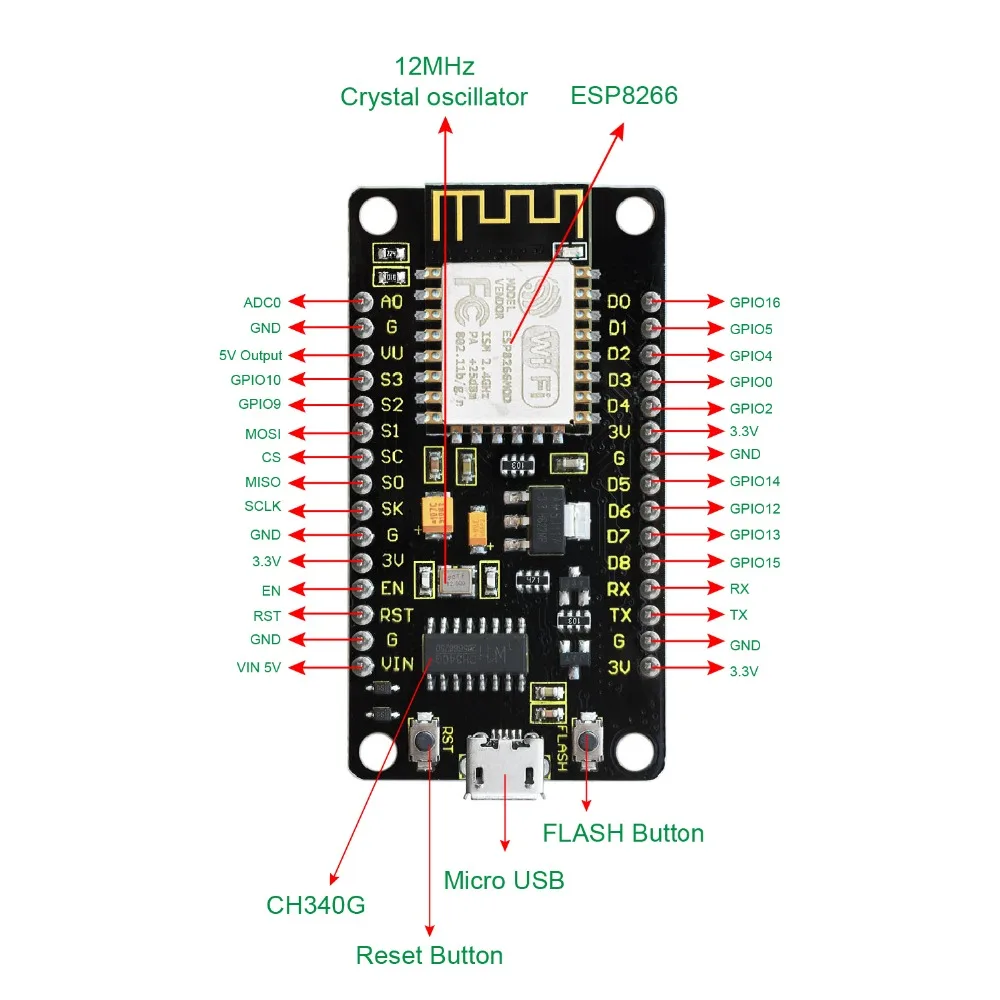

• Microcontroller: ESP8266-12F

• Operating Voltage: DC5V

• Input Current: 2A

• Main frequency supports 80 MHz and 160 MHz

• Analog Input Pins: 1(A0)

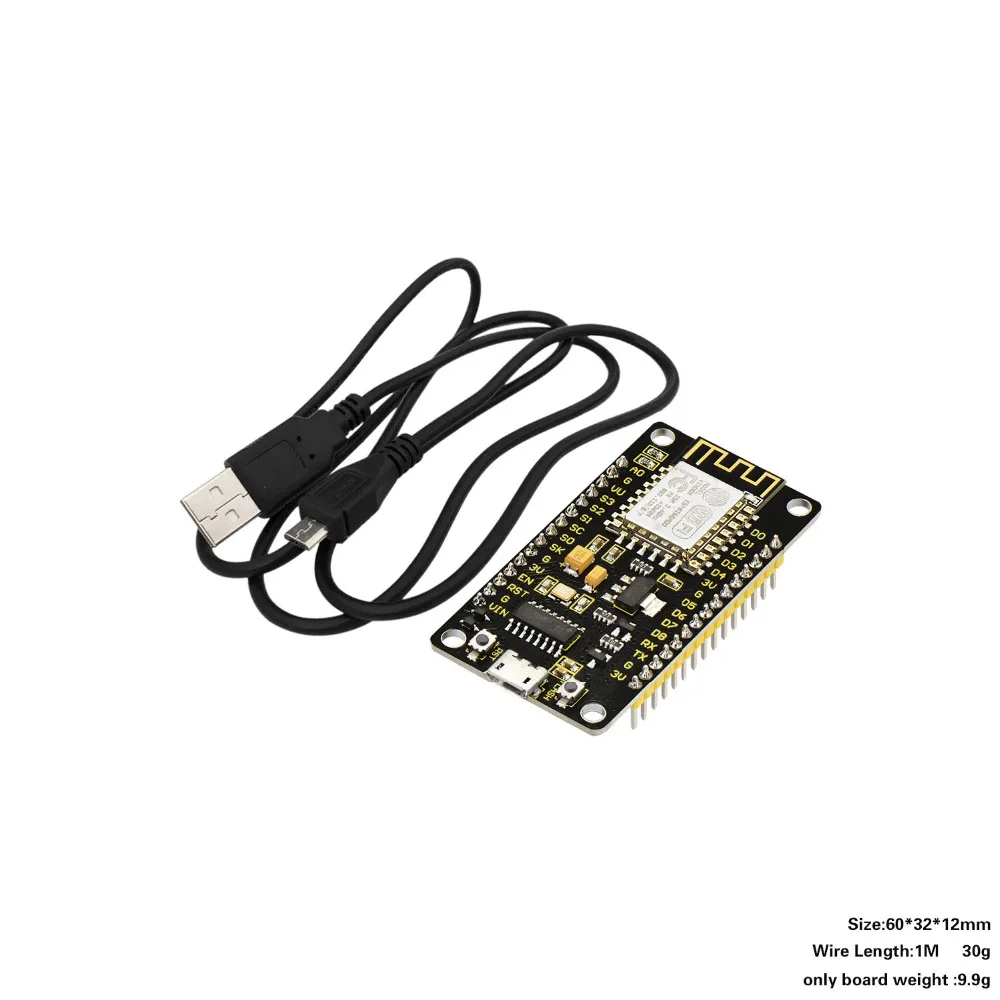

• Micro USB cable: 1m

• Supports wireless 802.11 b/g/n standard;

• Supports STA/AP two working mode;

• Built in TCP/IP stack, can configure one socket;

• Supports standard TCP/UDP Server and Client;

• Serial port baud rate can be: 1200/2400/4800/9600/19200/38400/57600/74800/

• 115200 bps;

• Serial port data bit: 5/6/7/8 bit;

• Serial port odd-even check: none;

• Serial port stop bit: 1/2 bit;

• 1 RESET button;

• KEY button also has configuration function;

• WiFi working current: continuous transmitting: ≈70mA (200mA MAX), stand by

• mode: <200uA;

• Wireless transmitting speed: 110-460800bps;

• Working temperature: -40°C ~ +125°C
