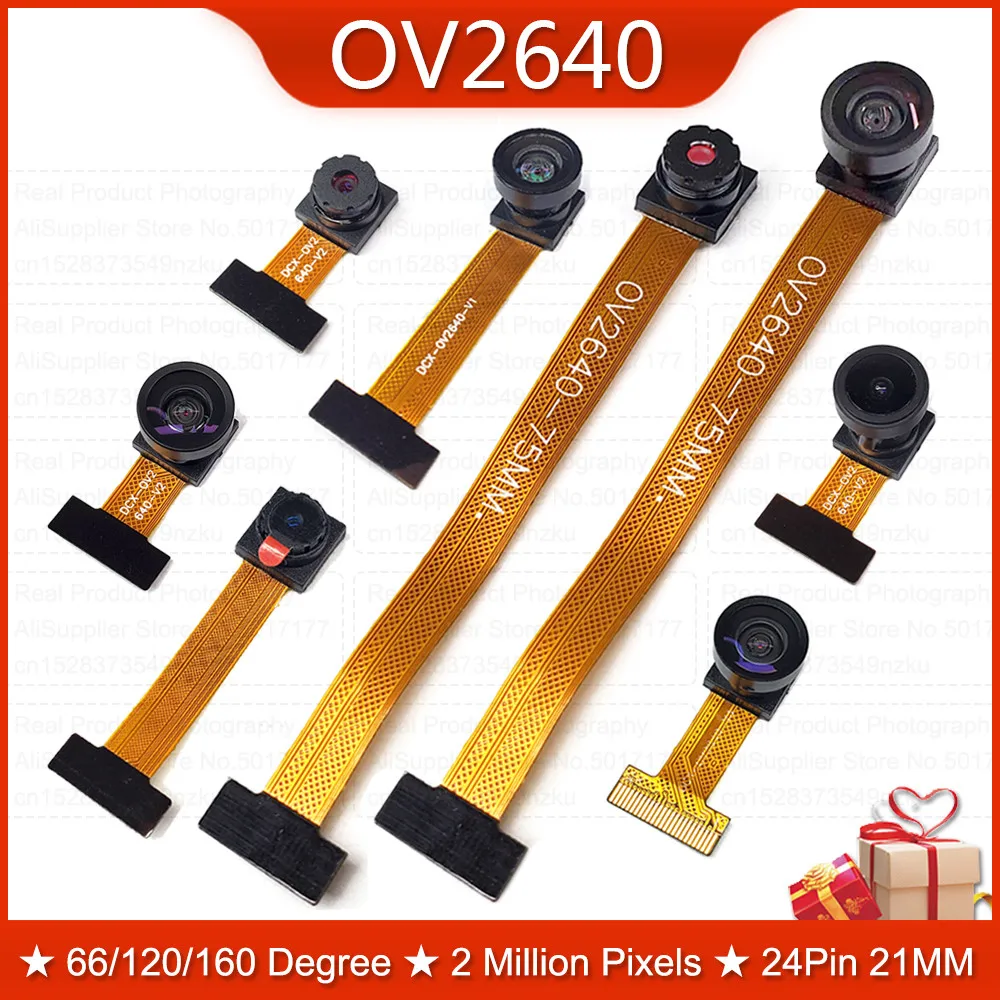

The OV2640 image sensor has 2 million pixels (1632×1232 pixels), its size is small, the working voltage is low, and it provides all the functions of a single-chip UXGA camera and image processor. Through SCCB bus control, it can output 10-bit sampling data of various resolutions in the form of whole frame, sub-sampling, windowing, etc. The maximum UXGA image of this product is 15 frames per second. The user can fully control the image quality, data format and transmission method. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface. OmmiVision image sensor uses unique sensor technology to improve image quality and obtain clear and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, floating, etc.
● High sensitivity suitable for low illumination applications
● Low voltage suitable for embedded applications
● Standard SCCB interface, compatible with I2C interface
●RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
● Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40×30
● Support VarioPixel sub-sampling method
● Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control includes color saturation, hue, gamma, sharpness ANTI_BLOOM
●ISP has the function of noise elimination and dead pixel compensation
● Support image zoom
● Lens loss compensation
● Saturation automatic adjustment
● Automatic adjustment of edge enhancement
● Automatic adjustment of noise reduction

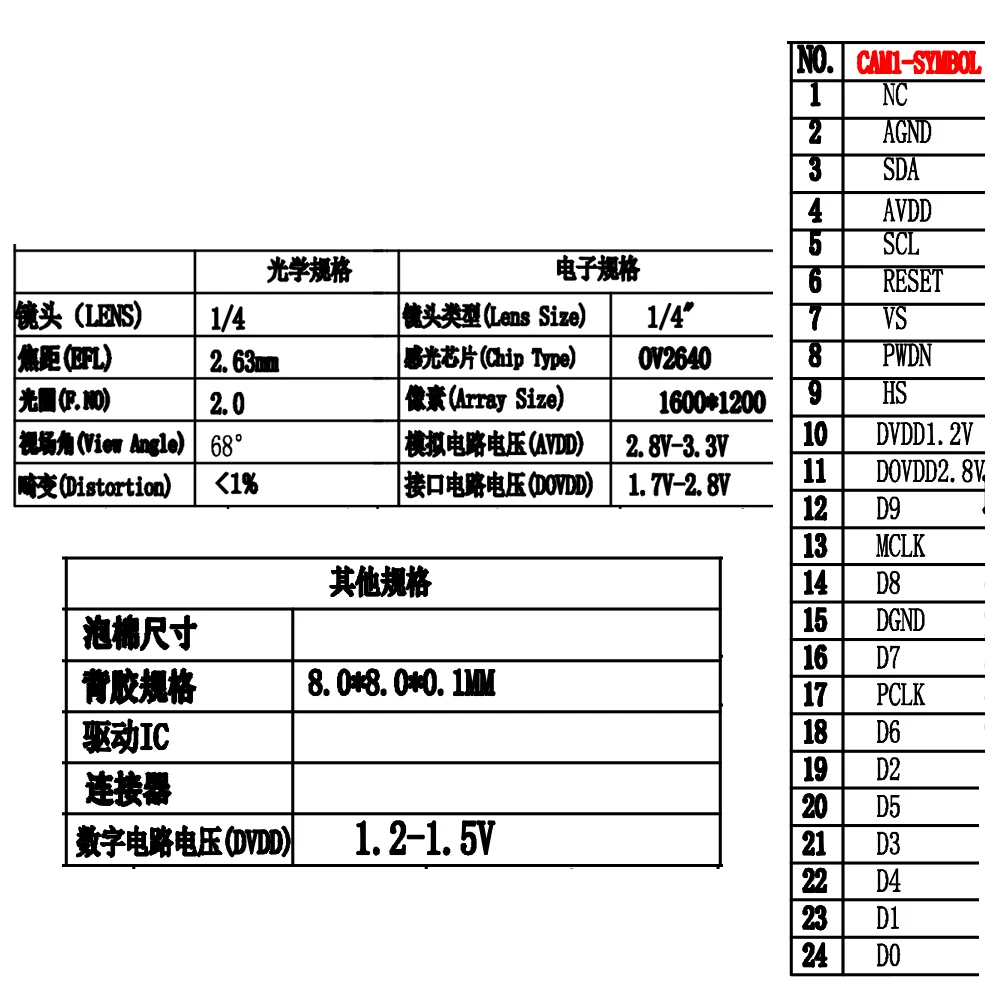

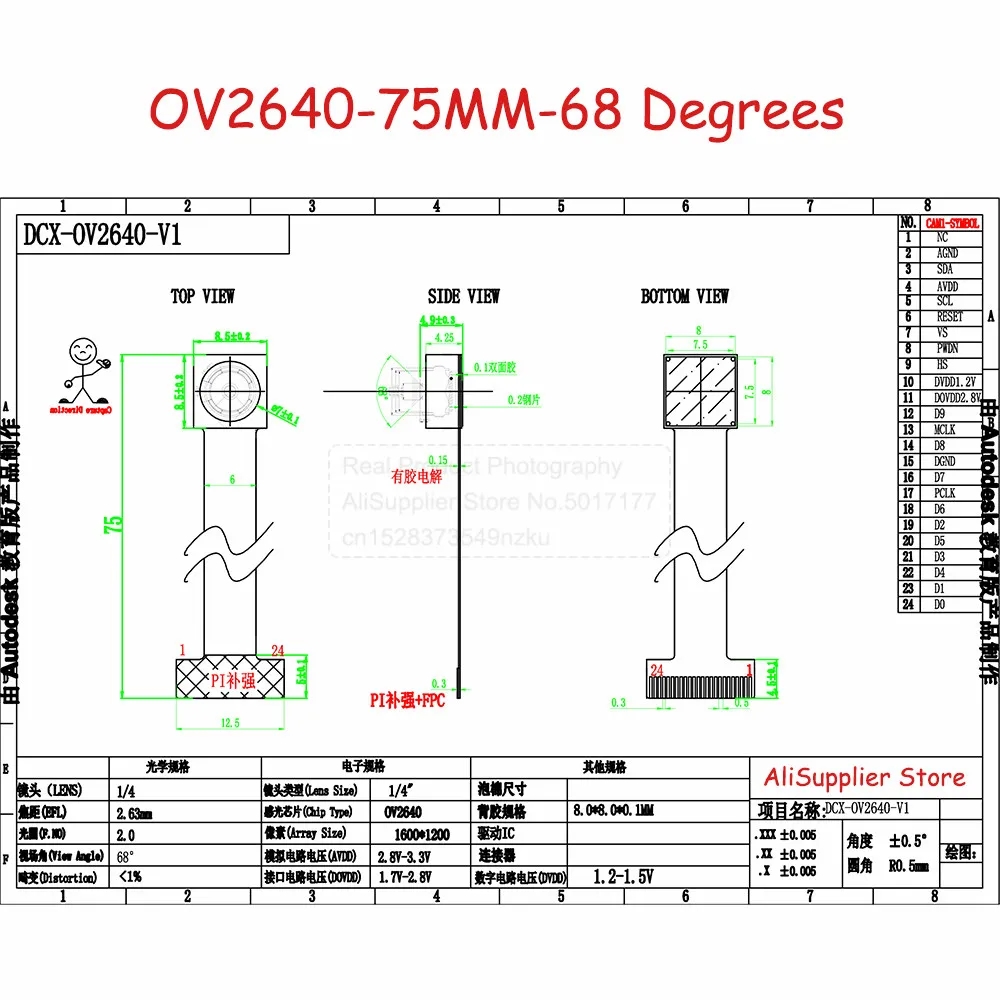

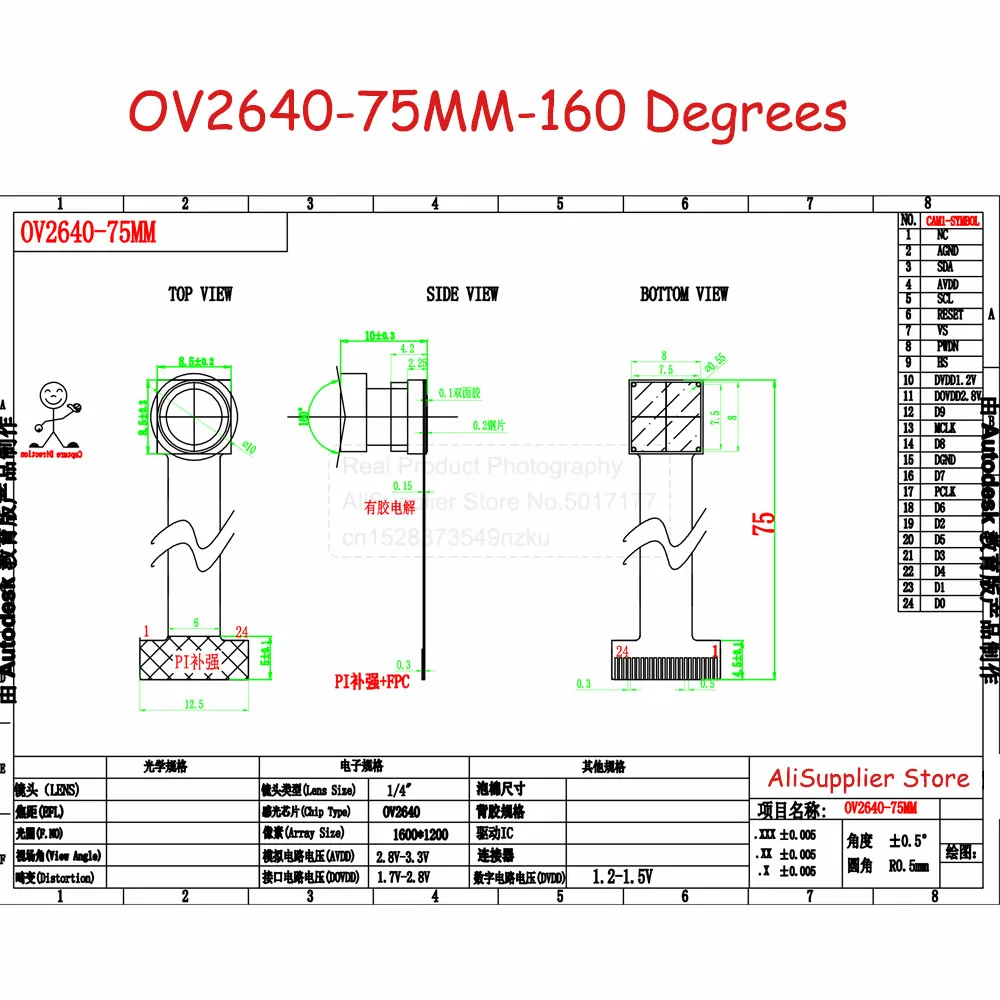

key parameter
Photosensitive array 1632×1232 Maximum format UXGA
IO voltage 1.7V-3.3V analog voltage 2.5-3.0v (internal LDO powers the core 1.2V)
Power consumption working TBD sleep <20μA
Temperature operation -30℃ to 70℃
Stable working 0℃ to 50℃
Output format (8 bits) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical size 1/4″

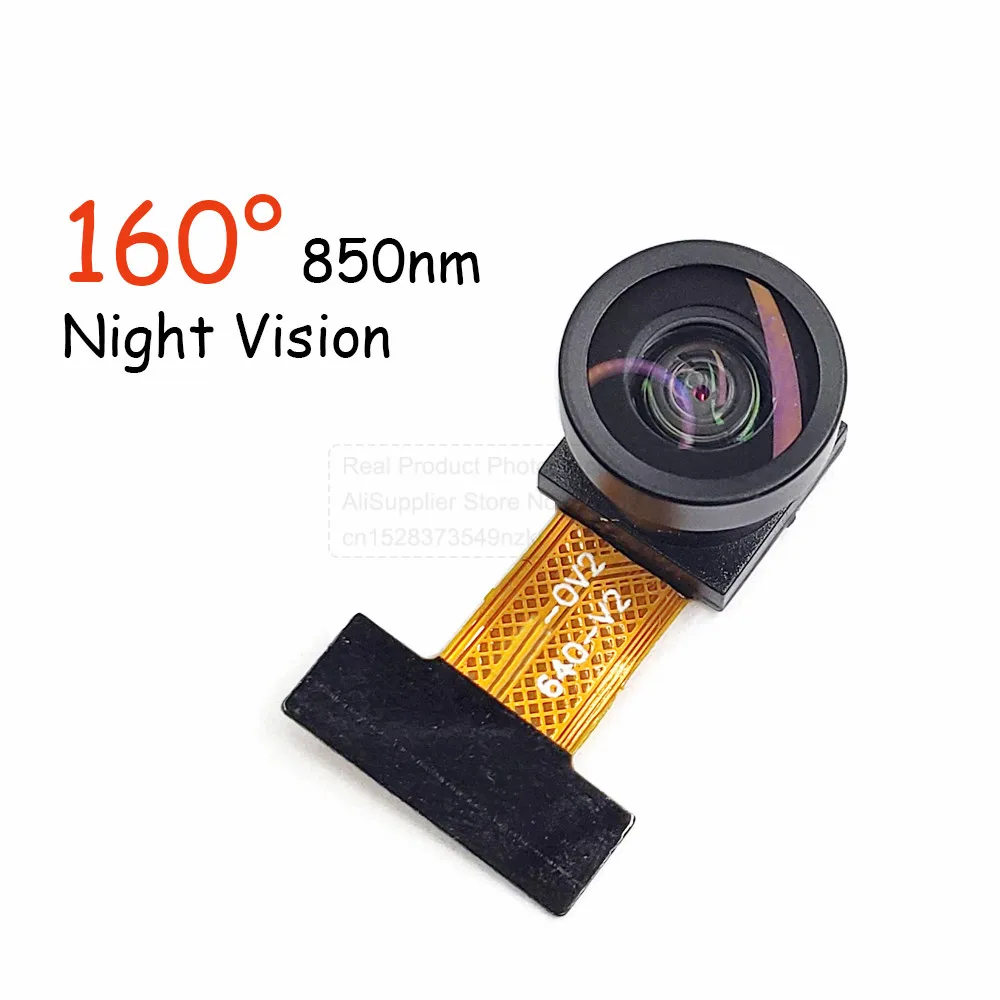

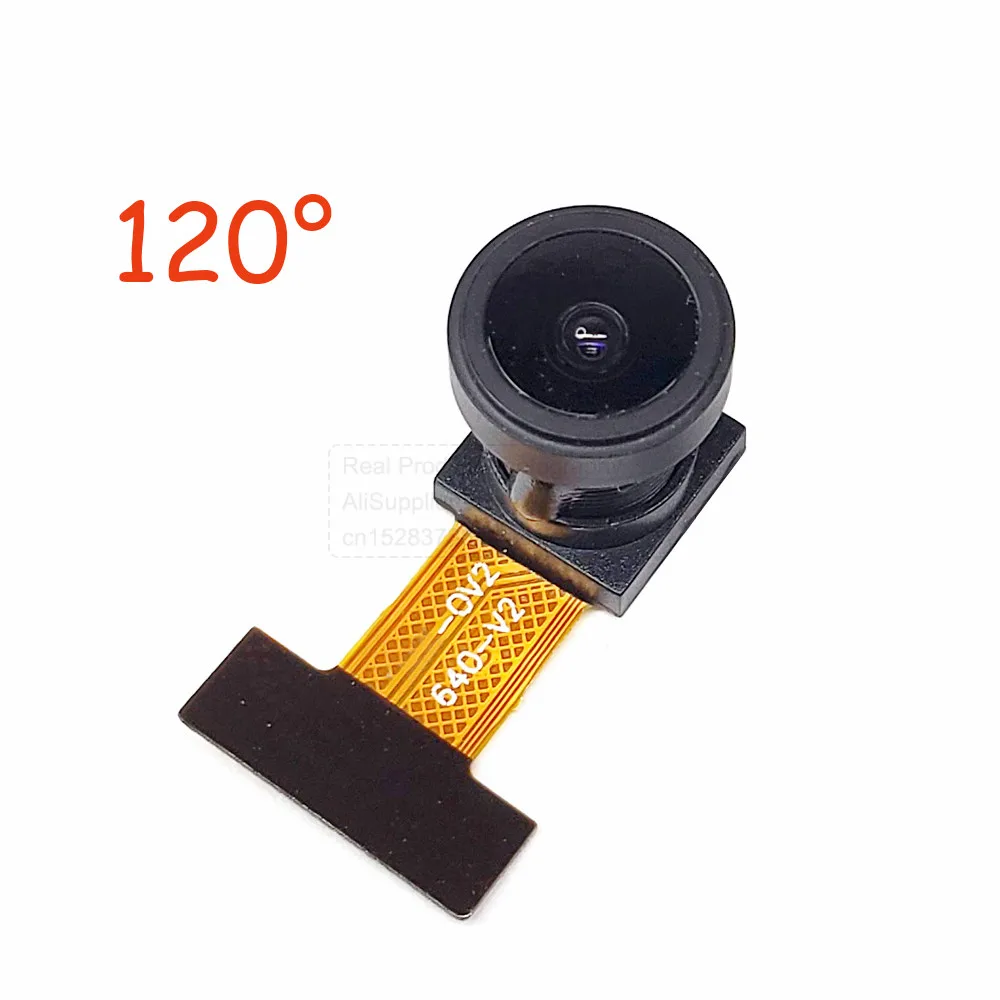

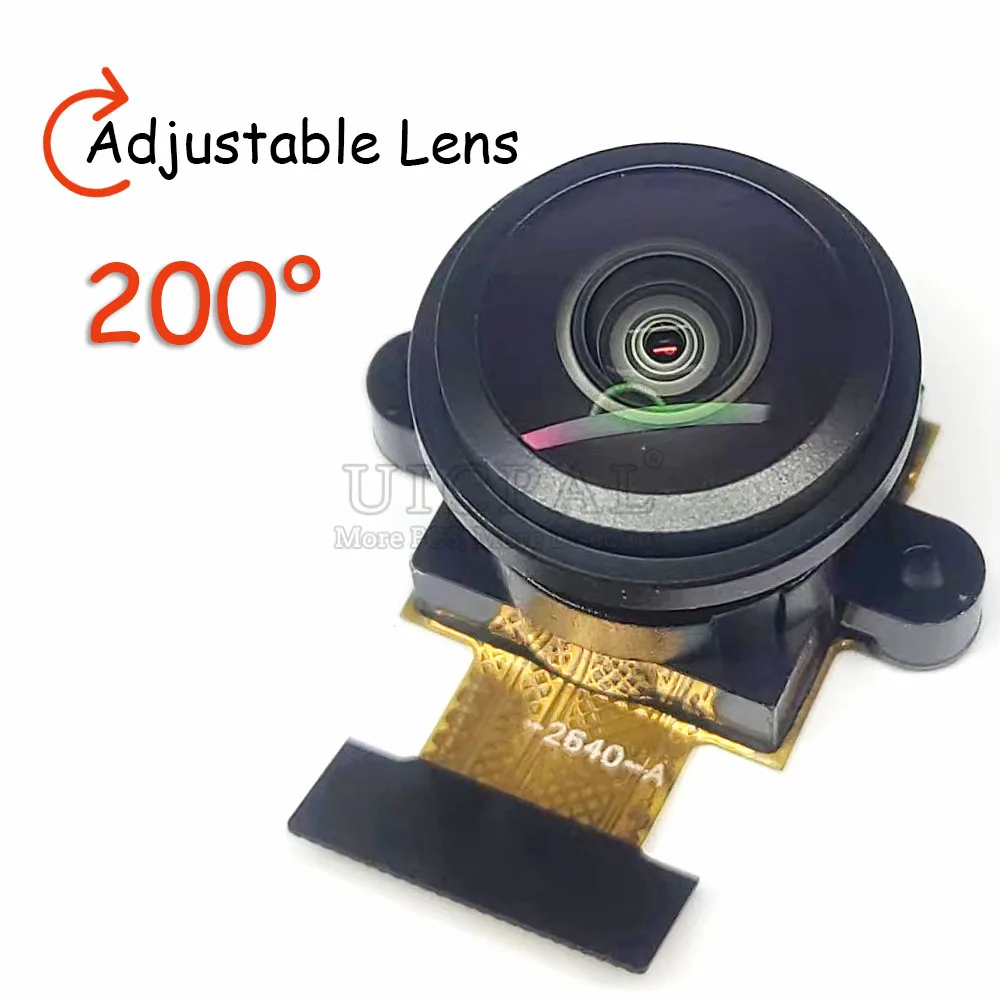

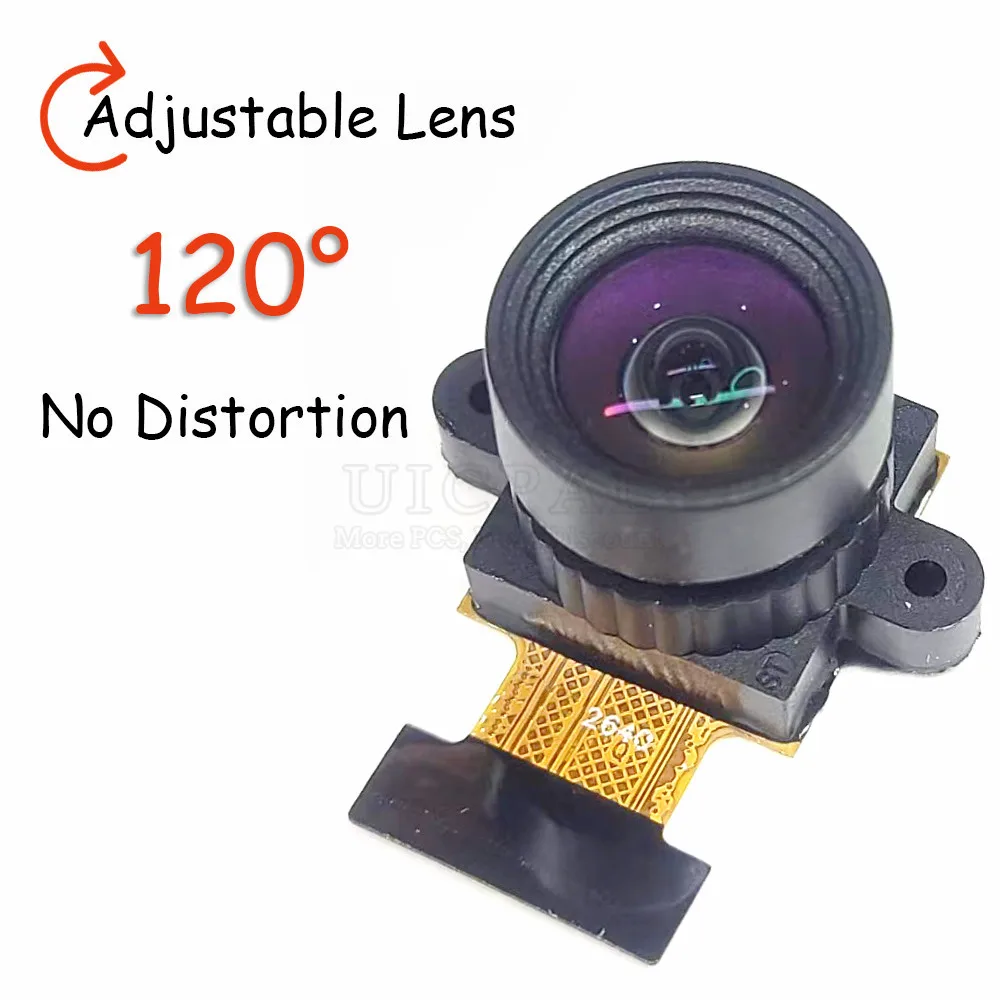

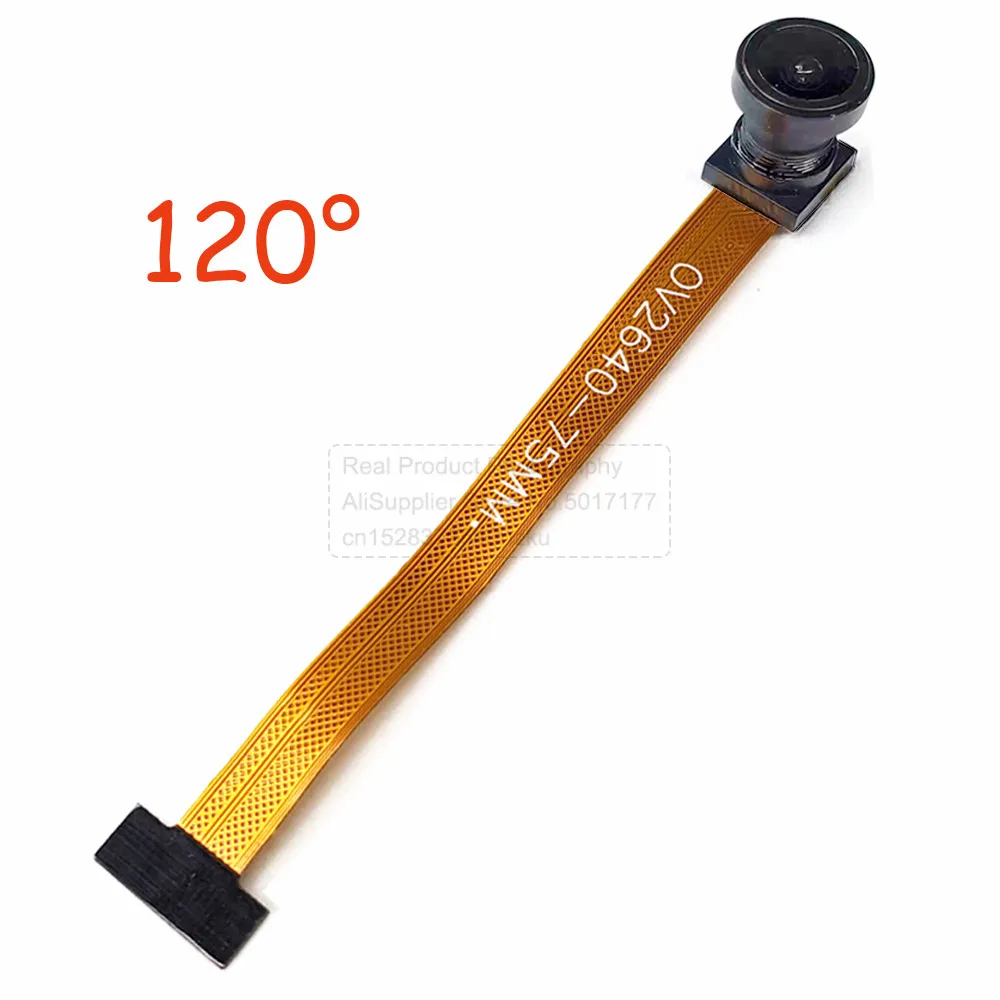

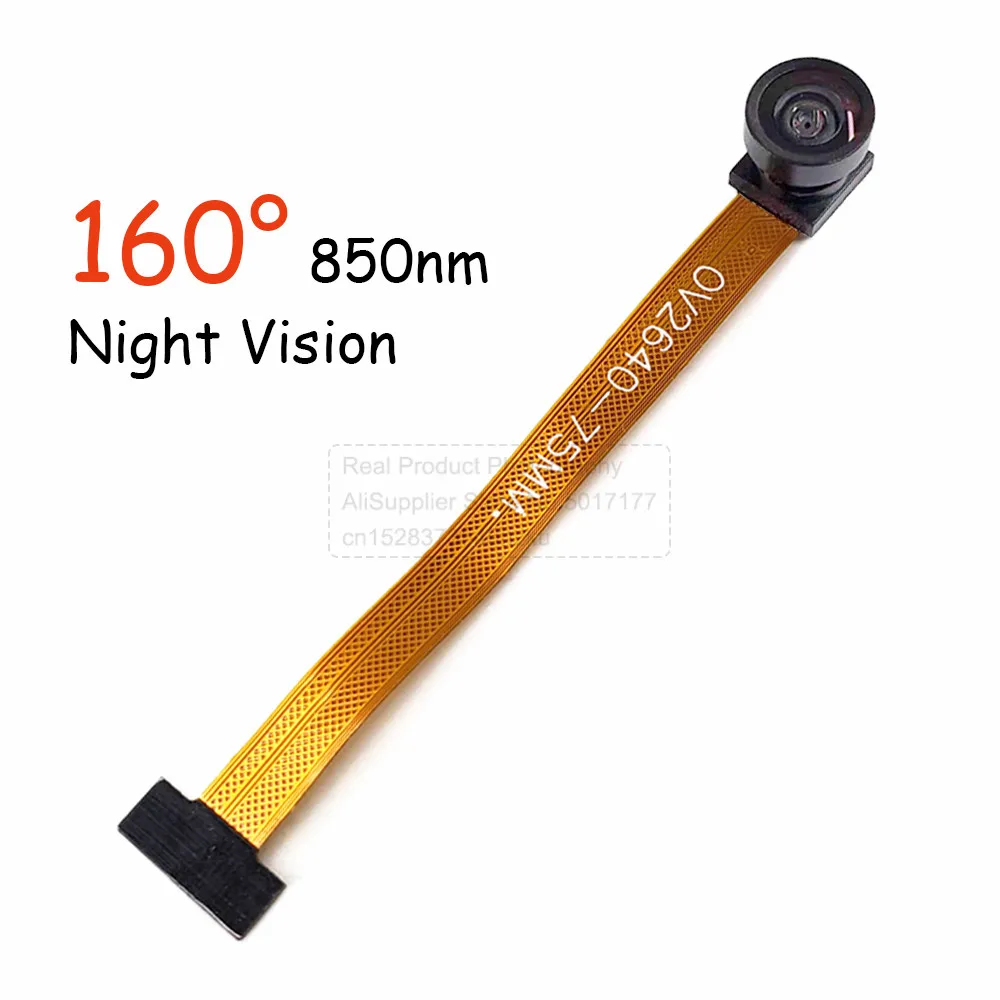

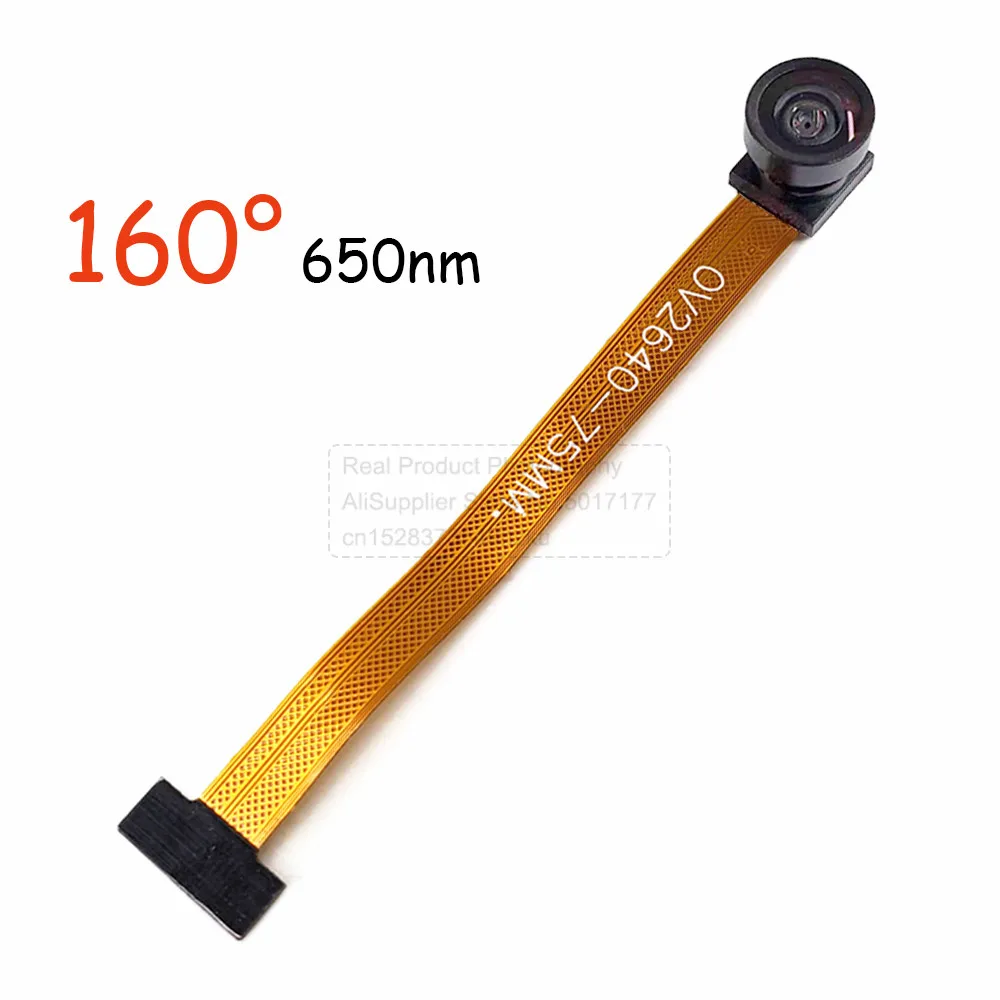

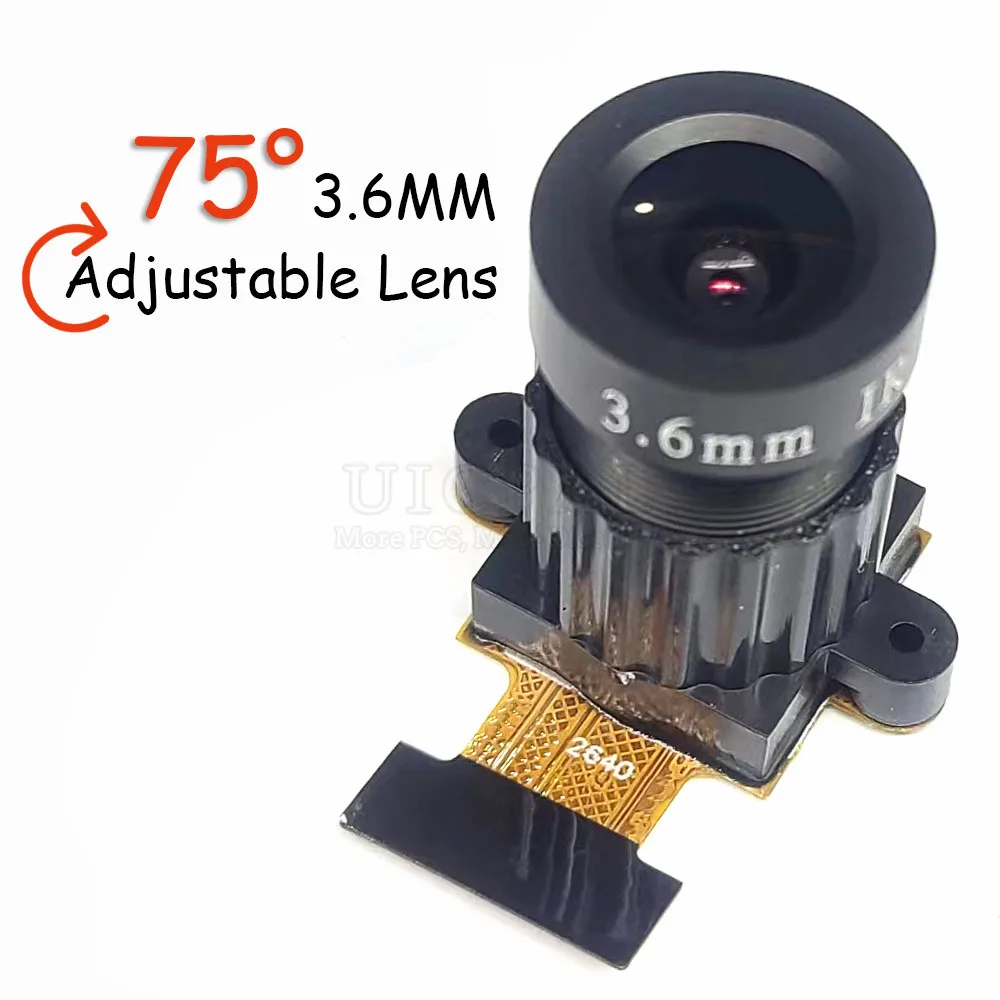

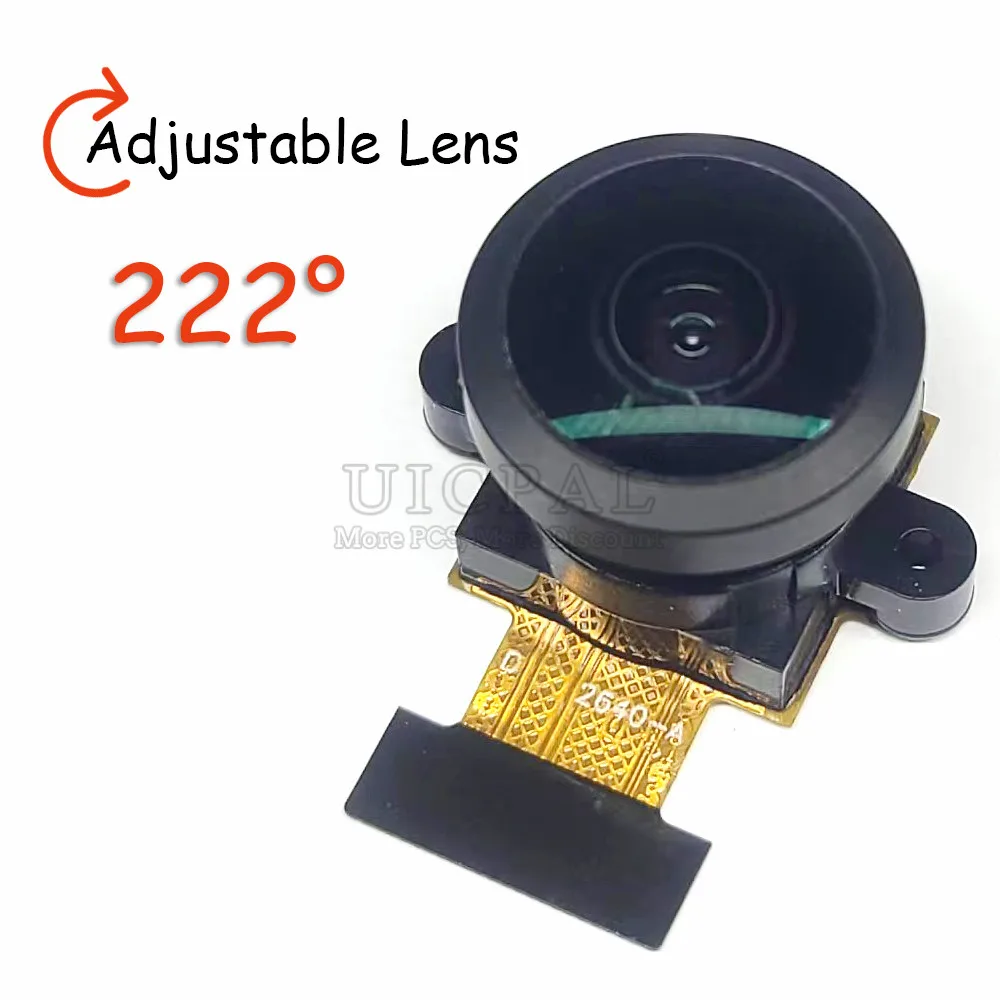

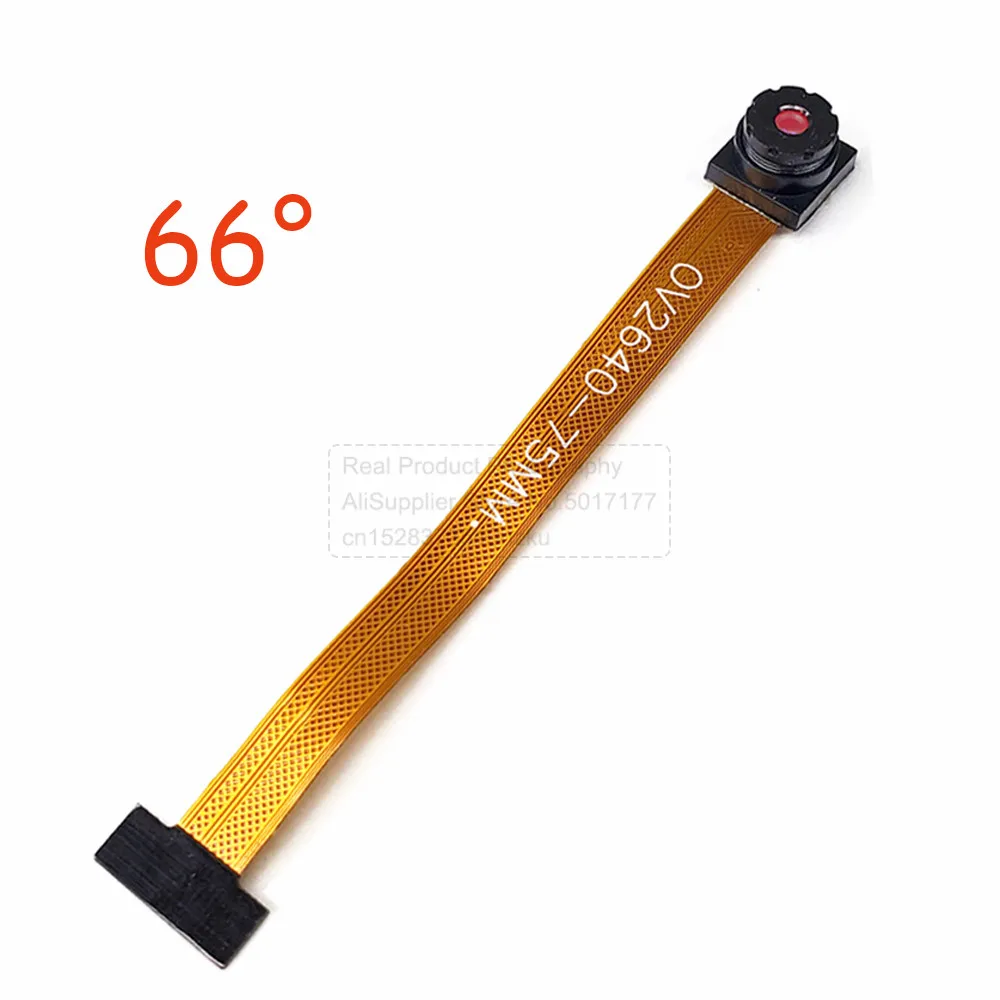

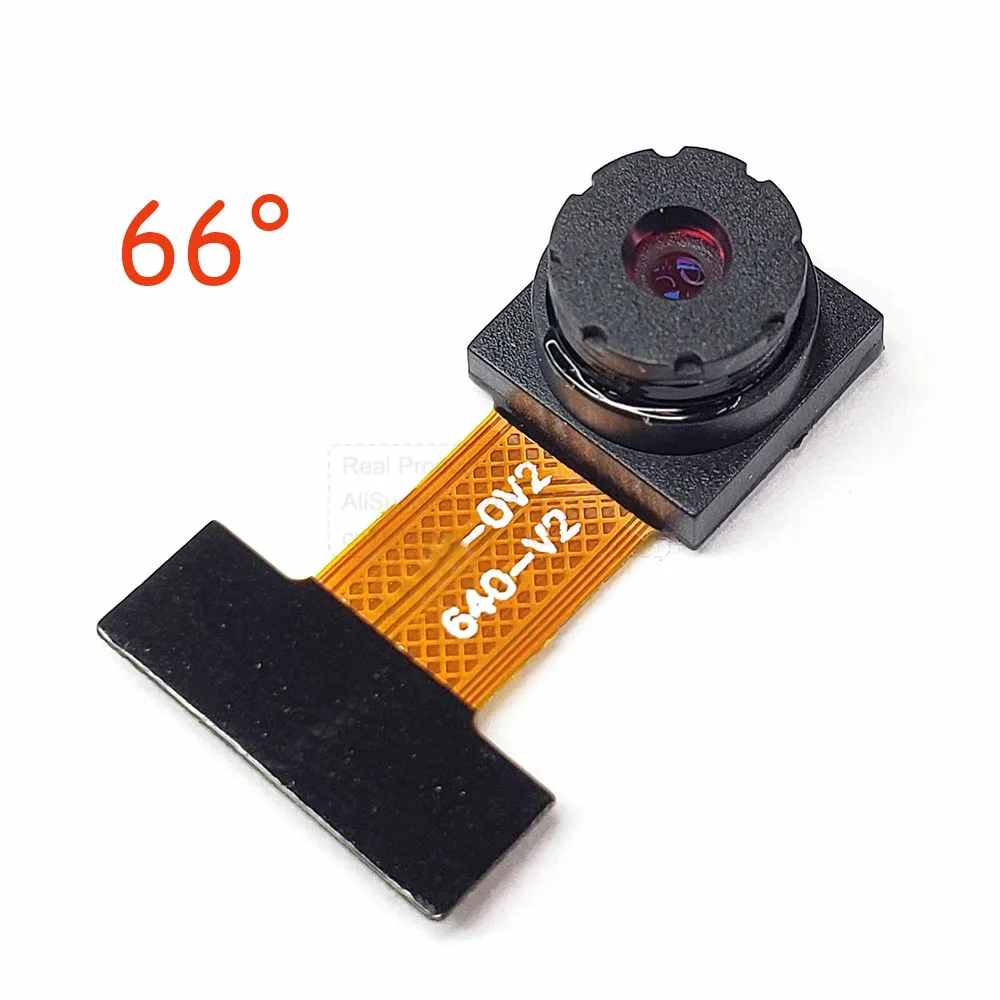

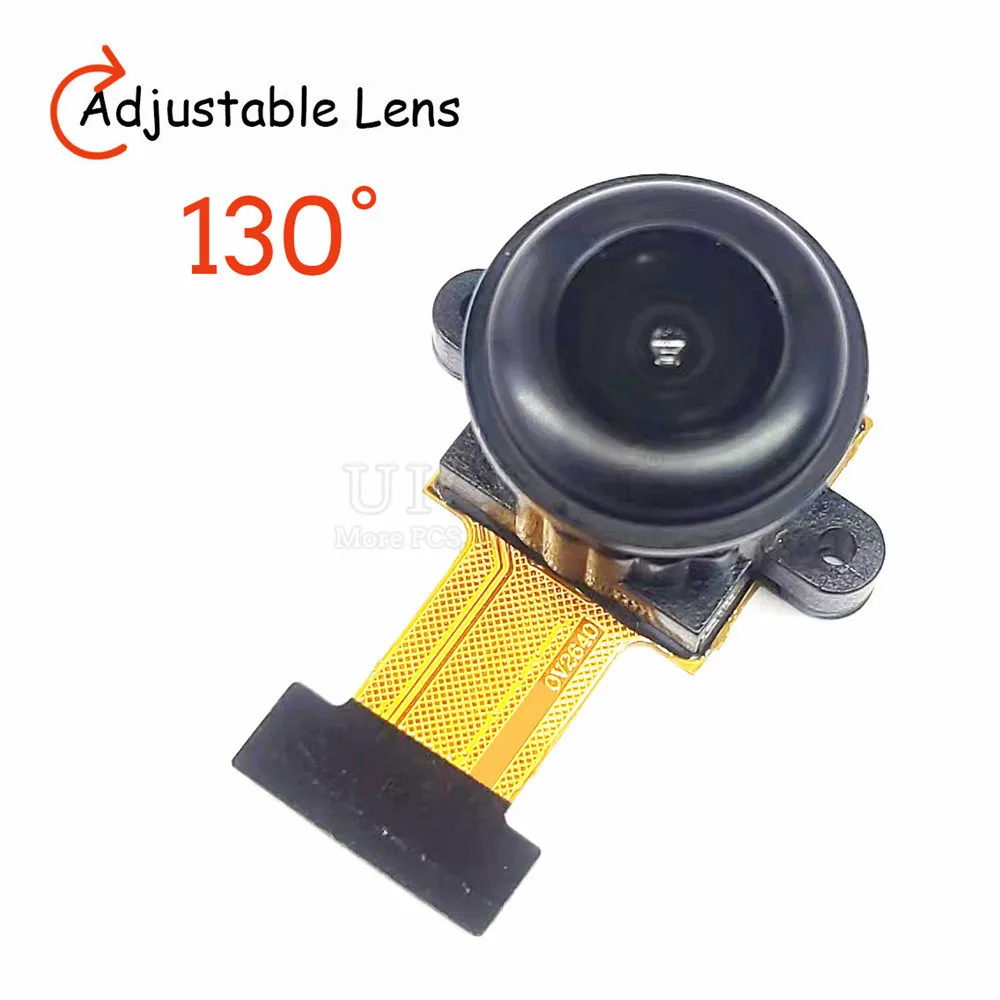

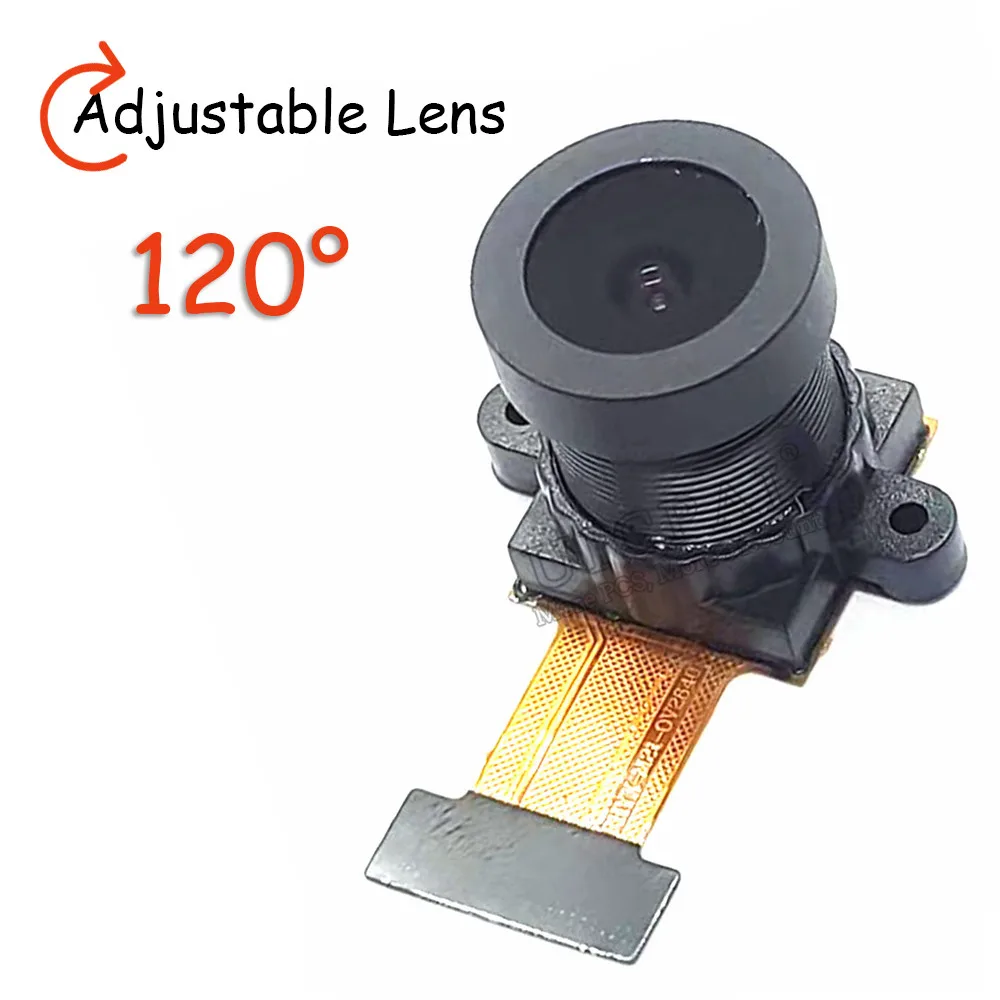

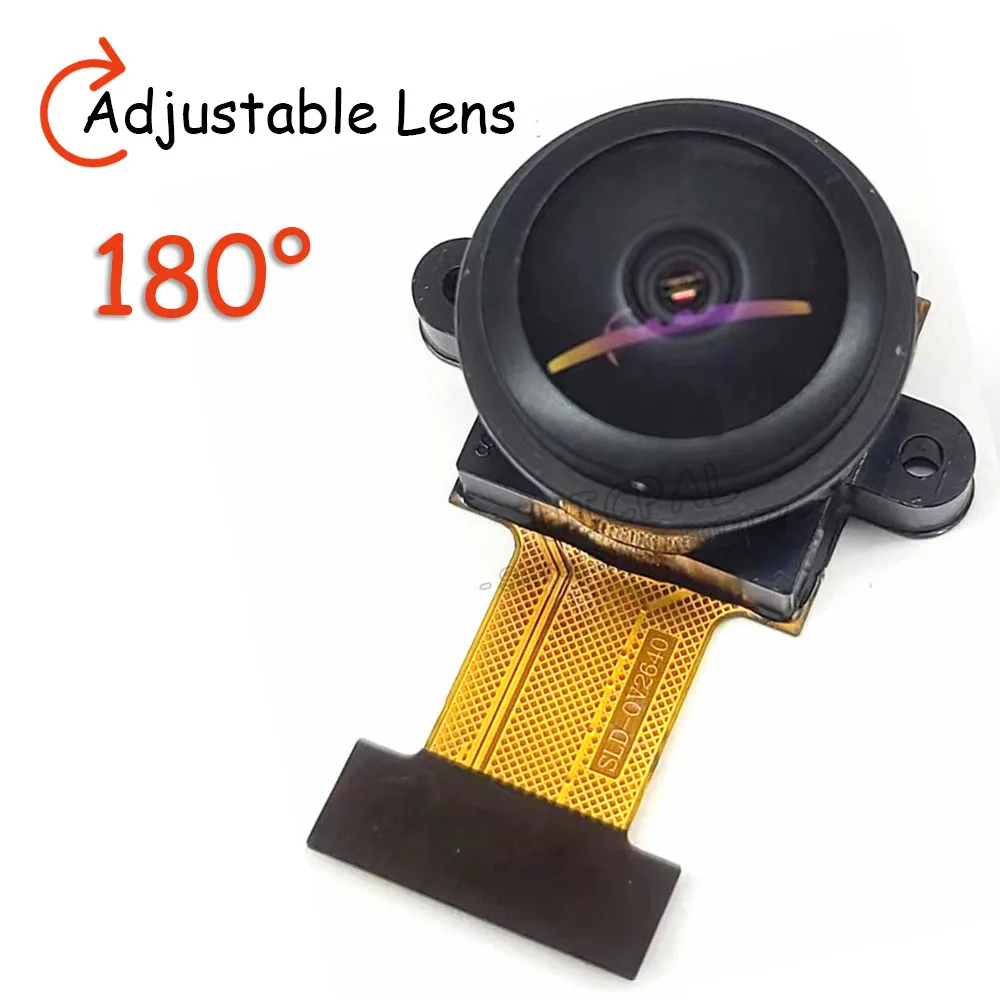

Field of view 66/120/160 degrees
Maximum frame rate 15fps SXGA
Sensitivity 1.3V/(Lux-sec)
S/N ratio 40 dB
Dynamic range 50 dB
Browse mode line by line
Electronic exposure 1 line to 1247 lines
Pixel area 2.2μm x 2.2μm
Dark current 15mV/s at 60℃
