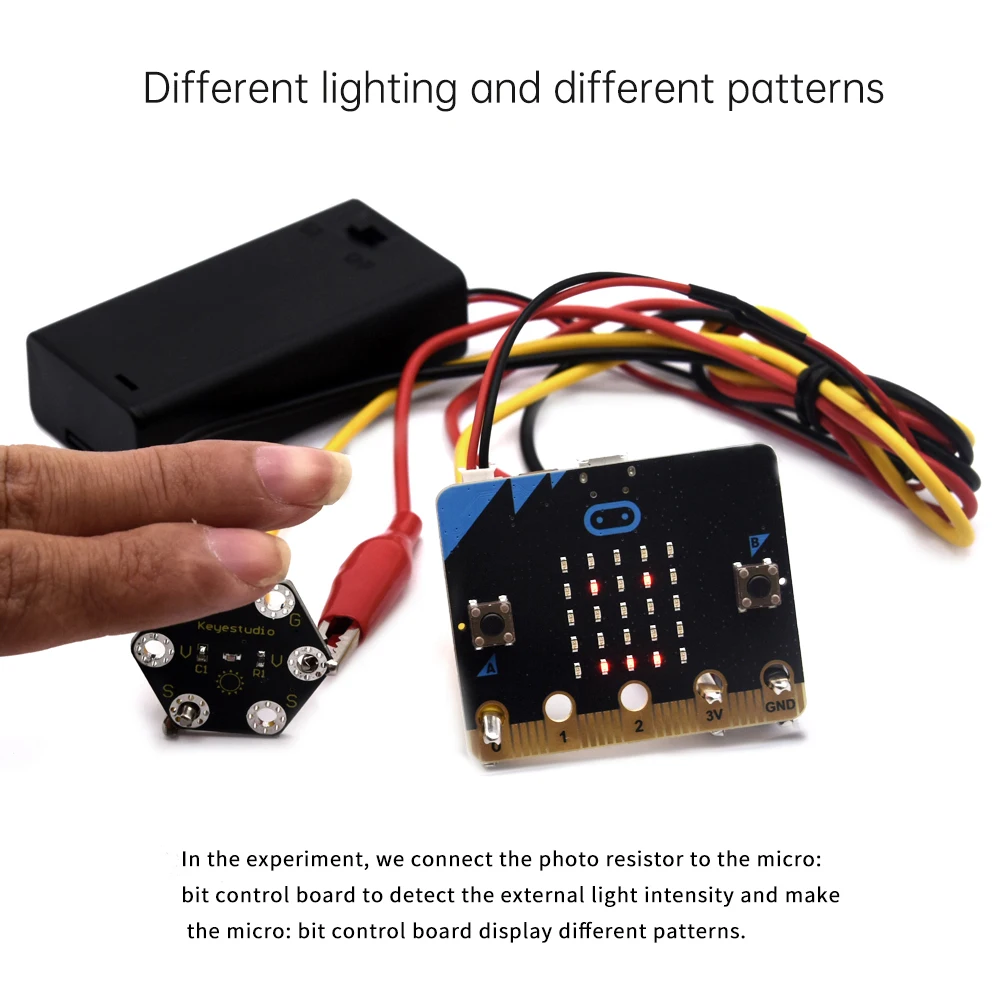

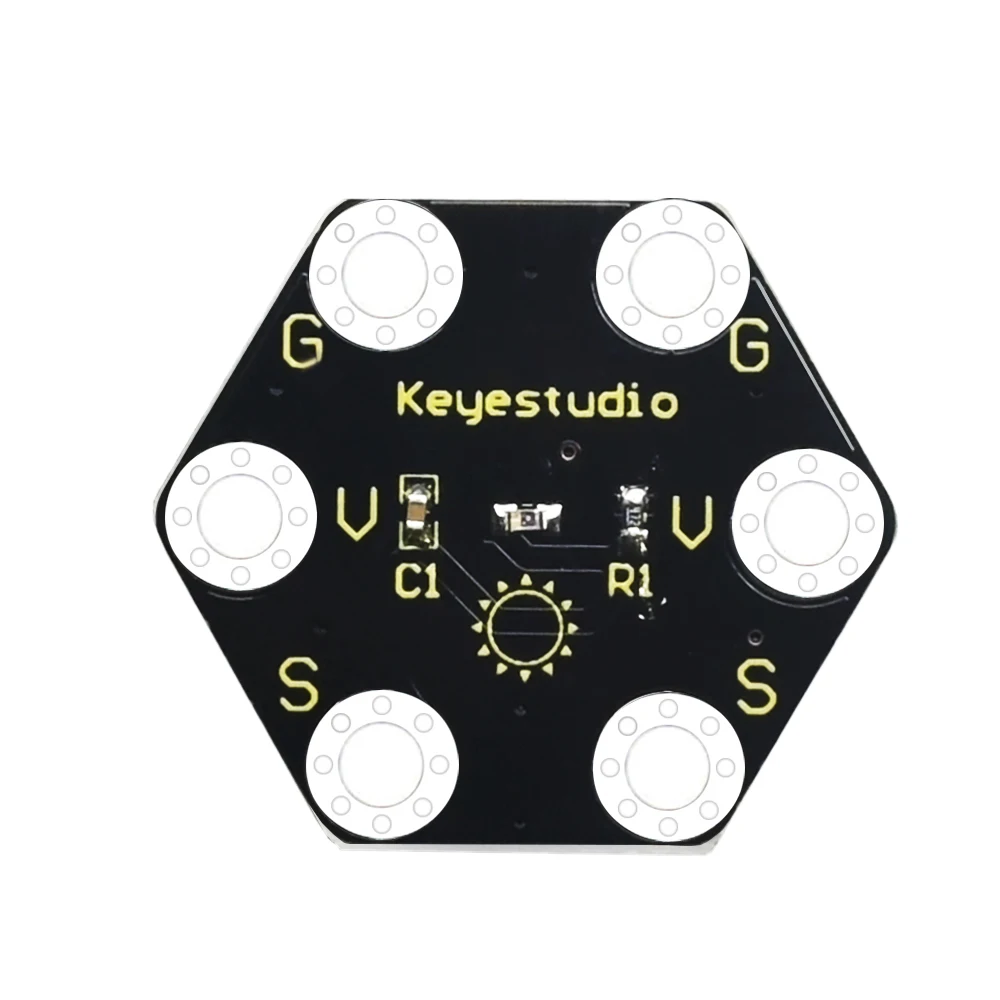

micro bit honeycomb photoresistor is fully compatible with micro bit control board. In the experiment, we connect it with the micro: bit by a crocodile clip. There are 6 sockets on it, 2 G, 2 V and 2 S are connected. Additionally, G is GND, VV is VCC, and S is the signal end of the module.
The sensor mainly includes a photoresistor, and its resistance varies with the lightness. the brighter the light is, the higher the resistance is, otherwise, the lower the resistance is. During the test, we test the analog value of S end via micro: bit control board. The brighter the light is, the larger the analog value is, the darker the light is, and the smaller the analog value is.
Parameters
- Working voltage: DC 3 -5V
- Working current: 60mA
- Maximum power: 300mW
- Working temperature: -25 ℃ –65 ℃

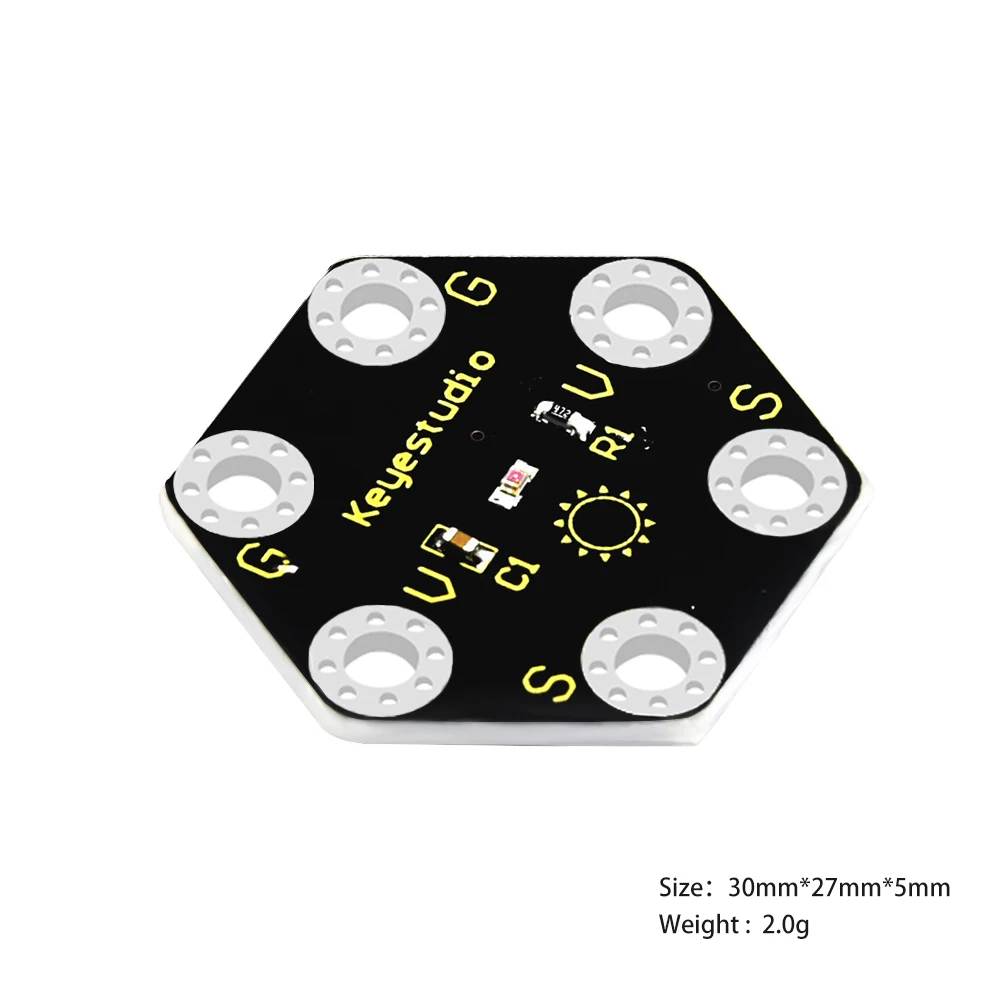

- Dimension: 30mm * 27mm * 5mm
- Weight: 2.0g
- Environmental attributes: ROHS
