Description
This keyestudio PIR motion module is fully compatible with micro:bit control board.

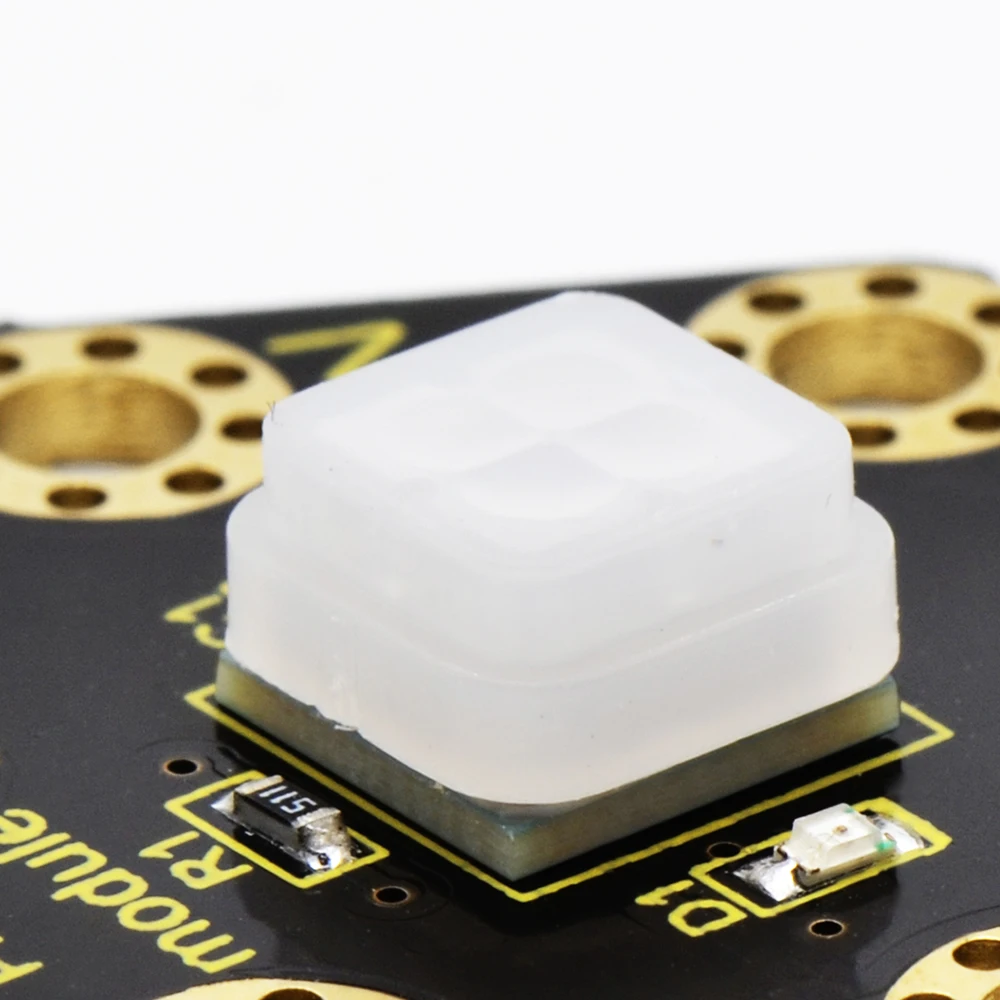

It is mainly composed of a digital pyroelectric infrared sensor, which is a digital signal output device.
This sensor has built-in filters, strong anti-interference, low voltage and micro power consumption.
The detection distance of the module is 3-5 meters.
The detection angle in the horizontal direction is less than 80°; the detection angle in the vertical direction is less than 55°

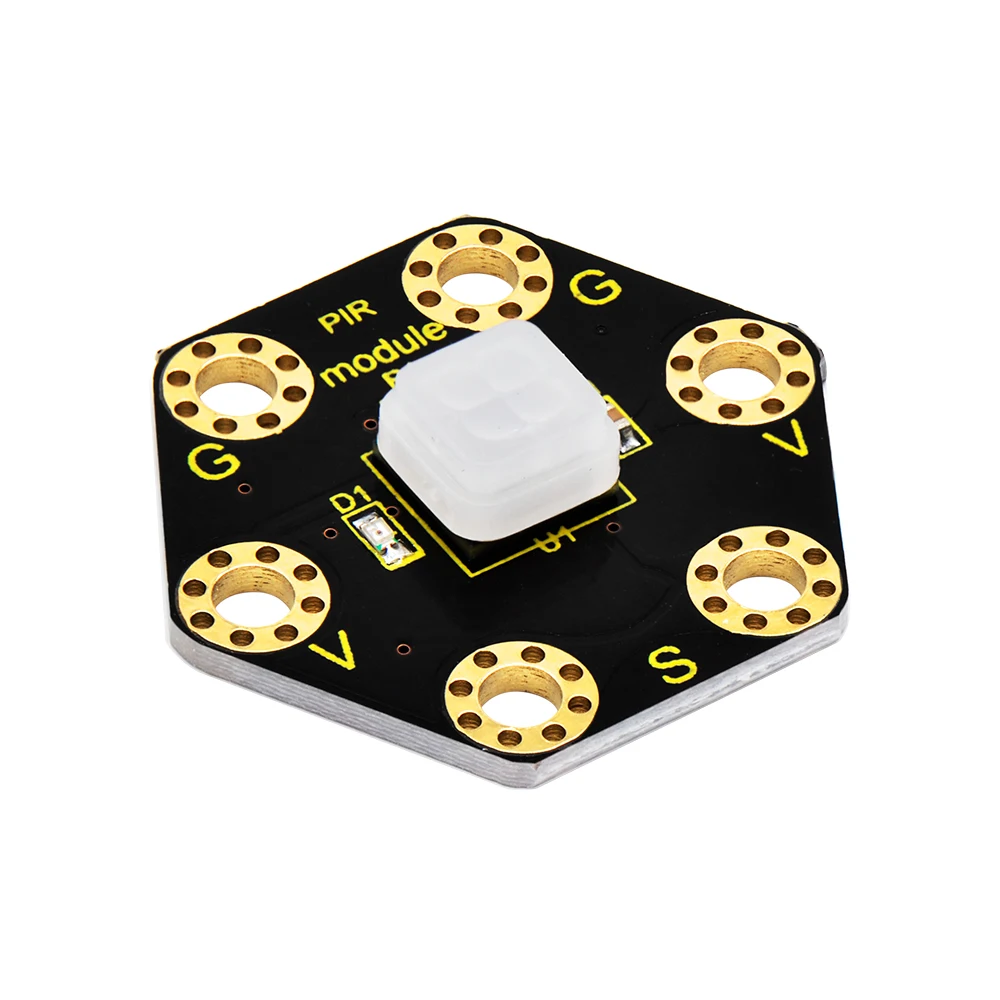

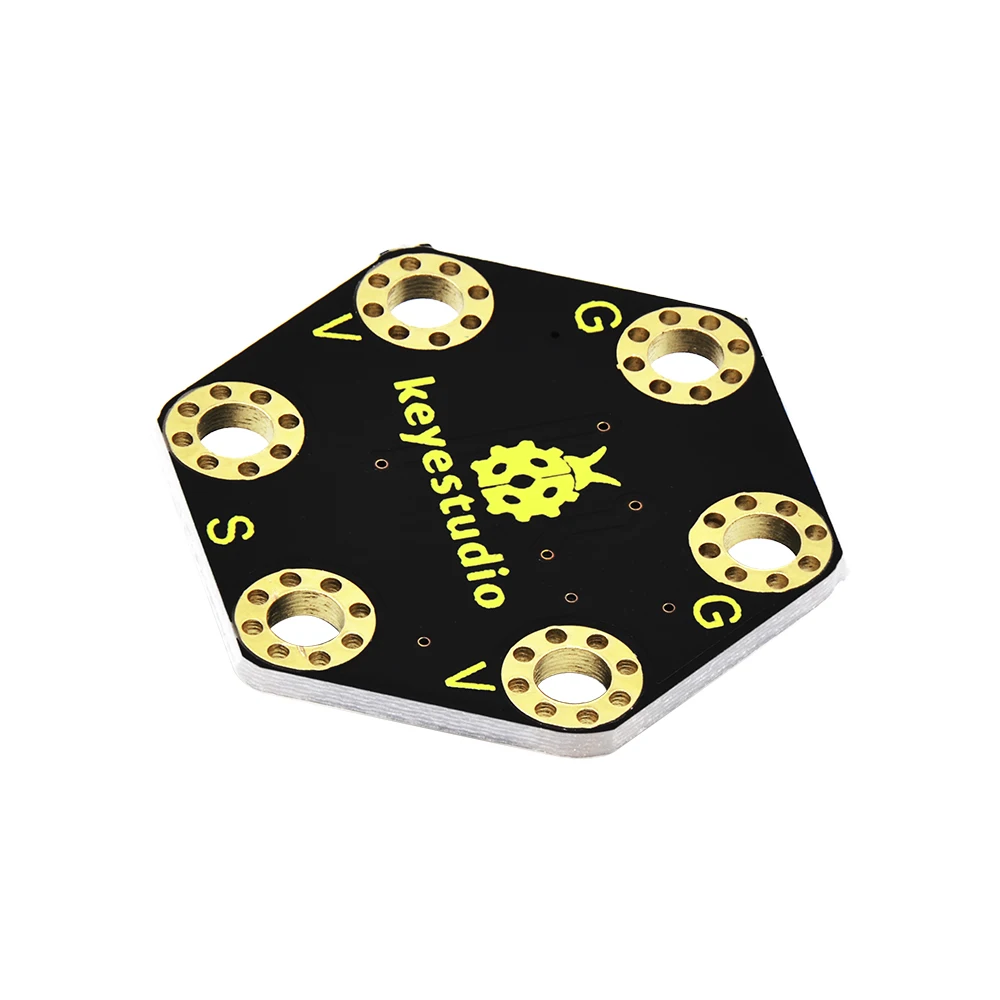

There are total 6 rings on the module. Note that two G rings, two V rings and two S rings are separately connected. G for ground; V for 3V; S for signal pin(0 1 2).

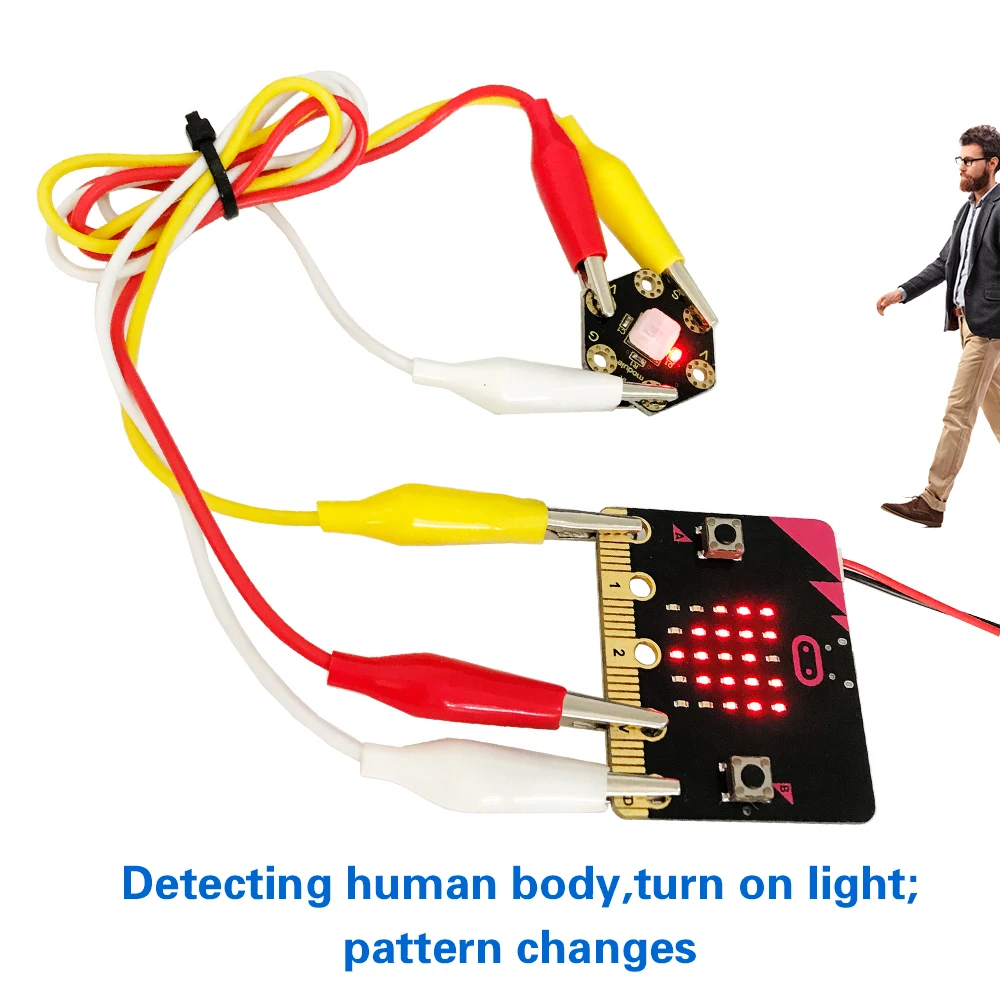

When using, connect the module to micro:bit control board using Crocodile clip line.
Once detecting someone moving nearby, the signal pin of micro:bit main board will input HIGH level; LED on the module lights.
Technical Parameters
- Working voltage: DC 3.0-3.3V
- Working current: 100mA
- Maximum power: 0.5W
- Output signal: digital signal
- Detection distance: 3-5 meters
- Detection angle: less than 80°in the horizontal direction and less than 55° in the vertical direction
- Operating temperature range: -30℃~ +80℃
- Dimensions: 31mm*27mm*6mm
- Weight: 2g
- Environmental attributes: ROHS
