Type: Dual Linear
Terminal: 3-Pin

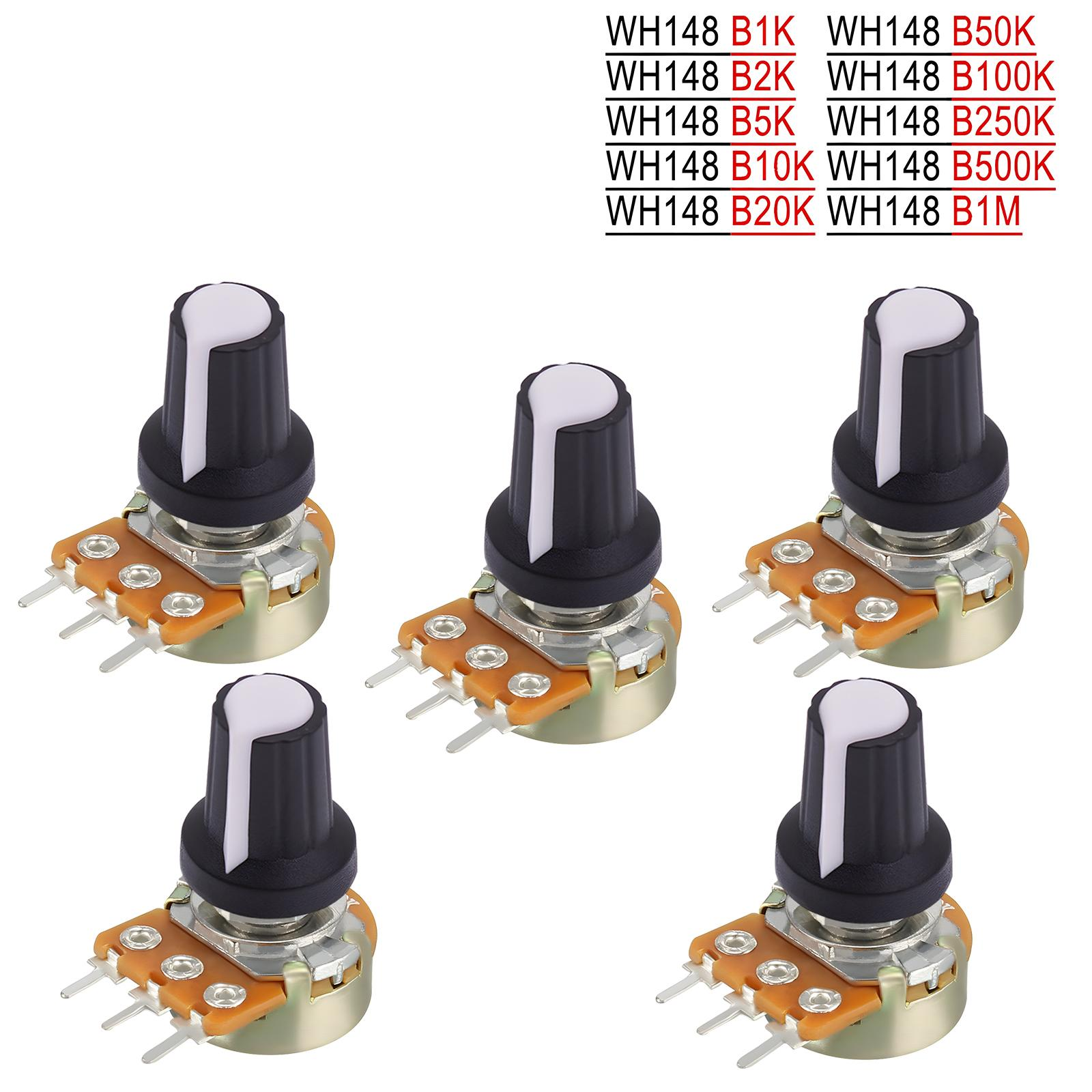

Resistance Values: 1K, 2K, 5K, 10K, 20K, 50K, 100K, 250K, 500K, 1M Ohm
Material: Metal with Carbon Film
Rotation Angle: 300° ± 10°
Rotational Torque: 10 – 200 gf·cm
Point Electric Torque: 50 – 150 gf·cm
Resistance Tolerance: ±20%
Withstand Voltage: 1 minute AC 250V
Rotating Noise: Less than 100mV
Rotation Life: 10,000 cycles
Load Power:
Curve B: 0.05W
Other than B: 0.025W
Operating Voltage:
Curve B: 50V DC
Other than B: 25V AC
Package Includes:
5 x Dual Linear 3-Pin Rotary Potentiometer
Note: Product color may slightly vary due to light conditions and display differences. Measurement error allowed is +/- 1-3cm.
=
