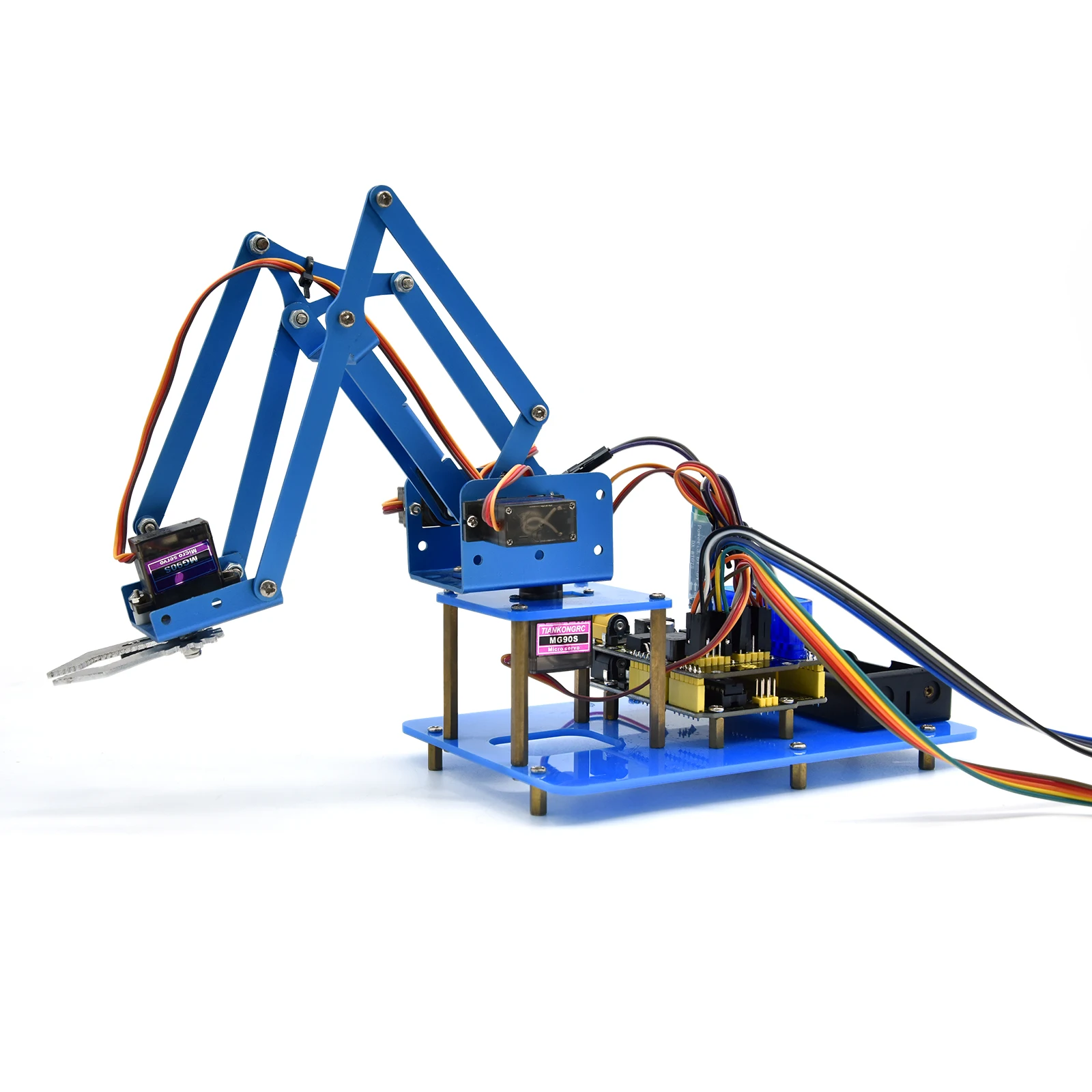

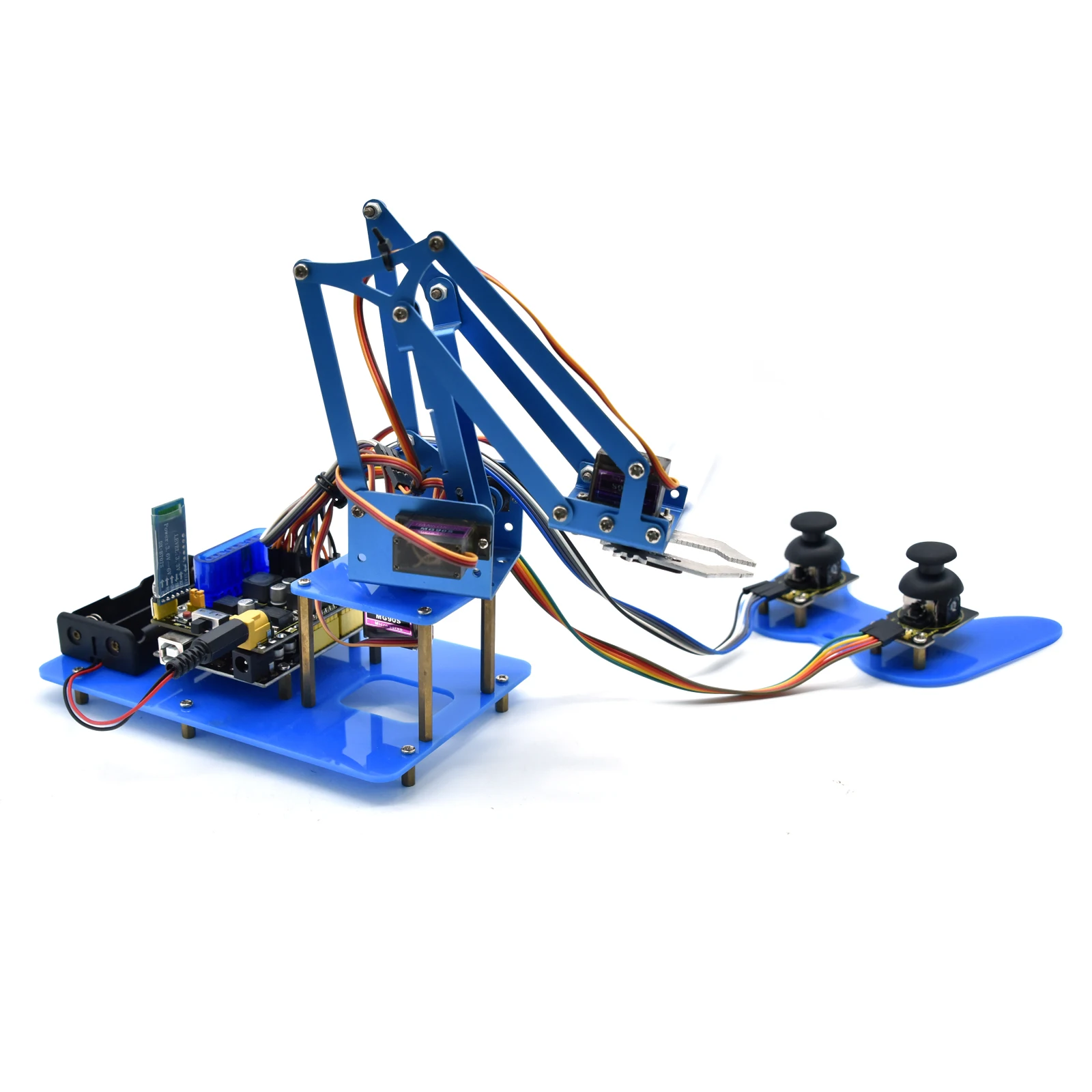

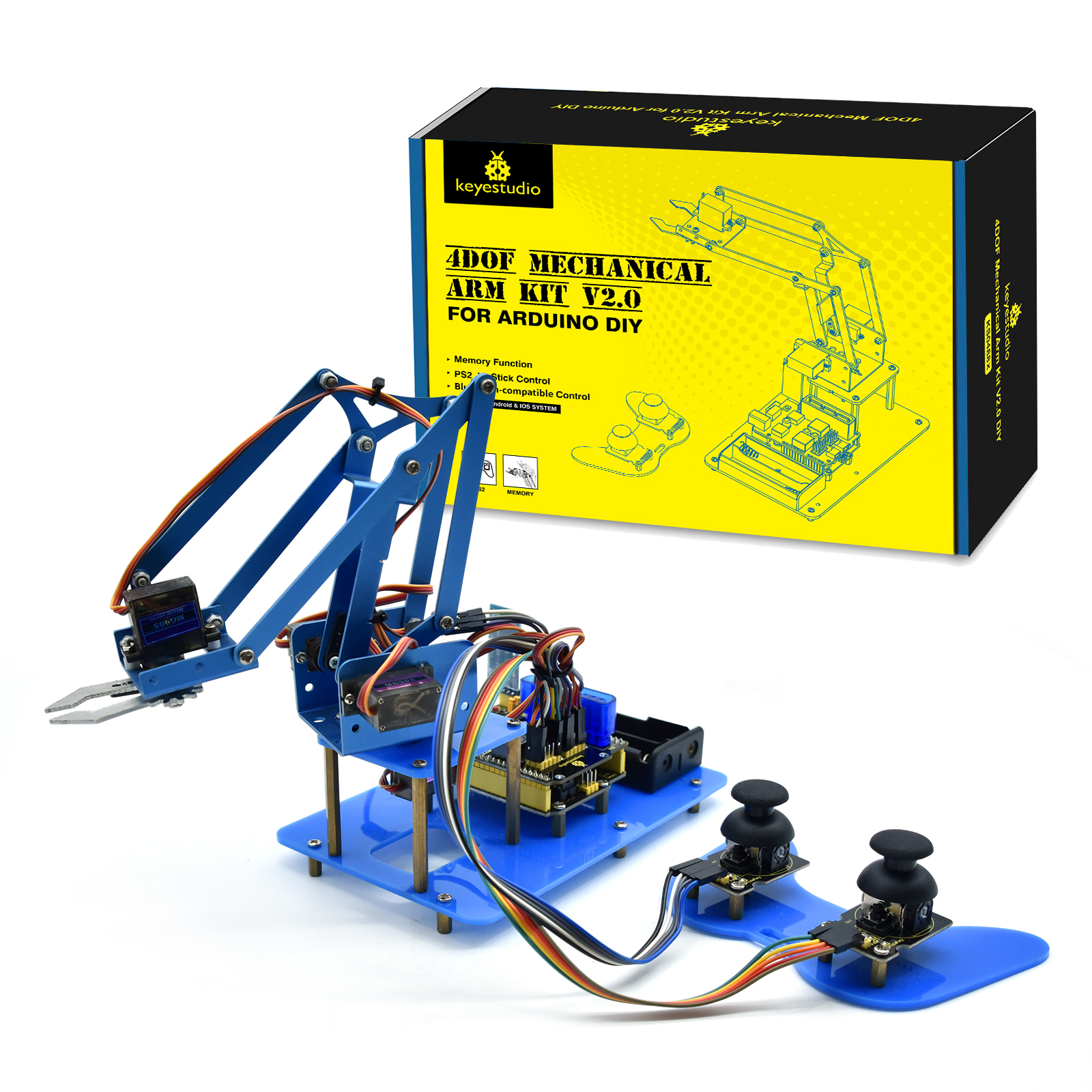

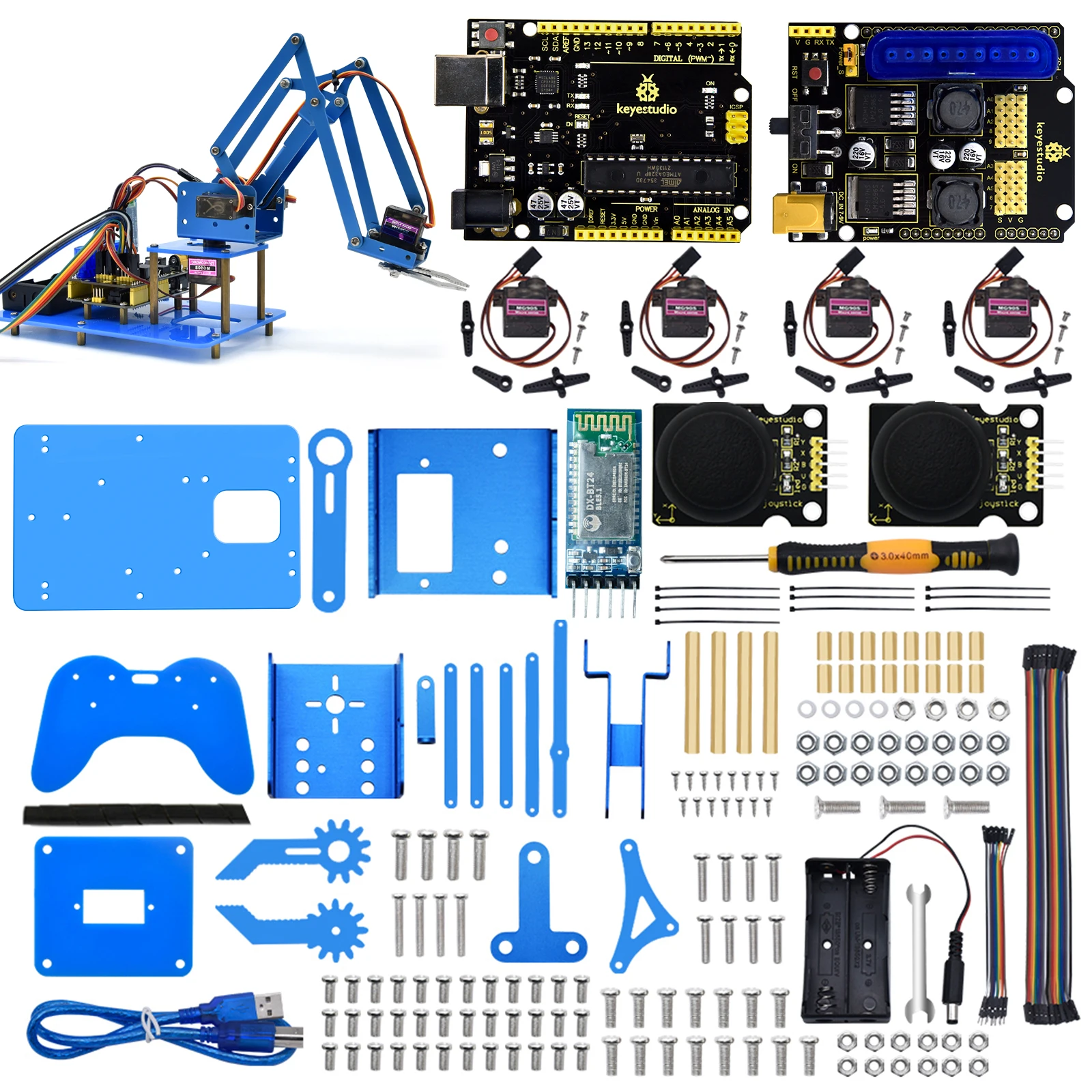

This kit includes Arduino single-chip microcomputer, 2 joystick modules and 4 servos and so on. Next, we’ll teach you how to install and debug the robotic arm.

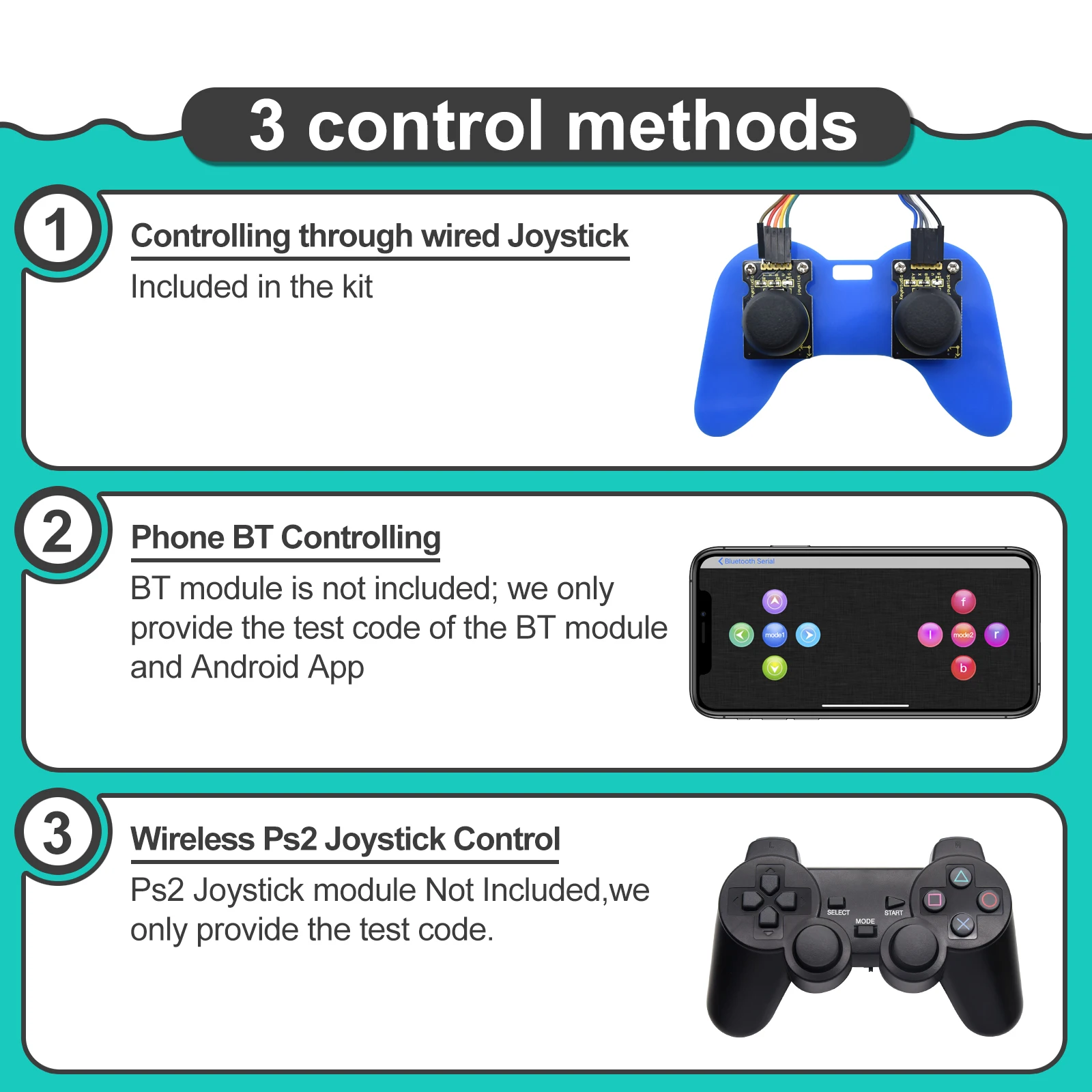

There are three methods to control it as follows:

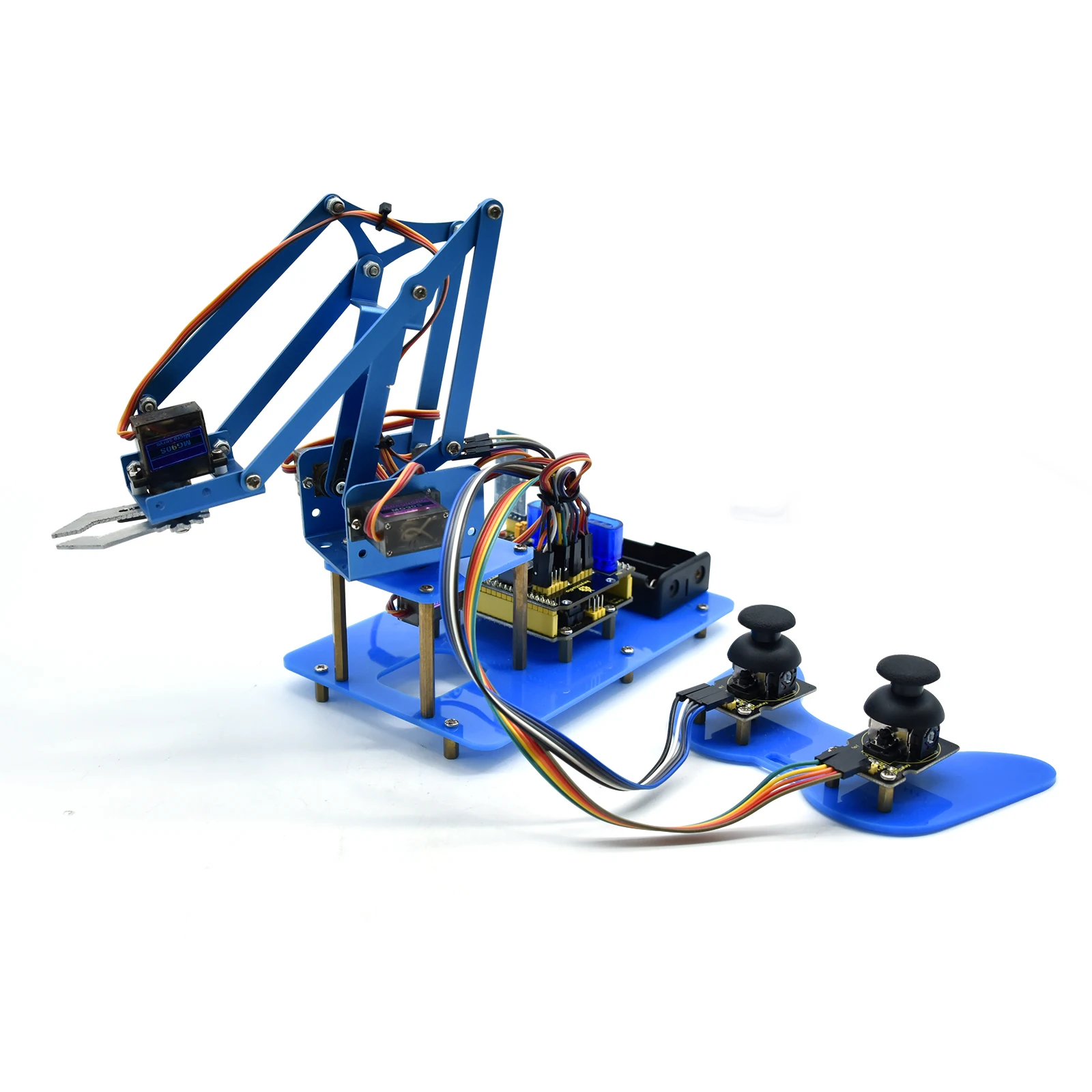

First, we can a wired home-made joystick controller (included in the kit); secondly, the App control is adapted; thirdly, we also can use a wireless PS2 joystick(not included in kit) .
The detailed codes and projects are provided for you.
Come and let’s get started with this kit.
Note: You must connect a DC 7-15V power to VIN port of shield when wiring servo to shield.
Features
-
Detailed installation method
-
Detailed debugging methods, even you’re a beginner
-
3 control methods: wired joystick control, Bluetooth control, wireless PS2 joystick control.
-
Relevant information provided
Specification
-

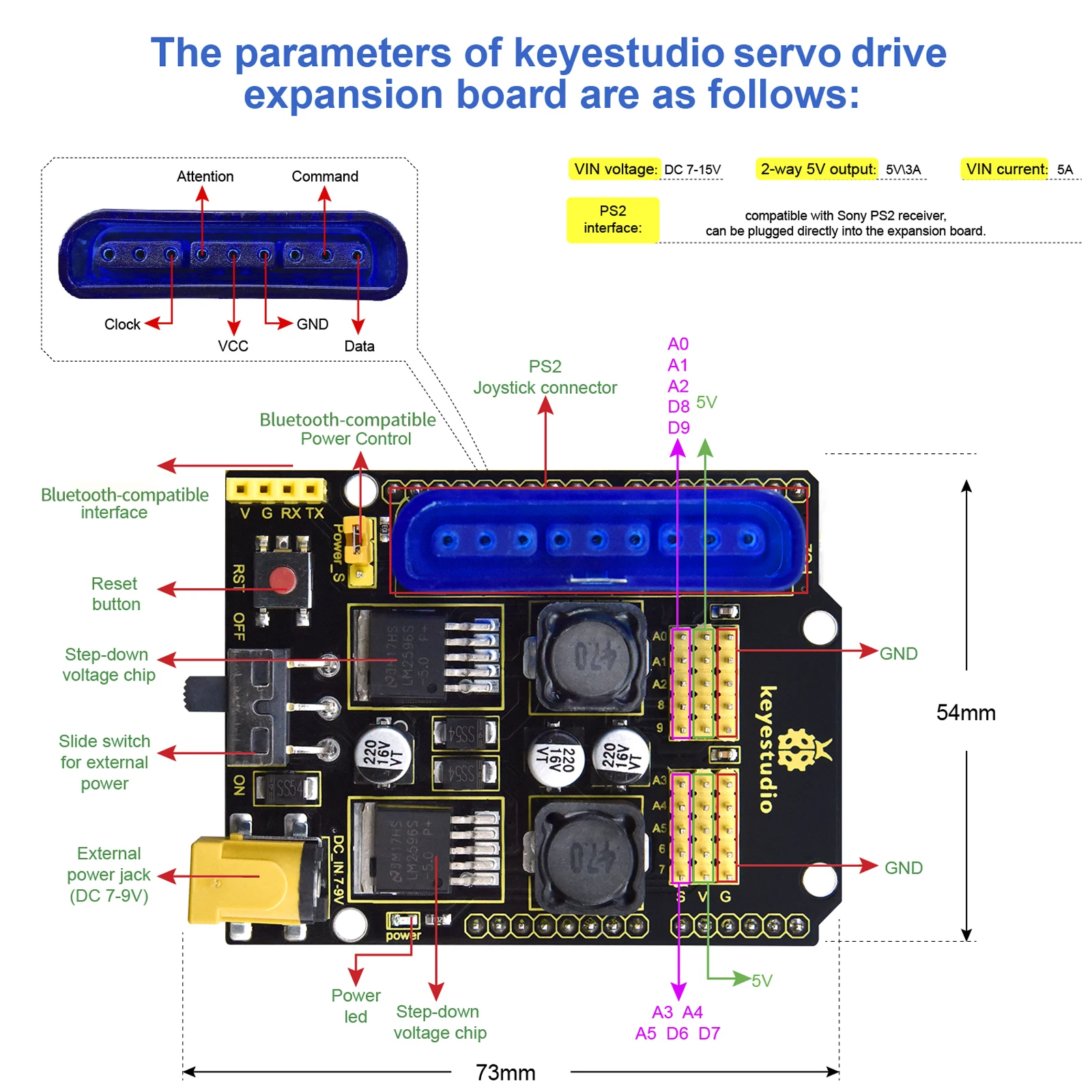

Keyestudio servo motor driver shield:
-
VIN voltage: VIN = DC 7-15V
-
VIN current: 5A
-
Size: 73 * 53.34mm
-
2-channel 5V output: 5V / 3A
-
PS2 interface: compatible with Sony PS2 receiver, can be plugged directly into the shield.
