Raspberry Pi Motor Driver Shield L298P
The Raspberry Pi Motor Driver Shield L298P(Dual H-Bridge Motor Control Module for Robotics and Automation)
is an electronic control module designed to enable precise control of DC and stepper motors in embedded systems and robotics applications.

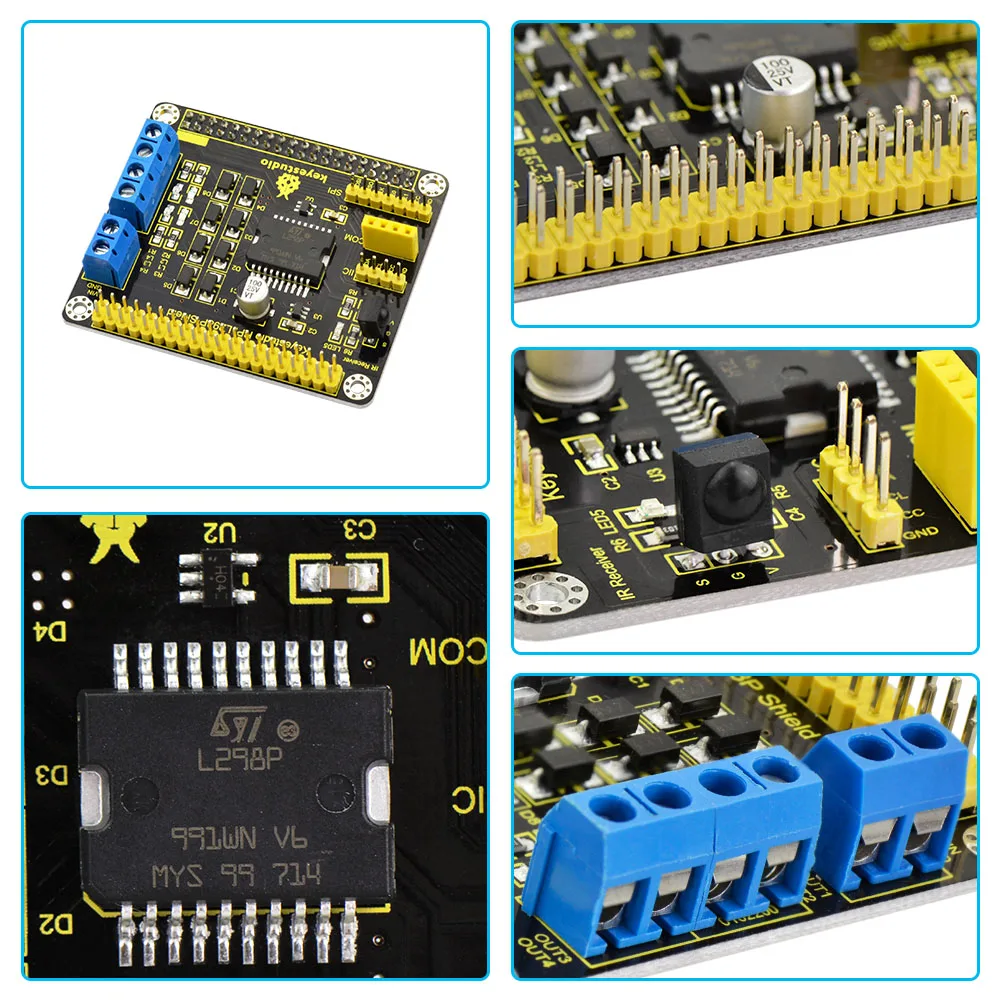

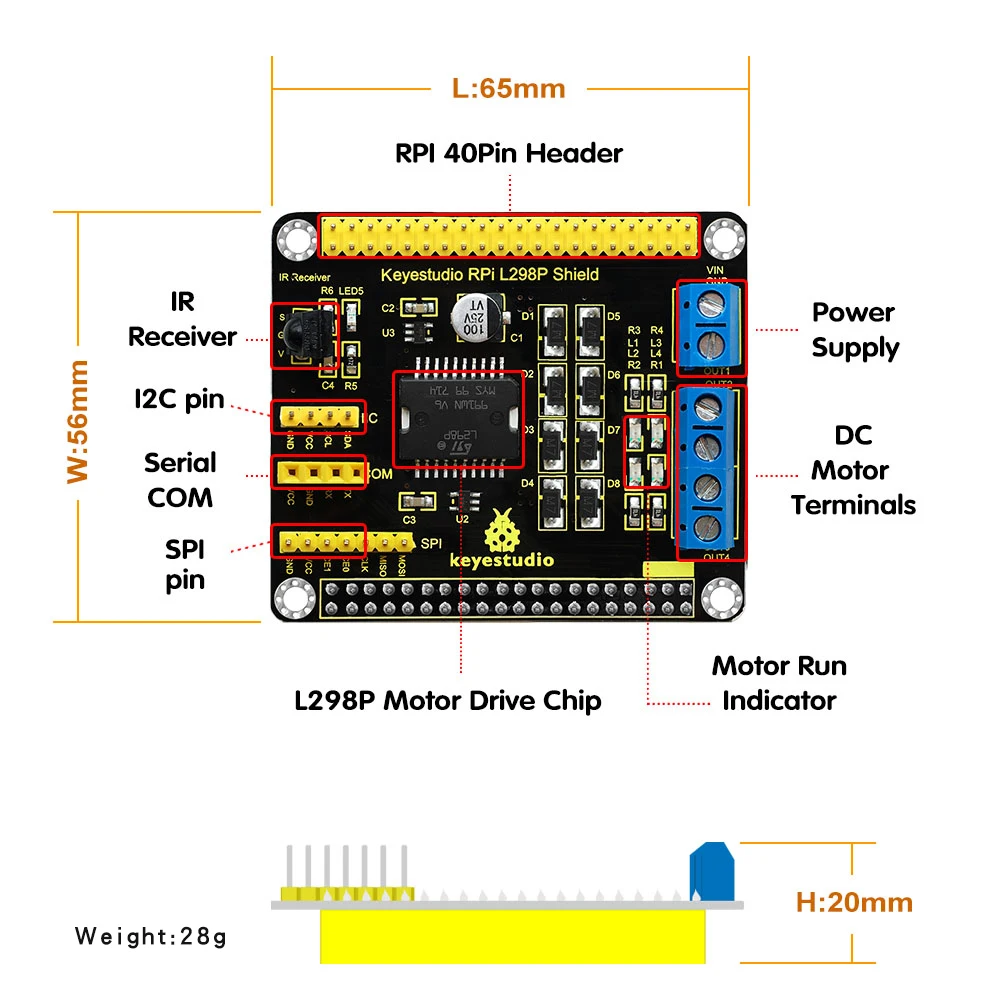

Built around the L298P dual H-bridge driver chip, this shield allows users to control motor direction and speed using a Raspberry Pi, making it suitable for educational, experimental, and prototyping purposes.
The module supports bidirectional motor control and integrates easily with Raspberry Pi GPIO pins, allowing seamless interaction between hardware and software. It also includes an IR receiver, enabling remote-control-based projects.
This product is not a standalone system; it requires a Raspberry Pi and programming knowledge to operate effectively.
🎓 Topics Covered by This Product
This module supports learning across multiple technical and educational domains:
1. Electronics
- Motor driver circuits (H-bridge concept)
- Voltage and current control
- Power management in circuits
2. Programming
- GPIO control using Raspberry Pi
- PWM (Pulse Width Modulation)
- Logic-based control systems
3. Robotics
- Motion control systems
- Motor coordination
- Actuator control
4. Embedded Systems
- Hardware-software integration
- Real-time control
- System interfacing
5. Engineering Concepts
- System design
- Troubleshooting and testing
- Control logic implementation
🧠 Activities That Can Be Performed
🟢 Beginner Activities
- Controlling a single DC motor (start/stop)
- Changing motor direction (forward/reverse)
- Basic speed control using PWM
🟡 Intermediate Activities
- Controlling multiple motors simultaneously
- Building a simple robotic car

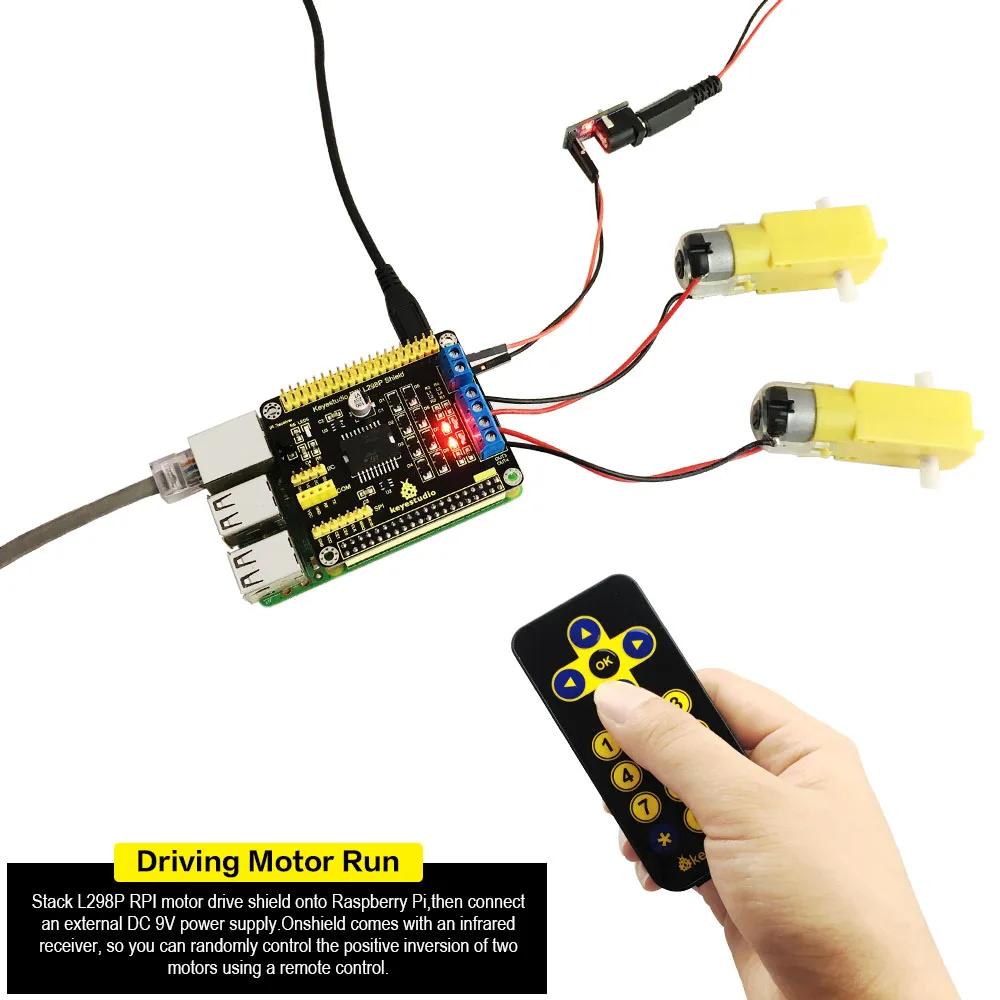

- Using IR remote to control movement
🔴 Advanced Activities
- Designing autonomous robots
- Creating obstacle-avoiding systems
- Integrating sensors with motor responses
- Developing smart automation systems
🎯 Why This Product Is Useful for Teachers
✔ Supports Practical Teaching
Teachers can move from theoretical explanations to hands-on demonstrations of motor control and electronics.
✔ Enables STEM-Based Learning
It integrates science, technology, engineering, and mathematics into one practical tool.
✔ Facilitates Project-Based Learning
Teachers can assign real-world projects such as:
- Robot building
- Automation systems
- Control applications
✔ Enhances Student Engagement
Interactive experiments increase participation and understanding compared to traditional lectures.
🎓 Why This Product Is Useful for Students
✔ Hands-On Learning Experience
Students learn by building and testing real systems instead of only studying theory.
✔ Develops Technical Skills
- Programming
- Circuit design
- Problem-solving
✔ Prepares for Engineering Fields
Provides foundational knowledge for:
- Robotics
- Mechatronics
- Embedded systems
✔ Encourages Innovation
Students can experiment, modify, and create their own projects, fostering creativity and independent thinking.
⚠️ Objective Note
- Requires prior basic knowledge of Raspberry Pi and programming
- Not suitable for very young learners without supervision
- Effectiveness depends on guidance and learning resources
