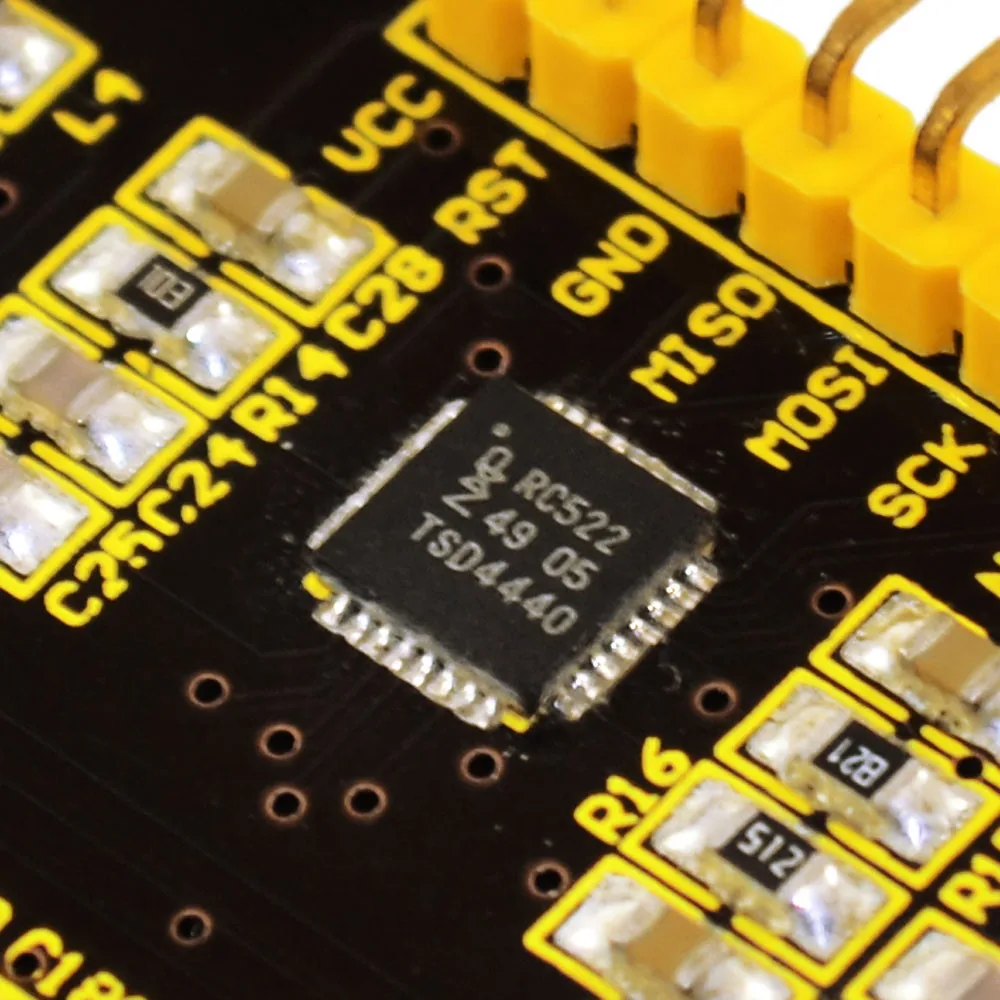

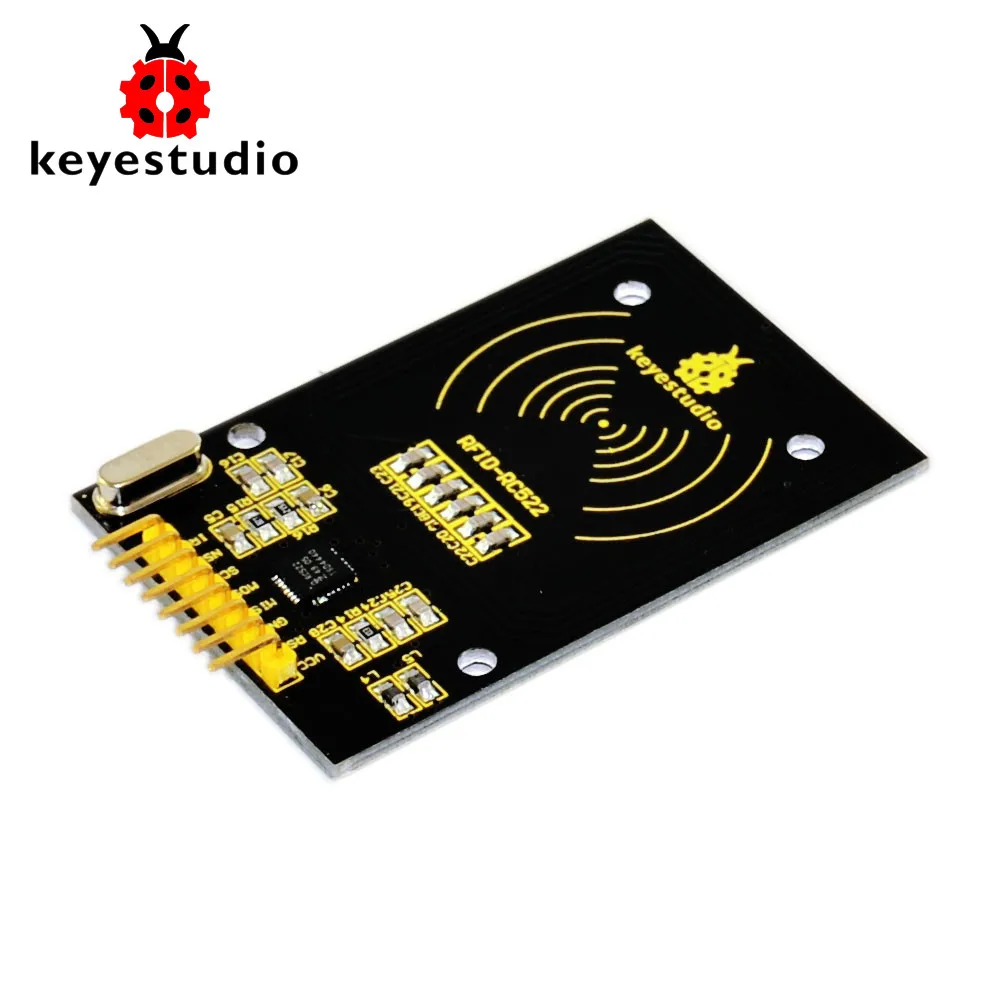

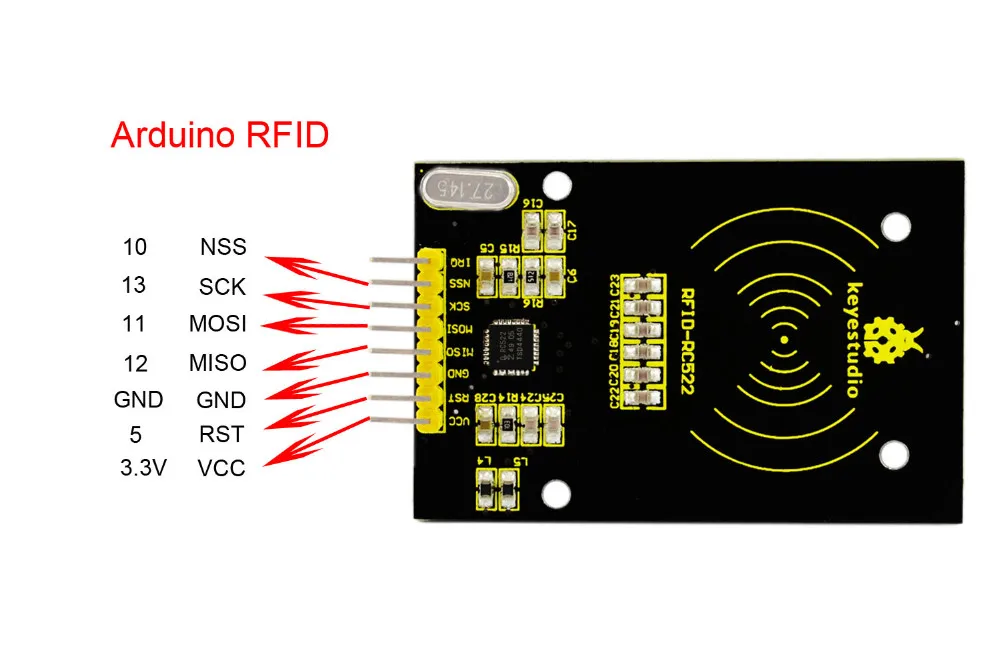

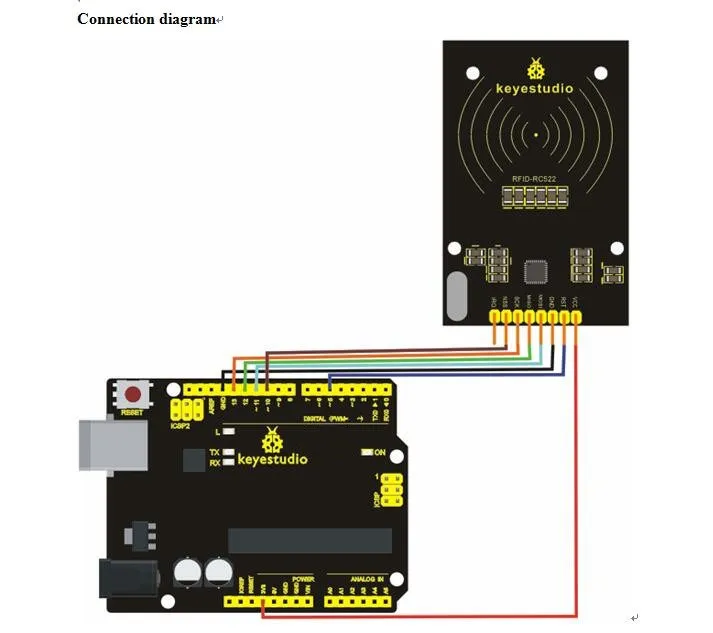

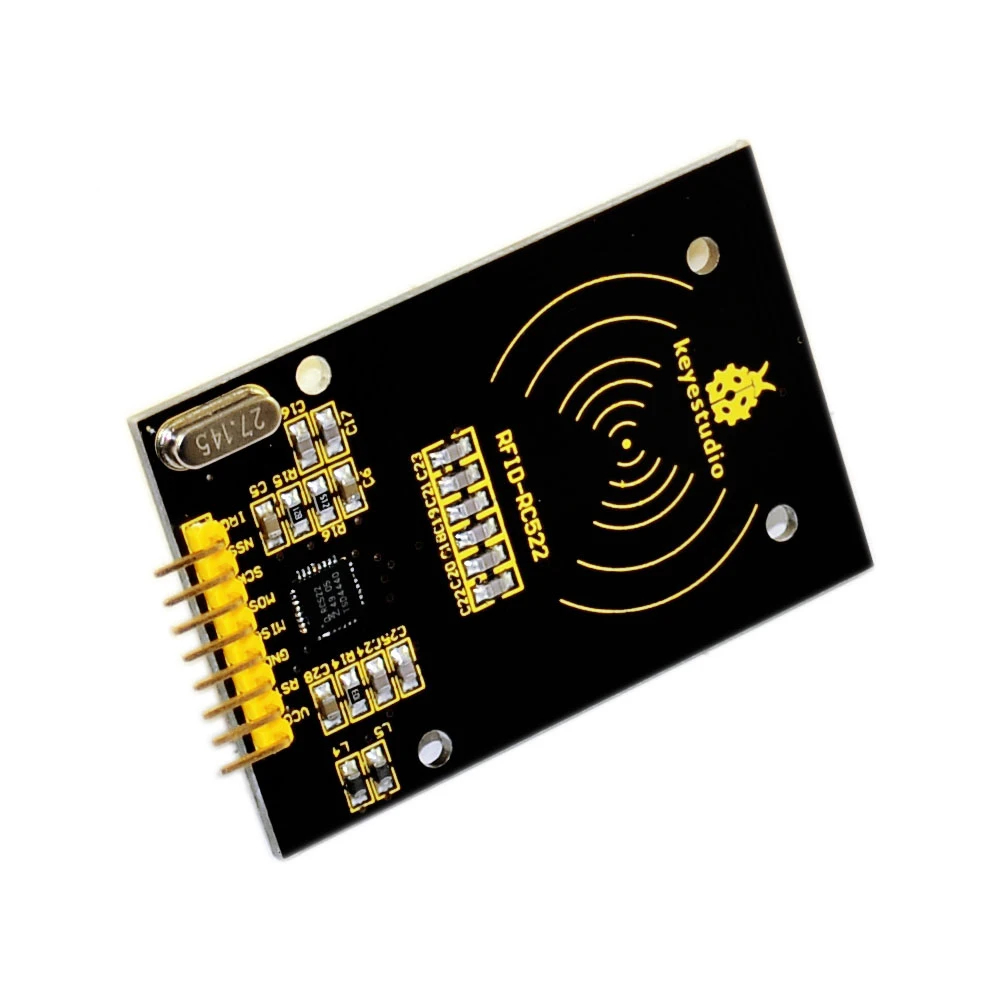

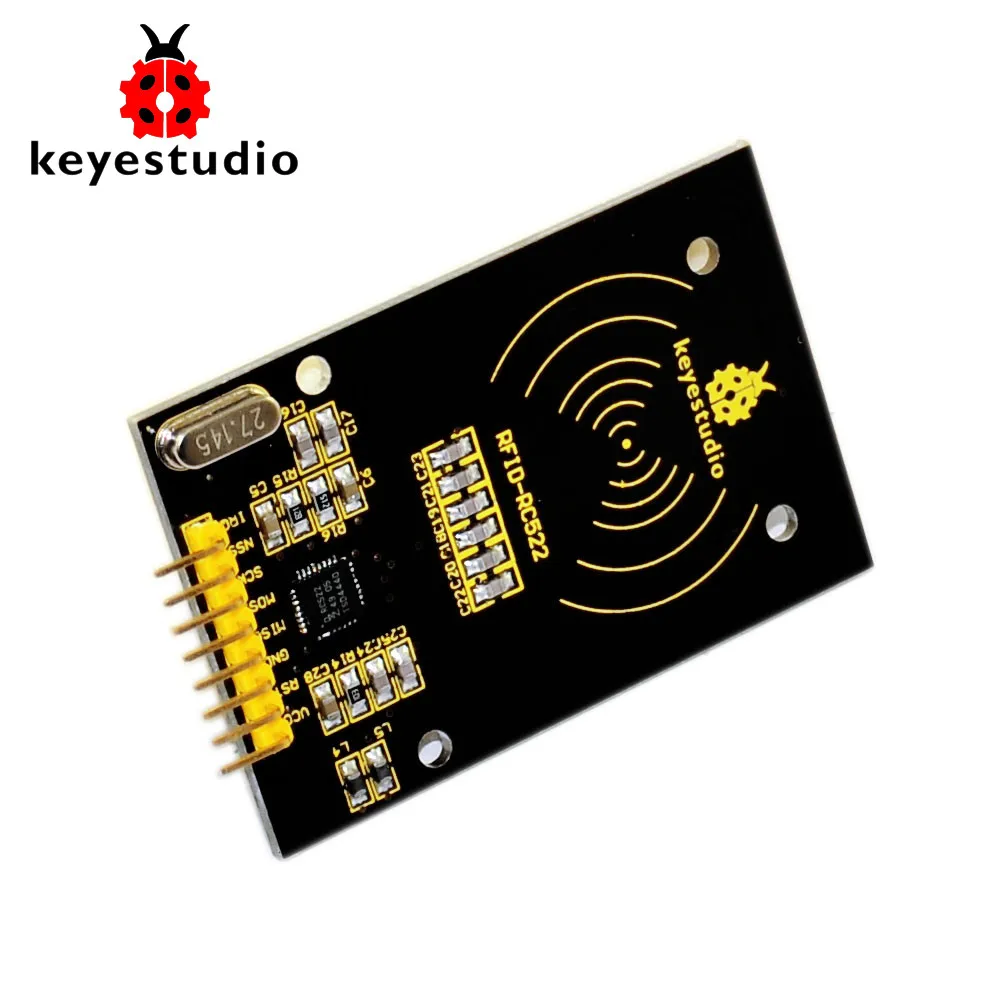

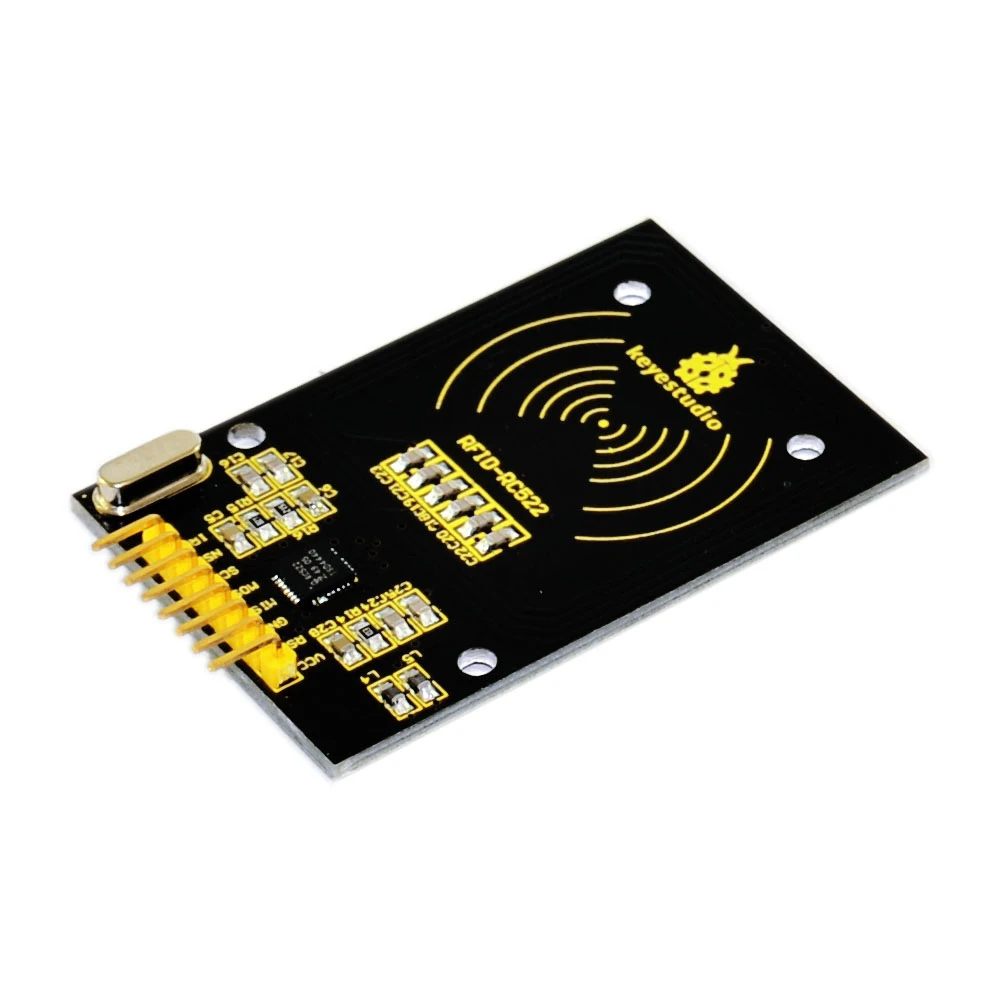

MF522-AN module adopts Philips MFRC522 original reader circuit chip design, easy to use, low cost, suitable for equipment development, development of advanced applications such reader users, the need for RF card terminal design / production of the user. This module can be loaded directly into a variety of readers molds. Module uses voltage of 3.3V, through the SPI interface simple few lines can be directly connected to the user any CPU board communication module can guarantee stable and reliable work, reader distance;
Electrical parameters
Current :13-26mA / DC 3.3V
Idle Current :10-13mA / DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
×60mm mce_style=”BACKGROUND-COLOR: #fff”>Product Physical Characteristics: Dimensions: 40mm × 60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environment Storage temperature: -40-85 degrees Celsius
Relative Humidity: 5% -95%
