Introduction
When DIY your own smart car, it is indeed necessary to use DC motors and wheels. So this kit we provided will do a great help for you, it provides you with four DC geared motors. When the DC motor is at 4.5V power supply, its speed is 200 rpm.
The kit also includes four wheels, four holders, eight M3*8 screws, eight M3*30 screws and eight M3 nuts for fixing, as well as eight 200mm connector wires for wiring. All of these fixed parts are flexible for you to mount them well on the car.
Components Parameters:

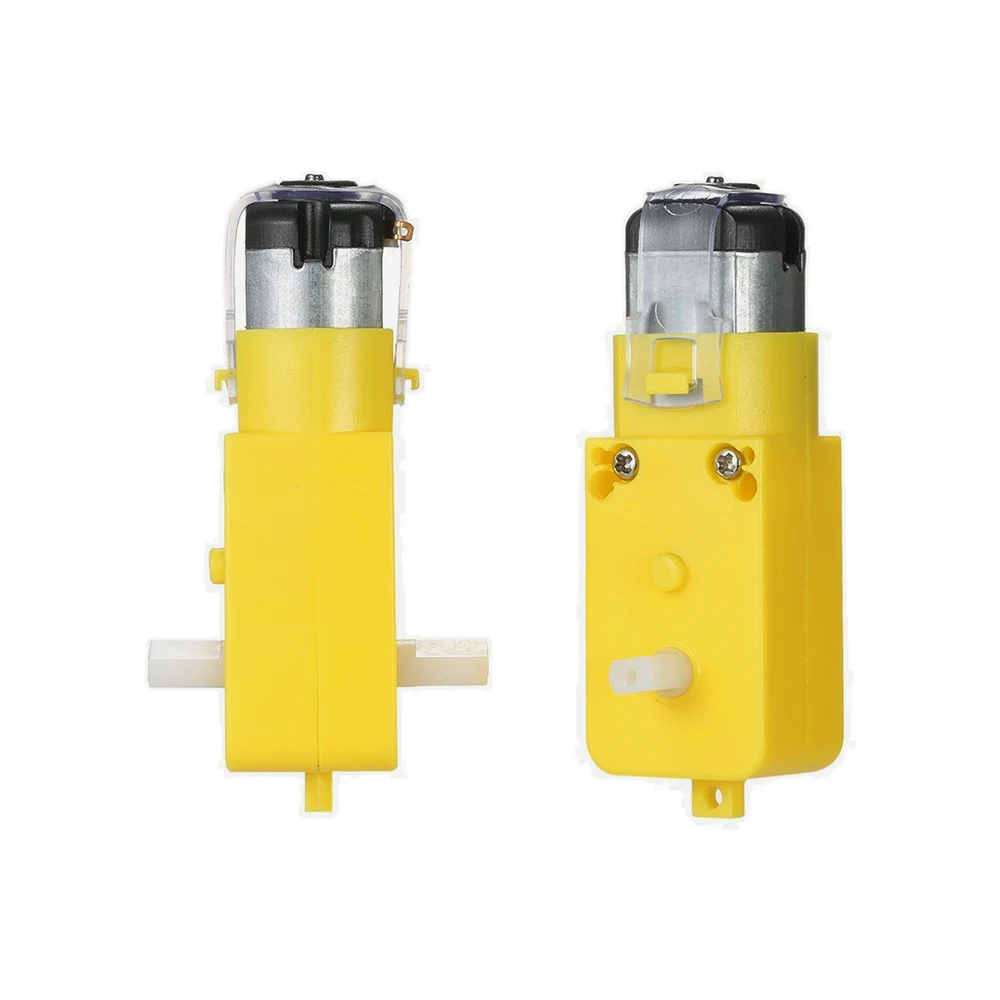

TT Motor：
Motor model: F130SA-11200-38V
Working voltage: DC 3-6V
Rated voltage: DC 4.5V
No-load current: ≤80mA
No-load speed: about 200 rpm, measured 180 rpm
Reduction ratio: 1:48

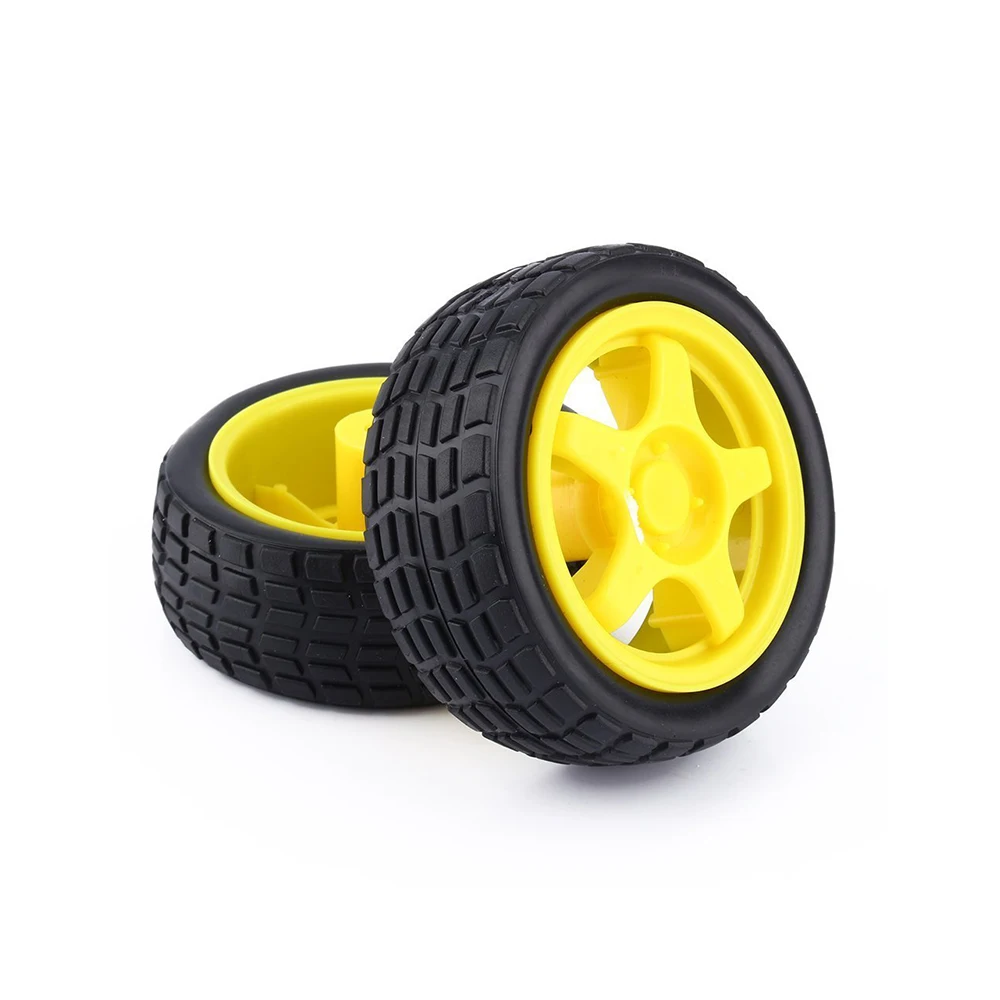

Yellow Wheel
Overall size: 69*26MM
Interface size: 5.3*3.3MM
Fixed Parts
Size: 23*15*5MM
Material: Aluminum
Color: Oxidizing color

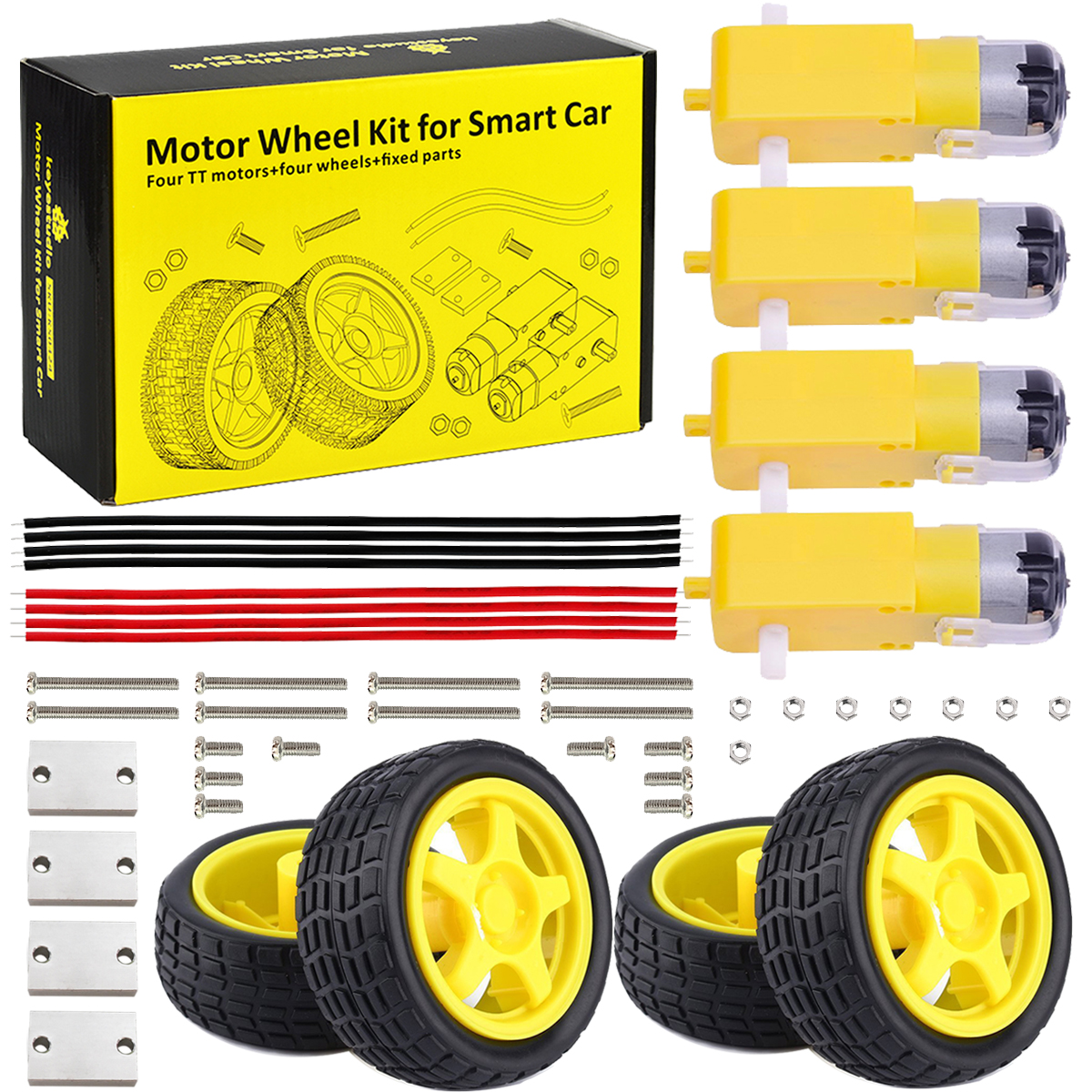

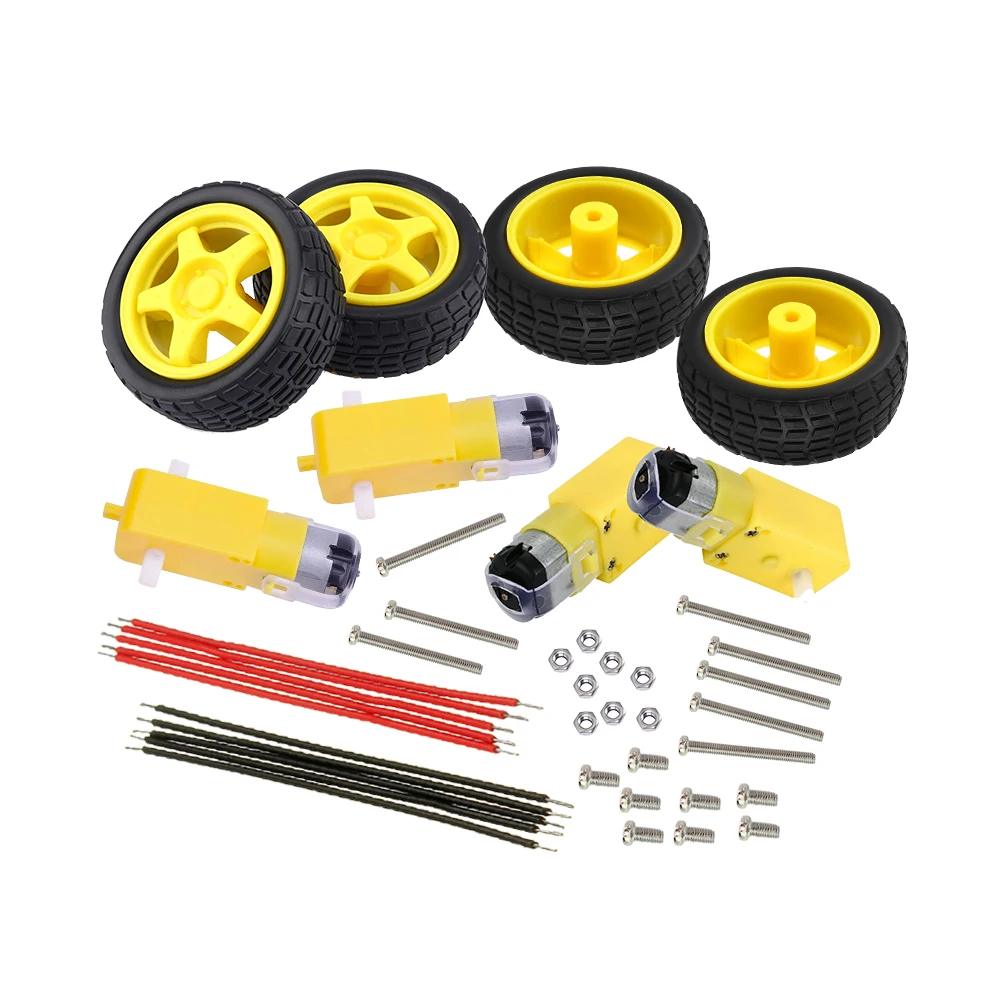

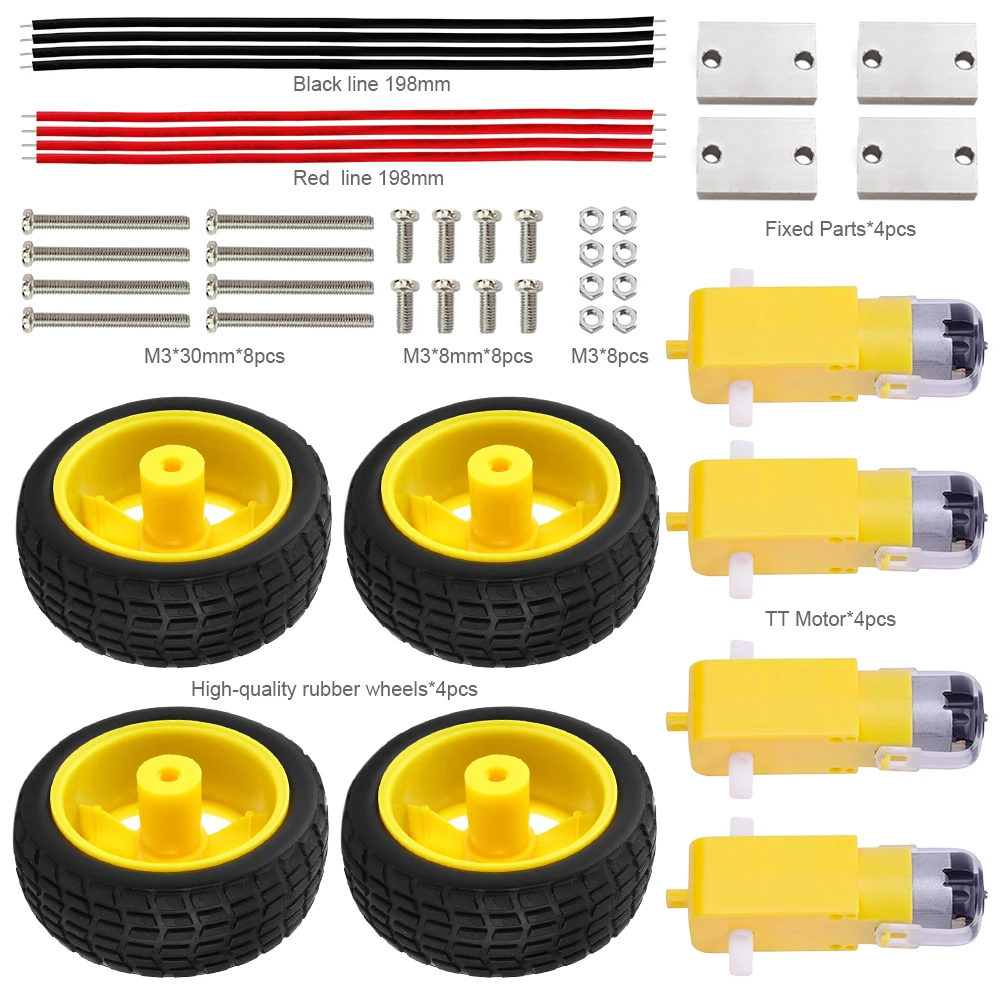

Packaging List:
DC gear motor * 4pcs
Yellow wheel * 4pcs
Fixed parts * 4pcs
M3 Nut * 8pcs
M3*8MM round-head screw * 8pcs
M3*30MM round-head screw * 8pcs
200mm black line *4pcs
200mm red line *4pcs
