The RGB color mode is a color standard in the industry, which is obtained by changing the three color channels of red (R), green (G), and blue (B) and superimposing them on each other. RGB represents three channels of red, green and blue. This standard includes almost all colors that human vision can perceive. It is one of the most widely used color systems.

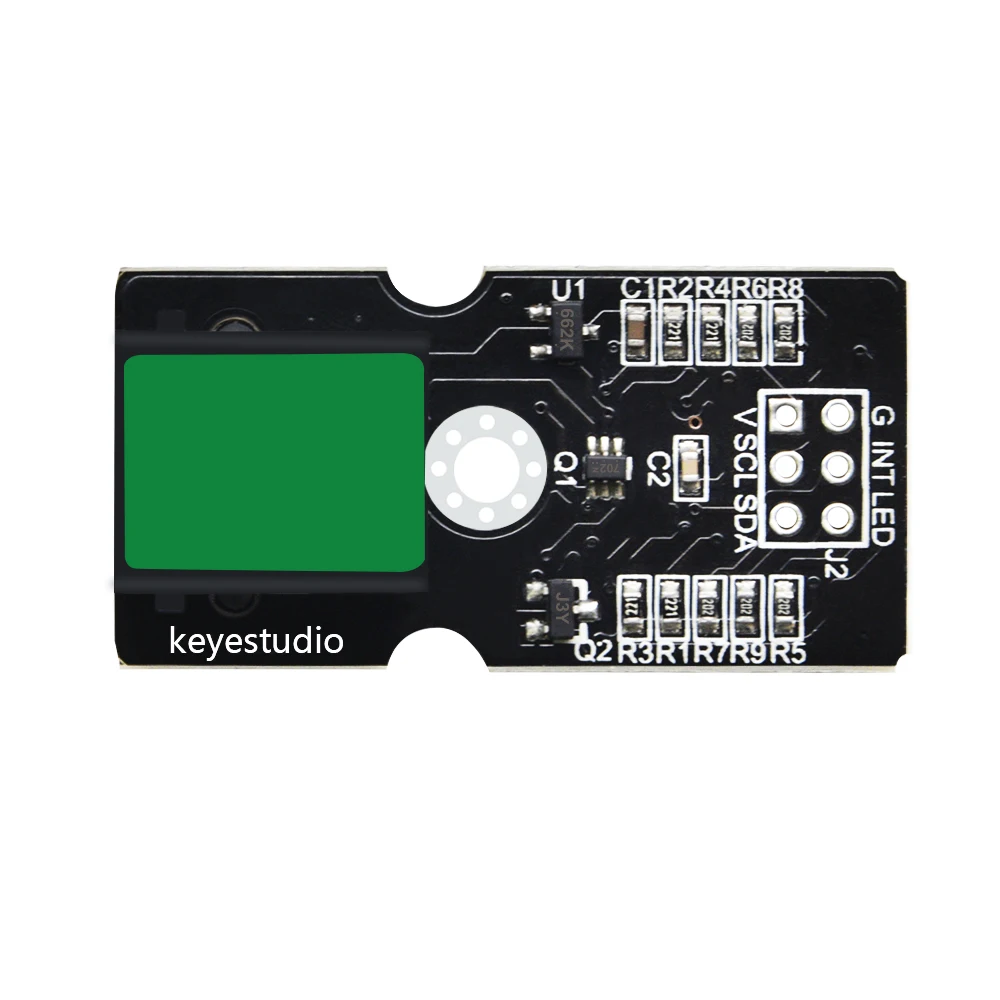

The Keyestudio TCS34725 color sensor is a low-cost, cost-effective RGB full-color color recognition sensor, it can recognize the surface color of an object through optical sensing. The sensor outputs corresponding RGB values help to restore the color by bright light.

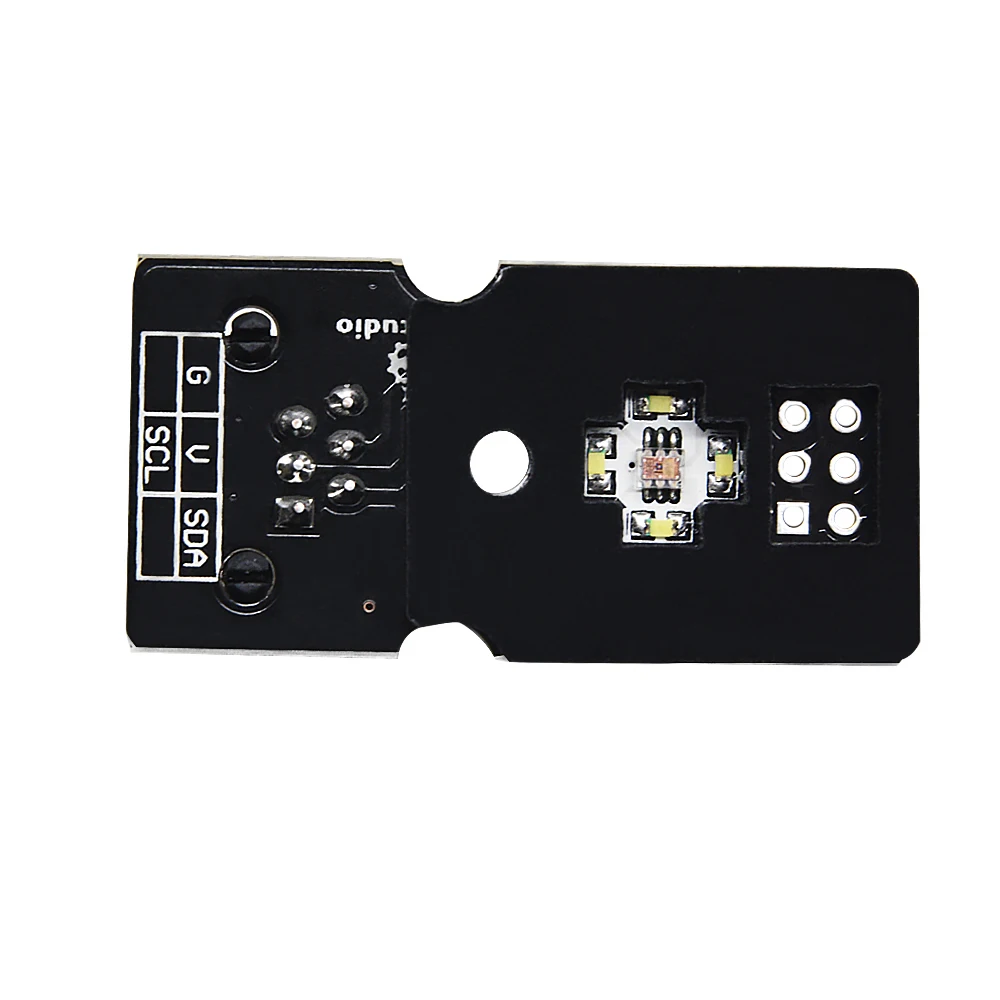

Moreover, to avoid the surroundings interference and increase the accuracy,we particularly add an infrared light shielding plate on the sensor’s bottom, so that infrared spectrum element of incident light is minimized to make color management more accurate. On the sensor bottom you can see 4 yellow highlight LEDs, which can ensure that the sensor can use normally under low ambient light, actually realizing the fill light function. The communication method of the sensor is I2C communication.

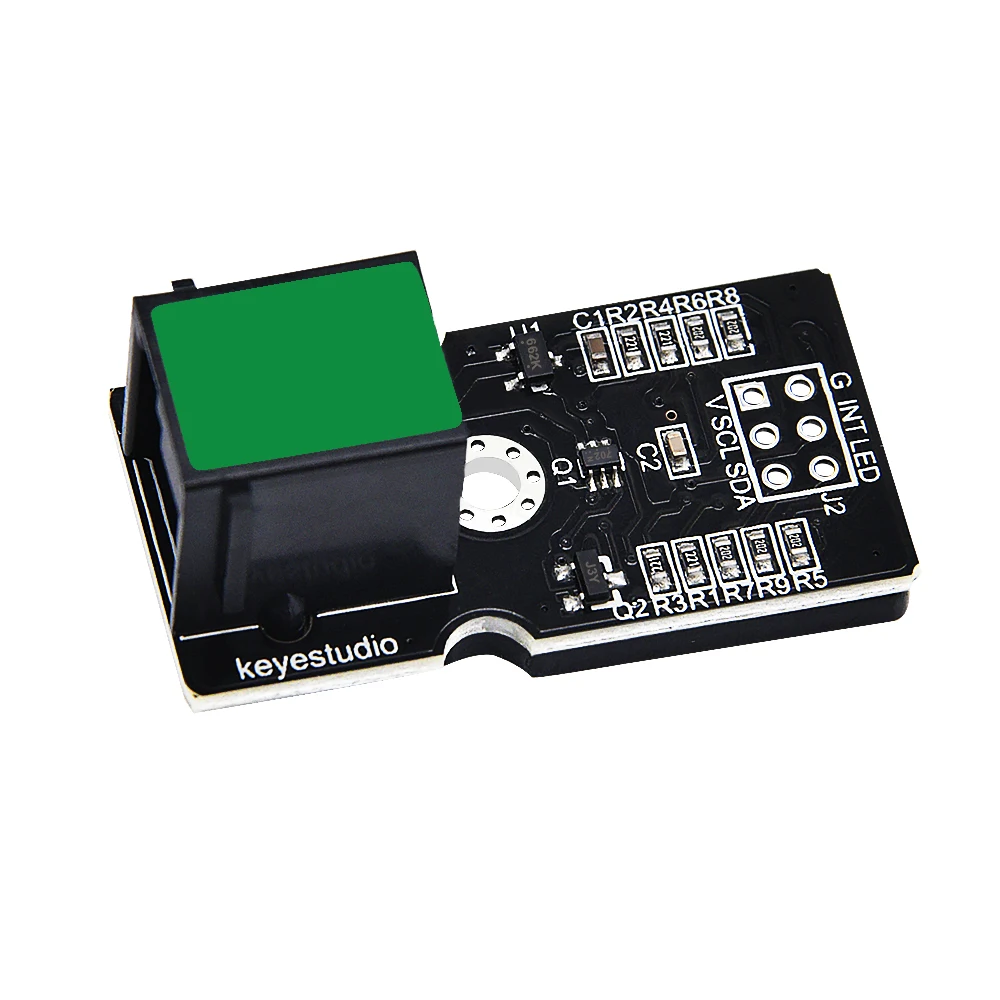

This module needs to be used with the EASY plug Control board V2.0 and control board (KS0240). When in use, you can use a special telephone line (RJ11 crystal head) to connect with the control board.
Specifications:
Working voltage: DC 3.3-5V
Working current: 65uA
Detection distance: 3-10mm
Clock frequency: 0-400KHZ
Interface: I2C interface and RJ11interface
Temperature range: -30 ° C ~ +70 ° C

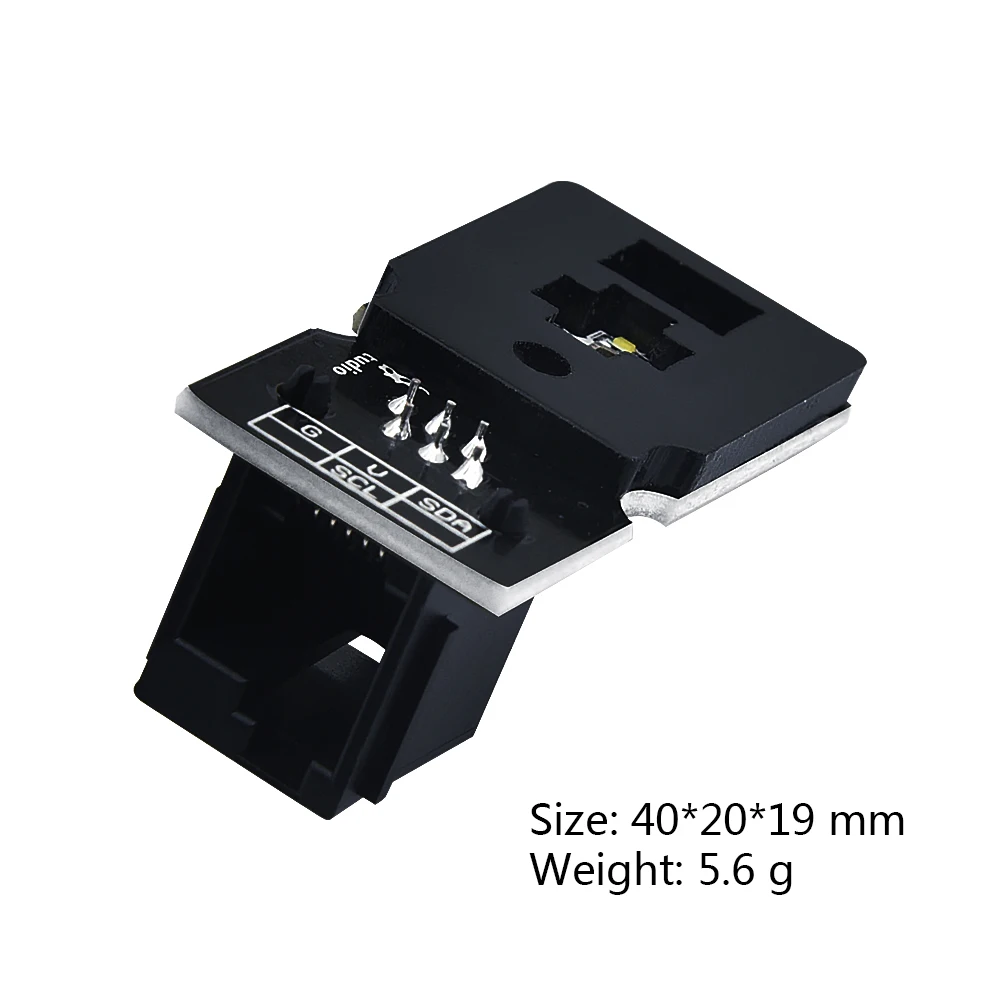

Size: 40*20*19mm
Weight: 5.6g
